KNEE INSTRUMENTS • surgical tools – other useful instruments

Click thumbnail image for details

Amstutz Angled Mirrors
Argintar Claw Drill Guide Wire/Suture Passer
Bacastow Tibial Plateau Elevators

Amstutz Angled Mirrors
Argintar Claw Drill Guide Wire/Suture Passer
NEW! Bacastow Tibial Plateau Elevators
Bradley Periosteal Elevators
Budny Wire Drill Guide
Charnley Type Tissue Needle Forceps
Cheng Biopsy Trephine System
Chuck Key Handle
Bradley PeriostealElevator
Budny Wire Drill Guide
Charnley Type Tissue Needle Forceps
Cheng Biopsy Trephine System
Chuck Key Handle
Cobb Elevators
Delrin Insert Pliers
Extended Double Action Pliers
Femoral Tibial Coated Spreader Bar
Femoral Trial Extraction Hook
Cobb Elevators
Delrin Insert Pliers
Extended Double Action Pliers
Femoral Tibial Coated Spreader Bar
Femoral Trial Extraction Hook
Flexible Ball Nose Reamer
Freeman Forceps
Goytia Osteotome Punch Tamp Assembly
Jones Mallet

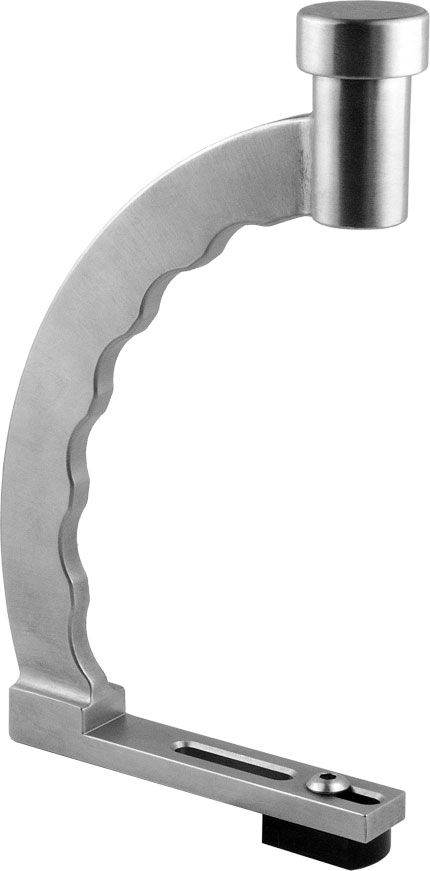

Kamath Uni Knee Tibial Impactor
NEW! Flexible Ball Nose Reamer
Freeman Forceps
NEW! Goytia Osteotome Punch Tamp Assembly
Jones Mallet
Kamath Uni Knee Tibial Impactor
Kodkani Tissue Elevator Suture/Graft Passer
Large Handle Chuck Key
Large T-Handle Fixed Drivers
Lombardi Tibia Cement Preparation Drill
Long Bonney Tissue Forceps
NEW! Kodkani Tissue Elevator Suture/Graft Passer
Large Handle Chuck Key
NEW! Large T-Handle Fixed Drivers
Lombardi Tibia Cement Preparation Drill
Long Bonney Tissue Forceps
Long Jaw Needle Nose Pliers
Malleable Bone Tamp
Malleable Bone Tamp – Extra Small

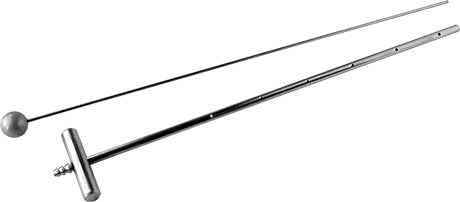

McMaster Medullary Canal Aspirator
Meftah PCL Protector
Long Jaw Needle Nose Pliers
Malleable Bone Tamp
Malleable Bone Tamp – Extra Small
McMaster Medullary Canal Aspirator
NEW! Meftah PCL Protector
Merchant Surgical Goniometer
Modular Weights
Nordt Precision Micro Fracture Set

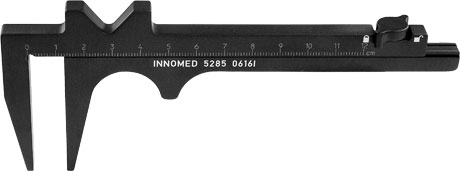

Ortho Caliper

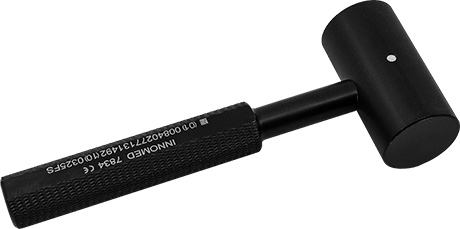

Ortho Mallets
Merchant Surgical Goniometer
Modular Weights
Nordt Precision Micro Fracture Set
Ortho Caliper
Ortho Mallets
Ortho Suction Tube
Orthopedic Needle Holder/Scissors

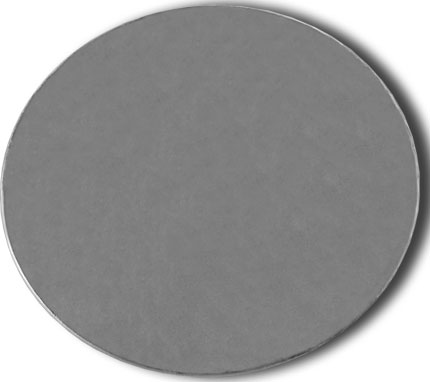

Patella Cover Plates
Patella Grasping Forceps
Paulos Self-Guided Screwdriver Set
Ortho Suction Tube
Orthopedic Needle Holder/Scissors
Patella Cover Plates
Patella Grasping Forceps
NEW! Paulos Self-Guided Screwdriver Set
Periosteal Elevator
Pin Driver and Threaded Bone Pins

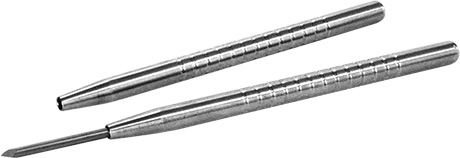

Pin Inserter
Pin Inserter/Extractor
Radiation Resistant Surgical Gloves
Periosteal Elevator
Pin Driver and Threaded Bone Pins
Pin Inserter
Pin Inserter/Extractor
Radiation Resistant Surgical Gloves

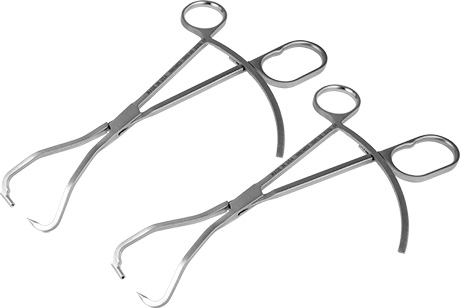

Redler Clamp with Wire Guide
Screw Extractor Set
Scott Patella Resection Guide/Clamp
Seachris Delrin Cement Scraper
Sidhu Tibia Clamp
Redler Clamp with Wire Guide
Screw Extractor Set
Scott Patella Resection Guide/Clamp
Seachris Delrin Cement Scraper
Sidhu Tibia Clamp
Soft Impact Mallets

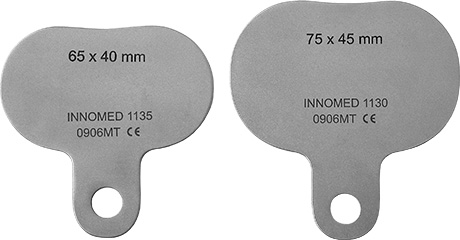

Sorrells Tibia Protector Plates

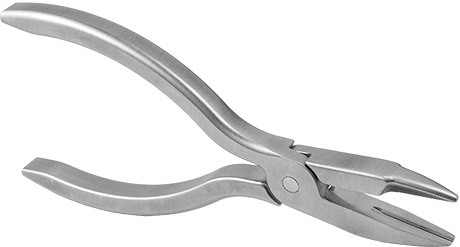

Stanton Straight Pin Removal Pliers
Star Bit Driver Set Tibia AccuAngle
Soft Impact Mallets
Sorrells Tibia Protector Plates
Stanton Straight Pin Removal Pliers
Star Bit Driver Set
Tibia AccuAngle

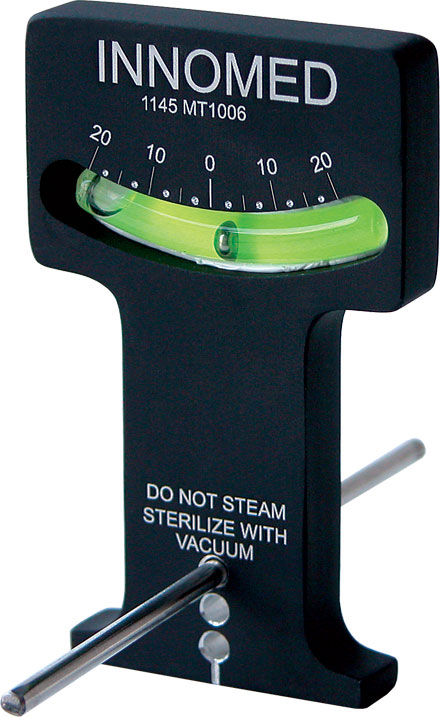

Tibia Alignment AccuAngle

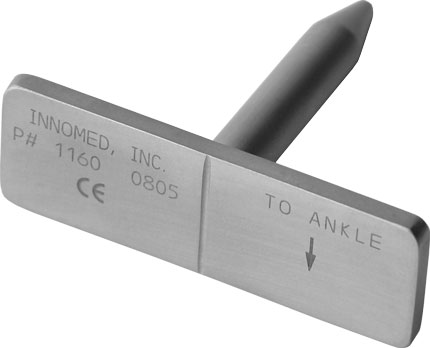

Trans-sulcus Angle Guide

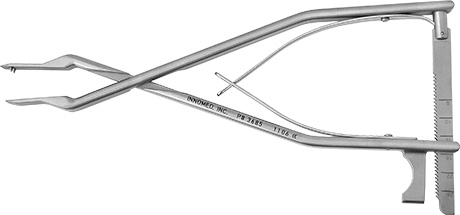

Universal Calibrated Tibia/Patella Clamp
Universal Multi-Nut Wrench Universal Screw Removal Instrument System
Tibia Alignment AccuAngle
Trans-sulcus Angle Guide
Universal Calibrated Tibia/Patella Clamp
Universal Multi-Nut Wrench
Universal Screw Removal Instrument System
Universal Screwdriver Set
Vosburg Periarticular Clamp
Wilson Condylar Gauge

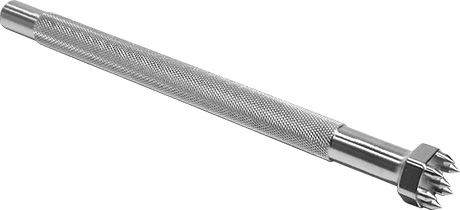

Wooley Tibia Punch
New Small Star Size! Universal Screwdriver Set
Vosburg Cannulated Periarticular Clamp
NEW! Wilson Condylar Gauge
Wooley Tibia Punch



Amstutz Angled Mirrors

Used for viewing hard-to-see areas around the knee

Designed by Harlan C. Amstutz, MD


Amstutz Angled Mirrors
Product No’s:
Overall Length: 8" • Handle Length: 6.25"
Mirror #1: 32x13mm • Mirror #2: 19x16mm
4860 [Left]
4861 [Right]
Download Product Brochure (PDF)

TOP





Argintar Claw Drill Guide Wire/Suture Passer

Expandable claw design allows for minimally invasive, reproducible one-step wire/suture passage

Designed by Evan Argintar MD


Argintar Claw Drill Guide Wire/Suture Passer

Especially helpful during quad/patella tendon repair surgery and other applications where a suture will be passed—particularly when soft tissue dissection is to be minimized, such as multi-ligament knee reconstruction (MCL/LCL), elbow reconstruction (ULCL/MCL), foot-ankle reconstruction (ATFL), and wrist reconstruction (DRUJ).

Product No's:

8315-00 [Set] — (1) Claw & (1) Wire/Suture Pin

Individual Parts:

8315-01 [Claw Unit]
Maximum Internal Opening: 2.5" (6,4cm)
Product Dimensions: 2.5" x 4" (6,4cm x 10,2cm)

1227 [3/32" (2mm) Pin with Wire/Suture Hole]
Overall Length: 6" (15,2cm)
Download Product Brochure (PDF)

TOP





Bacastow Tibial Plateau Elevators

Designed to help with indirect reduction of a depressed tibial plateau fracture, and can be used with arthropscopic visualization and percutaneous fixation

Designed by David Bacastow, MD


Bacastow Tibial Plateau Elevators







Bacastow Tibial Plateau Elevators


Product No's:

5297 [Starter Elevator]
Overall Length: 11" (27,9 cm)
Tamp Diameter: 4,7 mm

5298 [Finish Elevator]
Overall Length: 11" (27,9 cm)
Tamp Diameter: 10,4 mm
Download Product Brochure (PDF)

TOP





Bradley Periosteal Elevator

Designed by Gary W. Bradley, MD


Bradley Periosteal Elevator

Bradley Periosteal Elevator



Product No's:

4719 [1/2"]
Overall Length: 11" (27,9 cm)
Blade Width: .5" (13 mm)


4720 [3/4"]
Overall Length: 11" (27,9 cm)
Blade Width: .75" (19 mm)

Download Product Brochure (PDF)

TOP





Budny Wire Drill Guide

Designed to provide stability for the insertion of smooth and olive wires during the application of ring-based external fixation systems

Designed by Adam M. Budny, DPM


Budny Wire Drill Guide

1.

The 10cm long cannula helps to provide stability and directional control during wire insertion.

2.

Pistol grip allows ambidextrous use.

3.

Internal stainless steel cannula (2mm) can be completely exposed by opening the swinging latch-cover mechanism, allowing easy insertion/release of a wire.

Budny Wire Drill Guide
The entire unit is autoclavable.
Product No: 1188
Wire not included.
WATCH DEMO IN-USE VIDEO
Download Product Brochure (PDF)

TOP





Charnley Type Tissue Needle Forceps

Helpful for wound closure in deep areas with fascia under tension, the forceps can help retrieve a needle in a tight spot

Designed by Amal Das Jr., MD


Charnley Type Tissue Needle Forceps

Product No: 1165
Overall Length: 6.875"

TOP





Cheng Biopsy Trephine System

Using a threaded K-wire facilitates grasping and removal of a core bone sample for biopsy or core decompression

Designed by Edward Cheng, MD


Cheng Biopsy Trephine System

Cheng Biopsy Trephine System

Cheng Biopsy Trephine System Cheng Biopsy Trephine System Cheng Biopsy Trephine System

Cheng Biopsy Trephine System
Cheng Tips

Designed for use with a standard 1.6mm (.062") threaded K-wire (not included).

  • Allows use of trephine at oblique angles to bone surface by using an anchoring K-wire and cannulated trephine

  • Avoids “skipping” of trephine teeth on bone surface

  • Facilitates optimal approach angle and direction of trephine

  • Variety of core diameters yields bone samples of sufficient size for pathology

  • Adapters allow for use of a power drill

  • Minimally invasive — soft tissue sleeve protects surrounding structures and tissue

  • Can also be used for bone graft harvesting

  • Repositioning guide allows easy adjustment of targeting K-wire

Product No: 1425-00
Trephine Internal Diameters: 5mm, 6.5mm, 8mm
Download Product Brochure/Usage Guide (PDF)

TOP





Chuck Key Handle

Snaps onto a standard chuck key for better leverage



Chuck Key Handle

Designed to snap onto a standard chuck key giving better leverage during tightening of a chuck. It also helps keep a chuck key from slipping or being dropped during surgery.

Chuck Key Handle
Product No: 5560
Overall Length: 4"
Chuck key not included
Download Product Brochure (PDF)

TOP





Cobb Elevators





Cobb Elevators



Ultra hard titanium nitride coating helps to extend blade life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion.

Cobb Elevators


Product No's:

With Teeth:

3432 [1/2" with Teeth]
Overall Length: 11" (27,9 cm)
Blade Width: 1/2" (13 mm)


3434 [1" with Teeth]
Overall Length: 11" (27,9 cm)
Blade Width: 1" (25,4 mm)

Without Teeth:

3436 [1/2" without Teeth]
Overall Length: 11" (27,9 cm)
Blade Width: 1/2" (13 mm)


3438 [1" without Teeth]
Overall Length: 11" (27,9 cm)
Blade Width: 1" (25,4 mm)
Download Product Brochure (PDF)

TOP





Delrin Insert Pliers

Designed to grasp an implant for adjustment without marring the implant surface




Delrin Insert Pliers

Delrin Insert Pliers

Product No: 2025
Overall Length: 8"

Optional/Replacement Part:
2025-03 [Replacement Insert]
Includes top and bottom delrin jaws, two screws and a hex wrench
Download Product Brochure (PDF)

TOP

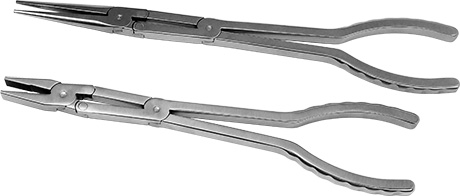

Extended Double Action Pliers



Extended Double Action Pliers

Extended Double Action Pliers

Product No’s:
3962 [Needle Nose]
Overall Length: 13"
Jaw Length: 2.625"
Jaw Width: 2.5mm

3961 [Blunt Nose]
Overall Length: 11.75"
Jaw Length: 1.25"
Jaw Width: 10mm
Download Product Brochure (PDF)

TOP

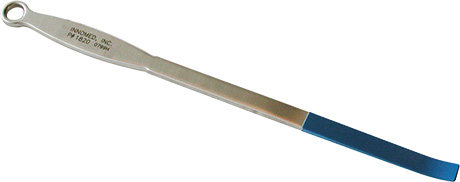

Femoral Tibial Coated Spreader Bar

Designed to separate the femur and tibia when implant components are in place



Femoral Tibial Coated Spreader Bar

Femoral Tibial Coated Spreader Bar

The end is coated to help protect from scratching component surfaces.

Product No: 1820
Overall Length: 13" • Coated Surface: 4"
Blade Width: 13mm
Download Product Brochure (PDF)

TOP





Femoral Trial Extraction Hook

Designed to help remove a trial femoral component during total knee arthroplasty



Femoral Trial Extraction Hook

Femoral Trial Extraction Hook

Femoral Trial Extraction Hook

Product No’s:
3635 [Set: Hook, Slap Hammer, Sterilization Case]
3635-01 [Hook Only]
Overall Length: 2.85"
Hook End: 5mm X 5mm

3040 [Slap Hammer]
Overall Length: 6.75" – 10" (extended)
1015 [Sterlization Case Only]
Download Product Brochure (PDF)

TOP





Flexible Ball Nose Reamer

Designed for safe and effective use in removing pedestal formation in the femoral and tibial canals

Designed by Stu Allen



Flexible Ball Nose Reamer


Recommended for use with a guide wire. Cannulated to allow guide wire use.



Flexible Ball Nose Reamer


Product No: 2628
Overall Length: 10" (25,4 cm)
Reamer Diameter: 7,5 mm
Download Product Brochure (PDF)

TOP





Freeman Forceps

Designed to help with hand pain, fatigue, and hand arthritis

Designed by Carl R. Freeman, MD



Freeman Forceps

Freeman Forceps
Freeman Forceps

Allows surgeons to utilize a forceps or pickup type instrument using a more mechanically and ergonomically favorable grip. Forceps can be used with a full-hand grip or “palmed.”

Freeman Forceps
Product No: 1174
Overall Length: 6.875"
Download Product Brochure (PDF)

TOP





Goldstein Suture Cutter

Allows for the use of a replaceable standard #10 scalpel blade, ensuring a precise cut and reducing the risk of tearing a suture, suture material, or surrounding tissue

Designed by Wayne M. Goldstein, MD


Goldstein Suture Cutter

1.

Cutting blade is easily replaceable, ensuring a sharp, precise cut every time.

2.

Suture hook is used to grasp the suture and slightly pull it away, applying the proper tension for a clean, precise cut.

3.

Push button is depressed with the thumb to engage the forward cutting action.

4.

Pistol grip handle allows comfortable, one-handed use.

5.

Uses standard #10 scalpel blade (not included).

6.

Spring clamp holds the cutting rail down, and can be moved aside, allowing the cutting rail to be rotated upward to facilitate a quick blade change.

The entire unit is autoclavable.
Product No: 5159
Overall length: 8.25"
Shaft Length: 4.25"
WATCH SURGICAL IN-USE VIDEO
Download Product Brochure (PDF)

TOP

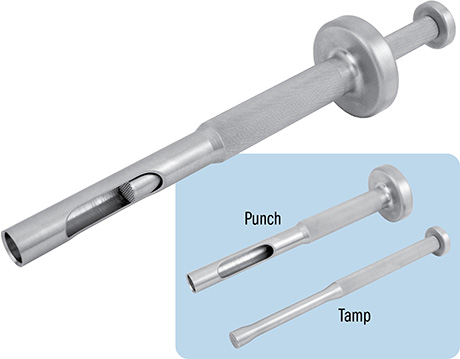

Goytia Osteotome Punch Tamp Assembly

Designed for removing a tibial bone plug to use as autograft for the femoral intramedullary alignment hole in total knee replacement

Designed by Robin Goytia, MD



Goytia Osteotome Punch Tamp Assembly

Goytia Osteotome Punch Tamp Assembly
Goytia Osteotome Punch Tamp Assembly

Product No’s:

5339-00 [Punch & Tamp Set]

Set Includes / Available Individually:

5339-01 [Osteotome Punch]
Overall Length: 7.75" (19,7 cm)
Outside Diameter: 16 mm
Inside Diameter: 13.7 mm


5339-02 [Tamp]
Overall Length: 7.75" (19,7 cm)
Diameter: 12.3 mm
Download Product Brochure (PDF)

TOP





Jones Mallet

Unique hand fitting shape provides superior gripping strength

Designed by Dickie Jones, MD


Jones Mallet

This striking instrument has a unique hand fitting shape that provides superior gripping strength for accurate light to heavy impaction.

Product No: 7825 [2.4 lbs]
Overall Length: 8.25"
Head Size: 3" Wide x 1.5" Diameter
Download Product Brochure (PDF)

TOP




Kamath Uni Knee Tibial Impactor

Assists in MIS unicompartmental cemented tibial tray impaction

Design modified by Atul F. Kamath, MD


Kamath Uni Knee Tibial Impactor
Kamath Uni Knee Tibial Impactor

Kamath Uni Knee Tibial Impactor

Product No: 1129
Dimensions: 7" x 4" (17,8 cm x 10,2 cm)
Delrin Impactor Pad: 1" x .625" (2,5 cm x 1,6 cm)


Replacement Part:
1129-01 [Replacement Pad Only]
Download Product Brochure (PDF)

TOP





Kodkani Tissue Elevator Suture/Graft Passer

Designed for MPFL reconstruction basket weave technique, and helpful for mini-open ligament reconstruction surgeries for graft passage

Designed by Pranjal Kodkani, MD


Kodkani Tissue Elevator Suture/Graft PasserKodkani Tissue Elevator Suture/Graft Passer

Kodkani Tissue Elevator Suture/Graft Passer

Can also be used for:

Periosteum/soft tissue elevator or freer

Percutaneous passage of tendon/ligament graft/suture

Stripping tendon grafts off muscle

General orthopedics – periosteum elevator and spike

Product No: 1114
Overall Length: 9.75" (24,8 cm)
Handle Length: 4.25" (10,8 cm)
Suture Hole: 2,5 mm x 13 mm
Download Product Brochure (PDF)

TOP





Large Handle Chuck Key

For easy tightening/untightening of a chuck



Large Handle Chuck Key

Large Handle Chuck Key

Designed to allow a chuck to be tightened and untightened easily.

Product No: 5517-01
Chuck Size: 1/4"
Overall Length: 10.5" • Handle Length: 4.5"
Download Product Brochure (PDF)

TOP





Large T-Handle Fixed Drivers

Large easy grip soft silicone handled drivers help provide a sturdy non-slip grip





Large T-Handle Fixed Drivers

Large T-Handle Fixed Drivers


Product No's:

8248 [Zimmer Hall Coupling Fixed Driver]
Overall Length: 5.75" (15,6 cm)
Handle Width: 4.625" (11,6 cm)


8249 [Hudson Coupling Fixed Driver]
Overall Length: 5.75" (15,6 cm)
Handle Width: 4.625" (11,6 cm)
Download Product Brochure (PDF)

TOP





Lombardi Tibia Cement Preparation Drill

Designed to drill cancellous bone to help improve bone/cement interface

Designed by Adolph Lombardi, MD


Lombardi Tibia Cement Preparation Drill
Lombardi Tibia Cement Preparation Drill

Lombardi Tibia Cement Preparation Drill

Designed to drill cancellous bone in the subchondral weight bearing region of the tibia. This helps to improve the mechanical interlock in the cancellous bone/cement interface.

Product No: 1112
Drill Diameter: 2.7mm
Drill Length: 3mm
Overall Length: 4.75"
Download Product Brochure (PDF)

TOP





Long Bonney Tissue Forceps

Extra length—3" more than standard—allows for use in deep wound areas





Long Bonney Tissue Forceps

Long Bonney Tissue Forceps



Product No: 5040
Overall Length: 10"
Download Product Brochure (PDF)

TOP





Long Jaw Needle Nose Pliers




Long Jaw Needle Nose Pliers

Long Jaw Needle Nose Pliers

Product No: 1833
Overall Length: 7"
Jaw Length: 2.25"
Jaw Width Tapered from: 8mm to 1.5mm
Jaw Heigth Tapered from: 12mm to 2.5mm
Download Product Brochure (PDF)

TOP





Malleable Bone Tamps

The large tamp is designed to help elevate a depressed tibial plateau fracture, while the small tamp can help elevate a depressed tibial plafond and smaller tibial plateau fractures

Modified by Serge Kaska, MD


Malleable Bone Tamps

Malleable shaft can be contoured for different angles.

Malleable Bone Tamps
Malleable Bone Tamps

Product No's:

5296 [Large]
Overall Length: 14" (35,6cm)
Shaft Length: 9.5" (24,1cm)
Impactor Diameter: 12.5mm
5296-01
Overall Length: 9.5"
Shaft Length: 6"
Impactor Diameter: 10mm
Download Product Brochure (PDF)

TOP





Malleable Bone Tamp — Extra Small

Designed to help impact bone

Modified by Serge Kaska, MD & Amal Das, MD


Malleable Bone Tamp – Extra Small

Malleable Bone Tamps


Product No: 5296-02 [Extra Small]
Overall Length: 11.4" (29cm)
Shaft Length: 5.9" (15cm)
Impactor Diameter: 6.5mm
Download Product Brochure (PDF)

TOP





McMaster Medullary Canal Aspirator

Designed to aspirate the medullary canal prior to insertion of the solid instrumentation alignment rod to decrease the amount of semi-liquid material present

Designed by William McMaster, MD


McMaster Medullary Canal Aspirator

McMaster Medullary Canal Aspirator

McMaster Medullary Canal Aspirator

Helps evacuate excess fat and marrow content from the medullary canal of a long bone, helping to reduce the pressure and force created during insertion of a metal rod into the canal, which can possibly cause such materials to be emobilized into the circuclation system (and eventually into the lungs) through open venous structures.
The guide wire serves a dual purpose: To help break up the medullary bone in the proximal metaphysis to facilitate the passage of the fenestrated rod, and after the procedure to assist in cleaning and clearing the cannulated portion of the rod.
Also can be used on the tibial side if an intramedullary guide system is used. Can also be used during femoral rodding procedures for fractures.

Product No: 8075
Download Product Brochure (PDF)

TOP





Meftah PCL Protector

Designed to help protect the posterior cruciate ligament in cruciate retaining total knee surgery during the proximal tibial cut

Designed by Morteza Meftah, MD


Meftah PCL Protector


The PCL Protector can be used efficiently right before the tibial cut. It is curved distally so that it can put over the PCL from the top/posterior side and with a few taps, the fanned blade can get around the PCL and into the bone (not more than 5 mm) and "cover" the PCL. The protector is left in place until the tibial cut is made with a saw, which would hit the protector instead of the PCL if it gets too close.

Product No: 3221
Overall Length: 8" (20,3 cm)
Download Product Brochure (PDF)

TOP





Merchant Surgical Goniometer

Designed to help assess frontal plane limb alignment or measure the Q angle

Modified by Al Merchant, MD


Malleable Bone Tamp

Malleable Bone Tamp

The extended length can reach from the center of the knee to the femoral head or the anterior superior iliac spine. The collapsible stainless steel device is autoclavable.

Product No: 2029
Overall Length:
41" Fully Extended       
22.5" Folded in Half       
12" Fully Collapsed
Download Product Brochure (PDF)

TOP





Modular Weights

Help to free assisting personnel



Modular Weights

Designed to hook onto a retractor handle which helps the retractor stay in place by the weights attached rather than being held. The desired weight can be adjusted by attaching additional weights to the primary weight which has the attaching hook.

Modular Weights

Product No’s:
3430-01 • 1.5 lbs.
3430-02 • 2.0 lbs.
3430-03 • 2.5 lbs. with attaching hook

VIEW SURGICAL VIDEO

Download Product Brochure (PDF)

TOP





Nordt Precision Micro Fracture Set

Designed by William E. Nordt, III, MD


Nordt Precision Micro Fracture Set

Ultra hard titanium nitride coating helps to extend life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion

Helps create sharp cartilage shoulders.
Precise microfracture points.

Nordt Precision Micro Fracture Set

8025-00 [Complete Set]

Also available individually:

8025-01 [20° Bent Awl]
Overall Length: 10"

8025-02 [40° Bent Awl]
Overall Length: 10"

8025-03 [Angled Osteotome]
Overall Length: 10.875"

8025-04 [Bent Stirrup Scraper]
Overall Length: 10.125"

8025-05 [Tri-Tip Awl]
Overall Length: 10"
Download Product Brochure (PDF)

TOP





Ortho Caliper

Designed by Odell Woods


Ortho Caliper
Product No: 5285
Caliper: 0 to 12cm
Leg Depth: 2" (5,1 cm)
Overall Length: 6" (15,2 cm), expands to 10.5" (26,7 cm)
Width: 8mm
Download Product Brochure (PDF)

TOP





Ortho Mallets with Easy Grip Handles

Designed to exert force on osteotomes, chisels, gouges and other instruments

Cloward-style designed by J. Stiehl, MD


Ortho Mallets

These solid stainless steel mallets
each have a comfortable 4-1/2" grip
made of a textured silicone that helps
prevent the surgeon’s gloved hand from
slipping and helps maintain a solid grip.

Short

Product No: 7810
8" length • 1 lb. weight
1-5/16" head diameter

Heavy Short

Product No: 7815
8" length • 1.75 lbs. weight
1-1/2" head diameter
Download Product Brochure (PDF)

TOP





Ortho Suction Tube

Very effective for suction and minor retracting

Designed by T. Eickmann, MD


Ortho Suction Tube

Helps eliminate plugging due to bone, cement fragments, blood clots, etc.Ortho Suction Tube

Product No: 5465
Overall Length: 9.25" (8.25" from Knurl)
End Hole Dia.: 1mm
Side Hole Dia.: 1.5mm
Download Product Brochure (PDF)

TOP





Orthopedic Needle Holder/Scissors

Drive a needle and cut a suture without changing instruments



Orthopedic Needle Holder/Scissors
Orthopedic Needle Holder/Scissors Orthopedic Needle Holder/Scissors

Orthopedic Needle Holder/Scissors

Designed to drive a needle and cut a suture without changing instruments. Longer sizes are helpful in orthopedics.

Orthopedic Needle Holder/Scissors

Product No's:
3045 [4.5" with Tungsten Carbide Tips]
3050 [5.5" Standard]
3055 [5.5" with Tungsten Carbide Tips]
3060 [6.5" Standard]
3065 [6.5" with Tungsten Carbide Tips]
3070 [7.0" Standard]
3075 [7.0" with Tungsten Carbide Tips]
Download Product Brochure (PDF)

TOP





Patella Cover Plates

Plate protects the cut surface of the patella during minimally invasive knee surgery

Designed by S. David Stulberg, MD


Patella Cover Plates Patella Cover Plates Patella Cover Plates
Patella Cover Plates

Universal plates have sharp spikes to help hold them in place. Lessens the chance of weakening the patella, as pre-drilling is not necessary.

Four sizes available.

Patella Cover Plates

Product No’s:
4230-00 [Set of 4 Sizes]
4230-01 [Small – 35mm x 31mm]
4230-02 [Medium – 36mm x 32mm]
4230-03 [Large – 37mm x 33mm]
4230-04 [Extra Large – 38mm x 34mm]
WATCH SURGICAL IN-USE VIDEO
Download Product Brochure (PDF)

TOP





Patella Grasping Forceps

Bent handle on forcep helps the surgeon to evert the patella during minimally invasive knee surgery

Designed by S. David Stulberg, MD


Patella Grasping Forceps

Patella Grasping Forceps

Normally two forceps are used.
Sold individually.

Product No: 4250
Overall Length: 6.75"

VIEW SURGICAL VIDEO

Download Product Brochure (PDF)

TOP





Paulos Self-Guided Screwdriver Set

Designed to help when inserting and removing cannulated interference screws for bone and soft tissue fixation in tunnels

Designed by P. Leon Paulos, MD


Paulos Self-Guided Screwdriver SetPaulos Self-Guided Screwdriver SetPaulos Self-Guided Screwdriver Set

Helps avoid the need to pass a guide wire through the tunnel and out the soft tissues beyond the tunnel, reducing the possibility of damaging other structures or puncturing the surgeons gloves.

Utilizes a shorter and more rigid guide wire which allows the surgeon to accurately place the screw within the tunnel, and allows the screw to be inserted by pushing and twisting at the same time.

Drivers available in both Tri Lobe and Hex styles.

Guide pins are for single use only.



Product No's:

8239-00 [Complete Set]
Includes: (1) Screwdriver Handle, (1) Tri-Lobe Driver,
(1) Hex Driver, (2) Guide Pins, and (1) Sterilization Case




Set Includes / Also Available Individually:

8239-H [Screwdriver Handle]
 Overall Length: 5.25" (13,3 cm)

8239-01 [Tri Lobe Driver]
 Overall Length: 6.75" (17,1 cm)
 Overall Length with Pin In Handle: 11.5" (29,2 cm)
 Cannulated Hole Diameter for Guide Pin: .062" (1,6 mm)


8239-02 [Hex Driver]
 Overall Length: 5.5" (14 cm)
 Overall Length with Pin In Handle: 11" (27,9 cm)
 Cannulated Hole Diameter for Guide Pin: .062" (1,6 mm)


8239-GP [Guide Pin]
 (One with this product number, two included in set)
 Overall Length: 7.5" (18,7 cm)
 Guide Pin Diameter: .054" (1,3 mm)


1015 [Sterilization Case]


For use under U.S. Patent 8,814,935.
Download Product Brochure (PDF)

TOP





Periosteal Elevator

Designed for better control



Periosteal Elevator

Designed with a curved end for easier use, and sharper sides for ease of elevating and stripping. The handle is designed for better control.

Product No’s:
3450 [Curved]
Overall Length: 7.5" • Handle Length: 4.5"
Blade Size: 16x13mm

3455 [Straight]
Overall Length: 7.75" • Handle Length: 4.5"
Blade Size: 19x14mm
Download Product Brochure (PDF)

TOP





Pin Driver and Threaded Bone Pins



Pin Driver and Threaded Bone Pins
Product No’s:
1205 [Pin Driver]
Overall Length: 3.75"

1206 [Pin Driver w/Quick-connect End]
Overall Length: 5"

1287 [85mm Threaded Pin–Pkg of 10]

1290 [65mm Threaded Pin–Pkg of 10]

1297 [55mm Threaded Pin with Collar–Pkg of 10]

Pin Driver and Threaded Bone Pins

VIEW SURGICAL VIDEO

Download Product Brochure (PDF)

TOP





Pin Inserter

Used for 1/8" diameter pin insertion



Pin Inserter

Designed to hold onto a 1/8" (3.2mm) diameter pin while it is being inserted into a cutting block during total knee surgery or other applications where a 1/8" diameter pin is used. The pin inserter holds the pin tightly, yet releases it easily after insertion. It may be used with round or triangular end pins.

Product No: 4020
Overall Length: 5"

Pin Inserter

VIEW SURGICAL VIDEO
Download Product Brochure (PDF)

TOP





Pin Inserter/Extractor

Helps provide better leverage, stability and control when inserting/extracting pins



Pin Inserter/Extractor
Pin Inserter/Extractor
Pin Inserter/Extractor

The Pin Inserter/Extractor is completely cannulated. When used on long pins the instrument can be next to the bone or skin for stability and control. The grasping end is contoured to not block the surgeon's field of view. The handle is shaped so not to slide in the surgeon's hand and for better leverage. May also be used to pull a drain needle from the surgical site. The design helps to protect operating personnel from the sharp tip of the needle.

The Pin Inserter slap hammer is designed to be screwed into a threaded pin inserter/extractor to help in removing pins in hard bone.

Product No's:
3020 [for 1/8" (3.2mm) pins]
3020-T [for 1/8" (3.2mm) pins, threaded to accept slap hammer]
3020-T-00 [Pin Insterter/Extractor with Slap Hammer and Sterilization Case]
3030 [for 3/16" (4.8mm) pins]
3040 [Slap Hammer] Thread: 5/16" x 18
1015 [Sterlization Case]
VIEW SURGICAL VIDEO
Download Product Brochure (PDF)

TOP





Radiation Attenuating Surgical Gloves

Suitable for reducing harmful radiation exposure during any procedure
requiring the use of fluoroscopy



Radiation Attenuating Surgical Gloves


Product No's:
7505
7505-01
7505-02

Size 6.5

[1 Pair]
[5 Pairs/Pack]
[25 Pairs/Pack]

7510
7510-01
7510-02

Size 7.0

[1 Pair]
[5 Pairs/Pack]
[25 Pairs/Pack]

7515
7515-01
7515-02

Size 7.5

[1 Pair]
[5 Pairs/Pack]
[25 Pairs/Pack]


7520
7520-01
7520-02

Size 8.0

[1 Pair]
[5 Pairs/Pack]
[25 Pairs/Pack]

7525
7525-01
7525-02

Size 8.5

[1 Pair]
[5 Pairs/Pack]
[25 Pairs/Pack]

7530
7530-01
7530-02

Size 9.0

[1 Pair]
[5 Pairs/Pack]
[25 Pairs/Pack]

Reduced Exposure

Lead-free, surgical gloves attenuate direct or scattered rays and are an environmentally friendly alternative to leaded gloves.


Freedom of Movement

Gloves are very thin—ONLY 0.007" THICK—to allow the greatest possible flexibility, dexterity, and sensitivity of touch while decreasing finger fatigue.


Natural Latex Free & Powder-Free

Reduced risk of natural rubber latex allergies.


Quality Guaranteed

All gloves are 100% tested for pin holes and leaks.


Applications

Fluoroscopy, Orthopedics, Radioisotope Handling, Cardiology, Radiology, Dental, Nuclear Medicine

Download Product Brochure (PDF)

TOP





Redler Clamp with Wire Guide

Helps with placement of guide wires during the open reduction and internal fixation of a patella fracture

Designed by M.R. Redler, MD




Redler Wrist Bone Clamp with Wire Guide

Redler Wrist Bone Clamp with Wire Guide

Can be used for:

Wrist Fractures

Placement of pins across distal radius fractures or across carpal bones

Arthroscopically assisted fixation in the wrist

Fracture fragments about the elbow

Available for use with
.045 (1.1mm) or
.062 (1.6mm) K-wires.

Redler Wrist Bone Clamp with Wire Guide

Product No’s:
1885-45
For Pins up to .045" (1,1 mm)
Overall Length: 9.5" (24,1 cm)
Jaw opens to: 3.5" (8,9 cm)

1885-62
For Pins up to .062" (1,6 mm)
Overall Length: 9.5" (24,1 cm)
Jaw opens to: 3.5" (8,9 cm)
Download Product Brochure (PDF)

TOP





Scott Patella Resection Guide/Clamp

Helps move the tendons anteriorly, giving the surgeon a good method of holding the patella stable for resection

Designed by James Scott, MD


Scott Patella Resection Guide/Clamp
Scott Patella Resection Guide/Clamp
Scott Patella Resection Guide/Clamp

Can be used as a holding device, or as a guide if the surgeon uses the tendon insertion to the patella as level for resection.

Product No: 1164
Overall Length: 10"
Download Product Brochure (PDF)

TOP





Seachris Delrin Cement Scraper

Reusable delrin scraper is designed to help remove cement around a knee or hip prosthesis

Designed by Timothy Seachris



Seachris Delrin Cement Scraper

Seachris Delrin Cement Scraper

Product No: 5218
Overall Length: 5"
Thickness: 1/8" (3.1mm)
Download Product Brochure (PDF)

TOP





Screw Extractor Set

Designed to help remove screws with stripped or damaged heads



Screw Extractor Set

Screw Extractor Set

  • Extractors must be used with drill in reverse.
  • Screw head is reamed with burnishing end, and is then removed with the left turn thread end.
  • Care must be taken to burnish no more than 1/16" (1.5 mm) deep, as burnishing too deep can weaken the screw head.

Product No’s:
7250-00 [Set with Case]

7250-01 [2.5 mm Screw Extractor]
Overall Length: 6"

7250-02 [3.5 mm Screw Extractor]
Overall Length: 6"

7250-03 [6.5 mm Screw Extractor]
Overall Length: 6"
Download Product Brochure (PDF)

TOP





Sidhu Tibia Clamp

Designed to be used to securely grasp and remove an entire tibial wedge

Designed by Kuldeep Sidhu, MD


Sidhu Tibia Clamp

The tapered lower pad slides under the cut tibial wedge without first having to use wedges, then, clamping allows the spikes in the upper pad to securely grasp the entire tibial wedge for easy removal.

Sidhu Tibia Clamp

Product No: 3643
Overall Length: 10.25"
Pads: 60mm x 30mm
Spike Length: 7.5mm
Download Product Brochure (PDF)

TOP





Soft Impact Mallets with Easy Grip Handles

Provides shock absorbing force



Soft Impact Mallets with Easy Grip Handles

Designed to have a shock-absorbing force, providing less bounce or wasted force. The Mallet is filled with a shock-absorbing media and has a flat striking surface to keep the Mallet centered on an instrument. The comfortable Easy Grip Handle is made of a textured silicone that helps prevent the surgeon’s gloved hand from slipping and helps maintain a solid grip. The bottom can also be used to tap an implant in place.

Soft Impact Mallets

Product No’s.:
7820 • 2 lbs. (.907 kg) with easy grip handle
7832 • 2 lbs. (.907 kg) w/ delrin end and easy grip handle
7837 • 3 lbs. (1,36 kg) with easy grip handle
2 lbs. Hammers
Overall Length: 10.5" (26,7cm)
Handle Length: 5" (12,7cm)
Head Width: 3.5" (8,9cm)
Head Diameter: 1.375" (3,5cm)
3 lbs. Hammers
Overall Length: 11" (27,9cm)
Handle Length: 5" (12,7cm)
Head Width: 3.5" (8,9cm)
Head Diameter: 1.875" (4,8cm)



Soft Impact Mallet with Weidman Silicone Handle

Handle designed by Kevin Weidman, MD


Soft Impact Mallets with Easy Grip Handles
Product No: 7821 [2 lbs. (.907 kg)]
Overall Length: 10.625" (27cm)
Grip Length: 5.5" (14cm)
Head Width: 3.5" (8,9cm)
Head Diameter: 1.375" (3,5cm)
Download Product Brochure (PDF)

TOP





Sorrells Tibia Protector Plates

Designed to protect the resected tibial surface

Designed by R. Barry Sorrells, MD


Sorrells Tibia Protector Plates
Sorrells Tibia Protector Plates
Product No’s:
1130 [Large] 75 x 45mm
1135 [Small ] 65 x 40mm
Download Product Brochure (PDF)

TOP





Stanton Straight Pin Removal Pliers

Designed by John Stanton, MD


Stanton Straight Pin Removal Pliers

Stanton Straight Pin Removal Pliers

Product No: 1893
Overall Length: 6.375" (16,2cm)
Jaw Length: 1.62 (4,1 cm)
Instrument Width: 1 cm
Download Product Brochure (PDF)

TOP





Star Bit Driver Set






Star Bit Driver Set

Star Bit Driver Set

Set consists of four star bits — T10, T15, T20, & T25, a handle which accommodates any of the above bits, and a sterilization case. The drive end (A/O) is designed for easy and quick engagement with the universal instrument handle. The ergonomic, modular handle has two connection points, allowing for both straight and T-handle orientations.



Product No's:

5194-00 [4 Star Bits w/Handle & Case]

5194-01 [4 Star Bits w/Case only]

Also sold individually:

S0113 [Universal 4" Handle]

5194-10 [T10 with A/O End]

5194-15 [T15 with A/O End]

5194-20 [T20 with A/O End]

5194-25 [T25 with A/O End]

9003 [Case]
Download Product Brochure (PDF)

TOP





Tibia AccuAngle

Designed to be placed on the cutting block to check if the cut is level



Tibia AccuAngle
Two magnets in the base help to hold the
AccuAngle in place upon a cutting block
Tibia AccuAngle & Tibia Alignment AccuAngle
Product No: 1145
Dimensions: 3" x 2"
Download Product Brochure (PDF)

TOP





Tibia Alignment AccuAngle

Designed to clamp onto the tibia alignment bar



Tibia Alignment Gauge
Tibia Alignment Gauge
Tibia Alignment Gauge
Product No: 1140
Dimensions: 2" x 1"
Download Product Brochure (PDF)

TOP





Trans-sulcus Angle Guide

Helps establish the trans-sulcus line



Trans-sulcus Angle Guide

A line is drawn down the deepest part of the trochlear sulcus (Whiteside line) with a marking pen or cautery. The post on the guide is inserted into the hole in the femur made for an intra-medullary alignment guide. The trans-sulcus angle guide is then rotated until the line on the guide lines up with the Whiteside line. A line is then drawn along the bottom of the guide.

A line is drawn down the deepest part of the trochlear sulcus (Whiteside line) with a marking pen or cautery. The post on the guide is inserted into the hole in the femur made for an intra-medullary alignment guide. The trans-sulcus angle guide is then rotated until the line on the guide lines up with the Whiteside line. A line is then drawn along the bottom of the guide.

Trans-sulcus Angle Guide

Product No: 1160
Dimensions: 2.25" x .75"
Download Product Brochure (PDF)

TOP





Universal Calibrated Tibia/Patella Clamp

Designed to be used to remove a tiba wedge, and helps in everting the patella. Calibrations help in measuring the thickness of the patella and tibia wedges

Designed by S. David Stulberg, MD


Universal Calibrated Tibia/Patella Clamp
Universal Calibrated Tibia/Patella Clamp
Universal Calibrated Tibia/Patella Clamp

Universal Calibrated Tibia/Patella Clamp
Product No: 3685
Overall Length: 10"

VIEW SURGICAL VIDEO

Download Product Brochure (PDF)

TOP





Universal Multi-Nut Wrench





Universal Multi-Nut Wrench

Universal Multi-Nut Wrench

Universal Multi-Nut Wrench
Product No:5074
Overall Length: 7"
Wrench End: 3/4" to 1/4"
Download Product Brochure (PDF)

TOP





Universal Screw Removal Instrument System

Designed to remove solid and cannulated screws, including partial, broken, stripped, and submerged screws



Universal Screw Removal Instrument System
Universal Screw Removal Instrument System Handle
Product No’s:
S0010-00 [Complete System with Case]
S0113 [Universal Instrument Handle]
S0128 [1.5mm Screw Extractor]
S0116 [2.5mm Screw Extractor]
S0130 [3.5mm Screw Extractor]
S0117 [1.5mm Hex Driver]
S0114 [2.5mm Hex Driver]
S0115 [3.5mm Hex Driver]
S0132 [4.0mm Hex Driver]
S0133 [5.0mm Hex Driver]
S0136 [2.5mm Cannulated Hex Driver]
S0137 [3.5mm Cannulated Hex Driver]
S0138 [4.0mm Cannulated Hex Driver]
S0139 [5.0mm Cannulated Hex Driver]
S0118 [Large Cruciform Screwdriver]
S0119 [Small Cruciform Screwdriver]
S0141 [Mini Cruciform Screwdriver]
S0120 [Single Slot Screwdrive]r
S0121 [2.2mm Trephine]
S0122 [3.2mm Trephine]
S0123 [4.2mm Trephine]
S0124 [4.7mm Trephine]
S0125 [7.2mm Trephine]
S0127 [Universal Extractor - Shaft Only]
S0127-01 [Large Extraction Bolt Body]
S0127-03 [Small Extraction Bolt Body]
S0127-04 Extractor Wrench
S0129 [Pick]
S0140 [Cannulated Drive Extension]
9017 [Screw Removal Case Only]

Used for removal of stripped hex screws, buried screws, and partial screws with broken screw heads. The drive end (A/O) is designed for easy and quick engagement with the universal instrument handle.


Screw Extractors

Unique thread design accommodates removal of stripped screws. The instrument “locks” into the screw head and allows removal once engaged. Designed to be used in a counter-clockwise direction.

Trephines

Designed to fit over submerged screws for extraction with minimal bone loss. Extraction is enhanced by the unique tooth design. Designed to be used in a counter-clockwise direction.

Universal Extractor

Designed to remove screws with heads partially or completely missing. The cone shaped head fully engages the remaining screw and optimizes the force needed for removal. The bolt is disposable and locks into place using a unique thread design. Designed to be used in a counter-clockwise direction.

Hex Drivers

Available in all standard hex sizes. Also offered in a cannulated shaft version for easier removal of buried screws.

Screwdrivers

Standard cruciform screwdrivers in large, small, and mini, and single slot.

Cannulated Drive Extension

Used when a longer instrument shaft is desired.

Pick

Used to remove fragments and bone or tissue from screw head.

Universal Instrument Handle

The single handle allows the surgeon to decide which direction is most efficient and comfortable. The quick-connect release mechanism allows for quick interoperative exchange.
Download Product Brochure (PDF)

TOP





Universal Screwdriver Set

Helps eliminate the opening of multiple sterile packs when a specific size or style of screwdriver is needed



Universal Screwdriver Set

Helpful during revision total joint surgery where screws have been used, removal of bone plates, fracture fixation screws or bone graft screws. Set consists of: 7 (seven) double ended screwdriver bits — small & large single slot, cross & cruciate, 3.5 mm & 4.5 mm hex, small & large phillips, small, medium, & large star — a handle which accommodates any of the above bits, and a sterilization case.

Universal Screwdriver Set in Case

Product No's: 5195
5195-01 [Handle]
5195-02 [Straight (single slot) – Lg & Sm]
5195-03 [Cross/Cruciate]
5195-04 [Hex – 3.5mm & 4.5mm]
5195-05 [Phillips – Lg & Sm]
5195-08 [Small Star: #6 & #8] NEW!
5195-06 [Medium Star: #10 & #15]
5195-07 [Large Star: #20 & #25]
Download Product Brochure (PDF)

TOP





Vosburg Cannulated Periarticular Clamp

Cannulated clamp tips allow passage of pins up to 7/64" (2.8 mm)

Designed by Caleb Vosburg, MD



Vosburg Cannulated Periarticular Clamp

Vosburg Cannulated Periarticular Clamp



Vosburg Cannulated Periarticular Clamp

By compressing the fracture with the clamp and then passing two pins, the clamp can then be removed to allow more working room and versatility when applying a plate.

Product No: 1864
Overall Length: 13" (33 cm)
Handle Length: 8" (20,3 cm)
Ratcheted Opening from 2" to 3.5" (5,4 to 7,6 cm)
Accepts Pins up to:
7/64" (2.8 mm)
Download Product Brochure (PDF)

TOP





Wilson Condylar Gauge

Designed to measure the posterior femoral condyle after the posterior cuts have been made in total knee arthroplasty

Designed by Ralph Wilson, MD




Wilson Condylar Gauge

By measuring the depth of the residual condyle, the surgeon can resect excessive bone and measure the bone remaining to avoid impingement of the condyle against the tibial component which could impair knee flexion. The gauge is applied to the inferior or posterior cut surface of the femoral condyle, and the back to front residual bone is measured and then removed as needed. Measures to 30 mm.


Wilson Condylar Gauge

Product No: 1194
Overall Length: 6" (15,2 cm)
Width: .568" (14,4 mm)
Download Product Brochure (PDF)

TOP





Woolley Tibia Punch

Impacts cancellous bone to help improve bone/cement interface

Designed by D. Woolley, MD


Designed to impact cancellous bone in the subchondral weight bearing region of the tibia. This helps to improve the mechanical interlock in the cancellous bone/cement interface. The sharp tips can be used on normal and dense cancellous bone, and they can also be used when a significant deformity has been encountered resulting in sclerotic bone.

Woolley Tibia Punch

Product No: 5140
Overall Length: 7"
Shaft Diameter: 13mm
Prong Depth: 5.5mm
Woolley Tibia Punch
Download Product Brochure (PDF)

TOP



Copyright © 2016 Innomed, Inc. All rights reserved.
