KNEE INSTRUMENTS • retractors – standard

Click thumbnail image for details

45° Knee Retractors
90° Bone Hook
AORI Patellar Retractor
Anterior Femoral Condylar Retractor
45° Knee Retractors
90° Bone Hook
AORI Patellar Retractor
Anterior Femoral Condylar Retractor
Baldwin Fat Pad Retractor
Bargo Femoral Lift
Bent Hohmann Retractors — Narrow
Blount Knee Retractor
Blount Retractor with Small Handle
Baldwin Lateral Soft Tissue Retractors
Bargo Femoral Lift
Bent Hohmann Retractors — Narrow
Blount Knee Retractor
Blount Retractor with Small Handle
Bolanos Modified Chandler Retractor
Booth Knee Retractor
Bone Hooks
Chandler Retractor
Chandran Modified Knee Retractor
Bolanos Modified Chandler Retractor
Booth Knee Retractor
Bone Hooks
Chandler Retractor
Chandran Modified Knee Retractor
Chandran Tibial Knee Retractor
Collateral Ligament Retractor
Concave Total Knee Retractor
Distal Femur Distractor
Glassman Posterior Condylar Osteophyte Retractor
Chandran Tibial Knee Retractor
Collateral Ligament Retractor
Concave Total Knee Retractor
Distal Femur Distractor
Glassman Posterior Condylar Osteophyte Retractor
Goytia Stackable Hohmann Retractors
Harwin Modified Cobra Retractor
Knee Retractor System

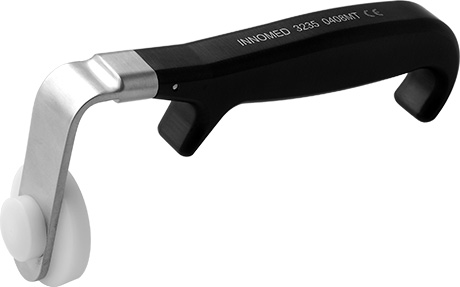

Lachiewicz-Hoover Patella Retractor

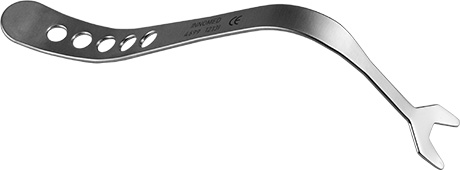

Lester Proximal Tibial TKA Retractor
Goytia Stackable Hohmann Retractors
Harwin Modified Cobra Retractors
Knee Retractor System
Lachiewicz-Hoover Patella Retractor
Lester Proximal Tibial TKA Retractor
Lipscomb Meniscal Retractor
Lombardi Bone Hooks

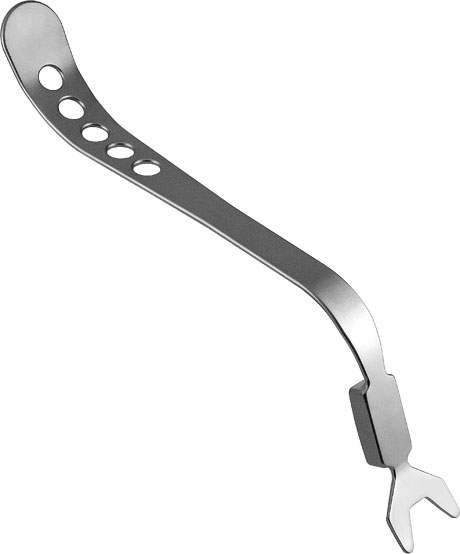

Manzary Proximal Tibial Stabilizing Knee Retractor
McPherson Retractor Extender
Meckel Posterior Stabilizing Knee Retractor
Lipscomb Meniscal Retractor
Lombardi Bone Hooks
Manzary Proximal Tibial Stabilizing Knee Retractor
McPherson Retractor Extender
Meckel Posterior Stabilizing Knee Retractor
Meyerding Type Retractors with Ergonomic Handle
Modified Angled Hohmann Retractor with Long Handle and Short Tip
Modified Hohmann Retractors — Narrow
Modified Hohmann Retractor – Wide
Modified Short Tip Fat Pad Retractors
Meyerding Type Retractors with Ergonomic Handle
NEW! Modified Angled Hohmann Retractor with Long Handle and Short Tip
Modified Hohmann Retractors — Narrow
Modified Hohmann Retractors – Wide
NEW! Modified Short Tip Fat Pad Retractors
Modified TKA Retractor Set
Modular Weights
Multi-Purpose Hip & Knee Retractors
Narrow Right Angle Retractor
Radiolucent Hohmann Retractors
Modified TKA Retractor Set
Modular Weights
Multi-Purpose Hip & Knee Retractors
Narrow Right Angle Retractor
OrthoLucent™ Hohmann Retractors

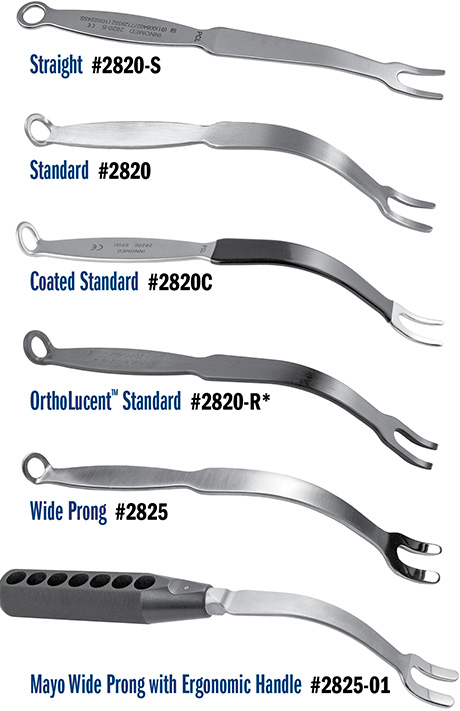

PCL Retractors
Roose Utility Knee Retractor

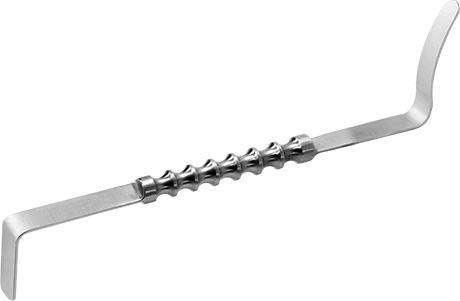

Rosen Double Ended Army Navy/"Z" Retractor

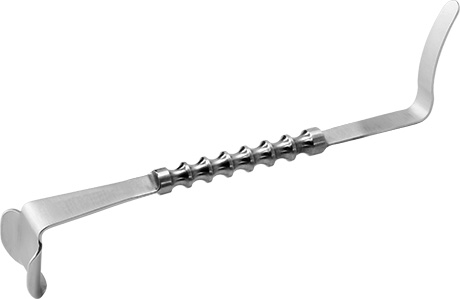

Rosen Double Ended Richardson/"Z" Retractor

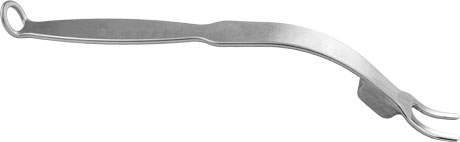

Rosen Knee Revision Tibial Retractor
PCL Retractors
Roose Utility Knee Retractor
Rosen Double Ended Army Navy/"Z" Retractor
Rosen Double Ended Richardson/"Z" Retractor
Rosen Knee Tibial Retractor
"S" Total Knee Retractors

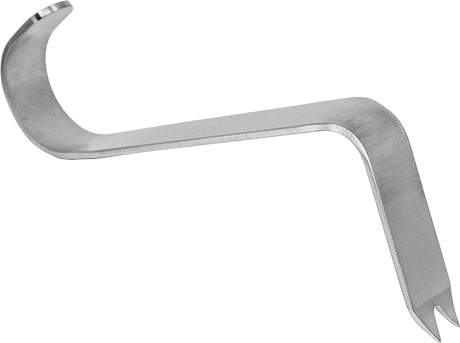

Sherman Patella Tendon Harvest Retractor
Teurlings Modified Bent Hohmann Retractor
Uni Medial/Lateral Ligament Retractor
Wetzel Modified Hohmann Retractor
"S" Total Knee Retractors
NEW! Sherman Patella Tendon Harvest Retractor
NEW! Teurlings Modified Bent Hohmann Retractor
Uni Medial/Lateral Ligament Retractor
Wetzel Modified Hohmann Retractor

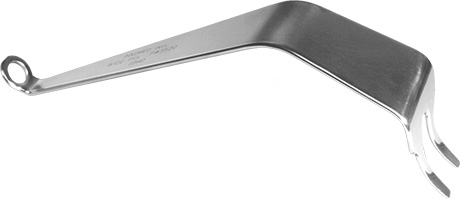

Wide PCL Retractor
Wubben Lateral Fat Pad Retractor for TKR
"Z" Knee Retractor

Wide PCL Retractor
Wubben Lateral Fat Pad Retractor for TKR
"Z" Knee Retractor

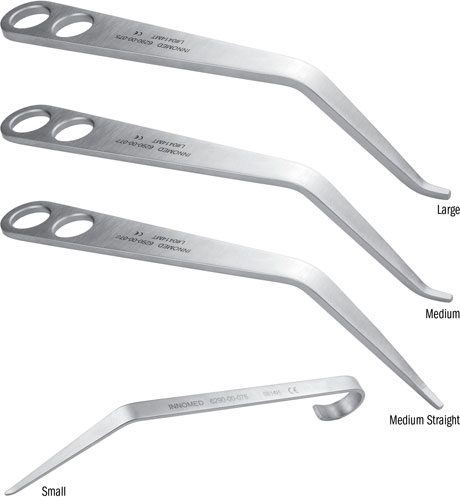

45° Knee Retractors

Designed for general use around the knee





45° Knee Retractors
Product No's:

6290-00-075 [Large]
Overall Length: 9.125" (23,2 cm)

6290-00-076 [Small]
Overall Length: 7.875" (20 cm)


6290-00-077 [Medium]
Overall Length: 9.125" (23,2 cm)

6290-00-078 [Medium Straight]
Overall Length: 9.125" (23,2 cm)
Download Product Brochure (PDF)

TOP

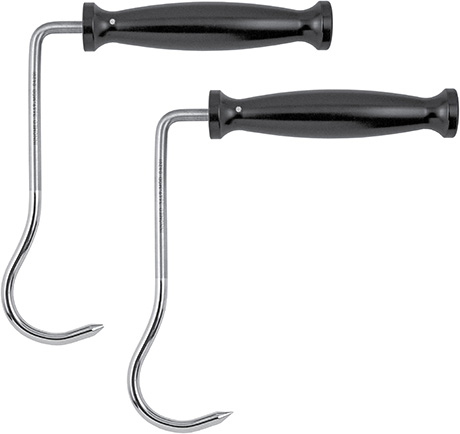

90° Bone Hook

Designed to ergonomically help the surgical assistant elevate the proximal femur during TKA, the bone hook aids the surgeon in accessing posterior osteophytes and in applying local anesthetic to the posterior capsule


Designed by Charles Taunt, DO



90° Bone Hooks

90° Bone Hooks



Takes the place of an intramedullary device when the IM canal has not been opened (robotic assistance) or when damaged or osteopenic bone is of concern.

Product No's:

5940-B [Blunt Tip]
Curve Diameter: 50 mm
Hook Depth: 6.5" (16,5 cm)
Handle Length: 5" (12,7 cm)

5940-S [Sharp Tip]
Curve Diameter: 50 mm
Hook Depth: 6.5" (16,5 cm)
Handle Length: 5" (12,7 cm)


Download Product Brochure (PDF)


TOP

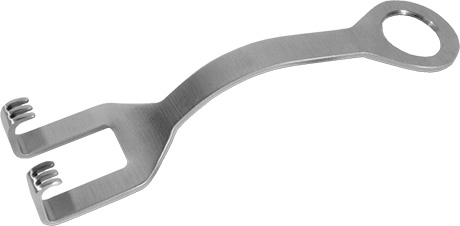

AORI Patellar Retractor

Enhances exposure of the knee during total knee arthroplasty


Designed by Gerard A. Engh, MD


AORI Patellar Retractor

The retractor has a deep basket and two rows of teeth to grab and hold to the lateral side of the patella. The curved handle provides a fulcrum so that the applied force will both displace and evert the patella from the femur.

The patellar retractor is placed after a routine midline, midvastus, or medial parapatellar surgical approach to the knee. Once the patella is everted the patellar retractor is applied to the lateral border of the patella.

AORI Patellar Retractor

Product No: 4690
Overall Length: 7"
Prong Width: 10mm | 22mm Gap | 10mm
Download Product Brochure (PDF)

TOP





Anterior Femoral Condylar Retractor


Designed by S. David Stulberg, MD


Anterior Femoral Condylar Retractor

Anterior Femoral Condylar Retractor

Anterior Femoral Condylar Retractor

Anterior Femoral Condylar Retractor

Product No: 3405
Overall Length: 5" • Blade Width at Widest: 45 mm
Download Product Brochure (PDF)

TOP

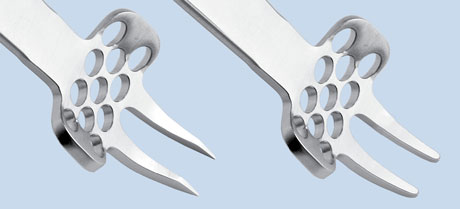

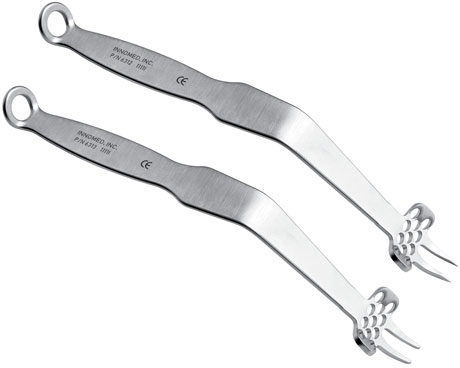

Baldwin Lateral Soft Tissue Retractors

Designed to hold back the fat pad and soft tissues during total knee arthroplasty


Designed by James L. Baldwin, MD


Baldwin Lateral Soft Tissue Retractor

Baldwin Lateral Soft Tissue Retractor



The fenestrated paddle helps holds back the fat pad and soft tissues, while the two long narrow prongs help penetrate the soft tissue, and rest against the side of the tibia to help prevent rotation of the instrument.



Product No's:

6312 [Sharp Prongs]
Overall Length: 9.875"
Pad Dimensions: 38mm x 15mm
Prong Depth: 22mm


6313 [Blunt Prongs] NEW STYLE!
Overall Length: 9.75"
Pad Dimensions: 38mm x 15mm
Prong Depth: 20mm
Download Product Brochure (PDF)

TOP





Bargo Femoral Lift

Designed to distract the distal femur up and away from the proximal tibia during TKR to help expose the popliteal fossa and access the soft tissues for meniscal excision


Designed by Lonnie Bargo, CSFA


Bradley Periosteal Elevator



Particularly useful when using a 3D printed cutting block, where drilled access to the intramedullary canal (to help lift the femur) is unavailable.



Product No: 3649
Overall Length: 6.75" (17,1 cm)
Handle Offset: 3.5" (8,9 cm)
Handle Length: 5" (12,7 cm)
Lift Pad: 2" x 1.675" (51 mm x 41 mm)
Download Product Brochure (PDF)

TOP





Bent Hohmann Retractors — Narrow

Helps retract tissues at the margins of the joint


Short-tipped Designed by Carl DiRaimondo, MD


Bent Hohmann Retractors — Narrow

Useful for retracting tissues at the margins of the joint. Modular weights can be used to help hold the retractor in place.

The OrthoLucent™ version is made of a strong, lightweight carbon fiber PEEK composite material, which is completely radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized.

Product No’s:

7110 [Narrow]
Overall Length: 9.75" (23,8cm)
Handle Length: 7" (17,8cm)
Blade Width: 19mm
Depth from Bend: 4.75" (12,1cm)

7110-R [OrthoLucent™ Narrow]
Overall Length: 9.75" (23,8cm)
Handle Length: 7" (17,8cm)
Blade Width: 19mm
Depth from Bend: 4.75" (12,1cm)

7110-01 [Narrow with Extra Long Handle]
Overall Length: 11.5" (29,2cm)
Handle Length: 10" (25,4cm)
Blade Width: 19mm
Depth from Bend: 4.75" (12,1cm)

7111 [Narrow with Extra Grip Tip]
Overall Length: 9.75" (23,8cm)
Handle Length: 7" (17,8cm)
Blade Width: 19mm
Depth from Bend: 4.75" (12,1cm)



7115 [Short-tipped Narrow]
Overall Length: 8.625" (21,9cm)
Handle Length: 7" (17,8cm)
Blade Width: 19mm
Depth from Bend: 4.4" (11,2cm)

7115-01 [Short-tipped Narrow with Extra Long Handle]
Overall Length: 11" (27,9cm)
Handle Length: 10" (25,4cm)
Blade Width: 19mm
Depth from Bend: 4.25" (10,8cm)

7115-03 [Extra Deep Short-tipped Narrow]
Overall Length: 12.125” (31,1cm)
Handle Length: 9.75” (24,8cm)
Depth from Bend: 6.25” (15,9cm)
Blade Width: 19mm

Download Product Brochure (PDF)

TOP

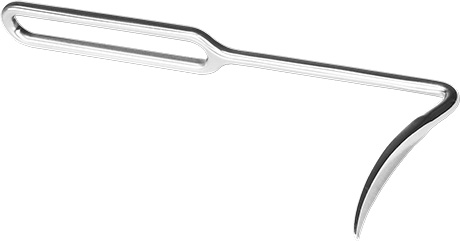

Blount Knee Retractor


Designed by James Stiehl, MD


Designed for retraction in total knee arthroplasty, the long narrow blade easily fits above the capsular ligament at the joint line. Can also be used for knee revision, fitting easily around the implant.

Blount Knee Retractor

Blount Knee Retractor

Blount Knee Retractor

Product No: 4850
Overall Length: 8.5" • Blade Width: 9mm
Download Product Brochure (PDF)

TOP





Blount Retractor with Small Handle

A blount retractor with a lightweight ergonomic handle designed for tissue retraction and closure assistance in knee, shoulder, and hip arthroplasty


Designed by Ronald Romanelli, MD



Blount Retractor with Small Handle

Blount Retractor with Small Handle

Product No:4852
Overall Length: 9.375" (25,1 cm)
Handle Length: 4.625" (11,7 cm)
Blade Depth: 1.5" (3,8 cm)
Blade Width at Widest: .325" (8,3 mm)
Download Product Brochure (PDF)

TOP





Bolanos Modified Chandler Retractor

Used for retracting tissue away from the bone


Designed by Alberto Bolanos, MD



Bolanos Modified Chandler Retractor




Product No: 3222
Overall Length: 7.5" (19,1 cm)
Blade Width at Widest: 1" (2,54 cm)
Download Product Brochure (PDF)

TOP

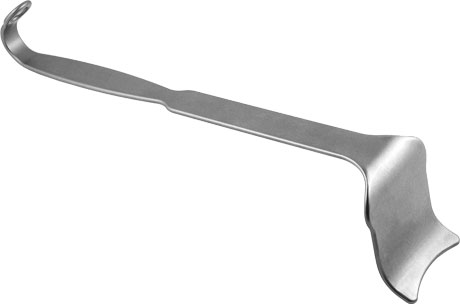

Booth Knee Retractor

Designed to help protect the tibial surface and to tighten the collateral ligaments and to help assess the rotation of the femur


Designed by Robert E. Booth, Jr., MD




Booth Knee Retractor

Booth Knee Retractor

Booth Knee Retractor
Booth Knee Retractor
Product No:6580
Overall Length: 11.75" (29,8 cm)
Handle Length: 10.5" (26,7 cm)
Blade Depth: 2.75" (7 cm)
Blade Width: 2" (5,1 cm)
Download Product Brochure (PDF)


TOP





Bone Hooks


Designed by R.L. Wixson, MD


Bone Hooks



Bone Hook Ends

Bone Hook Ends

Designed for proximal femoral elevation in total hip replacement or in other surgery with a similar need for bone manipulation. The instrument has a blunt tip and a large handle to accommodate the use of two hands if desired.

Bone Hooks

Product No’s.
5910 [Small] • 25mm Curve Diameter
5915 [Medium] • 35mm Curve Diameter
5920 [Large] • 50mm Curve Diameter
Overall Length: 12.75"
Handle Length: 4.75"
Download Product Brochure (PDF)

TOP





Chandler Retractor

Used for retracting tissue away from the bone, and helpful for posterior exposure of the tibia in MIS surgery




Chandler Retractor

Allows the surgeon to retract soft tissue away from the bone, and can be used for hip and knee surgery. The specially designed handle is contoured away from the surgeon's field of view and working area. Available in 5/8", 3/4", and 1" blade sizes.

The OrthoLucent™ version is made of a strong, lightweight carbon fiber PEEK composite material, which is completely radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized.

Chandler Retractor

Product Numbers:
3220-01 [5/8"]
Overall Length: 9.875" (25,1 cm)
Blade Width: 16 mm

3220-02 [3/4"]
Overall Length: 9.875" (25,1 cm)
Blade Width: 19 mm

3220-02R [OrthoLucent™ 3/4"]
Overall Length: 9.875" (25,1 cm)
Blade Width: 19 mm

3220-04 [1"]
Overall Length:9.875" (25,1 cm)
Blade Width: 25.4 mm
Download Product Brochure (PDF)

TOP

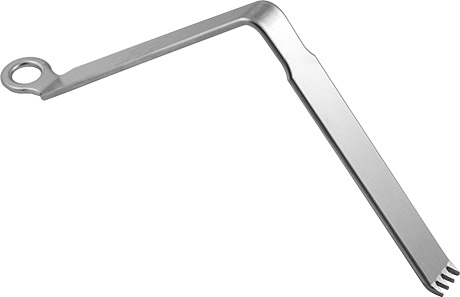

Chandran Modified Knee Retractor

Teeth designed to help prevent tilting of the retractor and protect the patellar tendon during robotic assisted total knee replacement


Designed by Rama E. Chandran, MD






Chandran Modified Knee Retractor


Also useful to retract structures on the lateral side of the tibia.

Product No: 7117
Overall Length:8.75" (22,2 cm)
Blade Width: .625" (1,6 cm)
Blade Depth from Handle: 5" (12,7 cm)



Download Product Brochure (PDF)


TOP





Chandran Tibial Knee Retractor

Designed for use in TKR, the hook on the front of the blade acts as a stop to help prevent the retractor from deep penetration behind the tibia


Designed by Rama E. Chandran, MD


Chandran Tibial Knee Retractor


Chandran Tibial Knee Retractor

Product No: 4533
Overall Length: 10.5" (26,7 cm)
Depth from Bend: 3" (7,6 cm)

Download Product Brochure (PDF)

TOP





Collateral Ligament Retractor

Helps protect the lateral collateral ligament while exposing the proximal tibia




Collateral Ligament Retractor

Used during total knee surgery and is inserted between the lateral collateral ligament and bone to protect the ligament and expose the proximal tibia. The dual prongs keep the retractor from rocking and assist in the insertion. The retractor is bent so that it is out of the way of the operating surgeon.

Collateral Ligament Retractor

Product No: 6620
Overall Length: 8"
Prong Width: 5 mm | 11 mm Gap | 5 mm
Download Product Brochure (PDF)

TOP





Concave Total Knee Retractor

Used to retract soft tissue away from the femur and tibia




Concave Total Knee Retractor

Used during total knee surgery to retract soft tissue away from the femur and tibia. The blade is designed to curve around the distal femur and tibia plateau.

Product No's:
6720 [Standard]
6720-01 [Narrow]
Overall Length: 9.625" • Blade Width: 9mm
Download Product Brochure (PDF)

TOP





Distal Femur Distractor

Helps to distract the femur away from the proximal tibia




Distal Femur Distractor

Designed to distract the distal femur away from the proximal tibia during total knee surgery. It is inserted into a predrilled hole in the distal femur. The bent handle allows the femur to be distracted away from the tibia. The intramedullary rod portion is fluted.

Distal Femur Distractor

Product No's:
4220-01 [Upward Bent Handle]
Overall Length: 17.5"
Rod Length from Bend: 12.75"
Rod Offset from Handle: 4.5"

4220-00 [Standard Handle]
Overall Length: 12.75"
Rod Offset from Handle: 4.5"

VIEW SURGICAL VIDEO

Download Product Brochure (PDF)

TOP





Glassman Posterior Condylar Osteophyte Retractor

Designed to provide exposure of the posterior condyle to gain access to posterior condylar osteophytes during unicompartmental and total knee arthroplasty


Designed by Andrew Glassman, MD


Glassman Posterior Condylar Osteophyte Retractor

Glassman Posterior Condylar Osteophyte Retractor


Product No: 3730
Overall Length: 11.75" (29,8 cm)
Depth From 90° Bend: 3" (7,6 cm)
Length from 45° Bend: 1" (2,54 cm)
Blade Width: 1" (25,4 mm)
Download Product Brochure (PDF)

TOP





Goytia Stackable Hohmann Retractors

Interlocking design helps to increase exposure leverage—especially useful with large patients


Designed by Robin N. Goytia, MD


Goytia Stackable Hohmann Retractors

Goytia Stackable Hohmann Retractors

Custom fitted holes for interlocking retractors helps provide stabilty

Goytia Stackable Hohmann Retractors

When “stacked”, the increased lever arm of the retractor helps reduce fatigue

Ideal for use with large patients where extra depth, leverage and force is needed


Product No's:

4551 [Standard]
Overall Length: 9.25"
Blade Width: 19.5mm


4552 [Bent]
Overall Length: 8.25"
Blade Width: 19.5mm


4553 [Wide]
Overall Length: 9.25"
Blade Width: 43mm

Download Product Brochure (PDF)

TOP





Harwin Modified Cobra Retractor

Designed for use during total hip and knee surgery


Designed by Steven F. Harwin, MD, FACS


Harwin Modified Cobra Retractor

Harwin Modified Cobra Retractor

Harwin Modified Cobra Retractor

The long handle and obtuse angle provide ergonomic leverage—especially helpful for use with obese patients.

 In total hip surgery, the wide, concave blade design allows for enhanced exposure— especially useful in anterior hip surgery with the placement of reamers, and to elevate and expose the proximal femur.

 In total knee surgery, the wide blade of the large retractor spans the prepared box and helps bring the tibia forward. The small retractor helps with retraction of the medial and lateral structures, where the wide, concave blade provides added exposure over standard bent Hohmann retractors. The serrated tip helps improve stability.


Product No:

6143-01 [Small]
Overall Length: 12.5"
Blade Width: 30mm
Tongue: 25 x 4.5mm


6143 [Large]
Overall Length: 14.75"
Blade Width: 43.2mm
Tongue: 25 x 4.5mm


Download Product Brochure (PDF)

TOP





Knee Retractor System

Helps free assisting personnel while providing excellent exposure


Designed by S. David Stulberg, MD (AF Stubbs Short Prong Collateral designed by B. Stubbs, MD)


Knee Retractor System

The Knee Retractor System holds retractors utilizing Velcro® straps. This helps eliminate obstruction of the surgeon's operative area and frees assisting personnel. Five retractor styles are available, and straps are available in two lengths. Retractors and straps are autoclavable.

Knee Retractor System

Product No's:
3515 [MIS Modified Wide PCL with Strap]
Overall Length:10"
Blade Width Above Prongs: 34mm
Prong Width: 8.5mm | 17mm Gap | 8.5mm

3525 [Wide PCL with Strap]
Overall Length:10"
Blade Width Above Prongs: 57mm
Prong Width: 8.5mm | 17mm Gap | 8.5mm

6640 [Stubbs Short Prong Collatera with Strapl]
Overall Length:8"
Blade Width Above Prongs: 27mm
Prong Width: 4.8mm | 3.4mm Gap | 4.8mm

6630 [Long Prong Collatera with Strapl]
Overall Length: 8" • Overall Blade Width: 21mm
Prong Width: 4.5mm | 12mm Gap | 4.5mm

6650 [Single Prong Collateral with Strap]
Overall Length: 8.25" • Blade Width: 14mm

8100-P [Long Strap–Femur] Package of 10

8120-P [Short Strap–Tibia] Package of 10
®Velcro is a registered trademark of Velcro USA
WATCH SURGICAL IN-USE VIDEOS
Download Product Brochure (PDF)

TOP





Lachiewicz-Hoover Patella Retractor

Helps to retract and prevent harm to the polyethylene implant from scratches, gouges, and bovie cautery during debridement and removal of other components


Designed by Paul Lachiewicz, MD & Steve Hoover, MD


Lachiewicz-Hoover Patella Retractor

In primary TKA, it is used after implantation of components so the surgeon can debride the lateral gutter of synovium and for exposure for hemostasis laterally. Also extemely valuable for revisions in which a well fixed patella component is to be retained.

Lachiewicz-Hoover Patella Retractor
Product No: 3235
Overall Length: 6.5"
Patella Pad Diameter: 1.5"
Patella Pad Thickness: .25"
Download Product Brochure (PDF)

TOP





Lester Proximal Tibial TKA Retractor

Helps expose the cut surface of the tibia to allow sizing, preparation and cleansing during TKA


Designed by D. Kevin Lester, MD


Lester Proximal Tibial TKA Retractor

Also helps protect the posterior knee soft tissue structures from injury.

Product No: 4699
Overall Length: 12"
Depth from Bend: 5"
Blade Width: 1.5"
Download Product Brochure (PDF)

TOP





Lipscomb Meniscal Retractor

Designed to protect neurovascular structures during meniscal and extraarticular ligament repairs




Lipscomb Meniscal Retractor

Used for unicondylar arthroplasty.

Product No: 3740
Download Product Brochure (PDF)

TOP





Lombardi Bone Hooks


Designed by Adolph V. Lombardi, Jr., MD


Lombardi Bone Hooks

3 Sizes Available

Product No’s:
5925 [Small] • 25mm Curve Diameter
5930 [Medium] • 35mm Curve Diameter
5935 [Large] • 50mm Curve Diameter
Download Product Brochure (PDF)

TOP





Manzary Proximal Tibial Stabilizing Knee Retractor

Designed to help subluxing the tibia anteriorly in posterior stabilizing total knee replacement, helping to expose the proximal surface for preparation


Design modification by Mojieb Manzary, MD, FRCS of original design by D. Kevin Lester, MD, and Christopher M. Meckel, MD


Manzary Proximal Tibial Stabilizing Knee Retractor

Manzary Proximal Tibial Stabilizing Knee Retractor
Manzary Proximal Tibial Stabilizing Knee Retractor

Product No: 4531
Overall Length: 12.75" (32,4 cm)
Blade Width: 1.5" (3,8 cm)
Block Dimensions: .8" x 1.5" x .5" (2 x 3.8 x 1.25 cm)
Download Product Brochure (PDF)

TOP





McPherson Retractor Extender

Designed to extend a standard retractor to help provide additional leverage


Designed by Ed McPherson, MD



McPherson Retractor Extender

McPherson Retractor Extender

Available in two sizes to accomodate most retractors — standard for retractors up to .125" (3,2 mm) thick, and large for retractors up to .16" (4 mm) thick.

McPherson Retractor Extender
McPherson Retractor Extender

Product No's:

6022 [Standard]
Overall Length: 15.625" (39,7 cm)
For retractors up to .125” (3,2 mm) thick


6022-01 [Large]
Overall Length: 15.625" (39,7 cm)
For retractors up to .16” (4 mm) thick
Download Product Brochure (PDF)

TOP





Meckel Posterior Stabilizing Knee Retractor

Designed to provide enhanced anterior translation of the tibia when doing posterior stabilized total knee replacement


Designed by Christopher M. Meckel, MD



Meckel Posterior Stabilizing Knee Retractor

Meckel Posterior Stabilizing Knee Retractor

The 15mm deep blade section of the retractor is used to lever the tibia forward (by resting the tip on the posterior tibia and the middle blade section block levering off the distal femur) after the box cut has been made in the distal femur.

Meckel Posterior Stabilizing Knee Retractor

Product No: 4538
Blade Width: 20mm
Blade Depth: 15mm
Overall Length: 10"
Download Product Brochure (PDF)

TOP





Meyerding Type Retractors with Ergonomic Handle

Designed for general use soft tissue retraction, the ergonomic handle allows for a better grip and less fatigue







Meyerding Type Retractors with Ergonomic Handle


Meyerding Type Retractors with Ergonomic Handle


Non-glare finish featured on the metal retractor parts.


Product No’s:

6241 [50 x 16 mm]
Overall Length: 8.875" (22,5 cm)
Blade Width: 16 mm
Blade Depth: 50 mm


6242 [75 x 15 mm]
Overall Length: 9" (22,9 cm)
Blade Width: 15 mm
Blade Depth: 75 mm


6243 [75 x 25 mm]
Overall Length: 9" (22,9 cm)
Blade Width: 25 mm
Blade Depth: 75 mm

Download Product Brochure (PDF)

TOP





Modified Angled Hohmann Retractor with Long Handle and Short Tip

Longer handle to help provide safe patella retraction with excellent ergonomics, and useful in other orthopedic procedures


Designed by R. Michael Meneghini, MD



Modified Wide Hohmann Retractor with Taylor Tip

Product No: 7119
Overall Length:
11.5" (29,2 cm)
Handle Length: 9.25" (23,5 cm)
Blade Depth: 5" (12,7 cm)
Blade Width: .75" (19 mm)
Prong Depth: 1" (2,54 cm)

Download Product Brochure (PDF)

TOP





Modified Hohmann Retractors — Narrow

Handle is contoured to allow better leverage and visualization


Short-tipped Designed by Carl DiRaimondo, MD


Modified Hohmann Retractors — Narrow

Modified Hohmann Retractors — Narrow

Useful for retracting tissues around the bone. Can be held in place with weights or by hand.

The OrthoLucent™ version is made of a strong, lightweight carbon fiber PEEK composite material, which is completely radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized.

Product No's:

4535 [Narrow]
Overall Length: 10"
Blade Width: 14mm


4535-R [OrthoLucent™ Narrow]
Overall Length: 10"
Blade Width: 18mm


4535-01 [Extra Deep Narrow]
Overall Length: 11.625” (29,5cm)
Blade Width: 16,4mm

4545 [Short-tipped Narrow]
Overall Length: 9.5"
Blade Width: 14mm
Download Product Brochure (PDF)


TOP





Modified Hohmann Retractors – Wide

Handle is contoured to allow better leverage and visualization




Modified Hohmann Retractor – Wide

Useful for retracting tissues around the bone. Can be held in place with weights or by hand.

Product No's:

6595 [Wide]
Overall Length: 10" (25,4cm)
Blade Width: 42,5mm


6595-01 [Extra Deep Wide]
Overall Length: 11.5" (29,2cm)
Blade Width: 42,5mm
Download Product Brochure (PDF)

TOP





Modified Short Tip Fat Pad Retractors

Designed to help with soft tissue and fat pad retraction in the smaller knee, the blunted, shortened end of the pointed keel helps provide protection against bony perforation


Designed by Robert Wubben, MD,
with modification by Mojieb Manzary, MD, FRCSC


Modified Short Tip Fat Pad Retractors

Modified Short Tip Fat Pad Retractors

Product No's:

3217-L [Large]
Overall Length: 9.625” (24,4 cm) 
 Prong Length: 12 mm


3217-S [Small]
Overall Length: 9.625” (24,4 cm) 
 Prong Length: 12 mm
Download Product Brochure (PDF)

TOP





Modified TKA Retractor Set

Designed for soft tissue retraction, the reduced phalange allows for ease of placement in the lateral gutter, and helps avoid contact with the lateral condyle


Designed by Robert Wubben, MD,
with modification by David Ott, MD


Modified TKA Retractor Set

Modified TKA Retractor Set


Product No's:

3219-00 [Set]


Set Includes / Also Available Individually:

3219-L [Left]
Overall Length: 10" (25,4 cm)
Prong Length: 20 mm


3219-R [Right]
Overall Length: 10" (25,4 cm)
Prong Length: 20 mm
Download Product Brochure (PDF)

TOP





Modular Weights

Help to free assisting personnel




Modular Weights

Designed to hook onto a retractor handle which helps the retractor stay in place by the weights attached rather than being held. The desired weight can be adjusted by attaching additional weights to the primary weight which has the attaching hook.

Modular Weights

Product No’s:
3430-01 • 1.5 lbs.
3430-02 • 2.0 lbs.
3430-03 • 2.5 lbs. with attaching hook

VIEW SURGICAL VIDEO

Download Product Brochure (PDF)

TOP





Multi-Purpose Hip & Knee Retractors

Designed for use in both hip and knee arthroplasty procedures


Designed by Vasilios Mathews, MD


Multi-Purpose Hip & Knee Retractors

Multi-Purpose Hip & Knee Retractors

During direct anterior hip arthroplasty procedures, the fin of this retractor fits the contours of the acetabular rim and retracts the anterior soft tissues, while the short length of the spike helps limit the penetration into the neurovascular zones.

In knee surgery, the retractors can be used to help protect the patellar tendon behind the fin at the lateral tibial border. Also useful as a soft-tissue and fat pad retractor during prosthesis implantation, helping to ensure a dry cancellous bed for cementation.

Product No's:

4554-L [Left]
Overall Length: 11.25" (28,6 cm)
Blade Width: 1.5" (38 mm)


4554-R [Right]
Overall Length: 11.25" (28,6 cm)
Blade Width: 1.5" (38 mm)


Download Product Brochure (PDF)

TOP





Narrow Right Angle Retractor

Designed for soft tissue retraction





Narrow Right Angle Retractor

Product No: C1011
Overall Length: 8.5" (21,6 cm)
Handle Length: 6.75" (17,1 cm)
Blade Depth: 4.5" (11,4 cm)
Blade Width: .375" (1 cm)


Download Product Brochure (PDF)


TOP





OrthoLucent™ Hohmann Retractors

The OrthoLucent™ carbon fiber PEEK composite material is strong, lightweight, completely radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized




Radiolucent Hohmann Retractors
Product No’s:

4535-R [Modified Narrow]
Blade Width: 18mm
Overall Length: 10" (25,4cm)

4550-R [Modified Blunt]
Blade Width at End: 11mm
Overall Length: 10.75" (27,3cm)

4558-R [Standard]
Blade Width: 16mm
Overall Length: 9.46" (24 cm)

7110-R [Narrow Bent]
Blade Width: 19mm
Overall Length: 9.75" (23,8cm)
Handle Length: 7" (17,8cm)
Depth from Bend: 4.75" (12,1cm)

Download Product Brochure (PDF)





TOP





PCL Retractors

Designed to straddle the cruciate ligament





Designed to straddle the cruciate ligament and lie in the femoral condylar notch, allowing the surgeon to retract the tibia away from the femur for better access. The handle is contoured away from the surgeon's field of view. The Wide Prong PCL offers enhanced stability.


PCL Retractors

The Coated Standard PCL includes a special protective coating, applied to the areas of the instrument that may come into contact with component surfaces, to help prevent from marring the articulating surfaces.

The OrthoLucent™ Standard PCL can be safely used to look behind the knee when the component(s) are in place without metal transfer or marring component surfaces when contact is made. It is made of a strong, lightweight carbon fiber PEEK composite material, which is completely radiolucent, and can be steam sterilized.

PCL Retractors

PCL Retractors

Product No's:

2820 [Standard]
Overall Length: 9.875" (25,1 cm)
Prong Width: 5mm | 10mm Gap | 5mm

2820-C [Coated Standard]
Overall Length: 9.875" (25,1 cm)
Prong Width: 5mm | 10mm Gap | 5mm


VIEW SURGICAL VIDEO


2820-R [OrthoLucent™ Standard]
Overall Length: 9.875" (25,1 cm)
Prong Width: 5mm | 10mm Gap | 5mm


2825 [Wide Prong]
Overall Length: 9.875" (25,1 cm)
Prong Width: 8.5mm | 11mm Gap | 8.5mm


2825-01 [Mayo Wide Prong with Ergonomic Handle]
Overall Length: 9.875" (25,1 cm)
Prong Width: 8.5mm | 11mm Gap | 8.5mm
WATCH SURGICAL IN-USE VIDEO
Download Product Brochure (PDF)

TOP





Roose Utility Knee Retractor

Used for retraction of the soft tissues laterally or medially and for anterior translation of the tibia during tibial prosthetic insertion


Designed by Paul Roose, DO


Roose Utility Knee Retractor

Roose Utility Knee Retractor

The curvature and width are designed for retraction of soft tissues and excellent visualization of bone structure.

Product No: 4532
Overall Length: 9"
Blade Width (above tip): 14mm
Download Product Brochure (PDF)

TOP





Rosen Double Ended Army Navy/"Z" Retractor



Designed by Adam Rosen, DO


Rosen Double Ended Army Navy/"Z" Retractor
Product No: 4005
Overall Length: 10"
Z End: 70mm Deep, 11mm Wide
Army Navy End: 40mm Deep, 15mm Wide
Download Product Brochure (PDF)

TOP





Rosen Double Ended Richardson/"Z" Retractor



Designed by Adam Rosen, DO


Rosen Double Ended Richardson/"Z" Retractor
Product No: 4010
Overall Length: 10"
Z End: 70mm Deep, 11mm Wide
Richardson End: 40mm Deep, 37mm Wide
Download Product Brochure (PDF)

TOP





Rosen Knee Tibial Retractor

Designed for total knee and revision total knee replacements using posterior stabilized knee components, the posterior build-up on the retractor allows the surgeon to more easily translate the tibia forward for better visualization after femoral notch preparation


Designed modification by Adam Rosen, DO of original design by Christopher M. Meckel, MD




Rosen Knee Revision Tibial Retractor

Rosen Knee Revision Tibial Retractor


Product No: 2830
Overall Length: 12.5" (31,8 cm)


Rosen Knee Revision Tibial Retractor
Download Product Brochure (PDF)

TOP





"S" Total Knee Retractors

Helps to protect the collateral ligaments and popliteal structures while providing excellent visualization within the knee joint


Designed by R. Barry Sorrells, MD


Narrow blade is excellent for minimally invasive knee procedures

"S" Total Knee Retractors

The design is self-retaining and can be used singularly and in pairs. For cruciate sparing or sacrificing prosthetic designs.

Product No's:
3720-00 [Wide Blade]
Overall Length: 6" • Blade Width: 20mm

3720-01 [Narrow Blade]
Overall Length: 6" • Blade Width: 10mm
"S" Total Knee Retractors

"S" Total Knee Retractors

VIEW SURGICAL VIDEO

Download Product Brochure (PDF)

TOP





Sherman Patella Tendon Harvest Retractor

Designed to help improve exposure and lessen the incision necessay to harvest a patella tendon graft during anterior cruciate ligamant bone—patella tendon—bone (BTB) reconstruction


Designed by Mark Sherman, MD




Sherman Patella Tendon Harvest Retractor
Sherman Patella Tendon Harvest Retractor

Product No: 4691
Overall Length: 8.5" (21,6 cm)
Depth from Bend: 3.25" (8,3 cm)
Blade Width: .875" (22 mm)
Prong Length: 10 mm



Download Product Brochure (PDF)

TOP





Teurlings Modified Bent Hohmann Retractor

A twisted hohmann retractor for TKA, can help to protect femoral cuts during MCL/LCL retraction


Designed by Luc Teurlings, MD


Teurlings Modified Bent Hohmann Retractor




The twisted blunt end also helps elevate the femur and protect the MCL.

Teurlings Modified Bent Hohmann Retractor

Product No: 7109
Overall Length: 8.625" (21,9 cm)
Depth from Bend: 4.25" (10,8 cm)
Blade Width (Upper Portion): 17 mm
Blade Width (Lower Portion): 11 mm



Download Product Brochure (PDF)


TOP





Uni Medial/Lateral Ligament Retractor

Designed to be placed in the medial/lateral tibial recess while making the horizontal tibial cut during unicompartmental knee arthroplasty—helping to retract and protect the medial and lateral collateral ligaments


Designed by Kurt Kramer, PA-C


Uni Medial/Lateral Ligament Retractor

Uni Medial/Lateral Ligament Retractor
Uni Medial/Lateral Ligament Retractor


Ambidextrous, ergonomic design allows for comfortable and natural hand positioning, helping to improve MCL/LCL protection and ease of use, especially in the obese patient.

Product No: 3632
Overall Length: 4.25" (10,8cm)
Blade Width: 8.8mm
Blade Depth: 2.375” (6cm)
Download Product Brochure (PDF)

TOP





Wetzel Modified Hohmann Retractor

The long point is designed to be placed around, on, or through a bony structure and then levered back to retract tissue


Designed by Robert Wetzel, MD and Todd McKinley, MD


Wetzel Modified Hohmann Retractor

The handle is contoured to allow better leverage and visualization. Can be held in place with weights or by hand.


Product No: 4539
Overall Length: 10" (25,4 cm)
Blade Width: .85" (21,5 mm)
Download Product Brochure (PDF)

TOP





Wide PCL Retractor

Helps expose the proximal tibia for better access


Designed by S. David Stulberg, MD


Wide PCL Retractor

Designed to expose the proximal tibia during total knee surgery for better access to the articulating surfaces. The handle is contoured to allow the surgeon a clear field of view of the operating area. Modular weights can be used to help hold the retractor in place. Blade width is 2.25".

Wide PCL Retractor

Product No: 3520
Overall Length: 10"
Blade Width Above Prongs: 57mm
Prong Width: 8.5mm | 17mm Gap | 8.5mm
Download Product Brochure (PDF)

TOP





Wubben Lateral Fat Pad Retractor for TKR

Designed to hold soft tissues when inserting the TKR


Designed by Robert Wubben, MD


Wubben Lateral Fat Pad Retractor for TKR

Wubben Lateral Fat Pad Retractor for TKR

Product No: 3218
Overall Length: 10" • Blade Width: 41mm
Download Product Brochure (PDF)

TOP





Z Knee Retractor

Helps create better access to the articulating surfaces




Z Knee Retractor

Designed to expose the femur and the tibia during knee surgery for better access to the articulating surfaces. The "Z" contouring of the retractor provides the surgeon with an open field of view and working area.

Z Knee Retractor

Product No: 4420-00
Overall Length: 7.25"
Blades: 11mm Wide, 3" Deep

VIEW SURGICAL VIDEO

Download Product Brochure (PDF)

TOP



2022 Innomed, Inc. All rights reserved.
