Adjustable Knee and Tibial Positioner
|
Berger Block Positioner Assembly
|
NEW! Chandran Thigh Lift Positioner
|
Cherf Leg Holder
|
|
|
|
|
|
|
Durham Leg Positioner |
Fromm Knee & Tibial Triangles |
George Arthroscopic Knee Positioner
|
Hyperflex Foot Positioner Assembly |
Kirschenbaum Foot Positioner
|
|
|
|
|
|
|
Leg Stabilizer |
Lombardi Leg Positioner |
Lower Extremity Leg Positioner
|
Modified 90° Leg Stabilizer |
Patient Self Stress Assembly Set
|
|
|
|
|
|
|

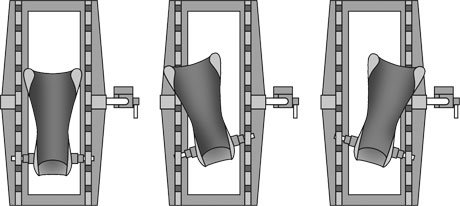

Robb Leg Positioner
|
Sanders Extremity Positioning Tubes
|
Sanders Tube Holder
|
Stanton Arthroscopic Leg Holder
|
Stulberg Leg Positioner
|
|
|
|
Adjustable Knee and Tibial Positioner
Adjustable design allows for use in procedures around the knee such as tibial nailing, tibial condyle plating, patella fracture fixation, supracondylar fracture plating, supracondylar fracture nailing, and total knee replacement |
|
|
|
Designed by Ashutosh Chaudhari, MD |
|
|
|
Radiolucent. Steam sterilizable.
Product No’s:
2770-00 [Set]
Set includes: Positioner, Pad, and Two Short Straps
Individual / Replacement Parts:
2770-01 [Positioner]
Overall Length (Folded): 28" (71,1 cm)
Overall Length (Flat): 54.75" (139 cm)
Maximum Triangle Height: 14" (35,6 cm)
Width: 5.5" (14 cm)
Thickness (Folded): 1.8" (4,6 cm)
Thickness (Flat): .75" (1,9 cm)
2770-P [Slicone Pad]
Dimensions: 12" x 5.5" (30,5 cm X 14 cm)
2590-S [Short Straps]
Package of 10
|
|
|
Berger Block Positioner Assembly
Designed for lower extremity positioning with dual height options |
|
|
|
Designed by Richard Berger, MD |
|
|
|
|
|
|
Chandran Thigh Lift Positioner
Designed to help lift and position the thigh from above during knee surgery |
|
|
|
Designed by Rama Chandran, MD |
|
|
|
Product No’s:
4167-00 [Positioner Set]
Included in set and also sold Individually:
4167-01 [Cradle]
Dimensions: 7.5" x 7.75" (19,1 x 19,7 cm)
4167-02 [Rod]
Width: 13.6" (34,5 cm)
Height: 20.6" (52,3 cm)
4150-PS [Post Screw]
Two included in set, one with this product number
2760-P [Silicone Pad]
Dimensions: 9” x 8” x ½” thick (22,9 x 20,3 x 1,3 cm)
[Orange Strap]
Dimensions: 2" x 31.5" (5,1 x 80 cm)
Two included in set, see below for replacement 10-pack
Replacement Items:
8130-P [Orange Straps - 10-Pack]
Dimensions (Each): 2" x 31.5" (5,1 x 80 cm)
2760-P [Silicone Pad]
Dimensions: 9” x 8” x ½” thick (22,9 x 20,3 x 1,3 cm)
Optional Items (Not included in Set):
4167-03 [Adapter]
Width: 12.4" (31,5 cm)
Height: 4.875" (12,4 cm)
9125 [Rotating Table Clamp]
The optional thigh lift adapter is designed for use with a hydraulic lift device instead of the manual lift rod with table clamp.
|
|
|
Cherf Leg Holder
Supports the lower extremity for prepping before hip or knee surgery
|
|
|
|
Designed by J. Cherf, MD
|
|
|
   |
Useful for all lower extremity procedures and particularly helpful for supporting the leg with the patient positioned in the lateral position. By holding the foot/ankle in an externally rotated position, the knee can be locked into extension which helps eliminate the need for manual support.
The leg holder may also be used to support the limb for surgical patients in the supine position such as for knee and foot/ankle procedures.
Product No: 2270
Replacement Parts:
4150-PD3 [Set of 3 Replacement Pads]
|
|
|

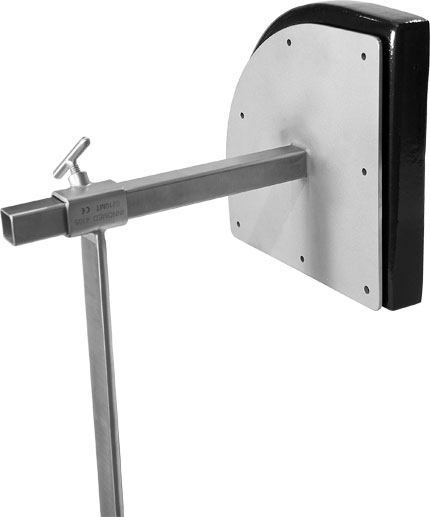

Durham Leg Positioner
Placed against the thigh, helping to hold the leg upright in knee surgery |
|
|
|
Designed by Al Durham, MD |
|
|
|
Supplied with a sterilizable table clamp. The pad is made of semi-dense foam to help prevent pressure points and is sealed with a washable coating.
Product No: 4105
Replacement Parts:
9120 [Table Clamp]
4105-P [Pad]
|
|
|

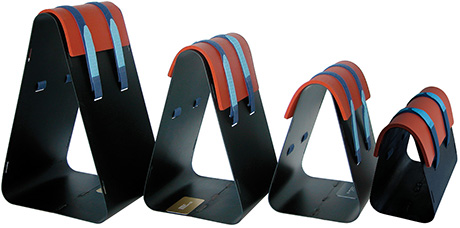

Fromm Femur & Tibia Triangles
Used for femur and tibia positioning during nailing, repairs and fractures |
|
|
|
Designed by Stuart E. Fromm, MD
Extra Small Triangle designed by
S.E. Fromm, MD & Kenneth Merriman, MD |
|
|
 |
Designed to position and hold the femur and tibia during intramedullary nailing of the tibia, ligament repairs and extremity fractures. Allows knee to be flexed greater than 90° to allow reaming and nail insertion without displacing fracture.
The triangles are available in four heights:
8.5", 11", 14", and 16". The three smaller triangles are designed to fit inside the larger triangle for storage. They are supplied with an autoclavable silicone cushioning pad and velcro* straps. The triangles are also radiolucent and gas or steam sterilizable.
*Velcro® is a registered trademark of the Velcro Companies.
Product No's:
2760-00 [Set of Three]
Included in Set / Available Individually:
2760-01 [11"]
Base: 6" (15,2 cm)
Height: 11" (27,9 cm)
Angles: Top 30°, Two Bottom 75°
2760-02 [14"]
Base: 7" (17,8 cm)
Height: 14" (35,6 cm)
Angles: Top 30°, Two Bottom 75°
2760-03 [16"]
Base: 9" (22,9 cm)
Height: 16" (40,7 cm)
Angles: Top 30°, Two Bottom 75°
Sold Separately – Not In Set:
2760-XS [8.5"]
Base 5" (12,7 cm)
Height: 8.5" (21,6 cm)
Angles: Top 30°, Two Bottom 75°
Replacement Parts:
2760-P [Silicone Pad]
2760-S [Straps] Package of 18 – 6 Blue / 12 Green
8100-P [Green Straps for Femur, Long] Package of 10
8120-P [Blue Straps for Tibia, Short] Package of 10
8120-SP [Straps for 2760-XS] Package of 10
|
|
|

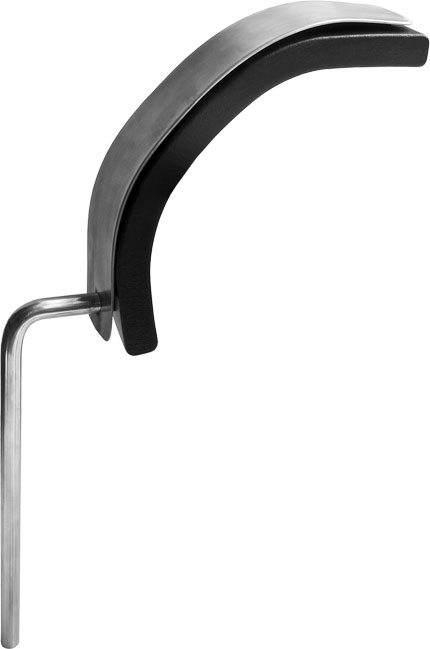

George Arthroscopic Knee Positioner
Provides lateral as well as superior support which allows valgus stress to open the medial compartment |
|
|
|
Designed by Michael S. George, MD |
|
|
|
Shape does not squeeze the thigh, making the need for a thigh tourniquet optional. If desired, the unit can easily be rotated out of the way without disrupting the sterile field. Using with a standard operating table clamp, the unit can easily be raised or lowered to accommodate all thigh sizes.
Product No: 2735
Overall Height: 22" (55,9 cm)
Post Height: 12" (30,5 cm)
Pad Width: 3" (7,6 cm)
Replacement Parts:
2735-P [Pad]
|
|
|
Hyperflex Foot Positioner Assembly
Designed to help secure the foot for positioning of the knee in the hyperflex position |
|
|
|
Designed by Morteza Meftah, MD and Ira Kirschenbaum, MD |
|
|
|
Product No's:
2589-00 [Complete Assembly]
Overall Length: 19" (48,3 cm)
Individual/Replacement Parts:
2589-01 [Foot Positioner]
Overall Length: 18" (45,7 cm)
2590-B [Positioner Bar]
Overall Length: 19" (48,3 cm)
2730-P [Pad & Two Straps]
4150-PS [Post Screw]
Optional Parts:
2590-S [Black Straps] Pkg of 10
|
|
|
Kirschenbaum Foot Positioner
Helps eliminate the use of sand bags under the drape during total knee surgery
|
|
|
|
Designed by I. Kirschenbaum, MD
|
|
|
 |
The foot rest is dome shaped for optimal foot contact and positioning the leg in flexion, and can be rotated. The unit can be used under the drape by attaching it to a standard table attachment or it can be sterilized for use on top of the drape. It can be attached to the table with the optional sterilizable table clamp. The foot rest is supplied with a removable, sterilizable silicone foot pad.
Product No’s:
2590 [Foot Positioner – Long]
Foot Rest Dimensions:
15.5" x 6" (39,4 cm x 15,2 cm)
2591 [Foot Positioner – Short]
Foot Rest Dimensions:
9.5" x 6" (24,1 cm x 15,2 cm)
2590-P [Long Replacement Pad]
Pad Dimensions:
16" x 9" (40,7 cm x 22,9 cm)
2591-P [Short Replacement Pad]
Pad Dimensions:
9.5" x 9.25" (24,1 cm x 23,5 cm)
2595 [Optional Table Clamp]
|
|
|

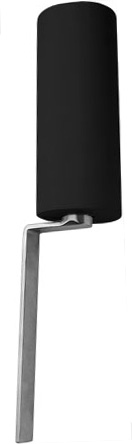

Leg Stabilizer
Useful in arthroscopic knee surgery to hold the leg in position |
|
|
|
Designed by Gregory Fanelli, MD |
|
|
 |
Helps to open up the knee joint when pressure is applied to the lower leg. Pad and sterilizable table clamp included.
Product No: 8840
Overall Length: 18.5" (47 cm)
Handle Length: 9.25" (23,5 cm)
Pad Diameter: 3" (7,6 cm)
Replacement Parts:
8840-P [Pad]
9120 [Table Clamp]
|
|
|

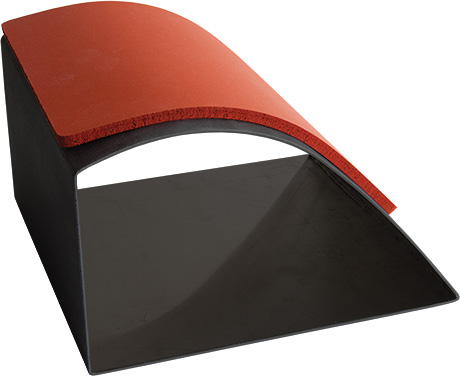

Lower Extremity Leg Positioner
Used to support knee and leg during surgery, and can be used for casting |
|
|
|
Designed by Ronald Romanelli, MD |
|
|
|
Utilized for rodding of femurs or tibias.
Also useful for knee surgery and closures.
Very supportive, distributes stresses on leg, used instead of bolsters.
Supplied with one autoclavable silicone pad.
Aluminum positioner is radiolucent and gas or steam sterilizable.
Product No: 2745
Dimensions:
5.5" H x 9.5" L x 9.25" W
(12,7 cm x 24,1 cm x 23,5 cm)
Replacement Part:
2760-P [Silicone Pad]
|
|
|
Lombardi Leg Positioner
Designed to hold the leg during total knee surgery, the unrestricted design helps allow for manipulation of the leg |
|
|
|
Designed by Adolph V. Lombardi Jr., MD |
|
|
|
The footpiece consists of an open topped boot, separated with four spacers and attached to a boot support plate.
The support plate is bent beyond the rear of the boot to help provide support in different positions of flexion/extension.
The spacers allow for room to clean between the boot and support plate.
Two (2) Sterile Pads/Wraps are included with each purchase.
Product No’s:
2622 [Lombardi Leg Positioner]
Base Length: 13" (33 cm)
Base Width: 7" tapers to 4" (17,8 x 10,2 cm)
Overall Height: 12.75" (32,4 cm)
Replacement Parts:
2629-00 [Sterile Pad & Wrap – Case of 10 Sets]
|
|
|
Modified 90° Leg Stabilizer
Useful in total knee surgery to hold the leg in position |
|
|
|
Designed by Gregory Fanelli, MD |
|
|
 |
Product No: 2725
Post Height: 11.375" (28,9 cm)
Pad Length: 9" (22,9 cm)
Pad Diameter: 3" (7,6 cm)
Replacement Parts:
8840-P [Pad]
9120 [Table Clamp]
|
|
|
Patient Self Stress Assembly Set
Designed to help position a patient for X-ray evaluation to help determine candidacy for Unicompartmental Knee Arthroplasty |
|
|
|
Designed by Kyle Cook, RTR and David Mauerhan, MD |
|
|
|
Product No's:
2741-00 [Set]
Also available individually:
2741-01 [Triangle Positioner]
Dimensions:
24" x 9" x 9" (61 cm x 23 cm x 23 cm)
2741-02 [Contoured Cube]
Dimensions:
11" x 9" x 6" (28 cm x 23 cm x 15,2 cm)
|
|
|
Sanders Extremity Positioning Tubes
Designed to support the knee and ankle during lower extremity surgery |
|
|
|
Designed by Richard A. Sanders, MD |
|
|
|
The large 6" tube lifts the knee off the operating table and allows for approximately 30° of knee flexion. Very useful for closure of total knee incisions, supporting fractures of the distal femur, and tibia plateau fractures.
The smaller 4" tube elevates the foot and ankle for ankle fracture surgery.
The tubes are made of aluminum, allowing them to be autoclaved. They help eliminate the need for rolled sheet bolsters.
Product No’s:
2740-01 [Small]
Diameter: 4" (10,2 cm)
Width: 8" (20,3 cm)
2740-02 [Large]
Diameter: 6" (15,2 cm)
Width: 8" (20,3 cm)
|
|
|

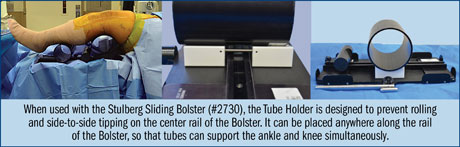

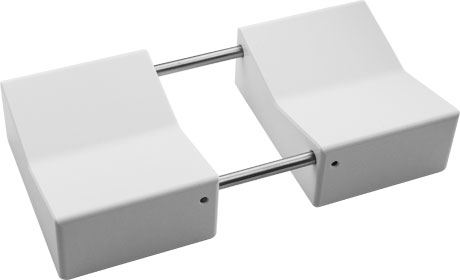

Sanders Tube Holder
Designed to help stabilize the Sanders Extremity Positioning Tubes (#2740-01 & 2740-02) |
|
|
|
Designed by Richard Sanders, MD |
|
|
|
The tube holder will help stabilize the tubes when used for lower extremity positioning for lower extremity surgery. Also, by using the tubes with the Stulberg Sliding Bolster (#2730), the knee can be placed in less flexion during the initial incision and wound closure.
Product No: 2740-03
|
|
|

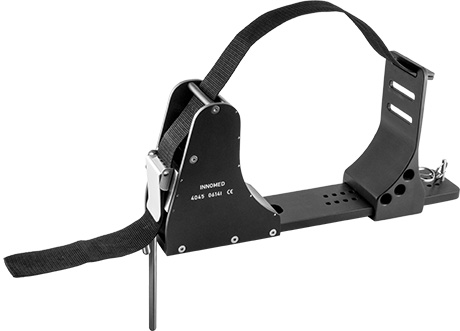

Stanton Arthroscopic Leg Holder
Designed to securely hold legs of various sizes for arthroscopic surgery |
|
|
|
Designed by John L. Stanton, MD, FACS |
|
|
|
-
Sliding leg holder can be adjusted for small calves or to accommodate large thighs
-
Locking pin prevents sides from spreading apart
-
Strap can be placed high or low through the slots in the side plates to accommodate large/small limbs
-
Strap is strongly secured with a toothed clamp
-
Permanently attached support rod, when clamped into a standard table clamp, helps to prevent rotation
Product No's:
4045
Dimensions:
16.5" Long x 8.5" High x 3.5" Wide
(42 cm Long x 21,6 cm High x 8,9 cm Wide)
Fits Legs: From 4" to 11" (10 cm to 28 cm)
Replacement Items:
4045-S [Strap]
Overall Length: 28" (71,2cm)
|
|
|
Stulberg Leg Positioner
Provides stable positioning of the knee during surgery |
|
|
|
Designed by S. David Stulberg, MD |
|
|
|
Allows the leg to be manipulated into the desired position and securely locked in place. Has the necessary adjustments to tilt, rotate, and flex or extend the knee. Extension/flexion adjustments can be made with quick release of the ratchet. In use, the base plate is clamped onto the operating table with the vertical side bar. The base plate is then draped and the sterile support plate lowered into the base plate. The patient's foot is wrapped into the foot support with a sterile bandage (additional padding may be used for thin tibias). The complete unit is steam and gas sterilizable. Three (3) Sterile Pads/Wraps are included with each new purchase.
Product No's:
2620-10 [Leg Holder with Aluminum Footpiece]
Base Dimensions:
20" x 10.5" (50,8 cm x 26,7 cm)
Optional/Replacement Parts:
2620-FP [Aluminum Footpiece Only]
2620-FPI [Carbon Fiber Footpiece Only]
2629-00 [Case of 10 Sterile Pads/Wraps]
2629-L [Single Sterile Pad/Wrap]
 |
Knee Positioner
Sterile Protective
Pad & Wrap
Disposable, latex-free sterile foam pad and cohesive wrap helps protect patient from pressure sores, abrasions and possible neurological impairment while securing foot into the boot. |
|
|
|
Stulberg Sliding Bolster
Helps eliminate the need for a sand bag during total knee surgery
|
|
|
|
Designed by S. David Stulberg, MD
|
|
|
 |
The base plate is attached to the table and the sterile sliding bolster is placed on top of the sterile drape. The bolster can be adjusted for different angles of knee flexion during surgery.
Product No: 2730
Base Dimensions:
20" x 10.5" (50,8 cm x 26,7 cm)
|
|
|
