NEW INSTRUMENTS

Click thumbnail image for details

90° Bone Hook
Andrews Modified Tibial Fragment Grasper
Angled Glenoid Retractor
90° Bone Hook
Andrews Modified Tibial Fragment Grasper
Angled Glenoid Retractor
New This Month!
Angled Glenoid Retractor – Forked
Articulated Caliperwith Ruler
Auerbach Arm Holder Rake Retractor Set
Belfast Sagittal Plane Positioner
2.5" Blade with Teeth for Self-Retaining Hip Retractor System
Blount Retractor with Small Handle
Calibrated Femoral Tibial Spreaders with Small Grip Handle
Auerbach Arm Holder Rake Retractor Set
New This Month!
Belfast Sagittal Plane Positioner
Blades with Teeth for Self-Retaining Hip Retractor System
Blount Retractor
with Small Handle
Calibrated Femoral Tibial Spreaders with Small Grip Handle
Chandran Anterior Retractor for THR
Chandran Modified Knee Retractor
Corkscrew Small Bone Manipulator
Curved Canal Rasps

Curved Osteotome for TKR

Chandran Anterior Retractor for THR
Chandran Modified Knee Retractor
Corkscrew Small Bone Manipulator
Curved Canal Rasps
New This Month!
Curved Osteotome for TKR
Deep Meyerding Retractor with Ergonomic Handle
Direct Anterior Total Hip Arthroplasty Leg Positioner Assembly
Duellman Total Hip Trunion Clamp
Duke Classic Acetabular Retractor with Extra Grip Tip

Extended Drill Sleeves

Deep Meyerding Retractor with Ergonomic Handle
Direct Anterior Total Hip Arthroplasty
Leg Positioner Assembly
New This Month!
Duellman Total Hip Trunion Clamp
Duke Classic Acetabular Retractor with Extra Grip Tip
Extended Drill Sleeves
Extended Scalpel Handle
Faillace Extra Small Bone Clamp
Flexible Osteotome System Extra Long Chisel Blades
Foster Tibial Component Disimpactor

Gap Clamp for Cortical Button Distal Bicep Repair

Extended Scalpel Handle
Faillace Extra Small
Bone Clamp
Flexible Osteotome System Extra Long Chisel Blades
Foster Tibial Component Disimpactor
Gap Clamp for Cortical Button Distal Bicep Repair
Grant TKA Anatomic Bone File Set
Small Bone Awl
Infero-Posterior Acetabular Retractor with Modular Handle
Intraarticular Tissue Grasper/Rongeurs

Kawell Short Army Navy Retractor

Grant TKA Anatomic
Bone File Set
Hooked Bone Awls
Infero-Posterior Acetabular Retractors with Modular Handle
Intraarticular Tissue Grasper/Rongeurs
Kawell Short Army Navy Retractor
Kenerly Double Parallel Femoral Neck Disc Grasper
Kopplin Adductor Pain Catheter Grasper
Lombardi Femoral Tibial Spreader
Lombardi Gap Balancing Femoral Tibial Spreader with Small Grip Handle
Mazzara Rongeur with Small Pistol Grip Handle
Kenerly Double Parallel Femoral Neck Disc Grasper
Kopplin Adductor
Pain Catheter Grasper
Lombardi Femoral Tibial Spreader with Small Grip Handle
Lombardi Gap Balancing Femoral Tibial Spreader with Small Grip Handle
Mazzara Rongeur
for Small Bones
McPherson Retractor Extender
Mehalik Posterior Glenoid Retractor with Long Handle
Medial Acetabular Retractors
Meyer Laterjet Bone Block & Forceps Assembly
Monaco Small Space Retractor
McPherson Retractor Extender
Mehalik Posterior Glenoid Retractor with Long Handle
Medial Acetabular Retractors with Large Handle
Meyer Laterjet Bone Block & Forceps Assembly
Monaco Small Space Retractor
Multi-Purpose Hip & Knee Retractors
Acetabular Retractor with Large Handle
Offset Medial Acetaublar Retractors with Large Handle
Ortho Self-Retaining Retractor with Small Grip Handle
Parsley Intraoperative Leg Length Device
Multi-Purpose Hip & Knee Retractor Set
Narrow Cobra-style Retractor with Large Handle
New This Month!
Offset Medial Acetaublar Retractors with Large Handle
Ortho Self-Retaining Retractor with Small Grip Handle
Parsley Intraoperative Leg Length/Offset Device
Peg Extenders for Capello Patient Positioner Pegs
Pituitary Rongeur with Teeth
Pointed Fracture Reduction Clamps – Medium
Ratcheting Reduction Clamp Kit

Rogozinski Lamina Spreader

New This Month!
Peg Extenders for Capello Patient Positioner Pegs
Pituitary Rongeur with Teeth
Pointed Fracture Reduction Clamp - Medium
Ratcheting Reduction Clamp Kit
New Size This Month!
Rogozinski Lamina Spreaders
Rogozinski Soft Tissue Retractor
Sarraf Toothed Curettes
Shark Tooth Graspers with Small Grip Handle
Small Bone Double Sided Chisel Set

Stainless Steel Ratchet Frame with Arms and Blades Sets

New Size This Month!
Rogozinski Soft Tissue Retractors
Sarraf Toothed Curettes
Shark Tooth Graspers with Small Grip Handle
Small Bone Double Sided Chisel Set
Stainless Steel Hip Surgery Ratchet Frame with Arms & Blades Sets
Stoll Retractor Wire Guide
TKA Gap Assessment Gauge
Tibiofemoral Offset Caliper

Unger Universal Femoral Component Extractor
with Precision Osteotomy Guide

Weinraub Joint and Calcaneal Spreader with Speed Lock

Stoll Retractor /Wire Guide
TKA Gap Assessment Gauge Assembly
Tibiofemoral Offset Caliper
Unger Universal Femoral Component Extractor
with Precision Osteotomy Guide
Weinraub Joint and Calcaneal Spreader with Speed Lock
Whelan Femoral Neck Elevator
Whelan Large Anterior Hip Weitlaner Retractor
Whelan Narrow Hohmann Retractor
Zelicof Winged Retractor


Whelan Femoral Neck Elevator
Whelan Large Anterior Hip Weitlaner Retractor with Ergonomic Handle
Whelan Narrow Hohmann Retractor
Zelicof Winged Retractor



90° Bone Hook

Designed to ergonomically help the surgical assistant elevate the proximal femur during TKA, the bone hook aids the surgeon in accessing posterior osteophytes and in applying local anesthetic to the posterior capsule


Designed by Charles Taunt, DO



90° Bone Hooks

90° Bone Hooks



Takes the place of an intramedullary device when the IM canal has not been opened (robotic assistance) or when damaged or osteopenic bone is of concern.

Product No's:

5940-B [Blunt Tip]
Curve Diameter: 50 mm
Hook Depth: 6.5" (16,5 cm)
Handle Length: 5" (12,7 cm)

5940-S [Sharp Tip]
Curve Diameter: 50 mm
Hook Depth: 6.5" (16,5 cm)
Handle Length: 5" (12,7 cm)


Download Product Brochure (PDF)


TOP





Andrews Modified Tibial Fragment Grasper

Designed to help remove tibial bone during unicondylar and total knee arthroplasty


Designed by Scott Andrews, MD


Andrews Modified Tibial Fragment Grasper

Andrews Modified Tibial Fragment Grasper

Product No: 1721
Overall Length: 10" (25,4 cm)
Jaw Dimensions: 1.44" x .72" (36,6 cc x 18,3 mm)
Lower Jaw Thickness: 1 mm
Download Product Brochure (PDF)

TOP

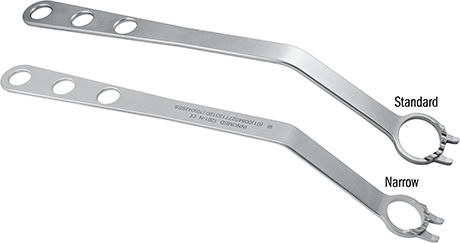

Angled Glenoid Retractor

Flared design allows for atraumatic placement circumferentially about the glenoid — superior, anterior and inferior — during open shoulder procedures for retraction of the subscapularis and capsule and to facilitate labral work


Designed by R.L. Stowell, MD


Angled Glenoid Retractor



Product No's:

1901-N [Narrow]
Overall Length: 10" (25,4 cm)
Blade Width at End Tapers from:
1" to .4" (2,5 to 1 cm)

1901-W [Wide]
Overall Length: 10" (25,4 cm)
Blade Width at End Tapers from:
1" to .625" (2,5 to 1,6 cm)
Download Product Brochure (PDF)

TOP





Angled Glenoid Retractor – Forked

Designed to help with exposure of the difficult glenoid and facilitation of glenosphere placement for reverse arthroplasty, with wide and narrow versions to accommodate most glenoid variations


Designed by R.L. Stowell, MD


Angled Glenoid Retractor – Forked

Specifically designed bend allows the retractor to sit along the posterior aspect and deliver the glenoid vault into the surgical field while retracting the humeral head posterior and lateral without excessive force on the glenoid neck, while the working end of the design allows reaming and peripheral bone removal without binding on the reamer.

Product No's:

1902-N [Narrow]
Overall Length: 10" (25,4 cm)
Blade Width: 1" (25 mm)
Blade Width at End: .825" (21 mm)

1902-W [Wide]
Overall Length: 10" (25,4 cm)
Blade Width: 1" (25 mm)
Download Product Brochure (PDF)

TOP





Articulated Caliper with Ruler

A highly precise (within 1 mm) device designed for measuring distances between two points — can be used even if there are intervening structures like soft tissue or bone, and in situations where a straight ruler will not work


Designed by Vincent Y. Ng, MD


Articulated Measuring Device with Ruler

Articulated Measuring Device with Ruler


Example of use include measuring limb length in total hip arthroplasty, confirming length in megaprosthetic knee replacements, and assessing dimensions of allografts.

Product No's:

2026-00 [Articulated Caliper with Ruler]

Set Includes / Available Individually:

2026-01 [Articulated Caliper Only]
Overall Length (unfolded): 15.25" (38,8 cm)
Dimensions Triangle Folded: 4" x 4.25" (10,2 x 10,8 cm)


2026-02 [Ruler Only]
Overall Length: 9" (22,9 cm)
Width: .79" (2 cm)
Download Product Brochure (PDF)


TOP





Auerbach Arm Holder Rake Retractor Set

Allows intraoperative positioning for procedures of the posterior arm, elbow, and forearm


Designed by David M. Auerbach, MD



Auerbach Arm Holder Rake Retractor Set

  • Simple design for fast and easy positioning

  • Connects over the drape in the sterile field using the supplied rail clamp and post

  • Can be repositioned during surgery
  • Sterilizable rubber pad protects the arm
  • Retractors for the skin and soft tissues connect to the holder
  • Compact for easy storage


  • Auerbach Arm Holder Rake Retractor Set

    Product No's:

    2415-00 [Auerbach Arm Holder Rake Retractor Set]
    Set includes:
    (1) Arm Holder Assembly,
    (1) Arm Holder Upright Rod,
    (2) 4-Prong Chain Retractors,
    (2) 6-Prong Chain Retractors,
    (2) Black Straps,
    (1) Silicone Pad, and
    (1) Table Clamp.


    Individual/Replacement Parts:

    2415-01 [Auerbach Arm Holder Assembly]
    Overall Length: 20" (50,4 cm)
    Arm Holder Dimensions: 14.5" x 4" (36,9 x 10,2 cm)
    Overall Width inclusing Cleats: 7.5" (19,1 cm)


    2415-02 [Auerbach Arm Holder Upright Rod]
    Overall Length: 19.25" (49,9 cm)

    2415-04 [Auerbach Rake Chain Retractor 4-Prong]
    Two included in set, one with this product number
    Overall Length including Chain: 10" (25,4 cm)
    Retractor Width: .75" (1,9 cm)


    2415-06 [Auerbach Rake Chain Retractor 6-Prong]
    Two included in set, one with this product number
    Overall Length including Chain: 10" (25,4 cm)
    Retractor Width: 1.25" (3,2 cm)


    2590-S01 [Black Strap]
    Two included in set, one with this product number
    Dimensions: 1" x 24" (2,5 x 61 cm)


    2595 [Table Clamp]

    2770-P [Silicone Pad]
    12" x 5.5" (30,5 x 14 cm)

    Replacement Parts:

    2590-S [Black Straps] Pkg of 10
    Download Product Brochure (PDF)


    TOP





    Belfast Sagittal Plane Positioner

    A sturdy and stable patient support system for posterior approach total hip arthroplasty in the lateral decubitus position


    Designed by David Beverland, FRCS




    Belfast Sagittal Plane Positioner

    Belfast Sagittal Plane Positioner

    Very secure and easy to tighten.

    Accommodates the very obese patient.

    Does not attach to the table, making it compatible with all OR tables.

    Anterior ASIS support unit allows both height and depth adjustment, eliminating the need to adjust the baseplate locking mechanism once secured. The depth adjustment allows extension of up to 150 mm beyond the support base, providing space to avoid the abdominal apron.

    Posterior support unit offers both Sacral and Iliac Crest support, connected together as one unit, and provides both height and rotation adjustments, as well as a hinged pivot where the iliac crest side attaches the unit to the post, that can be loosened and adjusted to allow rotation in 5° increments.

    Allows access to the PSIS before and during surgery. This can help to ensure that the sagittal plane of the pelvis is horizontal at the time of cup implantation.

    Product No's:

    4170-00 [Complete Set]
    Set Includes / Available Individually:

    4170-03 [Anterior Upright Support]
    4170-04 [Anterior Plane Support]
    4170-05 [Anterior Clamp Support]
    4170-AKS [Anterior Knob Screw]
    Two (2) included in Set, One (1) with this product number
    4170-AP [Anterior Plane Pad]
    4170-06 [Posterior Sagittal Plane Support]
    4170-07 [Posterior 9.5" Post]
    4170-PKS [Posterior Knob Screw]
    4170-08 [Posterior Base]
    4170-09 [Posterior Angle Adjuster]
    4170-T [Posterior T-Handle Screw]
    4170-PP [Posterior Support Pad]
    Two (2) included in Set, One (1) with this product number
    4150-PS [Post Screw]
    Three (3) included in Set, One (1) with this product number
    4050-BP [20" Baseplate Only]
    4050-LPD [Hip Positioner Large Pad]
    Download Product Brochure (PDF)


    TOP

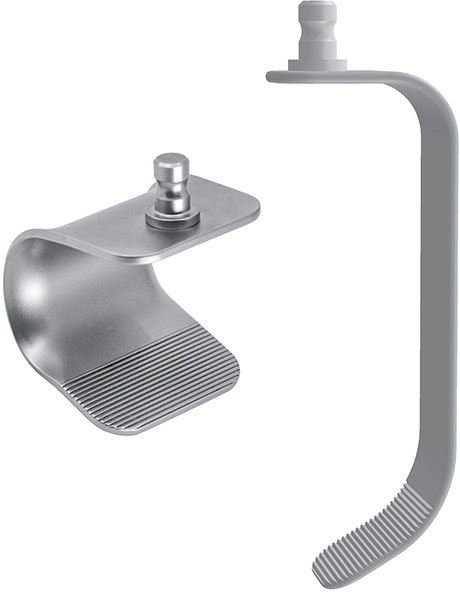

    Blades with Teeth for Self-Retaining Hip Retractor System






    2.5" Blade with Teeth for Self-Retaining Hip Retractor System


    Product No's:

    C1013 [2.5" Blade Depth]
    Overall Length: 6.75" (17,1 cm)
    Handle Length: 6.375" (16,2 cm)
    Blade Depth: 2.5" (6,4 cm)
    Blade Width: 1" (2,54 cm)


    C1013-01 [4" Blade Depth]
    Overall Length: 6.75" (17,1 cm)
    Handle Length: 6.375" (16,2 cm)
    Blade Depth: 4" (10,2 cm)
    Blade Width: 1" (2,54 cm)


    Download Product Brochure (PDF)


    TOP





    Blount Retractor with Small Handle

    A blount retractor with a lightweight ergonomic handle designed for tissue retraction and closure assistance in knee, shoulder, and hip arthroplasty


    Designed by Ronald Romanelli, MD



    Blount Retractor with Small Handle

    Blount Retractor with Small Handle

    Product No:4852
    Overall Length: 9.375" (25,1 cm)
    Handle Length: 4.625" (11,7 cm)
    Blade Depth: 1.5" (3,8 cm)
    Blade Width at Widest: .325" (8,3 mm)
    Download Product Brochure (PDF)

    TOP





    Calibrated Femoral Tibial Spreaders with Small Grip Handle

    Designed with the grip closer together for easier gripping and to help reduce hand fatigue, these spreaders help separate the femur and tibia during total knee replacement surgery




    Calibrated Femoral Tibial Spreaders with Small Grip Handle

    Calibrated Femoral Tibial Spreaders

    Designed to minimize crushing the bone, even if osteoporotic. The spreader will remain in position, with the femur and tibia separated, without the need of an assistant. A wide unobstructed view of the posterior compartment is possible. Osteophytes on the posterior condyles of the femur and tibia can be seen and removed.

    Calibrated Femoral Tibial Spreaders

    The coated spreader is designed to separate the femur and tibia when implant components are in place during total knee surgery. This is helpful in checking the back of the knee joint for cement, etc. The pads are coated to keep from scratching the component surfaces, and are slightly contoured for stability against the curved articulating surfaces.

    Calibrated Femoral Tibial Spreaders

    Product No’s:

    1850-SG
    [Small with Grooved Pads and Small Grip Handle]
    Overall Length: 7" (17,8 cm)
    Pads: 23 x 12 mm
    Opens to: 39 mm


    1850-01-SG
    [Small with Coated Pads and Small Grip Handle]
    Overall Length: 7" (17,8 cm)
    Pads: 18 x 15 mm
    Opens to: 39 mm


    1865-SG
    [Small with Round Pads and Small Grip Handle]
    Overall Length: 7" (17,8 cm)
    Pads: 25 x 25 mm
    Opens to: 39 mm
    Download Product Brochure (PDF)

    TOP





    Capello Patient Positioner

    Provides stable positioning of a patient during hip procedures


    Designed by William Capello, MD


    Capello Patient Positioner

    Available in a one-piece or two-piece board design.

    Optional two-piece board construction allows for easier use and storage.

    All gel pads, pegs and peg height extensions can be used with existing peg boards.

    Product No’s:

    4090 [Set with 2-Piece Board[
    Length (Connected): 47" (120 cm)
    Width: 18.75"
    (47,6 cm)

    4095 [Set with 1-Piece Board]
    Length: 47" (120 cm)
    Width: 18.75" (47,6 cm)


    Each set includes:

    Board, Gel Pad, (4) 6" Radiolucent Pegs,
    (4) 9" Radiolucent Pegs, (2) Stabilizing Clamps,
    (2) Table Clamps.


    Replacement Parts:
    4090-PB [2-Piece Positioning Board]
    4095-PB [1-Piece Positioning Board]
    4090-06 [6" Radiolucent Peg]
    4090-08 [9" Radiolucent Peg]
    4090-SC [Stabilizing Clamp]
    4090-01 [Large Gel Pad]
    9120 [Table Clamp]

    Optional Parts:

    4090-02 [Peg Gel Pad]
    4090-EXT [Peg Extension 4" (10,2 cm)]
    4090-EXT6 [Peg Extension – 6" (15,2 cm)] New!
    4090-EXT8 [Peg Extension – 8" (20,3 cm] New!
    SEE ALSO: LARGE PATIENT PEG BOARD POSITIONER POST ASSEMBLY
    Download Product Brochure (PDF)

    TOP





    Chandran Anterior Retractor for THR

    Design helps to expose the anterior rim of the acetabulum and prevent displacement of the retractor while reaming the acetabulum during direct anterior hip replacement


    Designed by Rama E. Chandran, MD





    Chandran Anterior Retractor for THR


    Chandran Anterior Retractor for THR

    Product No: 6311
    Overall Length: 13.5" (34,3 cm)
    Depth from Flat: 4.75" (12,1 cm)
    Blade Width: .625" (1,6 cm)



    Download Product Brochure (PDF)


    TOP





    Chandran Modified Knee Retractor

    Teeth designed to help prevent tilting of the retractor and protect the patellar tendon during robotic assisted total knee replacement


    Designed by Rama E. Chandran, MD






    Chandran Modified Knee Retractor


    Also useful to retract structures on the lateral side of the tibia.

    Product No: 7117
    Overall Length:8.75" (22,2 cm)
    Blade Width: .625" (1,6 cm)
    Blade Depth from Handle: 5" (12,7 cm)



    Download Product Brochure (PDF)


    TOP





    Corkscrew Small Bone Manipulator

    Designed with an aggressive thread to aid in excising small bones of the hand and foot


    Designed by Raymond Wurapa, MD



    Corkscrew Small Bone Manipulator


    The quick-connect end allows the device to be inserted with ease under power with a standard drill attachment. After insertion, the drill is detached and manual control over the process of extracting the bone can be perfomed by hand, using either the disc on the shaft or attaching a handle.

    Helps with removal of trapezium during basal joint arthroplasty.

    Helps with extraction of any carpal bones for wrist procedures: proximal row carpectomy (PRC), partial wrist fusions, pisiform excision.

    Corkscrew Small Bone Manipulator

    Product No: 1615
    Overall Length: 4" (10,2 cm)
    Length Beyond Disc: 2.25" (5,7 cm)
    Length Beyond Line: .625" (1,6 cm)
    Corkscrew Length: .375" (1 cm)

    Optional:

    S0113 [Universal Handle]
    Overall Length: 4" (10,2 cm)

    Download Product Brochure (PDF)

    TOP





    Curved Canal Rasps

    Designed for preparation of the femoral canal for insertion of a cemented or cementless hip stem, the multiple diameters serve to prepare the femoral canal after the initial 5 mm is used to find the curvature of the canal


    Design modification by Michael Messieh, MD
    of original design by Anthony Unger, MD.


    Curved Canal Rasps

    Product No's:

    3004-01-08 [8 mm]
    Overall Length: 11" (27,9 cm)
    Handle Length: 5" (12,7 cm)

    3004-01-10 [10mm]
    Overall Length: 11" (27,9 cm)
    Handle Length: 5" (12,7 cm)


    3004-01-12 [12mm]
    Overall Length: 11" (27,9 cm)
    Handle Length: 5" (12,7 cm)


    Download Product Brochure (PDF)


    TOP





    Curved Osteotome for Total Knee Revision

    Designed to help in the removal of a tibial component,
    the curved blade is designed to make contact from multiple angles


    Designed by Morteza Meftah, MD


    Curved Osteotome for Total Knee Revision

    Curved Osteotome for Total Knee RevisionCurved Osteotome for Total Knee Revision

    Curved Osteotome for Total Knee Revision

    Product No's:

    3622 [Standard]
    Overall Length: 11" (27,9 cm)
    Handle Length: 6" (15,2 cm)
    Blade Width: 12 mm
    Blade Thickness: 2 mm

    3622-01 [Small]
    Overall Length: 8" (20,3 cm)
    Handle Length: 4.5" (11,4 cm)
    Blade Width: 12 mm
    Blade Thickness: 2 mm



    Download Product Brochure (PDF)


    TOP





    Deep Meyerding Retractor with Ergonomic Handle

    A self-retaining soft tissue retractor for use in hip, knee, and shoulder surgery





    Deep Meyerding Retractor with Ergonomic Handle



    Product No: 6244
    Overall Length: 8.5" (21,6 cm)
    Blade Depth: 3.5" (8,9 cm)
    Blade Width: 1" (2,54 cm)
    Download Product Brochure (PDF)

    TOP





    Direct Anterior Total Hip Arthroplasty Leg Positioner Assembly

    Designed to help position the operative leg for femoral preparation in direct anterior approach total hip arthroplasty using a standard operating table


    Designed by Benjamin M. Frye, MD




    Direct Anterior Total Hip Arthroplasty Leg Positioner Assembly

    Allows one assistant to secure the leg for femoral preparation.

    Attaches directly to a standard operating table.

    Allows easy assessment of hip stability and leg length discrepancy.

    Calibrations on the rod help to allow for precise and reproducible placement of the leg positioner according to surgeon preference.


    Product No's:

    4165-00 [Assembly]

    Individual/Replacement Parts:

    4165-01 [Leg Support]
    Overall Length: 8.75" (22,2 cm)
    Width: 2.5" (6,4 cm)


    4165-02 [Calibrated Rod]
    Dimensions: 9.625" x 7.125" x 1" (24,5 x 18,1 x 2,5 cm)


    4165-P [Leg Support Pad]
    Dimensions: 8.5" x 3" x 1.75" (21,6 x 7,6 x 4,4 cm)


    4150-PS [Support Screw]
    T-Handle Width: 1.875" (4,7 cm)
    T-Handle Depth: 1.5" (3,8 cm)


    9120 [Table Clamp]
    Dimensions: 1.7" x 1.7"" x 1.4" (4,3 x 4,3 x 3,6 cm)




    US Patent No. 16/523,304

    Download Product Brochure (PDF)


    TOP





    Duellman Total Hip Trunnion Clamp

    Designed for use on a trial modular neck/trunnion at the time of placement on/off the femoral stem to help determine offset and neck length


    Designed by Todd Duellman, MD


    Duellman Total Hip Trunnion Clamp



    Product No: 1817
    Overall Length: 8" (20,3 cm)
    Download Product Brochure (PDF)

    TOP





    Duke Classic Acetabular Retractor with Extra Grip Tip

    Designed to retract the femur during acetabular exposure for either posterior or lateral approaches


    Designed by Justin Duke, MD


    Duke Classic Acetabular Retractor with Extra Grip TipDuke Classic Acetabular Retractor


    Product No: 7622
    Overall Length: 13.5" (32,3 cm)
    Handle Length: 9" (22,9 cm)
    Depth from Bend: 4" (10,2 cm)
    Prong Depth: 1.25" (3,2 cm)

    Download Product Brochure (PDF)


    TOP





    Durham Curved Osteotome

    Increased angle useful for posterior osteophytes of the femoral condyle and the humeral head, as well as anterior acetabular osteophytes


    Designed by Alfred A. Durham, MD


    Durham Curved Osteotome

    Durham Curved Osteotome

    Product No: 4950
    Overall Length: 9" (22,9 cm)
    Handle Length: 5" (12,7 cm)
    Osteotome Width: .625" (1,6 cm)

    Download Product Brochure (PDF)

    TOP





    Extended Drill Sleeves

    Designed to help reduce fractures when k-wires are passed through, the extra long drill sleeve helps to protect soft tissues and prevent the need for stacking two drill sleeves


    Designed by Reza Firoozabadi, MD




    Extended Drill Sleeves


    Serrated tips allow for better grip when drilling
    at an angleor when pushing a fracture fragment
    to assist with fracture reduction

    Sleeve can be used as a reduction aid with
    placement of a kirschner wire through sleeve

    Collaborated tips which allow placement of appropriate
    size drills for lagging by technique — as an example a
    2.5 end will fit into a 3.5 drill hole



    Extended Drill Sleeves

    Extended Drill Sleeves
    Note 2.0 mm end of drill sleeve placed into a predrilled 2.7 mm hole, utilized as a lag by technique 2.7 mm screw.

    Product No's:

    3014-00 [Set of Three]

    Set Includes/ Available Separately:

    3014-01 [2.4/1.8 mm]
    Overall Length: 6.875" (17,6 cm)
    Handle Length: 4.875" (12,4 cm)
    Guide Tube Length: 2.25" (5,7 cm)
    Guide Angle from Handle: 30°


    3014-02 [2.7/2.0 mm]
    Overall Length: 6.875" (17,6 cm)
    Handle Length: 4.875" (12,4 cm)
    Guide Tube Length: 2.25" (5,7 cm)
    Guide Angle from Handle: 30°


    3014-03 [3.5/2.5 mm]
    Overall Length: 6.875" (17,6 cm)
    Handle Length: 4.875" (12,4 cm)
    Guide Tube Length: 2.25" (5,7 cm)
    Guide Angle from Handle: 30°

    Extended Drill Sleeves
    Case example of using modified 3.5/2.5 mm drill sleeve for placing 3.5 mm screws in a forearm fracture case. Note how extended sleeve protects soft tissues during drilling.

    Download Product Brochure (PDF)

    TOP





    Extended Scalpel Handle

    Long thin scalpel handle used with knife blade to make a skin incision and cut through fascia to help seat trocars to bone


    Designed by Richard Pelliccio, MD


    Extended Scalpel Handle

    Extended Scalpel Handle

    Extended Scalpel Handle


    #10 blade normally used but choice of blade is at surgeons’ discretion. Blade not included.

    Product No: 3022
    Overall Length: 18.9" (48 cm)
    Handle Length: 5.5" (14 cm)
    Shaft Diameter: .25" (6,35 cm)
    Download Product Brochure (PDF)

    TOP





    Faillace Extra Small Bone Clamp

    Delicate enough to use on metacarpals but strong enough for distal radius and larger bones with its extra long ratchet


    Designed by John J. Faillace, MD, FAAOS


    Faillace Extra Small Bone Clamp



    Product No: 1171
    Overall Length: 5" (12,7 cm)
    Jaw Length: 1" (2,5 cm)
    Download Product Brochure (PDF)

    TOP





    Flexible Osteotome System

    Provides various osteotome blades for both hip and knee surgery





    Flexible Osteotome System


    Sharp, flexible blades are well suited for loosening implants from cement or bony ingrowth fixation.

    Various blade widths and profiles allow great flexibility to follow the implant contours.

    Modular handle is made of high impact surgical stainless steel and has a quick-coupling positive locking mechanism for ease of use and quick blade changes.

    Slap hammer threads into the handle and is designed to facilitate blade removal.

    System includes choice of handle style.


    Product No’s:

    S0011-00 [Set with Quick-Coupling Handle and Case]

    S0012-00 [Set with Locking Nut Handle and Case]



    Individual Instruments Included in Sets:

    S1002 Thin Osteotome Blade
               2.5" (6,3 cm) x 8 mm

    S1003 Thin Osteotome Blade
               2.5" (6,3 cm) x 10 mm

    S1004 Thin Osteotome Blade
               2.5" (6,3 cm) x 12 mm

    S1005 Thin Osteotome Blade
               2.5" (6,3 cm) x 20 mm

    S1006 Curved Thin Osteotome Blade
              2.5" (6,3 cm) x 12 mm

    S1007 Curved Thin Osteotome Blade
              5" (12,7 cm) x 20 mm

    S1008 Thin Osteotome Blade
               5" (12,7 cm) x 10 mm

    S1009 Thin Osteotome Blade
               5" (12,7 cm) x 8 mm

    S1020 Handle with Quick-Coupling End
               5" (12,7 cm)
               – OR –
    S1021 Handle with Locking Nut
              6" (15,2 cm)

    S1133 Radial Osteotome
               5" (12,7 cm) x 10 mm

    S1120 Radial Osteotome
               5" (12,7 cm) x 12 mm

    S1134 Radial Osteotome
               5" (12,7 cm) x 14 mm

    S1121 Radial Osteotome
               5" (12,7 cm) x 16 mm

    S1122 Radial Osteotome
               5" (12,7 cm) x 20 mm

    S2007 Small Slap Hammer
               12" (30,5 cm)

    9018 Case






    Optional Blades for Flexible Osteotome System








    Optional Strike Plate can be attached to the Handle for direct striking with a mallet.

    Optional Curved Chisel Blades are designed to help loosen the cement/prosthesis interval in TKA tibial tray and femoral component revisions. The curved design is useful in working around pegs & fins to get posterior cement access. Also helpful with removal of other implants, i.e shoulder, ankle, etc.




    OPTIONAL BLADES:
    NOT INCLUDED IN SET

    S1020-SP Strike Plate for Handle
               Diameter 1.625" (4,1 cm)

    S1123 7.5" Extra Long Osteotome Blade
              7.5" (19,1 cm) x 8 mm

    S1135 Radial Osteotome Medial Curve
               6.75" (17,1 cm) x 11 mm

    S1136 Radial Osteotome Lateral Curve
               6.75" (17,1 cm) x 11 mm

    S1137 Radial Osteotome Medial Curve
               5" (12,7 cm) x 11 mm

    S1138 Radial Osteotome Lateral Curve
               5" (12,7 cm) x 11 mm

    S1233-L 2" Flexible Left Curved Chisel
              2" (5,1 cm) x 8 mm

    S1233-R 2" Flexible Right Curved Chisel
               2" (5,1 cm) x 8 mm

    S1222 2.5" Chisel Blade
               2.5" (6,4 cm) x 8 mm

    S1223 2.5" Chisel Blade
               2.5" (6,4 cm) x 10 mm

    S1224 2.5" Chisel Blade
               2.5" (6,4 cm) x 12 mm

    S1225 2.5" Chisel Blade
               2.5" (6,4 cm) x 20 mm

    S1229 5" Chisel Blade
               5" (12,7 cm) x 8 mm

    S1228 5" Chisel Blade
               5" (12,7 cm) x 10 mm

    S1231 5" Chisel Blade
               5" (12,7 cm) x 12 mm

    S1230 5" Chisel Blade
               5" (12,7 cm) x 20 mm

    S1227 5.5" Long Chisel Blade NEW!
               5.5" (12,7 cm) x 8 mm

    S1232 7.5" Extra Long Chisel Blade
              7.5" (19,1 cm) x 8 mm

    S1234 8.5" Extra Long Chisel Blade NEW!
              8.5" (21,6 cm) x 8 mm

    S1235 9.5" Extra Long Chisel Blade NEW!
              9.5" (24,1 cm) x 8 mm

    S1236 10.5" Extra Long Chisel Blade NEW!
              10.5" (26,7 cm) x 8 mm

    S1237 11.5" Extra Long Chisel Blade NEW!
              11.5" (29,2 cm) x 8 mm

    S1238 12.5" Extra Long Chisel Blade NEW!
              12.5" (31,8 cm) x 8 mm


    Download Product Brochure (PDF)

    TOP





    Foster Tibial Component Disimpactor

    Designed for removal of a total knee tibial component


    Designed by Scott A. Foster, MD


    Foster Tibial Component Disimpactor


    Product No’s:

    1213-00 [Set]

    Set Includes / available individually:

    1213-01 [Foster Tibial Prosthesis Disimpactor]
    Extension Length: 14" (35,6 cm)
    Depth from Bend: 4.5" (11,4 cm)
    Fixed Handle Width: 5.5" (14 cm)

    1213-B [Foster Tibial Prosthesis Blade]
    Two included in Set, one with this product number
    Overall Length: 4.875" (12,4 cm)
    Handle Length: 4.5" (11,4 cm)

    3924-RH [Silicone Grip Handle]
    Overall Length: 4" (10,2 cm)






    VIEW SURGICAL VIDEO


    Download Product Brochure (PDF)

    TOP





    Gap Clamp for Cortical Button Distal Bicep Repair

    Designed to be used to help consistently set the gap for the radius cortex between the distal biceps stump and the cortical button


    Designed by Corey Trease, MD


    Gap Clamp for Cortical Button Distal Bicep Repair

    Gap Clamp for Cortical Button Distal Bicep Repair




    Product No: 5262
    Overall Length: 8" (20,4 cm)
    Jaw Width Tapers from: 6 to 2.5 mm



    VIEW SURGICAL VIDEO

    Download Product Brochure (PDF)

    TOP





    Grant TKA Anatomic Bone File Set

    A bone rasp and plumb rod set designed for TKA tibial cut surface preparation


    Designed by Richard E. Grant, MD


    Grant TKA Anatomic Bone File Set

    Foster Tibial Component Disimpactor



    Plumb rod fits into the handle of each bone rasp: 0°, 2° Left, and 2° Right.


    Product No’s:

    6906-00 [Set]

    Patent Pending

    Set Includes / available individually:

    6906-01 [Plumb Rod]
    Overall Length: 14" (35,6 cm)

    6906-02 [0° (Flat) Rasp]
    Overall Length: 6.375" (16,2 cm)
    Rasp Platform Length: 1.7" (4,3 cm)
    Rasp Platform Width: 2.7" (6,9 cm)


    6906-03 [2° Right Rasp]
    Overall Length: 6.375" (16,2 cm)
    Rasp Platform Length: 1.7" (4,3 cm)
    Rasp Platform Width: 2.7" (6,9 cm)

    6906-04 [2° Left Rasp]
    Overall Length: 6.375" (16,2 cm)
    Rasp Platform Length: 1.7" (4,3 cm)
    Rasp Platform Width: 2.7" (6,9 cm)



    VIEW SURGICAL VIDEO


    Download Product Brochure (PDF)

    TOP





    Hooked Bone Awl

    "Shoulder hook" awls designed to help with manipulation of bone fragments for fixation


    Designed by Reza Firoozabadi, MD


    Small Bone Awl



    Above: long hooked bone awl being used to assist with reduction of the pubic symphysis in the setting of a t-type acetabular fracture.

    Product No's

    5078 [Standard]
    Overall Length: 10.5" (26,7 cm)
    Handle Length: 5" (12,7 cm)


    5078-01 [Long]
    Overall Length: 13.375" (34 cm)
    Handle Length: 6" (15,2 cm)

    Small Bone Awl

    Above: standard hooked bone awl being used to gain length to assist with reduction of a fibula fracture. A 2mm pilot hole is made to seat the tip of the bone awl.


    Above: long hooked bone awl being used to lateralize proximal fragment, while spike pusher being used distally to medialize distal fragment. Of note the long hooked bone awl is used to minimize radiation to the surgeons hands.

    Download Product Brochure (PDF)

    TOP





    Infero-Posterior Acetabular Retractors
    with Modular Handle – Left and Right

    Designed to be placed with the point at 6 o’ clock and the retractor’s axilla resting on the ischium, while the wing blade is used to retract the remaining capsule from the posterior lip of the acetabulum, and the optional screw-in modular handle can be used for additional leverage and maneuverability







    Infero-Posterior Acetabular Retractor with Modular Handle – Right

    Product No's:

    C1007-H-00
    [Infero-Posterior Acetabular Retractor Set – Left]



    Set Includes/ Available Separately:

    C1007 [Infero-Posterior Acetabular Retractor Only – Left]
    Overall Length: 14" (35,6 cm)
    Depth from Bend: 4.5" (11,4 cm)
    Fixed Handle Width: 5.5" (14 cm)


    C1006 [Modular Handle]
    Overall Length: 4.875" (12,4 cm)
    Handle Length: 4.5" (11,4 cm)


    C1008-H-00
    [Infero-Posterior Acetabular Retractor Set – Right]



    Set Includes/ Available Separately:

    C1008 [Infero-Posterior Acetabular Retractor Only – Right]
    Overall Length: 14" (35,6 cm)
    Depth from Bend: 4.5" (11,4 cm)
    Fixed Handle Width: 5.5" (14 cm)


    C1006 [Modular Handle]
    Overall Length: 4.875" (12,4 cm)
    Handle Length: 4.5" (11,4 cm)

    Download Product Brochure (PDF)

    TOP





    Intraarticular Tissue Grasper/Rongeurs

    Used to securely grasp tissue or can be used to rongeur tissue





    Intraarticular Tissue Grasper/Rongeur

    Product No’s:

    STANDARD HANDLE

    1790-01 [5" Standard]
    Overall Length: 8" (20,3 cm)
    Shaft Length: 5" (12,7 cm)

    1790-03 [7" Standard]
    Overall Length: 10" (25,4 cm)
    Shaft Length: 7" (17,8 cm)

    1790-02 [9" Standard]
    Overall Length: 12" (30,5 cm)
    Shaft Length: 9" (22,9 cm)


    1791-02 [9" Standard with Locking Ratchet Handle]
    Overall Length: 12" (30,5 cm)
    Shaft Length: 9" (22,9 cm)

    SMALL GRIP HANDLE
    Small Grip Handle version is designed with the grip closer together for easier gripping and to help reduce hand fatigue.

    1790-01-SG [5" Small Grip] NEW!
    Overall Length: 8" (20,3 cm)
    Shaft Length: 5" (12,7 cm)

    1790-03-SG [7" Small Grip] NEW!
    Overall Length: 10" (25,4 cm)
    Shaft Length: 7" (17,8 cm)

    1790-02-SG [9" Small Grip] NEW!
    Overall Length: 12" (30,5 cm)
    Shaft Length: 9" (22,9 cm)
    Download Product Brochure (PDF)

    TOP





    Kawell Short Army Navy Retractor

    A short handled Army Navy retractor, especially useful with a gastrocnemius recession


    Designed by Ron Kane, DPM


    Kawell Short Army Navy Retractor



    Product No: 1148
    Overall Length: 4.75" (12,1 cm)
    Large End Blade Length: 1.75" 4,4 cm)
    Large End Blade Width: .625" (1,6 cm)
    Small End Blade Length: 1" (2.5 cm)
    Small End Blade Width: .3125" (0,8 cm)
    Download Product Brochure (PDF)

    TOP





    Kenerly Double Parallel Femoral Neck Disc Grasper

    Designed to remove the central disc of a double, parallel cut femoral neck osteotomy when performing THA


    Design nodified by J. Lex Kenerly, III, MD


    Kenerly Double Parallel Femoral Neck Disc Grasper

    Kenerly Double Parallel Femoral Neck Disc Grasper

    Product No: 1720-01
    Overall Length: 10" (25,4 cm)
    Jaw Dimensions: 1.44" x .72" (36,6 cc x 18,3 mm)
    Lower Jaw Thickness: 1 mm

    Download Product Brochure (PDF)


    TOP





    Kopplin Adductor Pain Catheter Grasper

    Designed to help speed workflow with surgeon placement of an adductor pain catheter, the spaced, parallel, flat jaws help allow for secure, atraumatic grasping of the fine catheter tip


    Designed by Matthew Kopplin, MD



    Kopplin Adductor Pain Catheter Grasper

    Kopplin Adductor Pain Catheter Grasper

    Markings every 3 cm on shaft with a bold line at 12 cm for depth determination.

    Kopplin Adductor Pain Catheter Grasper

    Product No: 1783
    Overall Length: 11.2" (28,5 cm)
    Shaft Length: 8.25" (21 cm)



    Download Product Brochure (PDF)


    TOP





    Lombardi Femoral Tibial Spreaders

    Thin pads help to separate the femur and tibia during total knee procedures


    Spreader designed by Adolph V. Lombardi Jr., MD
    Locking mechanism designed by Munish C. Gupta, MD



    Lombardi Femoral Tibial Spreaders



    Lombardi Femoral Tibial SpreadersLombardi Femoral Tibial Spreaders


    Product No’s:



    STANDARD HANDLE


    1875
    [Large with Grooved Pads and Standard Handle]
    Overall Length: 9.25" (23,5 cm)
    Pads: 22 mm x 13 mm
    Opens to: 50 mm

    1875-D
    [Large with Diamond Cut Pad and Standard Handle]
    Overall Length: 9.25" (23,5 cm)
    Pads: 22 mm x 13 mm
    Opens to: 50 mm


    1876
    [Small with Grooved Pads and Standard Handle]
    Overall Length: 7" (17,8 cm)
    Pads: 22 mm x 13 mm
    Opens to: 35 mm


    1876-D
    [Small with Diamond Cut Pads and Standard Handle]
    Overall Length: 7" (17,8 cm)
    Pads: 22 mm x 13 mm
    Opens to: 35 mm

    LOCKING MECHANISM
    Locking ratchet mechanism helps prevent accidental release, and provides for controlled adjustment and easy release.

    1875-LR
    [Large with Grooved Pads and Locking Mechanism]
    Overall Length: 9.625" (24,4 cm)
    Pads: 22 mm x 13 mm
    Opens to: 45 mm


    1876-LR
    Small with Grooved Pads and Locking Mechanism]
    Overall Length: 7" (17,8 cm)
    Pads: 22 mm x 13 mm
    Opens to: 35 mm

    SMALL GRIP HANDLE NEW!
    Small Grip Handle designed with the grip closer together for easier gripping and to help reduce hand fatigue.


    1876-SG NEW!
    [Small with Grooved Pads with Small Grip Handle]
    Overall Length: 7" (17,8 cm)
    Pads: 22 mm x 13 mm
    Opens to: 35 mm

    VIEW SURGICAL VIDEO

    Download Product Brochure (PDF)

    TOP





    Lombardi Gap Balancing Femoral Tibial Spreaders

    Designed to help separate the femur and tibia during total knee procedures, with the pads being parallel when measured at 20mm of separation


    Designed by Adolph V. Lombardi Jr., MD


    Lombardi Gap Balancing Femoral Tibial Spreader

    Lombardi Gap Balancing Femoral Tibial Spreader
    Lombardi Gap Balancing Femoral Tibial Spreader with Easy Release Locking Mechanism



    Product No’s:



    STANDARD HANDLE


    1877
    [Small with Grooved Pads and Standard Handle]
    Overall Length: 7" (17,8 cm)
    Pads: 22 mm x 13 mm
    Opens to: 35 mm

    1877-D
    [Small with Diamond Cut Pads and Standard Handle]
    Overall Length: 7" (17,8 cm)
    Pads: 22 mm x 13 mm
    Opens to: 35 mm


    1878
    [Large with Grooved Pads and Standard Handle]
    Overall Length: 9.25" (23,5 cm)
    Pads: 22 mm x 13 mm
    Opens to: 50 mm

    1878-D
    [Large with Diamond Cut Pads and Standard Handle]
    Overall Length: 9.25" (23,5 cm)
    Pads: 22 mm x 13 mm
    Opens to: 50 mm

    Lombardi Gap Balancing Femoral Tibial Spreader

    LOCKING MECHANISM
    Locking ratchet mechanism helps prevent accidental release, and provides for controlled adjustment and easy release.

    1878-LR
    [Large with Grooved Pads and Locking Mechanism]
    Overall Length: 9.625" (24,4 cm)
    Pads: 22 mm x 13 mm
    Opens to: 45 mm


    1877-LR
    Small with Grooved Pads and Locking Mechanism]
    Overall Length: 7" (17,8 cm)
    Pads: 22 mm x 13 mm
    Opens to: 35 mm

    SMALL GRIP HANDLE NEW!
    Small Grip Handle designed with the grip closer together for easier gripping and to help reduce hand fatigue.


    1877-SG NEW!
    [Small with Grooved Pads with Small Grip Handle]
    Overall Length: 7" (17,8 cm)
    Pads: 22 mm x 13 mm
    Opens to: 35 mm

    Lombardi Gap Balancing Femoral Tibial Spreader

    The calibrated handle of the spreadesr helps to accurately gauge the gap, and makes it possible for two spreaders to be used to assist in balancing ligaments.

    Download Product Brochure (PDF)

    TOP





    Mazzara Rongeur for Small Bones

    Designed for bone and soft tissue removal in small joint surgery, the pistol grip handle lessens hand fatigue and slippage, and allows for better visualization


    Designed by James T. Mazzara, MD


    Mazzara Rongeur with Small Pistol Grip Handle



    Product No's:

    1765-04 [2 x 10 mm Jaw]
    Jaw Bite: 2 x 10 mm
    Overall Length: 7.25" (18,4 cm)


    1765-05 [4 x 10 mm Jaw]
    Jaw Bite: 4 x 10 mm
    Overall Length: 7.25" (18,4 cm)
    Download Product Brochure (PDF)

    TOP





    McPherson Retractor Extender

    Designed to extend a standard retractor to help provide additional leverage


    Designed by Ed McPherson, MD



    McPherson Retractor Extender

    McPherson Retractor Extender

    Available in two sizes to accomodate most retractors — standard for retractors up to .125" (3,2 mm) thick, and large for retractors up to .16" (4 mm) thick.

    McPherson Retractor Extender
    McPherson Retractor Extender

    Product No's:

    6022 [Standard]
    Overall Length: 15.625" (39,7 cm)
    For retractors up to .125” (3,2 mm) thick


    6022-01 [Large]
    Overall Length: 15.625" (39,7 cm)
    For retractors up to .16” (4 mm) thick
    Download Product Brochure (PDF)

    TOP





    Medial Acetabular Retractors with Large Handle

    Designed for acetabular exposure during total hip surgery





    Medial Acetabular Retractors



    Product No's:

    C1001 [Left]
    Overall Length: 15" (38,1 cm)
    Handle Length: 6
    " (15,2 cm)
    Blade Width: 32 mm


    C1002 [Right]
    Overall Length: 15" (38,1 cm)
    Handle Length: 6" (15,2 cm)
    Blade Width: 32 mm
    Download Product Brochure (PDF)

    TOP





    Mehalik Posterior Glenoid Retractor with Long Handle

    Designed to help expose the posterior aspect of the glenoid


    Designed in collaboration with Mayo Clinic, modified by John Mehalik, MD.


    Mehalik Posterior Glenoid Retractor with Long Handle



    Product No: 1909
    Overall Length: 13.2" (33,5 cm)
    Access Hole Internal Diameter: 36 X 30 mm
    Download Product Brochure (PDF)

    TOP





    Meyer Latarjet Drill Guide & Forceps Assembly

    Aiming device for flush positioning of a bone block with a joint surface


    Designed by Professor Dominik Meyer


    Meyer Latarjet Drill Guide & Forceps Assembly


    Meyer Latarjet Drill Guide & Forceps Assembly



    Product No's:


    5257-00 [Small Set]
    New Size!

    Small Set Includes:

    5257-01 [Latarjet Forceps – Small]
    Overall Length: 5.875" (14,9 cm)
    Tongue and Clamp Arm Width: .22" (5.6 mm)

    5257-02 [Latarjet Drill Guide – Small]
    Overall Length: 8.5" (21,6 cm)
    Drill Hole Diameter: 3.5 mm

    Distance between Drill Holes: .390" (9,9 mm)

    1025 [Case]

    5258-00 [Large Set]

    Large Set Includes:

    5258-01 [Latarjet Forceps – Large]
    Overall Length: 5.875" (14,9 cm)
    Tongue and Clamp Arm Width: .32" (8.15 mm)

    5258-02 [Latarjet Drill Guide – Large]
    Overall Length: 8.5" (21,6 cm)
    Drill Hole Diameter: 3.5 mm

    Distance between Drill Holes: .492" (12,5 mm)

    1025 [Case]
    Download Product Brochure (PDF)

    TOP





    Monaco Small Space Retractor

    Designed to retract adipose tissue and surrounding soft tissue structures through a small incision for open plantar fasciotomies, neuroma excisions and the lateral release during bunion surgery


    Designed modified by Spencer Monaco, DPM, FACFAS


    Monaco Small Space Retractor

    Monaco Small Space Retractor

    Also useful for various hand surgeries such as open carpal tunnel surgery.
    Monaco Small Space Retractor

    Product No: 1887-01
    Overall Length: 4.25" (10,8 cm)
    Blade Depth: 18 mm
    Blade Width: 12 mm
    Blade Lip: 3.5 mm


    Download Product Brochure (PDF)

    TOP





    Multi-Purpose Hip & Knee Retractors

    Designed for use in both hip and knee arthroplasty procedures


    Designed by Vasilios Mathews, MD


    Multi-Purpose Hip & Knee Retractors

    Multi-Purpose Hip & Knee Retractors

    During direct anterior hip arthroplasty procedures, the fin of this retractor fits the countours of the acetabular rim and retracts the anteror soft tissues, while the short length of the spike helps limit the penetration into the neurovascular zones.

    In knee surgery, the retractors can be used to help protect the patellar tendon behind the fin at the lateral tibial border. Also useful as a soft-tissue and fat pad retractor during prosthesis implantation, helping to ensure a dry cancellous bed for cementation.

    Product No's:

    4554-L [Left]
    Overall Length: 11.25" (28,6 cm)
    Blade Width: 1.5" (38 mm)


    4554-R [Right]
    Overall Length: 11.25" (28,6 cm)
    Blade Width: 1.5" (38 mm)


    Download Product Brochure (PDF)

    TOP





    Narrow Cobra-style Retractor with Large Handle

    Designed for use around the femur and acetabulum





    Meyerding Spreader



    Product No: C1005
    Overall Length: 17.5" (34,5 cm)
    Depth from handle: 7" (17,8 cm)
    Download Product Brochure (PDF)

    TOP





    Offset Medial Acetabular Retractors with Large Handle

    Designed for acetabular exposure during total hip surgery





    Offset Medial Acetabular Retractors



    Product No's:

    C1017 [Left]
    Overall Length: 15.5" (39,4 cm)
    Handle Length: 6" (15,2 cm)
    Blade Width: 32 mm


    C1018 [Right]
    Overall Length: 15.5" (39,4 cm)
    Handle Length: 6" (15,2 cm)
    Blade Width: 32 mm
    Download Product Brochure (PDF)

    TOP





    Ortho Self-Retaining Retractors

    Used to separate the femur and tibia during knee replacement procedures, where the calibrated design can help to balance ligaments





    Ortho Self-Retaining Retractors

    Features a no-teeth design, available with flat or serrated outside blades.



    In spine surgery, the calibrated ratchet can be used to help accurately measure the size of an opening – useful in procedures to help assess bone graft needs.

    Also useful in foot & ankle surgery.


    Product No’s:


    STANDARD HANDLE


    1842 [Small Flat with Standard Handle]
    Overall Length: 6.5" (16,5 cm)
    Blade Width: 7 mm
    Blade Thickness: 1.68 mm

    1842-01 [Small Serrated with Standard Handle]
    Overall Length: 6.5" (16,5 cm)
    Blade Width: 7 mm
    Blade Thickness: 1.68 mm

    1843 [Medium Flat with Standard Handle]
    Overall Length: 9.25" (23,5 cm)
    Blade Width: 10 mm
    Blade Thickness: 1.68 mm

    1843-01 [Medium Serrated with Standard Handle]
    Overall Length: 9.25" (23,5 cm)
    Blade Width: 10 mm
    Blade Thickness: 1.68 mm

    SMALL GRIP HANDLE NEW!
    Small Grip Handle designed with the grip closer together for easier gripping and to help reduce hand fatigue.


    1842-01-SG
    [Small Serrated with Small Grip Handle] NEW!
    Overall Length: 6.5" (16,5 cm)
    Blade Width: 7 mm
    Blade Thickness: 1.68 mm

    Download Product Brochure (PDF)

    TOP





    Parsley Intraoperative Leg Length/Offset Device

    For use with lateral femoral positioned patients in both the direct lateral and posterior hip approaches, the device is designed to help with intraoperative leg length and femoral offset assessment, and can be placed prior to dislocation of the hip and replaced following trial implantation and reduction, and again at the time of final implantation and reduction


    Designed by Brian S. Parsley, MD


    Parsley Intraoperative Leg Length Device


    Product No's:

    2615-00 [Set with Case]

    2615-05 [Set with Case and #8248 Fixed Driver]

    Sets Include:

    2615-10 [Leg Length Device Assembly]

    1180 [Sterilizable Level]
    Two included in set; one with this product number

    1015 [Sterilization Case]

    Optional Items (included with Set #2615-05):

    8248 [Fixed Driver with Zimmer Hall Quick-connect]
    Parsley Intraoperative Leg Length Device


    Download Surgical Technique (PDF)
    Download Product Brochure (PDF)

    TOP





    Pituitary Rongeur with Teeth

    Designed to optimize the efficiency of soft tissue removal and disc space preparation prior to a spinal interbody fusion


    Designed by Michael Murray, MD



    Pituitary Rongeur with Teeth

    Unique design ensures that only the distal tip of the instrument is in contact upon closure of the jaws, allowing the grasping force to be optimized, and directed at the distal tip of the instrument. In addition, the teeth at the distal end of the instrument allow for a better grasp on tissues or disc material, for enhanced control and efficiency of removal.


    Product No: 1792
    Overall Length: 12" (30,5 cm)
    Shaft Length: 8.75" (22,2 cm)
    Jay Length: .75" (19 mm)
    Jaw Width: .16" (4 mm)



    Download Product Brochure (PDF)

    TOP





    Pointed Fracture Reduction Clamps – Medium

    Versatile set of fracture reduction clamps, each with a specific tine design that allows for appropriate vector placement so that anatomic reduction can be obtained in a number of different types of fractures


    Designed by Reza Firoozabadi, MD, MA


    Pointed Fracture Reduction Clamps – Medium

    1.9 mm tines allow for a snug fit in 2 mm drill holes.

    Tines angled to prevent clamp “slippage” with compression.

    Straight tines can be placed deep within bone which allows for far cortex compression.

    Example applications: any transverse fracture (straight-straight clamp), both bone forearm fractures, olecranon fractures, medial malleolus fractures, and many more.

    Available in four tine configurations.


    Pointed Fracture Reduction Clamps – Medium
    Pointed Fracture Reduction Clamps – Medium

    Product No’s:

    MEDIUM WITH SPEED LOCK MECHANISM:

    3666-01 [Straight Left & Right] New Size!
    Overall Length: 7" (17,8 cm)


    3667-01 [Curved Left & Right] New Size!
    Overall Length: 7" (17,8 cm)


    3666-L-01 [Curved Left, Straight Right] New Size!
    Overall Length: 7" (17,8 cm)


    3666-R-01 [Straight Left, Curved Right] New Size!
    Overall Length: 7" (17,8 cm)

    Download Product Brochure (PDF)

    TOP






    Ratcheting Reduction Clamp Kit

    Designed as a soft tissue sparing fracture reduction clamp


    Designed by Michael Craig, OPA-C



    Ratcheting Reduction Clamp Kit

    High torque can help provide bone and joint reduction without squeezing surrounding tissues

    Swivel points are placed on the bone, plate, or screw and the ratcheting dial is turned to the desired torque, allowing hands free operation

    Swivel point design allows the clamp to be easily moved from x-ray view without losing reduction

    Screw Point fits into a screw head

    Plate Point fits into a 3.5 mm plate hole

    Ratcheting Reduction Clamp Kit

    Product No's:

    3840-00 [Kit]
    Kit includes: (1) Clamp, (1) Plate Point,
    (1) Screw Point, and (2) Percutaneous Points

    Also available Individually:

    3840-01 [Clamp]
    Overall Length: 10.5" (26,7 cm)
    Width: 9" (22,9 cm)
    Height: 6.5" (16,5 cm)


    3840-02 [Plate Point]
    Overall Length: 1" (2,54 cm)

    3840-03 [Screw Point]
    Overall Length: .875" (2,2 cm)

    3840-04 [Percutaneous Point]
    Overall Length: 1" (2,54 cm)
     (2) included in set, one with this product number

    Download Product Brochure (PDF)

    TOP





    Rogozinski Lamina Spreader

    Self-retaining and self-leveling lamina spreader that captures the spinous processes, thereby helping to maintain interlaminar retraction


    Designed by Chaim Rogozinski, MD


    Rogozinski Lamina Spreader



    Rogozinski Lamina Spreader

    Product No's:

    4275 [Standard]
    Overall Length: 8" (20,3 cm)
    Leg Depth: 3" (7,6 cm)
    Blade Width: .75" (1,9 cm)
    Blade Height: .5" (1,3 cm)



    4275-01 [Small]
    Overall Length: 8" (20,3 cm)
    Leg Depth: 2 (5,1 cm)
    Blade Width: .75" (1,9 cm)
    Blade Height: .5" (1,3 cm)
    Download Product Brochure (PDF)

    TOP





    Rogozinski Soft Tissue Retractor

    Self-leveling retractor that helps lessen tissue movement underneath the prongs, thereby helping to maximize exposure


    Designed by Chaim Rogozinski, MD


    Rogozinski Soft Tissue Retractor



    Rogozinski Soft Tissue Retractor

    Product No's:

    4276 [Standard]
    Overall Length: 8" (20,3 cm)
    Leg Depth: 2.5" (6,4 cm)
    Blade Width: .75" (1,9 cm)
    Blade Height: 1.5" (3,8 cm)



    4276-01 [Small]
    Overall Length: 8" (20,3 cm)
    Leg Depth: 2" (5,1 cm)
    Blade Width: .75" (1,9 cm)
    Blade Height: 1.5" (3,8 cm)
    Download Product Brochure (PDF)

    TOP





    Sarraf Toothed Curettes

    Forward, straight, and reverse bent toothed curettes designed to aid in aid in all types of joint arthroplasty surgery, especially in scraping any articular chondral islands within the acetabulum during THA preparation


    Designed by Khaled Sarraf, MD




    Sarraf Toothed Curettes

    Can also be used for the femoral canal in cemented and uncemented THA.

    Valuable aid in revision arthroplasty (hip, knee, shoulder and ankle) for cement curettage.

    Useful tool in hip and knee primary arthroplasty as well as shoulder, elbow and ankle arthroplasty procedures.

    Ultra hard titanium nitride coating helps to extend life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion.

    Product No's:

    5174-00 [Set]

    Also available individually:

    5174-F [Forward Toothed Curette]
    Overall Length: 11.5" (29,2 cm)
    Handle Length: 5.5" (14 cm)
    Angled Down: 30°

    5174-R [Reverse Toothed Curette]
    Overall Length: 11.5" (29,2 cm)
    Handle Length: 5.5" (14 cm)
    Angled Up: 30°


    5174-S [Straight Toothed Curette]
    Overall Length: 11.5" (29,2 cm)
    Handle Length: 5.5" (14 cm)
    Download Product Brochure (PDF)

    TOP





    Shark Tooth Graspers

    Graspers sharp teeth help grasp onto tissue and bone


    Designed by Luis Ulloa


    Shark Tooth Rongeur





    Helpful in removing the labrum, and osteophytes around the acetabulum and around the glenoid. Also helps to remove meniscus, osteophytes and loose bodies. Helps facilitate working through a small incision without disrupting vision.

    Shark Tooth Grasper

    Product No’s:


    STANDARD HANDLE


    1797 [5" Shaft with Standard Handle]
    Jaw Size: 6 mm x 10 mm
    Overall Length: 8" (20,3 cm)
    Shaft Length: 5" (12,7 cm)

    1798 [7" Shaft with Standard Handle]
    Jaw Size: 6 mm x 10 mm
    Overall Length: 10" (25,4 cm)
    Shaft Length: 7" (17,8 cm)


    1799 [9" Shaft with Standard Handle]
    Jaw Size: 6 mm x 10 mm
    Overall Length: 12" (30,5 cm)
    Shaft Length: 9" (22,9 cm)


    1796 [12" Shaft with Standard Handle]
    Jaw Size: 6 mm x 10 mm
    Overall Length: 15" (38,1 cm)
    Shaft Length: 12" (30,5 cm)

    SMALL GRIP HANDLE NEW!
    Small Grip Handle designed with the grip closer together for easier gripping and to help reduce hand fatigue.


    1798-SG [7" Shaft with Small Grip Handle] NEW!
    Jaw Size: 6 mm x 10 mm
    Overall Length: 10" (25,4 cm)
    Shaft Length: 7" (17,8 cm)

    1799-SG [9" Shaft with Small Grip Handle] NEW!
    Jaw Size: 6 mm x 10 mm
    Overall Length: 12" (30,5 cm)
    Shaft Length: 9" (22,9 cm)
    Download Product Brochure (PDF)

    TOP





    Small Bone Double Sided Chisel Set

    Different radius on each side of the blade helps delaminate cartilage on small/medium joints


    Designed by Irvin Oh, MD







    Small Bone Double Sided Chisel Set

    Specifically designed for foot and ankle joints, these chisels can also be useful in other small and medium joints, helping to facilitate delamination of the cartilage in preparation for fusion.
     The double-sided chisels have different radius of curvature—one side to initiate breaking through the cartilage-bone interface and continue to slide along the curved articular surface, while the opposite side blade will continue to peel off the cartilage while sliding along—allowing utilization for various shapes of small and medium joints.



    Small Bone Double Sided Chisel Set

    Product No’s:

    5304-00 [Set with Case]

    Small Bone Double Sided Chisel Set

    Set Includes / Available Individually:

    5304-01 [Chisel – .170"]
     Overall Length: 8" (20,3 cm)
     Handle Length: 4.25" (10,8 cm)
     Blade Width: .170" (4,3 mm)

    5304-02 [Chisel – .250"]
     Overall Length: 8" (20,3 cm)
     Handle Length: 4.25" (10,8 cm)
     Blade Width: .250" (6,35 mm)

    5304-03 [Chisel – .335"]
     Overall Length: 8" (20,3 cm)
     Handle Length: 4.25" (10,8 cm)
     Blade Width: .335" (8,5 mm)

    5304-04 [Chisel – .500"]
     Overall Length: 8" (20,3 cm)
     Handle Length: 4.25" (10,8 cm)
     Blade Width: .500" (12,7 mm)

    5304-05 [Chisel – .750"]
     Overall Length: 8" (20,3 cm)
     Handle Length: 4.25" (10,8 cm)
     Blade Width: .750" (19 mm)

    1025 [Sterilization Case]
    Download Product Brochure (PDF)

    TOP





    Stainless Steel Hip Surgery Ratchet Frame with Arms and Blades Sets

    Designed for self-retaining wound exposure, the arms and blades of the OrthoLucent™ version are radiolucent and can be kept in place while using image intensification or taking an x-ray





    Stainless Steel Ratchet Frame with Arms and Blades Sets

    Arms rotate 180° and mobile arm units can be detached from the ratchet body for cleaning.



    Set with OrthoLucent™ Arms and Blades

    The OrthoLucent arms and blades are made of a strong, lightweight carbon fiber PEEK composite material, which is radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized.

    Product No's:

    7428-00 [Set with OrthoLucent Arms & Blades]

    Set Includes:


    7427-02 [50 mm OrthoLucent Blade]
    Dimensions: 50 mm Deep X 25 mm Wide


    7427-03 [75 mm OrthoLucent Blade]
    Dimensions: 75 mm Deep X 25 mm Wide



    Optional Blade – Not Included In Set:

    7427-04 [100 mm OrthoLucent Blade]
    Dimensions: 100 mm Deep X 25 mm Wide

    Other Options Available Are:

    7428-01 [Stainless Steel Ratchet Frame
    with OrthoLucent Arms Assembly]
    Dimensions (Flat): 10" x 5.625" (25,4 cm x 14,3 cm)
    Arms Extend: 4.25" (10,8 cm)






    Set with Stainless Steel Arms and Blades

    Product No's:

    7429-00 [Set with Stainless Steel Arms & Blades]

    Set Includes:


    7429-02 [50 mm Stainless Steel Blade]
    Dimensions: 50 mm Deep X 25 mm Wide


    7429-03 [75 mm Stainless Steel Blade]
    Dimensions: 75 mm Deep X 25 mm Wide

    Optional Blade – Not Included In Set:

    7429-04 [100 mm Stainless Steel Blade]
    Dimensions: 100 mm Deep X 25 mm Wide

    Other Options Available Are:

    7429-01 [Stainless Steel Ratchet Frame
    with Stainless Steel Arms Assembly]
    Dimensions (Flat): 10" x 5.625" (25,4 cm x 14,3 cm)
    Arms Extend: 4.25" (10,8 cm)
    Download Product Brochure (PDF)

    TOP





    Stoll Retractor/Wire Guide

    Retractor/guide designed for aiming guide wire when performing femoral nailing (TFN for an intertrochanteric fracture), or
    tibial nailing using the parapatellar approach


    Designed by Jordan Stoll, MD




    Stoll Retractor Wire Guide


    Product No: 8012
    Overall Length: 12" 30,5 cm)
    Blade Width: .71" (1,8 cm)
    Prong Length: 6 mm
    Guide Hole Diameter: 4,5 mm



    Download Product Brochure (PDF)

    TOP





    TKA Gap Assessment Gauge Assembly

    Universal design allows the gauge to be used without the removal of trials to help determine if a 1 or 2mm additional thickness insert may be needed


    Designed by Michael Radon


    TKA Gap Assessment Gauge

    TKA Gap Assessment Gauge
    TKA Gap Assessment Gauge

    Alignment rod can be inserted in the gauge to help check alignment.

    Product No's:

    5216-00 [Assembly]

    Assembly Includes/Available Individually:

    5216-01 [Gauge]
    Overall Length: 7.5" (19,1 cm)
    Width: 2.5" (5,4 cm)
    Prong Length: 2" (5,1 cm)
    Prong Width: (.75" (1,9 cm)
    Gap Between Prongs: 1" (2,5 cm)


    5216-02 [Alignment Rod]
    Overall Length: 18” (45,7 cm)
    Diameter: .1875” (4,75 mm)
    Download Product Brochure (PDF)

    TOP





    Tibiofemoral Offset Caliper

    A locking caliper designed to help accurately measure the offset of the tibia from the surface of the distal femur


    Designed by Adam Rosen, DO


    Tibiofemoral Offset Caliper

    Superior Retractor
    Superior Retractor

    Product No: 5286
    Overall Length: 3.75"– 6.25 (9,5 – 15,9 cm)
    Overall Height: 2.75" (17,6 cm)
    Width: 8 mm
    Download Product Brochure (PDF)

    TOP





    Unger Universal Femoral Component Extractor with Precision Osteotomy Guide

    Designed to help extract a femoral component — includes a guide used to make an osteotomy cut and wedges to separate bone away from the component


    Designed by Anthony Unger, MD


    Unger Universal Femoral Component Extractor with Precision Osteotomy Guide



    Product No's:

    3615-00 [Complete Assembly with Case]

    Individual/Replacement Parts:

    3615-01 [Femoral Component Extractor]
    Overall Length: 3.25" (8,3 cm)
    Width: 1" (2,54 cm)
    Height: 1.5" (3,8 cm)


    3615-02 [Precision Osteotomy Guide]
    Overall Length: 6" (15,2 cm)
    Width: .75" (1,9 cm)


    3615-03 [Precision Osteotomy Wedge]
    Two included in set, one with this product number
    Overall Length: 3.9" (9,9 cm)


    3615-05 [Hex Wrench]
    Overall Length: 6.65" (16,9 cm)

    3615-CASE [Case]

    3925 [Standard Slap Hammer with 16" Rod]
    Overall Length: 16" (40,7 cm)
    Download Product Brochure (PDF)

    TOP





    Weinraub Joint and Calcaneal Spreaders

    Designed to assist in the opening of small joints of the hand and foot for the application of fusion and graft techniques


    Designed by G. Weinraub, DPM, FACFAS


    Weinraub Joint and Calcaneal Spreader

    Weinraub Joint and Calcaneal Spreader

    Provides excellent joint exposure without blocking intra-articular or osteotomy access. Helps prevent slippage or falling out of the joint by placing the arms on either side of the area to be distracted, driving two pins and opening the joint.

    Product No's:

    1870 [Standard 1.6 mm]
    Overall Length: 7"
    Pin Diameter Up to: 1/16" (1.6 mm)

    1870-SL [Speed Lock 1.6 mm] New Style!
    Overall Length: 7"
    Pin Diameter Up to: 1/16" (1.6 mm)

    1872 [Standard 2.8 mm]
    Overall Length: 7"
    Pin Diameter Up to: 7/64" (2.8 mm)

    1872-SL [Speed Lock 2.8 mm] New Style!
    Overall Length: 7"
    Pin Diameter Up to: 7/64" (2.8 mm)

    Download Product Brochure (PDF)

    TOP





    Whelan Femoral Neck Elevator

    Elevator has long tines to rest on the stronger bone at the base of the neck and calcar, and also fits well over the lesser trochanter and iliopsoas tendon for femoral broaching


    Designed by Edward J. Whelan III, MD


    Whelan Femoral Neck Elevator


    Product No: 3414
    Overall Length: 13.75" (34,9 cm)
    Depth from Bend: 1.5" (3,8 cm)
    Blade Width: 2,4 cm

    Download Product Brochure (PDF)

    TOP





    Whelan Large Anterior Hip Weitlaner Retractor with Ergonomic Handle

    Designed for self-retaining exposure during anterior approach THA


    Designed by Edward J. Whelan III, MD




    Whelan Large Anterior Hip Weitlaner Retractor




    Product No's:

    1576-B [Blunt]
    Overall Length: 9" (22,9 cm)
    Blade Depth: 1" (2,54 cm)


    1576-S [Sharp]
    Overall Length: 9" (22,9 cm)
    Blade Depth: 1" (2,54 cm)


    Download Product Brochure (PDF)

    TOP





    Whelan Narrow Hohmann Retractor

    Retractor has a large gentle right angle curve with sharp tip, for retraction of structures anterior to the acetabulum in the anterior approach to total hip


    Designed by Edward J. Whelan III, MD


    Whelan Narrow Hohmann Retractor



    Helps allow for visibility without undue pressure or traction on the femoral nerve or vessels.


    Product No: 7116
    Overall Length: 13.25" (33,7 cm)
    Depth from Bend: 4.5" (11,4 cm)
    Blade Width: 2,4 cm

    Download Product Brochure (PDF)

    TOP





    Zelicof Winged Retractor

    A non-modular, fixed point retractor for pelvic visualization in THA and pelvic surgery, with the distal post and wing providing bony stability and retraction


    Designed by Steven B. Zelicof, MD Ph.D


    Zelicof Winged Retractor


    Product No's:

    6117-5 [Thin Shaft]
    Shaft Diameter: 6 mm
    Overall Length: 9" (22,9 cm)
    Pad Dimensions: 31,4 x 19,6 mm
    Prong Length: .85" (21,6 mm)
    Prong Width (before taper): 3 mm


    6117-10 [Thick Shaft]
    Shaft Diameter: 10 mm
    Overall Length: 9" (22,9 cm)
    Pad Dimensions: 31,4 x 19,6 mm
    Prong Length: .85" (21,6 mm)
    Prong Width (before taper): 3 mm

    Download Product Brochure (PDF)

    TOP





    Copyright © 2020 Innomed, Inc. All rights reserved.
