Knee Retractor System
|
Long Prong Collateral Ligament Retractor with Strap
|
MIS Modified Wide PCL Retractor with Strap
|
Single Prong Collateral Ligament Retractor with Strap
|
|
|
|
|
|
|
Stubbs Short Prong Collateral Ligament Retractor with Strap
|
Wide PCL Retractor with Strap
|
Velcro Straps
|
|
|
|
|
Knee Retractor System
Helps free assisting personnel while providing excellent exposure
|
|
|
|
Designed by S. David Stulberg, MD (AF Stubbs Short Prong Collateral designed by B. Stubbs, MD)
|
|
|
![Knee Retractor System](Images/prod_shots_430/KneeRetSystem.jpg) |
The Knee Retractor System holds retractors utilizing Velcro® straps. This helps eliminate obstruction of the surgeon's operative area and frees assisting personnel. Five retractor styles are available, and straps are available in two lengths. Retractors and straps are autoclavable.
![Knee Retractor System](Images/SurgShots/AF-Knee-Minimal-4-4Tiff.jpg)
Product No's:
3515 [MIS Modified Wide PCL with Strap]
Overall Length: 10" (25,4 cm)
Blade Width Above Prongs: 34 mm
Prong Width: 8,5 mm | 17 mm Gap | 8,5 mm
3525 [Wide PCL with Strap]
Overall Length: 10" (25,4 cm)
Blade Width Above Prongs: 57 mm
Prong Width: 8,5 mm | 17 mm Gap | 8,5 mm
6630 [Long Prong Collateral with Strapl]
Overall Length: 8" (20,3 cm)
Overall Blade Width: 21 mm
Prong Width: 4,5 mm | 12 mm Gap | 4,5 mm
6640 [Stubbs Short Prong Collateral with Strapl]
Overall Length: 8" (20,3 cm)
Blade Width Above Prongs: 27 mm
Prong Width: 4,8 mm | 3,4 mm Gap | 4,8 mm
6650 [Single Prong Collateral with Strap]
Overall Length: 8.25" (21 cm)
Blade Width: 14 mm
8100-P [Long StrapFemur] Package of 10
8120-P [Short StrapTibia] Package of 10
®Velcro is a registered trademark of Velcro USA
|
|
|

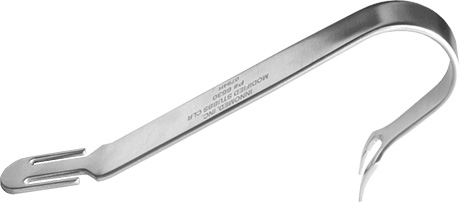

Long Prong Collateral Ligament Retractor with Strap
Helps free assisting personnel while providing excellent exposure
|
|
|
|
Designed by S. David Stulberg, MD
|
|
|
![Long Prong Collateral Ligament Retractor](Images/prod_shots_430/Strap-Long-Prong-SH.jpg) |
![Long Prong Collateral Ligament Retractor](Images/SurgShots/AF-Knee-Minimal-2-4Tiff.jpg)
Product No: 6630
Overall Length: 8" (20,3 cm)
Overall Blade Width: 21 mm
Prong Width: 4,5 mm | 12 mm Gap | 4,5 mm
|
|
|

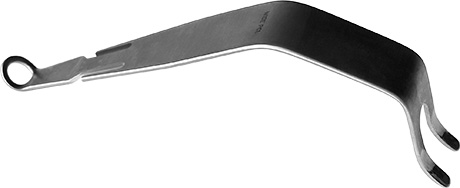

MIS Modified Wide PCL Retractor with Strap
Helps free assisting personnel while providing excellent exposure
|
|
|
|
Designed by S. David Stulberg, MD
|
|
|
![MIS Modified Wide PCL Retractor](Images/prod_shots_430/WidePCLNarrow1_AF.jpg) |
![MIS Modified Wide PCL Retractor](Images/SurgShots/NarrWidePCL_Side.jpg)
Product No: 3515
Overall Length: 10" (25,4 cm)
Blade Width Above Prongs: 34 mm
Prong Width: 8,5 mm | 17 mm Gap | 8,5 mm
|
|
|

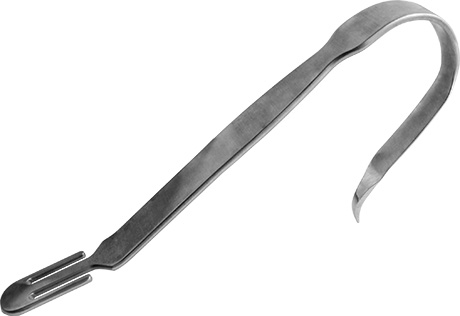

Single Prong Collateral Ligament Retractor with Strap
Helps free assisting personnel while providing excellent exposure
|
|
|
|
Designed by S. David Stulberg, MD
|
|
|
![Single Prong Collateral Ligament Retractor](Images/prod_shots_430/AFKneeSingleProngRet.jpg) |
![Single Prong Collateral Ligament Retractor](Images/SurgShots/AF-Knee-Minimal-4-4Tiff.jpg)
Product No: 6650
Overall Length: 8.25" (21 cm)
Blade Width: 14 mm
|
|
|

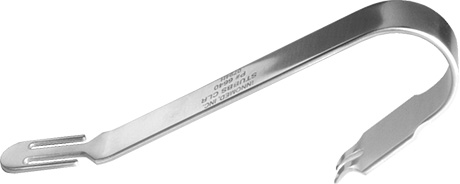

Stubbs Short Prong Collateral Ligament Retractor with Strap
Helps free assisting personnel while providing excellent exposure
|
|
|
|
Designed by B. Stubbs, MD
|
|
|
![Stubbs Short Prong Collateral Ligament Retractor](Images/prod_shots_430/Strap-Stubbs-SH.jpg) |
![Stubbs Short Prong Collateral Ligament Retractor](Images/SurgShots/AF-Knee-Minimal-3-4Tiff.jpg)
Product No: 6640
Overall Length: 8" (20,3 cm)
Blade Width Above Prongs: 27 mm
Prong Width: 4,8 mm | 3,4 mm Gap | 4,8 mm
|
|
|
Wide PCL Retractor with Strap
Helps free assisting personnel while providing excellent exposure
|
|
|
|
Designed by S. David Stulberg, MD
|
|
|
![Wide PCL Retractor](Images/prod_shots_430/Strap-Wide-PCL-SH.jpg) |
![Wide PCL Retractor](Images/SurgShots/Dec-Knee-Cvr-Tiff.jpg)
Product No: 3525
Overall Length: 10" (25,4 cm)
Blade Width Above Prongs: 57 mm
Prong Width: 8,5 mm | 17 mm Gap | 8,5 mm
|
|
|
Velcro Straps
Helps free assisting personnel while providing excellent exposure
|
|
|
|
Designed by S. David Stulberg, MD
|
|
|
![Velcro Straps](Images/prod_shots_430/Velcro-Strap-SH.jpg) |
![Velcro Straps](Images/SurgShots/Strap-Color-Surg-2-Tiff.jpg)
Autoclavable straps are available in two lengths and come in packages of 10.
Product No's:
8100-P [Long StrapFemur] Package of 10
8120-P [Short StrapTibia] Package of 10
®Velcro is a registered trademark of Velcro USA
|
|
|
