Andrews Modified Tibial Fragment Grasper
Andrews Modified Tibial Wedge Clamp
Bhargava Grasper
Bhargava Modified Meniscal Clamp
NEW! Andrews Modified Tibial Fragment Grasper
Andrews Modified Tibial Wedge Clamp
Bhargava Grasper
Bhargava Modified Meniscal Clamp
Cartilage Grasper
Fracchia Calibrated Tibia/Patella Clamp
Hannum Graspers
Intraarticular Tissue Grasper/Rongeur
Long Jaw Needle Nose Pliers
Cartilage Grasper
Fracchia Tibia/Patella Clamp with Speed Lock
Hannum Graspers
New Styles! Intraarticular Tissue Grasper/Rongeurs
Long Jaw Needle Nose Pliers
Lotke Double Action Graspers
Macko Square Tipped Rongeur
Mazzara Rongeur
with Pistol Grip Handle
Meniscal Clamp
Modified Rongeur with Pistol Grip Handle
Lotke Double Action Graspers
Macko Square Tipped Rongeur
Mazzara Rongeur
with Pistol Grip Handle
Meniscal Clamp
Modified Rongeur with Pistol Grip Handle
Ortho Rongeur
OrthoVise – Large
OrthoVise – Small
Patella Grasping Forceps
Powers Modified Kocher Clamp
Ortho Rongeur
OrthoVise – Large
OrthoVise – Small
Patella Grasping Forceps
Powers Modified Kocher Clamps

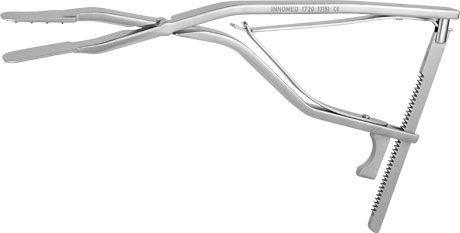

Rosenstein Tibial Fragment Grasper for UKA
Screw/Pin Removal Locking Pliers
Shark Tooth Rongeur
Soudry Loose Body Grasper
Sure Grip Soft Tissue Grasper
Rosenstein Tibial Fragment Grasper for UKA
New Size Available! Screw/Pin Removal Locking Pliers
New Styles! Shark Tooth Graspers
Soudry Loose Body Grasper
Sure Grip Soft Tissue Graspers
Tissue Graspers with Shark Teeth
Universal Calibrated
Tibia/Patella Clamp
Tissue Graspers with Shark Teeth
Universal Calibrated
Tibia/Patella Clamp

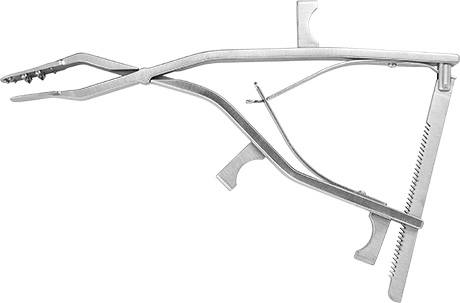

Andrews Modified Tibial Fragment Grasper

Designed to help remove tibial bone during unicondylar and total knee arthroplasty


Designed by Scott Andrews, MD



Andrews Modified Tibial Fragment Grasper

Andrews Modified Tibial Fragment Grasper

Product No: 1721
Overall Length: 10" (25,4 cm)
Jaw Dimensions: 1.44" x .72" (36,6 cc x 18,3 mm)
Lower Jaw Thickness: 1 mm
Download Product Brochure (PDF)

TOP

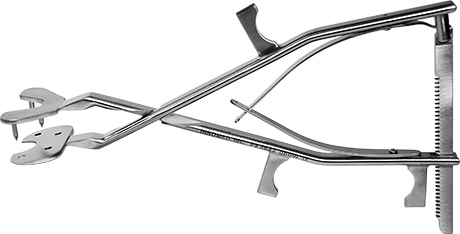

Andrews Modified Tibial Wedge Clamp

Designed to help remove the cut tibial bone during total knee procedures


Designed by Scott Andrews, MD and Kuldeep Sidhu, MD


Andrews Modified Tibial Wedge Clamp

The bone is held by the spikes which helps it to come out in one piece, and also helps with release of soft tissues from the bone.



Product No: 3642
Overall Length: 10.25"
Pads: 60mm x 30mm
Front Spike Length: 14mm
Back Spike Length: 7.5mm
Download Product Brochure (PDF)

TOP





Bhargava Grasper

Designed to help remove the labrum and soft tissues in anterior total hip surgery, and very useful in helping to remove posterior osteophytes in knee surgery


Designed by Tarun Bhargava, MD


Bhargava Anterior Hip Labral Grasper

Bhargava Anterior Hip Labral Grasper


Product No: 1776
Overall Length: 12.5" (31,8 cm)
Shaft Length: 9" (22,9 cm)
Shaft Width: 7 mm
Jaw Width at End: 4 mm
Toothed Jaw Length: 14 mm
Download Product Brochure (PDF)

TOP

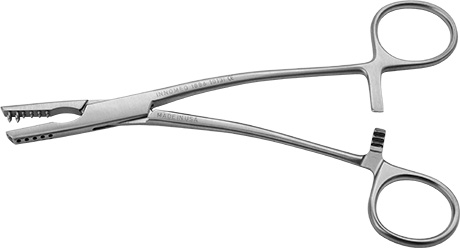

Bhargava Modified Meniscal Clamp

Low-profile design helps facilitate grasping the posterior portion of the meniscus


Designed by Tarun Bhargava, MD


Bhargava Modified Meniscal Clamp

Bhargava Modified Meniscal Clamp

Improved bite when tension is placed on the meniscus. Can also be used to help remove the fat pad and suprapatellar bursa.



Product No: 1886
Overall Length: 7"
Teeth Length: 1mm
Jaw Length: 1.125"
Download Product Brochure (PDF)

TOP





Cartilage Grasper

Helps to grasp and hold cartilage, tendons, soft tissues and loose bodies


Shark tooth designed by Luis Ulloa,
design modification by Michael Soudry, MD


Cartilage Grasper



Product No's:



1785 [Saw Teeth]
Shaft Length: 6" (15,2 cm)
Overall Length: 9.25" (23,5 cm)




1777 [5" with Shark Teeth]
Shaft Length: 5" (12,7 cm)  
Overall Length: 8.25" (21 cm)  
Jaw Bite: 2 mm x 6.5 mm


1779 [8" with Shark Teeth]
Shaft Length: 8" (20,3 cm)
Overall Length: 11.25" (28,6 cm)
Download Product Brochure (PDF)

TOP

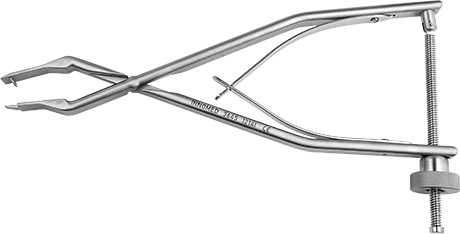

Fracchia Tibia/Patella Clamp with Speed Lock

Designed to be used to remove a tibia wedge, and helps in everting the patella


Designed by Michael J. Fracchia, MD



Fracchia Calibrated Tibia/Patella Clamp
Fracchia Calibrated Tibia/Patella Clamp
Fracchia Calibrated Tibia/Patella Clamp
Product No: 3645
Overall Length: 10"
Download Product Brochure (PDF)

TOP





Hannum Grasper

Teeth in jaw firmly holds bone and tissue


Designed by Scott Hannum, MD


Hannum Rongeur/Grasper

Non-locking design can be easily gripped while allowing greater pressure to be applied. Available in three jaw sizes: short jaw for holding bone, medium jaw for smaller bones, and long jaw for tissue.

Product No's:
1775-01 [Short Jaw] • 8mm Width
1775-02 [Medium Jaw] • 5mm Width
1775-03 [Long Jaw] • 3mm Width
Download Product Brochure (PDF)

TOP





Intraarticular Tissue Grasper/Rongeurs

Used to securely grasp tissue or can be used to rongeur tissue




Intraarticular Tissue Grasper/Rongeur

Intraarticular Tissue Grasper/Rongeur

Product No’s:

STANDARD HANDLE

1790-01 [5" Standard]
Overall Length: 8" (20,3 cm)
Shaft Length: 5" (12,7 cm)

1790-03 [7" Standard]
Overall Length: 10" (25,4 cm)
Shaft Length: 7" (17,8 cm)

1790-02 [9" Standard]
Overall Length: 12" (30,5 cm)
Shaft Length: 9" (22,9 cm)


1791-02 [9" Standard with Locking Ratchet Handle]
Overall Length: 12" (30,5 cm)
Shaft Length: 9" (22,9 cm)

SMALL GRIP HANDLE
Small Grip Handle version is designed with the grip closer together for easier gripping and to help reduce hand fatigue.

1790-01-SG [5" Small Grip]
Overall Length: 8" (20,3 cm)
Shaft Length: 5" (12,7 cm)

1790-03-SG [7" Small Grip]
Overall Length: 10" (25,4 cm)
Shaft Length: 7" (17,8 cm)

1790-02-SG [9" Small Grip]
Overall Length: 12" (30,5 cm)
Shaft Length: 9" (22,9 cm)
Download Product Brochure (PDF)

TOP





Long Jaw Needle Nose Pliers





Long Jaw Needle Nose Pliers

Long Jaw Needle Nose Pliers

Product No: 1833
Overall Length: 7"
Jaw Length: 2.25"
Jaw Width Tapered from: 8mm to 1.5mm
Jaw Heigth Tapered from: 12mm to 2.5mm
Download Product Brochure (PDF)

TOP





Lotke Double Action Cartilage Graspers

Double action strength helps to securely hold soft tissues


Designed by Paul Lotke, MD


Lotke Double Action Cartilage Graspers

Angled to simulate the pinch forceps position. Ferris-Smith tips effectively hold soft tissues or needles. Powergrip avoids fatigue or excessive forces on the surgeons thumbs.

Lotke Double Action Cartilage Graspers
Lotke Double Action Cartilage Graspers

Product No’s:
Overall Length: 7.5"
1710 [Standard]
1715 [Ratcheted]
Download Product Brochure (PDF)

TOP





Macko Square Tipped Rongeur

Square tipped rongeur with an ergonomic grip, double action mechanism, long reach, and low profile — for use in total ankle, hip, knee, and spine surgery


Designed by Victor W. Macko, MD



Macko Square Tipped Rongeur

Macko Square Tipped Rongeur

When used for morcelizing bone graft, the shallow, wide jaw helps avoid impaction. Ergonomic grip, double action mechanism, long reach, and low profile.



In total ankle surgery, the aggressive, low profile jaws aid in the removal of tibial bone in spite of limited space. The square ended tip helps produce a flat, finished surface following anterior talar facet reaming.


Macko Square Tipped Rongeur

Product No's:
1778-01
Jaw Bite: 5 x 18mm
Overall Length: 10"


1778-02
Jaw Bite: 7 x 18mm
Overall Length: 10"


1778-03
Jaw Bite: 10 x 18mm
Overall Length: 10"

Download Product Brochure (PDF)

TOP





Mazzara Rongeur with Pistol Grip Handle

Pistol Grip handle lessens hand fatigue and slippage, and allows for better visualization


Designed by James T. Mazzara, MD


Mazzara Rongeur with Pistol Grip Handle
Mazzara Rongeur with Pistol Grip Handle

Available in three jaw bite sizes.

Product No’s:
Overall Length: 10"
1765-01 • 5 x 14mm
1765-02 • 7 x 16mm
1765-03 • 10 x 16mm
Download Product Brochure (PDF)

TOP

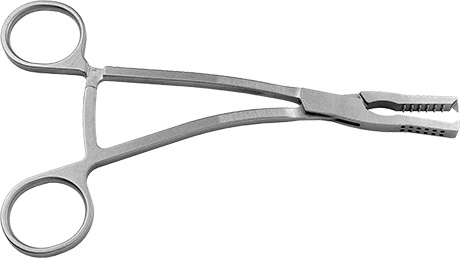

Meniscal Clamp

Redesigned clamp is curved for easier use, visualization, and tissue holding




Meniscal Clamp

Meniscal Clamp
Meniscal Clamp
Product No: 1883
Overall Length: 7"
Teeth Length: .05"
Jaw Length: 1.375"
Download Product Brochure (PDF)

TOP





Modified Rongeur with Pistol Grip Handle

A thin top cutter and deep lower cutter, with edges that are rounded off, allows the top cutter to slide into a tight space— specifically the acetabulum or the patella—while the pistol grip helps lessen hand fatigue and slippage, and allows for better visualization


Design modification by Morteza Meftah, MD and Ira Kirschenbaum, MD, of an original design by James T. Mazzara, MD.



Modified Rongeur with Pistol Grip Handle

Modified Rongeur with Pistol Grip Handle
Modified Rongeur with Pistol Grip Handle
Modified Rongeur with Pistol Grip Handle

Product No: 1765
Jaw Bite Length: 18 mm
Jaw Bite Width: Tapered from 7 to 4.5 mm
Overall Length: 10" (25,4 cm)
Download Product Brochure (PDF)

TOP





Ortho Rongeur with Easy Grip Handle

Offset handles lessen hand fatigue and slippage, and allow better visualization




Ortho Rongeur with Easy Grip Handle

Offset handles give better gripping power and help reduce hand fatigue. Finger grooves help to prevent hand slippage. The offset handle also allows for better visualization. Available in three jaw bite sizes.

Ortho Rongeur with Easy Grip Handle

Rongeur Drawing

Product No’s.
1780-01 • 5 x 14mm
1780-02 • 7 x 16mm
1780-03 • 10 x 16mm
Download Product Brochure (PDF)

TOP





OrthoVise – Large


U.S. Patent #D398,208


OrthoVise
OrthoVise

OrthoVise – Large

OrthoVise Side Attachment Bolts

Side Attachment Bolts

Allow a Large OrthoVise™ Slap Hammer (#3950) to be attached to the side of the device.

Available on Standard Large and Long Nose Large OrthoVise™ with Attachment Bolts only.

(Cannot be added on later.)


OrthoVise OrthoVise
OrthoVise OrthoVise

Made of stainless steel

Models equipped with attachment bolts allow a slap hammer to be attached to the end, as well as to either side of the large OrthoVise™ (except Bent Jaw models), for greater adaptability

Bent Jaw models are not available with side attachment bolts, but have an end attachment nut to accept a Standard Slap Hammer (#3925 or #3926)

Slap Hammers are designed with a hammer plate for the additional use of a mallet if desired

Product No’s:

STANDARD LARGE

3980 [Large]
Overall Length: 10" (25,4 cm)
with Attachment Bolts (two sides and end)
with Large OrthoVise™ Slap Hammer (#3950)

3980-01 [Large]
Overall Length: 10" (25,4 cm)
with Attachment Bolts (wtwo sides and end)
without Slap Hammer

3981 [Large]
Overall Length: 10" (25,4 cm)
without Attachment Bolts
without Slap Hammer
with End Attachment Nut that accepts a
Standard Slap Hammer (#3925 or 3926)

LONG NOSE LARGE

3965 [Large]
OrthoVise™ Length: 12" (30,5 cm)
with Attachment Bolts
with Large OrthoVise™ Slap Hammer (#3950)
3965-01 [Large]
OrthoVise™ Length: 12" (30,5 cm)
with Attachment Bolts
without Slap Hammer

LONG NOSE LARGE BENT JAW

3966 [Large Bent Jaw]
OrthoVise™ Length: 11.5" (29,2 cm)
with Attachment Nut {end)
with Standard Slap Hammer (#3925)
3966-01 [Large Bent Jaw]
OrthoVise™ Length: 11.5" (29,2 cm)
without Slap Hammer
with Attachment Nut (end) that accepts a
Standard Slap Hammer (#3925 or 3926)

SLAP HAMMERS FOR LARGE OTHOVISE

3950 [Slap Hammer for Large OrthoVise]
For use with 3965's, 3980's, 3981
Overall Length: 16.5" (41,9 cm)
3925 [Standard Slap Hammer with 16" Rod]
For use with: 3966's
Overall Length: 16" (40,7 cm)
3926 [Easy Grip Standard Slap Hammer with 16" Rod]
For use with: 3966's
Overall Length: 16" (40,7 cm)

THREADED ADAPTERS FOR LARGE OTHOVISE

3980-02 [Small Adapter]
Changes Male End of a Slap Hammer to Female.
Allows a Standard Slap Hammer (#3925 or #3926) to be used with any Large OrthoVise™ with Attachment Bolts.
3980-03 [Threaded Adapting Screw – Large]
For use with 3965's, 3966's, 3980's, 3981.
Can be used to append the Large OrthoVise™ with an Attachment Bolt for use with a Large OrthoVise™ Slap Hammer (#3950)

VIEW SURGICAL VIDEO

Download Product Brochure (PDF)

TOP





OrthoVise – Small


U.S. Patent #D398,208


OrthoVise – Small

Made of stainless steel

Models equipped with attachment bolts allow a slap hammer to be attached to the end of the OrthoVise™ for greater adaptability

Slap Hammer is designed with a hammer plate for the additional use of a mallet if desired

Product No’s:

STANDARD SMALL

3985 [Small]
OrthoVise™ Length: 8" (20,3 cm)
without Attachment Bolt
without Slap Hammer
3985-01 [Small]
OrthoVise™ Length: 8" (20,3 cm)
with Attachment Bolt (end)
with Small OrthoVise™ Slap Hammer (#3955)
3985-T [Small]
OrthoVise™ Length: 8" (20,3 cm)
with Attachment Bolt (endf)
without Slap Hammer

LONG NOSE SMALL

3975 [Small]
OrthoVise™ Length: 9.5" (24,1 cm)
without Attachment Bolt
without Slap Hammer
3975-01 [Small]
OrthoVise™ Length: 9.5" (24,1 cm)
with Attachment Bolt (end)
with Small OrthoVise™ Slap Hammer (#3955)
3975-T [Small]
Overall Length: 9.5" (24,1 cm)
with Attachment Bolt (end)
without Slap Hammer

SLAP HAMMER FOR SMALL ORTHOVISE

3955 [Slap Hammer for Small OrthoVise]
For use with: 3975's, 3985's

THREADED ADAPTER FOR SMALL OTHOVISE

3985-03 [Threaded Adapting Screw – Small]
For use with: 3975's, 3985's
Can be used to append a Small OrthoVise™ with an Attachment Bolt for use with a Small OrthoVise™ Slap Hammer (#3955)

VIEW SURGICAL VIDEO

Download Product Brochure (PDF)

TOP





Patella Grasping Forceps

Bent handle on forcep helps the surgeon to evert the patella during minimally invasive knee surgery


Designed by S. David Stulberg, MD


Patella Grasping Forceps

Patella Grasping Forceps

Normally two forceps are used.
Sold individually.

Product No: 4250
Overall Length: 6.75"

VIEW SURGICAL VIDEO

Download Product Brochure (PDF)

TOP





Powers Modified Kocher Clamp

Heavier design allows for a firmer grasping of bone and soft tissues


Designed by Mark Powers, MD




Powers Modified Kocher Clamp


Powers Modified Kocher Clamp

Powers Modified Kocher Clamp

Product No's:

1813 [Tapered Jaw]
Overall Length: 8.25" (21 cm)
Jaw Length: 2.5" (6,4 cm)
Jaw at End: 5.2 mm x 4.1 mm

1813-01 [Tapered Narrow Jaw]
Overall Length: 8.25" (21 cm)
Jaw Length: 2.5" (6,4 cm)
Jaw at End: 5.2 mm x 3 mm

1814 [Square Jaw]
Overall Length: 8.25" (21 cm)
Jaw Length: 2.5" (6,4 cm)

Jaw at End: 6.5 mm x 5 mm
Download Product Brochure (PDF)

TOP





Rosenstein Tibial Fragment Grasper for UKA

Designed to help remove the tibial bone fragment in one piece during Unicompartmental Knee Arthroplasty


Designed by Alexander D. Rosenstein, MD


Rosenstein Tibial Fragment Grasper for UKA

Rosenstein Tibial Fragment Grasper for UKA

The narrow grasper with its thin lower jaw is inserted under the femoral condyle, helping to secure the tibial fragment throughout it’s entire length, and to remove the fragment without breaking it. The angled design helps keep the surgeon’s hands out of the way and facilitates visualization.


Product No: 1720
Overall Length: 10” (25,4 cm)
Jaw Dimensions: 1.44” x .72” (36,6 mm x 18,3 mm)
Lower Jaw Thickness: .05” (1,2 mm)
Download Product Brochure (PDF)

TOP





Screw/Pin Removal Locking Pliers

Unique jaw designed to solidly grip and clamp onto a screw head, broken screw, or pin for removal




Screw/Pin Removal Locking Pliers


Screw/Pin Removal Locking Pliers

Screw/Pin Removal Locking Pliers

NEW Small
Jaw End & Bite

Designed to securely grab pins as small as 1.4 mm (.055") up to 2.4 mm (.095")

Standard
Jaw End & Bite

Designed to securely grab larger pins, screw heads, or broken screws

New small version features a smaller size jaw for smaller screws, pins and incisions.

Product No’s:

S0142 [Standard]
Overall Length: 7.875" (20 cm)
Jaw Width: 4 mm


S0142-01 [Small] NEW SIZE!
Overall Length: 7.875" (20 cm)
Jaw Width: 4 mm
Download Product Brochure (PDF)

TOP





Shark Tooth Graspers

Graspers sharp teeth help grasp onto tissue and bone


Designed by Luis Ulloa


Shark Tooth Rongeur





Helpful in removing the labrum, and osteophytes around the acetabulum and around the glenoid. Also helps to remove meniscus, osteophytes and loose bodies. Helps facilitate working through a small incision without disrupting vision.

Shark Tooth Grasper

Product No’s:


STANDARD HANDLE


1797 [5" Shaft with Standard Handle]
Jaw Size: 6 mm x 10 mm
Overall Length: 8" (20,3 cm)
Shaft Length: 5" (12,7 cm)

1798 [7" Shaft with Standard Handle]
Jaw Size: 6 mm x 10 mm
Overall Length: 10" (25,4 cm)
Shaft Length: 7" (17,8 cm)


1799 [9" Shaft with Standard Handle]
Jaw Size: 6 mm x 10 mm
Overall Length: 12" (30,5 cm)
Shaft Length: 9" (22,9 cm)


1796 [12" Shaft with Standard Handle]
Jaw Size: 6 mm x 10 mm
Overall Length: 15" (38,1 cm)
Shaft Length: 12" (30,5 cm)

SMALL GRIP HANDLE NEW!
Small Grip Handle designed with the grip closer together for easier gripping and to help reduce hand fatigue.


1798-SG [7" Shaft with Small Grip Handle] NEW!
Jaw Size: 6 mm x 10 mm
Overall Length: 10" (25,4 cm)
Shaft Length: 7" (17,8 cm)

1799-SG [9" Shaft with Small Grip Handle] NEW!
Jaw Size: 6 mm x 10 mm
Overall Length: 12" (30,5 cm)
Shaft Length: 9" (22,9 cm)
Download Product Brochure (PDF)

TOP





Soudry Loose Body Grasper

Designed to help with the removal of soft tissue loose bodies in arthroscopy and open procedures








Designed by Michael Soudry, MD


Soudry Loose Body Grasper




Product No: 1769
Overall Length: 9.875" (25,1cm)
Shaft Length: 6" (15,2cm)
Download Product Brochure (PDF)

TOP





Sure Grip Soft Tissue Graspers

Enables the surgeon to securely grasp soft tissue structures within the knee


Designed by Andrew Glassman, MD




Sure Grip Soft Tissue Grasper

Incorporates a spike into its upper jaw with a matching recess in the lower jaw, enabling the surgeon to securely grasp soft tissue structures within the knee. Particularly useful for grasping the posterior horn of either the medial or lateral meniscus. Also useful when excising the cruciate ligaments, capturing loose bodies, holding the retinaculum during patellar preparation, and grasping the capsule during wound culture.

Sure Grip Soft Tissue Grasper

Product No’s:

3645-01 [5"]
Overall Length: 8" (20,3 cm)
Shaft Length: 5" (12,7 cm)
Spike Depth: 3mm

3645-02 [7"]
Overall Length: 10" (25,4 cm)
Shaft Length: 7" (17,8 cm)
Spike Depth: 3mm

3646-02 [7" with locking ratchet handle]
Overall Length: 10" (25,4 cm)
Shaft Length: 7" (17,8 cm)
Spike Depth: 3mm

3645-03 [9"]
Overall Length: 12" (30,5 cm)
Shaft Length: 9"
(22,9 cm)
Spike Depth: 3mm
Download Product Brochure (PDF)

TOP





Tissue Graspers with Shark Teeth

Shark teeth help to grasp on to tissue and bone


Designed by Luis Ulloa


Tissue Graspers with Shark Teeth

Shaft allows for use in narrow spaces.

Ideal for removing herniated disc material.

Tissue Graspers with Shark Teeth

Product No's:

1784-01 [Up Angled Jaw]
Shaft Length: 7" (17,8 cm)
Overall Length: 10" (25,4 cm)
Jaw: 9 mm Long x 5 mm High x 1.8 mm Wide

1784-02 [Straight Jaw]
Shaft Length: 7" (17,8 cm)
Overall Length: 10" (25,4 cm)
Jaw: 9 mm Long x 5 mm High x 1.8 mm Wide

1784-03 [Down Angled Jaw]
Shaft Length: 7" (17,8 cm)
Overall Length: 10" (25,4 cm)
Jaw: 9 mm Long x 5 mm High x 1.8 mm Wide

Download Product Brochure (PDF)

TOP





Universal Calibrated Tibia/Patella Clamp

Designed to be used to remove a tiba wedge, and helps in everting the patella. Calibrations help in measuring the thickness of the patella and tibia wedges


Designed by S. David Stulberg, MD


Universal Calibrated Tibia/Patella Clamp
Universal Calibrated Tibia/Patella Clamp
Universal Calibrated Tibia/Patella Clamp
Universal Calibrated Tibia/Patella Clamp
Product No: 3685
Overall Length: 10"

VIEW SURGICAL VIDEO

Download Product Brochure (PDF)

TOP



2020 Innomed, Inc. All rights reserved.
