HIP INSTRUMENTS • for anterior approach total hip surgery

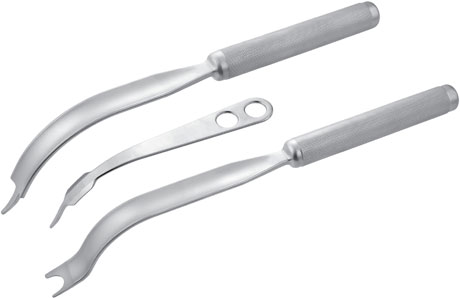

ABLE Advanced Anterior Approach Set

Used for anterior MIS hip surgery

Product No's:

6161-00 [ABLE Advanced Anterior Approach Set]
Set includes:
(2) 6162, (1) 6163, (1) 6164

6161-01 [ABLE Advanced Anterior Approach Set with Case]
Set includes:
(2) 6162, (1) 6163, (1) 6164, (1) 6161-SC


Also Available Individually:


6162 [Modified Deep Hohmann Retractor - A]
(2) included in set, (1) only with this product number
Overall Length: 14.5" (36,9 cm)
Blade Width: 25 mm

6163 [Modified Small Hohmann Retractor - B]
Overall Length: 8.5" (21,6 cm)
Blade Width: 18 mm

6164 [Modified Mueller Retractor - C]
Overall Length: 15.25" (38,8 cm)
Blade Width: 25 mm

6161-SC [Storage Case]

Download Product Brochure (PDF)

TOP

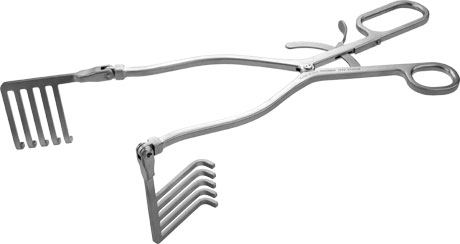

Alvi Beckman Self-Retaining Retractor

Designed for direct anterior approach hip arthroplasty, the wide, blunt and curved teeth help provide for better self-retaining retraction during dissection through the superficial and deep tissue planes to expose the hip joint

Designed by Hasham Alvi, MD

Download Product Brochure (PDF)

TOP

Alvi Modified Hohmann Retractor

Designed for use during minimally invasive anterior hip replacement surgery, the retractor is placed through the capsule, into the femoral head, allowing for retraction of the rectus femoris

Designed by Hasham Alvi, MD

Download Product Brochure (PDF)

TOP

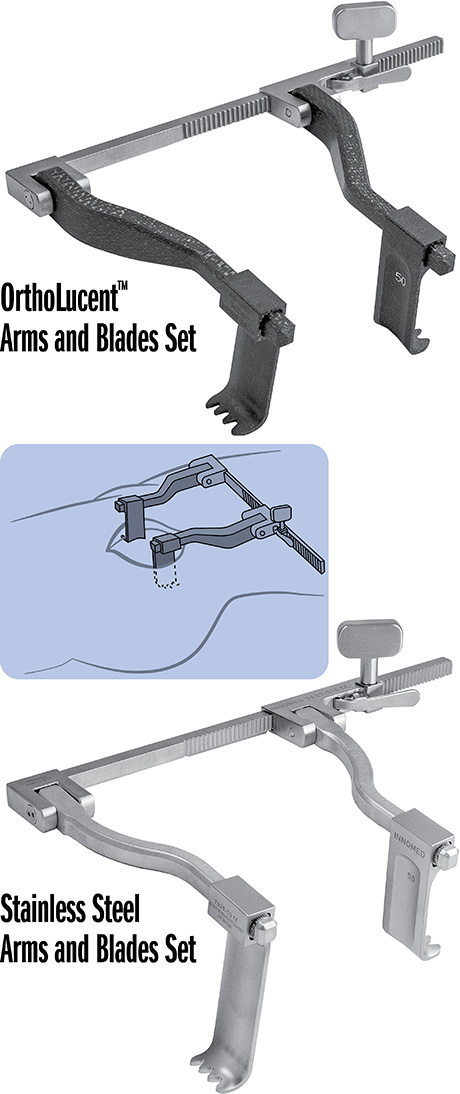

Alvi Small Charnley Style Locking Frame Set

A self-retaining frame and retractor system designed for use during anterior total hip arthroplasty, the blades help retract the hip capsule and musculature, permitting an unobstructed view of the acetabulum while freeing an assistant

Set designed by Hasham Alvi, MD

Optional Winged Modified Blades designed by
Prof. Dr. med. Andrej M. Nowakowski

Product No’s:

7425-00 [Set]
Set includes one Locking Frame (7425-01) and one each of the three Tapered Blade sizes: 2" (7425-02), 3" (7425-03), and 4" (7425-04). (Optional Winged Modified Tapered Blades and Radiolucent Blades not included in set.)


Also sold Individually:

7425-01 [Small Charnley Style Locking Frame]
Dimensions: 9" x 7" (22,9 cm x 17,8 cm)

7425-02 [2" Tapered Blade]
Blade Depth: 2" (5,1 cm)
Handle Length: 7" (17,8 cm)
Blade Width: 1" (2,54 cm)

7425-03 [3" Tapered Blade]
Blade Depth: 3" (7,6 cm)
Handle Length: 7" (17,8 cm)
Blade Width: 1" (2,54 cm)

7425-04 [4" Tapered Blade]
Blade Depth: 4" (10,2 cm)
Handle Length: 7" (17,8 cm)
Blade Width: 1" (2,54 cm)


Optional Winged Modified Blades
(Not included in Set):

The optional modified blades features a tapered, winged blade for gentler soft tissue retraction.

7425-02-MOD [Winged Modified 2" Tapered Blade]
Blade Depth: 2" (5,1 cm)
Handle Length: 7" (17,8 cm)
Blade Width: 1" (2,54 cm)

7425-03-MOD [Winged Modified 3" Tapered Blade] NEW!
Blade Depth: 3" (7,6 cm)
Handle Length: 7" (17,8 cm)
Blade Width: 1" (2,54 cm)

7425-04-MOD [Winged Modified 4" Tapered Blade] NEW!
Blade Depth: 4" (10,2 cm)
Handle Length: 7" (17,8 cm)
Blade Width: 1" (2,54 cm)

Optional Radiolucent Blades
(Not included in Set):

7425-02R [Radiolucent 2" Tapered Blade] NEW!
Blade Depth: 2" (5,1 cm)
Handle Length: 7" (17,8 cm)
Blade Width: 1" (2,54 cm)

7425-03R [Radiolucent 3" Tapered Blade] NEW!
Blade Depth: 3" (7,6 cm)
Handle Length: 7" (17,8 cm)
Blade Width: 1" (2,54 cm)

7425-04R [Radiolucent 4" Tapered Blade] NEW!
Blade Depth: 4" (10,2 cm)
Handle Length: 7" (17,8 cm)
Blade Width: 1" (2,54 cm)

Download Product Brochure (PDF)

TOP

Angled Hip Capsule Clamp

Product No: 1767
Overall Length: 8.2" (20,8 cm)
Jaw Angle: 17°

Download Product Brochure (PDF)

TOP

Anterior Femoral Punches

Designed with a delrin pad to help protect the femoral stem trunnion while removing the femoral head during anterior approach total hip revision arthroplasty

Designed by Brandon Thompson, CST/CFA

• Three stem angles allow choice of optimal approach

• Angled punches allow for better striking force to help break the taper of the head and stem

• The delrin pad helps prevent scratching of the femoral stem trunnion

THE DELRIN PAD SHOULD NOT BE USED FOR IMPACTION.

Download Product Brochure (PDF)

TOP

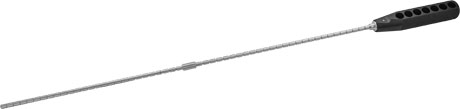

Anterior Hip Referencing Rod Assembly

For use during intraoperative imaging while performing anterior hip arthroplasty to help determine implant fit, position, alignment and recreation of leg length and offset using the contralateral hip for reference

Designed by Scott A. Foster, MD

Download Product Brochure (PDF)

TOP

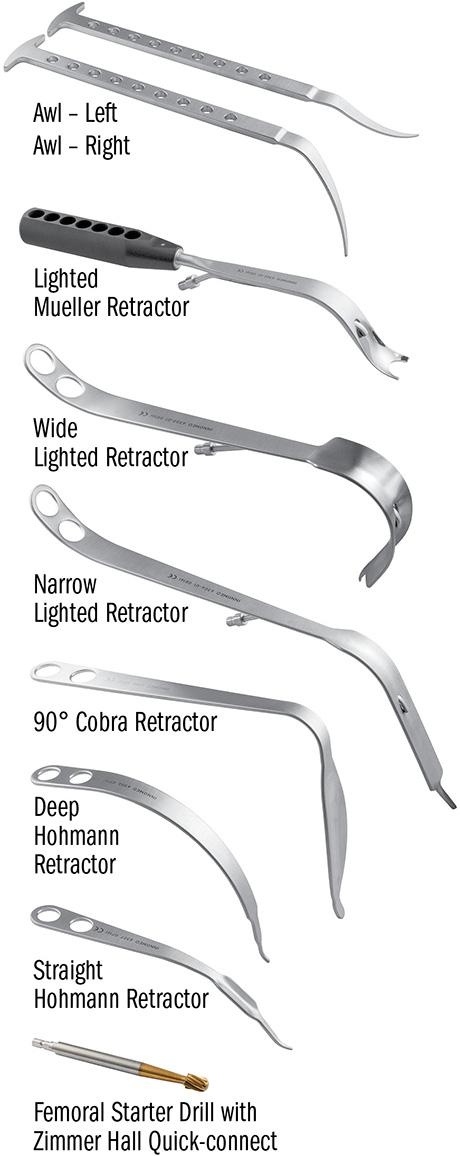

Anterior Watson Jones Total Hip Arthroplasty System

Instrument system specifically designed for Direct Anterior approach Total Hip Arthroplasty

Lighted retractors can be attached to a fiber optic light cable with ACMI (female) connector and can be steam sterilized.

Product No's:

6300-00 [Complete Set]

Included in set or available individually:

6301-L [Anterior Watson Jones Awl – Left]
Overall Length: 12.375" (31,5 cm)

6301-R [Anterior Watson Jones Awl – Right]
Overall Length: 12.375” (31,5 cm)

6302-01 [Anterior Watson Jones Lighted Mueller Retractor]
Blade Width: 27 mm
Handle Length: 5.5" (14 cm)
Overall Length: 12.75" (32,4 cm)

6303-01 [Anterior Watson Jones Wide Lighted Retractor]
Blade Width: 40 mm
Blade Tip Length: 17 mm
Overall Length: 12.75” (32,4 cm)

6304-01 [Anterior Watson Jones Narrow Lighted Retractor]
Blade Width: 26 mm
Blade Tip Length: 23 mm
Overall Length: 16.5” (41,9 cm)

6305 [Anterior Watson Jones 90° Cobra Retractor]
Blade at Widest: 37 mm
Blade Depth: 7.5” (19,1 cm)
Blade Prong: 18 mm Long X 10 mm Wide
Overall Length: 12.5” (31,8 cm)
Handle Length: 9.5” (24,1 cm)

6306 [Anterior Watson Jones Deep Hohmann Retractor]
Blade Width: 17 mm
Prong Length: 34 mm
Overall Length: 9.25” (23,5 cm)

6307 [Anterior Watson Jones Straight Hohmann Retractor]
Prong Length: 4,2 cm
Overall Length: 9.5” (24,1 cm)

6308 [Anterior Watson Jones Femoral Starter Drill with Zimmer Hall Quick-connect]
Drill Tip Dimensions: 18 mm Long X 12 mm Diameter
Overall Length: 6” (15,2 cm)
Shaft Length: 5.25” (13,3 cm)

Optional Instrument (Not Included In Set):

6303 [Anterior Watson Jones Wide Retractor] without Light
Blade Width: 40 mm
Blade Tip Length: 17 mm
Overall Length: 12.75” (32,4 cm)

Optional quick-connect driver (not included in retractor set) for use with the starter drill:

8248 [Fixed Driver with Zimmer Hall Quick-connect]
Overall Length: 5.75" (15,6 cm)
Handle Width: 4.625" (11,6 cm)

Download Product Brochure (PDF)

TOP

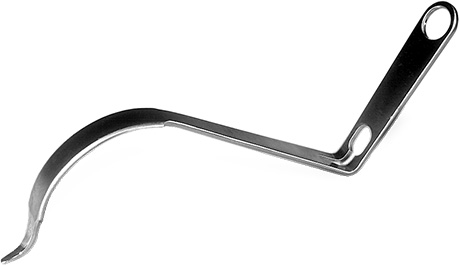

APC Single Prong Hip Retractor

Used to help expose the acetabulum

Designed by APC, Inc.

Product No: 6420 [Single Prong]
Overall Length: 14" (35,6 cm)
Handle-to-1st-Bend Length: 5.25" (13,3 cm)
Handle-to-2nd-Bend Length: 6.5" (16,5 cm)
Blade Width: 22 mm

Download Product Brochure (PDF)

TOP

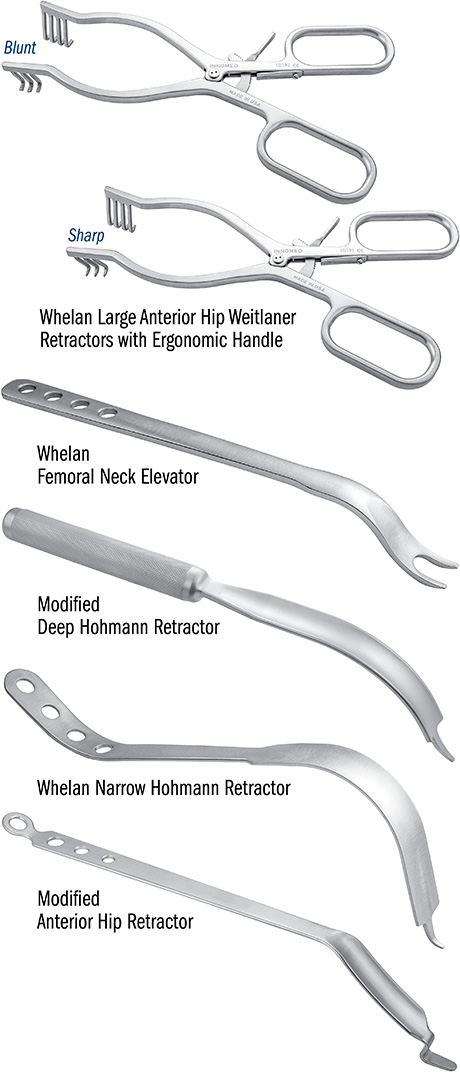

Basic Anterior Approach Instrument Set

A Basic Starter Set for the Direct Anterior Approach

Chosen by Edward J. Whelan III, MD

Product No: 6165-00 [Complete Set]
Set includes (2) #6162 and (1) of
 the other instruments shown below

Included in Set / Available Individually:

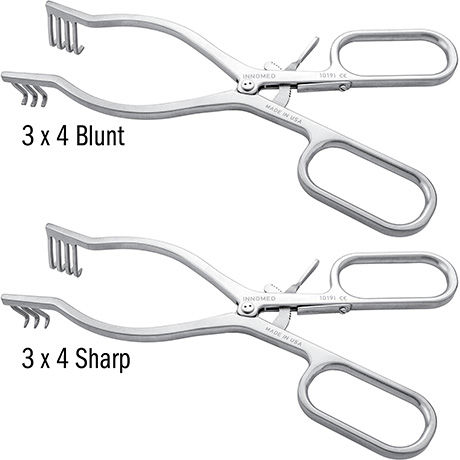

Whelan Large Anterior Hip Weitlaner Retractor with Ergonomic Handle

Designed for self-retaining exposure during anterior approach THA. Can be placed in the initial skin incision to help expose TFL Fascia. Can also be placed between TFL and Rectus to expose the capsule. Once the capsule is opened and released, Weitlaner can be placed anteriorly or posteriorly of the capsule to give unobstructed view of acetabulum.

Product No's:

1576-B [Blunt]
Overall Length: 9" (22,9 cm)
Blade Depth: 1" (2,54 cm)

1576-S [Sharp]
Overall Length: 9" (22,9 cm)
Blade Depth: 1" (2,54 cm)

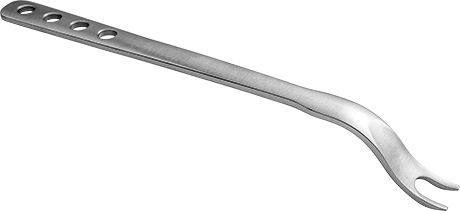

Whelan Femoral Neck Elevator

Elevator has long tines to rest on the stronger bone at the base of the neck and calcar, and also fits well over the lesser trochanter and iliopsoas tendon for femoral broaching.

Product No: 3414
Overall Length: 13.75" (34,9 cm)
Depth from Bend: 1.5" (3,8 cm)
Blade Width: 2,4 cm

Modified Deep Hohmann Retractor

Can be placed inside the capsule to help expose femoral neck for release and removal. The concave blade helps to expose the femoral canal in smaller patients if the offset of P/N 6422 is too large.

Product No: 6162
(2) included in set, (1) only
with this product number
Overall Length: 14.5" (36,9 cm)
Blade Width: 25 mm

Whelan Narrow Hohmann Retractor

Retractor has a large gentle right angle curve with sharp tip, for retraction of structures anterior to the acetabulum for enhanced exposure. Helps allow for visibility without undue pressure or traction on the femoral nerve or vessels.

Product No: 7116
Overall Length: 13.25" (33,7 cm)
Depth from Bend: 4.5" (11,4 cm)
Blade Width: 2,4 cm

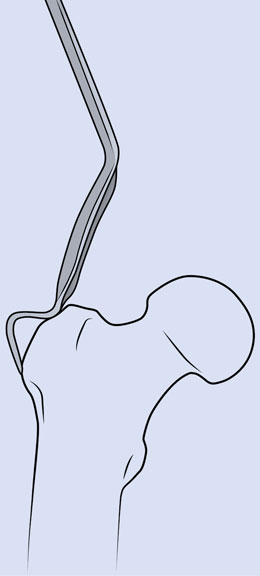

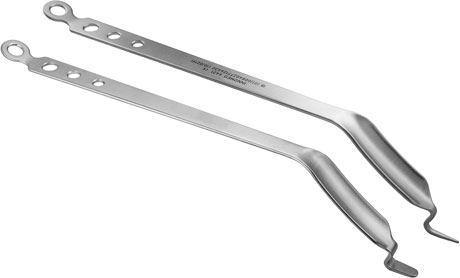

Modified Anterior Hip Retractor

Trochanteric Retractor helps to expose femoral canal and helps protect gluteal muscles.

Product No: 6422
Overall Length: 15.75" (40 cm)
 Blade Width: 1.15" (3 cm)

Download Product Brochure (PDF)

TOP

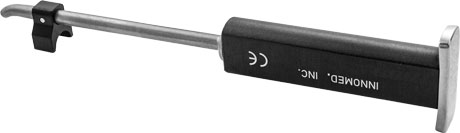

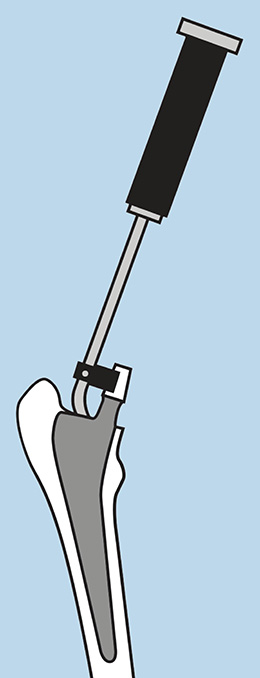

Bhargava DAA Femoral Stem Impactor

Helps allow for easier impaction of most femoral stems through the DAA approach — protects the trunnion and helps allow for control of version during impaction

Designed by Tarun Bhargava, MD

Product No: 5308
Overall Length: 10" (25,4 cm)

Download Product Brochure (PDF)

TOP

Bhargava Modular Offset Cup Liner Impactor

Designed to help impact an acetabular cup liner during
minimally invasive direct anterior and MIS posterior approach THR

Designed by Tarun Bhargava, MD

Used in conjunction with individual interchangeable heads (sold separately) which fit securely onto the impactor end.

Helps avoid edge loading and improper seating of the liner that can occur with a straight impactor.

Uses the same stainless steel heads as the Innomed CupX Actetabular Cup Extraction System

Product No: 5031
Overall Length: 15.85" (40,2 cm)
Platform End Diameter: 1" (2,54 cm)

Download Product Brochure (PDF)

TOP

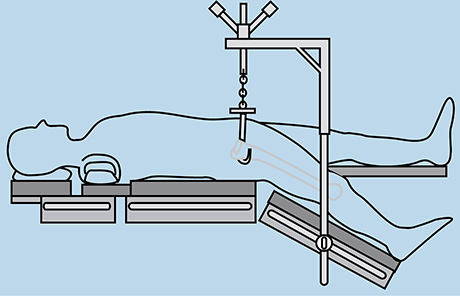

Bone Hooks

Used to help elevate the femur

Designed by R.L. Wixson, MD

Designed for proximal femoral elevation in total hip replacement or in other surgery with a similar need for bone manipulation. The instrument has a blunt tip and a large handle to accommodate the use of two hands if desired.

TOP

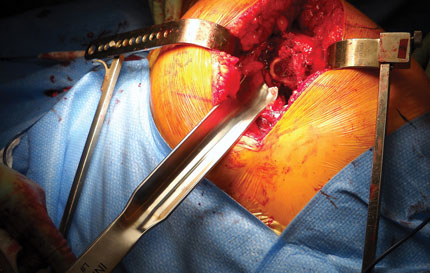

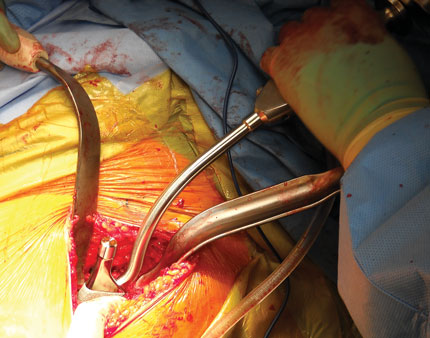

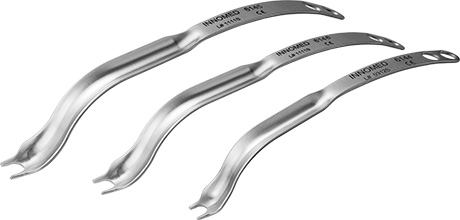

Bozeman Direct Anterior THA Femoral Elevator

Designed to elevate the femur anteriorly, providing exposure to allow broaching of the femoral canal and final placement of the femoral component, during direct anterior approach THA

Designed by Daniel M. Gannon, MD

TOP

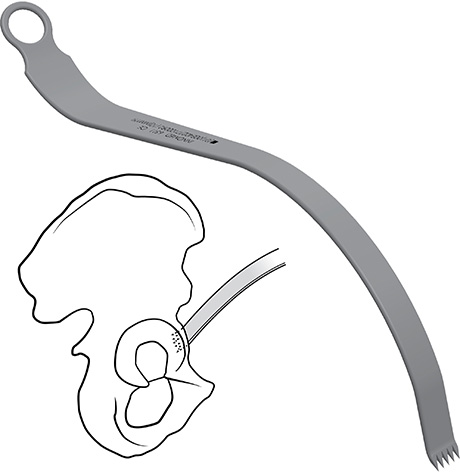

Chandran Anterior Retractor for THR

Design helps to expose the anterior rim of the acetabulum and helps prevent displacement of the retractor while reaming the acetabulum during direct anterior hip replacement

Designed by Rama E. Chandran, MD

Product No: 6311
Overall Length: 13.5" (34,3 cm)
Depth from Flat: 4.75" (12,1 cm)
Blade Width: .625" (1,6 cm)

Download Product Brochure (PDF)

TOP

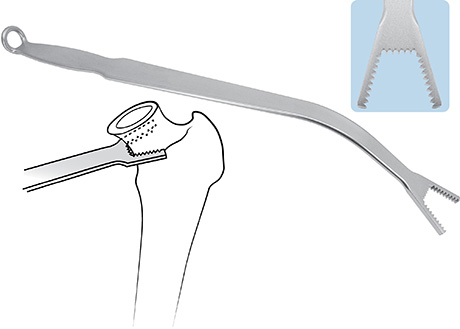

Chandran Femoral Neck Retractor with Sharp Teeth

Designed to grasp and expose the femoral neck, the teeth help prevent the retractor from slipping or shifting under downward pressure

Designed by Rama E. Chandran, MD

Product No: 6141
Overall Length: 14.25" (36,2 cm)
Blade width at End: 1.25" (3,2 cm)
Prong Length: 1" (2,54 cm)

Download Product Brochure (PDF)

TOP

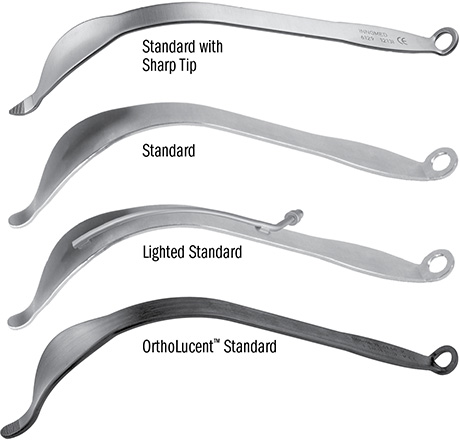

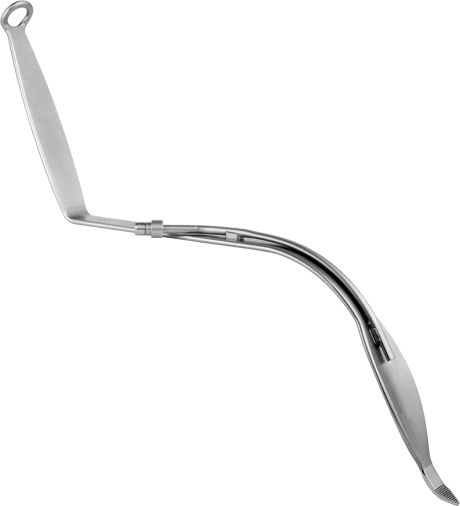

Cobra Retractors

For use around the femur and acetabulum

The lighted retractor can be attached to a fiber optic light cable with ACMI (female) connector and can be steam sterilized.

The OrthoLucent™ version is made of a strong, lightweight carbon fiber PEEK composite material, which is completely radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized.

Product No's:

6129 [Standard with Sharp Tip]
Overall Length: 12" (30,5 cm)
Handle Length: 7" (17,8 cm)
Blade at Widest: 33 mm

6130 [Standard]
Overall Length: 12" (30,5 cm)
Handle Length: 7" (17,8 cm)
Blade at Widest: 33 mm

6130-L [Lighted Standard]
Overall Length: 12" (30,5 cm)
Handle Length: 7" (17,8 cm)
Blade at Widest: 33 mm

6130-R [OrthoLucent™ Standard ]
Overall Length: 12" (30,5 cm)
Handle Length: 7" (17,8 cm)
Blade at Widest: 33 mm

Download Product Brochure (PDF)

TOP

Curved Anterior Retractors

Download Product Brochure (PDF)

TOP

DAA Posterior Retractor

A posterior retractor designed with a square tip and larger curvature

Download Product Brochure (PDF)

TOP

Das Anterior Hip Bolster Assembly

Designed to help provide counter resistance on the contralateral hip during reaming and implant insertion in direct anterior hip arthroplasty

Design modification by Amal Das, MD
of original design by Benjamin M. Frye, MD

Product No's:

4166-00 [Das Anterior Hip Bolster Assembly]

Set Includes / Available Individually:

4166-01 [Das Anterior Hip Bolster Support]
4166-02 [Das Anterior Hip Bolster Rod]

Set Includes / Replacement Parts:

2595 [Table Clamp]
4150-PD2 [Positioning Pads – Set of 2]
4150-PS [Post Screw]

Download Product Brochure (PDF)

TOP

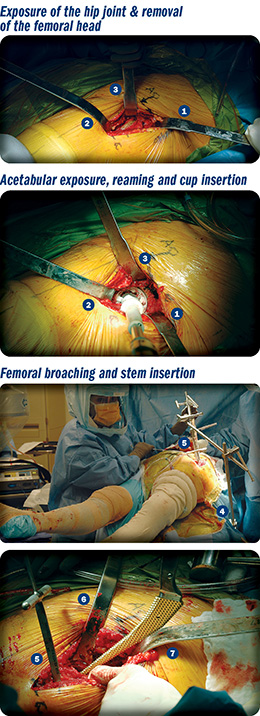

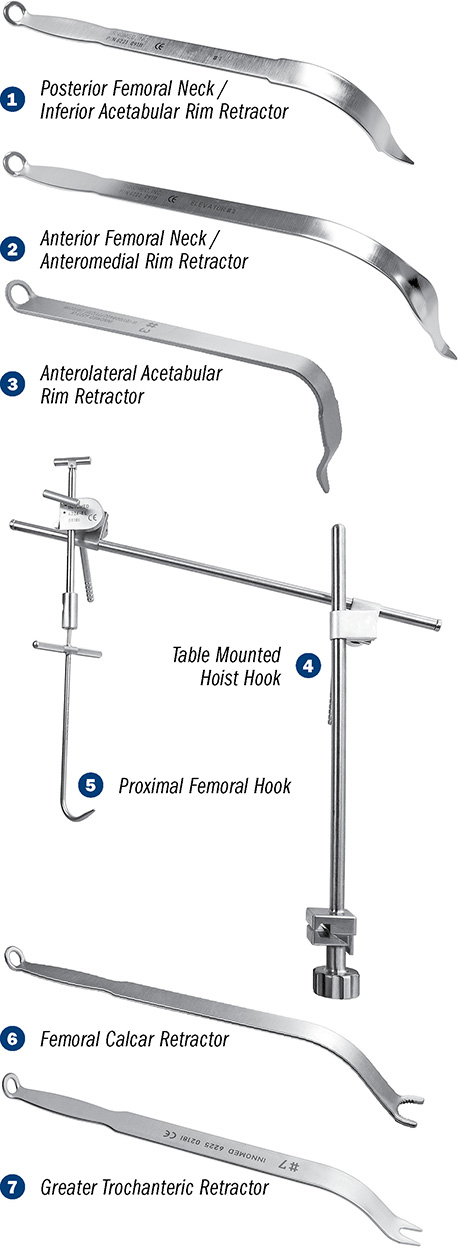

Das/Seng Anterior Total Hip Instruments

Retractor set with included table-mounted controlled-release ratcheting elevator hook, specifically designed to help simplify anterior approach total hip arthroplasty

Designed by Amal Das, MD and Brian Seng, DO

Product No's:
6221 [#1 - Posterior Femoral Neck / Inferior Acetabular Rim Retractor]
Blade Width: 25 mm
Blade Depth: 3" (7,6 cm)
Overall Length: 14" (35,6 cm)

6222 [#2 - Anterior Femoral Neck / Anteromedial Rim Retractor]
Blade Width: 31.5 mm, 10 mm @ Tip
Blade Depth: 4.5" (10,2 cm)
Overall Length: 15" (38,1 cm)

6223 [#3 - Anterolateral Acetabular Rim Retractor]
Blade Width: 18 mm
Blade Depth: 3.25" (8,3 cm)
Overall Length: 10" (25,4 cm)

6226-TA [#4 - Table Mounted Hoist Hook]
This product number includes one
6226-RH Elevator Hook
Folds to approx: 21" x 5" x 5"

(53,4 cm x 12,7 cm x 12,7 cm)

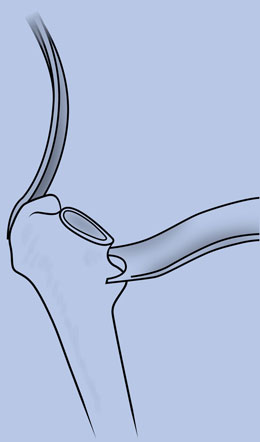

6226-RH [#5 - Proximal Femoral Hook]
Blade Depth from T-Handle: 7.5" (19,1 cm)
Overall Length: 9.25" (23,5 cm)

6227 [#6 - Femoral Calcar Retractor]
Blade Width: 25 mm
Blade Depth: 2" (5,1 cm)
Overall Length: 14.5" (36,9 cm)

6225 [#7 - Greater Trochanteric Retractor]
Blade Width: 25 mm
Blade Depth: 1.5" (3,8 cm)
Overall Length: 14.875" (37,8 cm)

Optional items:

6226-EH [Flat Elevator Hook]
Blade Depth from T-Handle: 7.5" (19,1 cm)
Overall Length: 9.25" (23,5 cm)

Download Product Brochure (PDF)

Download Surgical Technique (PDF)

TOP

Direct Anterior Angled Curette

Angled design to better access the medullary canal during anterior total hip surgery

Download Product Brochure (PDF)

TOP

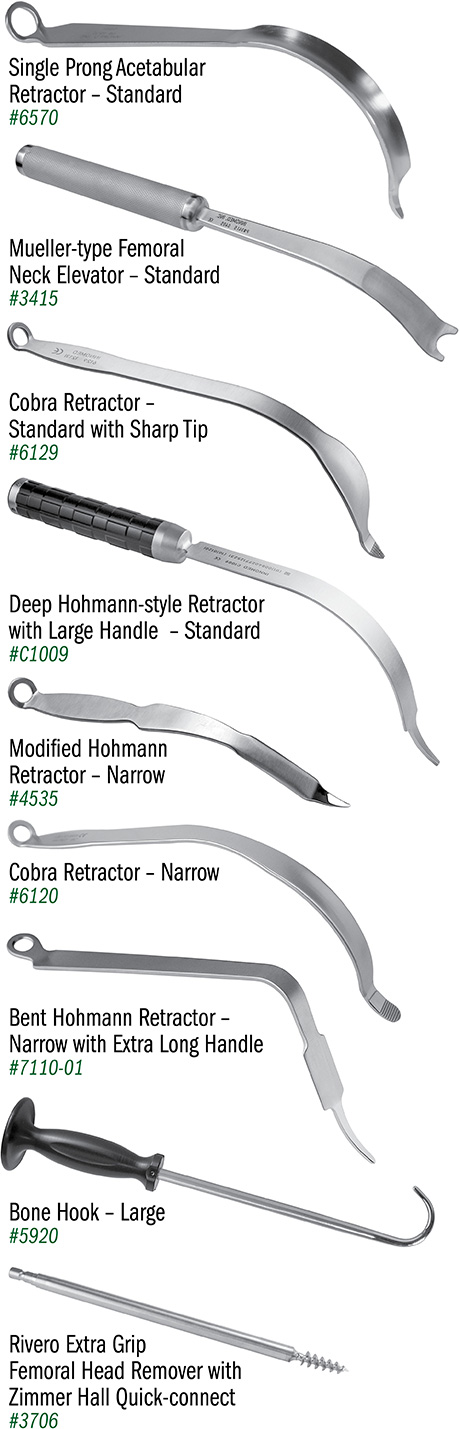

Direct Anterior Approach Instrument Set

A General Use Set of Innomed Instruments for Direct Anterior Approach Total Hip Arthroplasty

Product No’s:

6500-01 [DAA Instrument Set]
 Set includes (2) #6120 and (1) of the other instruments shown below

Set Includes / Available Individually:

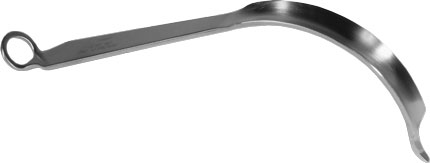

6570 [Single Prong Acetabular Retractor – Standard]
Overall Length: 12.125" (30,8 cm)
Blade Width: 22.3 mm

3415 [Mueller-type Femoral Neck Elevator – Standard]
Overall Length: 13.5" (34,3 cm)
Handle Length: 6.5" (16,5 cm)
Blade Width at Widest: 25 mm

6129 [Cobra Retractor – Standard with Sharp Tip]
Overall Length: 12" (30,5 cm)
Handle Length: 7" (17,8 cm)
Blade at Widest: 33 mm

C1009 [Deep Hohmann-style Retractor with Large Handle – Standard]
Overall Length: 15.75" (40 cm)
Handle Length: 6.125" (15,6 cm)
Blade Depth: 4.5" (11,4 cm)
Blade Width: 1.1" (2,8 cm)
Prong Length: 1.5" (3,8 cm)

4535 [Modified Hohmann Retractor – Narrow]
Overall Length: 10" (25,4 cm)
Blade Width: 14 mm

6120 [Cobra Retractor – Narrow]
(2) included in set, (1) only with this product number
Overall Length: 11.75" (29,8 cm)
Handle Length: 6.5" (16,5 cm)
Blade Width: 19 mm

7110-01 [Bent Hohmann Retractor – Narrow
with Extra Long Handle]
Overall Length: 11.5" (29,2 cm)
Handle Length: 10" (25,4 cm)
Blade Width: 19 mm
Depth from Bend: 4.25" (10,8 cm)

5920 [Bone Hook – Large]
Curve Diameter: 50 mm
Overall Length: 12.75" (32,4 cm)
Handle Length: 4.75" (12,1 cm)

3706 [Rivero Extra Grip Femoral Head Remover
with Zimmer Hall Quick-connect]
Overall Length: 8.5” (21,6 cm)

Download Product Brochure (PDF)

TOP

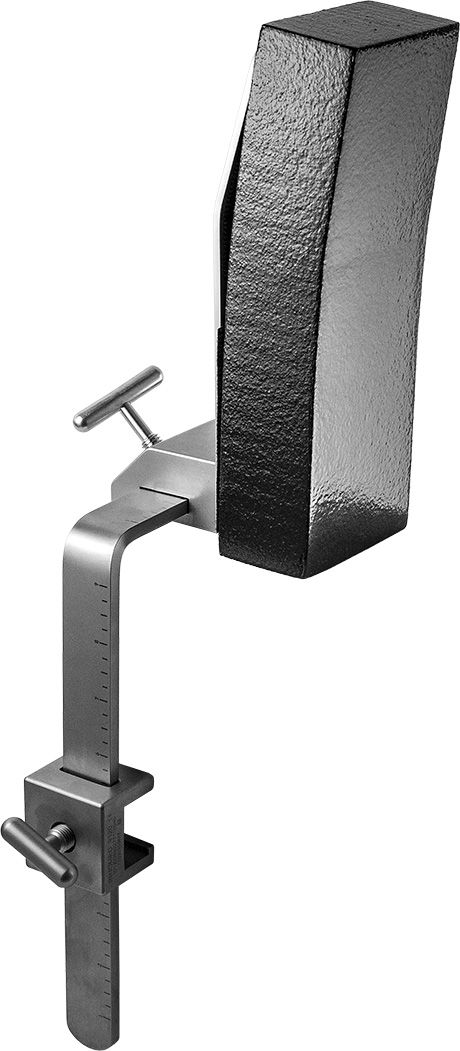

Direct Anterior Total Hip Arthroplasty Leg Positioner Assembly

Designed to help position the operative leg for femoral preparation in direct anterior approach total hip arthroplasty using a standard operating table

Designed by Benjamin M. Frye, MD

Allows one assistant to secure the leg for femoral preparation.

Attaches directly to a standard operating table.

Allows easy assessment of hip stability and leg length discrepancy.

Calibrations on the rod help to allow for precise and reproducible placement of the leg positioner according to surgeon preference.

Product No's:

4165-00 [Assembly]

Individual/Replacement Parts:

4165-01 [Leg Support]
Overall Length: 8.75" (22,2 cm)
Width: 2.5" (6,4 cm)

4165-02 [Calibrated Rod]
Dimensions: 9.625" x 7.125" x 1" (24,5 x 18,1 x 2,5 cm)

4165-P [Leg Support Pad]
Dimensions: 8.5" x 3" x 1.75" (21,6 x 7,6 x 4,4 cm)

4150-PS [Support Screw]
T-Handle Width: 1.875" (4,7 cm)
T-Handle Depth: 1.5" (3,8 cm)

9120 [Table Clamp]
Dimensions: 1.7" x 1.7"" x 1.4" (4,3 x 4,3 x 3,6 cm)



US Patent No. 11,744,757

Download Product Brochure (PDF)

TOP

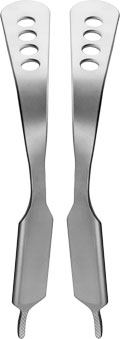

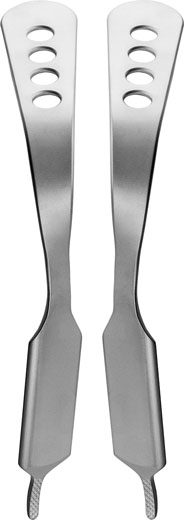

Duke Classic Inferior Retractors with Extra Grip Tip

An inferior acetabular retractor designed for total hip arthroplasty while prepping the acetabulum

Designed by Justin Duke, MD

Product No’s:

7621-01 [Left]
Overall Length: 10.25" (26 cm)
Handle Length: 5" (12,7 cm)
Depth: 7.5" (19,1 cm)
Blade Length: 2.75" (7 cm)
Blade Width: 1.125" (2,9 cm)
Prong Length: 1" (2,5 cm)
Prong Width: 6 mm

7621-02 [Right]
Overall Length: 10.25" (26 cm)
Handle Length: 5" (12,7 cm)
Depth: 7.5" (19,1 cm)
Blade Length: 2.75" (7 cm)
Blade Width: 1.125" (2,9 cm)
Prong Length: 1" (2,5 cm)
Prong Width: 6 mm

Download Product Brochure (PDF)

TOP

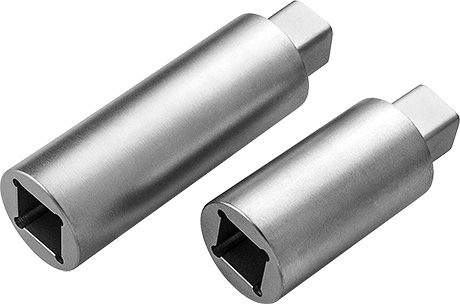

Extension Set for Anterior THR Tables

Designed to add lift to the femoral hook during an anterior THR case and be able to remove without breaking the sterile field

Designed by David Ott, MD

Download Product Brochure (PDF)

TOP

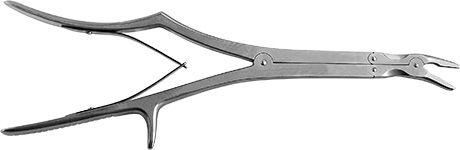

Extra Long Rongeur

Helpful in minimally invasive total hip surgery by keeping hands out of the field of view

Product No’s:

1771-01 [5 x 16 mm Jaw]
Jaw Bite: 5 x 16 mm
Overall Length: 14" (35,6 cm)

1771-02 [8 x 16 mm Jaw]
Jaw Bite: 8 x 16 mm
Overall Length: 14" (35,6 cm)

1771-0 [12 x 16 mm Jaw]
Jaw Bite: 12 x 16 mm
Overall Length: 14" (35,6 cm)

Download Product Brochure (PDF)

TOP

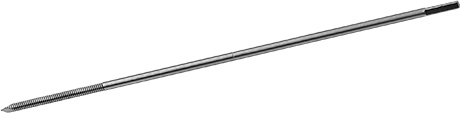

Femoral Head Removal Pin

Used to help remove a femoral head during total hip surgery

Product No: 1310
Overall Length: 9" (22,9 cm)
Pin Diameter: 5/32" (4 mm)

Download Product Brochure (PDF)

TOP

Femoral Head Remover with Zimmer-Hall Quick-Connect

Used to remove femoral heads during total hip arthroplasty or fracture surgery

TOP

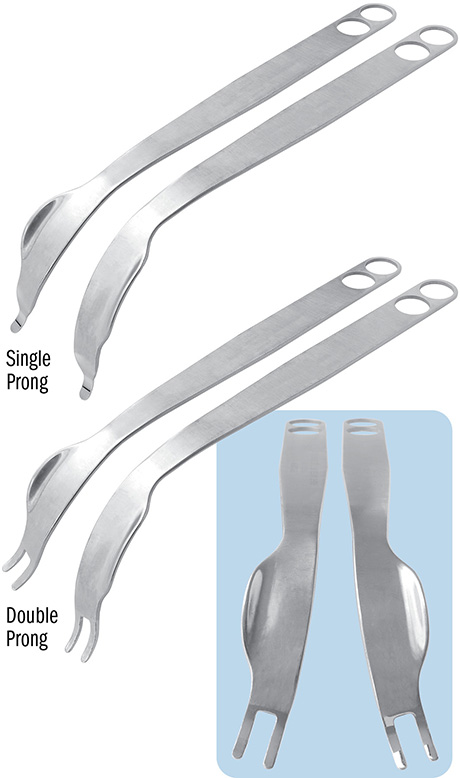

Flared Cobra Retractors – Left & Right

Left and right retractors can be used with the anterior, posterior or lateral approach to help expose the acetabulum in total hip surgery

Designed by Henry Boucher, MD
Single prong design modification by Walter Frueh, MD

Download Product Brochure (PDF)

TOP

Hannum Graspers

Teeth in jaw firmly holds bone and tissue

Designed by Scott Hannum, MD

Non-locking design can be easily gripped while allowing greater pressure to be applied.

Used for dissection(to preserve)/or removal of the anterior capsule, removal of the labrum, or other soft tissue around the acetabulum prior to cup implantation. Also used to release the capsule to expose the femur for placement of the femoral stem. Long, low profile helps facilitate working through a small incision without disrupting vision.

Available in three jaw sizes: short jaw for holding bone, medium jaw for smaller bones, and long jaw for tissue.

Product No's:

1775-01 [Short Jaw]
Overall Length: 9.25" (23,5 cm)
Jaw Width: 8 mm

1775-02 [Medium Jaw]
Overall Length: 9.25" (23,5 cm)
Jaw Width: 5 mm

1775-03 [Long Jaw]
Overall Length: 9.25" (23,5 cm)
Jaw Width: 3 mm

Download Product Brochure (PDF)

TOP

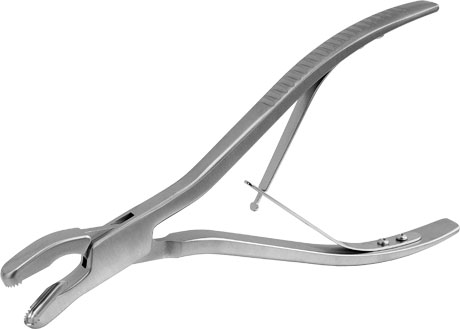

Hannum Modified Angled Grasper/Rongeur

Heavy duty large bone grasper designed to help trim acetabular osteophytes — angled to ergonomically fit around the rim via the direct anterior approach

Designed by Scott Hannum, MD

Download Product Brochure (PDF)

TOP

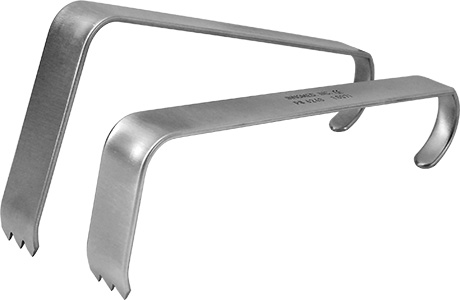

Hibbs Retractors

Designed for soft tissue retraction

Used to retract the Tensor Fascia Lata and Rectus Femoris during the initial approach to the anterior hip capsule. Helps expose the Lateral Circumflex vessels.

Product No’s:

6235 [Medium]
10.75" (27,3 cm)
Handle Length: 9.75" (24,8 cm)
Blade Depth: 4.5" (114 mm)
Blade Width: 25 mm

6240 [Standard]
Overall Length: 8.75" (22,5 cm)
Handle Length: 8" (20,3 cm)
Blade Depth: 3" (76 mm)
Blade Width: 25 mm

Download Product Brochure (PDF)

TOP

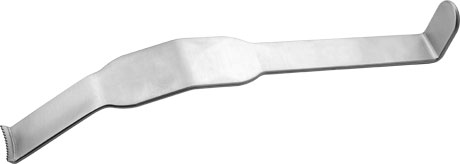

Hope Direct Anterior Femoral Retractor

Designed to aid in exposure of the calcar femorale for proximal femoral exposure and broaching

Designed by Charles A. Hope, MD

TOP

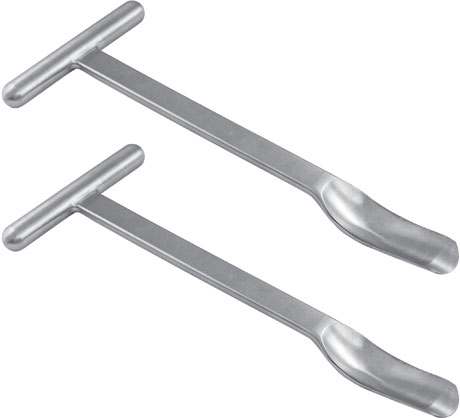

Huddleston Femoral Head Removers

Designed to help lever a femoral head out of the acetabulum in standard and anterior approach total hip replacement

Designed by H. Dennis Huddleston, MD

Product No's:

3608 [Sharp]
Overall Length: 10.5" (26,7 cm)
Scoop Length: 3" (7,6 cm)
Scoop Width: 29 mm

3609 [Dull]
Overall Length: 10.5" (26,7 cm)
Scoop Length: 3" (7,6 cm)
Scoop Width: 29 mm

Download Product Brochure (PDF)

TOP

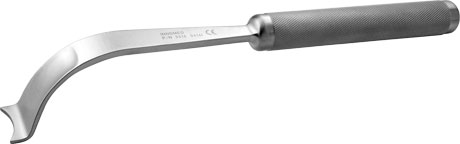

Hur Modified Wide Mueller-type Femoral Neck Elevator

Designed for the anterior approach, the wide design helps to reduce stress on the proximal femur

Designed by John Hur, MD

The modified Mueller-type design non-forked end helps reduce stress risers and fractures.

Download Product Brochure (PDF)

TOP

Jana Lighted Cobra Retractor

Designed to enhance exposure and visualization

Designed by Ajoy K. Jana, MD

Excellent for use in acetabular exposure and total hip replacements. Especially useful for anterior approach.

Attaches to a fiber optic light cable with ACMI (female) connector.

Steam sterilizable.

Product No: 6119-L

Overall Length: 14.75" (37,5 cm)
Blade at Widest: 33 mm

Download Product Brochure (PDF)

Light Source Cable Adapters
Product No's:
8009-S ACMI to Storz Adapter
8009-W ACMI to Wolf Adapter

TOP

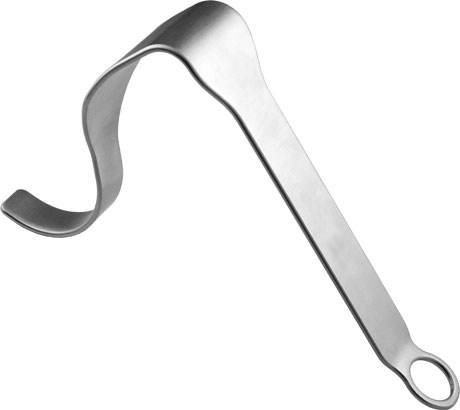

Jeffers Hip Retractor

For use during the anterior approach, this retractor is designed to help protect the TFL from laceration during acetabular preparation in addition to maximizing exposure

Designed by Andrew Jeffers, MD

Used with or without a weight, it is placed over the TFL and vastus lateralis and under the femur. The broad surface helps to gently retract the TFL and vastus away from the reamer path.

Download Product Brochure (PDF)

TOP

Kenerly Femoral Neck Cutting Guide

Designed for use during the anterior approach for THA to help determine the femoral neck osteotomy location

Designed by J. Lex Kenerly, III, MD

Download Product Brochure (PDF)

TOP

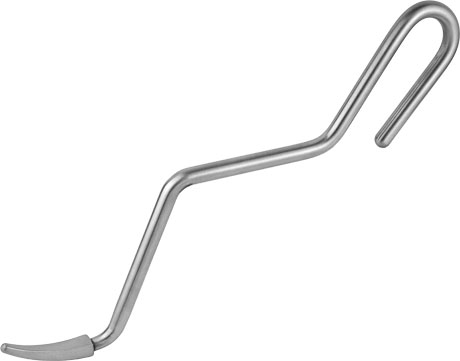

Kim Anterior Total Hip Awl

Awl design helps avoid perforation of the femoral canal while helping to give an accurate assessment of canal orientation and broaching during anterior approach total hip arthroplasty

Designed by William C. Kim, MD

Product No: 8028
Overall Length: 12" (30,5 cm)
Blunt Reamer Length: 2" (5,1 cm)

Download Product Brochure (PDF)

TOP

Kopplin Osteophyte Rongeur for Direct Anterior THA

Designed to help remove osteophytes around the acetabulum in anterior THA

Designed by Matthew Kopplin, MD

Helps to allow clean sharp cuts with better control. Thin flat tip helps to pass along the bone easier.

Product No: 1771-04
Overall Length: 13" (35 cm)
Jaw Width: .375" (0.95 cm)
Jaw Length Bottom: .75" (1,9 cm)
Jaw Length Top: .625" (1,6 cm)

Download Product Brochure (PDF)

TOP

Lombardi Bone Hooks

Used to elevate the femur to allow adequate soft tissue release to aid in femoral exposure

Designed by Adolph V. Lombardi, Jr., MD

3 Sizes Available

Product No’s:

5925 [Small]
Curve Diameter: 25 mm
Overall Length: 10" (25,4 cm)

5930 [Medium]
Curve Diameter: 35 mm
Overall Length: 10" (25,4 cm)

5935 [Large]
Curve Diameter: 55 mm
Overall Length: 10" (25,4 cm)

Download Product Brochure (PDF)

TOP

Mazzara Pistol Grip Extra Long Rongeur

Pistol Grip handle lessens hand fatigue and slippage, and allows for better visualization

Designed by James T. Mazzara, MD

Download Product Brochure (PDF)

TOP

Modified Anterior Hip Retractor

Designed to provide exposure of the proximal femur

Product No:

6421 [Narrow Tip]
Overall Length: 15.75" (40 cm)
 Blade Width: 1.15" (3 cm)

6422 [Wide Tip]
Overall Length: 15.75" (40 cm)
 Blade Width: 1.15" (3 cm)

Download Product Brochure (PDF)

TOP

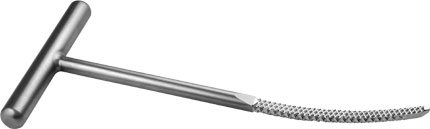

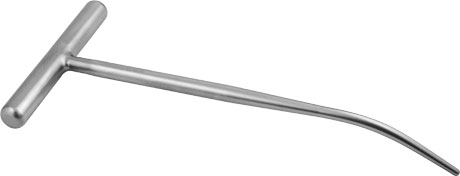

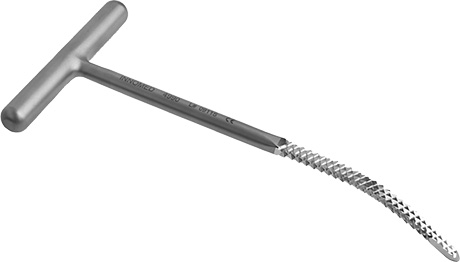

Modified T-Handle Femoral Canal Finder Rasp

Designed to sound the femoral canal prior to stem broaching, especially useful to help start the broach path during the direct anterior approach

MODIFIED DESIGN: Underside Rasp
Rasp on curve underside and sides,
smooth on topside

Download Product Brochure (PDF)

TOP

Modified Wide Hohmann Retractor with Taylor Tip

Anterior and posterior acetabular retractors for all approaches, including the direct anterior approach, featuring a hammer platform for insertion with a mallet

Designed by Jeffrey P. Beckenbaugh, DO

Used as a calcar and posterior femoral retractor for the posterior approach, and an anterior femoral elevator for the direct anterior approach.

Product No's:

3012-00 [Set – Left & Right]

Also available individually:

3012-L [Left]
Overall Length: 14.75" (37,5 cm)
Blade Depth: 5" (12,7 cm)
Blade Width: 45 mm

3012-R [Right]
Overall Length: 14.75" (37,5 cm)
Blade Depth: 5" (12,7 cm)
Blade Width: 45 mm

Download Product Brochure (PDF)

TOP

Mueller-type Femoral Neck Elevators

Designed to elevate the proximal femur

Extra Deep modified by Tom Eickmann, MD

Product No's:

3415 [Standard]
Overall Length: 13.5" (34,3 cm)
Handle Length: 6.5" (16,5 cm)
Blade Width at Widest: 25 mm

3418 [Extra Deep]
Overall Length: 15.25" (38,8 cm)
Handle Length: 6.5" (16,5 cm)
Blade Width at Widest: 25 mm

Download Product Brochure (PDF)

TOP

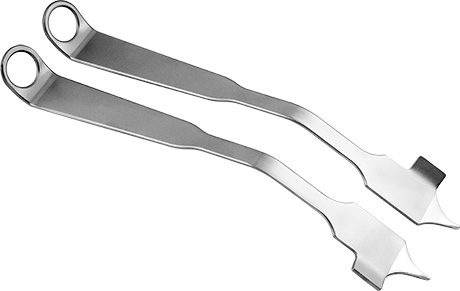

Multi-Purpose Hip & Knee Retractors

Designed for use in both hip and knee arthroplasty procedures

Designed by Vasilios Mathews, MD

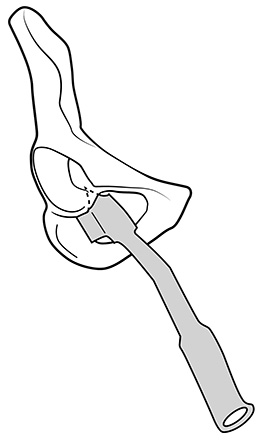

During direct anterior hip arthroplasty procedures, the fin of this retractor fits the contours of the acetabular rim and retracts the anterior soft tissues, while the short length of the spike helps limit the penetration into the neurovascular zones.

In knee surgery, the retractors can be used to help protect the patellar tendon behind the fin at the lateral tibial border. Also useful as a soft-tissue and fat pad retractor during prosthesis implantation, helping to ensure a dry cancellous bed for cementation.

Product No's:

4554-L [Left]
Overall Length: 11.25" (28,6 cm)
Blade Width: 1.5" (38 mm)

4554-R [Right]
Overall Length: 11.25" (28,6 cm)
Blade Width: 1.5" (38 mm)

Download Product Brochure (PDF)

TOP

Offset Canal Finder

A smooth, double bent, offset canal finder designed to assist during anterior hip surgery

Product No: 4987
Overall Length: 14" (35,6 cm)
Handle Length: 5.375" (13,6 cm

Download Product Brochure (PDF)

TOP

Offset Femoral Rasp

The deep offset design allows the surgeon to line up with canal entry and the tip angled slightly upwards to help prevent femoral protrusion

Designed by Richard Pelliccio

Product No: 4988
Overall Length: 13.67" (34,7 cm)
Handle Length: 5.88" (15 cm)
Rasp Offset: 1.5" (3,8 cm)


Download Product Brochure (PDF)

TOP

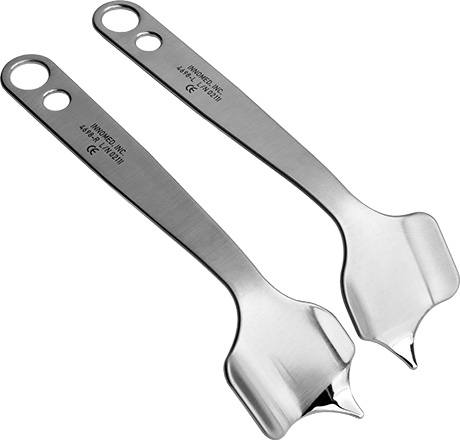

O'Reilly Direct Access Anterior Broaching Retractor

Designed for use in obtaining improved proximal exposure
for femoral canal preparation during minimally invasive
direct anterior THA

Designed by Michael P. O'Reilly, MD

Download Product Brochure (PDF)

TOP

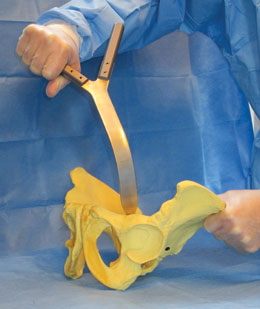

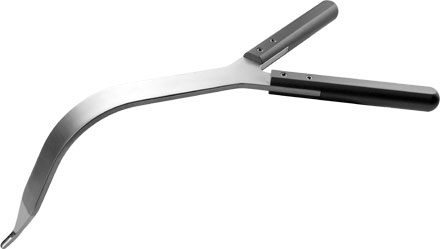

O’Reilly Dual Handle Direct Anterior Retractor

Designed for use over the anterior pelvic rim during acetabular exposure in direct anterior THA, the dual handle design allows for use in both right and left hips, as well as easy exchange of the instrument between assistants

Designed by Michael P. O’Reilly, MD

Can be used in MIS/Direct Anterior, Total Hip Arthroplasty, Posterior/Anterolateral THA, and Hemiarthroplasty.

Download Product Brochure (PDF)

TOP

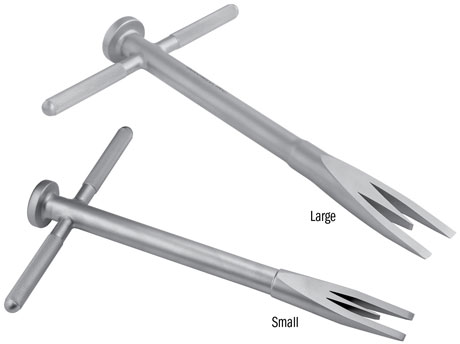

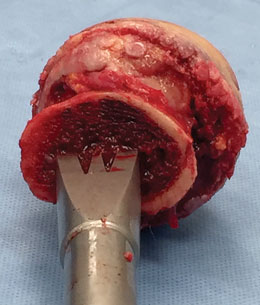

O’Reilly Femoral Head Extractor

Designed to help remove the femoral head—during THA, MIS Direct Anterior THA, and hip fracture surgery/hemiarthroplasty

Designed by Michael P. O’Reilly, MD. Small version designed modification by Tarum Bhargava, MD

Download Product Brochure (PDF)

TOP

Posterior Acetabular Retractor

Designed for posterior acetabular retraction during anterior approach total hip replacement surgery

Designed by Amal Das, MD and Brian Seng, DO

Product No: 6224

Blade Width: 25 mm
Blade Depth: 2.75" (7 cm)
Overall Length: 14" (35,6 cm)

Download Product Brochure (PDF)

TOP

Posterior-Inferior Retractors

For increased leverage and depth with large patients

Designed by Wayne Goldstein, MD

The posterior-inferior retractor is placed with the point at 6 o’ clock and the retractor’s axilla resting on the ischium. The remaining blade of this retractor is used to retract the remaining capsule from the posterior lip of the acetabulum.

Product No’s:
7625-01 [Small Right]
Overall Length: 10.75" (27,3 cm)
Handle-to-Bend Length: 5.5" (14 cm)

7625-02 [Small Left]
Overall Length: 10.75" (27,3 cm)
Handle-to-Bend Length: 5.5" (14 cm)

7925-01 [Medium Right]
Overall Length: 11" (27,9 cm)
Handle-to-Bend Length: 7" (17,8 cm)

7925-02 [Medium Left]
Overall Length: 11" (27,9 cm)
Handle-to-Bend Length: 7" (17,8 cm)

7620-01 [Large Right]
Overall Length: 12" (30,5 cm)
Handle-to-Bend Length: 6" (15,2 cm)

7620-02 [Large Left]
Overall Length: 12" (30,5 cm)
Handle-to-Bend Length: 6" (15,2 cm)

Download Product Brochure (PDF)

TOP

Powers Double Bent Curette Set

The bayonet curettes help allow for proper lateralization and seating of the broach

Designed by Mark Powers, MD

TOP

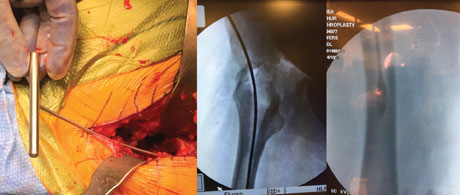

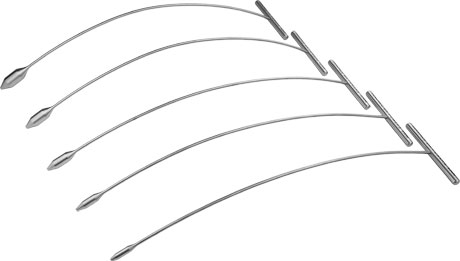

Powers Femoral Sounds

Allows the surgeon to gently identify the canal of a long bone as well as its width (isthmus) prior to inserting a device

Designed by Mark Powers, MD

Particularly useful for the anterior approach to the hip. Helps identify intraoperative occult fractures. Properly identifying the medullary canal before broaching helps minimize possible intraoperative fractures.

Product No's:

4189-00 [Set of 5]

Also available individually:

4189-06 [6 mm]
Overall Length: 14.25" (36,2 cm)
Handle Length: 3.5" (8,9 cm)

4189-08 [8 mm]
Overall Length: 14.25" (36,2 cm)
Handle Length: 3.5" (8,9 cm)

4189-10 [10 mm]
Overall Length: 14.25" (36,2 cm)
Handle Length: 3.5" (8,9 cm)

4189-12 [12 mm]
Overall Length: 14.25" (36,2 cm)
Handle Length: 3.5" (8,9 cm)

4189-14 [14 mm]
Overall Length: 14.25" (36,2 cm)
Handle Length: 3.5" (8,9 cm)

Download Product Brochure (PDF)

TOP

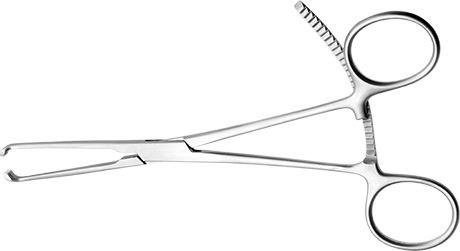

Resnick Allis Bone Clamp

A traditional Allis Bone Clamp designed with a longer ratchet which allows for a wider opening to allow a bone to be clamped and locked onto

Designed by Charles T. Resnick MD

Download Product Brochure (PDF)

TOP

Rockowitz T-Handle Femoral Canal Finder Rasp

Designed to sound the femoral canal prior to stem broaching, especially useful to help start the broach path during the direct anterior approach

Designed by Neal L. Rockowitz, MD

Download Product Brochure (PDF)

TOP

Sarraf Coated Hip Dislocation Hook

Designed to aid in dislocating a femoral stem while helping to prevent damage to the trunnion

Designed by Khaled M. Sarraf, MD

Coated hook end helps to prevent from marring component surfaces.

Can also be used as a bone hook, and for femoral elevation.

Download Product Brochure (PDF)

TOP

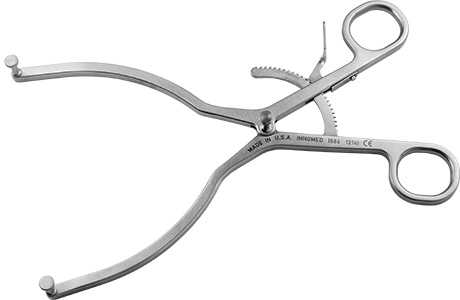

Self-Retaining Tension Retractor

The expandable design allows for a wide variety of blades to be used for exposure in total joint and trauma procedures

Handle only — blades not included.

Download Product Brochure (PDF)

TOP

Single Prong Acetabular Retractors

Used for exposure around the acetabulum

Retractor handles are designed for optional use with modular weights to help hold the retractors in place.

Download Product Brochure (PDF)

TOP

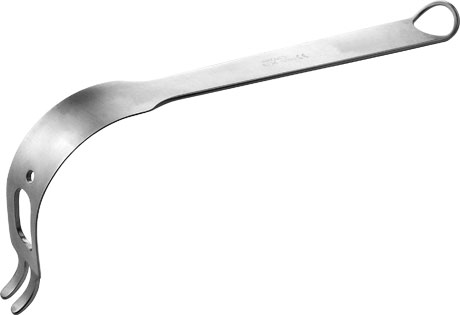

Sinha Retractor for Acetabular Reaming

Designed to retract and protect the femur while preparing the acetabulum for reaming during antero-lateral approach total hip surgery

Design modification by Ajoy K. Sinha, MD

After the femur is prepared and the broach has been placed, the Sinha retractor is placed on the infero-lateral aspect of the acetabulum with the neck of the broach projecting through the large hole in the retractor blade. This serves to displace the femur posteriorly and to help protect the greater trochanter while acetabular reaming is conducted.

Product No: 6174
Overall Length: 12.5" (31,8 cm)
Blade Width: 32 mm
Hole: 18 mm W x 33 mm H

Download Product Brochure (PDF)

TOP

Stainless Steel Hip Surgery Ratchet Frame with Arms and Blades Sets

Designed for self-retaining wound exposure, the arms and blades of the OrthoLucent™ version are radiolucent and can be kept in place while using image intensification or taking an x-ray

Arms rotate 180° and mobile arm units can be detached from the ratchet body for cleaning.

Set with OrthoLucent™ Arms and Blades

The OrthoLucent arms and blades are made of a strong, lightweight carbon fiber PEEK composite material, which is radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized.

Product No's:

7428-00 [Set with OrthoLucent Arms & Blades]

Set Includes:

7427-02 [50 mm OrthoLucent Blade]
Dimensions: 50 mm Deep X 25 mm Wide

7427-03 [75 mm OrthoLucent Blade]
Dimensions: 75 mm Deep X 25 mm Wide

Optional Blade – Not Included In Set:

7427-04 [100 mm OrthoLucent Blade]
Dimensions: 100 mm Deep X 25 mm Wide

Other Options Available Are:

7428-01 [Stainless Steel Ratchet Frame

with OrthoLucent Arms Assembly]
Dimensions (Flat): 10" x 5.625" (25,4 cm x 14,3 cm)
Arms Extend: 4.25" (10,8 cm)

Set with Stainless Steel Arms and Blades

Product No's:

7429-00 [Set with Stainless Steel Arms & Blades]

Set Includes:

7429-02 [50 mm Stainless Steel Blade]
Dimensions: 50 mm Deep X 25 mm Wide

7429-03 [75 mm Stainless Steel Blade]
Dimensions: 75 mm Deep X 25 mm Wide

Optional Blade – Not Included In Set:

7429-04 [100 mm Stainless Steel Blade]
Dimensions: 100 mm Deep X 25 mm Wide

Other Options Available Are:

7429-01 [Stainless Steel Ratchet Frame

with Stainless Steel Arms Assembly]
Dimensions (Flat): 10" x 5.625" (25,4 cm x 14,3 cm)
Arms Extend: 4.25" (10,8 cm)

Download Product Brochure (PDF)

TOP

T-Handle Femoral Canal Finder – Smooth

Designed to cut the transverse ligament while helping to protect the suprascapular nerve

Product No: 4990-03
Overall Length: 9.385" (24,4 cm)

Download Product Brochure (PDF)

TOP

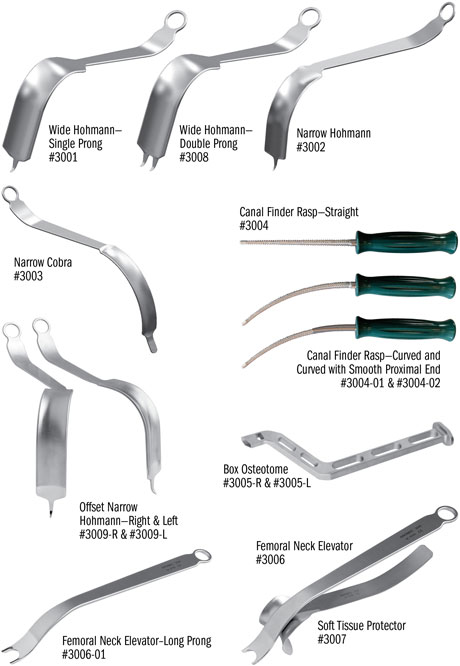

Unger Anterior Total Hip Instruments

Universal instrument system specifically designed for Direct Anterior approach THR

Designed by Anthony Unger, MD

TOP

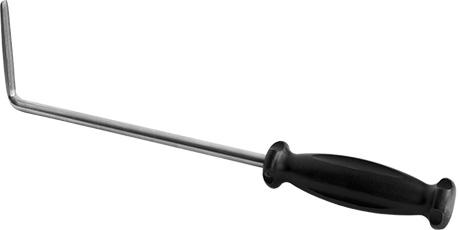

Wertz Anterior THA Femoral Elevator

Helps deliver the femur out of the incision during anterior total hip arthroplasty

Designed by Michael P. Wertz, MD

Inserted into the femoral canal for elevation, the knurled underside helps to reduce the chance of slippage.

Download Product Brochure (PDF)

TOP

Whelan Femoral Neck Elevator

Elevator has long tines to rest on the stronger bone at the base of the neck and calcar, and also fits well over the lesser trochanter and iliopsoas tendon for femoral broaching

Designed by Edward J. Whelan III, MD

Product No: 3414
Overall Length: 13.75" (34,9 cm)
Depth from Bend: 1.5" (3,8 cm)
Blade Width: 2,4 cm

Download Product Brochure (PDF)

TOP

Whelan Large Anterior Hip Weitlaner Retractor with Ergonomic Handle

Designed for self-retaining exposure during anterior approach THA

Designed by Edward J. Whelan III, MD

Download Product Brochure (PDF)

TOP

Whelan Narrow Hohmann Retractor

Retractor has a large gentle right angle curve with sharp tip, for retraction of structures anterior to the acetabulum in the anterior approach to total hip

Designed by Edward J. Whelan III, MD

Helps allow for visibility without undue pressure or traction on the femoral nerve or vessels.

Product No: 7116
Overall Length: 13.25" (33,7 cm)
Depth from Bend: 4.5" (11,4 cm)
Blade Width: 2,4 cm

Download Product Brochure (PDF)

TOP

Wixson Anterior Suspension Hook System

Designed for use with a standard operating room table, helps to facilitate elevation of the proximal femur during direct anterior approach THR

Designed by Richard L. Wixson, MD

Used for femoral preparation after the acetabular component has been implanted




Compete unit includes: tightening rod, horizontal attachment, vertical bar, T-handle bolt, offset femoral hook, and rotating table clamp

Product No's:

6245-00 [Complete Unit]

Replacement Parts:
6245-01 [Horizontal Attachment]
6245-02 [Tightening Rod]
6245-03 [Vertical Bar]
6245-04 [T-handle Bolt]
6245-05 [Offset Femoral Hook]
9125 [Rotating Table Clamp]

Download Product Brochure (PDF)

Set-up and Use Instructions (PDF)

TOP
