HIP INSTRUMENTS • cobra retractors

Click thumbnail image for details

Askins Modified Cobra Retractor with Suction Tube
Cobra Retractor – Standard
Deep Cobra Retractor
Extra Deep Cobra Retractors
Askins Modified Cobra Retractor with Suction Tube
Cobra Retractor – Standard & Wide
Deep Cobra Retractor
NEW! Extra Deep Cobra Retractors
Extra Large Cobra Retractors
Curved Cobra Retractors
Harwin Modified Cobra Retractor
Jana Lighted Cobra Retractor
Lighted Cobra Retractors
Extra Large Cobra Retractors
Flared Cobra Retractors
– Left & Right
Harwin Modified Cobra Retractor
NEW! Jana Lighted Cobra Retractor
Lighted Cobra Retractors
McPherson Retractor Extender
Narrow Cobra Retractor
Extra Large Cobra Retractors
McPherson Retractor Extender
Narrow Cobra Retractors
OrthoLucent™ Cobra Retractor

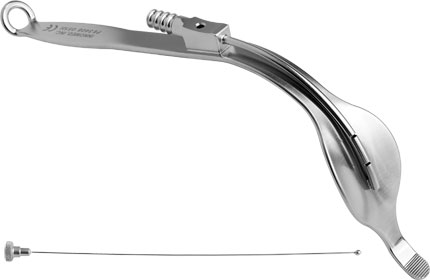

Askins Modified Cobra Retractor with Suction Tube

Allows an assistant to hold the retractor and operate two instruments: the retractor for visualization of the acetabulum as well as the suction tip for suction of smoke and debris from the wound and the acetabulum

Designed by Vance Askins, MD



Askins Modified Cobra Retractor with Suction Tube
Tube Cleaning Probe Included

Designed for use as a posterior inferior or anterior inferior retractor during minimally invasive hip procedures, the retractor features a suction tube located on the anterior portion of the retractor. The suction tube includes two additional holes along the shaft for suction of smoke out of the wound, while the distal tip allows for removal of blood and debris from the acetabulum.

Product No: 3408
Overall Length: 11.5"
Handle Length: 7"
Blade Width at Widest: 46mm

Replacement Part:
3408-01 [Cleaning Probe Only]
Download Product Brochure (PDF)

TOP





Cobra Retractors – Standard & Wide

A general purpose instrument for use around the femur and acetabulum



Cobra Retractor – Standard

The OrthoLucent™ version is made of a strong, lightweight carbon fiber PEEK composite material, which is completely radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized.

Product No's:

6129 [Standard with Sharp Tip]
Overall Length: 12" (30,5cm)
Handle Length: 7" (17,8cm)
Blade at Widest: 33mm


6130 [Standard]
Overall Length: 12" (30,5cm)
Handle Length: 7" (17,8cm)
Blade at Widest: 33mm

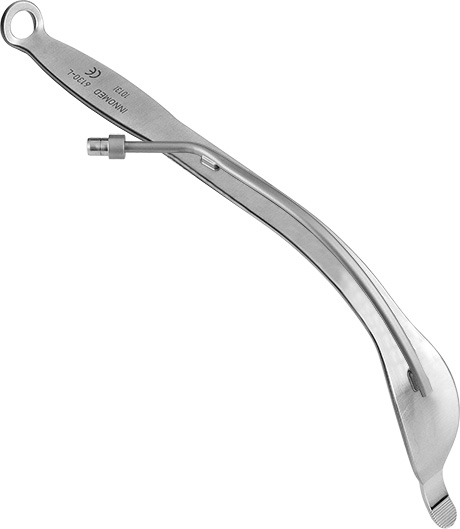

6130-L [Lighted Standard Cobra] More Info
Overall Length: 12" (30,5cm)
Handle Length: 7" (17,8cm)
Blade at Widest: 33mm


6130-R [OrthoLucent™ Standard]
Overall Length: 12" (30,5cm)
Handle Length: 7" (17,8cm)
Blade at Widest: 33mm


6132 [Medium]
Overall Length: 12" (30,5cm)
Handle Length: 7" (17,8cm)
Blade at Widest: 46mm


6140 [Wide]
Overall Length: 12" (30,5cm)
Handle Length: 7" (17,8cm)
Blade at Widest: 56mm
Cobra Retractor – Standard
Light Source Cable Adapters
Product No's:
8009-S ACMI to Storz Adapter
8009-W ACMI to Wolf Adapter
Download Product Brochure (PDF)

TOP

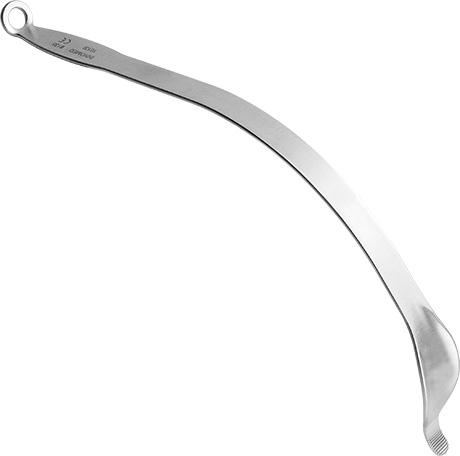

Deep Cobra Retractor

A general purpose instrument for use around the femur and acetabulum in larger patients



Deep Cobra Retractor
Product No's:

6135
Overall Length: 14.5" (36,9 cm)
Handle Length: 7" (17,8 cm)
Blade Width at Widest: 33 mm

6135-L [Lighted Deep Cobra] More Info
Overall Length: 14.5" (36,9 cm)
Handle Length: 7" (17,8 cm)
Blade Width at Widest: 33 mm

Deep Cobra Retractor

Light Source Cable Adapters
Product No's:
8009-S ACMI to Storz Adapter
8009-W ACMI to Wolf Adapter
Download Product Brochure (PDF)

TOP





Extra Deep Cobra Retractors

A general purpose instrument for use around the femur and acetabulum in larger patients



Extra Large Cobra Retractors

A full 2" (5 cm) longer in the wide cobra blade portion than our standard cobra retractor.

Product No's:

6133 [Standard Tip]
Overall Length: 12.75" (32,4 cm)
Handle Length: 6.75" (17 cm)
Blade Width at Widest: 33 mm

6134 [Cross-hatched Tip]
Overall Length: 12.75" (32,4 cm)
Handle Length: 6.75" (17 cm)
Blade Width at Widest: 33 mm

Download Product Brochure (PDF)

TOP

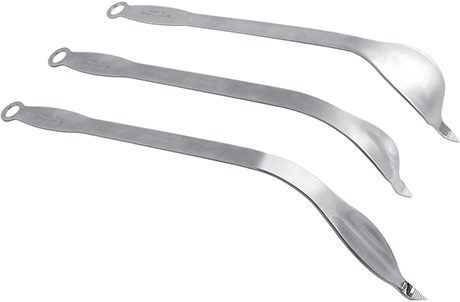

Extra Large Cobra Retractors

A general purpose instrument for use around the femur and acetabulum in larger patients



Extra Large Cobra Retractors
Product No's:
7630-01 [Standard]
Overall Length: 17.5"
Handle Length: 14"
Blade Width at Widest: 33mm

7630-02 [Wide]
Overall Length: 17.5"
Handle Length: 14"

Blade Width at Widest: 56mm

7630-03 [Extra Deep] – Shown Here
Overall Length: 18.75"
Handle Length: 14"
Blade Width at Widest: 33mm
Extra Large Cobra Retractors
Download Product Brochure (PDF)

TOP





Flared Cobra Retractors – Left & Right

Left and right retractors can be used with the anterior, posterior or lateral approach to help expose the acetabulum in total hip surgery

Designed by Henry Boucher, MD
Single prong design modification by Walter Frueh, MD

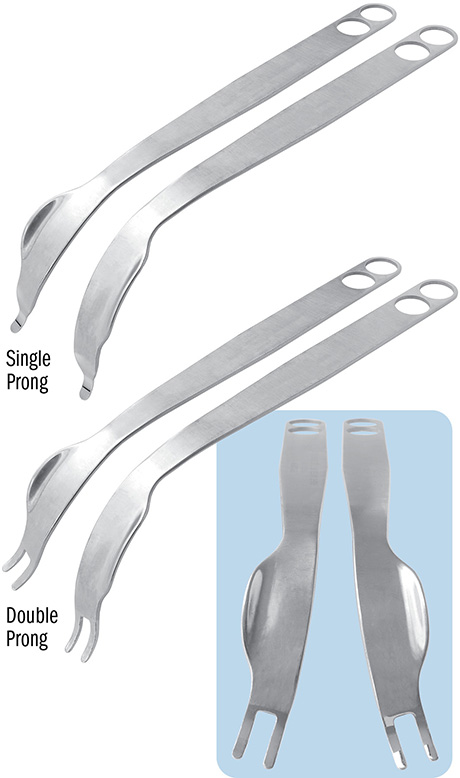

Curved Cobra Retractors

Curved Cobra RetractorsSingle Prong Curved Cobra Retractors

Curved Cobra Retractors

ANTERIOR APPROACH: Placed inferior to the trans-acetabular ligament during exposure and preparation of the acetabular component. The curve and “twist” of the retractor allow for gentle retraction of the medial and inferior soft tissues and skin. Helps provide easier retraction for the assistant on the other side of the operating table.


Curved Cobra Retractors

POSTERIOR APPROACH: Placed over the anterior acetabular wall for supero-anterior translation of the femoral head and neck during acetabular preparation. The prong(s) pierce the capsule over the anterior wall, then the curve and “twist” of the retractor allows for gentle retraction on the femoral neck.

Curved Cobra Retractors

Product No’s:

6110-01 [Double Prong – Right]
Overall Length: 15" (38 cm)

6110-02 [Double Prong –Left]
Overall Length: 15" (38 cm)

6109-L [Single Prong – Left]
Overall Length: 15" (38 cm)

6109-R [Single Prong – Right]
Overall Length: 15" (38 cm)
Download Product Brochure (PDF)

TOP

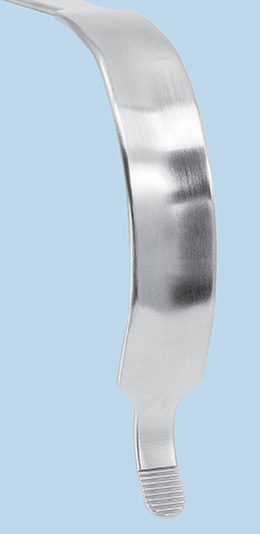

Harwin Modified Cobra Retractor

Designed for use during total hip and knee surgery

Designed by Steven F. Harwin, MD, FACS


Harwin Modified Cobra Retractor

Harwin Modified Cobra Retractor

Harwin Modified Cobra Retractor

The long handle and obtuse angle provide ergonomic leverage—especially helpful for use with obese patients.

 In total hip surgery, the wide, concave blade design allows for enhanced exposure— especially useful in anterior hip surgery with the placement of reamers, and to elevate and expose the proximal femur.

 In total knee surgery, the wide blade of the large retractor spans the prepared box and helps bring the tibia forward. The small retractor helps with retraction of the medial and lateral structures, where the wide, concave blade provides added exposure over standard bent Hohmann retractors. The serrated tip helps improve stability.


Product No:

6143-01 [Small]
Overall Length: 12.5"
Blade Width: 30mm
Tongue: 25 x 4.5mm


6143 [Large]
Overall Length: 14.75"
Blade Width: 43.2mm
Tongue: 25 x 4.5mm
Download Product Brochure (PDF)

TOP





Jana Lighted Cobra Retractor

Designed to enhance exposure & visualization

Designed by Ajoy K. Jana, MD


Jana Lighted Cobra Retractor

Excellent for use in acetabular exposure and total hip replacements. Especially useful for anterior approach.



Attaches to a fiber optic light cable with ACMI (female) connector.



Steam sterilizable.


Product No: 6119-L
Overall Length: 14.75" (37,5 cm)
Blade at Widest: 33 mm

Light Source Cable Adapters
Product No's:
8009-S ACMI to Storz Adapter
8009-W ACMI to Wolf Adapter

Download Product Brochure (PDF)

TOP





Lighted Cobra Retractors

Lighting attachment for enhanced visual exposure




Lighted Cobra Retractors

Attaches to a fiber optic light cable with ACMI (female) connector. Can be steam sterilized.



Product No's:

6120-L [Lighted Narrow Cobra]
Overall Length: 11.75" (29,8 cm)
Handle Length: 6.5" (16,5 cm)
Blade Width: 19 mm

6130-L [Lighted Standard Cobra]
Overall Length: 12" (30,5 cm)
Handle Length: 7" (17,8 cm)
Blade Width at Widest: 33 mm


6135-L [Lighted Deep Cobra]
Overall Length: 14.5" (36,9 cm)
Handle Length: 7" (17,8 cm)
Blade Width at Widest: 33 mm

Light Source Cable Adapters
Product No's:
8009-S ACMI to Storz Adapter
8009-W ACMI to Wolf Adapter
Download Product Brochure (PDF)

TOP





McPherson Retractor Extender

Designed to extend a standard retractor

Designed by Ed McPherson, MD



McPherson Retractor Extender

McPherson Retractor Extender

Extender fits most retractors, providing additional retraction leverage.



McPherson Retractor Extender
McPherson Retractor Extender

Product No: 6022
Overall Length: 15.625"
Download Product Brochure (PDF)

TOP

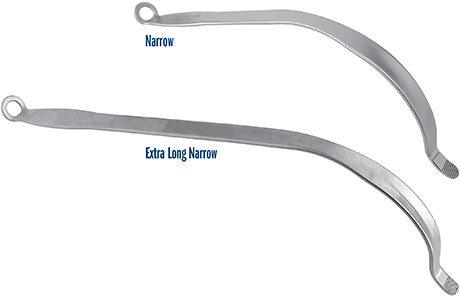

Narrow Cobra Retractor

A general purpose instrument for use around the femur and acetabulum in minimally invasive surgery



Narrow Cobra Retractor
Product No's:

6120
Overall Length: 11.75" (29,8 cm)
Handle Length: 6.5" (16,5 cm)
Blade Width: 19 mm


6120-L [Lighted Narrow Cobra] More Info
Overall Length: 11.75" (29,8 cm)
Handle Length: 6.5" (16,5 cm)
Blade Width: 19 mm

6120-04 [XL Narrow]
Overall Length: 15.5" (39,4 cm)
Handle Length: 11" (27,9 cm)
Blade Width: 19 mm

Light Source Cable Adapters
Product No's:
8009-S ACMI to Storz Adapter
8009-W ACMI to Wolf Adapter



Download Product Brochure (PDF)

TOP

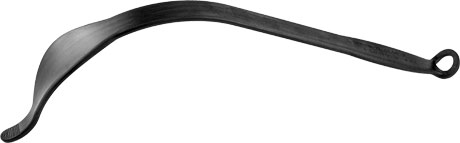

OrthoLucent™ Cobra Retractor

The OrthoLucent™ carbon fiber PEEK composite material is strong, lightweight, completely radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized



OrthoLucent™ Cobra Retractor
Product No: 6130-R
Overall Length: 12" (30,5cm)
Handle Length: 7" (17,8cm)
Blade at Widest: 33mm
Download Product Brochure (PDF)

TOP
