Bozeman Cement Trimmer
|
Byrd Arthroscopic Hip Elevators
|
Chandran Bent Serrated Curette
|
CupX – Acetabular Cup Extraction System
|
|
|
|
|
|
|
|
|
NEW! Direct Anterior Angled Curette
|
Flexible Osteotome System
|
Kudrna Cup Channel Chisel
|
Lambotte Osteotomes with Handle
|

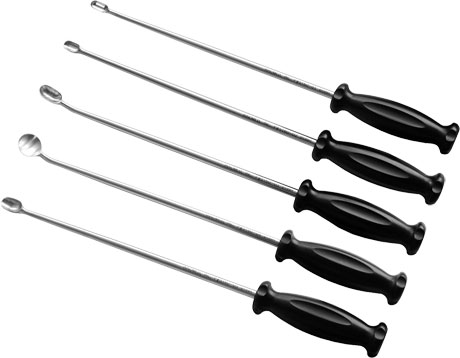

Large Bone Curettes
|
|
|
|
|
|
|

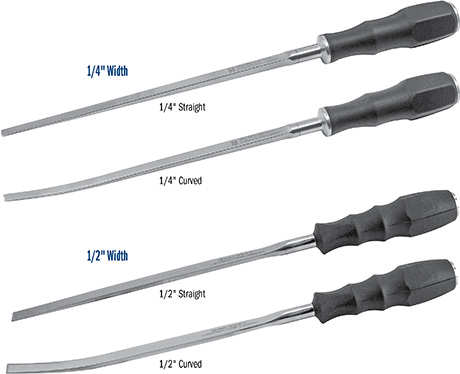

Modified Lambotte Osteotomes
|

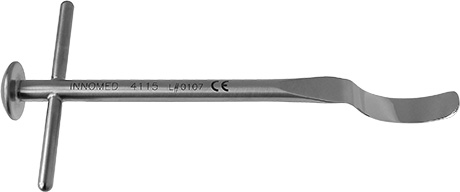

Mongold Capsule Knife
|

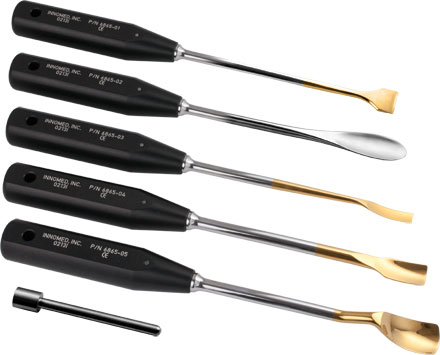

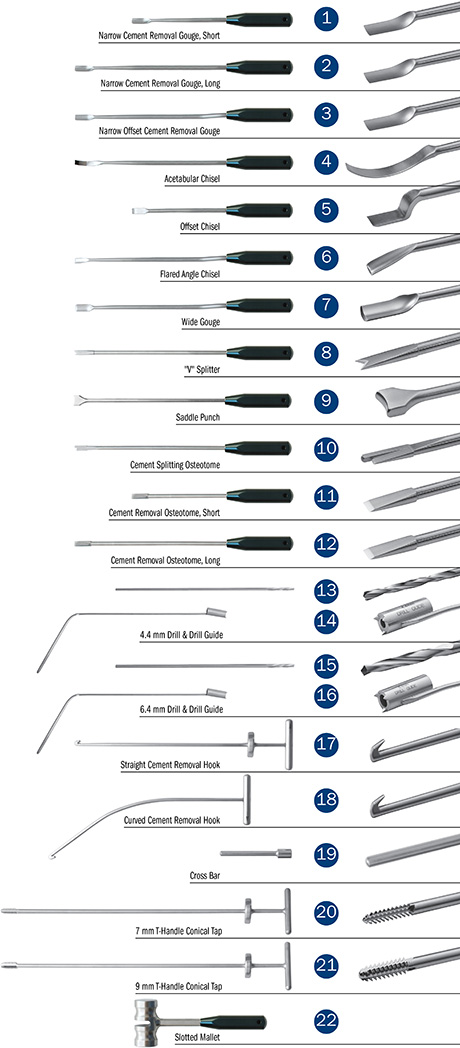

Mueller Style Hip Instruments
|
Mueller-Type Cement
Removal Instruments
|

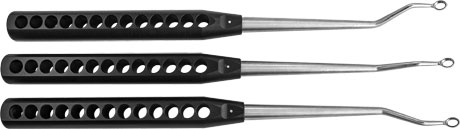

Powers Double Bent Curette Set
|
|
|
|
|
|
|
Ring Curettes
|
Robb Cement Curette
|
Sarraf Cement Trimmer
|
Sarraf Spearhead Cement Exciser
|

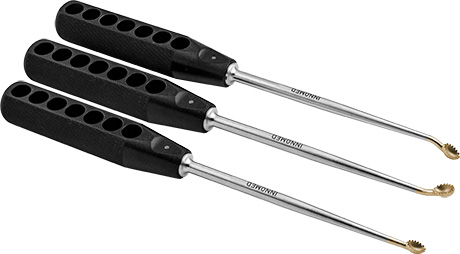

Sarraf Toothed Curettes
|
|
|
|
|
|
|
Wagner Osteotome Handle
|
NEW! Wells Modified Lambotte PAO Osteotomes
|
Whelan Flexible Chisel Guide
|
Whelan Curved Chisel Guide
|
|
|
|
Bozeman Cement Trimmer
Combines the two most common cement trimming tools combined into one |
|
|
|
Designed by Daniel M. Gannon, MD |
|
|
|
The tool has a blunt blade tip on one end to help with separation of the trimmed cement. The angled curette end helps gather the trimmed cement. The thin shank and angled curette can reach into tight spaces such as the back of the implants to remove excess cement. The ends are titanium nitrite coated to help eliminate metal transfer.
Product No: 5245
Overall Length: 8.5" (21,6 cm)
|
|
|
Chandran Bent Serrated Curette
Serrated design allows for easier removal of cancellous bone in the proximal femur in total joint arthroplasty
|
|
|
|
Designed by Rama E. Chandran, MD |
|
|
|
Product No: 5171
Overall Length: 11.75" (29,8 cm)
Handle Length: 5.5" (14 cm)
Cup Size: 7 mm X 12 mm
|
|
|

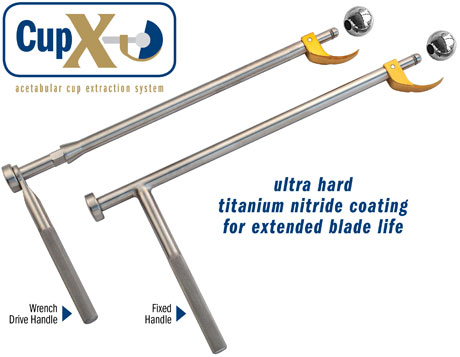

CupX — Acetabular Cup Extraction System
Helps to quickly and precisely remove an acetabular cup
with minimal loss of bone |
|
|
|
System designed by
James Kudrna, MD &
Stephen Incavo, MD
Wrench Drive Handle designed by
Guido Grappiolo, MD
Large Delrin Heads designed by
Adolph Lombardi, MD |
|
|
Product No's:

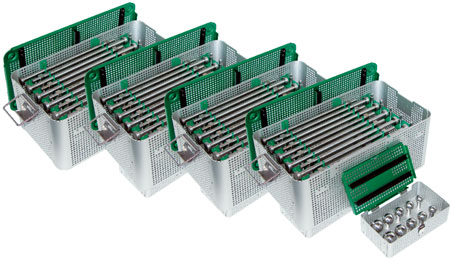

Complete Instrument Set
5200 [Complete Set — Fixed Handle]
5208 [Complete Set — Wrench Drive Handle]
20 Starter and 20 Finish Instruments, 3 each of 5 Head sizes (22-36 mm), and 5 cases
Includes complete set of 5200-T CupX Blade Contour Checking Templates, plus Ring
Custom and Ranged Instrument Sets
5200-01 [Choice of Sizes — Fixed Handle]
5208-01 [Choice of Sizes — Wrench Drive Handle]
5 Starter and 5 Finish Instruments (choice of sizes) w/case,
2 each of 5 Head sizes (22 mm–36 mm) w/case
Includes CupX Blade Contour Checking Templates for corresponding Blade Sizes Chosen, plus Ring
5200-02 [42 mm–50 mm — Fixed Handle]
5208-02 [42 mm–50 mm — Wrench Drive Handle]
5 Starter and 5 Finish Instruments (42 mm–50 mm) w/case,
2 each of 5 Head sizes (22 mm–36 mm) w/case
Includes CupX Blade Contour Checking Templates for 42 mm – 50 mm Blades, plus Ring
5200-03 [52 mm–60 mm — Fixed Handle]
5208-03 [52 mm–60 mm — Wrench Drive Handle]
5 Starter and 5 Finish Instruments (52 mm–60 mm) w/case,
2 each of 5 Head sizes (22 mm–36 mm) w/case
Includes CupX Blade Contour Checking Templates for 52 mm – 60 mm Blades, plus Ring
5200-04 [62 mm–70 mm — Fixed Handle]
5208-04 [62 mm–70 mm — Wrench Drive Handle]
5 Starter and 5 Finish Instruments (62 mm–70 mm) w/case,
2 each of 5 Head sizes (22 mm–36 mm) w/case
Includes CupX Blade Contour Checking Templates for 62 mm – 70 mm Blades, plus Ring
5200-05 [72 mm–80 mm — Fixed Handle]
5208-05 [72 mm–80 mm — Wrench Drive Handle]
5 Starter and 5 Finish Instruments (72 mm–80 mm) w/case,
2 each of 5 Head sizes (22 mm–36 mm) w/case
Includes CupX Blade Contour Checking Templates for 72 mm – 80 mm Blades, plus Ring
Individual FIXED HANDLE
Cup Removal Instruments
STARTER BLADE
5200-42 [42 mm]
5200-44 [44 mm]
5200-46 [46 mm]
5200-48 [48 mm]
5200-50 [50 mm]
5200-52 [52 mm]
5200-54 [54 mm]
5200-56 [56 mm]
5200-58 [58 mm]
5200-60 [60 mm]
5200-62 [62 mm]
5200-64 [64 mm]
5200-66 [66 mm]
5200-68 [68 mm]
5200-70 [70 mm]
5200-72 [72 mm]
5200-74 [74 mm]
5200-76 [76 mm]
5200-78 [78 mm]
5200-80 [80 mm]
|
FINISH BLADE
5201-42 [42 mm]
5201-44 [44 mm]
5201-46 [46 mm]
5201-48 [48 mm]
5201-50 [50 mm]
5201-52 [52 mm]
5201-54 [54 mm]
5201-56 [56 mm]
5201-58 [58 mm]
5201-60 [60 mm]
5201-62 [62 mm]
5201-64 [64 mm]
5201-66 [66 mm]
5201-68 [68 mm]
5201-70 [70 mm]
5201-72 [72 mm]
5201-74 [74 mm]
5201-76 [76 mm]
5201-78 [78 mm]
5201-80 [80 mm]
|
Steel Interchangeable Heads
5202-22 [22 mm]
5202-26 [26 mm]
5202-28 [28 mm]
5202-32 [32 mm]
5202-36 [36 mm]
Optional:
5202-38 [38 mm]
Storage Case for Starter and Finish Blades and 5 Steel Heads
9015
Storage Case for 10 Steel Heads
9016
|
Individual WRENCH DRIVE HANDLE
Cup Removal Instruments
STARTER BLADE
5208-42 [42 mm]
5208-44 [44 mm]
5208-46 [46 mm]
5208-48 [48 mm]
5208-50 [50 mm]
5208-52 [52 mm]
5208-54 [54 mm]
5208-56 [56 mm]
5208-58 [58 mm]
5208-60 [60 mm]
5208-62 [62 mm]
5208-64 [64 mm]
5208-66 [66 mm]
5208-68 [68 mm]
5208-70 [70 mm]
5208-72 [72 mm]
5208-74 [74 mm]
5208-76 [76 mm]
5208-78 [78 mm]
5208-80 [80 mm]
|
FINISH BLADE
5209-42 [42 mm]
5209-44 [44 mm]
5209-46 [46 mm]
5209-48 [48 mm]
5209-50 [50 mm]
5209-52 [52 mm]
5209-54 [54 mm]
5209-56 [56 mm]
5209-58 [58 mm]
5209-60 [60 mm]
5209-62 [62 mm]
5209-64 [64 mm]
5209-66 [66 mm]
5209-68 [68 mm]
5209-70 [70 mm]
5209-72 [72 mm]
5209-74 [74 mm]
5209-76 [76 mm]
5209-78 [78 mm]
5209-80 [80 mm]
|
Optional:
Large Delrin Interchangeable Heads
US Patent #7,998,146 B2
5202-00 [Complete Set with Case]
5202-39 [39 mm]
5202-40 [40 mm]
5202-41 [41 mm]
5202-42 [42 mm]
5202-43 [43 mm]
5202-44 [44 mm]
5202-45 [45 mm]
5202-46 [46 mm]
5202-47 [47 mm]
5202-48 [48 mm]
5202-49 [49 mm]
5202-50 [50 mm]
5202-51 [51 mm]
5202-52 [52 mm]
5202-53 [53 mm]
5202-54 [54 mm]
5202-55 [55 mm]
5202-56 [56 mm]
5202-57 [57 mm]
5202-58 [58 mm]
5202-59 [59 mm]
5202-60 [60 mm]
9014 [Case Only] |
Any component may be purchased individually. |
CupX Customer Blade Discount Program
Click the link below to download (in PDF format) an explanation of our
Blade Discount Program for the CupX System.
CupX Customer Blade Discount Form
Click the link below to download (in PDF format) our Blade Exchange Form for the CupX System.
|
|
All blades now come standard with an ultra hard titanium nitride coating which offers these benefits:
Extends Blade Life…
by increasing surface hardness
Prolongs Sharpness…
with an ultra hard, heat resistant coating
More Wear Resistant…
due to high lubricity of titanium nitride coating
Prevents Galling…
won’t chip, peel, or flake
Reduces Friction…
eliminates seizing in metal-on-metal contact
Chemical and Corrosion Resistant
Non-toxic…
medically approved and proven
Extended blade life leads to
long term savings!
The CupX Complete Instrument Set consists of 20 (twenty) pairs of extractors with fixed, sharp curved blades — one short starter blade and one long finishing blade — in diameters ranging from 42 to 80 mm in 2mm increments, plus 15 interchangeable spherical steel heads (3 each of five sizes) with diameters of 22, 26, 28, 32 and 36 mm.
System Options Include:
Choice of Handle Styles: Fixed or Wrench Drive
Wrench Drive handles work like a socket wrench, allowing improved torque without changing positions.
Large 38 mm Steel Head Size
A larger, non-standard size.
Large Delrin Interchangeable Heads*
Designed to provide tight, secure surface contact when removing larger size acetabular cups, and can also be used if the cup liner of a standard size cup is worn and must be removed. Available in diameters from 39 to 60 mm in 1 mm increments.
*
Patent #7,998,146 B2
Other System Features & Information:
Fully Customizable Sets
Rent or purchase — configure with as few or as many options required. See below for rental details.
Non-modular Blade System
Helps to decrease costs while increasing surgical efficiency as blades don’t need to be changed interoperatively.
Starter Blades
The shorter, stiffer Starter Blades are used around the top rim of the cup for more dense bone.
Finish Blades
The longer, thinner Finish Blades are used for deeper cutting around the dome of the cup.
In-line Shaft Alignment
The shaft is aligned directly over the head, which helps prevent the head from riding out of the cup while keeping the instrument properly centered. With proper centering, the curvature of the blades will more closely match the hemispherically-shaped outer surface of the acetabular cup when rotating, thus minimizing bone loss and creating a relatively intact acetabular recess for fitting of a new cup.
Head Diameters from 22 mm-60 mm
A properly sized head is installed onto the end of the shaft, and is then seated into the acetabular cup liner. The handle may then be pivoted and/or rotated to make an orbital cut around the acetabular cup. Note: If the cup liner is damaged or offset, proper centering of the shaft may not be possible. Remove the liner and install a temporary insert, or utilize one of our larger Delrin Heads if available.
Blade Diameters from 42 mm–80 mm
The curvature of the blades closely matches the outer surface of the acetabular cup, and will remain a fixed distance from the center of the acetabulum when rotating, thus creating a relatively intact acetabular recess for fitting of a new cup.
Shaft-End Handle Placement
Handle placement near the end of the shaft allows for better leverage and easier rotation.
Shaft-End Impaction Platform
A mallet may be used to strike the impaction platform on the end of the shaft to drive in the blade.
System Rental Information:
Available on a single procedure basis
Details – several rental configurations available:
• 4 cases with all sizes, including 2 sets of heads
• 3 cases, including 2 sets of heads
• 2 cases, including 2 sets of heads
• 1 case, including 2 sets of heads
• 1 size (starter & finish), including 2 sets of heads
Each case includes 5 Starter and 5 Finish Instruments
Charges
In addition to a rental fee, there is a charge for each instrument used (not including heads). Also, an additional charge applies if the used instruments are kept instead of returned. Rental is for one surgical procedure only, and must be returned within 5 days following the procedure.
|
|
|

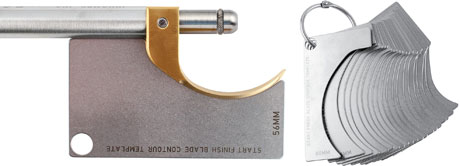

CupX Blade Contour Checking Templates
Designed for checking the contour of a CupX blade after use to evaluate arc accuracy |
|
|
|
|
|
|
|
Individual Contour Template
Product No’s:
5200-T [Complete Set]
Also available Individually:
5200-42G [42 mm]
5200-44G [44 mm]
5200-46G [46 mm]
5200-48G [48 mm]
5200-50G [50 mm]
5200-52G [52 mm]
5200-54G [54 mm]
5200-56G [56 mm]
5200-58G [58 mm]
5200-60G [60 mm]
5200-62G [62 mm]
5200-64G [64 mm]
5200-66G [66 mm]
5200-68G [68 mm]
5200-70G [70 mm]
5200-72G [72 mm]
5200-74G [74 mm]
5200-76G [76 mm]
5200-78G [78 mm]
5200-80G [80 mm]
5200-GR [Ring ]
|
|
|

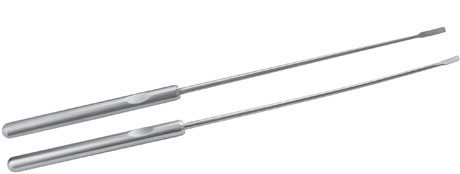

Byrd Arthroscopic Hip Elevators
Designed for use in various arthroscopic hip procedures |
|
|
|
Designed by J. W. Thomas Byrd, MD |
|
|
|
The versatile elevators allow freeing up of soft tissue around bone, can assist in removing the fibrous layer off of a cam lesion, and can be used to help elevate the capsule. They are also useful for mobilizing the labrum in preparation for repair or acetabular rim trimming.
Product No’s:
2045 [Extra Long Elevator – Square Tip]
Overall Length: 13.625" (34,6 cm)
Pad Dimensions: 4.8mm x 19mm
2046 [Extra Long Elev. – Angled Joseph Str. Edge]
Overall Length: 13.625" (34,6 cm)
Pad Dimensions: 4.4mm x 12mm
|
|
|
Direct Anterior Angled Curette
Angled design to better access the medullary canal during anterior total hip surgery |
|
|
|
|
|
|
|
Product No: C1031
Overall Length: 12.5" (31,8 cm)
Handle Length: 6" (15,2 cm)
Shaft Bend Angle: 30°
Curette Cup Dimensions: 8 x 14 mm
|
|
|
Flexible Osteotome System
Provides various osteotome blades for both hip and knee surgery |
|
|
|
|
|
|
|
Sharp, flexible blades are well suited for loosening implants from cement or bony ingrowth fixation.
Various blade widths and profiles allow great flexibility to follow the implant contours.
Modular handle is made of high impact surgical stainless steel and has a quick-coupling positive locking mechanism for ease of use and quick blade changes.
Slap hammer threads into the handle and is designed to facilitate blade removal.
System includes choice of handle style.
Product No’s:
S0011-00 [Set with Quick-Coupling Handle and Case]
S0012-00 [Set with Locking Nut Handle and Case]
Individual Instruments Included in Sets:
S1002 Thin Osteotome Blade
2.5" (6,3 cm) x 8 mm
S1003 Thin Osteotome Blade
2.5" (6,3 cm) x 10 mm
S1004 Thin Osteotome Blade
2.5" (6,3 cm) x 12 mm
S1005 Thin Osteotome Blade
2.5" (6,3 cm) x 20 mm
S1006 Curved Thin Osteotome Blade
2.5" (6,3 cm) x 12 mm
S1007 Curved Thin Osteotome Blade
5" (12,7 cm) x 20 mm
S1008 Thin Osteotome Blade
5" (12,7 cm) x 10 mm
S1009 Thin Osteotome Blade
5" (12,7 cm) x 8 mm
S1020 Handle with Quick-Coupling End
5" (12,7 cm)
– OR –
S1021 Handle with Locking Nut
6" (15,2 cm)
S1133 Radial Osteotome
5" (12,7 cm) x 10 mm
S1120 Radial Osteotome
5" (12,7 cm) x 12 mm
S1134 Radial Osteotome
5" (12,7 cm) x 14 mm
S1121 Radial Osteotome
5" (12,7 cm) x 16 mm
S1122 Radial Osteotome
5" (12,7 cm) x 20 mm
S2007 Small Slap Hammer
12" (30,5 cm)
9018 Case
|
|
|
Optional Blades for Flexible Osteotome System
|
|
|
|
Optional Strike Plate can be attached to the Handle for direct striking with a mallet.
Optional Curved Chisel Blades are designed to help loosen the cement/prosthesis interval in TKA tibial tray and femoral component revisions. The curved design is useful in working around pegs & fins to get posterior cement access. Also helpful with removal of other implants, i.e shoulder, ankle, etc.
OPTIONAL BLADES:
NOT INCLUDED IN SET
S1020-SP Strike Plate for Handle
Diameter 1.625" (4,1 cm)
S1123 7.5" Extra Long Osteotome Blade
7.5" (19,1 cm) x 8 mm
S1135 Radial Osteotome Medial Curve
6.75" (17,1 cm) x 11 mm
S1136 Radial Osteotome Lateral Curve
6.75" (17,1 cm) x 11 mm
S1137 Radial Osteotome Medial Curve
5" (12,7 cm) x 11 mm
S1138 Radial Osteotome Lateral Curve
5" (12,7 cm) x 11 mm
S1233-L 2" Flexible Left Curved Chisel
2" (5,1 cm) x 8 mm
S1233-R 2" Flexible Right Curved Chisel
2" (5,1 cm) x 8 mm
S1222 2.5" Chisel Blade
2.5" (6,4 cm) x 8 mm
S1223 2.5" Chisel Blade
2.5" (6,4 cm) x 10 mm
S1224 2.5" Chisel Blade
2.5" (6,4 cm) x 12 mm
S1225 2.5" Chisel Blade
2.5" (6,4 cm) x 20 mm
S1229 5" Chisel Blade
5" (12,7 cm) x 8 mm
S1228 5" Chisel Blade
5" (12,7 cm) x 10 mm
S1231 5" Chisel Blade
5" (12,7 cm) x 12 mm
S1230 5" Chisel Blade
5" (12,7 cm) x 20 mm
S1227 5.5" Long Chisel Blade
5.5" (12,7 cm) x 8 mm
S1232 7.5" Extra Long Chisel Blade
7.5" (19,1 cm) x 8 mm
S1234 8.5" Extra Long Chisel Blade
8.5" (21,6 cm) x 8 mm
S1235 9.5" Extra Long Chisel Blade
9.5" (24,1 cm) x 8 mm
S1236 10.5" Extra Long Chisel Blade
10.5" (26,7 cm) x 8 mm
S1237 11.5" Extra Long Chisel Blade
11.5" (29,2 cm) x 8 mm
S1238 12.5" Extra Long Chisel Blade
12.5" (31,8 cm) x 8 mm
|
|
|
Kudrna Cup Channel Chisel
Designed to help break the bone-prosthetic interface of well-fixed non-cemented acetabular components being revised
|
|
|
|
Designed by James C. Kudrna, MD |
|
|
|
Ultra hard titanium nitride coating helps to extend chisel life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion.
Product No: 3686
Overall Length: 12" (30,5 cm)
Handle Length: 3.5" (8,9 cm)
Blade Width: 30 mm
Blade Depth: 15 mm
|
|
|
Lambotte Osetotomes with Handle
Designed with a handle for better control, which helps reduce rotation of the osteotome during use
|
|
|
|
Designed by John Cherf, MD
|
|
|
 |
The handle also provides a larger striking area for use with a mallet. The osteotome shafts are manufactured with stainless steel and are available both straight and curved in 1/4" blade width.
Product No's:
5250-01 [1/4" Straight]
Overall Length: 14" (35,6 cm)
Handle Length: 4.5" (11,4 cm)
Blade Width: .25" (6,3 mm)
5260-01 [1/4" Curved]
Overall Length: 14" (35,6 cm)
Handle Length: 4.5" (11,4 cm)
Blade Width: .25" (6,3 mm)
|
|
|
Large Bone Curettes
|
|
|
|
|
|
|
Designed with a 5/16" diameter shaft allowing better visualization into the medullar canal during use. The contoured handle is designed to keep the curette from slipping in the surgeon's hand and for better control. Shaft length 10-1/2".
The Angled Large Curette is designed for use in the acetabulum or exposed bone. The shaft diameter is 5/16" and has a contoured handle. Shaft length 10-1/2". |
|
Product No's:
5160 [Set of 1 each including Case]
Also available individually:
5160-01 [Angled Small]
Curette End: 10 mm X 18 mm
Overall Length: 15" (38,1 cm)
Handle Length: 4.5" (11,4 cm)
5160-02 [Straight Small]
Curette End: 10 mm X 18 mm
Overall Length: 15" (38,1 cm)
Handle Length: 4.5" (11,4 cm)
5160-03 [Angled Medium]
Curette End: 10 mm X 24 mm
Overall Length: 15" (38,1 cm)
Handle Length: 4.5" (11,4 cm)
5160-04 [Angled Large]
Curette End: 24 mm X 24 mm
Overall Length: 15" (38,1 cm)
Handle Length: 4.5" (11,4 cm)
5160-05 [Straight Medium]
Curette End: 10 mm X 24 mm
Overall Length: 15" (38,1 cm)
Handle Length: 4.5" (11,4 cm)
9007 [Storage Case Only]
|
|
|
Modified Lambotte Osteotomes
Designed with a striking platform, plus a cross-bar hole to help control rotational stability and assist with removal |
|
|
|
|
|
|
|
Six (6) sizes available — from 1/4” to 1-1/2” in 1/4” increments.
Cross-bar and case included in complete set.
The two smallest sizes have an 1/8" hole in which an 1/8" pin (not included) can be used as a cross bar.
Product No's:
5350-00 [Complete Set w/Case]
Also available individually:
5350-25 [1/4”]
Overall Length: 9” (22,9 cm)
Osteotome Width: .25” (6.4 mm)
5350-50 [1/2”]
Overall Length: 9” (22,9 cm)
Osteotome Width: .5” (12.7 mm)
5350-75 [3/4"]
Overall Length: 9" (22,9 cm)
Osteotome Width: .75" (19 mm)
5350-100 [1”]
Overall Length: 9” (22,9 cm)
Osteotome Width: 1” (25.4 mm)
5350-125 [1-1/4”]
Overall Length: 9” (22,9 cm)
Osteotome Width: 1.25” (31.8 mm)
5350-150 [1-1/2”]
Overall Length: 9” (22,9 cm)
Osteotome Width: 1.5” (38.1 mm)
5350-CASE [Case]
Dimensions: 12.25" x 11.25" x 1"
(31,1 x 28,6 x 2,5 cm)
5350-CB [Cross Bar]
Overall Length: 4.375" (11,1 cm)
|
|
|
Mongold Capsule Knife
|
|
|
|
Designed by Evie Mongold, MD
|
|
|
|
Product No: 4115
Overall Length: 7.75" (19.7 cm)
Blade Diameter: 2" (50.8 mm)
Blade Width: .5" (12 mm)
|
|
|
Mueller Style Hip Instruments
|
|
|
|
|
|
|
|
Cross bar can be used to help control rotational stability, and can assist with removal.
Product No's:
6865-01 [Flat Blade Osteotome]
Overall Length: 11.125" (28,3 cm)
Osteotome Width: 20 mm
6865-02 [Femoral Head Dislocation Lever]
Overall Length: 11.375” (23,8 cm)
Scoop Dimensions: 25 mm x 57 mm
6865-03 [Narrow Curved Osteotome]
Overall Length: 12” (30,5 cm)
Osteotome Width: 9 mm
6865-04 [Wide Curved Osteotome]
Overall Length: 12” (30,5 cm)
Osteotome Width: 16 mm
6865-05 [Swan Neck Curved Gouge]
Overall Length: 12” (30,5 cm)
Gouge Width: 23 mm
5350-CB [Cross Bar]
|
|
|
Mueller-Type Cement Removal Instruments
Used for cement removal in the knee, hip, and shoulder
|
|
|
|
|
|
|
|
Product No's
S7500-00 [Complete Set with Case] Non-CE Countries
S7500-01 [Complete Set with Case] CE Countries
(Top to Bottom):
1) Narrow Cement Removal Gouge, Short
Product No: S7505
Shaft Length: 15 cm
Gouge: 9 mm, negative
2) Narrow Cement Removal Gouge, Long
Product No: S7507
Shaft Length: 24 cm
Gouge: 9 mm, negative
3) Narrow Offset Cement Removal Gouge
Product No: S7510
Shaft Length: 24 cm
Gouge: 9 mm, negative
4) Acetabular Chisel
Product No: S7515
Shaft Length: 24 cm
Chisel: 7.5 mm
5) Offset Chisel
Product No: S7520
Shaft Length: 15 cm
Chisel: 9 mm
6) Flared Angle Gouge
Product No: S7525
Shaft Length: 24 cm
Gouge: 9 mm, positive, angle 15° downward
7) Wide Gouge
Product No: S7530
Shaft Length: 24 cm
Gouge: 11.5 mm, negative
8) “V” Splitter
Product No: S7535
V-Shaped Chisel: 7 mm
9) Saddle Punch
Product No: S7587
Shaft Length: 24 cm
Punch: 16.5 mm x 6.5 mm
10) Cement Splitting Osteotome
Product No: S7590
Shaft Length: 24 cm
11) Cement Removal Osteotome, Short
Product No: S7595
Shaft Length: 15 mm
Osteotome: 8 mm
12) Cement Removal Osteotome, Long
Product No: S7597
Shaft Length: 24 cm
Osteotome: 8 mm
13) 4.4mm Drill
Product No: S7540
14) 4.4mm Drill Guide
Product No: S7545
15) 6.4mm Drill
Product No: S7550
16) 6.4mm Drill Guide
Product No: S7555
17) Straight Cement Removal Hook
Product No: S7560
Hook Curette: 10 mm
18) Curved Cement Removal Hook
Product No: S7565
Hook Curette: 10 mm
19) Cross Bar
Product No: S7570
20) 7mm T-Handle Conical Tap
Product No: S7575
21) 9mm T-Handle Conical Tap
Product No: S7580
22) Slotted Mallet
Product No: S7585
9075 [Case]
Optional Instruments:
8247-00 [T-Handle Chuck & Key]
8247-01 [T-Handle Chuck Only]
8247-02 [Chuck Key Only]
|
|
|
Powers Double Bent Curette Set
The bayonet curettes help allow for proper lateralization and seating of the broach |
|
|
|
Designed by Mark Powers, MD |
|
|
|
Product No's:
5190-00 [Set of Three]
Also Available Individually:
5190-L [Angled Left]
Overall Length: 16.875" (42,9 cm)
Handle Length: 9" (22,9 cm)
Shaft Length Before Bend: 5.25" (13,3 cm)
Bend Offset: .5" (1,3 cm)
Curette Cup Angle: 33°
Curette Cup Inner Dimensions: 6 X 8,7 mm
5190-R [Angled Right]
Overall Length: 16.875" (42,9 cm)
Handle Length: 9" (22,9 cm)
Shaft Length Before Bend: 5.25" (13,3 cm)
Bend Offset: .5" (1,3 cm)
Curette Cup Angle: 33°
Curette Cup Inner Dimensions: 6 X 8,7 mm
5190-S [Straight]
Overall Length: 17" (43,2 cm)
Handle Length: 9" (22,9 cm)
Shaft Length Before Bend: 5.25" (13,3 cm)
Bend Offset: .5" (1,3 cm)
Curette Cup Angle: 33°
Curette Cup Inner Dimensions: 6 X 8,7 mm
|
|
|
Ring Curettes
|
|
|
|
|
|
|
|
Product No's:
5150 [Straight, 3 mm]
Ring Diameter: 3 mm
Overall Length: 8.75" (22,2 cm)
5152 [Straight, 6 mm]
Ring Diameter: 6 mm
Overall Length: 8.75" (22,2 cm)
5154 [Straight, 8 mm]
Ring Diameter: 8 mm
Overall Length: 8.75" (22,2 cm)
5156 [Bent, 3 mm]
Ring Diameter: 3 mm
Overall Length: 8.5" (21,9 cm)
5157 [Bent, 6 mm]
Ring Diameter: 6 mm
Overall Length: 8.5" (21,9 cm)
5158 [Bent, 8 mm]
Ring Diameter: 8 mm
Overall Length: 8.5" (21,9 cm)
|
|
|
Robb Cement Curette
Designed to help remove cement around a hip or knee prosthesis
|
|
|
|
Designed by William Robb, MD
|
|
|
|
|
Made of Delrin
Product No: 5635
Overall Length: 8" (20,3 cm)
Freer End: 5 mm
Cup End: 10 mm
|
|
|
Sarraf Cement Trimmer
Two-in-one instrument designed for cement removal during arthroplasty surgery |
|
|
|
Designed by Khaled M. Sarraf, MD |
|
|
|
The curved semicircular tip is congruent to most tibial plates and femoral condylar implants, helping to facilitate removal of excess cement, especially at the tight posterior aspect
The small scoop-end tip assists in excising unset cement
Ultra hard titanium nitride coating helps to extend curette life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion, while helping to eliminate metal transfer and protect the implant surface
Product No: 5212
Overall Length: 7.75" (19,7cm)
|
|
|
Sarraf Spearhead Cement Exciser
Two-in-one instrument designed for cement removal during arthroplasty surgery |
|
|
|
Designed by Khaled M. Sarraf, MD |
|
|
|
The curved semicircular tip is congruent to most tibial plates and femoral condylar implants, helping to facilitate removal of excess cement, especially at the tight posterior aspect
The spearhead tip assists in excising and shaping the unset cement
Ultra hard titanium nitride coating helps to extend curette life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion, while helping to eliminate metal transfer and protect the implant surface
Product No: 5211
Overall Length: 7.75" (19,7cm)
|
|
|
Sarraf Toothed Curettes
Forward, straight, and reverse bent toothed curettes designed to aid in aid in all types of joint arthroplasty surgery, especially in scraping any articular chondral islands within the acetabulum during THA preparation |
|
|
|
Designed by Khaled Sarraf, MD |
|
|
|
Can also be used for the femoral canal in cemented and uncemented THA.
Valuable aid in revision arthroplasty (hip, knee, shoulder and ankle) for cement curettage.
Useful tool in hip and knee primary arthroplasty as well as shoulder, elbow and ankle arthroplasty procedures.
Ultra hard titanium nitride coating helps to extend life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion.
Product No's:
5174-00 [Set]
Also available individually:
5174-F [Forward Toothed Curette]
Overall Length: 11.5" (29,2 cm)
Handle Length: 5.5" (14 cm)
Curette Cup : 8 mm X 12 mm
Angled Down: 30°
5174-R [Reverse Toothed Curette]
Overall Length: 11.5" (29,2 cm)
Handle Length: 5.5" (14 cm)
Curette Cup : 8 mm X 12 mm
Angled Up: 30°
5174-S [Straight Toothed Curette]
Overall Length: 11.5" (29,2 cm)
Handle Length: 5.5" (14 cm)
Curette Cup : 8 mm X 12 mm
|
|
|
Wagner Osteotome Handle
Handle is designed for easier gripping, rotational control, and use with a mallet with a standard 1/4” Lambotte osteotome |
|
|
|
Designed by Russell Wagner, MD |
|
|
|
Product No's
5348 [Handle Only]
Overall Length: 5.5" (14 cm)
5348-01 [1/4" Osteotome Only]
Overall Length: 8.875" (22,5 cm)
|
|
|
Wells Modified Lambotte PAO Osteotomes
Designed to focus on the posterior column osteotomy and connection to the ischial cut — straight, curved and two offset options helps the posterior column osteotomy to be cut with more control |
|
|
|
Designed by Joel Wells, MD |
|
|
|
Silicone handle designed for better control.
Product No’s:
5276-00 [Set of 1 each with case]
Set Includes / Available Individually:
5276-01 [Straight PAO Osteotome]
Overall Length: 14" (35,6 cm)
Handle Length: 4.5" (11,4 cm)
Ostetome Width: 11,1 mm
5276-02 [Curved PAO Osteotome]
Overall Length: 13.875" (35,3 cm)
Handle Length: 4.5" (11,4 cm)
Ostetome Width: 12,7 mm
5276-03 [Offset PAO Osteotome]
Overall Length: 13.625" (34,6 cm)
Handle Length: 4.5" (11,4 cm)
Ostetome Width: 12,7 mm
5276-04 [Offset Curved PAO Osteotome]
Overall Length: 13.625" (34,6 cm)
Handle Length: 4.5" (11,4 cm)
Ostetome Width: 12,7 mm
9007 [Case]
|
|
|
Whelan Flexible Chisel Guide
Designed to help stabilize a thin chisel blade until it's within the bone prosthesis interface |
|
|
|
Designed by Edward J. Whelan, III, MD |
|
|
|
Guide with sliding handle helps to stabilize a curved, thin flexible chisel blade until it's within the bone prosthesis interface. Chisel tip lets it hug prosthesis to help prevent perforation. Slap hammer threads into the handle and is designed to facilitate blade removal. Easily changeable disposable blades help assure sharpness.
Chisel blade features an ultra hard titanium nitride coating to help extend life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion.
Product No's:
5302-00 [Complete Set[
Included In Set / Replacement Parts:
5302-01 [Guide Only]
Overall Length: 5" to 8.75" (12,7 to 22,2 cm)
5302-02 [10mm Chisel Blade Only]
Overall Length: 4.625" (11,7 cm)
Blade Thickness: .020" (.51 mm)
3040 [Slap Hammer]
1015 [Sterilization Case]
|
|
|
Whelan Curved Chisel Guide
Designed to help stabilize a thin curved chisel blade
until it's within the bone prosthesis interface |
|
|
|
Designed by Edward J. Whelan, III, MD |
|
|
|
Guide with sliding handle helps to stabilize a curved, thin flexible chisel blade until it's within the bone prosthesis interface. Chisel tip lets it hug prosthesis to help prevent perforation. Slap hammer threads into the handle and is designed to facilitate blade removal. Easily changeable disposable blades help assure sharpness.
Chisel blade features an ultra hard titanium nitride coating to help extend life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion.
Product No's:
5302-00 [Complete Set[
Included In Set / Replacement Parts:
5302-01 [Guide Only]
Overall Length: 5" to 8.75" (12,7 cm to 22,2 cm)
5302-02 [10mm Chisel Blade Only]
Overall Length: 4.625" (11,7cm)
Blade Thickness: .020" (.51mm)
3040 [Slap Hammer]
1015 [Sterilization Case]
|
|
|
© 2023 Innomed, Inc. All rights reserved.
|
