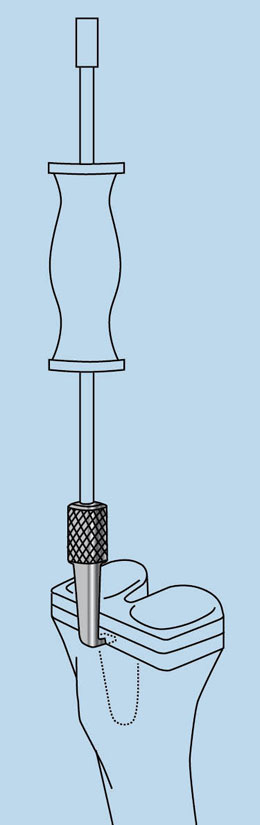

Gorski Hip Cup Extraction Hook
Heck Anterior Modular Hip Component Extractor
with Strikeplate
Intramedullary Nail Extractor
Lombardi Hip Cup Liner/Shell Extractor
Long Jaw Needle Nose Pliers
Nicholson Universal Humeral Prosthesis Extractor
Heck Anterior Modular Hip Component Extractor
with Strikeplate
Intramedullary Nail Extractor
Lombardi Hip Cup Liner/Shell Extractor
Long Jaw Needle Nose Pliers
Nicholson Universal Humeral Prosthesis Extractor
Offset Punches
OrthoVise

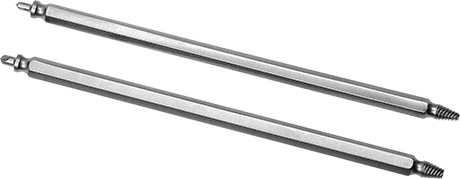

Screw Extractor Set
Screw Removal Pliers
Screw/Pin Removal
Locking Pliers
Offset Punches
OrthoVise
Screw Extractor Set
Screw Removal Pliers
Screw/Pin Removal
Locking Pliers
Sheffield Universal Prosthetic Elbow Extraction System
Star Bit Driver Set

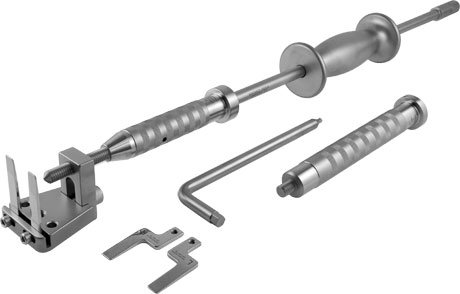

Tibial Component Extractor
Tibial Tray Removal Hooks
Universal Modular Femoral Hip Component Extractor
Sheffield Universal Prosthetic Elbow Extraction System
Star Bit Driver Set
Tibial Component Extractor
Tibial Tray Removal Hooks
Universal Modular Femoral Hip Component Extractor
Universal Screw Removal Instrument System
Whelan Hip Stem Extractor
Whelan Extractor Strike Plate Attachment

Universal Screw Removal Instrument System
Whelan Hip Stem Extractor
Whelan Extractor Strike Plate Attachment




Atlatl Super Slap Hammer

Designed for when extra powerful slap hammer force is needed




Atlatl Super Slap Hammer

Repositionable silicone grip handles are available for use with the long version of the Atlatl, and are removable for sterilization.

The Atlatl Super Slap Hammer is designed for use with a 3/8" diameter slap hammer rod, including the Innomed #3925 & #3935 slap hammers on the following extraction instruments:

Hip – Femoral Component
3610 Universal Modular Hip Component Extractor – Standard
3610-R Universal Modular Hip Component Extractor – Anterior
3611 Heck Anterior Modular Hip Component Extractor
4175-00 Whelan Hip Stem Extractor
S1202 Femoral Extraction Instrument – Loop
S1203 Femoral Extraction Instrument – J-Hook
S1203 Femoral Extraction Instrument – One-Piece
Hip – Acetabular Cup/Shell/Liner
3638 Lombardi Hip Cup Liner/Shell Extractor
3660 Gorski Hip Cup Extraction Hook – 6.5 mm
3665 Gorski Hip Cup Extraction Hook – 5.0 mm
Knee

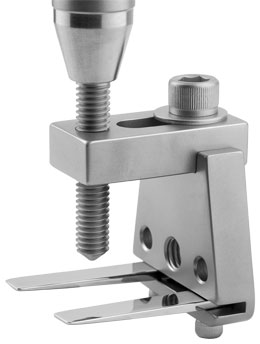

3630 Tibial Knee Component Extractor
3920 Femoral Knee Component Extractor
3650 4 mm Tibia Tray Removal Hook
3655 8 mm Tibia Tray Removal Hook
Shoulder
3670 Nicholson Universal Humeral Prosthesis Extractor
General
3966 Large Bent Jaw OrthoVise

Product No's:

3924-L-00 [Long with Silicone Handles]
Overall Length: 22" (55,8 cm)
Includes (2) 3924-RH Silicone Grip Handles.

Slap hammer rod not included.

3924-L [Long without Handles]
Overall Length: 22" (55,8 cm)
Slap hammer rod not included.

3924-S [Short]
Overall Length: 16" (40,7 cm)
Slap hammer rod not included.

3924-RH [Silicone Grip Handle Only]
Overall Length: 4" (10,2 cm)
(One handle only with this product number)

3925-A [16" Slap Hammer Rod Only]
(Rod only with this product number)
Download Product Brochure (PDF)

TOP




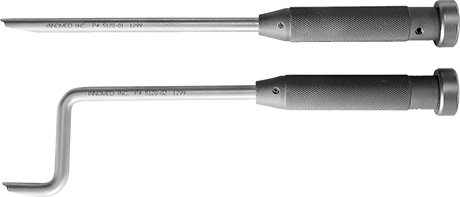

Boynton Punch

Drive a needle and cut a suture without changing instruments

Designed by L. Boynton, MD


Boynton Punch

Helpful in removing trial, femoral and revision total knee components. The flange end fits into the flange of a femoral knee component or trial.

Boynton Punch

Product No's:
5120-01 [Standard]
Overall Length: 11.75"
Shaft Diameter: 9.5mm
5120-02 [Offset]
Overall Length: 11.75"
Shaft Diameter: 9.5mm
Punch End Offset: 60mm
Download Product Brochure (PDF)

TOP





Craig-Type Pin Extractor Set

Designed to firmly tighten circumferentially around a wire, pin, broken screw, etc. for removal — especially helpful for the removal of threaded pins



Craig-Type Pin Extractor Set


Craig-Type Pin Extractor Set

Craig-Type Pin Extractor Set

  • Removes pins & screws up to 5mm (.2") diameter and wires as small as .8mm (1/32") diameter
  • Five interchangeable collets for various grasping capacities
  • Two cross-handle insert rods give strong leverage for locking the collet securely onto the pin
  • Slap hammer included
Product No: 1215-00
Set includes:
(1) handle draw bar,
(1) closing sleeve with hand wheel,
(5) collets (1mm to 5mm),
(2) cross-handle insert rods,
(1) slap hammer,
(1) sterilization case
Download Product Brochure (PDF)

TOP





CupX® — Acetabular Cup Extraction System

Helps to quickly and precisely remove an acetabular cup
with minimal loss of bone

System designed by
James Kudrna, MD &
Stephen Incavo, MD
Wrench Drive Handle designed by
Guido Grappiolo, MD
Large Delrin Heads designed by
Adolph Lombardi, MD


CupX — Acetabular Cup Extraction System



Product No's:

Complete Instrument Set

5200-00 [Complete Set — Fixed Handle]
5208-00 [Complete Set — Wrench Drive Handle]
20 Starter and 20 Finish Instruments, 3 each of 5 Head sizes (22-36mm), and 5 cases

CupX — Acetabular Cup Extraction System

Custom and Ranged Instrument Sets

5200-01 [Choice of Sizes — Fixed Handle]
5208-01 [Choice of Sizes — Wrench Drive Handle]
5 Starter and 5 Finish Instruments (choice of sizes) w/case,
2 each of 5 Head sizes (22mm–36mm) w/case


5200-02 [42mm–50mm — Fixed Handle]
5208-02 [42mm–50mm — Wrench Drive Handle]
5 Starter and 5 Finish Instruments (42mm–50mm) w/case,
2 each of 5 Head sizes (22mm–36mm) w/case


5200-03 [52mm–60mm — Fixed Handle]
5208-03 [52mm–60mm — Wrench Drive Handle]
5 Starter and 5 Finish Instruments (52mm–60mm) w/case,
2 each of 5 Head sizes (22mm–36mm) w/case


5200-04 [62mm–70mm — Fixed Handle]
5208-04 [62mm–70mm — Wrench Drive Handle]
5 Starter and 5 Finish Instruments (62mm–70mm) w/case,
2 each of 5 Head sizes (22mm–36mm) w/case


5200-05 [72mm–80mm — Fixed Handle]
5208-05 [72mm–80mm — Wrench Drive Handle]
5 Starter and 5 Finish Instruments (72mm–80mm) w/case,
2 each of 5 Head sizes (22mm–36mm) w/case

CupX — Acetabular Cup Extraction System


Individual Fixed Handle
Cup Removal Starter Instruments

New

5200-42 [42mm]
5200-44 [44mm]
5200-46 [46mm]
5200-48 [48mm]
5200-50 [50mm]
5200-52 [52mm]
5200-54 [54mm]
5200-56 [56mm]
5200-58 [58mm]
5200-60 [60mm]
5200-62 [62mm]
5200-64 [64mm]
5200-66 [66mm]
5200-68 [68mm]
5200-70 [70mm]
5200-72 [72mm]
5200-74 [74mm]
5200-76 [76mm]
5200-78 [78mm]
5200-80 [80mm]

Exchange

5205-42 [42mm]
5205-44 [44mm]
5205-46 [46mm]
5205-48 [48mm]
5205-50 [50mm]
5205-52 [52mm]
5205-54 [54mm]
5205-56 [56mm]
5205-58 [58mm]
5205-60 [60mm]
5205-62 [62mm]
5205-64 [64mm]
5205-66 [66mm]
5205-68 [68mm]
5205-70 [70mm]
5205-72 [72mm]
5205-74 [74mm]
5205-76 [76mm]
5205-78 [78mm]
5205-80 [80mm]


Individual Wrench Drive
Cup Removal Starter Instruments

New

5208-42 [42mm]
5208-44 [44mm]
5208-46 [46mm]
5208-48 [48mm]
5208-50 [50mm]
5208-52 [52mm]
5208-54 [54mm]
5208-56 [56mm]
5208-58 [58mm]
5208-60 [60mm]
5208-62 [62mm]
5208-64 [64mm]
5208-66 [66mm]
5208-68 [68mm]
5208-70 [70mm]
5208-72 [72mm]
5208-74 [74mm]
5208-76 [76mm]
5208-78 [78mm]
5208-80 [80mm]

Exchange

5205W-42 [42mm]
5205W-44 [44mm]
5205W-46 [46mm]
5205W-48 [48mm]
5205W-50 [50mm]
5205W-52 [52mm]
5205W-54 [54mm]
5205W-56 [56mm]
5205W-58 [58mm]
5205W-60 [60mm]
5205W-62 [62mm]
5205W-64 [64mm]
5205W-66 [66mm]
520W5-68 [68mm]
5205W-70 [70mm]
5205W-72 [72mm]
5205W-74 [74mm]
5205W-76 [76mm]
5205W-78 [78mm]
520W5-80 [80mm]


Steel Interchangeable Heads

5202-22 [22mm]
5202-26 [26mm]
5202-28 [28mm]
5202-32 [32mm]
5202-36 [36mm]

Optional:

5202-38 [38mm]

Storage Case for Starter and Finish Blades and 5 Steel Heads

9015

Storage Case for 10 Steel Heads

9016

Individual Fixed Handle
Cup Removal Finish Instruments

New

5201-42 [42mm]
5201-44 [44mm]
5201-46 [46mm]
5201-48 [48mm]
5201-50 [50mm]
5201-52 [52mm]
5201-54 [54mm]
5201-56 [56mm]
5201-58 [58mm]
5201-60 [60mm]
5201-62 [62mm]
5201-64 [64mm]
5201-66 [66mm]
5201-68 [68mm]
5201-70 [70mm]
5201-72 [72mm]
5201-74 [74mm]
5201-76 [76mm]
5201-78 [78mm]
5201-80 [80mm]

Exchange

5206-42 [42mm]
5206-44 [44mm]
5206-46 [46mm]
5206-48 [48mm]
5206-50 [50mm]
5206-52 [52mm]
5206-54 [54mm]
5206-56 [56mm]
5206-58 [58mm]
5206-60 [60mm]
5206-62 [62mm]
5206-64 [64mm]
5206-66 [66mm]
5206-68 [68mm]
5206-70 [70mm]
5206-72 [72mm]
5206-74 [74mm]
5206-76 [76mm]
5206-78 [78mm]
5206-80 [80mm]


Individual Wrench Drive
Cup Removal Finish Instruments

New

5209-42 [42mm]
5209-44 [44mm]
5209-46 [46mm]
5209-48 [48mm]
5209-50 [50mm]
5209-52 [52mm]
5209-54 [54mm]
5209-56 [56mm]
5209-58 [58mm]
5209-60 [60mm]
5209-62 [62mm]
5209-64 [64mm]
5209-66 [66mm]
5209-68 [68mm]
5209-70 [70mm]
5209-72 [72mm]
5209-74 [74mm]
5209-76 [76mm]
5209-78 [78mm]
5209-80 [80mm]

Exchange

5206W-42 [42mm]
5206W-44 [44mm]
5206W-46 [46mm]
5206W-48 [48mm]
5206W-50 [50mm]
5206W-52 [52mm]
5206W-54 [54mm]
5206W-56 [56mm]
5206W-58 [58mm]
5206W-60 [60mm]
5206W-62 [62mm]
5206W-64 [64mm]
5206W-66 [66mm]
5206W-68 [68mm]
5206W-70 [70mm]
5206W-72 [72mm]
5206W-74 [74mm]
5206W-76 [76mm]
5206W-78 [78mm]
5206W-80 [80mm]


Optional:
Large Delrin Interchangeable Heads

US Patent #7,998,146 B2
5202-00 [Complete Set with Case]
5202-39 [39mm]
5202-40 [40mm]
5202-41 [41mm]
5202-42 [42mm]
5202-43 [43mm]
5202-44 [44mm]
5202-45 [45mm]
5202-46 [46mm]
5202-47 [47mm]
5202-48 [48mm]
5202-49 [49mm]
5202-50 [50mm]
5202-51 [51mm]
5202-52 [52mm]
5202-53 [53mm]
5202-54 [54mm]
5202-55 [55mm]
5202-56 [56mm]
5202-57 [57mm]
5202-58 [58mm]
5202-59 [59mm]
5202-60 [60mm]
9014 [Case Only]
Any component may be purchased individually.


CupX — Acetabular Cup Extraction System

All blades now come standard with an ultra hard titanium nitride coating which offers these benefits:

Extends Blade Life…
by increasing surface hardness

Prolongs Sharpness…
with an ultra hard, heat resistant coating

More Wear Resistant…
due to high lubricity of titanium nitride coating

Prevents Galling…
won’t chip, peel, or flake

Reduces Friction…
eliminates seizing in metal-on-metal contact

Chemical and Corrosion Resistant

Non-toxic…
medically approved and proven

Extended blade life leads to
long term savings!



The CupX Complete Instrument Set consists of 20 (twenty) pairs of extractors with fixed, sharp curved blades — one short starter blade and one long finishing blade — in diameters ranging from 42 to 80mm in 2mm increments, plus 15 interchangeable spherical steel heads (3 each of five sizes) with diameters of 22, 26, 28, 32 and 36mm.


System Options Include:

Choice of Handle Styles: Fixed or Wrench Drive
Wrench Drive handles work like a socket wrench, allowing improved torque without changing positions.

CupX — Acetabular Cup Extraction System

Large 38mm Steel Head Size
A larger, non-standard size.

CupX — Acetabular Cup Extraction System

Large Delrin Interchangeable Heads*
Designed to provide tight, secure surface contact when removing larger size acetabular cups, and can also be used if the cup liner of a standard size cup is worn and must be removed. Available in diameters from 39 to 60mm in 1mm increments.
* Patent #7,998,146 B2


CupX — Acetabular Cup Extraction System


Other System Features & Information:

Fully Customizable Sets
Rent or purchase — configure with as few or as many options required. See below for rental details.

Non-modular Blade System
Helps to decrease costs while increasing surgical efficiency as blades don’t need to be changed interoperatively.

Starter Blades
The shorter, stiffer Starter Blades are used around the top rim of the cup for more dense bone.

Finish Blades
The longer, thinner Finish Blades are used for deeper cutting around the dome of the cup.

In-line Shaft Alignment
The shaft is aligned directly over the head, which helps prevent the head from riding out of the cup while keeping the instrument properly centered. With proper centering, the curvature of the blades will more closely match the hemispherically-shaped outer surface of the acetabular cup when rotating, thus minimizing bone loss and creating a relatively intact acetabular recess for fitting of a new cup.

Head Diameters from 22mm-60mm
A properly sized head is installed onto the end of the shaft, and is then seated into the acetabular cup liner. The handle may then be pivoted and/or rotated to make an orbital cut around the acetabular cup. Note: If the cup liner is damaged or offset, proper centering of the shaft may not be possible. Remove the liner and install a temporary insert, or utilize one of our larger Delrin Heads if available.

Blade Diameters from 42mm–80mm
The curvature of the blades closely matches the outer surface of the acetabular cup, and will remain a fixed distance from the center of the acetabulum when rotating, thus creating a relatively intact acetabular recess for fitting of a new cup.

Shaft-End Handle Placement
Handle placement near the end of the shaft allows for better leverage and easier rotation.

Shaft-End Impaction Platform
A mallet may be used to strike the impaction platform on the end of the shaft to drive in the blade.

System Rental Information:
Available on a single procedure basis

Details – several rental configurations available:
• 4 cases with all sizes, including 2 sets of heads
• 3 cases, including 2 sets of heads
• 2 cases, including 2 sets of heads
• 1 case, including 2 sets of heads
• 1 size (starter & finish), including 2 sets of heads
Each case includes 5 Starter and 5 Finish Instruments


Charges
In addition to a rental fee, there is a charge for each instrument used (not including heads). Also, an additional charge applies if the used instruments are kept instead of returned. Rental is for one surgical procedure only, and must be returned within 5 days following the procedure.

TOP





CupX Blade Contour Checking Templates

Designed for checking the contour of a CupX blade after use to evaluate arc accuracy





CupX Blade Contour Checking Templates

Individual Contour Template
Product No’s:
5200-42G [42 mm]
5200-44G [44 mm]
5200-46G [46 mm]
5200-48G [48 mm]
5200-50G [50 mm]
5200-52G [52 mm]
5200-54G [54 mm]
5200-56G [56 mm]
5200-58G [58 mm]
5200-60G [60 mm]
5200-62G [62 mm]
5200-64G [64 mm]
5200-66G [66 mm]
5200-68G [68 mm]
5200-70G [70 mm]
5200-72G [72 mm]
5200-74G [74 mm]
5200-76G [76 mm]
5200-78G [78 mm
5200-80G [80 mm]
5200-GR [Ring ]
Download Product Brochure (PDF)

TOP





Easy Grip Slap Hammer

Textured silicone hammer designed to help cushion the surgeon’s hand and maintain a solid grip




Easy Grip Slap HammerEasy Grip Slap Hammer

The textured silicone hammer helps to reduce the shock forces on the surgeon's hand during extraction procedures, and helps the surgeon to maintain a solid grip and prevent the hand from slipping.

For use with a 3/8" diameter slap hammer rod, including the Innomed #3925 & #3935 slap hammers on the following extraction instruments:

Hip – Femoral Component
3610 Universal Modular Hip Component Extractor – Standard
3610-R Universal Modular Hip Component Extractor – Anterior
3611 Heck Anterior Modular Hip Component Extractor
4175-00 Whelan Hip Stem Extractor
S1202 Femoral Extraction Instrument – Loop
S1203 Femoral Extraction Instrument – J-Hook
S1203 Femoral Extraction Instrument – One-Piece
Hip – Acetabular Cup/Shell/Liner
3638 Lombardi Hip Cup Liner/Shell Extractor
3660 Gorski Hip Cup Extraction Hook – 6.5 mm
3665 Gorski Hip Cup Extraction Hook – 5.0 mm
Knee
3630 Tibial Knee Component Extractor
3920 Femoral Knee Component Extractor
3650 4 mm Tibia Tray Removal Hook
3655 8 mm Tibia Tray Removal Hook
Shoulder
3670 Nicholson Universal Humeral Prosthesis Extractor
General
3966 Large Bent Jaw OrthoVise

Product No's:

3926 [Easy Grip Slap Hammer with 16" Rod]

Individual/Replacement Parts:

3925-HS [Easy Grip Slap Hammer only]

3925-A [16" Rod only]
Download Product Brochure (PDF)

TOP





Femoral Component Extractor

Clamps onto a femoral knee component for extraction



Femoral Component Extractor

Femoral Component Extractor

A standard set of jaws is used for slotted and unslotted femoral components. Features a round tightening wheel which allows the surgeon to easily tighten the jaws without using a separate socket wrench. The tightening wheel can be easily removed for replacing the jaws. The copolymer prosthesis stabilizing block allows access to the block tightening wheel. Includes standard slap hammer #3935.

Product No:
3920 Includes Standard Slap Hammer #3925

Optional/Individual/Replacement Parts:
3920-SJ [Pair of Standard Jaws]
3925 [Standard Slap Hammer]
3935 [Extra Large Slap Hammer]
3925-HS [Easy Grip Slap Hammer (No Rod)]
Textured silicone hammer designed to help cushion the surgeon’s hand and maintain a solid grip.More Info Here

VIEW SURGICAL VIDEO

Download Product Brochure (PDF)

TOP





Femoral Extraction Instruments



Femoral Extraction Instruments
Product No’s:

S1202 [Loop Extractor]
Includes Standard Slap Hammer #3925

S1203 [J-Hook Femoral Stem Extractor]
Includes Standard Slap Hammer #3925

S1204 [One-Piece Stem Extractor]
Includes Standard Slap Hammer #3925

Optional/Replacement/Individual Items:

S1202-01 [Loop Extractor Only]
Overall Length: 6.5"

S1203-01 [J-Hook Femoral Stem Extractor Only]
Overall Length: 4.75"|

S1204-01 [One-Piece Stem Extractor Only]
Overall Length: 4.125"

3935 [Extra Large Slap Hammer]
Thread Gauge: 3/8"-16

3925-HS [Easy Grip Slap Hammer (No Rod)]
Textured silicone hammer designed to help cushion the surgeon’s hand and maintain a solid grip.More Info Here
Download Product Brochure (PDF)

TOP





Gorski Hip Cup Extraction Hook

Helps in the removal of a hip cup

Designed by Jerrold Gorski, MD


Gorski Hip Cup Extraction Hook


Gorski Hip Cup Extraction Hook

Designed to quickly fit into a screw hole of a hip cup after the screws have been removed and the cup loosened. The slap hammer helps to remove the cup in the angle it was inserted.

Gorski Hip Cup Extraction Hook

Product No’s:

Hook for 6.5mm Screw Holes

3660 [With Standard (#3925) Slap Hammer]
3660-01 [Without Slap Hammer]

Hook for 5.0mm Screw Holes

3665 [With Standard (#3925) Slap Hammer]
3665-01 [Without Slap Hammer]

Optional Items:
3935 [Extra Large Slap Hammer]
Thread Gauge: 3/8"-16
Download Product Brochure (PDF)

TOP





Heck Anterior Modular Hip Component Extractor
with Strikeplate

Strikeplate provides additional help to remove a femoral hip stem

Designed by David Heck, MD




Heck Anterior Modular Hip Component Extractor with Strikeplate

Includes standard slap hammer, #3925.

In this process of placing the extractor over the neck and tightening the locking screw, the upper flange surface of the strikeplate can be hit to help engagement. The inferior flange surface of the strikeplate can be hit in a vertical fashion when the femoral component is particularly well engaged. The extractor is equipped with a swivel block for attachment of a slap hammer. The swivel block helps keep the slap hammer in line with the angle of the femoral stem.

Heck Anterior Modular Hip Component Extractor with Strikeplate

Product No's:

3611 [Extractor w/Std. Slap Hammer #3925]

Optional/Individual Parts:


3611-01 [Extractor Only]

3925 [Standard Slap Hammer] 3/8"-16 Thread Gauge

3935 [Extra LargeSlap Hammer] 3/8"-16 Thread Gauge
Download Product Brochure (PDF)

TOP





Intramedullary Nail Extractor

Helps remove broken intramedullary nails from long bone

Designed by Gary L. Kerns, RT(R)


Intramedullary Nail ExtractorIntramedullary Nail Extractor

Designed to remove broken intramedullary nails fromlong bone. It will also remove IM nails with stripped threads, or threads that are difficult to access. It will remove both fluted or non-fluted nails as long as they are cannulated. Removal bits should be discarded after each use.Intramedullary Nail Extractor

Intramedullary Nail Extractor

Product No's:
8730 [Complete Set]
8730-01 [3/8" Diameter Removal Bit]
8730-02 [1/2" Diameter Removal Bit]
Intramedullary Nail Extractor
Download Instruction Sheet (PDF)
Download Product Brochure (PDF)

TOP





Lombardi Hip Cup Liner/Shell Extractor

Used for removal of a total hip cup or liner

Designed by Adolph V. Lombardi, MD


Lombardi Hip Cup Liner/Shell Extractor

Lombardi Hip Cup Liner/Shell Extractor

Lombardi Hip Cup Liner/Shell Extractor


Expandable flanges are designed to bite into the polyethylene of a total hip cup. When the flanges have been expanded, a slap hammer is screwed into the extractor for removal. The extractor can also be used for removal of a metal hip cup shell if the shell has a groove around the rim for the flanges to lock into. Also very helpful for cemented cup extraction. Set includes standard slap hammer #3925.


Product No's:

3638-00 [Set]

Individual/Replacement Parts:

3638-01 [Remover Only]
Overall Length: 9.5" (24,1 cm)

3925 [Standard Slap Hammer] 3/8"-16 Thread Gauge
Download Product Brochure (PDF)

TOP





Long Jaw Needle Nose Pliers




Long Jaw Needle Nose Pliers

Long Jaw Needle Nose Pliers

Product No: 1833
Overall Length: 7"
Jaw Length: 2.25"
Jaw Width Tapered from: 8mm to 1.5mm
Jaw Heigth Tapered from: 12mm to 2.5mm
Download Product Brochure (PDF)

TOP





Nicholson Universal Humeral Prosthesis Extractor

Designed to fit most humeral prostheses

Designed by Gregory Nicholson, MD


Nicholson Universal Humeral Prosthesis Extractor

Nicholson Universal Humeral Prosthesis Extractor

Nicholson Universal Humeral Prosthesis Extractor

Includes a slaphammer, two non-sterile 2.5mm cables, and a sterilization case.

Nicholson Universal Humeral Prosthesis Extractor

Product No’s:
3670 [Extractor Set with Case]
Individual/Replacement Parts:
3670-01 [Extractor Set without Case]
3670-10 [Foot Adapter]
3670-CABLE [2.5mm Cable] Package of 2
9006 [Case Only]
3925-A12 [Standard Slaphammer with 12" Rod]
3925-H [Slaphammer Only (No Rod)]
Download Product Brochure (PDF)

TOP





Offset Punches for Total Hip Stem Removal

Helps in the removal of a total hip stem, and can also be used to help in the removal of intramedullary nails



Offset Punches for Total Hip Stem Removal

Offset Punches for Total Hip Stem Removal

Used to help remove a hip prosthesis stem via a window in the shaft of the femur. Two sizes of offsets allow the punches to be used to tap on a distal portion of the hip stem, after a window has been made in the femur below the tip of the stem.

Also helps to remove intramedullary nails via a window in the shaft of a bone. Punches are used to tap on a distal portion of an intramedullary nail, after a window has been made in the bone below the tip of the nail.

Product No's:
5125-01 [0.5" offset]
Overall Length: 11"
Punch End Offset: 32mm
Punch End Diameter: 7mm


5125-02 [1.25" offset]
Overall Length: 11"
Punch End Offset: 13mm
Punch End Diameter: 7mm
Download Product Brochure (PDF)

TOP





OrthoVise



OrthoVise

Made of stainless steel and designed with the option of using a slap hammer for greater adaptability.
  On large models equipped with attachment bolts, a slap hammer can be attached to the end of the OrthoVise™, as well as to either side of the large OrthoVise™ (except the bent jaw model).
  A different size slap hammer is used for the large and small sizes of OrthoVise™, and all slap hammers are designed with a hammer plate if the additional use of a mallet is desired.

OrthoVise

Bent Jaw OrthoVise
Long Nose Bent Jaw


OrthoVise

OrthoVise OrthoVise

OrthoViseOrthoVise

Product No’s:

STANDARD

3980 [Large]
Overall Length: 10" (25,4 cm)
with Attachment Bolts
with Large OrthoVise™ Slap Hammer (#3950)


3980-01 [Large]
Overall Length: 10" (25,4 cm)
with Attachment Bolts without Slap Hammer


3985 [Small]
Overall Length: 8" (20,3 cm)
without Attachment Bolt
without Slap Hammer
3985-01 [Small]
Overall Length: 8" (20,3 cm)
with Attachment Bolt
with Small OrthoVise™ Slap Hammer (#3955)
3985-T [Small]
Overall Length: 8" (20,3 cm)
with Attachment Bolt
without Slap Hammer

LONG NOSE

3965 [Large]
Overall Length: 12" (30,5 cm)
with Attachment Bolts
with Large OrthoVise™ Slap Hammer (#3950)
3965-01 [Large]
Overall Length: 12" (30,5 cm)
with Attachment Bolts
without Slap Hammer
3966 [Large Bent Jaw]
with Attachment Bolt
with Standard Slap Hammer (#3925)
3966-01 [Large Bent Jaw]
without Attachment Bolt
without Slap Hammer
3975 [Small]
Overall Length: 9.5" (24,1 cm)
without Attachment Bolt
without Slap Hammer
3975-01 [Small]
Overall Length: 9.5" (24,1 cm)
with Attachment Bolt
with Small OrthoVise™ Slap Hammer (#3955)
3975-T [Small]
Overall Length: 9.5" (24,1 cm)
with Attachment Bolt without Slap Hammer

THREADED ADAPTERS

3980-02 [Small Adapter]
Changes Male End of a Slap Hammer to Female
3980-03 [Threaded Adapting Screw – Large]
For use with 3965's, 3966's, 3980's, 3981
3985-03 [Threaded Adapting Screw – Small]
For use with: 3975's, 3985's

SLAP HAMMERS

3950 [Slap Hammer for Large OrthoVise]
For use with 3965's, 3980's, 3981
3955 [Slap Hammer for Small OrthoVise]
For use with: 3975's, 3985's
3925 [Standard Slap Hammer]
For use with: 3966's
U.S. Patent #D398,208

VIEW SURGICAL VIDEO

Download Product Brochure (PDF)

TOP





Screw Extractor Set

Designed to help remove screws with stripped or damaged heads



Screw Extractor Set

Screw Extractor Set

  • Extractors must be used with drill in reverse.
  • Screw head is reamed with burnishing end, and is then removed with the left turn thread end.
  • Care must be taken to burnish no more than 1/16" (1.5 mm) deep, as burnishing too deep can weaken the screw head.

Product No’s:
7250-00 [Set with Case]

7250-01 [2.5 mm Screw Extractor]
Overall Length: 6"

7250-02 [3.5 mm Screw Extractor]
Overall Length: 6"

7250-03 [6.5 mm Screw Extractor]
Overall Length: 6"
Download Product Brochure (PDF)

TOP





Screw Removal Pliers

Jaw designed to grasp onto a screw or screw head to help in removal




Screw Removal Pliers

Screw Removal Pliers

Screw Removal Pliers

Product No: 2020
Overall Length: 8"
Download Product Brochure (PDF)

TOP





Screw/Pin Removal Locking Pliers

Unique jaw designed to solidly grip and clamp onto a screw head, broken screw, or pin for removal



Screw/Pin Removal Locking Pliers

Screw/Pin Removal Locking Pliers

Screw/Pin Removal Locking Pliers

Product No: S0142
Overall Length: 8"
Jaw Width: 4.5mm
Download Product Brochure (PDF)

TOP





Sheffield Universal Prosthetic Elbow Extraction System

Designed to aid in the extraction of the four commonly used elbow prostheses

Designed by Mr. Amjid A. Ali and Mr. David Stanley


Sheffield Universal Prosthetic Elbow Extraction System

Sheffield Universal Prosthetic Elbow Extraction System
Sheffield Universal Prosthetic Elbow Extraction System

Sheffield Universal Prosthetic Elbow Extraction System

Design based on the principle that the device should have good hold and that the force used to extract the prosthesis should be applied in line with the long axis of the implant.

Designed to help extract the humeral and ulnar components during total elbow revision surgery. The system includes two modular extraction heads for both humeral and ulnar components, a hook with a narrow tip for help in removing the bearing inserts and extracting the humeral and ulnar components, a locking mechanism release and pin remover, a T-wrench for tightening the extractors onto the components, and a slap hammer.

Product No’s:
3620 [Complete System]

3620-01 [Kudo and iBP Ulnar Component Extraction Clamp]
3620-02 [Kudo, Souter-Strathclyde and iBP Humeral Component Extraction Clamp]
3620-03 [Coonrad-Morrey Ulnar and Humeral Component Extraction Hook]
3620-04 [T-Wrench]
3620-05 [Coonrad-Morrey Pin Remover]
3620-06 [Slap Hammer]
Download Product Brochure (PDF)

TOP





Star Bit Driver Set






Star Bit Driver Set

Star Bit Driver Set

Set consists of four star bits — T10, T15, T20, & T25, a handle which accommodates any of the above bits, and a sterilization case. The drive end (A/O) is designed for easy and quick engagement with the universal instrument handle. The ergonomic, modular handle has two connection points, allowing for both straight and T-handle orientations.



Product No's:

5194-00 [4 Star Bits w/Handle & Case]

5194-01 [4 Star Bits w/Case only]

Also sold individually:

S0113 [Universal 4" Handle]

5194-10 [T10 with A/O End]

5194-15 [T15 with A/O End]

5194-20 [T20 with A/O End]

5194-25 [T25 with A/O End]

9003 [Case]
Download Product Brochure (PDF)

TOP

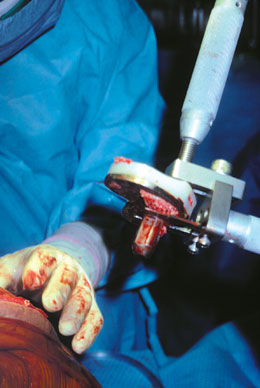

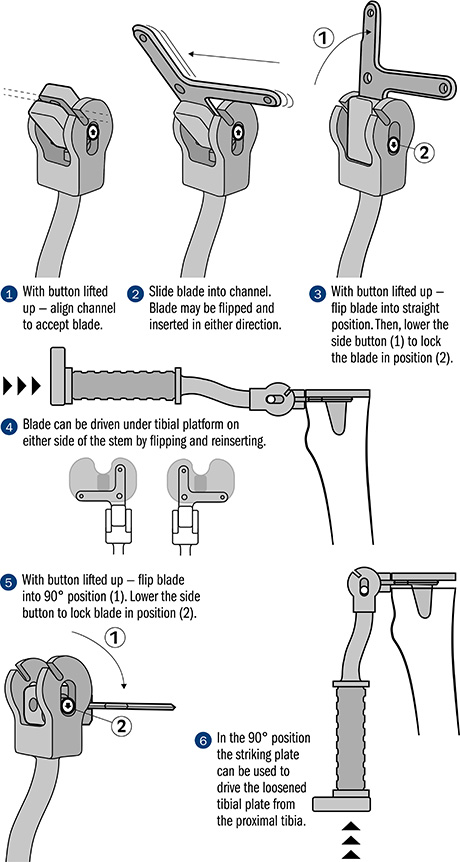

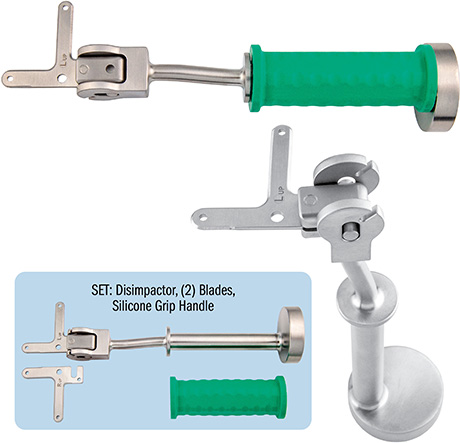

Tibial Component Extractor

Clamps onto a tibial knee component for extraction



Tibial Component Extractor

Designed to lock onto a tibial component and extract in line with the stem or pegs. Two adjustable osteotomes are inserted on the underside of the component. A locking screw clamps on to the top of the extractor to secure the component. Includes standard slap hammer #3935.

Product No: 3630
Includes Standard Slap Hammer #3925

Optional/Individual/Replacement Parts:

3630-01 [Pair of Standard Blades]
10x50mm

3630-02 [Pair of Offset Blades]
10x50mm, Offset 15mm

3630-HS [Hex Screws – Pkg of 6]

3925 [Standard Slap Hammer]
Thread Gauge: 3/8"-16

3935 [Extra Large Slap Hammer]
Thread Gauge: 3/8"-16

3925-HS [Easy Grip Slap Hammer (No Rod)]
Textured silicone hammer designed to help cushion the surgeon’s hand and maintain a solid grip.More Info Here

VIEW SURGICAL VIDEO

Download Product Brochure (PDF)

Tibial Component Extractor

TOP





Tibia Tray Removal Hooks

Designed to be used with a slap hammer to help
remove a tibia tray during revision knee surgery

Designed by Jerrold Gorski, MD
Modified 8mm version designed by Dennis Brown, MD


Brown Gorski 8mm Tibia Tray Removal Hook           Brown Gorski 8mm Tibia Tray Removal Hook

Gorski 4mm Hook


Product No's:
3650 [4mm Gorski Hook w/
Standard (#3925) Slap Hammer]

3650-01 [4mm Gorski Hook Only]

Brown Gorski 8mm Tibia Tray Removal Hook

3655 [8mm Brown Gorski Hook w/
Standard (#3925) Slap Hammer]

3655-01 [8mm Brown Gorski Hook Only]

Optional Items:
3935 [Extra Large Slap Hammer]
Thread Gauge: 3/8"-16
Download Product Brochure (PDF)

TOP





Universal Modular Femoral Hip Component Extractor

Universal extraction instruments for modular hip femoral components



Universal Modular Femoral Hip Component Extractor

New extractor with the handle reversed
designed primarily for anterior approach

Designed to clamp onto the taper of a femoral hip stem after the modular head has been removed. The extractor is equipped with a swivel block for attachment of a slap hammer. The swivel block helps keep the slap hammer in line with the angle of the femoral stem. Includes standard slap hammer #3925.

Product No's:
Below Include Standard Slap Hammer #3925
3610 [Original]
3610-R [Anterior Approach]

Optional/Individual Parts:
3610-01 [Original Extractor Only]
3610-R-01 [Anterior App. Extractor Only]
3925 [Standard Slap Hammer]
3935 [Extra Large Slap Hammer]
Download Product Brochure (PDF)
Universal Modular Femoral Hip Component Extractor Universal Modular Femoral Hip Component Extractor

Universal Modular Femoral Hip Component Extractor

TOP





Universal Screw Removal Instrument System

Designed to remove solid and cannulated screws, including partial, broken, stripped, and submerged screws



Universal Screw Removal Instrument System
Universal Screw Removal Instrument System
Product No’s:
S0010-00 [Complete System with Case]
S0113 [Universal Instrument Handle]
S0128 [1.5mm Screw Extractor]
S0116 [2.5mm Screw Extractor]
S0130 [3.5mm Screw Extractor]
S0117 [1.5mm Hex Driver]
S0114 [2.5mm Hex Driver]
S0115 [3.5mm Hex Driver]
S0132 [4.0mm Hex Driver]
S0133 [5.0mm Hex Driver]
S0136 [2.5mm Cannulated Hex Driver]
S0137 [3.5mm Cannulated Hex Driver]
S0138 [4.0mm Cannulated Hex Driver]
S0139 [5.0mm Cannulated Hex Driver]
S0118 [Large Cruciform Screwdriver]
S0119 [Small Cruciform Screwdriver]
S0141 [Mini Cruciform Screwdriver]
S0120 [Single Slot Screwdrive]r
S0121 [2.2mm Trephine]
S0122 [3.2mm Trephine]
S0123 [4.2mm Trephine]
S0124 [4.7mm Trephine]
S0125 [7.2mm Trephine]
S0127 [Universal Extractor - Shaft Only]
S0127-01 [Large Extraction Bolt Body]
S0127-03 [Small Extraction Bolt Body]
S0127-04 Extractor Wrench
S0129 [Pick]
S0140 [Cannulated Drive Extension]
9017 [Screw Removal Case Only]

Used for removal of stripped hex screws, buried screws, and partial screws with broken screw heads. The drive end (A/O) is designed for easy and quick engagement with the universal instrument handle.


Screw Extractors

Unique thread design accommodates removal of stripped screws. The instrument “locks” into the screw head and allows removal once engaged. Designed to be used in a counter-clockwise direction.

Trephines

Designed to fit over submerged screws for extraction with minimal bone loss. Extraction is enhanced by the unique tooth design. Designed to be used in a counter-clockwise direction.

Universal Extractor

Designed to remove screws with heads partially or completely missing. The cone shaped head fully engages the remaining screw and optimizes the force needed for removal. The bolt is disposable and locks into place using a unique thread design. Designed to be used in a counter-clockwise direction.

Hex Drivers

Available in all standard hex sizes. Also offered in a cannulated shaft version for easier removal of buried screws.

Screwdrivers

Standard cruciform screwdrivers in large, small, and mini, and single slot.

Cannulated Drive Extension

Used when a longer instrument shaft is desired.

Pick

Used to remove fragments and bone or tissue from screw head.

Universal Instrument Handle

The single handle allows the surgeon to decide which direction is most efficient and comfortable. The quick-connect release mechanism allows for quick interoperative exchange.
Download Product Brochure (PDF)

TOP





Whelan Hip Stem Extractor

Designed to lock onto and remove a femoral hip stem after the modular head has been removed

Designed by E. J. Whelan, III, MD


Extraction normally requires two bolts to be used to clamp onto,
tighten, and extract the component. Four bolt holes, distributed
evenly around the stem extractor, allow the surgeon to choose which
holes will offer optimal access for placing and tightening the bolts.
Whelan Hip Stem Extractor

Whelan Hip Stem Extractor

Optional Whelan Extractor Strike Plate Attachment

A slap hammer alternate for extraction help

After attaching the unit to the extractor using the replaceable screw,
the strike plate can be struck with the full force of a mallet to assist
with component extraction.

Whelan Hip Stem Extractor

VIEW SURGICAL VIDEO

Product No's:

4175-00 [Complete Set]
Set Includes: Stem Extractor, Wrench,
(4) Bolts, Standard Slap Hammer

Optional/Individual/Replacement Parts:

4175-01 [Stem Extractor 13.5 mm]

4175-W [Stem Extractor Wrench]

4175-03 [Replacement Bolts] Pair

3925 [Standard Slap Hammer] 3/8"-16 Thread Gauge

3925-HS [Easy Grip Slap Hammer (No Rod)]
Textured silicone hammer designed to help cushion the surgeon’s hand and maintain a solid grip.More Info Here

OPTIONAL:

Whelan Extractor
Strike Plate Attachment

3605-00 [Attachment Set]
Includes: Strike plate unit and two (2) screws



Individual/Replacement Parts for Strike Plate:

3605-01 [Strike Plate Unit Only]
Overall Length: 16" (40,6 cm)
Platform Size: 2" x 2" (5,1 cm x 5,1 cm)


3605-02 [Screws] Pair
Download Product Brochure (PDF)

TOP



Copyright © 2016 Innomed, Inc. All rights reserved.
