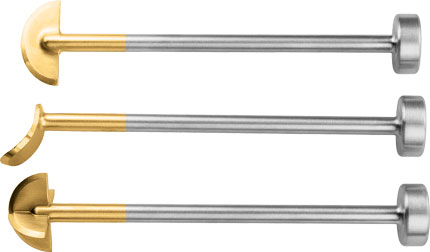

Cannestra Cup Liner Removal Osteotomes
Designed to help remove a well-fixed acetabular cup liner
|
|
|
|
Designed by Vince Cannestra, MD |
|
|
|
Ultra hard titanium nitride coating helps to extend life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion
Product No's:
4085-00 [Set of Three with Case]
Also available individually:
4085-01 [Cross Blades]
Overall Length: 8.375" (21,3 cm)
Blade Diameter: 2" (5,1 cm)
4085-02 [Curved Lever]
Overall Length: 8.5" (21,6 cm)
4085-03 [Single Blade]
Overall Length: 8.375" (21,3 cm)
Blade Diameter: 2" (5,1 cm)
1015 [Sterilization Case]
|
|
|
CupX — Acetabular Cup Extraction System
Helps to quickly and precisely remove an acetabular cup
with minimal loss of bone |
|
|
|
System designed by
James Kudrna, MD &
Stephen Incavo, MD
Wrench Drive Handle designed by
Guido Grappiolo, MD
Large Delrin Heads designed by
Adolph Lombardi, MD |
|
|
Product No's:
Complete Instrument Set
5200 [Complete Set — Fixed Handle]
5208 [Complete Set — Wrench Drive Handle]
20 Starter and 20 Finish Instruments, 3 each of 5 Head sizes (22-36 mm), and 5 cases
Includes complete set of 5200-T CupX Blade Contour Checking Templates, plus Ring
Custom and Ranged Instrument Sets
5200-01 [Choice of Sizes — Fixed Handle]
5208-01 [Choice of Sizes — Wrench Drive Handle]
5 Starter and 5 Finish Instruments (choice of sizes) w/case,
2 each of 5 Head sizes (22 mm–36 mm) w/case
Includes CupX Blade Contour Checking Templates for corresponding Blade Sizes Chosen, plus Ring
5200-02 [42 mm–50 mm — Fixed Handle]
5208-02 [42 mm–50 mm — Wrench Drive Handle]
5 Starter and 5 Finish Instruments (42 mm–50 mm) w/case,
2 each of 5 Head sizes (22 mm–36 mm) w/case
Includes CupX Blade Contour Checking Templates for 42 mm – 50 mm Blades, plus Ring
5200-03 [52 mm–60 mm — Fixed Handle]
5208-03 [52 mm–60 mm — Wrench Drive Handle]
5 Starter and 5 Finish Instruments (52 mm–60 mm) w/case,
2 each of 5 Head sizes (22 mm–36 mm) w/case
Includes CupX Blade Contour Checking Templates for 52 mm – 60 mm Blades, plus Ring
5200-04 [62 mm–70 mm — Fixed Handle]
5208-04 [62 mm–70 mm — Wrench Drive Handle]
5 Starter and 5 Finish Instruments (62 mm–70 mm) w/case,
2 each of 5 Head sizes (22 mm–36 mm) w/case
Includes CupX Blade Contour Checking Templates for 62 mm – 70 mm Blades, plus Ring
5200-05 [72 mm–80 mm — Fixed Handle]
5208-05 [72 mm–80 mm — Wrench Drive Handle]
5 Starter and 5 Finish Instruments (72 mm–80 mm) w/case,
2 each of 5 Head sizes (22 mm–36 mm) w/case
Includes CupX Blade Contour Checking Templates for 72 mm – 80 mm Blades, plus Ring
Individual FIXED HANDLE
Cup Removal Instruments
STARTER BLADE
5200-42 [42 mm]
5200-44 [44 mm]
5200-46 [46 mm]
5200-48 [48 mm]
5200-50 [50 mm]
5200-52 [52 mm]
5200-54 [54 mm]
5200-56 [56 mm]
5200-58 [58 mm]
5200-60 [60 mm]
5200-62 [62 mm]
5200-64 [64 mm]
5200-66 [66 mm]
5200-68 [68 mm]
5200-70 [70 mm]
5200-72 [72 mm]
5200-74 [74 mm]
5200-76 [76 mm]
5200-78 [78 mm]
5200-80 [80 mm]
|
FINISH BLADE
5201-42 [42 mm]
5201-44 [44 mm]
5201-46 [46 mm]
5201-48 [48 mm]
5201-50 [50 mm]
5201-52 [52 mm]
5201-54 [54 mm]
5201-56 [56 mm]
5201-58 [58 mm]
5201-60 [60 mm]
5201-62 [62 mm]
5201-64 [64 mm]
5201-66 [66 mm]
5201-68 [68 mm]
5201-70 [70 mm]
5201-72 [72 mm]
5201-74 [74 mm]
5201-76 [76 mm]
5201-78 [78 mm]
5201-80 [80 mm]
|
Steel Interchangeable Heads
5202-22 [22 mm]
5202-26 [26 mm]
5202-28 [28 mm]
5202-32 [32 mm]
5202-36 [36 mm]
Optional:
5202-38 [38 mm]
Storage Case for Starter and Finish Blades and 5 Steel Heads
9015
Storage Case for 10 Steel Heads
9016
|
Individual WRENCH DRIVE HANDLE
Cup Removal Instruments
STARTER BLADE
5208-42 [42 mm]
5208-44 [44 mm]
5208-46 [46 mm]
5208-48 [48 mm]
5208-50 [50 mm]
5208-52 [52 mm]
5208-54 [54 mm]
5208-56 [56 mm]
5208-58 [58 mm]
5208-60 [60 mm]
5208-62 [62 mm]
5208-64 [64 mm]
5208-66 [66 mm]
5208-68 [68 mm]
5208-70 [70 mm]
5208-72 [72 mm]
5208-74 [74 mm]
5208-76 [76 mm]
5208-78 [78 mm]
5208-80 [80 mm]
|
FINISH BLADE
5209-42 [42 mm]
5209-44 [44 mm]
5209-46 [46 mm]
5209-48 [48 mm]
5209-50 [50 mm]
5209-52 [52 mm]
5209-54 [54 mm]
5209-56 [56 mm]
5209-58 [58 mm]
5209-60 [60 mm]
5209-62 [62 mm]
5209-64 [64 mm]
5209-66 [66 mm]
5209-68 [68 mm]
5209-70 [70 mm]
5209-72 [72 mm]
5209-74 [74 mm]
5209-76 [76 mm]
5209-78 [78 mm]
5209-80 [80 mm]
|
Optional:
Large Delrin Interchangeable Heads
US Patent #7,998,146 B2
5202-00 [Complete Set with Case]
5202-39 [39 mm]
5202-40 [40 mm]
5202-41 [41 mm]
5202-42 [42 mm]
5202-43 [43 mm]
5202-44 [44 mm]
5202-45 [45 mm]
5202-46 [46 mm]
5202-47 [47 mm]
5202-48 [48 mm]
5202-49 [49 mm]
5202-50 [50 mm]
5202-51 [51 mm]
5202-52 [52 mm]
5202-53 [53 mm]
5202-54 [54 mm]
5202-55 [55 mm]
5202-56 [56 mm]
5202-57 [57 mm]
5202-58 [58 mm]
5202-59 [59 mm]
5202-60 [60 mm]
9014 [Case Only] |
Any component may be purchased individually. |
CupX Customer Blade Discount Program
Click the link below to download (in PDF format) an explanation of our
Blade Discount Program for the CupX System.
CupX Customer Blade Discount Form
Click the link below to download (in PDF format) our Blade Exchange Form for the CupX System.
|
|
All blades now come standard with an ultra hard titanium nitride coating which offers these benefits:
Extends Blade Life…
by increasing surface hardness
Prolongs Sharpness…
with an ultra hard, heat resistant coating
More Wear Resistant…
due to high lubricity of titanium nitride coating
Prevents Galling…
won’t chip, peel, or flake
Reduces Friction…
eliminates seizing in metal-on-metal contact
Chemical and Corrosion Resistant
Non-toxic…
medically approved and proven
Extended blade life leads to
long term savings!
The CupX Complete Instrument Set consists of 20 (twenty) pairs of extractors with fixed, sharp curved blades — one short starter blade and one long finishing blade — in diameters ranging from 42 to 80 mm in 2mm increments, plus 15 interchangeable spherical steel heads (3 each of five sizes) with diameters of 22, 26, 28, 32 and 36 mm.
System Options Include:
Choice of Handle Styles: Fixed or Wrench Drive
Wrench Drive handles work like a socket wrench, allowing improved torque without changing positions.
Large 38 mm Steel Head Size
A larger, non-standard size.
Large Delrin Interchangeable Heads*
Designed to provide tight, secure surface contact when removing larger size acetabular cups, and can also be used if the cup liner of a standard size cup is worn and must be removed. Available in diameters from 39 to 60 mm in 1 mm increments.
*
Patent #7,998,146 B2
Other System Features & Information:
Fully Customizable Sets
Rent or purchase — configure with as few or as many options required. See below for rental details.
Non-modular Blade System
Helps to decrease costs while increasing surgical efficiency as blades don’t need to be changed interoperatively.
Starter Blades
The shorter, stiffer Starter Blades are used around the top rim of the cup for more dense bone.
Finish Blades
The longer, thinner Finish Blades are used for deeper cutting around the dome of the cup.
In-line Shaft Alignment
The shaft is aligned directly over the head, which helps prevent the head from riding out of the cup while keeping the instrument properly centered. With proper centering, the curvature of the blades will more closely match the hemispherically-shaped outer surface of the acetabular cup when rotating, thus minimizing bone loss and creating a relatively intact acetabular recess for fitting of a new cup.
Head Diameters from 22 mm-60 mm
A properly sized head is installed onto the end of the shaft, and is then seated into the acetabular cup liner. The handle may then be pivoted and/or rotated to make an orbital cut around the acetabular cup. Note: If the cup liner is damaged or offset, proper centering of the shaft may not be possible. Remove the liner and install a temporary insert, or utilize one of our larger Delrin Heads if available.
Blade Diameters from 42 mm–80 mm
The curvature of the blades closely matches the outer surface of the acetabular cup, and will remain a fixed distance from the center of the acetabulum when rotating, thus creating a relatively intact acetabular recess for fitting of a new cup.
Shaft-End Handle Placement
Handle placement near the end of the shaft allows for better leverage and easier rotation.
Shaft-End Impaction Platform
A mallet may be used to strike the impaction platform on the end of the shaft to drive in the blade.
System Rental Information:
Available on a single procedure basis
Details – several rental configurations available:
• 4 cases with all sizes, including 2 sets of heads
• 3 cases, including 2 sets of heads
• 2 cases, including 2 sets of heads
• 1 case, including 2 sets of heads
• 1 size (starter & finish), including 2 sets of heads
Each case includes 5 Starter and 5 Finish Instruments
Charges
In addition to a rental fee, there is a charge for each instrument used (not including heads). Also, an additional charge applies if the used instruments are kept instead of returned. Rental is for one surgical procedure only, and must be returned within 5 days following the procedure.
|
|
|
CupX Blade Contour Checking Templates
Designed for checking the contour of a CupX blade after use to evaluate arc accuracy |
|
|
|
|
|
|
|
Individual Contour Template
Product No’s:
5200-T [Complete Set]
Also available Individually:
5200-42G [42 mm]
5200-44G [44 mm]
5200-46G [46 mm]
5200-48G [48 mm]
5200-50G [50 mm]
5200-52G [52 mm]
5200-54G [54 mm]
5200-56G [56 mm]
5200-58G [58 mm]
5200-60G [60 mm]
5200-62G [62 mm]
5200-64G [64 mm]
5200-66G [66 mm]
5200-68G [68 mm]
5200-70G [70 mm]
5200-72G [72 mm]
5200-74G [74 mm]
5200-76G [76 mm]
5200-78G [78 mm]
5200-80G [80 mm]
5200-GR [Ring ]
|
|
|
Flexible Osteotome System
Provides various osteotome blades for both hip and knee surgery |
|
|
|
|
|
|
|
Sharp, flexible blades are well suited for loosening implants from cement or bony ingrowth fixation.
Various blade widths and profiles allow great flexibility to follow the implant contours.
Modular handle is made of high impact surgical stainless steel and has a quick-coupling positive locking mechanism for ease of use and quick blade changes.
Slap hammer threads into the handle and is designed to facilitate blade removal.
System includes choice of handle style.
Product No’s:
S0011-00 [Set with Quick-Coupling Handle and Case]
S0012-00 [Set with Locking Nut Handle and Case]
Individual Instruments Included in Sets:
S1002 Thin Osteotome Blade
2.5" (6,3 cm) x 8 mm
S1003 Thin Osteotome Blade
2.5" (6,3 cm) x 10 mm
S1004 Thin Osteotome Blade
2.5" (6,3 cm) x 12 mm
S1005 Thin Osteotome Blade
2.5" (6,3 cm) x 20 mm
S1006 Curved Thin Osteotome Blade
2.5" (6,3 cm) x 12 mm
S1007 Curved Thin Osteotome Blade
5" (12,7 cm) x 20 mm
S1008 Thin Osteotome Blade
5" (12,7 cm) x 10 mm
S1009 Thin Osteotome Blade
5" (12,7 cm) x 8 mm
S1020 Handle with Quick-Coupling End
5" (12,7 cm)
– OR –
S1021 Handle with Locking Nut
6" (15,2 cm)
S1133 Radial Osteotome
5" (12,7 cm) x 10 mm
S1120 Radial Osteotome
5" (12,7 cm) x 12 mm
S1134 Radial Osteotome
5" (12,7 cm) x 14 mm
S1121 Radial Osteotome
5" (12,7 cm) x 16 mm
S1122 Radial Osteotome
5" (12,7 cm) x 20 mm
S2007 Small Slap Hammer
12" (30,5 cm)
9018 Case
|
|
|
Optional Blades for Flexible Osteotome System
|
|
|
|
Optional Strike Plate can be attached to the Handle for direct striking with a mallet.
Optional Curved Chisel Blades are designed to help loosen the cement/prosthesis interval in TKA tibial tray and femoral component revisions. The curved design is useful in working around pegs & fins to get posterior cement access. Also helpful with removal of other implants, i.e shoulder, ankle, etc.
OPTIONAL BLADES:
NOT INCLUDED IN SET
S1020-SP Strike Plate for Handle
Diameter 1.625" (4,1 cm)
S1123 7.5" Extra Long Osteotome Blade
7.5" (19,1 cm) x 8 mm
S1135 Radial Osteotome Medial Curve
6.75" (17,1 cm) x 11 mm
S1136 Radial Osteotome Lateral Curve
6.75" (17,1 cm) x 11 mm
S1137 Radial Osteotome Medial Curve
5" (12,7 cm) x 11 mm
S1138 Radial Osteotome Lateral Curve
5" (12,7 cm) x 11 mm
S1233-L 2" Flexible Left Curved Chisel
2" (5,1 cm) x 8 mm
S1233-R 2" Flexible Right Curved Chisel
2" (5,1 cm) x 8 mm
S1222 2.5" Chisel Blade
2.5" (6,4 cm) x 8 mm
S1223 2.5" Chisel Blade
2.5" (6,4 cm) x 10 mm
S1224 2.5" Chisel Blade
2.5" (6,4 cm) x 12 mm
S1225 2.5" Chisel Blade
2.5" (6,4 cm) x 20 mm
S1229 5" Chisel Blade
5" (12,7 cm) x 8 mm
S1228 5" Chisel Blade
5" (12,7 cm) x 10 mm
S1231 5" Chisel Blade
5" (12,7 cm) x 12 mm
S1230 5" Chisel Blade
5" (12,7 cm) x 20 mm
S1227 5.5" Long Chisel Blade
5.5" (12,7 cm) x 8 mm
S1232 7.5" Extra Long Chisel Blade
7.5" (19,1 cm) x 8 mm
S1234 8.5" Extra Long Chisel Blade
8.5" (21,6 cm) x 8 mm
S1235 9.5" Extra Long Chisel Blade
9.5" (24,1 cm) x 8 mm
S1236 10.5" Extra Long Chisel Blade
10.5" (26,7 cm) x 8 mm
S1237 11.5" Extra Long Chisel Blade
11.5" (29,2 cm) x 8 mm
S1238 12.5" Extra Long Chisel Blade
12.5" (31,8 cm) x 8 mm
|
|
|
Kudrna Cup Channel Chisel
Designed to help break the bone-prosthetic interface of well-fixed non-cemented acetabular components being revised
|
|
|
|
Designed by James C. Kudrna, MD |
|
|
|
Ultra hard titanium nitride coating helps to extend chisel life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion.
Product No: 3686
Overall Length: 12" (30,5 cm)
Handle Length: 3.5" (8,9 cm)
Blade Width: 30 mm
Blade Depth: 15 mm
|
|
|
Lambotte Osetotomes with Handle
Designed with a handle for better control, which helps reduce rotation of the osteotome during use
|
|
|
|
Designed by John Cherf, MD
|
|
|
 |
The handle also provides a larger striking area for use with a mallet. The osteotome shafts are manufactured with stainless steel and are available both straight and curved in 1/4" blade width.
Product No's:
5250-01 [1/4" Straight]
Overall Length: 14" (35,6 cm)
Handle Length: 4.5" (11,4 cm)
Blade Width: .25" (6,3 mm)
5260-01 [1/4" Curved]
Overall Length: 14" (35,6 cm)
Handle Length: 4.5" (11,4 cm)
Blade Width: .25" (6,3 mm)
|
|
|
Large Bone Curettes
|
|
|
|
|
|
|
Designed with a 5/16" diameter shaft allowing better visualization into the medullar canal during use. The contoured handle is designed to keep the curette from slipping in the surgeon's hand and for better control. Shaft length 10-1/2".
The Angled Large Curette is designed for use in the acetabulum or exposed bone. The shaft diameter is 5/16" and has a contoured handle. Shaft length 10-1/2". |
|
Product No's:
5160 [Set of 1 each including Case]
Also available individually:
5160-01 [Angled Small]
Curette End: 10 mm X 18 mm
Overall Length: 15" (38,1 cm)
Handle Length: 4.5" (11,4 cm)
5160-02 [Straight Small]
Curette End: 10 mm X 18 mm
Overall Length: 15" (38,1 cm)
Handle Length: 4.5" (11,4 cm)
5160-03 [Angled Medium]
Curette End: 10 mm X 24 mm
Overall Length: 15" (38,1 cm)
Handle Length: 4.5" (11,4 cm)
5160-04 [Angled Large]
Curette End: 24 mm X 24 mm
Overall Length: 15" (38,1 cm)
Handle Length: 4.5" (11,4 cm)
5160-05 [Straight Medium]
Curette End: 10 mm X 24 mm
Overall Length: 15" (38,1 cm)
Handle Length: 4.5" (11,4 cm)
9007 [Storage Case Only]
|
|
|
Mini-lexer Osteotomes
Helpful in osteophyte and cement removal
|
|
|
|
|
|
|
|
|
Small, thin osteotomes helpful in osteophyte and cement removal in total joint surgery. Larger handle helps with better control.
Product No’s:
5270-01 [4mm Wide]
Blade Width: 4 mm
Overall Length: 7.25" (18,4 cm)
Handle Length: 4" (10,2 cm)
5270-02 [6mm Wide]
Blade Width: 6 mm
Overall Length: 7.25" (18,4 cm)
Handle Length: 4" (10,2 cm)
5270-03 [10mm Wide]
Blade Width: 10 mm
Overall Length: 7.25" (18,4 cm)
Handle Length: 4" (10,2 cm)
5270-04 [12mm Wide]
Blade Width: 12 mm
Overall Length: 7.25" (18,4 cm)
Handle Length: 4" (10,2 cm)
|
|
|
Modified Lambotte Cup Removal Osteotomes
Designed with different hemisphere of curves to match cups of different sizes
|
|
|
|
|
|
|
Four osteotomes with different hemispherical radii allow the osteotomes to fit next to the outer surface of different size acetabular hip cups. The osteotomes have a handle for better control and a hammering platform.
|
Product No’s:
5240-44 [44 mm]
Overall Length: 12.75" (32,4 cm)
Handle Length: 4.75" (12 cm)
5240-48 [48 mm]
Overall Length: 12.75" (32,4 cm)
Handle Length: 4.75" (12 cm)
5240-52 [52 mm]
Overall Length: 12.75" (32,4 cm)
Handle Length: 4.75" (12 cm)
5240-56 [56 mm]
Overall Length: 12.75" (32,4 cm)
Handle Length: 4.75" (12 cm)
|
|
|
Modified Lambotte Osteotomes
Designed with a striking platform, plus a cross-bar hole to help control rotational stability and assist with removal |
|
|
|
|
|
|
|
Six (6) sizes available — from 1/4” to 1-1/2” in 1/4” increments.
Cross-bar and case included in complete set.
The two smallest sizes have an 1/8" hole in which an 1/8" pin (not included) can be used as a cross bar.
Product No's:
5350-00 [Complete Set w/Case]
Also available individually:
5350-25 [1/4”]
Overall Length: 9” (22,9 cm)
Osteotome Width: .25” (6.4 mm)
5350-50 [1/2”]
Overall Length: 9” (22,9 cm)
Osteotome Width: .5” (12.7 mm)
5350-75 [3/4"]
Overall Length: 9" (22,9 cm)
Osteotome Width: .75" (19 mm)
5350-100 [1”]
Overall Length: 9” (22,9 cm)
Osteotome Width: 1” (25.4 mm)
5350-125 [1-1/4”]
Overall Length: 9” (22,9 cm)
Osteotome Width: 1.25” (31.8 mm)
5350-150 [1-1/2”]
Overall Length: 9” (22,9 cm)
Osteotome Width: 1.5” (38.1 mm)
5350-CASE [Case]
Dimensions: 12.25" x 11.25" x 1"
(31,1 x 28,6 x 2,5 cm)
5350-CB [Cross Bar]
Overall Length: 4.375" (11,1 cm)
|
|
|
Modified Smith-Peterson Style Osteotomes
Multi-arch osteotomes help in removal of total hip cups
|
|
|
|
Designed by M. Ritter, MD
|
|
|
|
|
Three styles of osteotomes offer a selection for removal of total hip cups. The different curvatures help to fit next to a cups outer surface. The osteotomes have a handle for better control plus a hammering platform end.
Product No’s:
5280-01 [Short]
Blade Dimensions: 20 mm x 20 mm
Overall Length: 10.875" (27,6 cm)
Handle Length: 5" (12,7 cm)
5280-02 [Medium]
Blade Dimensions: 20 mm x 35 mm
Overall Length: 11.675" (29,6 cm)
Handle Length: 5" (12,7 cm)
5280-03 [Long]
Blade Dimensions: 20 mm x 50 mm
Overall Length: 12.25" (31,1 cm)
Handle Length: 5" (12,7 cm)
Storage Case Available
|
|
|
Mueller-Type Cement Removal Instruments
Used for cement removal in the knee, hip, and shoulder
|
|
|
|
|
|
|
|
Product No's
S7500-00 [Complete Set with Case] Non-CE Countries
S7500-01 [Complete Set with Case] CE Countries
(Top to Bottom):
1) Narrow Cement Removal Gouge, Short
Product No: S7505
Shaft Length: 15 cm
Gouge: 9 mm, negative
2) Narrow Cement Removal Gouge, Long
Product No: S7507
Shaft Length: 24 cm
Gouge: 9 mm, negative
3) Narrow Offset Cement Removal Gouge
Product No: S7510
Shaft Length: 24 cm
Gouge: 9 mm, negative
4) Acetabular Chisel
Product No: S7515
Shaft Length: 24 cm
Chisel: 7.5 mm
5) Offset Chisel
Product No: S7520
Shaft Length: 15 cm
Chisel: 9 mm
6) Flared Angle Gouge
Product No: S7525
Shaft Length: 24 cm
Gouge: 9 mm, positive, angle 15° downward
7) Wide Gouge
Product No: S7530
Shaft Length: 24 cm
Gouge: 11.5 mm, negative
8) “V” Splitter
Product No: S7535
V-Shaped Chisel: 7 mm
9) Saddle Punch
Product No: S7587
Shaft Length: 24 cm
Punch: 16.5 mm x 6.5 mm
10) Cement Splitting Osteotome
Product No: S7590
Shaft Length: 24 cm
11) Cement Removal Osteotome, Short
Product No: S7595
Shaft Length: 15 mm
Osteotome: 8 mm
12) Cement Removal Osteotome, Long
Product No: S7597
Shaft Length: 24 cm
Osteotome: 8 mm
13) 4.4mm Drill
Product No: S7540
14) 4.4mm Drill Guide
Product No: S7545
15) 6.4mm Drill
Product No: S7550
16) 6.4mm Drill Guide
Product No: S7555
17) Straight Cement Removal Hook
Product No: S7560
Hook Curette: 10 mm
18) Curved Cement Removal Hook
Product No: S7565
Hook Curette: 10 mm
19) Cross Bar
Product No: S7570
20) 7mm T-Handle Conical Tap
Product No: S7575
21) 9mm T-Handle Conical Tap
Product No: S7580
22) Slotted Mallet
Product No: S7585
9075 [Case]
Optional Instruments:
8247-00 [T-Handle Chuck & Key]
8247-01 [T-Handle Chuck Only]
8247-02 [Chuck Key Only]
|
|
|
Powers Double Bent Curette Set
The bayonet curettes help allow for proper lateralization and seating of the broach |
|
|
|
Designed by Mark Powers, MD |
|
|
|
Product No's:
5190-00 [Set of Three]
Also Available Individually:
5190-L [Angled Left]
Overall Length: 16.875" (42,9 cm)
Handle Length: 9" (22,9 cm)
Shaft Length Before Bend: 5.25" (13,3 cm)
Bend Offset: .5" (1,3 cm)
Curette Cup Angle: 33°
Curette Cup Inner Dimensions: 6 X 8,7 mm
5190-R [Angled Right]
Overall Length: 16.875" (42,9 cm)
Handle Length: 9" (22,9 cm)
Shaft Length Before Bend: 5.25" (13,3 cm)
Bend Offset: .5" (1,3 cm)
Curette Cup Angle: 33°
Curette Cup Inner Dimensions: 6 X 8,7 mm
5190-S [Straight]
Overall Length: 17" (43,2 cm)
Handle Length: 9" (22,9 cm)
Shaft Length Before Bend: 5.25" (13,3 cm)
Bend Offset: .5" (1,3 cm)
Curette Cup Angle: 33°
Curette Cup Inner Dimensions: 6 X 8,7 mm
|
|
|
Ring Curettes
|
|
|
|
|
|
|
 |
Product No's:
5150 [Straight, 3 mm]
Ring Diameter: 3 mm
Overall Length: 8.75" (22,2 cm)
5152 [Straight, 6 mm]
Ring Diameter: 6 mm
Overall Length: 8.75" (22,2 cm)
5154 [Straight, 8 mm]
Ring Diameter: 8 mm
Overall Length: 8.75" (22,2 cm)
5156 [Bent, 3 mm]
Ring Diameter: 3 mm
Overall Length: 8.5" (21,9 cm)
5157 [Bent, 6 mm]
Ring Diameter: 6 mm
Overall Length: 8.5" (21,9 cm)
5158 [Bent, 8 mm]
Ring Diameter: 8 mm
Overall Length: 8.5" (21,9 cm)
|
|
|
Robb Cement Curette
Designed to help remove cement around a hip or knee prosthesis
|
|
|
|
Designed by William Robb, MD
|
|
|
|
|
Made of Delrin
Product No: 5635
Overall Length: 8" (20,3 cm)
Freer End: 5 mm
Cup End: 10 mm
|
|
|
Wagner Osteotome Handle
Handle is designed for easier gripping, rotational control, and use with a mallet with a standard 1/4” Lambotte osteotome |
|
|
|
Designed by Russell Wagner, MD |
|
|
|
Product No's
5348 [Handle Only]
Overall Length: 5.5" (14 cm)
5348-01 [1/4" Osteotome Only]
Overall Length: 8.875" (22,5 cm)
|
|
|
Whelan Flexible Chisel Guide
Designed to help stabilize a thin chisel blade until it's within the bone prosthesis interface |
|
|
|
Designed by Edward J. Whelan, III, MD |
|
|
|
Guide with sliding handle helps to stabilize a thin flexible chisel blade until it's within the bone prosthesis interface. Chisel tip lets it hug the prosthesis to help prevent perforation. Slap hammer threads into the handle and is designed to facilitate blade removal. Easily changeable disposable blades help assure sharpness.
Chisel blade features an ultra hard titanium nitride coating to help extend life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion.
Product No's:
5301-00 [Complete Set]
Included In Set / Replacement Parts:
5301-01 [Guide Only]
Overall Length: 5.5" to 8.5" (14 to 21,6 cm) w/o blade
5301-02 [10mm Chisel Blade Only]
Overall Length: 4.625" (11,7 cm)
Blade Thickness: .020" (.51 mm)
3040 [Slap Hammer]
1015 [Sterilization Case]
|
|
|
Whelan Curved Chisel Guide
Designed to help stabilize a thin curved chisel blade
until it's within the bone prosthesis interface |
|
|
|
Designed by Edward J. Whelan, III, MD |
|
|
|
Guide with sliding handle helps to stabilize a curved, thin flexible chisel blade until it's within the bone prosthesis interface. Chisel tip lets it hug prosthesis to help prevent perforation. Slap hammer threads into the handle and is designed to facilitate blade removal. Easily changeable disposable blades help assure sharpness.
Chisel blade features an ultra hard titanium nitride coating to help extend life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion.
Product No's:
5302-00 [Complete Set[
Included In Set / Replacement Parts:
5302-01 [Guide Only]
Overall Length: 5" to 8.75" (12,7 to 22,2 cm)
5302-02 [10mm Chisel Blade Only]
Overall Length: 4.625" (11,7 cm)
Blade Thickness: .020" (.51 mm)
3040 [Slap Hammer]
1015 [Sterilization Case]
|
|
|
© 2023 Innomed, Inc. All rights reserved.
|
