HIP INSTRUMENTS • patient positioners

Click thumbnail image for details

Berger Block Positioner Assembly
Capello Patient Positioner
Cherf Leg Holder
NEW! Belfast Sagittal Plane Positioner
Berger Block Positioner Assembly

New Peg Extensions!
Capello Patient Positioner
Cherf Leg Holder
Direct Anterior Total Hip Arthroplasty Leg Positioner Assembly
Large Patient Peg Board
Positioner Post Assembly
Multi-Adjustment Hip Positioner
Stulberg Hip Positioner
Thornberry Large Patient Hip Positioner
NEW! Direct Anterior Total Hip Arthroplasty Leg Positioner Assembly
Large Patient Peg Board
Positioner Post Assembly
Multi-Adjustment Hip Positioner
Stulberg Hip Positioner
Thornberry Large Patient Hip Positioner
Wixson Hip Positioner
Wixson/Stulberg

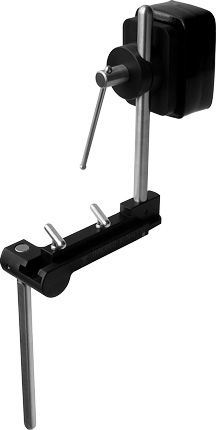

Anterior Trunk Support
Wixson Hip Positioner
Wixson/Stulberg
Anterior Trunk Support





Belfast Sagittal Plane Positioner

A sturdy and stable patient support system for posterior approach total hip arthroplasty in the lateral decubitus position


Designed by David Beverland, FRCS

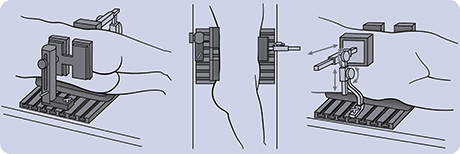

Belfast Sagittal Plane Positioner

Belfast Sagittal Plane Positioner

Very secure and easy to tighten.

Accommodates the very obese patient.

Does not attach to the table, making it compatible with all OR tables.

Anterior ASIS support unit allows both height and depth adjustment, eliminating the need to adjust the baseplate locking mechanism once secured. The depth adjustment allows extension of up to 150 mm beyond the support base, providing space to avoid the abdominal apron.

Posterior support unit offers both Sacral and Iliac Crest support, connected together as one unit, and provides both height and rotation adjustments, as well as a hinged pivot where the iliac crest side attaches the unit to the post, that can be loosened and adjusted to allow rotation in 5° increments.

Allows access to the PSIS before and during surgery. This can help to ensure that the sagittal plane of the pelvis is horizontal at the time of cup implantation.

Product No's:

4170-00 [Complete Set]
Set Includes / Available Individually:

4170-03 [Anterior Upright Support]
4170-04 [Anterior Plane Support]
4170-05 [Anterior Clamp Support]
4170-AKS [Anterior Knob Screw]
Two (2) included in Set, One (1) with this product number
4170-AP [Anterior Plane Pad]
4170-06 [Posterior Sagittal Plane Support]
4170-07 [Posterior 9.5" Post]
4170-PKS [Posterior Knob Screw]
4170-08 [Posterior Base]
4170-09 [Posterior Angle Adjuster]
4170-T [Posterior T-Handle Screw]
4170-PP [Posterior Support Pad]
Two (2) included in Set, One (1) with this product number
4150-PS [Post Screw]
Three (3) included in Set, One (1) with this product number
4050-BP [20" Baseplate Only]
4050-LPD [Hip Positioner Large Pad]
Download Product Brochure (PDF)


TOP





Berger Block Positioner Assembly

Designed for lower extremity positioning with dual height options


Designed by Richard Berger, MD


Berger Block Positioner Assembly


Product No's:

2750-00 [Berger Block Positioner Set]
Dimensions with Pads: 4.75" x 6.75" x 8"
(12,1 cm x 17,1 cm x 20,3 cm)
Set Includes / Available Individually:

2750-01 [Berger Block Positioner Only]
Dimensions: 4.125" x 6.125" x 8"
(10,5 cm x 15,6 cm x 20,3 cm)


2750-P [Berger Block Positioner Pad Only]

[Berger Block Positioner Brown Strap Only]
(2) Included in Set

Optional Items:

2750-S [Berger Block Positioner Brown Strap] Pkg of 10
Download Product Brochure (PDF)


TOP





Capello Patient Positioner

Provides stable positioning of a patient during hip procedures


Designed by William Capello, MD

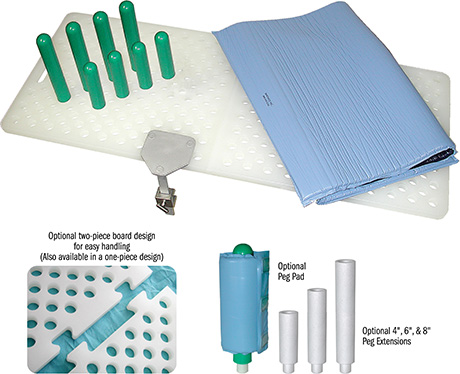

Capello Patient Positioner

Available in a one-piece or two-piece board design.

Optional two-piece board construction allows for easier use and storage.

All gel pads, pegs and peg height extensions can be used with existing peg boards.

Product No’s:

4090 [Set with 2-Piece Board[
Length (Connected): 47" (120 cm)
Width: 18.75"
(47,6 cm)

4095 [Set with 1-Piece Board]
Length: 47" (120 cm)
Width: 18.75" (47,6 cm)


Each set includes:

Board, Gel Pad, (4) 6" Radiolucent Pegs,
(4) 9" Radiolucent Pegs, (2) Stabilizing Clamps,
(2) Table Clamps.


Replacement Parts:
4090-PB [2-Piece Positioning Board]
4095-PB [1-Piece Positioning Board]
4090-06 [6" Radiolucent Peg]
4090-08 [9" Radiolucent Peg]
4090-SC [Stabilizing Clamp]
4090-01 [Large Gel Pad]
9120 [Table Clamp]

Optional Parts:

4090-02 [Peg Gel Pad]
4090-EXT [Peg Extension 4" (10,2 cm)]
4090-EXT6 [Peg Extension – 6" (15,2 cm)] New!
4090-EXT8 [Peg Extension – 8" (20,3 cm] New!
SEE ALSO: LARGE PATIENT PEG BOARD POSITIONER POST ASSEMBLY
Download Product Brochure (PDF)

TOP





Cherf Leg Holder

Supports the lower extremity for prepping before hip or knee surgery


Designed by J. Cherf, MD


Cherf Leg HolderCherf Leg Holder

Useful for all lower extremity procedures and particularly helpful for supporting the leg with the patient positioned in the lateral position. By holding the foot/ankle in an externally rotated position, the knee can be locked into extension which helps eliminate the need for manual support.

The leg holder may also be used to support the limb for surgical patients in the supine position such as for knee and foot/ankle procedures.

Product No's:
2270 [Cherf Leg Holder]
4150-PD3 [Set of 3 Replacement Pads]

VIEW SURGICAL VIDEO

Download Product Brochure (PDF)

TOP





Direct Anterior Total Hip Arthroplasty Leg Positioner Assembly

Designed to help position the operative leg for femoral preparation in direct anterior approach total hip arthroplasty using a standard operating table


Designed by Benjamin M. Frye, MD




Direct Anterior Total Hip Arthroplasty Leg Positioner Assembly

Allows one assistant to secure the leg for femoral preparation.

Attaches directly to a standard operating table.

Allows easy assessment of hip stability and leg length discrepancy.

Calibrations on the rod help to allow for precise and reproducible placement of the leg positioner according to surgeon preference.


Product No's:

4165-00 [Assembly]

Individual/Replacement Parts:

4165-01 [Leg Support]
Overall Length: 8.75" (22,2 cm)
Width: 2.5" (6,4 cm)


4165-02 [Calibrated Rod]
Dimensions: 9.625" x 7.125" x 1" (24,5 x 18,1 x 2,5 cm)


4165-P [Leg Support Pad]
Dimensions: 8.5" x 3" x 1.75" (21,6 x 7,6 x 4,4 cm)


4150-PS [Support Screw]
T-Handle Width: 1.875" (4,7 cm)
T-Handle Depth: 1.5" (3,8 cm)


9120 [Table Clamp]
Dimensions: 1.7" x 1.7"" x 1.4" (4,3 x 4,3 x 3,6 cm)




US Patent No. 16/523,304

Download Product Brochure (PDF)


TOP





Large Patient Peg Board Positioner Post Assembly

Especially helpful with large patients where reaching the a.s.i.s. is needed for stabilization


Designed by Paul Ramsey, MD

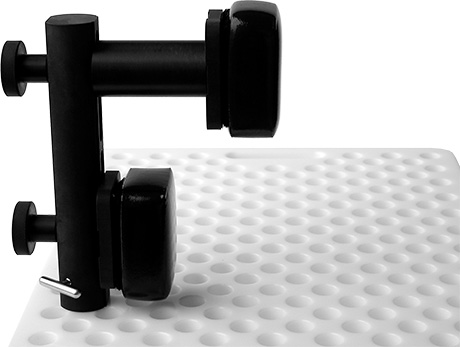

Large Patient Peg Board Positioner Post Assembly

Designed to work in conjunction with the Capello Patient Positioner (or any other patient positioner).

The peg board positioner is available separately and is not included with this assembly set.

Large Patient Peg Board Positioner Post Assembly

Product No:
4150-10P [Complete Set]
Includes:
4090-03 [Post Assembly Adapter]
4150-10B [10" Post with 2 Pads]
4150-EXT [2" Spacer with 4" Knob]
4150-EXT4 [4" Spacer with 6" Knob]
SEE ALSO: CAPELLO PATIENT POSITIONER
Download Product Brochure (PDF)

TOP





Multi-Adjustment Hip Positioner

Provides stable positioning of a patient during hip surgery

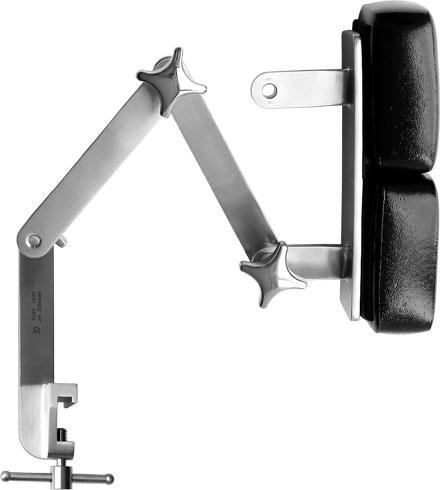

Multi-Adjustment Hip Positioner

Multi-adjustment arms allow the positioner to be adjusted to fit all sizes of patients. Especially helpful with large patients where reaching the a.s.i.s. is needed for stabilization.

Product No's:
4030
4150-PD2 [Replacement Pads–Pkg of 2]
Download Product Brochure (PDF)

TOP





Stulberg Hip Positioner

Provides stable positioning of a patient during hip surgery


Designed by S. David Stulberg, MD


Stulberg Hip PositionerStulberg Hip Positioner in Case
Storage Case Included

The Stulberg Hip Positioner consists of:
One 10" post with double pads,
one 6" post with a single pad,
two 2" spacers,
one 4" knob,
one 6" knob, and
two table attachments.

The spacers and longer knobs are supplied for use with larger patients: use one spacer with the 4" knob, or combine the two spacers to use with the 6" knob.

Wixson Hip Positioner Accessories

The Stulberg Hip Positioner is used for stable positioning of a patient during total hip and revision surgery. It is designed to attach directly to the operating table utilizing the existing table adapters.

 The upright pads are made of semi-dense foam to help prevent pressure points and are sealed with a washable coating. The coating also helps to lessen the possibility of skin breakdown.

 The pad assembly can be adjusted for additional height and width. The upright posts are modular. The complete unit is radiolucent and autoclavable except for the foam pads and the storage case.

Product No: 4150-00
Consists of: Case, one 10” post assembly with double pads, one 6” post assembly with a single pad, two 2” spacers, one 4” knob, one 6” knob, and two table attachments.

Optional & Replacement Parts:

Pads, Pad Parts, Pad Assemblies & Sets:
4150-P [Pad Plate] (Small Pad Attaches to this Plate)
4150-PA [Pad Assembly] (Pad Knob, Plate & Pad)
4150-PB [Pad Knob] (Attaches Pad Plate to Post)
4150-PD3 [Set of 3 Small Pads]
4150-PD12 [Case of 12 Small Pads]
4150-V [Set of 30 Velcro Strips] (For Pad Attachment)
Posts, Post Parts, Post Assemblies & Sets:
4150-06 [6" Post (15,2 cm)] (Post Only)
4150-06B [6” Post with Pad Assembly]
4150-06C [6” Post with Pad Assembly and Slider]
4150-06D [6” Post with Pad Assembly, Slider
      & Table Attachment]
4150-08 [8" Custom Post (20,3 cm)] (Post Only)
4150-09 [9" Custom Post (22,9 cm)] (Post Only)
4150-10 [10" Post (25,4 cm)] (Post Only)
4150-10B [10” Post with Pad Assembly]
4150-10C [10” Post with Pad Assembly and Slider]
4150-10D [10” Post with Pad Assembly, Slider
      & Table Attachment]
4150-12 [12" Custom Post (30,5 cm)] (Post Only)
4150-14 [14" Custom Post (35,6 cm)] (Post Only)
4150-PS [Post Screw]
4150-S [Slider] (Connects Post to Table Attachment)
4150-SS [Slider Screw]
4150-TA [Table Attachment]
Extension Parts, Extension Assemblies & Sets:
4150-C [2" Spacer (5,1 cm)]
4150-C4 [4" Spacer (10,2 cm)]
4150-EK [4" Knob (10,2 cm)]
     For use with 2" Spacer
4150-EK4 [6" Extension Long Knob (15,2 cm)]
      For use with two 2" Spacers or one 4" Spacer
4150-EK6 [8" Extension Long Knob (20,3 cm)]
      For use with one 2" Spacer and one 4" Spacer
4150-EXT [2" Extension (5,1 cm)]
     (2” Spacer with 4” Knob)
4150-EXT4 [4" Extension (10,2 cm)]
      (4”Spacer with 6" Knob)
4150-EXT6 [6” Extension (15,2 cm)]
      (4" and 2" Spacers with 8" Knob)
Other Parts:
9002   [Storage Case]

VIEW INSTRUCTIONAL VIDEO

Download Product Brochure (PDF)

TOP





Thornberry Large Patient Hip Positioner

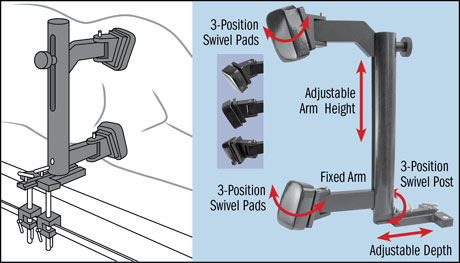

Designed to be adjustable yet sturdy when stabilizing a large patient for hip surgery


Designed by Robert L. Thornberry, MD

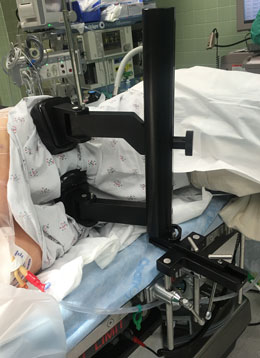

Thornberry Large Patient Hip Positioner

The Thornberry Large Patient Hip Positioner is used for stable positioning of a large patient during total hip and revision surgery. It is designed to attach directly to the operating table utilizing existing table clamps, or the Innomed #2595 Table Clamps which are not included.



The upper arm assembly can be adjusted for height. Both arms include a push-button to allow the pad platform to swivel and lock into any of three fixed positions. The tall 18" post also includes a push-button to allow the post/arms unit to swivel and lock into any of three fixed positions.



The distance between the arms (centered) is 8.5" minimum and 17.25" maximum.



The complete unit is autoclavable except for the foam pads. The pads are made of semi-dense foam to help prevent pressure points and are sealed with a washable coating. The coating also helps to lessen the possibility of skin breakdown.



It may be necessary to place the Double Table Attachment(s) 180°—sticking out from the table—to accommodate the large patient, as shown above.

Positioner consists of:

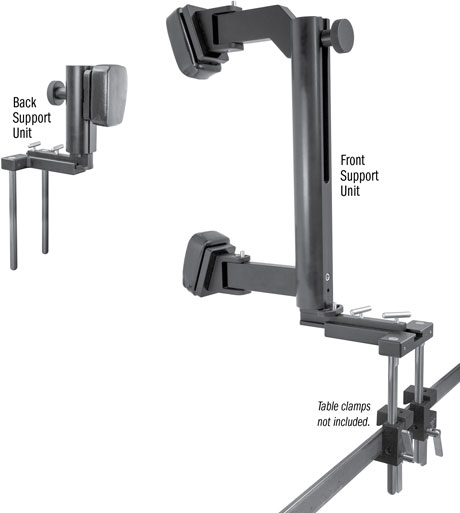

Front Support Unit

One 18" post assembly with a lower arm and swiveling pad platform, one upper arm assembly with a swiveling pad platform, one post knob, two pads, and one double table attachment.


Back Support Unit

One 7" post assembly, one post knob, one pad plate, one pad, one slider, and one double table attachment.

Product No's:

4160-00 [Complete Set]

Items Included in Set
4160-07 [7" Back Support Post]
4160-18 [18" Post with Fixed Lower Arm]
4160-AA [Adjustable Upper Arm]
4160-DTA [Double Table Attachment]
              This product number is for one only.
              Two are included with the set.

4160-PB [Post Knob]
              This product number is for one only.
              Two are included with the set.

4150-P [Pad Plate for Back Support]
4150-PD3 [Set of Three (3) Pads]
4150-S [Back Support Slider]

Optional Items:
2595 [Table Clamp] One only with this number

Download Product Brochure (PDF)

TOP





Wixson Hip Positioner

Provides stable positioning of a patient during hip surgery


Designed by R.L. Wixson, MD


Wixson Hip Positioner

The Wixson Hip Positioner consists of:
One 10" post with double pads,
one 6" post with a single pad,
one 20" base plate,
one base plate pad,
two 2" spacers,
one 4" knob, and
one 6" knob.

The spacers and longer knobs are supplied for use with larger patients: use one spacer with the 4" knob, or combine the two spacers to use with the 6" knob.

Wixson Hip Positioner Accessories

The Wixson Hip Positioner is used for stable positioning of a patient during total hip and revision surgery. It is designed to be placed on top of the operating table.

 The base plate is rubber-backed to reduce slipping on the table. The uprights can easily be slid in and out of the multiple slots in the plate for desired positioning and locked into position with the locking bolt. The complete upright assembly is radiolucent.

 The upright pads and the base plate pad are made of semi-dense foam to help prevent pressure points and are sealed with a washable coating. The coating also helps to lessen the possibility of skin breakdown.

 The pad assembly can be adjusted for additional height and width. The upright posts are modular. The complete unit is radiolucent and autoclavable except for the foam pads.

Product No: 4050 [Set]
Set consists of: One 10” post assembly with double pads,
one 6” post assembly with a single pad, one 20” base
plate, one base plate pad, two 2” spacers, one 4” knob,
and one 6” knob.

Optional & Replacement Parts:

Pads, Pad Parts, Pad Assemblies & Sets:
4050-LPD [Large Pad]
4150-P [Pad Plate] (Small Pad Attaches to this Plate)
4150-PA [Pad Assembly] (Pad Knob, Plate & Pad)
4150-PB [Pad Knob] (Attaches Pad Plate to Post)
4150-PD3 [Set of 3 Small Pads]
4150-PD12 [Case of 12 Small Pads]
4150-V [Set of 30 Velcro Strips] (For Pad Attachment)
Posts, Post Parts, Post Assemblies & Sets:
4150-06 [6" Post (15,2 cm)] (Post Only)
4150-06B [6” Post with Pad Assembly]
4050-06C [6” Post with Pad Assembly and Slider]
4150-08 [8" Custom Post (20,3 cm)] (Post Only)
4150-09 [9" Custom Post (22,9 cm)] (Post Only)
4150-10 [10" Post (25,4 cm)] (Post Only)
4150-10B [10” Post with Pad Assembly]
4050-10C [10” Post with Pad Assembly and Slider]
4150-12 [12" Custom Post (30,5 cm)] (Post Only)
4150-14 [14" Custom Post (35,6 cm)] (Post Only)
4050-PDS [Full Pad Set] (1 Large & 3 Small Pads)
4150-PS [Post Screw]
4050-S [Slider] (Connects Post to Baseplate)
4150-SS [Slider Screw]
Extension Parts, Extension Assemblies & Sets:
4150-C [2" Spacer (5,1 cm)]
4150-C4 [4" Spacer (10,2 cm)]
4150-EK [4" Knob (10,2 cm)]
      For use with 2" Spacer
4150-EK4 [6" Extension Long Knob (15,2 cm)]
      For use with two 2" Spacers or one 4" Spacer
4150-EK6 [8" Extension Long Knob (20,3 cm)]
      For use with one 2" Spacer and one 4" Spacer
4150-EXT [2" Extension] (2” Spacer with 4” Knob)
4150-EXT4 [4" Extension] (4”Spacer with 6" Knob)
4150-EXT6 [6” Extension] (4" and 2" Spacers with 8" Knob)
Baseplates:
4050-BP [20” Standard Baseplate (50,8 cm)]
     (Baseplate Only)
4050-BP24 [24” Custom Baseplate (61 cm)]
       (Baseplate Only)

WATCH INSTRUCTIONAL VIDEO

Download Product Brochure (PDF)

TOP





Wixson/Stulberg Anterior Trunk Support

Helps protect the chest and shoulders from slumping forward during total hip surgery


Designed by R.L. Wixson, MD and S. David Stulberg, MD


Wixson/Stulberg Anterior Trunk Support
Wixson/Stulberg Anterior Trunk Support
Product No. 4110
Download Product Brochure (PDF)

TOP



2020 Innomed, Inc. All rights reserved.
