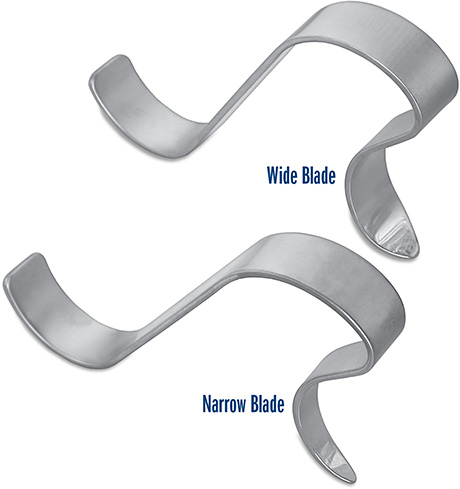

"S" Total Knee Retractor – Narrow
Modified Hohmann Retractors — Narrow
NEW! Narrow Right Angle Retractor
OrthoLucent™ Hohmann Retractors
Roose Utility Knee Retractor
"S" Total Knee Retractor – Narrow

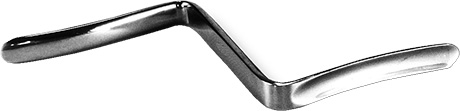

"Z" Knee Retractor
Modular Weights

"Z" Knee Retractor
Modular Weights

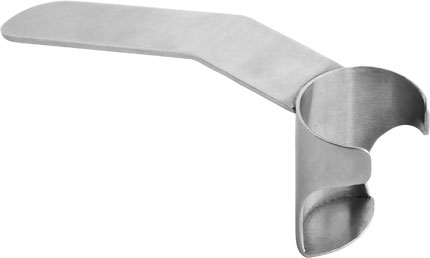

Bicos Meniscal Repair Retractor

A popliteal retractor specifically designed for meniscal repair or access to the posterior knee


Designed by James Bicos, MD


Bicos Meniscal Repair Retractor



Used when an inside out meniscal repair is indicated, the design facilitates retracting the posterior soft tissues of the popliteal fossa out of the way, allowing passage of meniscal repair needles. The retractor's compact design facilitates a minimally invasive incision.



The unique shape helps capture the meniscal repair needles and direct them out of the posterior incision for easy grasping and repair. Incorporates a shiny body to help reflect inside the posterior wound and aid in seeing and retrieving the needles.



Product No: 2731
Overall Length: 5" (12,7 cm)
Depth: 1.625" (4,1 cm)
Diameter: 28 mm
Download Product Brochure (PDF)

TOP

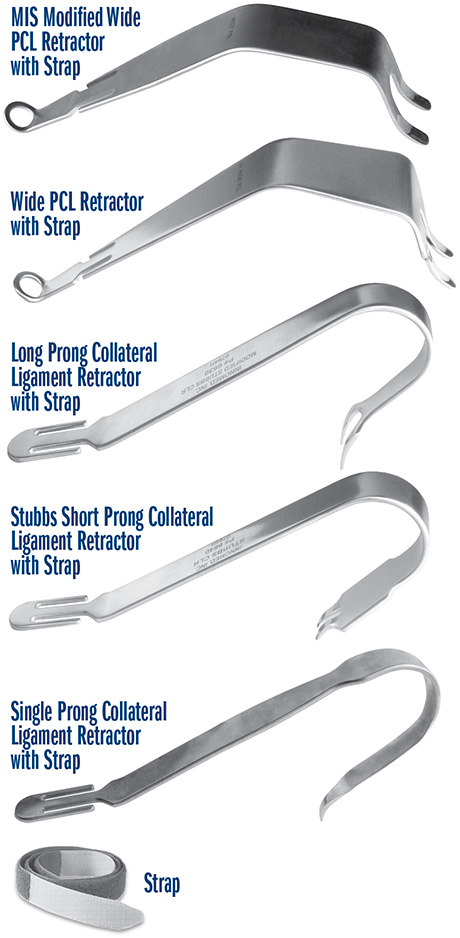

Knee Retractor System

Helps free assisting personnel while providing excellent exposure


Designed by S. David Stulberg, MD (AF Stubbs Short Prong Collateral designed by B. Stubbs, MD)


Knee Retractor System

The Knee Retractor System holds retractors utilizing Velcro® straps. This helps eliminate obstruction of the surgeon's operative area and frees assisting personnel. Five retractor styles are available, and straps are available in two lengths. Retractors and straps are autoclavable.

Knee Retractor System

Product No's:

3515 [MIS Modified Wide PCL with Strap]
Overall Length: 10" (25,4 cm)
Blade Width Above Prongs: 34 mm
Prong Width: 8,5 mm | 17 mm Gap | 8,5 mm

3525 [Wide PCL with Strap]
Overall Length: 10" (25,4 cm)
Blade Width Above Prongs: 57 mm
Prong Width: 8,5 mm | 17 mm Gap | 8,5 mm


6630 [Long Prong Collateral with Strapl]
Overall Length: 8" (20,3 cm)
Overall Blade Width: 21 mm
Prong Width: 4,5 mm | 12 mm Gap | 4,5 mm

6640 [Stubbs Short Prong Collateral with Strapl]
Overall Length: 8" (20,3 cm)
Blade Width Above Prongs: 27 mm
Prong Width: 4,8 mm | 3,4 mm Gap | 4,8 mm


6650 [Single Prong Collateral with Strap]
Overall Length: 8.25" (21 cm)
Blade Width: 14 mm

8100-P [Long Strap–Femur] Package of 10

8120-P [Short Strap–Tibia] Package of 10
®Velcro is a registered trademark of Velcro USA

VIEW SURGICAL VIDEO

Download Product Brochure (PDF)

TOP





Bent Hohmann Retractors — Narrow

Helps retract tissues at the margins of the joint


Short-tipped Designed by Carl DiRaimondo, MD


Bent Hohmann Retractors — Narrow

Useful for retracting tissues at the margins of the joint. Modular weights can be used to help hold the retractor in place.

The OrthoLucent™ version is made of a strong, lightweight carbon fiber PEEK composite material, which is completely radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized.

Product No’s:

7110 [Narrow]
Overall Length: 9.75" (23,8 cm)
Handle Length: 7" (17,8 cm)
Blade Width: 19 mm
Depth from Bend: 4.75" (12,1 cm)

7110-R [OrthoLucent™ Narrow]
Overall Length: 9.75" (23,8 cm)
Handle Length: 7" (17,8 cm)
Blade Width: 19 mm
Depth from Bend: 4.75" (12,1 cm)

7110-01 [Narrow with Extra Long Handle]
Overall Length: 11.5" (29,2 cm)
Handle Length: 10" (25,4 cm)
Blade Width: 19 mm
Depth from Bend: 4.75" (12,1 cm)

7111 [Narrow with Extra Grip Tip]
Overall Length: 9.75" (23,8 cm)
Handle Length: 7" (17,8 cm)
Blade Width: 19 mm
Depth from Bend: 4.75" (12,1 cm)



7115 [Short-tipped Narrow]
Overall Length: 8.625" (21,9 cm)
Handle Length: 7" (17,8 cm)
Blade Width: 19 mm
Depth from Bend: 4.4" (11,2 cm)

7115-01 [Short-tipped Narrow with Extra Long Handle]
Overall Length: 11" (27,9 cm)
Handle Length: 10" (25,4 cm)
Blade Width: 19 mm
Depth from Bend: 4.25" (10,8 cm)

7115-03 [Extra Deep Short-tipped Narrow]
Overall Length: 12.125” (31,1 cm)
Handle Length: 9.75” (24,8 cm)
Depth from Bend: 6.25” (15,9 cm)
Blade Width: 19 mm

Download Product Brochure (PDF)

TOP

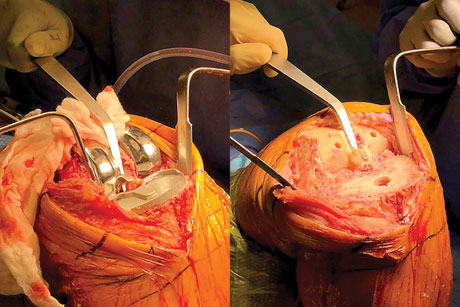

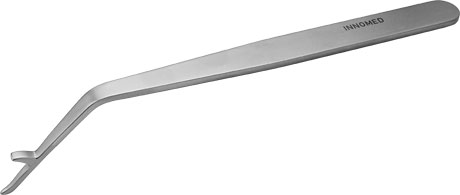

Chandran Tibial Knee Retractor

Designed for use in TKR, the hook on the front of the blade acts as a stop to help prevent the retractor from deep penetration behind the tibia


Designed by Rama E. Chandran, MD


Chandran Tibial Knee Retractor


Chandran Tibial Knee Retractor

Product No: 4533
Overall Length: 10.5" (26,7 cm)
Depth from Bend: 3" (7,6 cm)

Download Product Brochure (PDF)

TOP

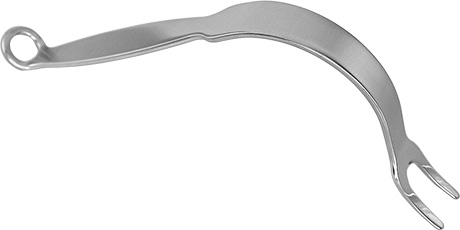

Collateral Ligament Retractor

Helps protect the lateral collateral ligament while exposing the proximal tibia




Collateral Ligament Retractor

Used during total knee surgery and is inserted between the lateral collateral ligament and bone to protect the ligament and expose the proximal tibia. The dual prongs keep the retractor from rocking and assist in the insertion. The retractor is bent so that it is out of the way of the operating surgeon.

Collateral Ligament Retractor

Product No: 6620
Overall Length: 8" (20,3 cm)
Prong Width: 5 mm | 11 mm Gap | 5 mm
Download Product Brochure (PDF)

TOP

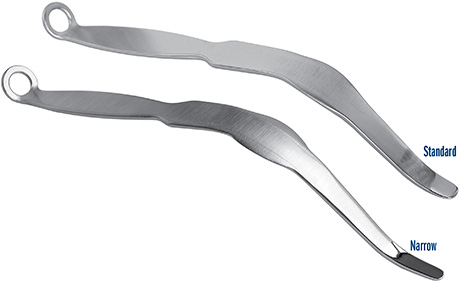

Concave Total Knee Retractor

Used to retract soft tissue away from the femur and tibia




Concave Total Knee Retractor

Used during total knee surgery to retract soft tissue away from the femur and tibia. The blade is designed to curve around the distal femur and tibia plateau.

Product No's:

6720 [Standard]
Overall Length: 9.625" (24,4 cm)
Blade Width: 15 mm


6720-01 [Narrow]
Overall Length: 9.625" (24,4 cm)
Blade Width: 9 mm
Download Product Brochure (PDF)

TOP

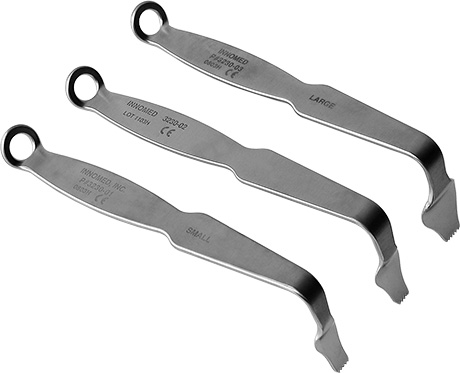

Engh Intercondylar Notch Retractors

Enhances minimally invasive exposure of the medial femoral condyle in unicondylar knee arthroplasty


Designed by Gerard A. Engh, MD


Engh Intercondylar Notch Retractors

Engh Intercondylar Notch Retractors

Product No's:

3230-01 [Small]
Blade Width at Teeth: 9 mm
Depth from Bend: 2.25" (5,7 cm)
Overall Length: 8.125" (20,6 cm)

3230-02 [Medium]
Blade Width at Teeth: 10 mm
Depth from Bend: 2.25" (5,7 cm)
Overall Length: 8.125" (20,6 cm)

3230-03 [Large]
Blade Width at Teeth: 12 mm
Depth from Bend: 2.25" (5,7 cm)
Overall Length: 8.125" (20,6 cm)
Download Product Brochure (PDF)

TOP





Engh Unicondylar Minimally Invasive Knee Surgery Instruments

Designed for use in unicondylar minimally invasive knee surgery


Designed by Gerard A. Engh, MD


Engh Unicondylar Minimally Invasive Knee Surgery Instruments

Cement Scrapers

Right and left design used to scrape cement from around and behind the implants.

Offset Osteotome

Designed to remove the overhanging posterior condyle or osteophystes from the back of the femoral condyle.


Product No’s:

4920-01 [Cement Scraper – Right]
Scraper Head: 5 mm x 9 mm
Overall Length: 8.5" (21,6 cm)
Handle Length: 3.5" (8,9 cm)

4920-02 [Cement Scraper – Left]
Scraper Head: 5mm x 9mm
Overall Lengths: 8.5" (21,6 cm)
Handle Length: 3.5" (8,9 cm)

4930-01 [Offset Osteotome]
Osteotome Head: 10mm x 10mm
Overall Lengths: 8.5" (21,6 cm)
 Handle Length: 3.5" (8,9 cm)

Download Product Brochure (PDF)

TOP

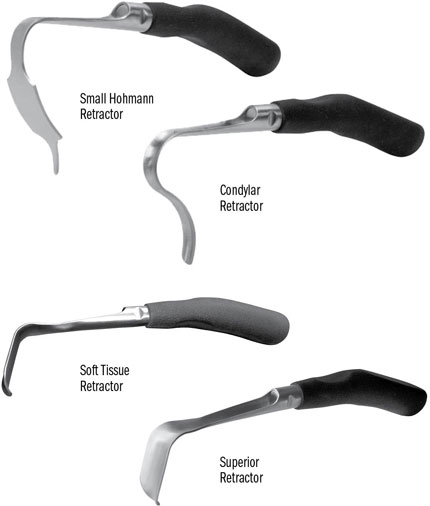

Knee Retractors with Easy Grip Handles

Helps provide excellent visibility and ligament protection during total and unicondylar knee replacement surgery





Knee Retractors with Easy Grip Handles

Silicone handles help reduce holding fatigue.



Product No’s:

SS3035 [Small Hohmann Retractor]
Overall Length: 7" (17,8 cm)
Blade Width: 25 mm


SS3037 [Condylar Retractor]
Overall Length: 7" (17,8 cm)
Blade Width: 12 mm


SS3038 [Superior Retractor]
Overall Length: 8.25" (21 cm)
Blade Width: 31 mm

SS3042 [Soft Tissue Retractor]
Overall Length: 8.25" (21 cm)
Blade Width: 36 mm


Download Product Brochure (PDF)

TOP

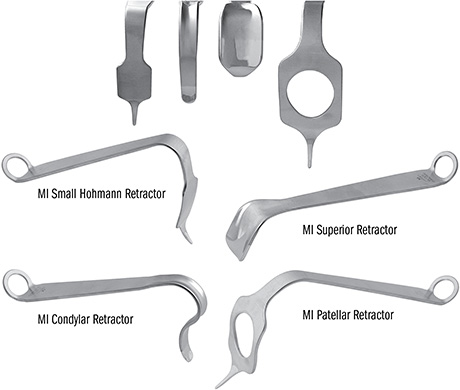

Minimally Invasive Knee Retractors

Helps provide excellent visibility and ligament protection during Total and Unicondylar Knee Replacement Surgery




Minimally Invasive Knee Retractors

Protects ligaments and other soft tissues. Weights can be used to help hold the retractors in place.

Product No’s:

S3035 [MI Small Hohmann Retractor]
Overall Length: .5" (19,1 cm)
Blade Width: 25 mm

S3036 [MI Large Hohmann Retractor]
Overall Length: 8" (20,3 cm)
Blade Width: 36 mm

S3037 [MI Condylar Retractor]
Overall Length: 7.5" (19,1 cm)
Blade Width: 12 mm

S3038 [MI Superior Retractor]
Overall Length: 8.75" (22,2 cm)
Blade Width: 31 mm

S3039 [MI Patellar Retractor]
Overall Length: 10.25" (26 cm)
Blade Width: 45 mm
Download Product Brochure (PDF)

TOP

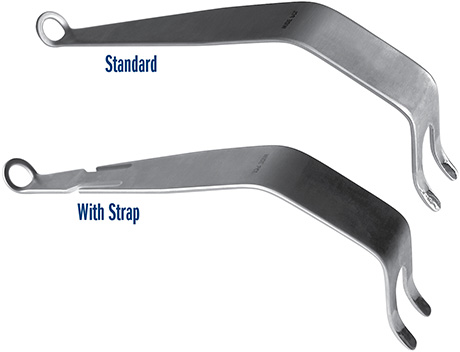

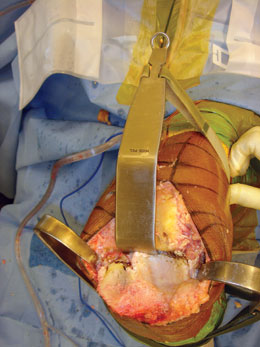

MIS Modified Wide PCL Retractor


Designed by S. David Stulberg, MD


MIS Modified Wide PCL Retractor

MIS Modified Wide PCL Retractor

Product No’s:

3510 [Standard]
Overall Length:10" (25,4 cm)
Blade Width Above Prongs: 34 mm
Prong Width: 8,5 mm | 17 mm Gap | 8,5 mm


3515 [With Strap]
Overall Length:10" (25,4 cm)
Blade Width Above Prongs: 34 mm
Prong Width: 8,5 mm | 17 mm Gap | 8,5 mm
Download Product Brochure (PDF)

TOP

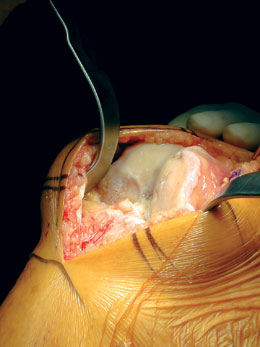

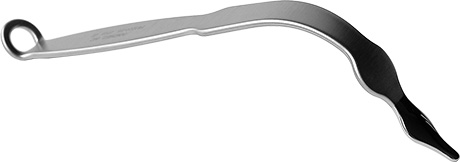

MIS Patella Retractor


Designed by William Robb, MD


MIS Patella Retractor

MIS Patella Retractor

Product No: 3220-05
Overall Length: 9" (22,9 cm)
Patella Pad Width at Widest: 22 mm
Lower Blade Width at Widest: 16 mm
Download Product Brochure (PDF)

TOP





MIS PCL Retractors


Designed by S. David Stulberg, MD


MIS PCL Retractor

MIS PCL Retractor

Product No: 6203 [Medium]
Overall Length: 12.5" (31,8 cm)
Handle Length: 6" (15,2 cm)
Blade Width: 15 mm

Download Product Brochure (PDF)

TOP





MIS Utility Retractor

Used interchangeably for medial exposure, lateral exposure and to assist in posterior exposure for the tibia


Designed by William Robb, MD


MIS Utility Retractor

Helps to keep hands out of the field of view while providing retraction in minimally invasive knee surgery.

Product No: 3220-03
Overall Length: 9" (22,9 cm)
Blade Width: 1,6 cm
Download Product Brochure (PDF)

TOP





Modified Hohmann Retractors — Narrow

Handle is contoured to allow better leverage and visualization


Short-tipped Designed by Carl DiRaimondo, MD


Modified Hohmann Retractors — Narrow

Modified Hohmann Retractors — Narrow

Useful for retracting tissues around the bone. Can be held in place with weights or by hand.

The OrthoLucent™ version is made of a strong, lightweight carbon fiber PEEK composite material, which is completely radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized.

Product No's:

4535 [Narrow]
Overall Length: 10" (25,4 cm)
Blade Width: 14 mm


4535-R [OrthoLucent™ Narrow]
Overall Length: 10" (25,4 cm)
Blade Width: 14 mm


4535-01 [Extra Deep Narrow]
Overall Length: 11.625” (29,5 cm)
Blade Width: 16,4 mm

4545 [Short-tipped Narrow]
Overall Length: 9.5" (24,1 cm)
Blade Width: 14 mm
Download Product Brochure (PDF)


TOP





Narrow Right Angle Retractor

Designed for soft tissue retraction





Narrow Right Angle Retractor

Product No: C1011
Overall Length: 8.5" (21,6 cm)
Handle Length: 6.75" (17,1 cm)
Blade Depth: 4.5" (11,4 cm)
Blade Width: .375" (1 cm)


Download Product Brochure (PDF)


TOP





OrthoLucent™ Hohmann Retractors

The OrthoLucent™ carbon fiber PEEK composite material is strong, lightweight, completely radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized




Radiolucent Hohmann Retractors

Product No’s:

4535-R [Modified Narrow]
Blade Width: 18 mm
Overall Length: 10" (25,4 cm)

4550-R [Modified Blunt]
Blade Width at End: 11 mm
Overall Length: 10.75" (27,3 cm)

4558-R [Standard]
Blade Width: 16 mm
Overall Length: 9.46" (24 cm)

7110-R [Narrow Bent]
Blade Width: 19 mm
Overall Length: 9.75" (23,8 cm)
Handle Length: 7" (17,8 cm)
Depth from Bend: 4.75" (12,1 cm)
Download Product Brochure (PDF)



TOP





Roose Utility Knee Retractor

Used for retraction of the soft tissues laterally or medially and for anterior translation of the tibia during tibial prosthetic insertion


Designed by Paul Roose, DO


Roose Utility Knee Retractor

Roose Utility Knee Retractor

The curvature and width are designed for retraction of soft tissues and excellent visualization of bone structure.

Product No: 4532
Overall Length: 9" (22,9 cm)
Blade Width (above tip): 1,4 cm
Download Product Brochure (PDF)

TOP





"S" Total Knee Retractor

Helps to protect the collateral ligaments and popliteal structures while providing excellent visualization within the knee joint


Designed by R. Barry Sorrells, MD




S Total Knee Retractors

Narrow blade is excellent for minimally invasive knee prodecures.

The design is self-retaining and can be used singularly and in pairs. For cruciate sparing or sacrificing prosthetic designs.

Product No's:

3720-00 [Wide Blade]
Overall Length: 6" (15,2 cm)
Blade Width: 20 mm

3720-01 [Narrow Blade]
Overall Length: 6" (15,2 cm)
Blade Width: 10 mm
"S" Total Knee Retractors

"S" Total Knee Retractor

VIEW SURGICAL VIDEO

Download Product Brochure (PDF)

TOP





Z Knee Retractor

Helps create better access to the articulating surfaces




Z Knee Retractor

Designed to expose the femur and the tibia during knee surgery for better access to the articulating surfaces. The "Z" contouring of the retractor provides the surgeon with an open field of view and working area.

Z Knee Retractor

Product No: 4420-00
Overall Length: 7.25" (18,4 cm)
Blades: 11 mm Wide, 3" (7,6 cm) Deep

VIEW SURGICAL VIDEO

Download Product Brochure (PDF)

TOP





Modular Weights

Help to free assisting personnel by helping to hold retractors in place




Modular Weights

Designed to hook onto a retractor handle, which helps the retractor stay in place by the weights attached rather than being held. The desired weight can be adjusted by attaching additional weights to the primary weight which has the attaching hook.

Modular Weights

Product No’s:

3430-01
Weight: 1.5 lbs. (.68 kg)

3430-02
Weight: 2.0 lbs. (.91 kg)

3430-03
Weight: 2.5 lbs. (1.13 kg) with attaching hook

VIEW SURGICAL VIDEO

Download Product Brochure (PDF)

TOP



2023 Innomed, Inc. All rights reserved.
