Llinas Vertical Offset Gauge
Designed to help equalize the pre- and post-operative vertical hip offset |
|
|
|
Designed by Adolfo Llinás, MD |
|
|
REFERENCE MEASUREMENT STATEMENT (Non-Measuring Function)
This device is not intended to provide quantitative measurements and does not incorporate a measuring function as defined under Regulation (EU) 2017/745 (MDR).
Any scales, markings, or visual indicators present on the device are provided solely for reference and orientation purposes to support general use. These indicators are not calibrated against traceable standards and have not been validated for accuracy, precision, or repeatability.
Accordingly, values derived from these markings shall be considered approximate only and must not be used where accurate or traceable measurements are required for clinical decision-making, diagnosis, or other applications requiring defined metrological performance.
Users shall rely only on devices specifically intended and validated for measurement when quantitative accuracy is required.
|
|
Used intra-operatively to help determine the vertical distance of offset (if any) between the rotational center of the femoral head and the top of the greater trochanter. The measurement can then be used for verification, after femoral stem and head implantation but before final fixation, to help determine what adjustments (if any) are necessary to equalize the pre- and post-operative rotational center-trochanteric offset.
Product No: 1133-02
Overall Length: 17.25" (43,8 cm)
Sliding Bevel Arm Lengths: 2.4" (6 cm) / 3.15" (8 cm)
|
This item has been discontinued. Inventory is limited. |
|
Freeman Forceps
Designed to help with hand pain, fatigue, and hand arthritis |
|
|
|
Designed by Carl R. Freeman, MD |
|
|
|
Allows surgeons to utilize a forceps or pickup type instrument using a more mechanically and ergonomically favorable grip. Forceps can be used with a full-hand grip or “palmed.”
Product No: 1174
Overall Length: 6.875" (17,5 cm)
|
This item has been discontinued. Inventory is limited. |
|

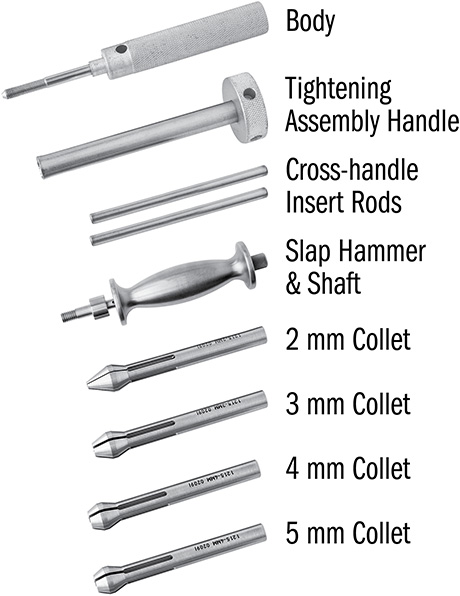

Craig-Type Modular Pin Vise Extractor Set Components
Designed to firmly tighten circumferentially around a wire, pin, broken screw, etc. for removal — especially helpful for the removal of threaded pins |
|
|
|
|
|
|
|
Product No's:
1215-01 [Modular Pin Vise Body]
1215-02 [Modular Pin Vise Tightening Assembly Handle]
1215-03 [Cross-Handle Insert Rods – Pair]
1215-07 [Modular Pin Vise Slap Hammer Shaft]
1215-SH [Modular Pin Vise Slap Hammer]
1215-2mm [Modular Pin Vise 2mm Collet]
1215-3mm [Modular Pin Vise 3mm Collet]
1215-4mm [Modular Pin Vise 4mm Collet]
1215-5mm [Modular Pin Vise 5mm Collet]
|
This item has been discontinued. Inventory is limited. |
|

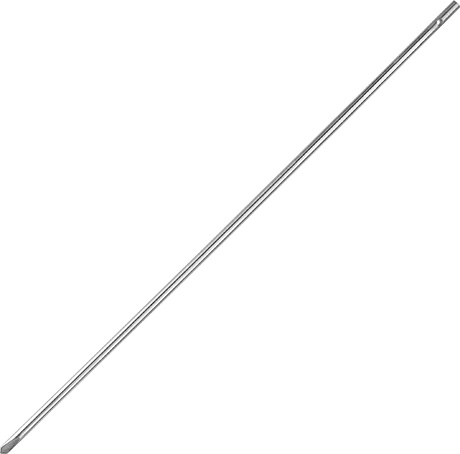

Pin with Wire/Suture Hole |
|
|
|
Designed by Evan Argintar MD |
|
|
|
Product No: 1227
Overall Length: 6" (15,2 cm)
|
This item has been discontinued. Inventory is limited. |
|
O’Brien Osteotomy Guide
Designed for chevron bunionectomies |
|
|
|
Designed by Todd O’Brien, DPM |
|
|
The guide clamps directly onto bone while helping to retract the EHL tendon. Guide slots fit most saw blades (up to 0.4mm), creating traditional chevron (60°), and long dorsal or plantar arm (50°) osteotomies. K-wire fixation is not required, although a guide pin may be inserted at apex. Guide available in right or left.
|
Product No’s:
1380-L [Left]
Overall Length: 6" (15,2 cm)
1380-R [Right]
Overall Length: 6" (15,2 cm)
Patent Pending #11,752,366
|
|
|
This item has been discontinued. Inventory is limited. |
|

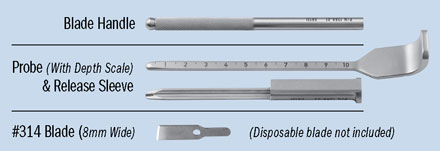

O’Brien Probe Release Sleeve
Designed for minimally invasive plantar fasciotomy surgery and other soft tissue release procedures |
|
|
|
Designed by Todd O’Brien, DPM |
|
|
|
Minimally invasive soft tissue releases can now be performed with reduced instrumentation and lower costs (no custom blade required). May also be used for minimally invasive neuroma decompression and minimally invasive gastroc recession. Uses a standard #314 blade (not included).
Define:
The Probe defines the anatomy via blunt dissection.
Capture:
The integrated Release Sleeve/Probe assembly captures and isolates the fascia from the surrounding soft tissues.
Release:
A #314 blade is advanced, releasing the fascia the desired distance as confirmed on the Probe scale.
Product No's:
1388-00 [Complete Assembly]
Disposable blade not included.
Individual Product Numbers:
1388-01 [Blade Handle]
Overall Length: 4.125" (10,5 cm)
1388-02 [Probe & Release Sleeve] (2 Pcs)
Overall Length: 5.5” (14 cm)
|
This item has been discontinued. Inventory is limited. |
|

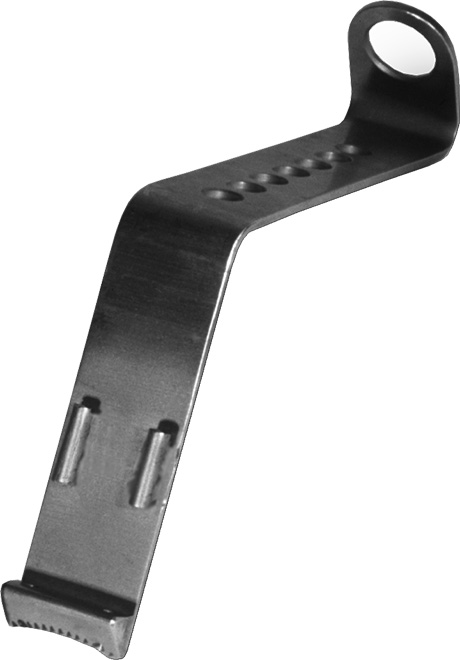

Conjoined Tendon Retractor
Placed on the medial glenoid neck behind the conjoined tendon and behind the glenoid labrum and held in place with two Steinman pins drilled through the guide slots into the glenoid neck. |
|
|
|
Designed by William J. Mallon, MD |
|
|
|
Product No: 1550
|
This item has been discontinued. Inventory is limited. |
|
Self-Retaining Tension Retractor
The expandable design allows for a wide variety of blades to be used for exposure in total joint and trauma procedures |
|
|
|
|
|
|
|
Handle only — blades not included.
Product No: 1586
Overall Length: 8.875" (22,5 cm)
Maximum Width at Pegs: 8" (20,3 cm)
|
This item has been discontinued. Inventory is limited. |
|

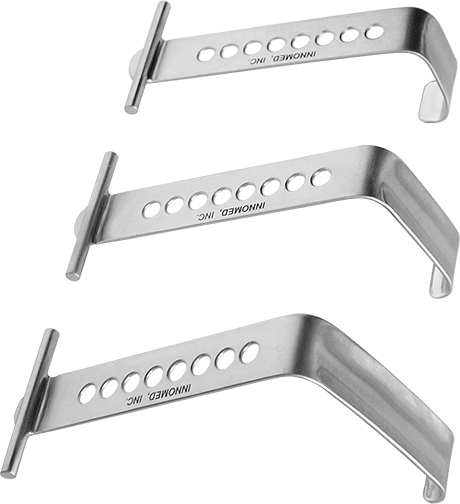

Assistant Free Shoulder Retractor Center Blades
Used for soft tissue retraction during hip & shoulder surgery |
|
|
|
|
|
|
|
Product No’s:
1590-02 [2" T-Handle]
Blade Depth: 2" (5,1 cm)
Handle Length: 6" (15,2 cm)
1590-03 [3" T-Handle]
Blade Depth: 3" (7,6 cm)
Handle Length: 6" (15,2 cm)
1590-04 [4" T-Handle]
Blade Depth: 4" (10,2 cm)
Handle Length: 6" (15,2 cm)
|
This item has been discontinued. Inventory is limited. |
|

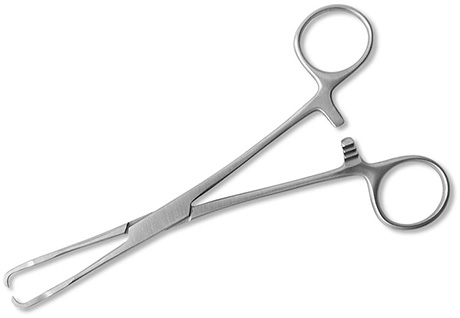

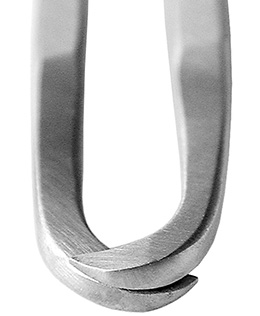

Cook Rotator Cuff Tenaculum
Can be used for open and mini-open repairs |
|
|
|
Designed by Marshall L. Cook, MD |
|
|
|
Design allows for use in tight spaces and
helps prevent tissue from being crushed. The
tenaculum can be pivoted around its single set
of teeth for optimal positioning, and can be
repositioned quickly and easily.
Product No: 1630
|
This item has been discontinued. Inventory is limited. |
|
Duncan Metatarsal Clamp
Designed to be used on bones of the foot to stabilize an osteotomy or fracture in the corrected position for fixation through the opening in the top of the clamp |
|
|
|
Designed by Gregory S. Duncan, DPM |
|
|
|
May also be used for open reduction internal fixation for hand or fibula procedures.
Product No's:
1638 [Large]
Overall Length: 7" (17,8 cm)
Clamp Pads: 1.3" x .625" (3,3 cm x 1,6 cm)
1638-25 [Medium]
Overall Length: 6.5" (16,5 cm)
Clamp Pads: 1" x .5" (2,5 cm x 1,3 cm)
1638-50 [Small]
Overall Length: 6.25" (15,9 cm)
Clamp Pads: .625" x .325" (1,6 cm x .8 cm)
|
This item has been discontinued. Inventory is limited. |
|

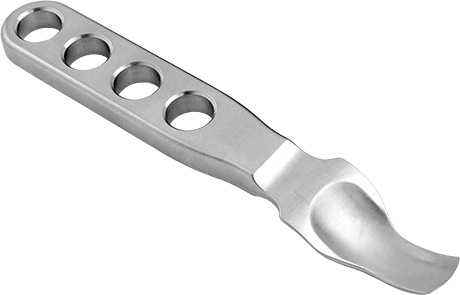

Durst Metatarsal Retractor
Designed for exposure and retraction when performing arthrodesis of the MTP joint |
|
|
|
Designed by Heiko Durst, MD |
|
|
|
Product No: 1642-02
Overall Length: 7" (17,8 cm)
|
This item has been discontinued. Inventory is limited. |
|

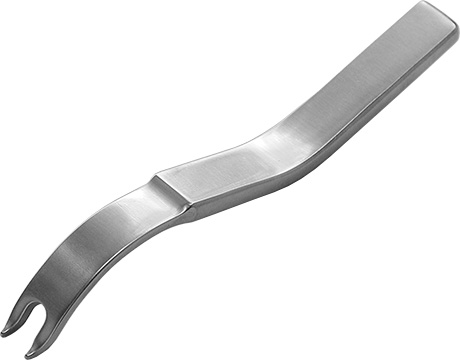

Rotator Cuff Advancer
Helps in advancing the rotator cuff during mini deltoid splitting rotator repairs |
|
|
|
Designed by Gary A. Pattee, MD |
|
|
|
Allows the use of a small incision and helps
to minimize trauma to the rotator cuff.
Product No: 1650
|
This item has been discontinued. Inventory is limited. |
|

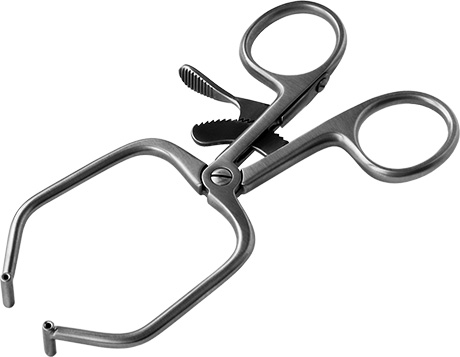

Wurapa Small Joint Compressor
Designed to allow one-handed manipulation and deployment once fixation pins are placed |
|
|
|
Designed by Raymond K. Wurapa, MD |
|
|
|
Designed to simplify several small joint procedures:
- Useful for intercarpal stabilization while performing ligament reconstructions (e.g. scapholunate ligament repair/reconstruction)
- Preparation of small bone non-unions before bone grafting and fixation
- Preparation of small joints for arthrodesis (e.g. partial wrist fusion)
|
Pins should be cut short above the pin guides to allow full access to the operative site.
Product No: 1753 [Single 1.1 mm Hole Compressor]
Compresses From: 28 mm
Overall Length: 4.5" (11,4 cm)
|
This item has been discontinued. Inventory is limited. |
|
Weinert Bone Holding Elbow Fracture Reduction Clamp
Designed to securely hold an elbow fracture reduction |
|
|
|
Designed by Carl R. Weinert, MD |
|
|
|
The stops on each end help prevent excessive penetration of metaphyseal and soft bone.
Product No: 1756-L [Clamp – Assymetric]
Overall Length: 8.75" (22,2 cm)
|
This item has been discontinued. Inventory is limited. |
|
Stoll Bone Plate Clamp
Designed to help hold a bone or bone plate in position for reduction and fixation—helpful with clavicle and fibula fractures |
|
|
|
Designed by Jordan Stoll, MD |
|
|
|
Product No: 1774
Overall Length: 10" (25,4 cm)
|
This item has been discontinued. Inventory is limited. |
|
Macko Square Tipped Rongeur – Small Jaw
Square tipped rongeur with an ergonomic grip, double action mechanism, long reach, and low profile — for use in total ankle, hip, knee, and spine surgery |
|
|
|
Designed by Victor W. Macko, MD |
|
|
 |
In total ankle surgery, the aggressive, low profile jaws aid in the removal of tibial bone in spite of limited space. The square ended tip helps produce a flat, finished surface following anterior talar facet reaming.
When used for morcelizing bone graft, the shallow, wide jaw helps avoid impaction. Ergonomic grip, double action mechanism, long reach, and low profile. |
|
Product No: 1778-01 [Small Jaw]
Jaw Bite: 5 x 18 mm
Overall Length: 10" (25,4 cm)
|
This item has been discontinued. Inventory is limited. |
|

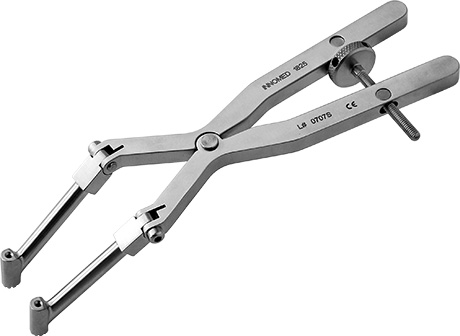

Small Bone Compressor/Distractors for 1/16" Pins
Designed to distract small joints in a linear direction in foot, hand, and spine surgery |
|
|
|
Designed by Richard Wittock, DPM and Robert Baglio, DPM |
|
|
|
Multiple hinge design allows better joint visualization and access. Distal hinge can be loosened once the distraction nut is tightened, allowing the surgeon to move the handle out of the surgical field.
Product No's:
1825-05 [With Fixed Arms For 1/16" Pins]
Overall Length (Flat): 7.5" (19,1 cm)
Arm Length: 2.25" (5,7 cm)
1825-01-05 [With Rotating Arms For 1/16" Pins]
Overall Length (Flat): 7.5" (19,1 cm)
Arm Length: 2.25" (5,7 cm)
Replacement Items:
1825-01S [Compressor/Distractor Screw]
Overall Length (Flat): 7.5" (19,1 cm)
Arm Length: 2.25" (5,7 cm)
1825-S [Compressor/Distractor Short Screw]
Overall Length (Flat): 7.5" (19,1 cm)
Arm Length: 2.25" (5,7 cm)
|
This item has been discontinued. Inventory is limited. |
|

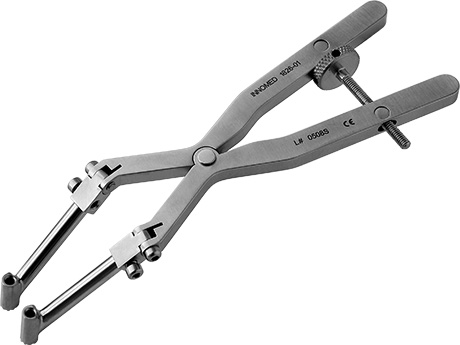

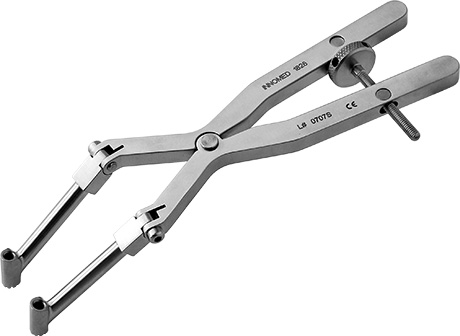

Small Bone Compressor/Distractors for 1/8" Pins
Designed to distract small joints in a linear direction in foot, hand, and spine surgery |
|
|
|
Designed by Richard Wittock, DPM and Robert Baglio, DPM |
|
|
 |
Multiple hinge design allows better joint visualization and access. Distal hinge can be loosened once the distraction nut is tightened, allowing the surgeon to move the handle out of the surgical field.
Product No's:
1826-05 [With Fixed Arms For 1/8" Pins]
Overall Length (Flat): 7.5" (19,1 cm)
Arm Length: 2.25" (5,7 cm)
1826-01-05 [With Rotating Arms For 1/8" Pins]
Overall Length (Flat): 7.5" (19,1 cm)
Arm Length: 2.25" (5,7 cm)
Replacement Items:
1825-01S [Compressor/Distractor Screw]
Overall Length (Flat): 7.5" (19,1 cm)
Arm Length: 2.25" (5,7 cm)
1825-S [Compressor/Distractor Short Screw]
Overall Length (Flat): 7.5" (19,1 cm)
Arm Length: 2.25" (5,7 cm)
Optional Items:
Shouldered Pin Retractors
Can be used for opening wedge osteotomies, obtaining length or distraction to correct a foreshortened malunion, or in trauma cases (calcaneus fractures, tibial plateau fractures, pilon fractures). With three different length shouldered pins, the retractor can be set at different depths to provide the necessary retraction and/or distraction.
SOLD IN PAIRS
4694-01 [Long]
Overall Length: 67 mm
End-to-shoulder: 22 mm
Pad: 13 mm x 15 mm
4694-02 [Medium]
Overall Length: 67 mm
End-to-shoulder: 31 mm
Pad: 13 mm x 15 mm
4694-03 [Short]
Overall Length: 67 mm
End-to-shoulder: 40 mm
Pad: 13 mm x 15 mm
|
This item has been discontinued. Inventory is limited. |
|
OrthoLucent™ Small Bone Clamp
|
|
|
|
|
|
|
|
The OrthoLucent™ carbon fiber material is strong, lightweight, completely radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized.
Product No: 1828
Overall Length: 7" (17,8 cm)
|
This item has been discontinued. Inventory is limited. |
|
Glenoid Spreader
Designed to aid glenoid exposure |
|
|
|
|
|
|
 |
Product No's:
1861-R [Right]
Overall Length: 10.5" (26,7 cm)
1861-L [Left]
Overall Length: 10.5" (26,7 cm)
|
This item has been discontinued. Inventory is limited. |
|

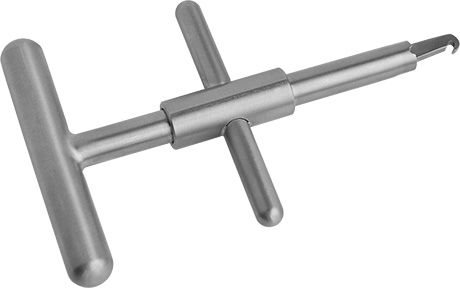

Stanton Bent Pin Extractor
Designed to tightly grasp bent pins and apply torque to help remove fixation pins |
|
|
|
Designed by John L. Stanton, MD, FACS |
|
|
|
The "T" handle allows for a strong grasp and pull during removal.
Will grasp pins up to 2 mm.
Product No: 1891
Overall Length: 5" (12,7 cm) |
This item has been discontinued. Inventory is limited. |
|

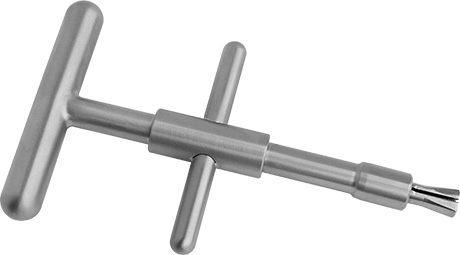

Stanton Pin Extractor
Designed to tightly grasp and apply torque to help remove standard 1/8" (3.2 mm) pins used during knee arthroplasty surgery |
|
|
|
Designed by John L. Stanton, MD, FACS |
|
|
|
The "T" handle allows for a strong grasp and pull during removal.
Will grasp pins up to 3.2 mm.
Product No: 1892
Overall Length: 5.25" (13,3 cm)
|
This item has been discontinued. Inventory is limited. |
|

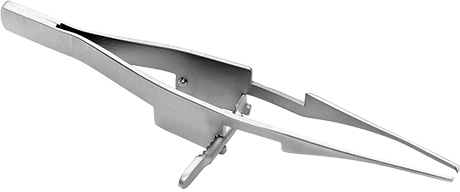

Balfour Locking Adson Forceps
A modified adson forceps designed with a locking ratchet to hold the forceps closed around a small bone fracture |
|
|
|
Designed by George Balfour, MD |
|
|
|
Product No: 2016
|
This item has been discontinued. Inventory is limited. |
|
Byrd Arthroscopic Hip Elevators
Designed for use in various arthroscopic hip procedures |
|
|
|
Designed by J. W. Thomas Byrd, MD |
|
|
|
The versatile elevators allow freeing up of soft tissue around bone, can assist in removing the fibrous layer off of a cam lesion, and can be used to help elevate the capsule. They are also useful for mobilizing the labrum in preparation for repair or acetabular rim trimming.
Product No’s:
2045 [Extra Long Elevator – Square Tip]
Overall Length: 13.625" (34,6 cm)
Pad Dimensions: 4.8mm x 19mm
2046 [Extra Long Elev. – Angled Joseph Str. Edge]
Overall Length: 13.625" (34,6 cm)
Pad Dimensions: 4.4mm x 12mm
|
This item has been discontinued. Inventory is limited. |
|
Sarraf Fracture Reduction Thimble
Helps to hold bone fragments in place during fixation |
|
|
|
Designed by Khaled M. Sarraf, MD |
|
|
|
Provides the surgeon with an instrument for maintaining a fracture fragment in the appropriately reduced position during application of K-wires. Helpful in osteoperotic bone that is not amiable to forced reduction using reduction clamps. The wire guides help to aim the K-wire, with three positions for choice of optimal placement and for parallel wire placement. The pointed tips at the end of the thimble help to reduce the chance of slippage while maintaining a fracture reduction.
Product No's:
2290 [22 mm]
Overall Length: 1.185" (3 cm)
Guides Accept K-wires Up To: .078" (2 mm)
2291 [26 mm]
Overall Length: 1.185" (3 cm)
Guides Accept K-wires Up To: .078" (2 mm)
|
This item has been discontinued. Inventory is limited. |
|
Arthroscopic Shoulder Rasp
Used to abrade the anterior scapular neck to stimulate a vascular healing response |
|
|
|
|
|
|
|
Terminal bend matches the angle of the scapular from a standard anterior portal.
Product No: 2310
Overall Length: 9.675" (24,5 cm)
Handle Length: 3.5" (8,9 cm)
|
This item has been discontinued. Inventory is limited. |
|
Freeman Arm Holder
Allows intraoperative positioning for use in all open, arthroscopic, and replacement shoulder procedures |
|
|
|
Designed by Carl R. Freeman, MD |
|
|
|
-
Simple design for fast and easy positioning
-
Multiple elbows allow a wide range of positioning
-
Arm connector is mobile and can be easily released for repositioning
-
Connects over the drape in the sterile field using the supplied rail clamp
-
Compact for easy storage
-
Complete unit is autoclavable
Product No: 2420
Includes: #2595 Table Clamp
|
This item has been discontinued. Inventory is limited. |
|

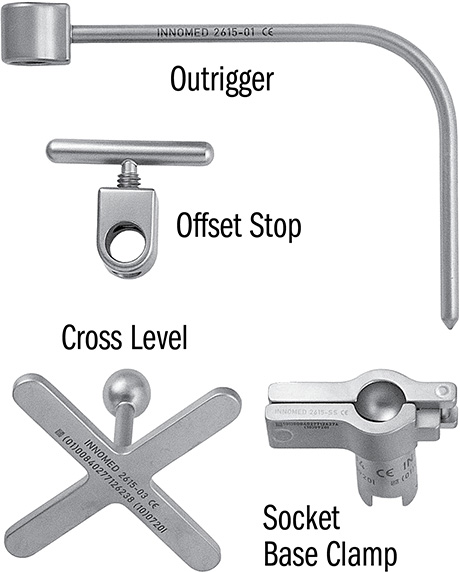

Parsley Intraoperative Leg Length/Offset Device – Replacement Parts
For use with lateral femoral positioned patients in both the direct lateral and posterior hip approaches, the device is designed to help with intraoperative leg length and femoral offset assessment, and can be placed prior to dislocation of the hip and replaced following trial implantation and reduction, and again at the time of final implantation and reduction |
|
|
|
Designed by Brian S. Parsley, MD |
|
|
|
Product No’s:
2615-01 [Outrigger]
2615-02 [Offset Stop]
2615-03 [Cross Level]
2615-04 [Socket Base Clamp]
|
This item has been discontinued. Inventory is limited. |
|
Lombardi Leg Positioner
Designed to hold the leg during total knee surgery, the unrestricted design helps allow for manipulation of the leg |
|
|
|
Designed by Adolph V. Lombardi Jr., MD |
|
|
|
|
This item has been discontinued. Inventory is limited. |
|
Sanders Tube Holder
Designed to help stabilize the Sanders Extremity Positioning Tubes (#2740-01 & 2740-02) |
|
|
|
Designed by Richard Sanders, MD |
|
|
|
The tube holder will help stabilize the tubes when used for lower extremity positioning for lower extremity surgery. Also, by using the tubes with the Stulberg Sliding Bolster (#2730), the knee can be placed in less flexion during the initial incision and wound closure.
Product No: 2740-03
|
This item has been discontinued. Inventory is limited. |
|
Sanders Pin Inserter
Designed to aim and control the placement of the flexible k-wires when they contact hard cortical bone, while protecting the neurovascular structures from the spinning wire |
|
|
|
Designed by Richard Sanders, MD |
|
|
|
The ends of the guide are smooth and can be passed through skin and tissue with less danger to neurovascular structures. Narrow guides are ideal for wrist surgery such as distal radius fractures, intercarpal fusions, carpal dislocations, etc., where K-wires must be inserted from angles not accessible through the initial incision. The guides can be inserted through appropriately placed small peripheral incisions and placed on the bone with direct vision from the primary incision. The K wire is then passed through the guide, helping to protect adjacent soft tissue structures.
Product No: 3015-054
Accepts k-wires up to:.054" (1,4 mm)
Tube Length: 1.875" (4,8 cm)
Overall Length: 4.25" (10,8 cm)
Handle Length: 3.15" (8 cm)
|
This item has been discontinued. Inventory is limited. |
|
Burgess Modified Pin Inserter
Designed to aim and control the placement of flexible k-wires when they contact hard cortical bone, while helping to protect neurovascular structures from the spinning wire |
|
|
|
Designed by Richard Sanders, MD
Design modification by Kraig Burgess, DO |
|
|
|
Narrow guide is ideal for wrist surgery such as distal radius fractures, intercarpal fusions, carpal dislocations, etc., where K-wires must be inserted from angles not accessible through the initial incision. The guides can be inserted through appropriately placed small peripheral incisions and placed on the bone with direct vision from the primary incision. The K wire is then passed through the guide, helping to protect adjacent soft tissue structures. The two prongs on the end of the inserter help to gain a purchase in the bone to help prevent the unit from slipping.
Product No: 3016
Accepts k-wires up to: .054" (1,4 mm)
Tube Length: 1.875" (47 mm)
Overall Length: 4.5" (11,4 cm)
Handle Length: 3.875" (9,8 cm)
|
This item has been discontinued. Inventory is limited. |
|
Pin Inserter/Extractor for 3/16" (4.8 mm) Pins
Helps provide better leverage, stability and control when inserting/extracting pins |
|
|
|
|
|
|
|
The Pin Inserter/Extractor is completely cannulated. When used on long pins the instrument can be next to the bone or skin for stability and control. The grasping end is contoured to not block the surgeon's field of view. The handle is shaped so not to slide in the surgeon's hand and for better leverage. May also be used to pull a drain needle from the surgical site. The design helps to protect operating personnel from the sharp tip of the needle.
The Pin Inserter slap hammer is designed to be screwed into a threaded pin inserter/extractor to help in removing pins in hard bone.
Product No: 3030
|
This item has been discontinued. Inventory is limited. |
|
Lachiewicz-Hoover Patella Retractor
Helps to retract and prevent harm to the polyethylene implant from scratches, gouges, and bovie cautery during debridement and removal of other components |
|
|
|
Designed by Paul Lachiewicz, MD & Steve Hoover, MD |
|
|
 |
In primary TKA, it is used after implantation of components so the surgeon can debride the lateral gutter of synovium and for exposure for hemostasis laterally. Also extemely valuable for revisions in which a well fixed patella component is to be retained.
Product No: 3235
Overall Length: 6.5" (16,5 cm)
Patella Pad Diameter: 1.5" (3,8 cm)
Patella Pad Thickness: .25" (6,35 mm)
|
This item has been discontinued. Inventory is limited. |
|
Cleaning Probe for Askins Modified Cobra Retractor with Suction Tube |
|
|
|
Designed by Vance Askins, MD |
|
|
Tube Cleaning Probe
|
RETRACTOR
DISCONTINUED
AND SOLD OUT.
CLEANING TUBE ONLY AVAILABLE
Product No: 3408-01 [Cleaning Probe Only]
|
This item has been discontinued. Inventory is limited. |
|
Sheffield Universal Prosthetic Elbow Extraction Instruments
Designed to aid in the extraction of the four commonly used elbow prostheses |
|
|
|
Designed by Mr. Amjid A. Ali and Mr. David Stanley |
|
|
|
Design based on the principle that the device should have good hold and that the force used to extract the prosthesis should be applied in line with the long axis of the implant.
Designed to help extract the humeral and ulnar components during total elbow revision surgery.
Product No’s:
3620-01 [Kudo and iBP Ulnar Component Extraction Clamp
3620-02 [Kudo, Souter-Strathclyde and iBP Humeral Component Extraction Clamp]
3620-03 [Coonrad-Morrey Ulnar and Humeral Component Extraction Hook]
3620-04 [T-Wrench]
3620-05 [Coonrad-Morrey Pin Remover]
3620-06 [Slap Hammer]
|
This item has been discontinued. Inventory is limited. |
|
Incavo Tibia Component Revision Osteotomes
Designed to help break the posterior cement-bone interface when removing a cemented tibial TKA component |
|
|
|
Designed by Stephen J. Incavo, MD |
|
|
|
Also used to help break the posterior implant-bone interface when removing a cementless tibial TKA component.
Product No's:
3621-01 [Standard Osteotome]
Blade Length: 10 mm
Blade Width: 1/2" (12.7 mm)
Blade Offset: 3/4" (19.1 mm)
Overall Length: 8.5" (21,6 cm)
3621-02 [Medium Osteotome]
Blade Length: 14 mm
Blade Width: 1/2" (12.7 mm)
Blade Offset: 3/4" (19.1 mm)
Overall Length: 8.5" (21,6 cm)
|
This item has been discontinued. Inventory is limited. |
|
Medial Malleolus Fracture Reduction Aid
Designed to hook under the medial malleolus to help reduce the medial malleolus fragment while two K-wire guides supply trajectory for wires |
|
|
|
Designed by Christopher Blair, DO |
|
|
|
For K-wires up to 1,6 mm (.062")
Product No: 3664
Overall Length: 7" (17,8 cm)
Handle Length: 4" (10,2 cm)
Plate Width: .8" (2 cm)
Plate Length: 3" (7,6 cm)
Guide Tube Length: 6 mm
|
This item has been discontinued. Inventory is limited. |
|
Kudrna Cup Channel Chisel
Designed to help break the bone-prosthetic interface of well-fixed non-cemented acetabular components being revised
|
|
|
|
Designed by James C. Kudrna, MD |
|
|
|
Ultra hard titanium nitride coating helps to extend chisel life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion.
Product No: 3686
Overall Length: 12" (30,5 cm)
Handle Length: 3.5" (8,9 cm)
Blade Width: 30 mm
Blade Depth: 15 mm
|
This item has been discontinued. Inventory is limited. |
|
Expanding Cannulated Corkscrew Femoral Head Remover
Designed with internal blades which can be expanded from the inside out to better engage a femoral head for successful removal |
|
|
|
Designed by Tim Seachris |
|
|
|
Can be inserted with hand pressure or with tap and turn method. Engagement blades are aligned perpendicular to the large T-handle.
Product No: 3710
Overall Length: 10.5" (26,7 cm)
|
This item has been discontinued. Inventory is limited. |
|
Extended Double Action Pliers
|
|
|
|
|
|
|
 |
Product No’s:
3962 [Needle Nose]
Overall Length: 13" (33 cm)
Jaw Length: 2.625" (6,7 cm)
Jaw Width: 2.5 mm
3961 [Blunt Nose]
Overall Length: 11.75" (29,9 cm)
Jaw Length: 1.25" (3,2 cm)
Jaw Width: 10 mm
|
This item has been discontinued. Inventory is limited. |
|
Broach Extraction OrthoVise™
Designed for hip broach extraction when the broach post is broken or there is a failure of the broach handle |
|
|
|
Designed by Joel Matta, MD |
|
|
|
Product No’s:
3976-00 [Broach Extraction OrthoVise Set
with Small Slaphammer]
Set includes / Available Individually:
3976-01 [Broach Extraction OrthoVise Only]
Overall Length: 9" (22,9 cm)
3955 [Slap Hammer for Small OrthoVise]
Overall Length: 8.75" (22,2 cm)
3985-03 [Threaded Adapting Screw–Small]
|
This item has been discontinued. Inventory is limited. |
|
Cannestra Cup Liner Removal Osteotomes
Designed to help remove a well-fixed acetabular cup liner
|
|
|
|
Designed by Vince Cannestra, MD |
|
|
|
Ultra hard titanium nitride coating helps to extend life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion
Product No's:
4085-00 [Set of Three with Case]
Also available individually:
4085-01 [Cross Blades]
Overall Length: 8.375" (21,3 cm)
Blade Diameter: 2" (5,1 cm)
4085-02 [Curved Lever]
Overall Length: 8.5" (21,6 cm)
4085-03 [Single Blade]
Overall Length: 8.375" (21,3 cm)
Blade Diameter: 2" (5,1 cm)
|
This item has been discontinued. Inventory is limited. |
|
Stanton Forward Retractors
Designed to work as “tissue pushers”, helping to enhance exposure by allowing the surgeon or an assistant to push forward the opposite side of the wound while retracting (or not) the nearer side |
|
|
|
Designed by John L. Stanton, MD, FACS |
|
|
 |
Helps the assistant to hold the wound open without becoming fatigued and having to reach around to the opposite side of the wound to use another retractor.
|
|
|
Stanton Forward Ragnell Retractor
|
|
|
|
Designed by John L. Stanton, MD, FACS |
|
|
|
Product No: 4510-01
Overall Length: 6.25" (15,9 cm)
Blade Offset: 1.625" (4,1 cm)
Blade Width: 3.1 mm
Blade Depth: Shallow 13 mm, Deep 19 mm
|
This item has been discontinued. Inventory is limited.
|
|
Stanton Forward Rake Retractors
|
|
|
|
Designed by John L. Stanton, MD, FACS |
|
|
|
Product No's:
4514-01 [Shallow]
Overall Length: 6.25" (15,9 cm)
Blade Offset: 1.625" (4,1 cm)
Blade Width: 5.1 mm
Blade Depth: 10 mm
4514-02 [Deep]
Overall Length: 6.25" (15,9 cm)
Blade Offset: 1.625" (4,1 cm)
Blade Width: 5.1 mm
Blade Depth: 17 mm
|
This item has been discontinued. Inventory is limited. |
|
Multi-Purpose Hip & Knee Retractors
Designed for use in both hip and knee arthroplasty procedures |
|
|
|
Designed by Vasilios Mathews, MD |
|
|

|
During direct anterior hip arthroplasty procedures, the fin of this retractor fits the contours of the acetabular rim and retracts the anterior soft tissues, while the short length of the spike helps limit the penetration into the neurovascular zones.
In knee surgery, the retractors can be used to help protect the patellar tendon behind the fin at the lateral tibial border. Also useful as a soft-tissue and fat pad retractor during prosthesis implantation, helping to ensure a dry cancellous bed for cementation.
Product No's:
4554-00 [Set of Left and Right]
Also available individually:
4554-L [Left]
Overall Length: 11.25" (28,6 cm)
Blade Width: 1.5" (38 mm)
4554-R [Right]
Overall Length: 11.25" (28,6 cm)
Blade Width: 1.5" (38 mm) |
This item has been discontinued. Inventory is limited. |
|
Shouldered Pin Retractors
Useful in fracture and reconstructive cases
|
|
|
|
Designed by M. Jake Hamer, MD |
|
|
|
Can be used for opening wedge osteotomies, obtaining length or distraction to correct a foreshortened malunion, or in trauma cases (calcaneus fractures, tibial plateau fractures, pilon fractures). With three different length shouldered pins, the retractor can be set at different depths to provide the necessary retraction and/or distraction. Can be used with any compressor and/or distractor that can accept 1/8" (3.2 mm) pins.
Product No's:
SOLD IN PAIRS
4694-01 [Long]
Overall Length: 67 mm
End-to-shoulder: 22 mm
Pad: 13 mm x 15 mm
4694-02 [Medium]
Overall Length: 67 mm
End-to-shoulder: 31 mm
Pad: 13 mm x 15 mm
4694-03 [Short]
Overall Length: 67 mm
End-to-shoulder: 40 mm
Pad: 13 mm x 15 mm
|
This item has been discontinued. Inventory is limited. |
|
O'Reilly Direct Access Anterior Broaching Retractor
Designed for use in obtaining improved proximal exposure
for femoral canal preparation during minimally invasive
direct anterior THA |
|
|
|
Designed by Michael P. O'Reilly, MD |
|
|
|
-
Lateral flange protects the muscle of tensor fascia lata and soft tissues during insertion and removal of femoral broaching instruments
-
Narrow tip for deep placement posterior to the femoral neck, anterior to the greater trochanter
-
Rotation of the retractor handle helps keep the instrument against the patient and out of the surgeon's line of sight
-
May also be used as an alternate to a trochanteric retractor during femoral broaching with a standard posterior approach
Product No's:
4698-L [Left]
Overall Length: 9.5" (24,1 cm)
Blade Width: 57 mm
4698-R [Right]
Overall Length: 9.5" (24,1 cm)
Blade Width: 57 mm
|
This item has been discontinued. Inventory is limited. |
|

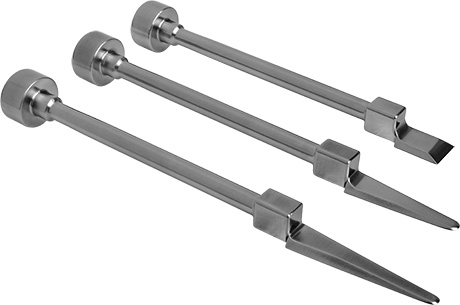

Unger Total Knee Revision Osteotomes
Helps with tibial tray removal during knee revision surgery |
|
|
|
Designed by Anthony Unger, MD |
|
|
 |
Product No's:
4700 [Set of Three]
Also available individually:
4701 [Wide Starter]
Blade Length: 25 mm
Blade Width: 19 mm
Overall Length: 7" (17,8 cm)
4705 [Narrow Starter]
Blade Length: 55 mm
Blade Width (Max): 19 mm
Overall Length: 8.75" (22,2 cm)
4710 [Finisher]
Blade Length: 70 mm
Blade Width (Max): 19 mm
Overall Length: 9.25" (23,5 cm) |
This item has been discontinued. Inventory is limited. |
|
Bernard Spinal Alignment Block
Designed to act as a right angle “set square”, using stock sterile rods, to help assess intraoperative mechanical axis of the spine |
|
|
|
Designed by Jason Bernard, MB, MD, FRCS |
|
|
|
Holes of 5.5mm, 6.0mm, and 6.35mm are drilled at right angles through the block on the 1cm high faces. Two sterile stock rods can be inserted into the holes to create the "set square".
Product No: 5006
Dimensions: 5 cm x 5 cm x 1 cm
Rod Holes: 5.5 mm, 6.0 mm & 6.35 mm
|
This item has been discontinued. Inventory is limited. |
|
Adjustable Wrench
Designed for quick one-handed adjustments |
|
|
|
|
|
|
|
Product No: 5015-00
Overall Length: 8" (20,3 cm)
Handle Length: 5.5" (14 cm) |
This item has been discontinued. Inventory is limited. |
|
Rogozinski Offset Ring Curette
Curette is angled to allow access for easier bone preparation for anterior lumbar interbody fusion |
|
|
|
Designed by Chaim Rogozinski, MD
and Abe Rogozinski, MD |
|
|
 |
Product No: 5020
Overall Length: 16.25" (41,3 cm)
Handle Length: 9" (22,9 cm)
Ring Outide Dia.: 10 mm
|
This item has been discontinued. Inventory is limited. |
|

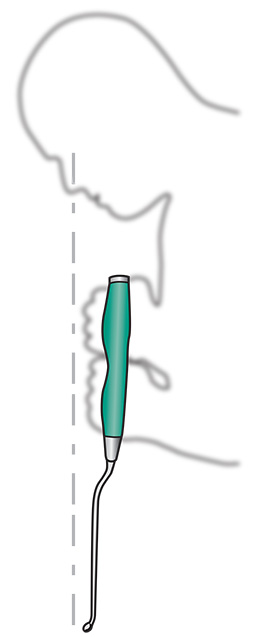

Offset Long Curette
Offset bayonet shaft allows for better visualization and the large handle can be used two-handed |
|
|
|
|
|
|
Oval Cup Curettes with an Up Angle Tip, Offset Bayonet Shaft, and a Two-Handed Handle
|
Product No: 5060-01
CUP SIZE: 00
Overall Length: 18.25" (45,7 cm)
Handle Length: 9.25" (23,6 cm)
Shaft Offset: 1" (2,54 CM)
|
This item has been discontinued. Inventory is limited. |
|
Goldstein Suture Cutter
Allows for the use of a replaceable standard #10 scalpel blade, ensuring a precise cut and reducing the risk of tearing a suture, suture material, or surrounding tissue |
|
|
|
Designed by Wayne M. Goldstein, MD |
|
|
 |
1.
Cutting blade is easily replaceable, ensuring a sharp, precise cut every time.
2.
Suture hook is used to grasp the suture and slightly pull it away, applying the proper tension for a clean, precise cut.
3.
Push button is depressed with the thumb to engage the forward cutting action.
4.
Pistol grip handle allows comfortable, one-handed use.
5.
Uses standard #10 scalpel blade (not included).
6.
Spring clamp holds the cutting rail down, and can be moved aside, allowing the cutting rail to be rotated upward to facilitate a quick blade change.
The entire unit is autoclavable.
Product No: 5159
Overall length: 8.25" (21 cm)
Shaft Length: 4.25" (10,8 cm)
|
This item has been discontinued. Inventory is limited. |
|
Desai Curette Osteotome
Designed to remove bone and cartilage, helpful for preparing joint surfaces for fusion, allowing easy removal of osteophytes and cartilage without having to switch instruments |
|
|
|
Designed by Sarang Desai, DO |
|
|
|
The osteotome portion also can be used to "feather" the subchondral surface to expose bleeding bone. It is also useful in instances of obtaining autograft, as it can be used to create a bone window and then remove cancellous bone.
Product No: 5242 [8 mm]
Overall Length: 8.25" (21 cm)
Handle Length: 4.25" (10,8 mm)
Cup: 8 x 10 mm
Osteotome Width: 6.5 mm
Osteotome Length: 3 mm from edge of cup
|
This item has been discontinued. Inventory is limited. |
|
Modified Smith-Peterson Style Osteotome - Short
Arcedh osteotome designed to help in removal of total hip cups |
|
|
|
Designed by M. Ritter, MD |
|
|
|
Curvature helps to fit next to a cups outer surface. The osteotome has a handle for better control plus a hammering platform end.
Product No: 5280-01 [Short]
Blade Dimensions: 20 mm x 20 mm
Overall Length: 10.875" (27,6 cm)
Handle Length: 5" (12,7 cm)
|
This item has been discontinued. Inventory is limited. |
|
Whang Tibial Osteotome
Designed to disrupt the interface of a well fixed tibial base, specifically the lateral portion |
|
|
|
Designed by William Whang, MD |
|
|
|
Product No: 5338
Overall Length: 8" (20,3 cm)
Handle Length: 4.5" (11,4 cm)
Blade Thickness: 2,5 mm
|
This item has been discontinued. Inventory is limited. |
|
Wubben Guide Rod Pusher
Used to help hold the guide rod in place during a intramedulllary nailing of a long bone |
|
|
|
Designed by Robert Wubben, MD |
|
|
The surgeon can use the concave end of handle initially to hold the guide rod in place. As the reamer is retracted to the end of the guide rod, the shaft of the Pusher is used by inserting down the center hole of the drill, pushing on the guide and keeping it in the bone. |
Product No: 5985
Overall Length: 9" (22,9 cm)
Handle Length: 4.75" (12 cm)
Handle End Dia.: 10 mm
Rod End Dia.: 3.2 mm
|
This item has been discontinued. Inventory is limited. |
|
Femoral Elevator with Trough
Helps to elevate the femur and provide a trough for bone to collect in during shaping of the femoral head |
|
|
|
Designed by Henry Boucher, MD |
|
|
 |
Designed for femoral head preparation during total hip surgery, the elevator is placed against the anterior femoral neck when the femur is flexed and internally rotated. Helps to elevate the femoral head for milling, and the “trough” provides a channel for the instruments and allows for easy clearance of reamings. Skin, abductor, subcutaneous fat and capsule are protected and retracted with the trough.
Product No: 6030
Overall Length: 17.25" (43,8 cm)
Handle Length: 9" (22,9 cm)
Prong Length: 1" (2,5 cm)
Prong Width: 9 mm | 18 mm Gap | 9 mm
Trough–At Widest: 4" (10,1 cm)
Trough–At Narrowest: 2.5" (6,3 cm)
|
This item has been discontinued. Inventory is limited. |
|
Wide Rake Retractors with Ergonomic Handle
Designed for general use soft tissue retraction, the ergonomic handle allows for a better grip and less fatigue |
|
|
|
|
|
|

|
Sharp and dull teeth available in two depths.
Non-glare finish featured on the metal retractor parts.
Product No's:
6051 [Deep, Sharp]
Overall Length: 11.175 (28,3 cm)
Blade Width: 2.375" (6 cm)
Blade Depth: 2.75" (7 cm)
6052 [Deep, Blunt]
Overall Length: 11.175 (28,3 cm)
Blade Width: 2.375" (6 cm)
Blade Depth: 2.75" (7 cm)
6053 [Shallow, Sharp]
Overall Length: 11.175 (28,3 cm)
Blade Width: 2.375" (6 cm)
Blade Depth: 1.875" (4,8 cm)
6054 [Shallow, Blunt]
Overall Length: 11.175 (28,3 cm)
Blade Width: 2.375" (6 cm)
Blade Depth: 1.875" (4,8 cm) |
This item has been discontinued. Inventory is limited. |
|
Offset Handle Hip Retractor
The 90° offset handle helps move the assistant's hand out of the way, allowing better access to the surgical site |
|
|
|
Designed by Gina Bart, PAC |
|
|
|
During posterior THR, the instrument allows for one assistant to hold the leg while retracting the abductors, thereby maximizing both a clearer view and better physical access to the surgical site.
Product No's:
6207-L [Left]
Overall Length: 13" (33 cm)
Handle Offset: 8" (20,3 cm)
Blade Width: 15 mm
6207-R [Right]
Overall Length: 13" (33 cm)
Handle Offset: 8" (20,3 cm)
Blade Width: 15 mm
|
This item has been discontinued. Inventory is limited. |
|
Das/Seng Anterior Total Hip Flat Elevator Hook
Flat elevator hook for use with the Das/Seng Anterior Total Hip Table Mounted Hook Hoist |
|
|
|
Designed by Amal Das, MD and Brian Seng, DO |
|
|
|
Product No: 6226-EH [Flat Elevator Hook]
Blade Depth from T-Handle: 7.5" (19,1 cm)
Overall Length: 9.25" (23,5 cm) |
This item has been discontinued. Inventory is limited. |
|

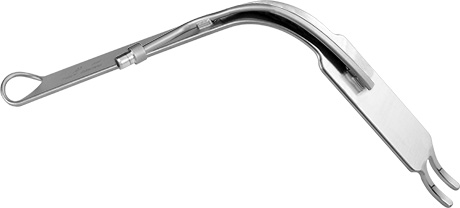

Lighted Narrow Inferior Acetabular Retractor
Help provide better access to the intramedullary canal |
|
|
|
|
|
|
|
Can be attached to a fiber optic light cable with ACMI (female) connector, and can be steam sterilized.
Product No: 6255-L
Overall Length: 12" (30,5 cm)
Handle Length: 8" (20,3 cm)
Blade Height Above Prongs: 3.25" (8,3 cm)
Blade Width: 32 mm
Prong Width: 5,1 mm | 9,7 mm Gap | 5,1 mm
|
This item has been discontinued. Inventory is limited. |
|
McMahon Posterior Femoral Retractor
Used in the posterior approach to lift the proximal femur |
|
|
|
Designed by Steve McMahon, MD |
|
|
|
After exposing the lesser trochanter, the distal lip of the retractor hooks under the psoas tendon in close contact to the bone. The adjacent tip of the body of the retractor sits under the calcar. The combined action lifts the proximal femur and the body of the retractor creates a space in which to prepare the proximal femur. The handle is bent twice at 30° to move the assistant's hand out of the way.
Product No’s:
6443-01 [Left]
Overall Length: 13.5" (34,3 cm)
Handle Length: 7.5" (17,8 cm)
6443-02 [Right]
Overall Length: 13.5" (34,3 cm)
Handle Length: 7.5" (17,8 cm)
|
This item has been discontinued. Inventory is limited. |
|
Mueller Style Flat Blade Osteotome
|
|
|
|
|
|
|
|
Product No: 6865-01
Overall Length: 11.125" (28,3 cm)
Osteotome Width: 20 mm |
This item has been discontinued. Inventory is limited. |
|
Colwell TKA 5° Tibial Rasp Assembly
A tibial planing tool with a universal design to help improve tibial cut alignment and flatness by smoothing out imperfections intraoperatively, helping to ensure the tibial bone surface is cut correctly in coronal and sagittal planes
|
|
|
|
Designed by Clifford W. Colwell Jr., MD |
|
|
|
After the planer rasp handle/plate unit is threaded onto the intramedullary rod, the handle is moved back and forth through an arc while the cutting surface of the planer is held against the tibial bone, to realign the cut and to remove any imperfections.
For use with any primary or revision knee system when an intramedullary cutting guide is being used.
Product No’s:
6900-00 [Complete Assembly]
Overall Length: 15" (38,1 cm)
Assembly includes:
6901-01 [Rasp Handle]
Overall Length: 15" (38,1 cm)
Handle Length: 3.625" (9,2 cm)
6901-02 [Rasp Plate]
Plate Width: 2.65" (7,7 cm)
Plate Depth: 1.75" (4,3 cm)
6902 [T-Handle Canal Rod]
Overall Length: 15" (38,1 cm)
T-Handle Width: 4" (10,1 cm)
6903 [Handle Grip]
Overall Length: 4" (10,1 cm)
|
This item has been discontinued. Inventory is limited. |
|
Rotating Offset Handle Hex Driver
Offset shaft and smooth spin handle allow for a rapid crank action when desired |
|
|
|
|
|
|
|
Large hex driver for 6.5 mm and 4.5 mm diameter screws. Especially helpful in insertion and removal of long screws.
Product No: 7241
Overall Length: 10.125" (25,7 cm)
|
This item has been discontinued. Inventory is limited. |
|
Screw Extractor – Large 4.5 mm
Designed to help remove screws with stripped or damaged heads |
|
|
|
|
|
|
|
- Extractor must be used with drill in reverse.
- Screw head is reamed with burnishing end, and is then removed with the left turn thread end.
- Care must be taken to burnish no more than 1/16" (1.5 mm) deep, as burnishing too deep can weaken the screw head.
|
Product No: 7250-03 [4.5 mm Screw Extractor]
Overall Length: 6" (15,3 cm)
|
This item has been discontinued. Inventory is limited. |
|
Charnley/Sorrells Low-Profile Hip Arthroplasty Blades
Provides low-profile self-retaining exposure of the femur and acetabulum in Total Hip Arthroplasty |
|
|
|
Designed by R. Barry Sorrells, MD |
|
|
|
Product No's:
7318-02 [Small Narrow Blade]
Blade Width: 1.25" (32 mm)
Blade Depth: 1.25" (32 mm)
Overall Length: 8.5" (21,6 cm)
7318-04 [Medium Narrow Blade]
Blade Width: 1.25" (32 mm)
Blade Depth: 2.25" (57 mm)
Overall Length: 8.5" (21,6 cm)
7318-06 [Medium Malleable Blade]
Blade Width: 1.25" (32 mm)
Blade Depth: 2.25" (57 mm)
Overall Length: 8.5" (21,6 cm)
7318-07 [Large Narrow Blade]
Blade Width: 1.25" (32 mm)
Blade Depth: 3.25" (83 mm)
Overall Length: 8.5" (21,6 cm) |
These items have been discontinued. Inventory is limited. |
|

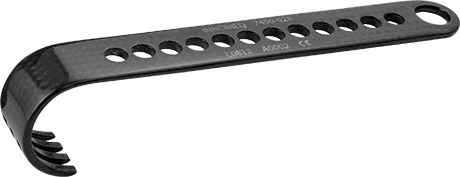

OrthoLucent™ Hip System Blade – 4" (10,2 cm) |
|
|
|
|
|
|
|
Product No: 7450-04R
Handle Length: 6" (15,2 cm)
Blade Depth: 4" (10,2 cm)
(2-inch blade depth version shown.)
|
This item has been discontinued. Inventory is limited. |
|
Gordon Hip Resurfacing Femoral Elevator
Gently curved retractor tip safely cradles and protects the femoral neck while gaining improved head exposure |
|
|
|
Designed by Stuart Gordon, MD |
|
|
|
Designed with a tissue-sensitive shape for elevating the femoral head.
Product No: 7649
Overall Length: 17" (43,2 cm)
Handle Length: 6.75" (17,1 cm)
Blade Width at End: 55mm
|
This item has been discontinued. Inventory is limited. |
|
Thornhill Offset Proximal Femoral Elevator
For general use in hip surgery and minimally invasive hip surgery |
|
|
|
Designed by Thomas Thornhill, MD |
|
|
|
7651-02 [Left]
Overall Length: 16" (40,6 cm)
Handle Length: 7" (17,8 cm)
Blade Width: 38 mm |
This item has been discontinued. Inventory is limited. |
|
Reusable Light Wand
Light wand designed for illumination of deep incisions |
|
|
|
|
|
|
|
Can be attached to a fiber optic light cable with ACMI (female) connector.
Product No: 8010-02
Overall Length: 13.5" (34,3 cm)
Handle Length: 5.55" (13,3 cm)
Bend Angle: 45° |
This item has been discontinued. Inventory is limited. |
|
Light Wands – Short and Small Diameter
Short wand useful for proximal illumination, while thin diameter wands help illuminate deep cavities such as the femoral shaft |
|
|
|
Designed by Anthony Unger, MD |
|
|
|
Light wands can be attached to a fiber optic light cable with ACMI (female) connector.
Product No's:
8011-01 [Short Light Wand]
Wand Length: 3" (7,6 cm)
Wand Shaft Diameter: 4.6 mm
8011-02 [Short Thin Light Wand]
Wand Length: 5.5" (14 cm)
Wand Shaft Diameter: 3.2 mm
8011-03 [Long Thin Light Wand]
Wand Length: 11" (28 cm)
Wand Shaft Diameter: 3.2 mm
|
This item has been discontinued. Inventory is limited. |
|
Richard Post-op Extremity Holder
Designed to help hold and stabilize an extemity in a desired position after surgery |
|
|
|
Designed by Medical Industries of America, LLC |
|
|
US Patent # 7,753,863 B2
|
Can be used on the patient bed, or can be sterilized for use in surgery, except the pads which are not sterilizable.
Product No's:
8098-00 [Set with Pads]
Unit Dimensions: 15" x 2"x 5.25"
(38 cm x 5,1 cm x 13,3 cm)
Optional/Replacement Parts:
8098-01 [Holder Only without Pads]
8098-PAD-00 [Set of 3 Pads – 2 Sides, 1 Center]
8098-PAD-A [Single Center Pad]
8098-PAD-B [Pair Curved Side Pads]
|
This item has been discontinued. Inventory is limited. |
|
Browner Wire Tightener
Wire is passed through the distal arm hole and into the separate drum holes, and can then be tightened and rotated before being cut with a wire cutter
|
|
|
|
Designed by Bruce D. Browner, MD |
|
|
|
Product No: 8251
Overall Length: 6" (15,2 cm)
Width: 3.75" (9,5 cm)
Wire Hole Diameters: .125" (3,2 mm)
|
This item has been discontinued. Inventory is limited. |
|
Argintar Claw Drill Guide Wire/Suture Passer
Expandable claw design allows for minimally invasive, reproducible one-step wire/suture passage |
|
|
|
Designed by Evan Argintar MD |
|
|
|
Especially helpful during quad/patella tendon repair surgery and other applications where a suture will be passed—particularly when soft tissue dissection is to be minimized, such as multi-ligament knee reconstruction (MCL/LCL), elbow reconstruction (ULCL/MCL), foot-ankle reconstruction (ATFL), and wrist reconstruction (DRUJ).
Product No's:
8315-00 [Set]
Set Includes: (1) Claw & (1) Wire/Suture Pin
Individual Parts:
8315-01 [Claw Unit]
Maximum Internal Opening: 2.5" (6,4 cm)
Product Dimensions: 2.5" x 4" (6,4 cm x 10,2 cm)
1227 [3/32" (2 mm) Pin with Wire/Suture Hole]
Overall Length: 6" (15,2 cm)
|
This item has been discontinued. Inventory is limited. |
|

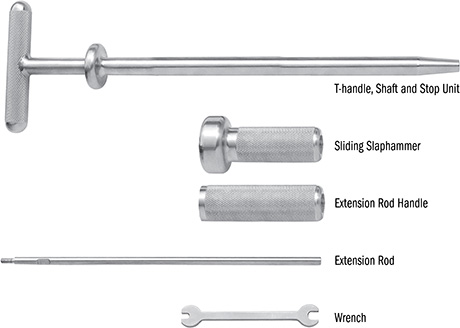

Intramedullary Nail Extractor Replacement Parts
Helps remove broken intramedullary nails from long bone |
|
|
|
Designed by Gary L. Kerns, RT(R) |
|
|
|
Product No's:
8730-03 [T-handle, Shaft and Stop Unit]
8730-04 [Sliding Slaphammer]
8730-05 [Extension Rod Handle]
8730-06 [Extension Rod]
8730-09 [Wrench]
|
This item has been discontinued. Inventory is limited. |
|
Medial Acetabular Retractors with Large Handle
Designed for acetabular exposure during total hip surgery |
|
|
|
|
|
|
|
Product No's:
C1001 [Left]
Overall Length: 15" (38,1 cm)
Handle Length: 6" (15,2 cm)
Blade Width: 32 mm
C1002 [Right]
Overall Length: 15" (38,1 cm)
Handle Length: 6" (15,2 cm)
Blade Width: 32 mm
|
This item has been discontinued. Inventory is limited. |
|
Replacement Modular Handle for Discontinued
Infero-Posterior Acetabular Retractors |
|
|
|
|
|
|
|
Product No: C1006 [Modular Handle]
Overall Length: 4.875" (12,4 cm)
Handle Length: 4.5" (11,4 cm)
|
This item has been discontinued. Inventory is limited. |
|

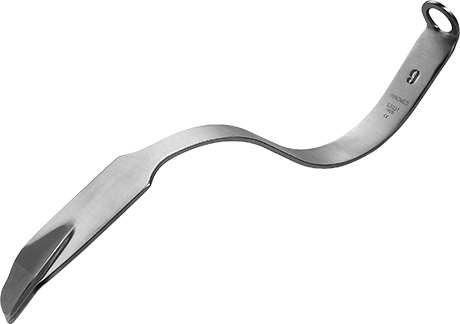

Minimally Invasive Hip Femoral Elevator
Designed to be used in various minimally invasive hip exposures |
|
|
|
|
|
|
|
Product No: S3031
Overall Length: 14" (35,6 cm)
Blade Width: 40 mm
|
This item has been discontinued. Inventory is limited. |
|

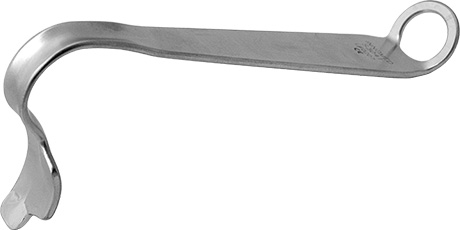

Minimally Invasive Knee Collateral Retractor - Right
Helps provide excellent visibility and ligament protection during Total and Unicondylar Knee Replacement Surgery |
|
|
|
|
|
|
|
Protects ligaments and other soft tissues. Weights can be used to help hold the retractors in place.
Product No:
S3041 [Right]
Overall Length: 10.25" (26 cm)
Blade Width: 45 mm |
This item has been discontinued. Inventory is limited. |
|
© 2026 Innomed, Inc. All rights reserved.
|
_6207.jpg)
