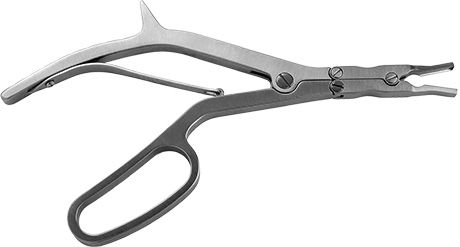

Macko Square Tipped Rongeur
Micro Curettes
Mini-lexer Osteotomes
Mobasser Bayonet Forcep
Ortho Self-Retaining Retractors
Macko Square Tipped Rongeur
Micro Curettes
Mini-lexer Osteotomes
Mobasser Bayonet Forcep
Ortho Self-Retaining Retractors
OrthoLucent™ Mini Hohmann Retractors
Orthopedic Needle Holder/Scissors
Periosteal Elevators
Pituitary Rongeur with Teeth
Ring Curettes
OrthoLucent™ Mini Hohmann Retractors
Orthopedic Needle Holder/Scissors
Periosteal Elevators
Pituitary Rongeur with Teeth
Ring Curettes
Rogozinski Lamina Spreader
Rogozinski Locking Needle Driver/Scissors
Rogozinski Offset Ring Curette

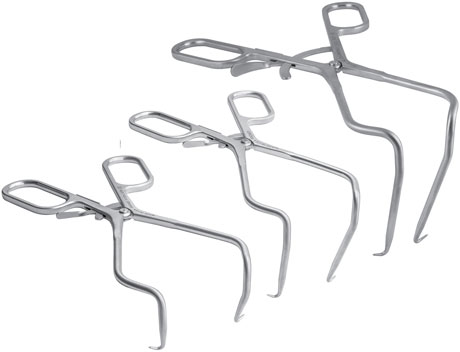

Rogozinski Reverse Angle Retractor
Rogozinski Rotating Rongeur
Rogozinski Lamina Spreader
Rogozinski Locking Needle Driver/Scissors
Rogozinski Offset Ring Curette
Rogozinski Reverse Angle Retractor
Rogozinski Rotating Rongeur
Rogozinski Soft Tissue Retractor
Romanelli Deep Gelpi Retractor
Screw/Pin Removal Locking Pliers
Shark Tooth Grasper
Spine/Trauma Deep Tissue Retractor
Rogozinski Soft Tissue Retractor
Romanelli Deep Gelpi Retractor
Screw/Pin Removal Locking Pliers
Shark Tooth Graspers
Spine/Trauma Deep Tissue Retractor
Star Bit Driver Set
Subscapularis Spreader
Taylor Retractors
Tissue Graspers with Shark Teeth
Universal Bone Grafting/Impacting Forceps
Star Bit Driver Set
Subscapularis Spreader
Taylor Retractors
Tissue Graspers with Shark Teeth
Universal Bone Grafting/Impacting Forceps
Universal Screw Removal Instrument System
Universal Screwdriver Set
Universal Screw Removal Instrument System
Universal Screwdriver Set





Ball Spike with Bell Handle




Ball Spike with Bell Handle
Product No: 8032
Overall Length: 12" (30,6 cm)
Download Product Brochure (PDF)

TOP

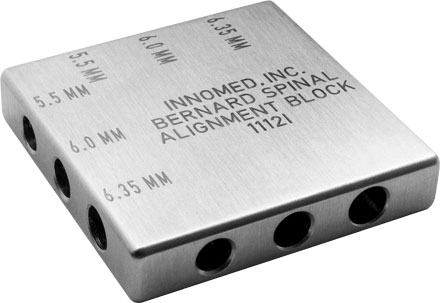

Bernard Spinal Alignment Block

Designed to act as a right angle “set square”, using stock sterile rods, to help assess intraoperative mechanical axis of the spine


Designed by Jason Bernard, MB, MD, FRCS


Bernard Spinal Alignment Block


Bernard Spinal Alignment Block

Holes of 5.5mm, 6.0mm, and 6.35mm are drilled at right angles through the block on the 1cm high faces. Two sterile stock rods can be inserted into the holes to create the "set square".

Product No: 5006
Dimensions: 5 cm x 5 cm x 1 cm
Rod Holes: 5.5 mm, 6.0 mm & 6.35 mm
Download Product Brochure (PDF)





TOP





Bradley Periosteal Elevator


Designed by Gary W. Bradley, MD


Bradley Periosteal Elevator

Bradley Periosteal Elevator



Product No's:

4719 [1/2"]
Overall Length: 11" (27,9 cm)
Blade Width: .5" (13 mm)


4720 [3/4"]
Overall Length: 11" (27,9 cm)
Blade Width: .75" (19 mm)

Download Product Brochure (PDF)

TOP





Cobb Elevators






Cobb Elevators



Ultra hard titanium nitride coating helps to extend blade life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion.

Cobb Elevators


Product No's:

With Teeth:

3432 [1/2" with Teeth]
Overall Length: 11" (27,9 cm)
Blade Width: 1/2" (13 mm)


3434 [1" with Teeth]
Overall Length: 11" (27,9 cm)
Blade Width: 1" (25,4 mm)

Without Teeth:

3436 [1/2" without Teeth]
Overall Length: 11" (27,9 cm)
Blade Width: 1/2" (13 mm)


3438 [1" without Teeth]
Overall Length: 11" (27,9 cm)
Blade Width: 1" (25,4 mm)
Download Product Brochure (PDF)

TOP




Extra Small Joint, Calcaneal and Small Bone Distractor

Two hole sizes allow for easier pin size selection and helps with distraction in fracture and osteotomy procedures






Extra Small Joint, Calcaneal and Small Bone Compressor

1/16" (1.6 mm) & 3/32" (2.4 mm)
Pin Hole Diameters


Product No: 4210-XSD [Extra Small Distractor]
Overall Length: 4.25" (10,8 cm)
Download Product Brochure (PDF)

TOP





Gelbke Cobb Elevator with Suction

Designed to be used during exposure of the posterior spine, as well as for pelvic and acetabular trauma cases


Designed by Martin K. Gelbke, MD




Gelbke Cobb Elevator with Suction

Gelbke Cobb Elevator with Suction



Ultra hard titanium nitride coating helps to extend life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion.


Product No: 3433
Overall Length: 12.75" (32,4 cm)
Cobb End Width: 18 mm (.7")
Shaft plus Head Length: 5.5" (15 cm)
Download Product Brochure (PDF)

TOP

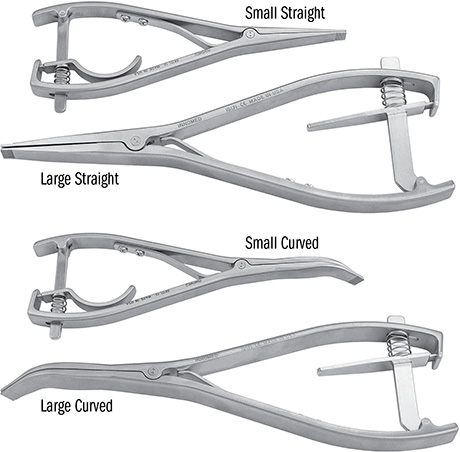

Gupta Disc Space Spreaders with Easy Release Locking Mechanism

Designed to distract open collapsed disc spaces


Designed by Munish C. Gupta, MD


Gupta Disc Space Spreaders

Locking ratchet mechanism helps prevent accidental release, and provides for controlled adjustment and easy release.


Product No’s:

4290 [Small Straight]
Overall Length: 8.5" (21,6 cm)
Blade Width: 10 mm
Blade Thickness - Closed: 3 mm
Opens to: 22 mm


4291 [Large Straight]
Overall Length: 11.5" (29,2 cm)
Blade Width: 13 mm
Blade Thickness - Closed: 4 mm
Opens to: 25 mm


4292 [Small Curved]
Overall Length: 9.25" (23,5 cm)
Blade Width: 10 mm
Blade Thickness - Closed: 3 mm
Opens to 22 mm


4293 [Large Curved]
Overall Length: 12.5" (31,8 cm)
Blade Width: 13 mm
Blade Thickness - Closed: 4 mm
Opens to: 25 mm
Download Product Brochure (PDF)

TOP





Gupta Extended Osteotome

Designed to help cut bone and cartilage in procedures such as facetectomies and vertebrectomies


Designed by Munish C. Gupta, MD



Gupta Extended Osteotome

Gupta Extended Osteotome

Product No: 5233
Overall Length: 11" (27,9 cm)
Blade Width: .5" (13 mm)
Download Product Brochure (PDF)

TOP

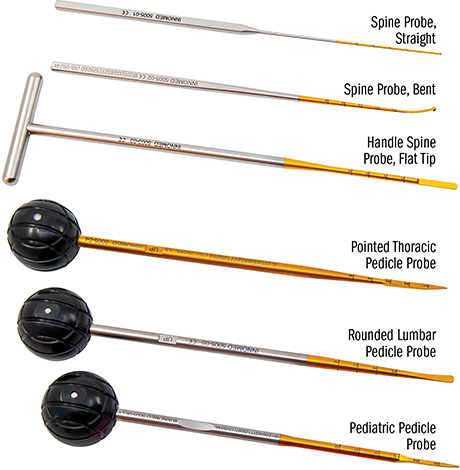

Gupta Probe Set

A universal spine probe set designed to help cannulate pedicles, with various sized and shaped tips for use in cervical, thoracic, lumbar, and sacral pedicles


Designed by Munish C. Gupta, MD


Izuka Cannulated Fracture Awls & Trocar Set


Product No’s:

5005-00 [Set]

Set Includes / Available Individually:

5005-01 [Spine Probe, Straight]
Overall Length: 9.43" (24 cm)
Handle Length: 5" (12,7 cm)
Probe Shaft Diameter Tapers Down To: 1 mm
Probe Ball End Diameter: 1.5 mm
Depth Markings at: 2, 3, 4, and 5 cm


5005-02 [Spine Probe, Bent]
Overall Length: 9.1" (23,1 cm)
Handle Length: 5" (12,7 cm)
Probe Shaft Diameter Tapers Down To: 1.5 mm
Probe Ball End Diameter: 2.8 mm
Depth Markings at: 2, 3, 4, and 5 cm


5005-03 [T-Handle Spine Probe, Flat Tip]
Overall Length: 10.25" (26 cm)
T-Handle Width: 2.75" (7 cm)
Handle Length: 5" (12,7 cm)
Probe Shaft Diameter: 3.6 mm
Flat Tip Length: 20 mm
Flat Tip Width: 1.2 mm
Depth Markings at: 2, 3, 4, 5, and 6 cm


5005-04 [Pointed Thoracic Pedicle Probe]
Overall Length: 9.43" (24 cm)
Ball Handle End Diameter: 1.5" (3,8 cm)
Handle Length (including ball end): 6.4" (16,3 cm)
Before Tip, Probe Shaft Diameter Tapers Down To: 3 mm
Depth Markings at: 1, 2, 3, 4, and 5 cm


5005-05 [Rounded Lumbar Pedicle Probe]
Overall Length: 9.09" (23 cm)
Ball Handle End Diameter: 1.5" (3,8 cm)
Handle Length (including ball end): 6" (15,3 cm)
Probe Shaft Diameter Tapers Down To: 4 mm
Depth Markings at: 3, 4, 5, and 6 cm


5005-06 [Pediatric Pedicle Probe]
Overall Length: 8.45" (21,5 cm)
Ball Handle End Diameter: 1.5" (3,8 cm)
Handle Length (including ball end): 5" (12,7 cm)
Before Tip, Probe Shaft Diameter
Step Tapers From: 5 to 2 mm
Depth Markings at: 1, 2, 3, 4, 5, and 6 cm
Download Product Brochure (PDF)

TOP





Hannum Graspers

Teeth in jaw firmly holds bone and tissue


Designed by Scott Hannum, MD


Hannum Rongeur/Grasper

Hannum Grasper

Non-locking design can be easily gripped while allowing greater pressure to be applied.

Used for dissection(to preserve)/or removal of the anterior capsule, removal of the labrum, or other soft tissue around the acetabulum prior to cup implantation. Also used to release the capsule to expose the femur for placement of the femoral stem. Long, low profile helps facilitate working through a small incision without disrupting vision.

Available in three jaw sizes: short jaw for holding bone, medium jaw for smaller bones, and long jaw for tissue.

Product No's:

1775-01 [Short Jaw]
Overall Length: 9.25" (23,5 cm)
Jaw Width: 8 mm

1775-02 [Medium Jaw]
Overall Length: 9.25" (23,5 cm)
Jaw Width: 5 mm


1775-03 [Long Jaw]
Overall Length: 9.25" (23,5 cm)
Jaw Width: 3 mm
Download Product Brochure (PDF)

TOP

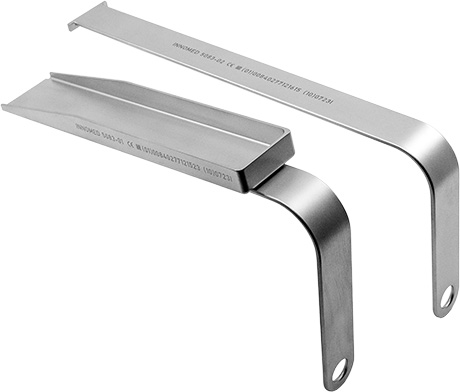

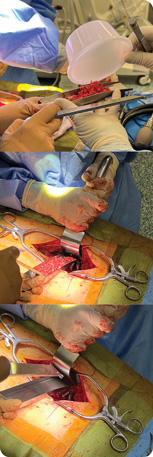

Harvey Lumbar Bone Graft Sled Assembly

Designed to help deliver and tamp morselized bone graft to transverse processes during lumbar spinal fusion


Designed by Charles Harvey, DO




Harvey Lumbar Bone Graft Sled Assembly

Harvey Lumbar Bone Graft Sled Assembly

Harvey Lumbar Bone Graft Sled Assembly


Product No’s:

5083-00 [Harvey Lumbar Bone Graft Assembly]

Set includes / Available Individually:

5083-01 [Harvey Lumbar Bone Graft Sled]
Overall Length: 10.625" (27 cm)
Sled Width: 1.5" (3,8 cm)


5083-02 [Harvey Lumbar Bone Graft Pusher]
Overall Length: 11.5" (29,2 cm)
Pusher End Width: 1.3" (3,3 cm)
Download Product Brochure (PDF)

TOP

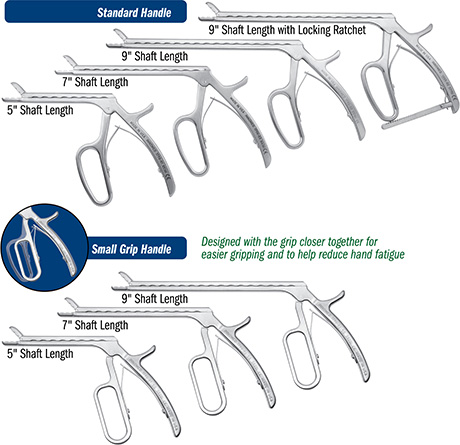

Intraarticular Tissue Grasper/Rongeurs

Used to securely grasp tissue or can be used to rongeur tissue




Intraarticular Tissue Grasper/Rongeur

Intraarticular Tissue Grasper/Rongeur

Product No’s:

STANDARD HANDLE

1790-01 [5" Standard]
Overall Length: 8" (20,3 cm)
Shaft Length: 5" (12,7 cm)

1790-03 [7" Standard]
Overall Length: 10" (25,4 cm)
Shaft Length: 7" (17,8 cm)

1790-02 [9" Standard]
Overall Length: 12" (30,5 cm)
Shaft Length: 9" (22,9 cm)


1791-02 [9" Standard with Locking Ratchet Handle]
Overall Length: 12" (30,5 cm)
Shaft Length: 9" (22,9 cm)

SMALL GRIP HANDLE
Small Grip Handle version is designed with the grip closer together for easier gripping and to help reduce hand fatigue.

1790-01-SG [5" Small Grip]
Overall Length: 8" (20,3 cm)
Shaft Length: 5" (12,7 cm)

1790-03-SG [7" Small Grip]
Overall Length: 10" (25,4 cm)
Shaft Length: 7" (17,8 cm)

1790-02-SG [9" Small Grip]
Overall Length: 12" (30,5 cm)
Shaft Length: 9" (22,9 cm)
Download Product Brochure (PDF)

TOP

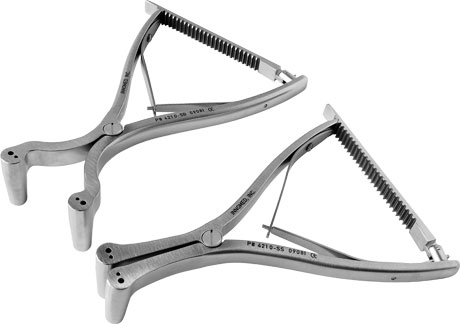

Joint, Calcaneal and Small Bone Compressors

Designed for compression in fracture and osteotomy procedures





Joint, Calcaneal and Small Bone Compressors

Two hole sizes allow for
ease of pin size selection:
1/16" (.062") (1.6 mm) &
3/32" (.094") (2.4 mm)


Product No’s:

4210-SC [Small Compressor]
Overall Length: 6" (15,2 cm)

4210-XSC [Extra Small Compressor]
Overall Length: 4.25" (10,8 cm)
Download Product Brochure (PDF)

TOP





Joint, Calcaneal, Small Bone Compressor/Distractor

Selection lever switches the mechanism from compression to distraction





Joint, Calcaneal, Small Bone Compressor/Distractor

Simply squeeze the handle one time after direction selection to engage the mechanism. Two hole sizes for pin size selection. Calibrated ratchet handle.

Product No: 4865-LS
Overall Length: 8.5" (21,6 cm)
 Holes For: .062" & .094" (1.6 & 2.5 mm) K-wire Pins

VIDEO:
Engaging the Switching Mechanism

Download Product Brochure (PDF)

TOP





Joint, Calcaneal and Small Bone Compressor/Distractors with Speed Lock

Speed lock helps allow precise control and prevents unintended release





Joint, Calcaneal and Small Bone Distractors with Speed Lock

Helpful in a variety of indications.

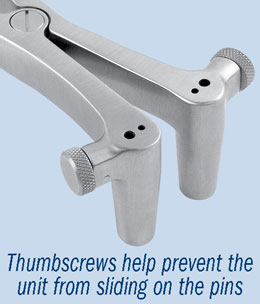

Thumbscrews help prevent the unit from sliding on the pins.

Product No's:

Closed Arms with Speed Lock

4216-LS [Large]
Hole Diameters: For .062" & .094" (1.6 & 2.4 mm)
Overall Length: 8" (20,3 cm)


4216-SS [Small]
Hole Diameters: For .062" & .094" (1.6 & 2.4 mm)
Overall Length: 6" (15,2 cm)


4216-XS [Extra Small]
Hole Diameters: For .062" & .094" (1.6 & 2.4 mm)
Overall Length: 4.5" (11,4 cm)

Outspread Arms with Speed Lock & Thumbscrews

4217-LB [Large]
Hole Diameters: For .062" & .094" (1.6 & 2.4 mm)
Overall Length: 8" (20,3 cm)

Closed Arms with Speed Lock & Thumbscrews

4217-SS [Small]
Hole Diameters: For .062" & .094" (1.6 & 2.4 mm)
Overall Length: 6" (15,2 cm)
Download Product Brochure (PDF)

TOP





Joint, Calcaneal and Small Bone Distractors

Two hole sizes and two arm designs allow for easier pin size selection and helps with distraction in a variety of indications




Joint, Calcaneal and Small Bone DistractorsJoint, Calcaneal and Small Bone Distractors

Product No’s:

SMALL
Overall Length: 6" (15,2 cm)
Holes Diameters: For 1.6 mm & 2.4 mm K-wire Pins
4210-SS [Closed Arms]
4210-SB [Outspread Arms

LARGE
Overall Length: 8" (20,3 cm)
Holes Diameters: For 1.6 mm & 2.4 mm K-wire Pins
4210-LS [Closed Arms]
4210-LB [Outspread Arms]

Thumbscrews help prevent the unit from sliding on the pins

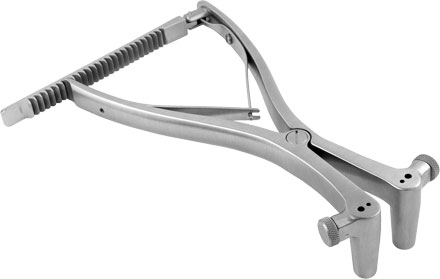

SMALL WITH THUMBSCREWS
Overall Length: 6" (15,2 cm)
Holes Diameters: For 1.6 mm & 2.4 mm K-wire Pins
4215-SS [Closed Arms]
4215-SB [Outspread Arms]

LARGE WITH THUMBSCREWS
Overall Length: 8" (20,3 cm)
Holes Diameters: For 1.6 mm & 2.4 mm K-wire Pins
4215-LS [Closed Arms]
4215-LB [Outspread Arms]

Joint, Calcaneal and Small Bone Distractors

Download Product Brochure (PDF)

TOP





Kerrison Punch with Small Grip Handle

Designed with the handle closer together for easier gripping and to help reduce hand fatigue, the punch helps to remove small portions of bone and soft tissue





Kerrison Punch with Small Grip Handle



Product No's:

3656 [7” Kerrison Punch – 5 mm]
Shaft Length: 7" (17,8 cm)
Punch Width: 5 mm


3657 [9” Kerrison Punch – 5 mm]
Shaft Length: 9" (22,9 cm)
Punch Width: 5 mm

Download Product Brochure (PDF)

TOP

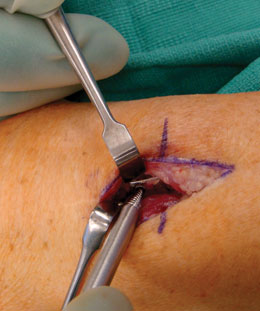

Lawton Broken Screw Extractor

Designed to help remove broken or stripped screws (1mm-2mm)


Designed by Jeffrey Lawton, MD


Lawton Broken Screw Extractor

Lawton Broken Screw Extractor


Product No: 7653-04
Overall Length: 4" (10,2 cm)
Handle Width: 3" (7,6 cm)
Download Product Brochure (PDF)

TOP





Lawton Screw Extractors

Designed to help extract mini and micro fragment screws; small cannulated screws; or headless screws


Designed by Jeffrey Lawton, MD


Lawton Screw Extractors

Lawton Screw Extractors

Lawton Screw Extractors


Product No's:

7653-00 [Set of Three with Case]

Individual Product Numbers:

7653-01 [1.5 mm Screw Extractor]
Overall Length: 6" (15,2 cm)
Handle Width: 4" (10,2 cm)

7653-02 [2.5 mm]
Overall Length: 6" (15,2 cm)
Handle Width: 4" (10,2 cm)

7653-03 [3.5 mm Screw Extractor]
Overall Length: 6" (15,2 cm)
Handle Width: 4" (10,2 cm)

1025 [Sterilization Case]
Download Product Brochure (PDF)

TOP





Long Bonney Tissue Forceps

Extra length—3" (7,6 cm) more than standard—allows for use in deep wound areas






Long Bonney Tissue Forceps

Long Bonney Tissue Forceps



Product No: 5040
Overall Length: 10" (25,4 cm)
Download Product Brochure (PDF)

TOP





Macko Square Tipped Rongeur

Square tipped rongeur with an ergonomic grip, double action mechanism, long reach, and low profile — for use in total ankle, hip, knee, and spine surgery


Designed by Victor W. Macko, MD


Macko Square Tipped Rongeur

Macko Square Tipped Rongeur

When used for morcelizing bone graft, the shallow, wide jaw helps avoid impaction. Ergonomic grip, double action mechanism, long reach, and low profile.



In total ankle surgery, the aggressive, low profile jaws aid in the removal of tibial bone in spite of limited space. The square ended tip helps produce a flat, finished surface following anterior talar facet reaming.


Macko Square Tipped Rongeur

Product No's:

1778-01 [Small Jaw]
Jaw Bite: 5 x 18 mm
Overall Length: 10" (25,4 cm)

1778-02 [Medium Jaw]
Jaw Bite: 7 x 18 mm
Overall Length: 10" (25,4 cm)

Download Product Brochure (PDF)

TOP





Micro Curettes




Micro Curettes
STRAIGHT
Overall Length:9.75" (24,8 cm)
Shaft Length: 4.5" (11,4 cm)

Product No’s:

4240 Straight Micro Curette • Cup Size 1
4242 Straight Micro Curette • Cup Size 2
4244 Straight Micro Curette • Cup Size 4/0
4246 Straight Micro Curette • Cup Size 6/0
ANGLED 45°
Overall Length: 9.75" (24,8 cm)
Shaft Length: 4.5" (11,4 cm)

Product No’s:

4240-01 Angled Micro Curette • Cup Size 1
4242-01 Angled Micro Curette • Cup Size 2
4244-01 Angled Micro Curette • Cup Size 4/0
4246-01 Angled Micro Curette • Cup Size 6/0

Micro Curettes

Four cup sizes, straight or angled shaft.

Download Product Brochure (PDF)

TOP





Mini-lexer Osteotomes

Helpful in osteophyte and cement removal




Mini-lexer Osteotomes

Small, thin osteotomes helpful in osteophyte and cement removal in total joint surgery. Larger handle helps with better control.

Product No’s:

5270-01 [4mm Wide]
Blade Width: 4 mm
Overall Length: 7.25" (18,4 cm)
Handle Length: 4" (10,2 cm)


5270-02 [6mm Wide]
Blade Width: 6 mm
Overall Length: 7.25" (18,4 cm)
Handle Length: 4" (10,2 cm)


5270-03 [10mm Wide]
Blade Width: 10 mm
Overall Length: 7.25" (18,4 cm)
Handle Length: 4" (10,2 cm)


5270-04 [12mm Wide]
Blade Width: 12 mm
Overall Length: 7.25" (18,4 cm)
Handle Length: 4" (10,2 cm)
Download Product Brochure (PDF)

TOP





Mobasser Bayonet Forcep

Designed so that the tips can hold a larger amount of bone graft, and then be used as a tamp to push it down into the disc space


Designed by Jean Pierre Mobasser, MD


Mobasser Bayonet Forcep

Bayonetted forcep has a long reach, which is particularly helpful in less invasive spine surgery.

Mobasser Bayonet Forcep
Product No: 5082
Overall Length: 10" (25,4 cm)
Forcep Ends: 5 x10 mm
Download Product Brochure (PDF)

TOP





Ortho Self-Retaining Retractors

Calibrated ratchet is used to accurately measure the size of opening – useful in procedures to help assess bone graft needs





Ortho Self-Retaining Retractors

Features a no-teeth design, available with flat or serrated outside blades.



Used in knee replacement surgery to separate the femur and tibia, where the calibrated design can be used to help balance ligament.

Also useful in foot & ankle surgery.


Product No’s:


STANDARD HANDLE


1842 [Small Flat with Standard Handle]
Overall Length: 6.5" (16,5 cm)
Blade Width: 7 mm
Blade Thickness: 1.68 mm

1842-01 [Small Serrated with Standard Handle]
Overall Length: 6.5" (16,5 cm)
Blade Width: 7 mm
Blade Thickness: 1.68 mm

1843 [Medium Flat with Standard Handle]
Overall Length: 9.25" (23,5 cm)
Blade Width: 10 mm
Blade Thickness: 1.68 mm

1843-01 [Medium Serrated with Standard Handle]
Overall Length: 9.25" (23,5 cm)
Blade Width: 10 mm
Blade Thickness: 1.68 mm

SMALL GRIP HANDLE
Small Grip Handle designed with the grip closer together for easier gripping and to help reduce hand fatigue.


1842-01-SG
[Small Serrated with Small Grip Handle]
Overall Length: 6.5" (16,5 cm)
Blade Width: 7 mm
Blade Thickness: 1.68 mm

Download Product Brochure (PDF)

TOP





OrthoLucent™ Mini Hohmann Retractors

Radiolucent, lightweight retractors


Designed by Jeffrey Lawton, MD


OrthoLucent™ Mini Hohmann Retractors


The carbon fiber PEEK material is strong, lightweight, completely radiolucent, can be steam sterilized, and helps to prevent from marring component surfaces.




Product No's:

1594-R [8 mm Blade]
Overall Length: 6.875" (17,5 cm)
 Blade Width: 8 mm

1597-R [16 mm Blade]
Overall Length: 6.875" (17,5 cm)
Blade Width: 16 mm
Download Product Brochure (PDF)

TOP





Orthopedic Needle Holder/Scissors

Drive a needle and cut a suture without changing instruments




Orthopedic Needle Holder/Scissors

Orthopedic Needle Holder/Scissors Orthopedic Needle Holder/Scissors

Orthopedic Needle Holder/Scissors

Designed to drive a needle and cut a suture without changing instruments. Longer sizes are helpful in orthopedics.

Orthopedic Needle Holder/Scissors

Product No's:
3045 [4.5" (11,4 cm) with Tungsten Carbide Tips]
3050 [5.5" (14 cm) Standard]
3055 [5.5" (14 cm) with Tungsten Carbide Tips]
3060 [6.5" (16,5 cm) Standard]
3065 [6.5" (16,5 cm) with Tungsten Carbide Tips]
3070 [7.0" (17,8 cm) Standard]
3075 [7.0" (17,8 cm) with Tungsten Carbide Tips]
Download Product Brochure (PDF)

TOP





Periosteal Elevator

Designed for better control




Periosteal Elevators

Designed with sharper sides for ease of elevating and stripping. The handle is designed for better control.

Product No’s:

3450 [Angled Shaft with Straight Blade End]
Overall Length: 7.75" (19,7 cm)
Handle Length: 4.5" (11,4 cm)
Blade Size: 19 x 14 mm


3455 [Straight Shaft with Rounded Blade End]
Overall Length: 7.5" (19,1 cm)
Handle Length: 4.5" (11,4 cm)
Blade Size: 16 x 13 mm
Download Product Brochure (PDF)

TOP





Pituitary Rongeur with Teeth

Designed to optimize the efficiency of soft tissue removal and disc space preparation prior to a spinal interbody fusion


Designed by Michael Murray, MD



Pituitary Rongeur with Teeth

Unique design ensures that only the distal tip of the instrument is in contact upon closure of the jaws, allowing the grasping force to be optimized, and directed at the distal tip of the instrument. In addition, the teeth at the distal end of the instrument allow for a better grasp on tissues or disc material, for enhanced control and efficiency of removal.


Product No: 1792
Overall Length: 12" (30,5 cm)
Shaft Length: 8.75" (22,2 cm)
Jay Length: .75" (19 mm)
Jaw Width: .16" (4 mm)



Download Product Brochure (PDF)

TOP





Ring Curettes





Ring Curettes
Product No's:

5150 [Straight, 3 mm]
Ring Diameter: 3 mm
Overall Length: 8.75" (22,2 cm)

5152 [Straight, 6 mm]
Ring Diameter: 6 mm
Overall Length: 8.75" (22,2 cm)

5154 [Straight, 8 mm]
Ring Diameter: 8 mm
Overall Length: 8.75" (22,2 cm)

5156 [Bent, 3 mm]
Ring Diameter: 3 mm
Overall Length: 8.5" (21,9 cm)

5157 [Bent, 6 mm]
Ring Diameter: 6 mm
Overall Length: 8.5" (21,9 cm)

5158 [Bent, 8 mm]
Ring Diameter: 8 mm
Overall Length: 8.5" (21,9 cm)
Download Product Brochure (PDF)

TOP





Rogozinski Lamina Spreader

Self-retaining and self-leveling lamina spreader that captures the spinous processes, thereby helping to maintain interlaminar retraction


Designed by Chaim Rogozinski, MD


Rogozinski Lamina Spreader



Rogozinski Lamina Spreader

Product No's:

4275 [Standard]
Overall Length: 8" (20,3 cm)
Leg Depth: 3" (7,6 cm)
Blade Width: .75" (1,9 cm)
Blade Height: .5" (1,3 cm)



4275-01 [Small]
Overall Length: 8" (20,3 cm)
Leg Depth: 2 (5,1 cm)
Blade Width: .75" (1,9 cm)
Blade Height: .5" (1,3 cm)
Download Product Brochure (PDF)

TOP





Rogozinski Locking Needle Driver/Scissors

Designed with a quick lock & release handle, can drive a needle and cut a suture without changing instruments


Designed by Chaim Rogozinski, MD


Rogozinski Locking Needle Driver/Scissors
Rogozinski Locking Needle Driver/Scissors
Product No's:

3083 [Standard]
Overall Length: 6.5" (16,5 cm)

3084 [Large]
Overall Length: 7.75" (19,7 cm)

Download Product Brochure (PDF)

TOP





Rogozinski Offset Ring Curette

Curette is angled to allow access for easier bone preparation for anterior lumbar interbody fusion


Designed by Chaim Rogozinski, MD
and Abe Rogozinski, MD


Rogozinski Offset Ring Curette
Rogozinski Offset Ring Curette
Product No: 5020
Overall Length: 16.25" (41,3 cm)
Handle Length: 9" (22,9 cm)
Ring Outide Dia.: 10 mm
Download Product Brochure (PDF)

TOP

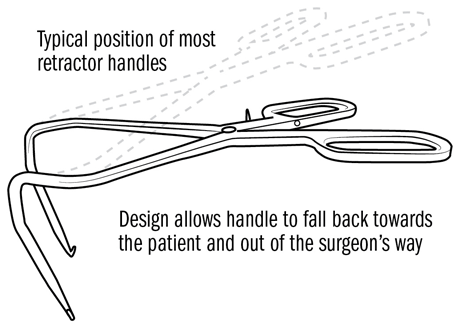

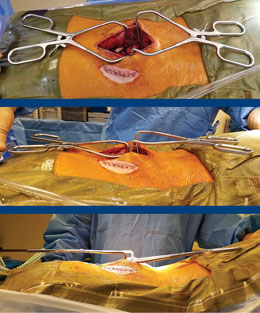

Rogozinski Reverse Angle Retractors

Designed to be self-leveling, helping to maintain the body of the retractor on the patient for soft tissue retraction and out of the surgeons field, with finger loops designed for use with either hand


Designed by Chaim Rogozinski, MD


Rogozinski Reverse Angle Retractor

Designed for spine but can be used for other surgeries as well.

Product No's:

4272 [Large]
Overall Length: 9" (22,9 cm)
Length to Bend: 8.5" (21,6 cm)
Depth: 4.25" (10,8 cm)


4273 [Medium]
Overall Length: 8" (20,3 cm)
Length to Bend: 8" (20,3 cm)
Depth: 3" (7,6 cm)

4274 [Small]
Overall Length: 8" (20,3 cm)
Length to Bend: 8" (20,3 cm)
Depth: 1.75" (4,4 cm)
Download Product Brochure (PDF)

TOP

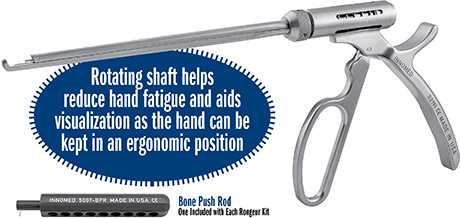

Rogozinski Rotating Rongeur

Designed with cutting direction adjustments of 360°, allowing the instrument to be held in an ergonomic position for enhanced control, strength and precision


Designed by Chaim Rogozinski, MD and Abe Rogozinski, MD



Rogozinski Rotating Rongeur



Rogozinski Rotating Rongeur

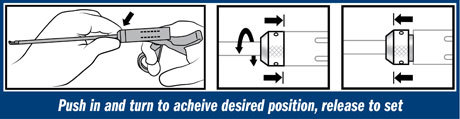

  • Locks every 30° of rotation: push in and turn to achieve the desired position, release to set

  • Bone fragment ejector holes along the underside and on the tip of the barrel

  • Each ronguer kit comes with one Bone Push Rod, designed to help push bone fragments out

Includes an ejector pin for easy bone fragment removal. Rotating head, with no locks or preset positions eliminates the need to switch to an up-bite or down-bite rongeur.

Rogozinski Rotating Rongeur
Rogozinski Rotating Rongeur

Product No's:

5007-4MM [4 mm Rongeur / Bone Push Rod Kit]

5007-5MM [5 mm Rongeur / Bone Push Rod Kit]

Also available individually:

5007-4MM-01 [4 mm/70° Rongeur]
Overall Length: 13" (45,7 cm)
Shaft Length: 7" (17,8 cm)
Jaw Bite Width: 4 mm

5007-5MM-01 [5 mm/70° Rongeur]
Overall Length: 13" (45,7 cm)
Shaft Length: 7" (17,8 cm)
Jaw Bite Width: 5 mm


5007-BPR [Bone Push Rod]
Overall Length: 4.75" (12,1 cm)
Download Product Brochure (PDF)

TOP





Rogozinski Soft Tissue Retractor

Self-leveling retractor that helps lessen tissue movement underneath the prongs, thereby helping to maximize exposure


Designed by Chaim Rogozinski, MD


Rogozinski Soft Tissue Retractor



Rogozinski Soft Tissue Retractor

Product No's:

4276 [Standard]
Overall Length: 8" (20,3 cm)
Leg Depth: 2.5" (6,4 cm)
Blade Width: .75" (1,9 cm)
Blade Height: 1.5" (3,8 cm)



4276-01 [Small]
Overall Length: 8" (20,3 cm)
Leg Depth: 2" (5,1 cm)
Blade Width: .75" (1,9 cm)
Blade Height: 1.5" (3,8 cm)
Download Product Brochure (PDF)

TOP





Romanelli Deep Gelpi Retractor

Offers wide, deep exposure


Designed by Ron Romanelli, MD


Romanelli Deep Gelpi Retractor

Can be used to hold the hip capsule out of the way for easy visualization, and to allow reaming of the acetabulum without catching the capsule in the reamer.

The ends of the retractor have dull tips to help avoid soft tissue damage.

Wider separation occurs at the deep capsule level.

Holds the muscle out of the way while retracting the capsule.

Also helpful in MIS Spine approaches.

Product No: 4270
Overall Length: 7.45" (18,9 cm)
Depth from Bend: 5.125" (13 cm)
Prong Length: .5" (13 mm)
Download Product Brochure (PDF)

TOP





Screw/Pin Removal Locking Pliers

Unique jaw designed to solidly grip and clamp onto a screw head, broken screw, or pin for removal




Screw/Pin Removal Locking Pliers


Screw/Pin Removal Locking Pliers

Screw/Pin Removal Locking Pliers

Small
Jaw End & Bite

Designed to securely grab pins as small as 1.4 mm (.055") up to 2.4 mm (.095")

Standard
Jaw End & Bite

Designed to securely grab larger pins, screw heads, or broken screws

Small version features a smaller size jaw for smaller screws, pins and incisions.

Product No’s:

S0142 [Standard]
Overall Length: 7.875" (20 cm)
Jaw Width: 4 mm


S0142-01 [Small]
Overall Length: 7.875" (20 cm)
Jaw Width: 4 mm
Download Product Brochure (PDF)

TOP





Shark Tooth Graspers

Graspers sharp teeth help grasp onto tissue and bone


Designed by Luis Ulloa


Shark Tooth Rongeur





Helpful in removing the labrum, and osteophytes around the acetabulum and around the glenoid. Also helps to remove meniscus, osteophytes and loose bodies. Helps facilitate working through a small incision without disrupting vision.

Shark Tooth Grasper

Product No’s:


STANDARD HANDLE


1797 [5" Shaft with Standard Handle]
Jaw Size: 6 mm x 10 mm
Overall Length: 8" (20,3 cm)
Shaft Length: 5" (12,7 cm)

1798 [7" Shaft with Standard Handle]
Jaw Size: 6 mm x 10 mm
Overall Length: 10" (25,4 cm)
Shaft Length: 7" (17,8 cm)


1799 [9" Shaft with Standard Handle]
Jaw Size: 6 mm x 10 mm
Overall Length: 12" (30,5 cm)
Shaft Length: 9" (22,9 cm)


1796 [12" Shaft with Standard Handle]
Jaw Size: 6 mm x 10 mm
Overall Length: 15" (38,1 cm)
Shaft Length: 12" (30,5 cm)

SMALL GRIP HANDLE
Small Grip Handle designed with the grip closer together for easier gripping and to help reduce hand fatigue.


1798-SG [7" Shaft with Small Grip Handle]
Jaw Size: 6 mm x 10 mm
Overall Length: 10" (25,4 cm)
Shaft Length: 7" (17,8 cm)

1799-SG [9" Shaft with Small Grip Handle]
Jaw Size: 6 mm x 10 mm
Overall Length: 12" (30,5 cm)
Shaft Length: 9" (22,9 cm)
Download Product Brochure (PDF)

TOP





Spine/Trauma Deep Tissue Retractor

Designed to help maximize exposure with 90° arms and deep tissue blades


Designed by Patti Albrecht


Spine/Trauma Deep Tissue Retractor

Available in configurations of 7 or 4 teeth to help maximize exposure.

Product No's:
:
1862 [4 Teeth]
Overall Length: 7.5" (19,1 cm)
Handle-to-Bend Length: 6" (15,2 cm)
Drop Depth: 3.25" (8,3 cm)
Prongs: 1.5" Long x .75" Wide (38 mm x 19 mm)

1863 [7 Teeth]
Overall Length: 7.5" (19,1 cm)
Handle-to-Bend Length: 6" (15,2 cm)
Drop Depth: 3.25" (8,3 cm)
Prongs: 1.5" Long x 1.375" Wide (38 mm x 35 mm)
Download Product Brochure (PDF)

TOP





Star Bit Driver Set





Star Bit Driver Set

Star Bit Driver Set

Set consists of four star bits — T10, T15, T20, & T25, a handle which accommodates any of the above bits, and a sterilization case. The drive end (A/O) is designed for easy and quick engagement with the universal instrument handle.





The ergonomic, modular handle has two connection points, allowing for both straight and T-handle orientations.



Product No's:

5194-00 [4 Star Bits w/Handle & Case]

5194-01 [4 Star Bits w/Case only]

Also Available individually:

S0113 [Universal 4" (10,1 cm) Handle]

5194-10 [T10 with A/O End]

5194-15 [T15 with A/O End]

5194-20 [T20 with A/O End]

5194-25 [T25 with A/O End]

9003 [Case]
Download Product Brochure (PDF)

TOP

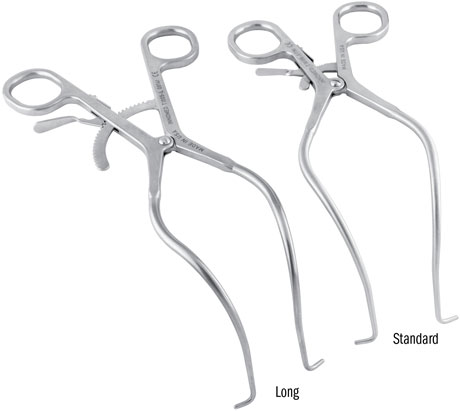

Subscapularis Spreader

Useful for deep exposure in spine surgery




Subscapularis Spreaders

Subscapularis Spreader

Also used for retracting a split deltoid in mini rotator cuff repairs.

Product No’s:

T1005 [Standard]
Overall Length: 8.375" (21,3 cm)

T1005-L [Long]
Overall Length: 9.25" (23,5 cm)
Download Product Brochure (PDF)

TOP

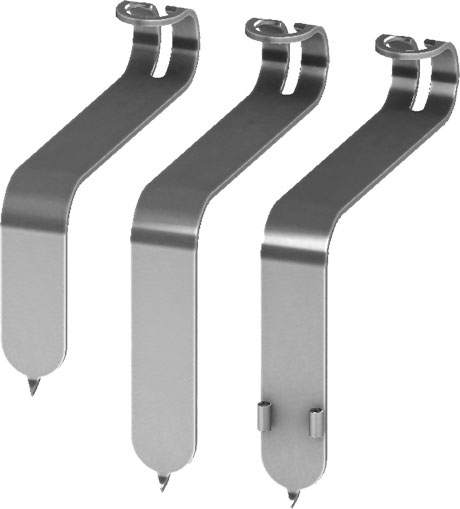

Taylor Retractors





Taylor Retractors
Product No's:
6330-01 [Standard]
Overall Length: 8" (20,3 cm)
Depth from Bend: 4" (10,2 cm)
Blade Width: 32 mm


6330-02 [Deep]
Overall Length: 9" (23 cm)
Depth from Bend: 5.5" (14 cm)
Blade Width: 32 mm


6330-03 [Deep with Pin Guides]
Overall Length: 9" (23 cm)
Depth from Bend: 5.5" (14 cm)
Blade Width: 32 mm
Guide for Pins Up To: .125" (3,2 mm)

Download Product Brochure (PDF)

TOP





Tissue Graspers with Shark Teeth

Shark teeth help to grasp on to tissue and bone


Designed by Luis Ulloa


Tissue Graspers with Shark Teeth

Shaft allows for use in narrow spaces.

Ideal for removing herniated disc material.

Tissue Graspers with Shark Teeth

Product No's:

1784-01 [Up Angled Jaw]
Shaft Length: 7" (17,8 cm)
Overall Length: 10" (25,4 cm)
Jaw: 9 mm Long x 5 mm High x 1.8 mm Wide


1784-02 [Straight Jaw]
Shaft Length: 7" (17,8 cm)
Overall Length: 10" (25,4 cm)
Jaw: 9 mm Long x 5 mm High x 1.8 mm Wide


1784-03 [Down Angled Jaw]
Shaft Length: 7" (17,8 cm)
Overall Length: 10" (25,4 cm)
Jaw: 9 mm Long x 5 mm High x 1.8 mm Wide

Download Product Brochure (PDF)

TOP





Universal Bone Grafting/Impacting Forceps

Bone graft can be grasped, placed and impacted without changing hands or instruments


Designed by J.A. Amis, MD


The forceps are designed with grasping ends for delivery of bone graft. When the graft is in place, the forceps are closed, which forms the ends into an impacting punch. A striking platform is attached to the end of the forceps for tapping and tamping the graft. Four end diameters are available in two lengths.


Universal Bone Grafting/Impacting Forceps

Universal Bone Grafting/Impacting Forceps Universal Bone Grafting/Impacting Forceps
Universal Bone Grafting/Impacting Forceps
Universal Bone Grafting/Impacting ForcepsProduct No’s:

6" (15,2 cm) Length

5010-01 [1/8" (3,2 mm) Diameter End]
5010-02 [3/16" (4,8 mm Diameter End]
5010-03 [1/4" (6,3 mm) Diameter End]
5010-04 [5/16" (8 mm) Diameter End]

10" (25,4 cm) Length

5050-01 [1/8" (3,2 mm) Diameter End]
5050-02 [3/16" (4,8 mm Diameter End]
5050-03 [1/4" (6,3 mm) Diameter End]
5050-04 [5/16" (8 mm) Diameter End]
Download Product Brochure (PDF)

TOP





Universal Screw Removal Instrument System

Designed to remove solid and cannulated screws, including partial, broken, stripped, and submerged screws




Universal Screw Removal Instrument System
Universal Screw Removal Instrument System
Product No’s:
S0010-00 [Complete System with Case]
S0113 [Universal Instrument Handle]
S0128 [1.5 mm Screw Extractor]
S0116 [2.5 mm Screw Extractor]
S0130 [3.5 mm Screw Extractor]
S0117 [1.5 mm Hex Driver]
S0114 [2.5 mm Hex Driver]
S0115 [3.5 mm Hex Driver]
S0132 [4.0 mm Hex Driver]
S0133 [5.0 mm Hex Driver]
S0136 [2.5 mm Cannulated Hex Driver]
S0137 [3.5 mm Cannulated Hex Driver]
S0138 [4.0 mm Cannulated Hex Driver]
S0139 [5.0 mm Cannulated Hex Driver]
S0118 [Large Cruciform Screwdriver]
S0119 [Small Cruciform Screwdriver]
S0141 [Mini Cruciform Screwdriver]
S0120 [Single Slot Screwdriver]
S0121 [2.2 mm Trephine]
S0122 [3.2 mm Trephine]
S0123 [4.2 mm Trephine]
S0124 [4.7 mm Trephine]
S0125 [7.2 mm Trephine]
S0127 [Universal Extractor - Shaft Only]
S0127-01 [Large Extraction Bolt Body]
S0127-03 [Small Extraction Bolt Body]
S0127-04 [Extractor Wrench]
S0129 [Pick]
S0140 [Cannulated Drive Extension]
9017 [Screw Removal Case Only]
Case Dimensions:
21" x 9.5" x 2.25 (53,4 x 24,1 x 5,7 cm)

Used for removal of stripped hex screws, buried screws, and partial screws with broken screw heads. The drive end (A/O) is designed for easy and quick engagement with the universal instrument handle.


Screw Extractors

Unique thread design accommodates removal of stripped screws. The instrument “locks” into the screw head and allows removal once engaged. Designed to be used in a counter-clockwise direction.

Trephines

Designed to fit over submerged screws for extraction with minimal bone loss. Extraction is enhanced by the unique tooth design. Designed to be used in a counter-clockwise direction.

Universal Extractor

Designed to remove screws with heads partially or completely missing. The cone shaped head fully engages the remaining screw and optimizes the force needed for removal. The bolt is disposable and locks into place using a unique thread design. Designed to be used in a counter-clockwise direction.

Hex Drivers

Available in all standard hex sizes. Also offered in a cannulated shaft version for easier removal of buried screws.

Screwdrivers

Standard cruciform screwdrivers in large, small, and mini, and single slot.

Cannulated Drive Extension

Used when a longer instrument shaft is desired.

Pick

Used to remove fragments and bone or tissue from screw head.

Universal Instrument Handle

The single handle allows the surgeon to decide which direction is most efficient and comfortable. The quick-connect release mechanism allows for quick interoperative exchange.
Download Product Brochure (PDF)

TOP





Universal Screwdriver Set

Helps eliminate the opening of multiple sterile packs when a specific size or style of screwdriver is needed






Universal Screwdriver Set

Universal Screwdriver Set

Helpful during revision total joint surgery where screws have been used, removal of bone plates, fracture fixation screws or bone graft screws. Set consists of: 7 (seven) double ended screwdriver bits — small & large single slot, cross & cruciate, 3.5 mm & 4.5 mm hex, small & large phillips, small, medium, & large star — a handle which accommodates any of the above bits, and a sterilization case.Universal Screwdriver Set in Case

Product No's: 5195 [Complete Set with Case]

Also available individually:

5195-01 [Handle]

5195-02 [Straight (single slot) – Lg & Sm]
Large: 7 x 1.5 mm, Small: 5 x 1 mm

5195-03 [Cross/Cruciate]
Large: 7 mm, Small: 6 mm

5195-04 [Hex]
Large: 4.5 mm, Small: 3.5 mm

5195-05 [Phillips]
Large: 4 mm, Small: 3.5 mm

5195-08 [Small Star: #6 & #8]

5195-06 [Medium Star: #10 & #15]

5195-07 [Large Star: #20 & #25]
Download Product Brochure (PDF)

TOP



© 2023 Innomed, Inc. All rights reserved.
