Curved Cement Osteotome
|
Curved Osteotome for Total Knee Revision
|
Eickmann Knee Revision Set
|
Flexible Osteotome System
|
|
|
|
|
|
|
|
Foster Cement Osteotome
|
Gelbke Freer Cement Trimmer/Nerve Hook with TiN Coating
|
Incavo Tibia Component Revision Osteotomes
|
Lachiewicz Total Knee Revision Set
|
Mini-lexer Osteotomes
|
|
|
|
|
|
|
Mueller-Type Cement
Removal Instruments |
Ring Curettes
|
Sarraf Cement Trimmer
|
Sarraf Spearhead Cement Exciser
|
Scott Uni & Total Knee Cement Removing Curette
|
|
|
|
|
|
|
Wagner Osteotome Handle |
Whang Tibial Osteotome
|
Whelan Flexible Chisel Guide
|
Whelan Curved Chisel Guide
|
|
|
|

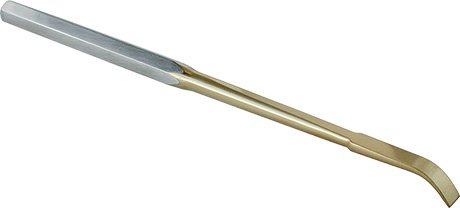

Curved Cement Osteotome

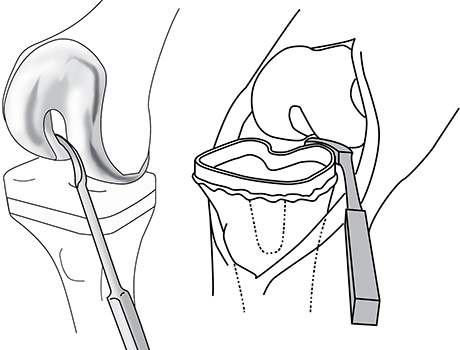

Helps remove cement around the back of the tibia base, and is useful in the femoral notch during removal of a knee femoral component
|
|
|
|
|
|
|

|
Designed to be inserted around the back of the tibia base to remove cement. The curve is congruent with most tibia bases. During revision knee surgery, can be used to help separate the prosthesis/bone or prosthesis/cement interface. The curve of the osteotome allows it to be used in the femoral notch of a femoral component. The osteotome is nitrate coated to help protect the implant surface.
Product No: 5220
Overall Length: 6.75" (17,1 cm)
Handle Length: 3" (7,6 cm)
Blade Width: 6,8 mm
|
|
|
Curved Osteotome for Total Knee Revision
Designed to help in the removal of a tibial component,
the curved blade is designed to make contact from multiple angles |
|
|
|
Designed by Morteza Meftah, MD |
|
|
|
Product No's:
3622 [Standard]
Overall Length: 11" (27,9 cm)
Handle Length: 6" (15,2 cm)
Blade Width: 12 mm
Blade Thickness: 2 mm
3622-01 [Small]
Overall Length: 8" (20,3 cm)
Handle Length: 4.5" (11,4 cm)
Blade Width: 12 mm
Blade Thickness: 2 mm
|
|
|
Eickmann Knee Revision Set
Used for total knee revision |
|
|
|
Designed by Thomas Eickmann, MD |
|
|
|
|
|
|
Flexible Osteotome System
Provides various osteotome blades for both hip and knee surgery |
|
|
|
|
|
|
|
Sharp, flexible blades are well suited for loosening implants from cement or bony ingrowth fixation.
Various blade widths and profiles allow great flexibility to follow the implant contours.
Modular handle is made of high impact surgical stainless steel and has a quick-coupling positive locking mechanism for ease of use and quick blade changes.
Slap hammer threads into the handle and is designed to facilitate blade removal.
System includes choice of handle style.
Product No’s:
S0011-00 [Set with Quick-Coupling Handle and Case]
S0012-00 [Set with Locking Nut Handle and Case]
Individual Instruments Included in Sets:
S1002 Thin Osteotome Blade
2.5" (6,3 cm) x 8 mm
S1003 Thin Osteotome Blade
2.5" (6,3 cm) x 10 mm
S1004 Thin Osteotome Blade
2.5" (6,3 cm) x 12 mm
S1005 Thin Osteotome Blade
2.5" (6,3 cm) x 20 mm
S1006 Curved Thin Osteotome Blade
2.5" (6,3 cm) x 12 mm
S1007 Curved Thin Osteotome Blade
5" (12,7 cm) x 20 mm
S1008 Thin Osteotome Blade
5" (12,7 cm) x 10 mm
S1009 Thin Osteotome Blade
5" (12,7 cm) x 8 mm
S1020 Handle with Quick-Coupling End
5" (12,7 cm)
– OR –
S1021 Handle with Locking Nut
6" (15,2 cm)
S1133 Radial Osteotome
5" (12,7 cm) x 10 mm
S1120 Radial Osteotome
5" (12,7 cm) x 12 mm
S1134 Radial Osteotome
5" (12,7 cm) x 14 mm
S1121 Radial Osteotome
5" (12,7 cm) x 16 mm
S1122 Radial Osteotome
5" (12,7 cm) x 20 mm
S2007 Small Slap Hammer
12" (30,5 cm)
9018 Case
|
|
|
Optional Blades for Flexible Osteotome System
|
|
|
|
Optional Strike Plate can be attached to the Handle for direct striking with a mallet.
Optional Curved Chisel Blades are designed to help loosen the cement/prosthesis interval in TKA tibial tray and femoral component revisions. The curved design is useful in working around pegs & fins to get posterior cement access. Also helpful with removal of other implants, i.e shoulder, ankle, etc.
OPTIONAL BLADES:
NOT INCLUDED IN SET
S1020-SP Strike Plate for Handle
Diameter 1.625" (4,1 cm)
S1123 7.5" Extra Long Osteotome Blade
7.5" (19,1 cm) x 8 mm
S1135 Radial Osteotome Medial Curve
6.75" (17,1 cm) x 11 mm
S1136 Radial Osteotome Lateral Curve
6.75" (17,1 cm) x 11 mm
S1137 Radial Osteotome Medial Curve
5" (12,7 cm) x 11 mm
S1138 Radial Osteotome Lateral Curve
5" (12,7 cm) x 11 mm
S1233-L 2" Flexible Left Curved Chisel
2" (5,1 cm) x 8 mm
S1233-R 2" Flexible Right Curved Chisel
2" (5,1 cm) x 8 mm
S1222 2.5" Chisel Blade
2.5" (6,4 cm) x 8 mm
S1223 2.5" Chisel Blade
2.5" (6,4 cm) x 10 mm
S1224 2.5" Chisel Blade
2.5" (6,4 cm) x 12 mm
S1225 2.5" Chisel Blade
2.5" (6,4 cm) x 20 mm
S1229 5" Chisel Blade
5" (12,7 cm) x 8 mm
S1228 5" Chisel Blade
5" (12,7 cm) x 10 mm
S1231 5" Chisel Blade
5" (12,7 cm) x 12 mm
S1230 5" Chisel Blade
5" (12,7 cm) x 20 mm
S1227 5.5" Long Chisel Blade
5.5" (12,7 cm) x 8 mm
S1232 7.5" Extra Long Chisel Blade
7.5" (19,1 cm) x 8 mm
S1234 8.5" Extra Long Chisel Blade
8.5" (21,6 cm) x 8 mm
S1235 9.5" Extra Long Chisel Blade
9.5" (24,1 cm) x 8 mm
S1236 10.5" Extra Long Chisel Blade
10.5" (26,7 cm) x 8 mm
S1237 11.5" Extra Long Chisel Blade
11.5" (29,2 cm) x 8 mm
S1238 12.5" Extra Long Chisel Blade
12.5" (31,8 cm) x 8 mm
|
|
|
Foster Cement Osteotome
Designed to help remove a UKA/TKA component |
|
|
|
Designed by Scott A. Foster, MD |
|
|
|
Features a large handle and striking platform. The ultra hard titanium nitride coating helps to extend life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion.
Product No: 5232
Osteotome Width: 6.7 mm
Overall Length: 8.5" (21,6 cm)
Handle Length: 5.75" (14,6 cm)
|
|
|
Gelbke Freer Cement Trimmer/Nerve Hook with TiN Coating
Designed to facilitate cement removal during total and partial knee replacement |
|
|
|
Designed by Martin K. Gelbke, MD |
|
|
|
Consists of a freer elevator on one end and a nerve hook on the other.
Nerve hook accesses "tough to reach" corners of the knee.
Particularly useful for use with an ultra-congruent polyethylene insert, where trial liners are typically not used, once the final components have been placed.
Ultra hard titanium nitride coating helps to extend life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion.
Product No: 5007
Overall Length: 9.25" (23,5 cm)
Blade Width at End: 5 mm
Hook Depth: 5 mm
|
|
|
Incavo Tibia Component Revision Osteotomes
Designed to help break the posterior cement-bone interface when removing a cemented tibial TKA component |
|
|
|
Designed by Stephen J. Incavo, MD |
|
|
|
Also used to help break the posterior implant-bone interface when removing a cementless tibial TKA component.
Product No's:
3621-00 [Complete Set]
Set Includes/Available Individually:
3621-01 [Standard Osteotome]
Blade Length: 10 mm
Blade Width: 1/2" (12.7 mm)
Blade Offset: 3/4" (19.1 mm)
Overall Length: 8.5" (21,6 cm)
3621-02 [Medium Osteotome]
Blade Length: 14 mm
Blade Width: 1/2" (12.7 mm)
Blade Offset: 3/4" (19.1 mm)
Overall Length: 8.5" (21,6 cm)
3621-03 [Deep Osteotome]
Blade Length: 18 mm
Blade Width: 1/2" (12.7 mm)
Blade Offset: 3/4" (19.1 mm)
Overall Length: 8.5" (21,6 cm)
3040 [Slap Hammer]
1015 [Sterilization Case]
|
|
|
Lachiewicz Total Knee Revision Set
Used for total knee revision |
|
|
|
Designed by Paul F. Lachiewicz, MD |
|
|
|
Product No's:
3700-00 [Complete Set]
Individual Instruments/Available Individually:
 3700-01 [Offset Edge Cutting Cement Chisel, Short] Chisel Width: 10 mm
 3700-02 [Offset Edge Cutting Cement Chisel, Long] Chisel Width: 15 mm
 3700-03 [Offset Femoral Component Dis-impactor]
 3700-04 [8mm Cement Prosthesis Osteotome] Osteotome Width: 8 mm
 3700-05 [10mm Cement Prosthesis Osteotome] Osteotome Width: 10 mm
 3700-06 [13mm Cement Prosthesis Osteotome] Osteotome Width: 13 mm
 3700-07 [20mm Cement Prosthesis Osteotome] Osteotome Width: 20 mm
 3700-08 [V-shaped Cement Splitter]
 3700-09 [One-sided Cement Splitter]
 3700-10 [8mm Cement Hook]
Hook Blade Width: 8mm
 3700-11 [Cement Punch]
 3700-12 [Removal Cross Bar (not shown)]
|
|
|
Mini-lexer Osteotomes
Helpful in osteophyte and cement removal
|
|
|
|
|
|
|
|
|
Small, thin osteotomes helpful in osteophyte and cement removal in total joint surgery. Larger handle helps with better control.
Product No’s:
5270-01 [4mm Wide]
Blade Width: 4 mm
Overall Length: 7.25" (18,4 cm)
Handle Length: 4" (10,2 cm)
5270-02 [6mm Wide]
Blade Width: 6 mm
Overall Length: 7.25" (18,4 cm)
Handle Length: 4" (10,2 cm)
5270-03 [10mm Wide]
Blade Width: 10 mm
Overall Length: 7.25" (18,4 cm)
Handle Length: 4" (10,2 cm)
5270-04 [12mm Wide]
Blade Width: 12 mm
Overall Length: 7.25" (18,4 cm)
Handle Length: 4" (10,2 cm)
|
|
|
Mueller-Type Cement Removal Instruments
Used for cement removal in the knee, hip, and shoulder
|
|
|
|
|
|
|
|
Product No's
S7500-00 [Complete Set with Case] Non-CE Countries
S7500-01 [Complete Set with Case] CE Countries
(Top to Bottom):
1) Narrow Cement Removal Gouge, Short
Product No: S7505
Shaft Length: 15 cm
Gouge: 9 mm, negative
2) Narrow Cement Removal Gouge, Long
Product No: S7507
Shaft Length: 24 cm
Gouge: 9 mm, negative
3) Narrow Offset Cement Removal Gouge
Product No: S7510
Shaft Length: 24 cm
Gouge: 9 mm, negative
4) Acetabular Chisel
Product No: S7515
Shaft Length: 24 cm
Chisel: 7.5 mm
5) Offset Chisel
Product No: S7520
Shaft Length: 15 cm
Chisel: 9 mm
6) Flared Angle Gouge
Product No: S7525
Shaft Length: 24 cm
Gouge: 9 mm, positive, angle 15° downward
7) Wide Gouge
Product No: S7530
Shaft Length: 24 cm
Gouge: 11.5 mm, negative
8) “V” Splitter
Product No: S7535
V-Shaped Chisel: 7 mm
9) Saddle Punch
Product No: S7587
Shaft Length: 24 cm
Punch: 16.5 mm x 6.5 mm
10) Cement Splitting Osteotome
Product No: S7590
Shaft Length: 24 cm
11) Cement Removal Osteotome, Short
Product No: S7595
Shaft Length: 15 mm
Osteotome: 8 mm
12) Cement Removal Osteotome, Long
Product No: S7597
Shaft Length: 24 cm
Osteotome: 8 mm
13) 4.4mm Drill
Product No: S7540
14) 4.4mm Drill Guide
Product No: S7545
15) 6.4mm Drill
Product No: S7550
16) 6.4mm Drill Guide
Product No: S7555
17) Straight Cement Removal Hook
Product No: S7560
Hook Curette: 10 mm
18) Curved Cement Removal Hook
Product No: S7565
Hook Curette: 10 mm
19) Cross Bar
Product No: S7570
20) 7mm T-Handle Conical Tap
Product No: S7575
21) 9mm T-Handle Conical Tap
Product No: S7580
22) Slotted Mallet
Product No: S7585
9075 [Case]
Optional Instruments:
8247-00 [T-Handle Chuck & Key]
8247-01 [T-Handle Chuck Only]
8247-02 [Chuck Key Only]
|
|
|
Ring Curettes
|
|
|
|
|
|
|
|
Product No's:
5150 [Straight, 3 mm]
Ring Diameter: 3 mm
Overall Length: 8.75" (22,2 cm)
5152 [Straight, 6 mm]
Ring Diameter: 6 mm
Overall Length: 8.75" (22,2 cm)
5154 [Straight, 8 mm]
Ring Diameter: 8 mm
Overall Length: 8.75" (22,2 cm)
5156 [Bent, 3 mm]
Ring Diameter: 3 mm
Overall Length: 8.5" (21,9 cm)
5157 [Bent, 6 mm]
Ring Diameter: 6 mm
Overall Length: 8.5" (21,9 cm)
5158 [Bent, 8 mm]
Ring Diameter: 8 mm
Overall Length: 8.5" (21,9 cm)
|
|
|
Sarraf Cement Trimmer
Two-in-one instrument designed for cement removal during arthroplasty surgery |
|
|
|
Designed by Khaled M. Sarraf, MD |
|
|
|
The curved semicircular tip is congruent to most tibial plates and femoral condylar implants, helping to facilitate removal of excess cement, especially at the tight posterior aspect
The small scoop-end tip assists in excising unset cement
Ultra hard titanium nitride coating helps to extend curette life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion, while helping to eliminate metal transfer and protect the implant surface
Product No: 5212
Overall Length: 7.75" (19,7 cm)
|
|
|
Sarraf Spearhead Cement Exciser
Two-in-one instrument designed for cement removal during arthroplasty surgery |
|
|
|
Designed by Khaled M. Sarraf, MD |
|
|
|
The curved semicircular tip is congruent to most tibial plates and femoral condylar implants, helping to facilitate removal of excess cement, especially at the tight posterior aspect
The spearhead tip assists in excising and shaping the unset cement
Ultra hard titanium nitride coating helps to extend curette life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion, while helping to eliminate metal transfer and protect the implant surface
Product No: 5211
Overall Length: 7.75" (19,7 cm)
|
|
|

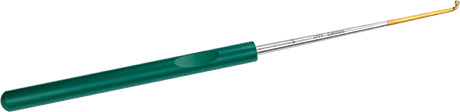

Scott Uni & Total Knee Cement Removing Curette
Sized, shaped and angled 90° to help with retrieval of posteriorly extruded cement behind the tibial component in both total and unicompartmental knee arthroplasty |
|
|
|
Designed by Richard D. Scott, MD |
|
|
Ultra hard titanium nitride coating helps to extend curette life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion.
|
Product No: 4247
Overall Length: 9.625" (24,4 cm)
Overall Length: 5.25" (13,3 cm)
Cup Size: 4/0
|
|
|
Wagner Osteotome Handle
Handle is designed for easier gripping, rotational control, and use with a mallet with a standard 1/4” Lambotte osteotome |
|
|
|
Designed by Russell Wagner, MD |
|
|
|
Product No's
5348 [Handle Only]
Overall Length: 5.5" (14 cm)
5348-01 [1/4" Osteotome Only]
Overall Length: 8.875" (22,5 cm)
|
|
|
Whang Tibial Osteotome
Designed to disrupt the interface of a well fixed tibial base, specifically the lateral portion |
|
|
|
Designed by William Whang, MD |
|
|
|
Product No: 5338
Overall Length: 8" (20,3 cm)
Handle Length: 4.5" (11,4 cm)
Blade Thickness: 2,5 mm
|
|
|
Whelan Flexible Chisel Guide
Designed to help stabilize a thin chisel blade until it's within the bone prosthesis interface |
|
|
|
Designed by Edward J. Whelan, III, MD |
|
|
|
Guide with sliding handle helps to stabilize a curved, thin flexible chisel blade until it's within the bone prosthesis interface. Chisel tip lets it hug prosthesis to help prevent perforation. Slap hammer threads into the handle and is designed to facilitate blade removal. Easily changeable disposable blades help assure sharpness.
Chisel blade features an ultra hard titanium nitride coating to help extend life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion.
Product No's:
5302-00 [Complete Set[
Included In Set / Replacement Parts:
5302-01 [Guide Only]
Overall Length: 5" to 8.75" (12,7 to 22,2 cm)
5302-02 [10mm Chisel Blade Only]
Overall Length: 4.625" (11,7 cm)
Blade Thickness: .020" (.51 mm)
3040 [Slap Hammer]
1015 [Sterilization Case]
|
|
|
Whelan Curved Chisel Guide
Designed to help stabilize a thin curved chisel blade
until it's within the bone prosthesis interface |
|
|
|
Designed by Edward J. Whelan, III, MD |
|
|
|
Guide with sliding handle helps to stabilize a curved, thin flexible chisel blade until it's within the bone prosthesis interface. Chisel tip lets it hug prosthesis to help prevent perforation. Slap hammer threads into the handle and is designed to facilitate blade removal. Easily changeable disposable blades help assure sharpness.
Chisel blade features an ultra hard titanium nitride coating to help extend life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion.
Product No's:
5302-00 [Complete Set[
Included In Set / Replacement Parts:
5302-01 [Guide Only]
Overall Length: 5" to 8.75" (12,7 cm to 22,2 cm)
5302-02 [10mm Chisel Blade Only]
Overall Length: 4.625" (11,7cm)
Blade Thickness: .020" (.51mm)
3040 [Slap Hammer]
1015 [Sterilization Case]
|
|
|
© 2023 Innomed, Inc. All rights reserved.
|
