Anderson Talar Neck Osteotome
|
Argintar Claw Drill Guide Wire/Suture Passer
|
NEW! Basic Screw Removal System
|
Bone Pins – Shouldered
|
|
|
|
|
|
|
|
|
Burgess Modified Pin Inserter
|
Corkscrew Small Bone Manipulator
|
Desai Curette Osteotomes
|
Faillace Bone Impact/Graft Forceps
|
Fracture Reduction Pick
|
|
|
 |
|
|
|
Gray Syringe Assist with Ergonomic Handle
|
Hemisphere Curette
|
Hooked Bone Awl
|
K-Wire Bender/Cutter
|
Lawton Broken Screw Extractor
|
|
|
|
 |
|
|
|
|
Lawton Screw Extractors
|
Long Bonney Tissue Forceps
|
Long Jaw Needle Nose Pliers
|
Lubahn Tarsal/Carpal Corkscrews
|
Macko Square Tipped Rongeur
|
|
|
|
|
|
|

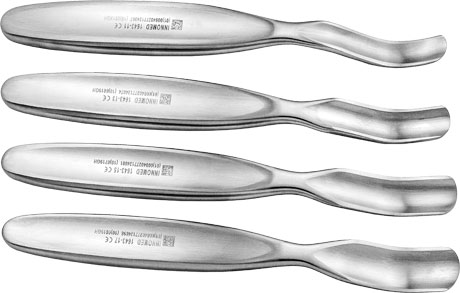

McGlamry Type Elevators
|
Medial Malleolus Fracture Reduction Aid
|
Micro Curettes
|
Nicholson Small Bone and Shoulder Cement Removal Instruments
|
O’Brien Probe Release Sleeve
|
|
|
|
|
|
|
NEW! Olson Cannulated Swivel Tool
|
Ortho Mini Chisels
|
Ortho Mini Gouges
|
Orthopedic Needle Holder/Scissors
|
Pin Puller – Small
|
|
|
|
|
|
|
Resnick Small Bone Tamp with Oblique K-Wire Hole
|
Ring Curettes
|
Roberts Pin Bending Cannula Set
|
Sarraf Fracture Reduction Thimble
|
Sarraf Toothed Curettes
|
|
|
|
|
|
|
Shouldered Pin Retractors
|
Small Cannulated Ball Spike
|
Stanton Bent Pin Removal Pliers
|
Universal Bone Grafting/Impacting Forceps
|
Wixted Fracture Distractor
|
|
|
|
|
|
|

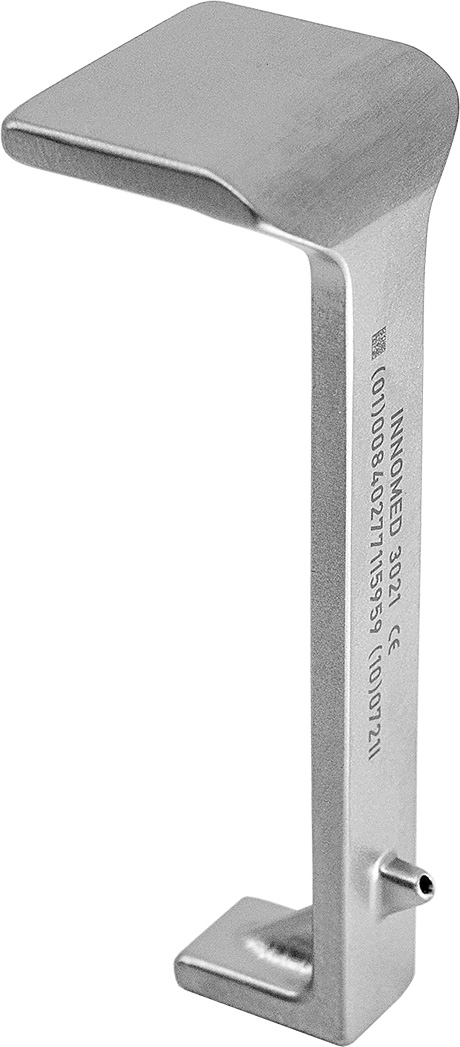

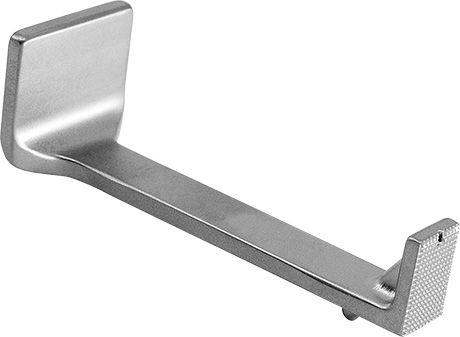

Zell Fixed Angle Wire Guide
|
|
|
|
|
|
|

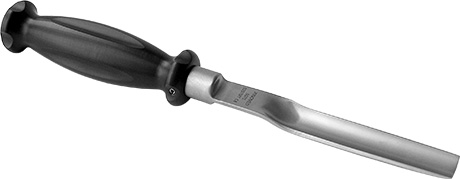

Anderson Talar Neck Osteotome
Designed to help improve range of motion and reduce pain caused by anterior boney impingement of the ankle by removing osteophytes from the anterior talar neck and the anterior distal tibia
|
|
|
|
Designed by John Anderson, MD
|
|
|

|
Product No: 5075 [17 mm]
Osteotome Width: 17 mm
Overall Length: 9.875" (25,1 cm)
Handle Length: 4.5" (11,4 cm)
5075-50 [12.7 mm]
Osteotome Width: 12.7 mm
Overall Length: 9.875" (25,1 cm)
Handle Length: 4.5" (11,4 cm)
5075-75 [9.5 mm]
Osteotome Width: 9.5 mm
Overall Length: 9.875" (25,1 cm)
Handle Length: 4.5" (11,4 cm)
|
|
|
Argintar Claw Drill Guide Wire/Suture Passer
Expandable claw design allows for minimally invasive, reproducible one-step wire/suture passage |
|
|
|
Designed by Evan Argintar MD |
|
|
|
Especially helpful during quad/patella tendon repair surgery and other applications where a suture will be passed—particularly when soft tissue dissection is to be minimized, such as multi-ligament knee reconstruction (MCL/LCL), elbow reconstruction (ULCL/MCL), foot-ankle reconstruction (ATFL), and wrist reconstruction (DRUJ).
Product No: 8315-00 [Set]
Set Includes: (1) Claw & (1) Wire/Suture Pin
Individual Parts:
8315-01 [Claw Unit]
Maximum Internal Opening: 2.5" (6,4 cm)
Product Dimensions: 2.5" x 4" (6,4 cm x 10,2 cm)
1227 [3/32" (2 mm) Pin with Wire/Suture Hole]
Overall Length: 6" (15,2 cm)
|
|
|
Basic Screw Removal System
System designed to help remove damaged and broken screws from 1.5 to 7.0 mm |
|
|
|
|
|
|
|
Product No’s:
2022-00 [Complete Set]
Set Includes:
2022-01 [Screw Removal Pliers]
Overall Length: 8" (20,3 cm)
2022-02 [Mini Lexer Gouge – 4 mm]
Overall Length: 7" (17,8 cm)
Gouge Width: 4 mm
2022-03 [Mini Lexer Gouge – 6 mm]
Overall Length: 7" (17,8 cm)
Gouge Width: 6 mm
2022-04 [Mini Lexer Gouge – 10 mm]
Overall Length: 7" (17,8 cm)
Gouge Width: 10 mm
2022-05 [Extraction Screw for 1.5/2.0 mm]
Overall Length: 1.6" (4 cm)
2022-06 [Extraction Screw for 2.7/3.5/4.0 mm]
Overall Length: 1.6" (4 cm)
2022-07 [Extraction Screw for 4.5/5.0/6.5/7.0 mm]
Overall Length: 1.6" (4 cm)
2022-CASE [Case for Basic Screw Removal System]
2022-IP [Instruction Plate]
Dimensions: 7.875" x 3.65" (20 x 9,3 cm)
2022-SH [Sharp Hook]
Overall Length: 6.1" (15,5 cm)
2022-T [T-Handle with A0-End]
Overall Length: 5.9" (15 cm)
Handle Width: 3.15" (8 cm)
2023-01 [Extraction Bolt for 1.5 mm Screw]
Overall Length: 2.35" (6 cm)
2023-02 [Extraction Bolt for 2.0 mm Screw]
Overall Length: 2.35" (6 cm)
2023-03 [Extraction Bolt for 2.7 mm Screw]
Overall Length: 2.35" (6 cm)
2023-04 [Extraction Bolt for 3.5/4.0 mm Screw]
Overall Length: 2.35" (6 cm)
2023-05 [Extraction Bolt for 4.5 mm Screw]
Overall Length: 3.15" (8 cm)
2023-06 [Extraction Bolt for 5.0/6.5/7.0 mm Screw]
Overall Length: 3.94" (10 cm)
2023-07 [Trephine for 1.5 mm Screw]
Overall Length: 4.125" (10,5 cm)
2023-08 [Trephine for 2.0 mm Screw]
Overall Length: 4.125" (10,5 cm)
2023-09 [Trephine for 2.7 mm Screw]
Overall Length: 4.125" (10,5 cm)
2023-10 [Trephine for 3.5-4.0 mm Screw]
Overall Length: 4.125" (10,5 cm)
2023-11 [Trephine for 4.5 mm Screw]
Overall Length: 5.4" (13,7 cm)
2023-12 [Trephine for 5.0-7.0 mm Screw]
Overall Length: 5.4" (13,7 cm)
2024-01 [Spare Trephine Cutting End for 1.5 mm Screw]
Overall Length: 1.6" (4 cm)
2024-02 [Spare Trephine Cutting End for 2.0 mm Screw]
Overall Length: 1.6" (4 cm)
2024-03 [Spare Trephine Cutting End for 2.7 mm Screw]
Overall Length: 1.6" (4 cm)
2024-04 [Spare Trephine Cutting End for 3.5/4.0 mm Screw]
Overall Length: 1.6" (4 cm)
2024-05 [Spare Trephine Cutting End for 4.5 mm Screw]
Overall Length: 2.75" (7 cm)
2024-06 [Spare Trephine Cutting End for 5.0/6.5/7.0 mm Screw]
Overall Length: 2.75" (7 cm)
|
|
|
Bone Pins – Shouldered
|
|
|
|
|
|
|
|
|
Product No’s:
1270 [Package of 10]
Pin Diameter: 3.2 mm (1/8")
Overall Length: 70 mm
Tip-to-Shoulder Length: 40 mm
Blunt-End-to-Shoulder Length: 22 mm
1271 [Package of 10]
Pin Diameter: 1.6 mm (1/16")
Overall Length: 70 mm
Tip-to-Shoulder Length: 40 mm
Blunt-End-to-Shoulder Length: 22 mm
|
|
|
Burgess Modified Pin Inserter
Designed to aim and control the placement of flexible k-wires when they contact hard cortical bone, while helping to protect neurovascular structures from the spinning wire |
|
|
|
Designed by Richard Sanders, MD
Design modification by Kraig Burgess, DO |
|
|
|
Narrow guide is ideal for wrist surgery such as distal radius fractures, intercarpal fusions, carpal dislocations, etc., where K-wires must be inserted from angles not accessible through the initial incision. The guides can be inserted through appropriately placed small peripheral incisions and placed on the bone with direct vision from the primary incision. The K wire is then passed through the guide, helping to protect adjacent soft tissue structures. The two prongs on the end of the inserter help to gain a purchase in the bone to help prevent the unit from slipping.
Product No: 3016
Accepts k-wires up to: .054" (1,4 mm)
Tube Length: 1.875" (47 mm)
Overall Length: 4.5" (11,4 cm)
Handle Length: 3.875" (9,8 cm)
|
|
|
Charnley Type Tissue Needle Forceps
Helpful for wound closure in deep areas with fascia under tension, the forceps can help retrieve a needle in a tight spot
|
|
|
|
Designed by Amal Das Jr., MD
|
|
|
|
Product No: 1165
Overall Length: 6.875" (17,5 cm)
|
|
|
Corkscrew Small Bone Manipulator
Designed with an aggressive thread to aid in excising small bones of the hand and foot |
|
|
|
Designed by Raymond Wurapa, MD |
|
|
|
The quick-connect end allows the device to be inserted with ease under power with a standard drill attachment. After insertion, the drill is detached and manual control over the process of extracting the bone can be performed by hand, using either the disc on the shaft or attaching a handle.
Helps with removal of trapezium during basal joint arthroplasty.
Helps with extraction of any carpal bones for wrist procedures: proximal row carpectomy (PRC), partial wrist fusions, pisiform excision.
Product No: 1615
Overall Length: 4" (10,2 cm)
Length Beyond Disc: 2.25" (5,7 cm)
Length Beyond Line: .625" (1,6 cm)
Corkscrew Length: .375" (1 cm)
Optional:
S0113 [Universal Handle]
Overall Length: 4" (10,2 cm)
|
|
|
Desai Curette Osteotome
Designed to remove bone and cartilage, helpful for preparing joint surfaces for fusion, allowing easy removal of osteophytes and cartilage without having to switch instruments |
|
|
|
Designed by Sarang Desai, DO |
|
|
|
The osteotome portion also can be used to "feather" the subchondral surface to expose bleeding bone. It is also useful in instances of obtaining autograft, as it can be used to create a bone window and then remove cancellous bone.
Product No’s:
5241 [5 mm]
Overall Length: 8.25" (21 cm)
Handle Length: 4.25" (10,8 mm)
Cup: 5 x 6 mm
Osteotome Width: 3.5 mm
Osteotome Length: 3.5 mm from edge of cup
5242 [8 mm]
Overall Length: 8.25" (21 cm)
Handle Length: 4.25" (10,8 mm)
Cup: 8 x 10 mm
Osteotome Width: 6.5 mm
Osteotome Length: 3 mm from edge of cup
|
|
|
Faillace Bone Impact/Graft Forceps
Long vertical grooves at the tip are designed to deliver graft into a small space, where a freer elevator can be used to push the graft down into the space, then the closed flat end can be used to tamp down the graft |
|
|
|
Design modification by John J. Faillace, MD, FAAOS |
|
|
|
Product No: 5011
Overall Length: 5" (12,7 cm)
Tip Diameter When Closed: 3,2 mm
|
|
|
Fracture Reduction Pick
Used to align bone fragments, and to pick away tissue and bone fragments
|
|
|
|
|
|
|
 |
Product No: S0129
Overall Length: 6.25" (15,9 cm)
|
|
|
Freeman Forceps
Designed to help with hand pain, fatigue, and hand arthritis
|
|
|
|
Designed by Carl R. Freeman, MD
|
|
|
|
|
Allows surgeons to utilize a forceps or pickup type instrument using a more mechanically and ergonomically favorable grip. Forceps can be used with a full-hand grip or “palmed.”
Product No: 1174
Overall Length: 6.875" (17,5 cm)
|
|
|
Gray Syringe Assist with Ergonomic Handle
For use in the O.R or the office, the design helps to prevent hand fatigue and pain when injecting with a 20mL syringe over multiple cases |
|
|
|
Designed by Robert Gray, MD |
|
|
|
Sterilizable for O.R use, such as injecting the posterior capsule during TKA.
Especially useful for injecting preoperative local anesthesia for WALANT surgery.
Uses finger flexors to generate more force over more surface area than only the thumb flexor.
Ratchet mechanism ensures maximal grip force generation throughout entire injection.
Syringe not included.
Product No: 8988
Overall Length – Closed: 5.25" (13,3 cm)
Overall Length – Open: 7.5" (19,1 cm)
Height: 5" (12,7 cm)
Syring Diameter: 21 mm
Patent Pending
|
|
|
Hemisphere Curette
Designed for small joint surgery
|
|
|
|
Designed by Richard Wittock, DPM
and Rob Baglio, DPM |
|
|
|
Product No: 5349
Overall Length: 5.75" (14,6 cm)
Curette Diameter: 9 mm
|
|
|
Hooked Bone Awl
"Shoulder hook" awls designed to help with manipulation of bone fragments for fixation |
|
|
|
Designed by Reza Firoozabadi, MD |
|
|
|
Above: long hooked bone awl being used to assist with reduction of the pubic symphysis in the setting of a t-type acetabular fracture.
|
Product No's
5078 [Standard]
Overall Length: 10.5" (26,7 cm)
Handle Length: 5" (12,7 cm)
5078-01 [Long]
Overall Length: 13.375" (34 cm)
Handle Length: 6" (15,2 cm)
Above: standard hooked bone awl being used to gain length to assist with reduction of a fibula fracture. A 2mm pilot hole is made to seat the tip of the bone awl.
Above: long hooked bone awl being used to lateralize proximal fragment, while spike pusher being used distally to medialize distal fragment. Of note the long hooked bone awl is used to minimize radiation to the surgeons hands.
|
|
|
K-Wire Bender/Cutter
Designed to bend a K-wire while extending from bone without applying mechanical strain
|
|
|
|
|
|
|
|
Can bend and cut K-wires measuring
1 to 1.6 mm (.039" to .062") in diameter.
The K-wire only needs to extend 20mm from the skin surface to be bent.
Product No: 2111
Overall Length: 6.625" (16,5 cm)
|
| |
|
Lawton Broken Screw Extractor
Designed to help remove broken or stripped screws (1mm-2mm) |
|
|
|
Designed by Jeffrey Lawton, MD |
|
|
|
Product No: 7653-04
Overall Length: 4" (10,2 cm)
Handle Width: 3" (7,6c m)
|
|
|
Lawton Screw Extractors
Designed to help extract mini and micro fragment screws; small cannulated screws; or headless screws
|
|
|
|
Designed by Jeffrey Lawton, MD |
|
|
|
Product No's:
7653-00 [Set of Three with Case]
Individual Product Numbers:
7653-01 [1.5 mm Screw Extractor]
Overall Length: 6" (15,2 cm)
Handle Width: 4" (10,2 cm)
7653-02 [2.5 mm]
Overall Length: 6" (15,2 cm)
Handle Width: 4" (10,2 cm)
7653-03 [3.5 mm Screw Extractor]
Overall Length: 6" (15,2 cm)
Handle Width: 4" (10,2 cm)
1025 [Sterilization Case]
|
|
|
Long Bonney Tissue Forceps
Extra length—3" (7,6 cm) more than standard—allows for use in deep wound areas |
|
|
|
|
|
|
 |
Product No: 5040
Overall Length: 10" (25,4 cm)
|
|
|
Long Jaw Needle Nose Pliers
|
|
|
|
|
|
|
|
|
Product No: 1833
Overall Length: 7" (17,8 cm)
Jaw Length: 2.25" (5,7 cm)
Jaw Width Tapered from: 8 mm to 1.5 mm
Jaw Height Tapered from: 12 mm to 2.5 mm
|
|
|
Lubahn Tarsal/Carpal Corkscrews
Designed to help with removal of carpal and/or tarsal bones |
|
|
|
Designed by John D. Lubahn, MD |
|
|
|
Aids trapezium removal during basal joint arthroplasty when the bone is being removed as a unit.
Can also be used to facilitate a proximal row carpectomy as it fits the scaphoid, lunate, and triquetrum.
May additionaly be used to remove the pisiform in cases of arthritis of the piso-triquetral joint.
Product No's:
1191 [Standard]
Overall Length: 2.25" (5,7 cm)
1191-01 [Extended]
Overall Length: 6.5" (16,5 cm)
|
|
|
Macko Square Tipped Rongeur
Square tipped rongeur with an ergonomic grip, double action mechanism, long reach, and low profile — for use in total ankle, hip, knee, and spine surgery |
|
|
|
Designed by Victor W. Macko, MD |
|
|
 |
In total ankle surgery, the aggressive, low profile jaws aid in the removal of tibial bone in spite of limited space. The square ended tip helps produce a flat, finished surface following anterior talar facet reaming.
When used for morcelizing bone graft, the shallow, wide jaw helps avoid impaction. Ergonomic grip, double action mechanism, long reach, and low profile. |
|
Product No's:
1778-01 [Small Jaw]
Jaw Bite: 5 x 18 mm
Overall Length: 10" (25,4 cm)
1778-02 [Medium Jaw]
Jaw Bite: 7 x 18 mm
Overall Length: 10" (25,4 cm)
|
|
|
McGlamry Type Elevators
Designed to help deglove a metatarsal head, and helpful in many other procedures |
|
|
|
|
|
|
|
Product No’s:
1643-11 [11 mm]
Overall Length: 6.5" (16,5 cm)
1643-13 [13 mm]
Overall Length: 6.5" (16,5 cm)
1643-15 [15 mm]
Overall Length: 6.5" (16,5 cm)
1643-17 [17 mm]
Overall Length: 6.5" (16,5 cm)
|
|
|

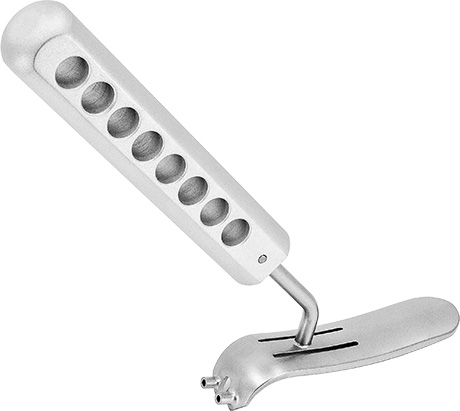

Medial Malleolus Fracture Reduction Aid
Designed to hook under the medial malleolus to help reduce the medial malleolus fragment while two K-wire guides supply trajectory for wires |
|
|
|
Designed by Christopher Blair, DO |
|
|
|
For K-wires up to 1,6 mm (.062")
Product No: 3664
Overall Length: 7" (17,8 cm)
Handle Length: 4" (10,2 cm)
Plate Width: .8" (2 cm)
Plate Length: 3" (7,6 cm)
Guide Tube Length: 6 mm
|
|
|
Micro Curettes
|
|
|
|
|
|
|
STRAIGHT
Overall Length:9.75" (24,8 cm)
Shaft Length: 4.5" (11,4 cm)
Product No’s:
4240 Straight Micro Curette • Cup Size 1
4242 Straight Micro Curette • Cup Size 2
4244 Straight Micro Curette • Cup Size 4/0
4246 Straight Micro Curette • Cup Size 6/0
|
ANGLED 45°
Overall Length: 9.75" (24,8 cm)
Shaft Length: 4.5" (11,4 cm)
Product No’s:
4240-01 Angled Micro Curette • Cup Size 1
4242-01 Angled Micro Curette • Cup Size 2
4244-01 Angled Micro Curette • Cup Size 4/0
4246-01 Angled Micro Curette • Cup Size 6/0
|
|
|
|
|
Nicholson Small Bone and Shoulder Cement Removal Instruments
Designed to facilitate cement removal in smaller diameter bone of the humerus, ulna, and smaller implant geometries
|
|
|
|
Designed by Gregory Nicholson, MD |
|
|
|
-
Reverse bevel tip helps the gouge to slide between the bone and cement.
-
T-shaped Gouge-Splitter allows the gouge to slide between the cement and bone and vertically split the cement mantle to facilitate removal.
-
Small diameter widths and curvatures more closely match shoulder and elbow implants and smaller bone diameters.
-
Shorter length allows for better control and access.
-
The Footed Imapctor is used to help remove a humeral implant by impacting the medial collar of the prosthesis. Helps provide a very direct parallel force to the implant for removal.
Product No's:
5251-00 [Complete Set with Case]
Set Includes / Available Individually:
5251-05 [Extra Small Gouge]
Chisel Width: 5 mm
Chisel Depth: .675" (1,6 cm)
Overall Length: 9.25" (22,9 cm)
Handle Length: 4" (10,2 cm)
5251-07 [Small Gouge]
Chisel Width: 7 mm
Chisel Depth: 1" (2,5 cm)
Overall Length: 9.25" (22,9 cm)
Handle Length: 4" (10,2 cm)
5251-09 [Medium Gouge]
Chisel Width: 9 mm
Chisel Depth: 1" (2,5 cm)
Overall Length: 9.25" (22,9 cm)
Handle Length: 4" (10,2 cm)
5251-11 [Large Gouge]
Chisel Width: 11 mm
Chisel Depth: 1" (2,5 cm)
Overall Length: 9.25" (22,9 cm)
Handle Length: 4" (10,2 cm)
5252-07 [Small Gouge w/Splitter]
Chisel Width: 7 mm
Splitter Height: 4 mm
Chisel Depth: 1" (2,5 cm)
Overall Length: 9.25" (22,9 cm)
Handle Length: 4" (10,2 cm)
5252-09 [Medium Gouge w/Splitter]
Chisel Width: 9 mm
Splitter Height: 5 mm
Chisel Depth: 1" (2,5 cm)
Overall Length: 9.25" (22,9 cm)
Handle Length: 4" (10,2 cm)
5252-11 [Large Gouge w/Splitter]
Chisel Width: 11 mm
Splitter Height: 6 mm
Chisel Depth: 1" (2,5 cm)
Overall Length: 9.25" (22,9 cm)
Handle Length: 4" (10,2 cm)
5254 [Backhook]
Overall Length: 12.5" (31,8 cm)
Handle Length: 4.5" (11,4 cm)
Shaft Diameter: 4 mm
5255 [Footed Impactor]
Foot Pad Size: 8.5 mm x 11.5 mm
Shaft Diameter: 8.5 mm
Overall Length: 12.75" (32,4 cm)
Handle Length: 4.5" (11,4 cm) |
|
5253 [Case Only for Complete Set]
Download Product Brochure (PDF)
|
| |
|
|
|
|
O’Brien Probe Release Sleeve
Designed for minimally invasive plantar fasciotomy surgery and other soft tissue release procedures |
|
|
|
Designed by Todd O’Brien, DPM |
|
|
|
Minimally invasive soft tissue releases can now be performed with reduced instrumentation and lower costs (no custom blade required). May also be used for minimally invasive neuroma decompression and minimally invasive gastroc recession. Uses a standard #314 blade (not included).
Define:
The Probe defines the anatomy via blunt dissection.
Capture:
The integrated Release Sleeve/Probe assembly captures and isolates the fascia from the surrounding soft tissues.
Release:
A #314 blade is advanced, releasing the fascia the desired distance as confirmed on the Probe scale.
Product No's:
1388-00 [Complete Assembly]
Disposable blade not included.
Individual Product Numbers:
1388-01 [Blade Handle]
Overall Length: 4.125" (10,5 cm)
1388-02 [Probe & Release Sleeve] (2 Pcs)
Overall Length: 5.5” (14 cm)
|
|
|
Olson Cannulated Swivel Tool
Designed to help manipulate the capital fragment into corrected alignment for bunion correction after first metatarsal osteotomy |
|
|
|
Designed by Daniel Olson, MD |
|
|
|
Can also be used in joy-stick fashion to manipulate any bone portion/fragment
Product No: 1616-R
Overall Length:2.9" (7,4 cm)
T-Handle Width: 1.5" (3,8 cm)
Cannulated for use with Pins: .045" (1,1 mm)
US Patent Pending: D964,565 S
|
|
|
Ortho Mini Chisels
Mini orthopedic chisels, straight and offset, with straight and ergonomic handles |
|
|
|
|
|
|
|
Product No’s:
Offset Chisels
1169-1 [1 mm Offset Chisel]
Overall Length: 6.25" (15,9 cm)
Chisel Width: 1 mm
1169-2 [2 mm Offset Chisel]
Overall Length: 6.25" (15,9 cm)
Chisel Width: 2 mm
1169-3 [3 mm Offset Chisel]
Overall Length: 6.25" (15,9 cm)
Chisel Width: 3 mm
1169-4 [4 mm Offset Chisel]
Overall Length: 6.25" (15,9 cm)
Chisel Width: 4 mm
1169-5 [5 mm Offset Chisel]
Overall Length: 6.25" (15,9 cm)
Chisel Width: 5 mm
Straight Chisels
1170-3 [3 mm Straight Chisel]
Overall Length: 6.4" (16,3 cm)
Chisel Width: 3 mm
1170-4 [4 mm Straight Chisel]
Overall Length: 6.4" (16,3 cm)
Gouge Width: 4 mm
1170-5 [5 mm Straight Chisel]
Overall Length: 6.4" (16,3 cm)
Gouge Width: 5 mm
|
|
|
Ortho Mini Gouges
Mini orthopedic gouges with ergonomic handles, designed for bone resection in small areas and resection of periosteum |
|
|
|
|
|
|
 5 mm Gouge Shown
|
Product No’s:
1168-2 [2 mm Gouge]
Overall Length: 5.75" (14,6 cm)
Gouge Width: 2 mm
1168-3 [3 mm Gouge]
Overall Length: 5.75" (14,6 cm)
Gouge Width: 3 mm
1168-4 [4 mm Gouge]
Overall Length: 5.75" (14,6 cm)
Gouge Width:4 mm
1168-5 [5 mm Gouge]
Overall Length: 5.75" (14,6 cm)
Gouge Width: 5 mm
1168-6 [6 mm Gouge]
Overall Length: 5.75" (14,6 cm)
Gouge Width: 6 mm
1168-7 [7 mm Gouge]
Overall Length: 5.75" (14,6 cm)
Gouge Width: 7 mm
1168-8 [8 mm Gouge]
Overall Length: 5.75" (14,6 cm)
Gouge Width: 8 mm
|
|
|
Pin Puller – Small
Small size allows for use in a small incision to help with removal of a 2 mm or smaller k-wire pin |
|
|
|
|
|
|
|
Product No: 3033
Overall Length: 6.5" (16,5 cm)
Jaw Width: 6,2 mm tapering to 3 mm at end
Jaw Height: 11,7 mm
|
|
|
Resnick Small Bone Tamp with Oblique K-Wire Hole
Design allows for the concurrent reduction of a fracture and placement of a wire into the fracture site — especially helpful when the surgical exposure is small and tight, the fracture fragments are
small, and the reduction is demanding |
|
|
|
Designed by Charles Resnick, MD |
|
|
-
The serrated distal end of minimizes slippage on the cortical surface, does not interfere with the placement of the guidewire and allows for subsequent surgeon-decided, intraoperative angulation of the wiring once the first cortex is drilled
-
Especially useful in fractures where there is involvement of an articular surface, for example, mallet fractures of the distal phalanx, articular fractures that involve ligamentous attachments or tendon attachments of the phalanges, scaphoid pole small fracture fragments or other small carpal fractures, and radial styloid fractures
|
|
Product No's
5294 [For 1,1 mm (.045") K-wire]
Wire Hole for: 1,1 mm (.045") K-wire
Overall Length: 7.5" (19,1 cm)
Shaft Diameter: 6,3 mm
End Diameter: 2,5 mm
5294-01 [For 1,6 mm (.062") K-wire]
Wire Hole for: 1,6 mm (.062") K-wire
Overall Length: 7.5" (19,1 cm)
Shaft Diameter: 6,3 mm
End Diameter: 2,5 mm
|
|
|
Ring Curettes
|
|
|
|
|
|
|
|
Product No's:
5150 [Straight, 3 mm]
Ring Diameter: 3 mm
Overall Length: 8.75" (22,2 cm)
5152 [Straight, 6 mm]
Ring Diameter: 6 mm
Overall Length: 8.75" (22,2 cm)
5154 [Straight, 8 mm]
Ring Diameter: 8 mm
Overall Length: 8.75" (22,2 cm)
5156 [Bent, 3 mm]
Ring Diameter: 3 mm
Overall Length: 8.5" (21,9 cm)
5157 [Bent, 6 mm]
Ring Diameter: 6 mm
Overall Length: 8.5" (21,9 cm)
5158 [Bent, 8 mm]
Ring Diameter: 8 mm
Overall Length: 8.5" (21,9 cm)
|
|
|
Roberts Pin Bending Cannula Set
Designed to help bend the end of a flexible intramedullary pin, which has been cut flush to the bone, for better grasping during pin removal |
|
|
|
Designed by David Roberts, MD |
|
|
|
Helpful when removing a pin which has been cut flush to the bone which can be hard to grasp with standard tools.
After exposing the pin end, the cannula helps bend the pin for better access for the removal instrument while maintaining a small incision.
Features
-
Beveled edge that allows easy capture of end of pin
-
Cannula can be used as a trephine for pins with bony overgrowth
-
Reusable - thick walls withstand repeated uses
Benefits
-
Makes removal of intramedullary pins simple, quick and easy
-
Allows pins to be left flush to bone at insertion and avoid pain from prominent pins
-
Shortens surgical time for pin removal using existing small incisions
Advantages
-
No need to pre-bend or leave pins overly prominent
-
No need to make incision larger during removal
-
No need for chisels or osteotomes to remove bone overgrowth
Product No: 2113-00 [Set of 3 Sizes]
Set Includes / Available Individually:
2113-01 [2 mm]
For 1.5 - 2.0 mm flexible nails
Overall Length: 5.5" (14 cm)
2113-02 [3 mm]
For 2.5 - 3.0 mm flexible nails
Overall Length: 5.5" (14 cm)
2113-03 [4 mm]
For 3.5 - 4.0 mm flexible nails
Overall Length: 5.5" (14 cm)
|
|
|
Sarraf Fracture Reduction Thimble
Helps to hold bone fragments in place during fixation |
|
|
|
Designed by Khaled M. Sarraf, MD |
|
|
|
Provides the surgeon with an instrument for maintaining a fracture fragment in the appropriately reduced position during application of K-wires. Helpful in osteoperotic bone that is not amiable to forced reduction using reduction clamps. The wire guides help to aim the K-wire, with three positions for choice of optimal placement and for parallel wire placement. The pointed tips at the end of the thimble help to reduce the chance of slippage while maintaining a fracture reduction.
Product No's:
2290 [22 mm]
Overall Length: 1.185" (3 cm)
Guides Accept K-wires Up To: .078" (2 mm)
2291 [26 mm]
Overall Length: 1.185" (3 cm)
Guides Accept K-wires Up To: .078" (2 mm)
|
|
|
Sarraf Toothed Curettes
Forward, straight, and reverse bent toothed curettes designed to aid in all types of joint arthroplasty surgery, especially in scraping any articular chondral islands within the acetabulum during THA preparation |
|
|
|
Designed by Khaled Sarraf, MD |
|
|
|
Can also be used for the femoral canal in cemented and uncemented THA.
Valuable aid in revision arthroplasty (hip, knee, shoulder and ankle) for cement curettage.
Useful tool in hip and knee primary arthroplasty as well as shoulder, elbow and ankle arthroplasty procedures.
Ultra hard titanium nitride coating helps to extend life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion.
Product No's:
5174-00 [Set]
Also available individually:
5174-F [Forward Toothed Curette]
Overall Length: 11.5" (29,2 cm)
Handle Length: 5.5" (14 cm)
Curette Cup : 8 mm X 12 mm
Angled Down: 30°
5174-R [Reverse Toothed Curette]
Overall Length: 11.5" (29,2 cm)
Handle Length: 5.5" (14 cm)
Curette Cup : 8 mm X 12 mm
Angled Up: 30°
5174-S [Straight Toothed Curette]
Overall Length: 11.5" (29,2 cm)
Handle Length: 5.5" (14 cm)
Curette Cup : 8 mm X 12 mm
|
|
|
Shouldered Pin Retractors
Useful in fracture and reconstructive cases
|
|
|
|
Designed by M. Jake Hamer, MD |
|
|
|
Can be used for opening wedge osteotomies, obtaining length or distraction to correct a foreshortened malunion, or in trauma cases (calcaneus fractures, tibial plateau fractures, pilon fractures). With three different length shouldered pins, the retractor can be set at different depths to provide the necessary retraction and/or distraction. Can be used with any compressor and/or distractor that can accept 1/8" (3.2 mm) pins.
Product No's:
SOLD IN PAIRS
4694-01 [Long]
Overall Length: 67 mm
End-to-shoulder: 22 mm
Pad: 13 mm x 15 mm
4694-02 [Medium]
Overall Length: 67 mm
End-to-shoulder: 31 mm
Pad: 13 mm x 15 mm
4694-03 [Short]
Overall Length: 67 mm
End-to-shoulder: 40 mm
Pad: 13 mm x 15 mm
|
|
|
Small Cannulated Ball Spike
Designed to help reduce a bone fragment and keep it reduced, while the cannulation allows placement of a k-wire (up to 1.6 mm/.062") into the fragments |
|
|
|
Designed by Benjamin C. Taylor, MD |
|
|
|
Helps to prevent slipping while inserting k-wires. Can also serve as a handle for k-wire joysticks.
Product No: 8092
Overall Length: 4.5" (11,4 cm)
Handle Length: 3" (7,6 cm)
Ball Diameter: .275" (7 mm)
|
|
|
Stanton Bent Pin Removal Pliers
|
|
|
|
Designed by John Stanton, MD |
|
|
|
Product No: 1894
Overall Length: 6.5" (16,5 cm)
Jaw Length: 1.65" (4,2 cm)
Instrument Width: 1 cm
|
|
|
Universal Bone Grafting/Impacting Forceps
Bone graft can be grasped, placed and impacted without changing hands or instruments
|
|
|
|
Designed by J.A. Amis, MD
|
|
|
The forceps are designed with grasping ends for delivery of bone graft. When the graft is in place, the forceps are closed, which forms the ends into an impacting punch. A striking platform is attached to the end of the forceps for tapping and tamping the graft. Four end diameters are available in two lengths.
|
 Product No’s:
6" (15,2 cm) Length
5010-01 [1/8" (3,2 mm) Diameter End]
5010-02 [3/16" (4,8 mm Diameter End]
5010-03 [1/4" (6,3 mm) Diameter End]
5010-04 [5/16" (8 mm) Diameter End]
10" (25,4 cm) Length
5050-01 [1/8" (3,2 mm) Diameter End]
5050-02 [3/16" (4,8 mm Diameter End]
5050-03 [1/4" (6,3 mm) Diameter End]
5050-04 [5/16" (8 mm) Diameter End]
|
|
|
Wixted Fracture Distractor
Designed to provide opposing leverage to help bring the fibula (or other bone) back out to its proper length after it has been shortened by a fracture |
|
|
|
Designed by John J. Wixted, MD |
|
|
|
A 3.5 mm screw is temporarily placed above a plate, providing a source of leverage for the screw holding end of the distracter. The curved peg-shaped tip is then placed into a hole in the bone plate, and the distracter is activated to bring the bone back to its proper length before fixation.
Product No: 1882
Overall Length: 7" (17,8 cm)
|
|
|
Zell Fixed Angle Wire Guide
Designed to help with placement of guide wires for cannulated screws and k-wires in foot and ankle surgeries, such as bunion surgery, midfoot fusion, and midfoot ORIF |
|
|
|
Designed by Richard Zell, MD |
|
|
 |
Product No: 3021
Overall Length:2.75" (7 cm)
Handle Platform: 1" x .875" (25 x 22 mm)
Guide Tube Angle: 35°
Guide Tube for wires up to: .052"/1.3 mm
|
|
|
© 2023 Innomed, Inc. All rights reserved.
|
