Bargo Bone Holding Clamp
|
Bush Small Bone Reduction Forceps
|
Calvo Medial Malleolus Fracture Clamp
|
Chang Pin Clamp
|
|
|
|
|
|
|
NEW DESIGN
Chen Low Profile Plate/BoneClamp
|
Coated Allis Bone Clamps
|
Desai Jones Fracture
Reduction Clamp
|
Duncan Metatarsal Clamp
|
Durham Bone
Reduction Clamps
|
|
|
|
|
|
|
|
|
Faillace Extra Small Bone Clamp
|
Lewin Small Bone Clamp
|
Ludloff/Mau Osteotomy Fixation Clamp
|
Mazzara Rongeur for Small Bones
|
Medial Malleolar/
Bone Fragment Clamp
|
|
|
|
|
|
|
|
|
Mogul K-Wire/Pin
Insertion Guide
|
OrthoLucent™ O’Brien
Bone Clamp
|
O'Brien Bone Clamp
|
O'Brien Bone Clamps
|
O’Brien Osteotomy Guide
|
|
|
|
|
|
|
OrthoLucent™ Small
Bone Clamp
|

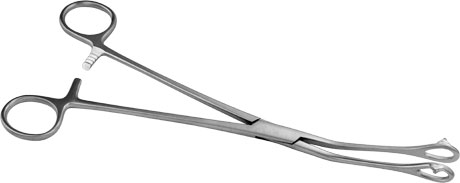

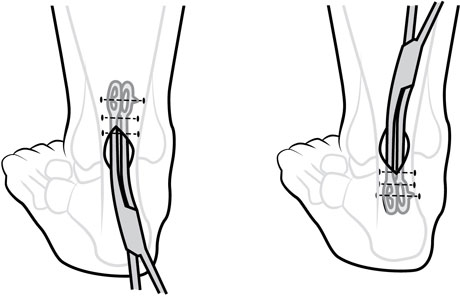

Percutaneous Achilles
Repair Forceps
|
Pointed Fracture Reduction Clamps
|
Redler Percutaneous Pin Clamp
|
Resnick Allis Bone Clamp
|
|
|
|
|
|
|
Rudisill Locking Small Bone Reduction Forcep
|
Small Bone Holding Forceps with Long Ratchet
|
Stanton Articulating Small Bone Clamps
|
Teurlings Medial Malleolar Clamp w/Wire Guide
|
Yezerski Small Rongeur
|
|
|
Bargo Bone Holding Clamp
Designed to aid in the reduction of various fractures, and can help secure a plate in place during installation
|
|
|
|
Designed by Lonnie Bargo, CST/CFA
|
|
|
 |
Designed to aid in the reduction of various fractures such as: spiral, transverse, compound, oblique, or butterfly. The clamp can also be used to secure a plate in place while the screw holes are being drilled and screws inserted. The fracture site can also be manipulated with the clamp being used as a lever. Available in two sizes, large and small, it has teeth in the jaws for a better grip and a ratchet locking handle for use on various bone diameters.
Product No’s:
1895-01 [Small]
Overall Length: 5" (12,7 cm)
Pads: .75" x .45" (19 x 12 mm)
1895-02 [Large]
Overall Length: 8.5" (21,6 cm)
Pads: 1.25" x 1" (32 mm x 25 mm)
|
|
|

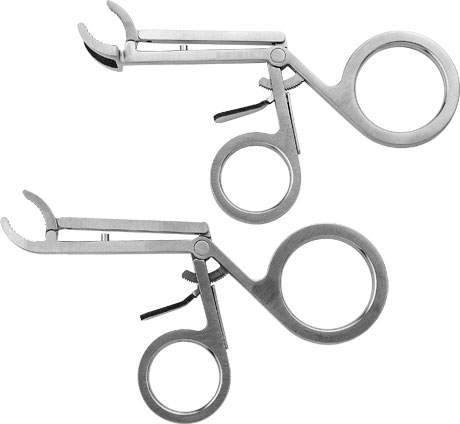

Bush Small Bone Reduction Forceps
Designed to help hold a small bone or bone plate in position for reduction and fixation |
|
|
|
Designed by Andrew P. Bush, MD |
|
|
|
Opens to approximately .5” (13 mm).
Product No's:
1888 [Double]
Overall Length: 4.5” (11,4 cm)
Jaw Width: .7” (17,7 mm)
1889 [Single]
Overall Length: 4.5” (11,4 cm)
Jaw Width: .15” (3,7 mm)
|
|
|
Calvo Medial Malleolus Fracture Clamp
Designed to reduce and hold a displaced medial malleolus fracture |
|
|
|
Designed by Ignacio J.Calvo, MD |
|
|
|
Also very useful in olecranon fractures.
Product No’s:
1801-L [Left]
1801-R [Right]
|
|
|

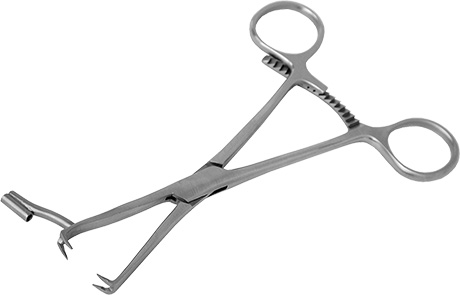

Chang Pin Clamp
Designed to allow accurate insertion of pins for internal fixation
|
|
|
|
Designed by W. Chang, MD
|
|
|
 |
Prototype used in X-ray images
Used for small bones, the clamp allows accurate insertion of pins for internal fixation.
Product No: 1760-01
Overall Length: 6" (15,2 cm)
Cannula Internal Diameter: 1.8 mm
Locking Ratchet Opens To: 25 mm
|
|
|
Chen Low Profile Plate/Bone Clamp
Designed for plate to bone clamping in diaphyseal forearm and humerus fractures |
|
|
|
Designed by Franklin Chen, MD |
|
|
|
Also useful for distal radius fractures, as well as a variety of lower extremity fractures.
Product No: 1639
Overall Length: 2.75" (7 cm)
Prong Depth: .675" (17 mm)
Prong Width: 5 mm
|
|
|

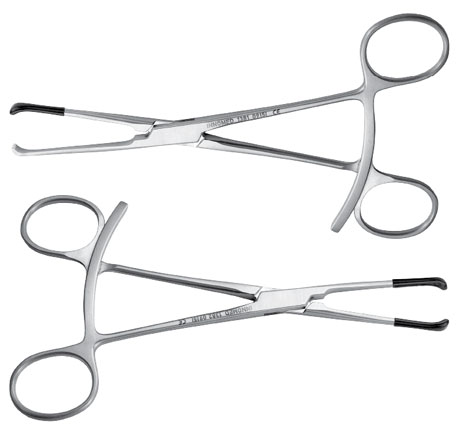

Coated Allis Bone Clamps
A traditional Allis Bone Clamp designed with a longer ratchet—for a wider opening to allow a bone and plate to be clamped and locked onto—and coated end(s) to prevent from marring a component surface
|
|
|
|
Modification of design by Charles T. Resnick MD |
|
|
|
Product No’s:
1381 [One Coated End]
Overall Length: 6.125" (15,9 cm)
Ratcheted Clamp Opens to: 35 mm
Non-coated-end Width: 4 mm
1382 [Two Coated Ends]
Overall Length: 6.125" (15,9 cm)
Ratcheted Clamp Opens to: 35 mm
Non-coated-end Width: 4 mm
|
|
|
Desai Jones Fracture Reduction Clamp
Designed to reduce and maintain reduction of Jones fractures, helping to prevent distraction and/or rotation during wire, tap, and subsequent screw placement |
|
|
|
Designed by Sarang Desai, DO |
|
|
|
|
|
|

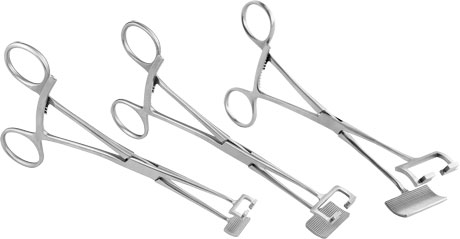

Duncan Metatarsal Clamp
Designed to be used on bones of the foot to stabilize an osteotomy or fracture in the corrected position for fixation through the opening in the top of the clamp |
|
|
|
Designed by Gregory S. Duncan, DPM |
|
|
|
May also be used for open reduction internal fixation for hand or fibula procedures.
Product No's:
1638 [Large]
Overall Length: 7" (17,8 cm)
Clamp Pads: 1.3" x .625" (3,3 cm x 1,6 cm)
1638-25 [Medium]
Overall Length: 6.5" (16,5 cm)
Clamp Pads: 1" x .5" (2,5 cm x 1,3 cm)
1638-50 [Small]
Overall Length: 6.25" (15,9 cm)
Clamp Pads: .625" x .325" (1,6 cm x .8 cm)
|
|
|
Durham Bone Reduction Clamps
Allows application of a bone plate without removing the reduction clamp |
|
|
|
Designed by Alfred A. Durham, MD |
|
|
|
The standard clamp is designed for medium size bones such as the fibula, ulna, and radius.
The large clamp with speedlock is designed for large bones such as the femur and tibia.
Product No's:
3652 [Standard]
Overall Length: 7" (17,8 cm)
3652-01 [Large with Speedlock]
Overall Length: 9.25" (32,5 cm)
|
|
|
Faillace Extra Small Bone Clamp
Delicate enough to use on metacarpals but strong enough for distal radius and larger bones with its extra long ratchet |
|
|
|
Designed by John J. Faillace, MD, FAAOS |
|
|
|
Product No: 1171
Overall Length: 5" (12,7 cm)
Jaw Length: 1" (2,5 cm)
|
|
|
Lewin Small Bone Clamp
|
|
|
|
|
|
|
|
|
Product No: 4685
Overall Length: 5" (12,7 cm)
|
|
|

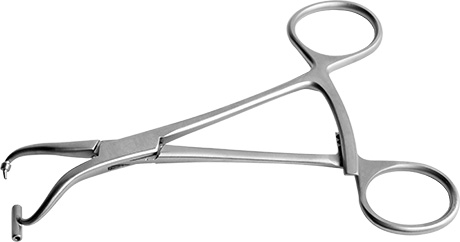

Ludloff/Mau Osteotomy Fixation Clamp
Used after lateral hallux valgus correction of the metatarsal, the clamp allows for osteotomy fixation and cannulated screw guide wire direction |
|
|
|
Designed by A. Austin |
|
|
|
Clamp fixates the osteotomy to hold the correction, and the 15° slanted cannulated k-wire guide allows the surgeon to place the guide wire for the cannulated screw perpendicular to the osteotomy for final fixation of the osteotomy.
Product No: 1812
Cannula Accepts K-wire up to: .045" (1,1 mm)
Overall Length: 5" (12,7 cm)
|
|
|
Mazzara Rongeur for Small Bones
Designed for bone and soft tissue removal in small joint surgery, the small pistol grip handle lessens hand fatigue and slippage, and allows for better visualization |
|
|
|
Designed by James T. Mazzara, MD |
|
|
|
Product No's:
1765-04 [2 x 10 mm Jaw]
Jaw Bite: 2 x 10 mm
Overall Length: 7.25" (18,4 cm)
1765-05 [4 x 10 mm Jaw]
Jaw Bite: 4 x 10 mm
Overall Length: 7.25" (18,4 cm)
|
|
|

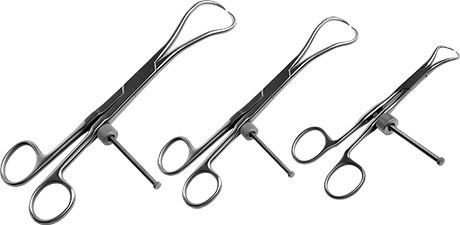

Medial Malleolar/Bone Fragment Clamps
Quick tightening & release low profile clamp with unlimited settings
|
|
|
|
Designed by Edward L. Sclamberg, MD
|
|
|
|
|
Product No’s:
1840 [Large]
Overall Length: 8" (20,3 cm)
Clamp End Length: 3" (7,6 cm)
1835 [Medium]
Overall Length: 6" (15,2 cm)
Clamp End Length: 2" (5,1 cm)
1830 [Standard]
Overall Length: 5.5" (14 cm)
Clamp End Length: 1" (2,54 cm)
|
|
|

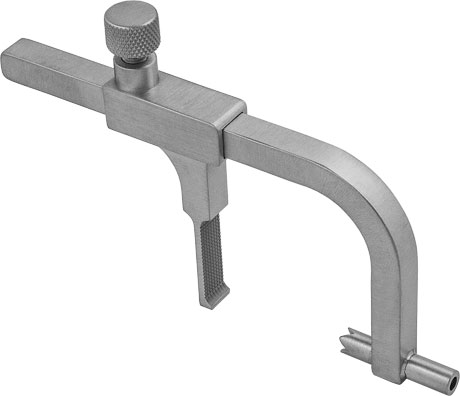

Mogul K-Wire/Pin Insertion Guide
A guide designed for passing guide pins or k-wires through two adjacent metatarsal bones |
|
|
|
Designed by Stuart J. Mogul, DPM, FACFAS |
|
|
|
Product No: 3017
Dimensions: 2.375" Tall x 3.75" Wide (6 x 9,5 cm)
Maximum Pin Diameter: 3/32" (2,4 mm)
Maximum Clamped Opening: 2" (5,1 cm)
Minimum Clamped Opening: .375" (1 cm)
Pin/K-Wire Guide Length: .925" (23,5 mm)
|
|
|
OrthoLucent™ O’Brien Bone Clamp
Designed for use in stabilization of a fracture |
|
|
|
Designed by Todd O’Brien, DPM |
|
|
|
The carbon fiber PEEK material is strong, lightweight, completely radiolucent, can be steam sterilized, and helps to prevent from marring component surfaces.
Product No: 1815-R
Overall Length: 5.25" (13,3 cm)
|
|
|
O’Brien Bone Clamp
Designed for use in stabilization of a fracture or osteotomy |
|
|
|
Designed by Todd O’Brien, DPM |
|
|
|
Product No: 1816
Overall Length: 5.25" (13,3 cm)
|
|
|
O'Brien Bone Clamps
Designed for use in stabilization of a fracture or osteotomy in small bone surgery
|
|
|
|
Designed by Todd O’Brien, DPM
|
|
|
Integrated drill guide and bone diameter gauge
|
Allows for placement of the bone clamp where it can best stabilize bone fragments. The drill guide allows for screw placement through the top of the clamp. Calibrations on the handle help eliminate the use of a depth gauge.
Product No’s:
1890-01 [Small]
Drill Guide Diameter: 8 mm
(accommodates up to 4 mm screw)
Calibrated from 8 mm to 30 mm
Overall Length: 6" (15,2 cm)
1890-02 [Large]
Drill Guide Diameter: 10 mm
(accommodates up to 6.5 mm screw)
Calibrated from 12 mm to 40 mm
Overall Length: 9.25" (23,5 cm)
1890-XSM [Extra Small]
Drill Guide Diameter: 6 mm
Overall Length: 4” (10,2 cm)
|
|
|

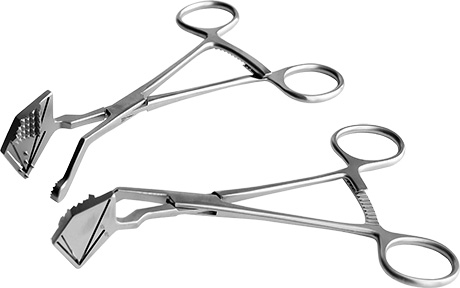

O’Brien Osteotomy Guide
Designed for chevron bunionectomies
|
|
|
|
Designed by Todd O’Brien, DPM
|
|
|
|
The guide clamps directly onto bone while helping to retract the EHL tendon. Guide slots fit most saw blades (up to 0.4mm), creating traditional chevron (60°), and long dorsal or plantar arm (50°) osteotomies. K-wire fixation is not required, although a guide pin may be inserted at apex. Guide available in right or left.
|
Product No’s:
1380-L [Left]
Overall Length: 6" (15,2 cm)
1380-R [Right]
Overall Length: 6" (15,2 cm)
Patent Pending #11,752,366
|
|
|
|
|
OrthoLucent™ Small Bone Clamp
|
|
|
|
|
|
|
|
The OrthoLucent™ carbon fiber material is strong, lightweight, completely radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized.
Product No: 1828
Overall Length: 7" (17,8cm)
|
|
|
Pointed Fracture Reduction Clamps
Versatile set of fracture reduction clamps, each with a specific tine design that allows for appropriate vector placement so that anatomic reduction can be obtained in a number of different types of fractures |
|
|
|
Designed by Reza Firoozabadi, MD, MA |
|
|
1.9 mm tines allow for a snug fit in 2 mm drill holes.
Tines angled to prevent clamp “slippage” with compression.
Straight tines can be placed deep within bone which allows for far cortex compression.
Example applications: any transverse fracture (straight-straight clamp), both bone forearm fractures, olecranon fractures, medial malleolus fractures, and many more.
Speed Lock Style: Extra-long spin down allows for increased range of clamp use, and open-topped joint rotates to allow for increased range of opening, and also allows for quick release |
|
Two styles — Speed Lock and Ratchet — each available in four tine configurations.
Product No’s:
SMALL WITH SPEED LOCK MECHANISM:
3666 [Straight Left & Right]
Overall Length: 5.5" (14 cm)
3667 [Curved Left & Right]
Overall Length: 5.5" (14 cm)
3666-L [Curved Left, Straight Right]
Overall Length: 5.5" (14 cm)
3666-R [Straight Left, Curved Right]
Overall Length: 5.5" (14 cm)
SMALL WITH RATCHET MECHANISM:
3668 [Straight Left & Right]
Overall Length: 5.5" (14 cm)
3669 [Curved Left & Right]
Overall Length: 5.5" (14 cm)
3668-L [Curved Left, Straight Right]
Overall Length: 5.5" (14 cm)
3668-R [Straight Left, Curved Right]
Overall Length: 5.5" (14 cm)
MEDIUM WITH SPEED LOCK MECHANISM:
3666-01 [Straight Left & Right]
Overall Length: 7" (17,8 cm)
3667-01 [Curved Left & Right]
Overall Length: 7" (17,8 cm)
3666-L-01 [Curved Left, Straight Right]
Overall Length: 7" (17,8 cm)
3666-R-01 [Straight Left, Curved Right]
Overall Length: 7" (17,8 cm)
|
|
|

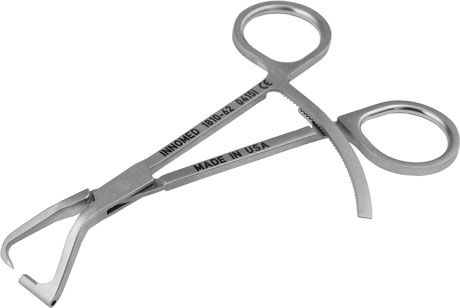

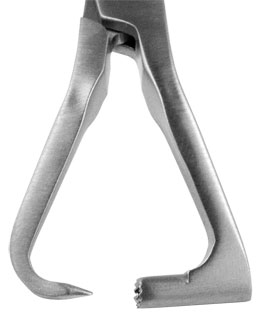

Redler Percutaneous Pin Clamp
Holds a small bone in apposition during percutaneous pinning of a fracture
|
|
|
|
Designed by M.R. Redler, MD
|
|
|
|
|
Designed to hold a small bone in apposition during percutaneous pinning of a fracture. The pin clamp is designed with a proximal pin tube with teeth; the tube guides the pin and the teeth help keep the tube in place on the bone. The distal tip is used to control the bone fragment. The pin clamp has a long ratchet for locking on various sized bones, from 1mm to 14mm. The pin clamp is also useful during insertion of cannulated screw guide wires.
Product No's:
1810-35
Overall Length: 5" (12,7 cm)
.035" (.9 mm) diameter tube
1810-45
Overall Length: 5" (12,7 cm)
.045" (1.1 mm) diameter tube
1810-62
Overall Length: 5" (12,7 cm)
.062" (1.6 mm) diameter tube
|
|
|
Resnick Allis Bone Clamp
A traditional Allis Bone Clamp designed with a longer ratchet which allows for a wider opening to allow a bone to be clamped and locked onto |
|
|
|
Designed by Charles T. Resnick MD |
|
|
|
Product No: 1385
Overall Length: 6" (15,2 cm)
Ratcheted Clamp Opens to: 37 mm
Clamp End Width: 4.7 mm
|
|
|
Rudisill Locking Small Bone Reduction Forcep
For reduction of hand phalanx and metacarpal fractures |
|
|
|
Designed by Ed Rudisill, MD |
|
|
 |
Product No: 2017
Overall Length: 4.875" (12,4 cm)
|
|
|
Small Bone Holding Forceps with Long Ratchet
Designed for use in stabilization of a fracture or osteotomy |
|
|
|
|
|
|
|
Product No: 1170
Overall Length: 5.75" (14,6 cm)
|
|
|
Stanton Articulating Small Bone Clamps
Opposing clamps facilitate manipulation of fracture ends |
|
|
|
Designed by John L. Stanton, MD |
|
|
|
The small tube allows use of a towel clamp to compress non-union and shortening osteotomies during fixation, as well as to allow the use of Gelpi retractors to distract malunions during revision surgery.
Product No's:
1811-00 [Set]
Set of Left & Right
Set includes / Available Individually:
1811-L [Left]
Overall Length: 5.125" (13 cm)
Curved Plate Radius: 5 mm
Pin Hole for Pins Up To: 2,4 mm
1811-R [Right]
Overall Length: 5.125" (13 cm)
Curved Plate Radius: 5 mm
Pin Hole for Pins Up To: 2,4 mm
|
|
|

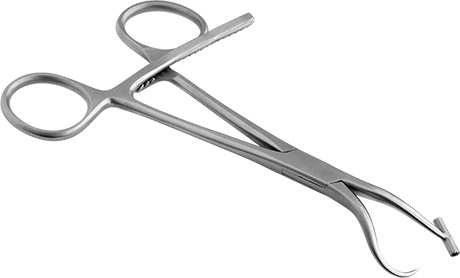

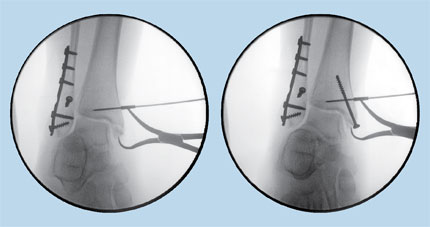

Teurlings Medial Malleolar Clamp w/Wire Guide
Helps to stabilize the medial malleolar fragment during internal fixation |
|
|
|
Designed by Luc Teurlings, MD |
|
|
|
Product No: 1803
Cannula Diameter: .062" (1.6 mm)
Overall Length: 5.25" (13,3 cm)
|
|
|
Yezerski Small Bone Rongeurs
Designed for small bone applications in the hand and foot |
|
|
|
Designed by John Yezerski, MD |
|
|
|
Product No's:
1789 [Small]
Overall Length: 7.125" (18,1 cm)
Jaw Width: 4 mm
Jaw Bite Width: 3 mm
Jaw Bite Length: 20 mm
1789-01 [Extra Small]
Overall Length: 4.5" (11,4 cm)
Jaw Width: Tapers from 4,6 mm to 2 mm
Jaw Bite Length: 11 mm
|
|
|
