HIP INSTRUMENTS • hohmann retractors

Click thumbnail image for details

Alvi Modified Hohmann Retractor
Bent Hohmann Retractors – Narrow
Bent Hohmann Retractors – Wide
Curved Hohmann Retractor – Wide
Alvi Modified Hohmann Retractor
Bent Hohmann Retractors – Narrow
Bent Hohmann Retractors – Wide
Curved Hohmann Retractor – Wide
Deep Hohmann-style Retractors with Large Handle
Double Bent Hohmann Retractors
Goytia Stackable Hohmann Retractors
Hohmann Retractors
Lateral Retraction Handle for Goytia Stackable Hohmann Retractors
Deep Hohmann-style Retractors with Large Handle
Double Bent Hohmann Retractors
New Deep Sizes! Goytia Stackable Hohmann Retractors
Hohmann Retractors
NEW! Lateral Retraction Handle for Goytia Stackable Hohmann Retractors
Long Curved Hohmann Retractors – Narrow
Modified Angled Hohmann Retractor with Long Handle and Short Tip
Modified Wide Hohmann Retractor with Taylor Tip
Offset Handle Hip Retractor
Radiolucent Hohmann Retractors
Long Curved Hohmann Retractors – Narrow
Modified Angled Hohmann Retractor with Long Handle and Short Tip
Modified Wide Hohmann Retractor with Taylor Tip
Offset Handle Hip Retractor
OrthoLucent™ Hohmann Retractors

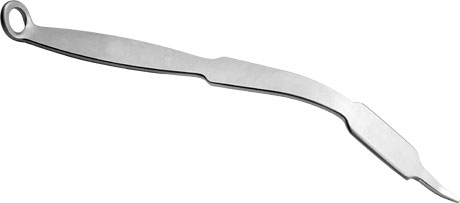

Wetzel Modified Hohmann Retractor
Whelan Narrow Hohmann Retractor
Wetzel Modified Hohmann Retractor
Whelan Narrow Hohmann Retractor





Alvi Modified Hohmann Retractor

Designed for use during minimally invasive anterior hip replacement surgery, the retractor is placed through the capsule, into the femoral head, allowing for retraction of the rectus femoris


Designed by Hasham Alvi, MD

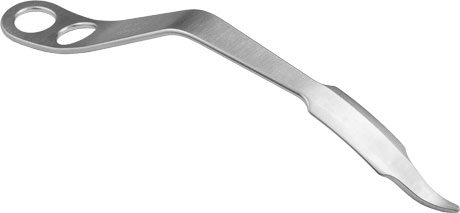

Alvi Modified Hohmann Retractor

Alvi Modified Hohmann Retractor


Product No: 4549
Overall Length: 8.75" (22,2 cm)
Blade Width: .75" (19 mm)
Download Product Brochure (PDF)

TOP





Bent Hohmann Retractors – Narrow

Helps retract tissues at the margins of the joint


Short-tipped Designed by Carl DiRaimondo, MD


Bent Hohmann Retractors — Narrow

Useful for retracting tissues at the margins of the joint. Modular weights can be used to help hold the retractor in place.

The OrthoLucent™ version is made of a strong, lightweight carbon fiber PEEK composite material, which is completely radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized.

Product No’s:

7110 [Narrow]
Overall Length: 9.75" (23,8 cm)
Handle Length: 7" (17,8 cm)
Blade Width: 19 mm
Depth from Bend: 4.75" (12,1 cm)

7110-R [OrthoLucent™ Narrow]
Overall Length: 9.75" (23,8 cm)
Handle Length: 7" (17,8 cm)
Blade Width: 19 mm
Depth from Bend: 4.75" (12,1 cm)

7110-01 [Narrow with Extra Long Handle]
Overall Length: 11.5" (29,2 cm)
Handle Length: 10" (25,4 cm)
Blade Width: 19 mm
Depth from Bend: 4.75" (12,1 cm)

7111 [Narrow with Extra Grip Tip]
Overall Length: 9.75" (23,8 cm)
Handle Length: 7" (17,8 cm)
Blade Width: 19 mm
Depth from Bend: 4.75" (12,1 cm)



7115 [Short-tipped Narrow]
Overall Length: 8.625" (21,9 cm)
Handle Length: 7" (17,8 cm)
Blade Width: 19 mm
Depth from Bend: 4.4" (11,2 cm)

7115-01 [Short-tipped Narrow with Extra Long Handle]
Overall Length: 11" (27,9 cm)
Handle Length: 10" (25,4 cm)
Blade Width: 19 mm
Depth from Bend: 4.25" (10,8 cm)

7115-03 [Extra Deep Short-tipped Narrow]
Overall Length: 12.125” (31,1 cm)
Handle Length: 9.75” (24,8 cm)
Depth from Bend: 6.25” (15,9 cm)
Blade Width: 19 mm

Download Product Brochure (PDF)

TOP





Bent Hohmann Retractors – Wide

Helps retract tissues at the margins of the joint






ent Hohmann Retractors – Wide

Useful for retracting tissues at the margins of the joint. Modular weights can be used to help hold the retractor in place.

Product No’s:

6590 [Wide]
Overall Length: 9.375" (23,8 cm)
Handle Length: 7" (17,8 cm)
Blade Width: 41 mm
Depth from Bend: 4.75" (12 cm)

6590-01 [Wide with Extra Long Handle]
Overall Length: 11" (28 cm)
 Handle Length: 9" (22,9 cm)
 Blade Width: 41 mm
 Depth from Bend: 5.5" (14 cm)
Download Product Brochure (PDF)

TOP





Curved Hohmann Retractor – Wide

Used for acetabular exposure





Curved Hohmann Retractor – Wide

Product No: 6215
Overall Length: 13" (33 cm)
Handle Length: 12' (30,5 cm)
Blade Width: 43 mm
Also see: Long Curved Hohmann Retractors (below)
Download Product Brochure (PDF)

TOP





Deep Hohmann-style Retractors with Large Handle





Acetabular Retractors with Large Handle

Product No's:

C1009 [Standard]
Overall Length: 15.75" (40 cm)
Handle Length: 6.125" (15,6 cm)
Blade Depth: 4.5" (11,4 cm)
Blade Width: 1.1" (28 mm)


C1010 [90°]
Overall Length: 14.25" (36,2 cm)
Handle Length: 6.125" (15,6 cm)
Blade Depth: 5.25" (13,3 cm)
Blade Width: 1.1" (28 mm)



Download Product Brochure (PDF)


TOP

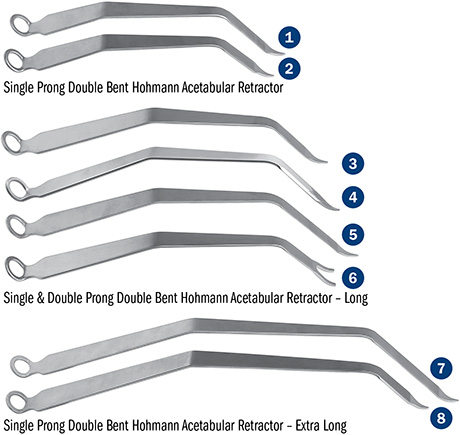

Double Bent Hohmann Retractors

For general use in hip surgery and minimally invasive hip surgery




Double Bent Hohmann Retractors

Double Bent Hohmann Retractors

Lighted retractor can be attached to a fiber optic light cable with ACMI (female) connector.

Download Product Brochure (PDF)

Product No’s:

Single Prong Double Bent
Hohmann Acetabular Retractor


6212 [Longer Blade]
Overall Length: 11.25" (28,6 cm)
Blade + Tip Length: 3.5" (89 mm)
Blade Width: 15 mm

6210 [Standard Blade]
Overall Length: 10.5" (26,7 cm)
Blade + Tip Length: 2.5" (64 mm)
Blade Width: 15 mm

Single & Double Prong Double Bent
Hohmann Acetabular Retractor – Long


6210-02 [Single Prong – Standard Blade]
Overall Length: 12.5" (31,8 cm)
Blade + Tip Length: 3" (76 mm)
Blade Width: 15 mm

6210-02L [Lighted Single Prong – Standard Blade]
Overall Length: 12.5" (31,8 cm)
Blade + Tip Length: 3" (76 mm)
Blade Width: 15 mm


Light Source
Cable Adapters


Product No's:
8009-S ACMI to Storz Adapter
8009-W ACMI to Wolf Adapter

6211 [Single Prong – Std Blade with Extra Grip Tip]
Overall Length: 12.5" (31,8 cm)
Blade + Tip Length: 3" (76 mm)
Blade Width: 15 mm


6213 [Single Prong – Longer Blade]
Overall Length: 15" (38,1 cm)
Blade + Tip Length: 5" (127 mm)
Blade Width: 15 mm

6220 [Double Prong – Standard Blade]
Overall Length: 12.5" (31,8 cm)
Blade + Tip Length: 3" (76 mm)
Blade Width: 15 mm

Single Prong Double Bent
Hohmann Acetabular Retractor – Extra Long


6214 [Longer Blade]
Overall Length: 18" (45,7 cm)
Blade + Tip Length: 5" (127 mm)
Blade Width: 15 mm

6210-04 [Standard Blade]
Overall Length: 16.25" (41,3 cm)
Blade + Tip Length: 3" (76 mm)
Blade Width: 15 mm

TOP





Goytia Stackable Hohmann Retractors

Interlocking design helps to increase depth and leverage in hip exposure, particularly of the anterior acetabulum—especially useful with large patients


Designed by Robin N. Goytia, MD


Goytia Stackable Hohmann Retractors

Goytia Stackable Hohmann Retractors

Custom fitted holes for interlocking retractors helps provide stabilty.

Goytia Stackable Hohmann Retractors

When “stacked”, the increased lever arm of the retractor helps reduce fatigue.

Ideal for use with large patients where extra depth, leverage and force is needed.

New deep versions are 2" (5 cm) deeper for use with large patients where extra depth, leverage and force is needed.


Product No's:

4551 [Standard]
Overall Length: 9.25” (23,5 cm)
Handle Length: 5.625” (14,3 cm)
Blade Width: 19.5 mm


4551-D [Deep Standard] New!
Overall Length: 11.4” (29 cm)
Handle Length: 5.625” (14,3 cm)
Blade Width: 20 mm

4552 [Bent]
Overall Length: 8.25” (20,3 cm)
Handle Length: 5.625” (14,3 cm)
Blade Width: 19.5 mm


4552-D [Deep Bent] New!
Overall Length: 9.1” (23,1 cm)
Handle Length: 5.625” (14,3 cm)
Blade Width: 20 mm


4553 [Wide]
Overall Length: 9.25” (23,5 cm)
Handle Length: 5.625” (14,3 cm)
Blade Width: 43 mm


4553-D [Deep Wide] New!
Overall Length: 12” (30,5 cm)
Handle Length: 5.625” (14,3 cm)
Blade Width: 43 mm

Download Product Brochure (PDF)

NEW! Lateral Retraction Handle for Goytia Stackable Hohmann Retractors

Designed to allow lateral retraction when added to any of the Goytia stackable hohmann retractors


Design modification by Brandon Thompson, CST/CFA of orginal design by Robin N. Goytia, MD


Lateral Retraction Handle for Goytia Stackable Hohmann Retractors

Lateral Retraction Handle for Goytia Stackable Hohmann Retractors

Goytia stackable hohmann retractor(s) not included.

Product No: 4551-H
Overall Length: 9.25" (23,5 cm)
Download Product Brochure (PDF)

TOP





Hohmann Retractors

Designed like the original Hohmann-style retractors




Hohmann Retractors

The OrthoLucent™ version is made of a strong, lightweight carbon fiber PEEK composite material, which is completely radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized.

Product No's:

4558 [Standard]
Blade Width: 16 mm
Overall Length: 9.46" (24 cm)

4558-R [OrthoLucent™]
Blade Width: 16 mm
Overall Length: 9.46" (24 cm)

4558-01 [Extra Deep]
Blade Width: 16.7 mm
Overall Length: 11.5” (29,2cm)

Download Product Brochure (PDF)

TOP

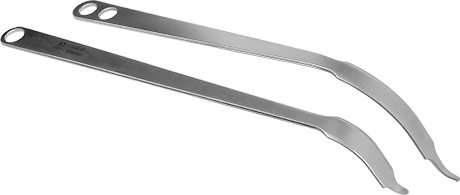

Long Curved Hohmann Retractors — Narrow




Long Curved Hohmann Retractors — Narrow

Product No’s:

6204 [Short Blade]
Overall Length: 16" (40,7 cm)
Handle Length: 13" (33 cm)
Blade Width: 22 mm

6205 [Long Blade]
Overall Length: 15.25" (38,8 cm)
Handle Length: 13" (33 cm)
Blade Width: 22 mm
Download Product Brochure (PDF)

TOP





Long Narrow Hohmann Retractors – Blunt




Long Narrow Hohmann Retractors – Blunt
Product No's:

4540 [Standard]
Blade Width: 22 mm
Blade Width at End: 16 mm
Overall Length: 11.375" (28,9 cm)


4540-01 [Extra Deep]
Blade Width: 22 mm
Blade Width at End: 16 mm
Overall Length: 13.25" (33,7 cm)
Download Product Brochure (PDF)

TOP

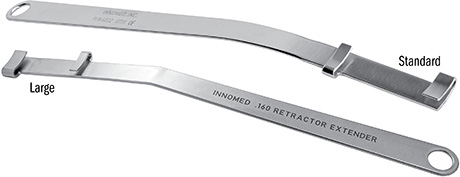

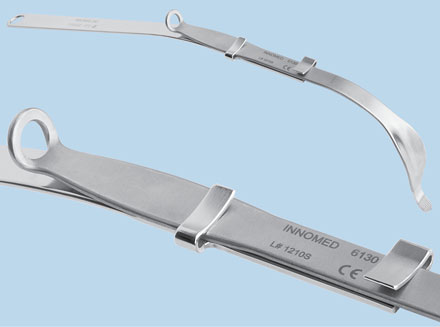

McPherson Retractor Extender

Designed to extend a standard retractor


Designed by Ed McPherson, MD



McPherson Retractor Extender

McPherson Retractor Extender

Available in two sizes to accommodate most retractors — standard for retractors up to .125" (3,2 mm) thick, and large for retractors up to .16" (4 mm) thick.

McPherson Retractor Extender
McPherson Retractor Extender

Product No's:

6022 [Standard]
Overall Length: 15.625" (39,7 cm)
For retractors up to .125” (3,2 mm) thick


6022-01 [Large]
Overall Length: 15.625" (39,7 cm)
For retractors up to .16” (4 mm) thick
Download Product Brochure (PDF)

TOP

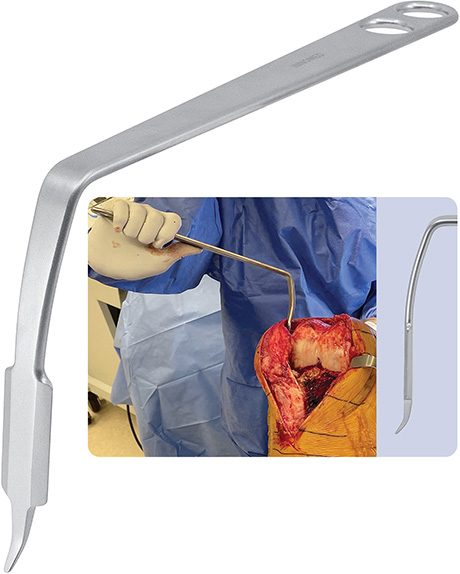

Modified Angled Hohmann Retractor with Long Handle and Short Tip


Designed by R. Michael Meneghini, MD

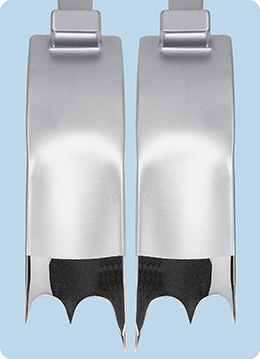

Modified Wide Hohmann Retractor with Taylor Tip

Excellent for gently retracting the patella and extensor mechanism on heavy obese patients and muscular male patients.

Product No: 7119
Overall Length:
11.5" (29,2 cm)
Handle Length: 9.25" (23,5 cm)
Blade Depth: 5" (12,7 cm)
Blade Width: .75" (19 mm)
Prong Depth: 1" (2,54 cm)

Download Product Brochure (PDF)

TOP

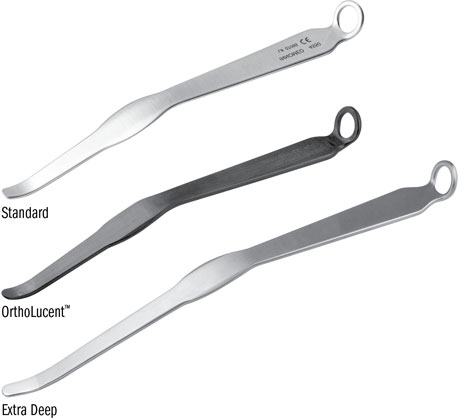

Modified Blunt Hohmann Retractors

Used for soft tissue retraction




Modified Blunt Hohmann Retractors

The OrthoLucent™ version is made of a strong, lightweight carbon fiber PEEK composite material, which is completely radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized.

Product No's:

4550 [Standard]
Blade Width at End: 11 mm
Overall Length: 10.75" (27,3 cm)

4550-R [OrthoLucent™]
Blade Width at End: 11mm
Overall Length: 10.75" (27,3 cm)

4550-01 [Extra Deep]
Blade Width at End: 11 mm
Overall Length: 13.25" (33,7 cm)
Download Product Brochure (PDF)

TOP





Modified Hohmann Retractors — Narrow

Handle is contoured to allow better leverage and visualization


Short-tipped Designed by Carl DiRaimondo, MD


Modified Hohmann Retractors — Narrow

Useful for retracting tissues around the bone. Can be held in place with weights or by hand.

The OrthoLucent™ version is made of a strong, lightweight carbon fiber PEEK composite material, which is completely radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized.

Product No's:

4535 [Narrow]
Overall Length: 10" (25,4 cm)
Blade Width: 14 mm


4535-R [OrthoLucent™ Narrow]
Overall Length: 10" (25,4 cm)
Blade Width: 14 mm


4535-01 [Extra Deep Narrow]
Overall Length: 11.625” (29,5 cm)
Blade Width: 16,4 mm

4545 [Short-tipped Narrow]
Overall Length: 9.5" (24,1 cm)
Blade Width: 14 mm
Download Product Brochure (PDF)

TOP





Modified Hohmann Retractor — Wide

Handle is contoured to allow better leverage and visualization




Modified Hohmann Retractors — Wide

Useful for retracting tissues around the bone. Can be held in place with weights or by hand.

Product No's:

6595 [Wide]
Overall Length: 10" (25,4 cm)
Blade Width: 42,5 mm


6595-01 [Extra Deep Wide]
Overall Length: 11.5" (29,2 cm)
Blade Width: 42,5 mm
Download Product Brochure (PDF)

TOP





Modified Wide Hohmann Retractor with Taylor Tip

Anterior and posterior acetabular retractors for all approaches, including the direct anterior approach, featuring a hammer platform for insertion with a mallet


Designed by Jeffrey P. Beckenbaugh, DO


Modified Wide Hohmann Retractor with Taylor Tip


Used as a calcar and posterior femoral retractor for the posterior approach, and an anterior femoral elevator for the direct anterior approach.

Product No's:

3012-00 [Set – Left & Right]

Also available individually:

3012-L [Left]
Overall Length: 14.75" (37,5 cm)
Blade Depth: 5" (12,7 cm)
Blade Width: 45 mm

3012-R [Right]
Overall Length: 14.75" (37,5 cm)
Blade Depth: 5" (12,7 cm)
Blade Width: 45 mm
Download Product Brochure (PDF)

TOP





Offset Handle Hip Retractor

The 90° offset handle helps move the assistant's hand out of the way, allowing better access to the surgical site


Designed by Gina Bart, PAC


Offset Handle Hip Retractor

Offset Handle Hip Retractor



During posterior THR, the instrument allows for one assistant to hold the leg while retracting the abductors, thereby maximizing both a clearer view and better physical access to the surgical site.



Product No's:

6207-L [Left]
Overall Length: 13" (33 cm)
Handle Offset: 8" (20,3 cm)
Blade Width: 15 mm

6207-R [Right]
Overall Length: 13" (33 cm)
Handle Offset: 8" (20,3 cm)
Blade Width: 15 mm
Download Product Brochure (PDF)

TOP





OrthoLucent™ Hohmann Retractors

The OrthoLucent™ carbon fiber PEEK composite material is strong, lightweight, completely radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized




Radiolucent Hohmann Retractors

Product No’s:

4535-R [Modified Narrow]
Blade Width: 18 mm
Overall Length: 10" (25,4 cm)

4550-R [Modified Blunt]
Blade Width at End: 11 mm
Overall Length: 10.75" (27,3 cm)

4558-R [Standard]
Blade Width: 16 mm
Overall Length: 9.46" (24 cm)

7110-R [Narrow Bent]
Blade Width: 19 mm
Overall Length: 9.75" (23,8 cm)
Handle Length: 7" (17,8 cm)
Depth from Bend: 4.75" (12,1 cm)
Download Product Brochure (PDF)



TOP





Wetzel Modified Hohmann Retractor

The long point is designed to be placed around, on, or through a bony structure and then levered back to retract tissue


Designed by Robert Wetzel, MD and Todd McKinley, MD


Wetzel Modified Hohmann Retractor

The handle is contoured to allow better leverage and visualization. Can be held in place with weights or by hand.


Product No: 4539
Overall Length: 10" (25,4 cm)
Blade Width: .85" (21,5 mm)
Download Product Brochure (PDF)

TOP





Whelan Narrow Hohmann Retractor

Retractor has a large gentle right angle curve with sharp tip, for retraction of structures anterior to the acetabulum in the anterior approach to total hip


Designed by Edward J. Whelan III, MD


Whelan Narrow Hohmann Retractor

Helps allow for visibility without undue pressure or traction on the femoral nerve or vessels.


Product No: 7116
Overall Length: 13.25" (33,7 cm)
Depth from Bend: 4.5" (11,4 cm)
Blade Width: 2,4 cm

Download Product Brochure (PDF)

TOP



2023 Innomed, Inc. All rights reserved.
