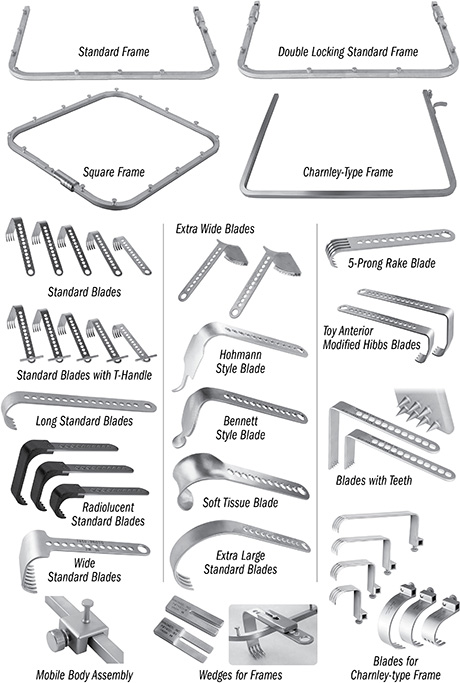

HIP INSTRUMENTS • retractor systems

Click thumbnail image for details

Alvi Small Charnley Style Locking Frame Set
Amstutz Hip Resurfacing Instruments
Anterior Watson Jones Total Hip Arthroplasty System
APC Hip Retractor Series
NEW BLADE SIZES
Alvi Small Charnley Style Locking Frame Set
Amstutz Hip Resurfacing Instruments
Anterior Watson Jones Total Hip Arthroplasty System
APC Hip Retractor Series
Basic Anterior Approach Instrument Set
Charnley/Sorrells Low-Profile Hip Arthroplasty Retractor System
Das/Seng Anterior Total Hip Instruments
Dorr Hip Instruments
Hip Surgery Retractor System
Basic Anterior Approach Instrument Set
Charnley/Sorrells Low-Profile Hip Arthroplasty Retractor System
Das Anterior Total Hip Instruments
Dorr Hip Instruments
Hip Surgery Retractor System

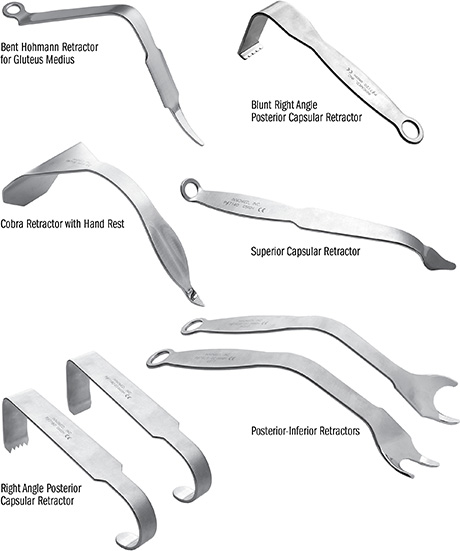

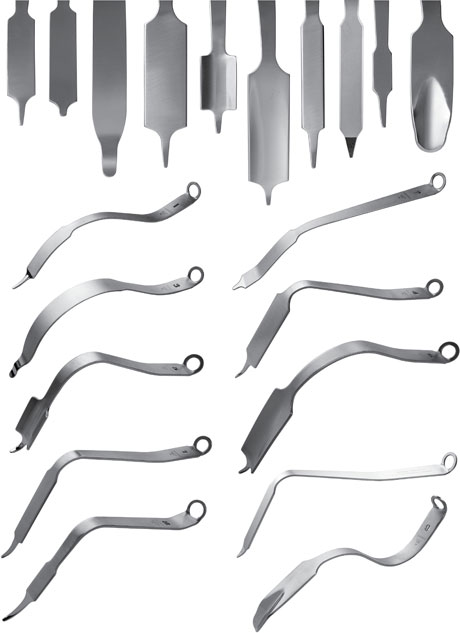

Minimally Invasive Hip Retractors
Minimally Invasive Total Hip Surgery Retractors
Unger Anterior Total Hip Instruments

Minimal Incision Total Hip Retractors
Minimally Invasive Hip Retractors
Minimally Invasive Total Hip Surgery Retractors
Unger Anterior Total Hip Instruments



Alvi Small Charnley Style Locking Frame Set

A self-retaining frame and retractor system designed for use during anterior total hip arthroplasty, the blades help retract the hip capsule and musculature, permitting an unobstructed view of the acetabulum while freeing an assistant


Designed by Hasham Alvi, MD


Alvi Small Charnley Style Locking Frame Set


Product No’s:

7425-00 [Set]
Set includes one Locking Frame (7425-01) and one each of the three Tapered Blade sizes: 2" (7425-02), 3" (7425-03), and 4" (7425-04). (Optional Winged Modified Tapered Blades not included in set.)


Also sold Individually:

7425-01 [Small Charnley Style Locking Frame]
Dimensions: 9" x 7" (22,9 cm x 17,8 cm)

7425-02 [2" Tapered Blade]
Blade Depth: 2" (5,1 cm)
Handle Length: 7" (17,8 cm)
Blade Width: 1" (2,54 cm)

7425-03 [3" Tapered Blade]
Blade Depth: 3" (7,6 cm)
Handle Length: 7" (17,8 cm)
Blade Width: 1" (2,54 cm)

7425-04 [4" Tapered Blade]
Blade Depth: 4" (10,2 cm)
Handle Length: 7" (17,8 cm)
Blade Width: 1" (2,54 cm)



Optional Blades (Not included in Set):

The optional modified blades features a tapered, winged blade for gentler soft tissue retraction.


7425-02-MOD [Winged Modified 2" Tapered Blade]
Blade Depth: 2" (5,1 cm)
Handle Length: 7" (17,8 cm)
Blade Width: 1" (2,54 cm)


7425-03-MOD [Winged Modified 3" Tapered Blade]
Blade Depth: 3" (7,6 cm)
Handle Length: 7" (17,8 cm)
Blade Width: 1" (2,54 cm)


7425-04-MOD [Winged Modified 4" Tapered Blade]
Blade Depth: 4" (10,2 cm)
Handle Length: 7" (17,8 cm)
Blade Width: 1" (2,54 cm)
Download Product Brochure (PDF)

TOP

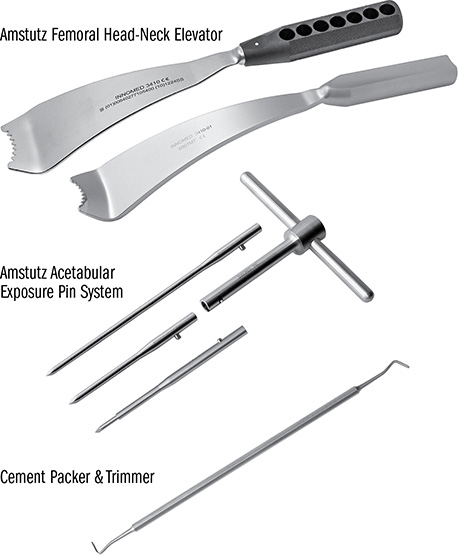

Amstutz Hip Resurfacing Instruments


Designed by Harlan C. Amstutz, MD


Amstutz Hip Resurfacing Instruments

Amstutz Hip Resurfacing Instruments

Amstutz Femoral Head-Neck Elevator

Used for acetabular exposure

Product No: 3410 [Wide Blade]
Overall Length: 12.25" (31,1 cm)
Blade Width at Widest: 67 mm

3410-01 [Narrow Blade]
Overall Length: 12.25" (31,1 cm)
Blade Width at Widest: 50 mm

Amstutz Acetabular Exposure Pin System

Used for acetabular exposure

Product No’s:

1200-00 [Set of Inserter/Extractor and Two Pins]
1200-0A [Set of Inserter/Extractor and Two Pins w/Stop]

Individual Instruments:

1200-01 [Inserter/Extractor]

1200-02 [Pin]
Overall Length: 4.5" (11,4 cm)
Pin Depth: 2" (5,1 cm)
Pin Diam.: 3.9 mm

1200-03 [Pin w/Stop]
Overall Length: 4.5" (11,4 cm)
Pin Tip-to-Stop Depth: .75" (1,9 cm)
Pin Diameter: 3.2 mm

1200-04 [Deep Pin]
Overall Length: 7" (17,8 cm)
Pin Depth: 4.5" (11,4 cm)
Pin Diameter: 3.9 mm

Cement Packer & Trimmer


Product No: 4995
Overall Length: 9.75" (24,8 cm)
Download Product Brochure (PDF)

TOP





Anterior Watson Jones Total Hip Arthroplasty System

Instrument system specifically designed for Direct Anterior approach Total Hip Arthroplasty





Anterior Watson Jones Total Hip Arthroplasty System

Anterior Watson Jones Total Hip Arthroplasty System


Lighted retractors can be attached to a fiber optic light cable with ACMI (female) connector and can be steam sterilized.


Product No's:

6300-00 [Complete Set]

Included in set or available individually:

6301-L [Anterior Watson Jones Awl – Left]
Overall Length: 12.375" (31,5 cm)

6301-R [Anterior Watson Jones Awl – Right]
Overall Length: 12.375” (31,5 cm)

6302-01 [Anterior Watson Jones Lighted Mueller Retractor]
Blade Width: 27 mm
Handle Length: 5.5" (14 cm)
Overall Length: 12.75" (32,4 cm)


6303-01 [Anterior Watson Jones Wide Lighted Retractor]
Blade Width: 40 mm
Blade Tip Length: 17 mm
Overall Length: 12.75” (32,4 cm)


6304-01 [Anterior Watson Jones Narrow Lighted Retractor]
Blade Width: 26 mm
Blade Tip Length: 23 mm
Overall Length: 16.5” (41,9 cm)


6305 [Anterior Watson Jones 90° Cobra Retractor]
Blade at Widest: 37 mm
Blade Depth: 7.5” (19,1 cm)
Blade Prong: 18 mm Long X 10 mm Wide
Overall Length: 12.5” (31,8 cm)
Handle Length: 9.5” (24,1 cm)


6306 [Anterior Watson Jones Deep Hohmann Retractor]
Blade Width: 17 mm
Prong Length: 34 mm
Overall Length: 9.25” (23,5 cm)


6307 [Anterior Watson Jones Straight Hohmann Retractor]
Prong Length: 4,2 cm
Overall Length: 9.5” (24,1 cm)


6308 [Anterior Watson Jones Femoral Starter Drill with Zimmer Hall Quick-connect]
Drill Tip Dimensions: 18 mm Long X 12 mm Diameter
Overall Length: 6” (15,2 cm)
Shaft Length: 5.25” (13,3 cm)

Optional Instrument (Not Included In Set):

6303 [Anterior Watson Jones Wide Retractor] without Light
Blade Width: 40 mm
Blade Tip Length: 17 mm
Overall Length: 12.75” (32,4 cm)

Optional quick-connect driver (not included in retractor set) for use with the starter drill:

8248 [Fixed Driver with Zimmer Hall Quick-connect]
Overall Length: 5.75" (15,6 cm)
Handle Width: 4.625" (11,6 cm)


Download Product Brochure (PDF)

TOP





APC Hip Retractor Series

Used to help provide wide exposure of the acetabulum


Designed by APC, Inc.




APC Hip Retractor Series

The single prong retractor is designed to be placed around the inferior-posterior edge of the acetabulum for wide exposure during total hip replacement. Modular weights can be used to help hold the retractor in place.

The double prong retractor is designed to retract the femur anteriorly during total hip arthroplasty. It is hooked over the anterior pelvic brim.

APC Hip Retractor Series

Product No’s:

6420 [Single Prong]
Overall Length: 14" (35,6 cm)
Handle-to-1st-Bend Length: 5.25" (13,3 cm)
Handle-to-2nd-Bend Length: 6.5" (16,5 cm)
Blade Width: 22 mm

6430 [Double Prong]
Overall Length: 14" (35,6 cm)
Handle-to-1st-Bend Length: 5.25" (13,3 cm)
Handle-to-2nd-Bend Length: 6.5" (16,5 cm)
Blade Width: 24 mm
Prong Width: 6.8 mm | 10 mm Gap | 6.8 mm

Download Product Brochure (PDF)

TOP





Basic Anterior Approach Instrument Set

A Basic Starter Set for the Direct Anterior Approach


Chosen by Edward J. Whelan III, MD


Basic Anterior Approach Instrument Set






Product No: 6165-00 [Complete Set]
Set includes (2) #6162 and (1) of
 the other instruments shown below


Included in Set / Available Individually:

Whelan Large Anterior Hip Weitlaner Retractor with Ergonomic Handle

Designed for self-retaining exposure during anterior approach THA. Can be placed in the initial skin incision to help expose TFL Fascia. Can also be placed between TFL and Rectus to expose the capsule. Once the capsule is opened and released, Weitlaner can be placed anteriorly or posteriorly of the capsule to give unobstructed view of acetabulum.
Product No's:

1576-B [Blunt]
Overall Length: 9" (22,9 cm)
Blade Depth: 1" (2,54 cm)


1576-S [Sharp]
Overall Length: 9" (22,9 cm)
Blade Depth: 1" (2,54 cm)

Whelan Femoral Neck Elevator

Elevator has long tines to rest on the stronger bone at the base of the neck and calcar, and also fits well over the lesser trochanter and iliopsoas tendon for femoral broaching.
Product No: 3414
Overall Length: 13.75" (34,9 cm)
Depth from Bend: 1.5" (3,8 cm)
Blade Width: 2,4 cm

Modified Deep Hohmann Retractor

Can be placed inside the capsule to help expose femoral neck for release and removal. The concave blade helps to expose the femoral canal in smaller patients if the offset of P/N 6422 is too large.
Product No: 6162
(2) included in set, (1) only
with this product number

Overall Length: 14.5" (36,9 cm)
Blade Width: 25 mm

Whelan Narrow Hohmann Retractor

Retractor has a large gentle right angle curve with sharp tip, for retraction of structures anterior to the acetabulum for enhanced exposure. Helps allow for visibility without undue pressure or traction on the femoral nerve or vessels.
Product No: 7116
Overall Length: 13.25" (33,7 cm)
Depth from Bend: 4.5" (11,4 cm)
Blade Width: 2,4 cm

Modified Anterior Hip Retractor

Trochanteric Retractor helps to expose femoral canal and helps protect gluteal muscles.
Product No: 6422
Overall Length: 15.75" (40 cm)
 Blade Width: 1.15" (3 cm)

Download Product Brochure (PDF)



TOP

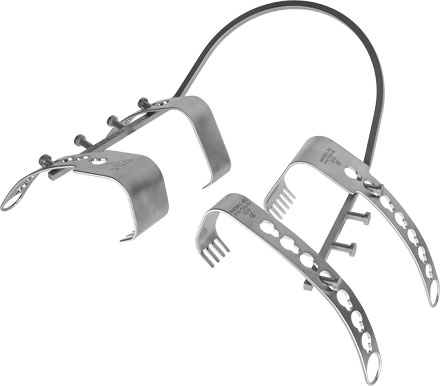

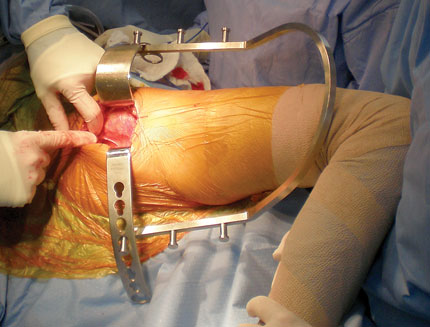

Charnley/Sorrells Low-Profile Hip Arthroplasty Retractor System

Provides low-profile self-retaining exposure of the femur and acetabulum in Total Hip Arthroplasty


Designed by R. Barry Sorrells, MD


Charnley/Sorrells Low-Profile Hip Arthroplasty Retractor System
Complete System


Charnley/Sorrells Low-Profile Hip Arthroplasty Retractor System


Charnley/Sorrells Low-Profile Hip Arthroplasty Retractor System

System Includes:
(1) Frame
(2) Small Retractors

    (1) Narrow

    (1) Wide
(3) Medium Retractors

    (1) Narrow

    (1) Wide

    (1) Malleable Narrow
(2) Large Retractors

    (1) Narrow

    (1) Wide

Charnley/Sorrells Low-Profile Hip Arthroplasty Retractor System

Product No's:

7318-00 [Complete System]

7318-01 [Frame]
Overall Length: 14.5" (36,9 cm)
Maximum Width: 12" (30,5 cm)


7318-02 [Small Narrow Blade]
Blade Width: 1.25" (32 mm)
Blade Depth: 1.25" (32 mm)
Overall Length: 8.5" (21,6 cm)


7318-03 [Small Wide Blade]
Blade Width: 2" (51 mm)
Blade Depth: 1.25" (32 mm)
Overall Length: 8.5" (21,6 cm)


7318-04 [Medium Narrow Blade]
Blade Width: 1.25" (32 mm)
Blade Depth: 2.25" (57 mm)
Overall Length: 8.5" (21,6 cm)


7318-05 [Medium Wide Blade]
Blade Width: 2" (51 mm)
Blade Depth: 2.25" (57 mm)
Overall Length: 8.5" (21,6 cm)


7318-06 [Medium Malleable Blade]
Blade Width: 1.25" (32 mm)
Blade Depth: 2.25" (57 mm)
Overall Length: 8.5" (21,6 cm)


7318-07 [Large Narrow Blade]
Blade Width: 1.25" (32 mm)
Blade Depth: 3.25" (83 mm)
Overall Length: 8.5" (21,6 cm)


7318-08 [Large Narrow Blade]
Blade Width: 2" (51 mm)
Blade Depth: 3.25" (83 mm)
Overall Length: 8.5" (21,6 cm)
Download Product Brochure (PDF)

TOP





Das/Seng Anterior Total Hip Instruments

Retractor set with included table-mounted controlled-release ratcheting elevator hook, specifically designed to help simplify anterior approach total hip arthroplasty


Designed by Amal Das, MD and Brian Seng, DO



Das Anterior Total Hip Instruments

Das Anterior Total Hip Instruments


Product No's:
6221 [#1 - Posterior Femoral Neck / Inferior Acetabular Rim Retractor]
Blade Width: 25 mm
Blade Depth: 3" (7,6 cm)
Overall Length: 14" (35,6 cm)

6222 [#2 - Anterior Femoral Neck / Anteromedial Rim Retractor]
Blade Width: 31.5 mm, 10 mm @ Tip
Blade Depth: 4.5" (10,2 cm)
Overall Length: 15" (38,1 cm)

6223 [#3 - Anterolateral Acetabular Rim Retractor]
Blade Width: 18 mm
Blade Depth: 3.25" (8,3 cm)
Overall Length: 10" (25,4 cm)

6226-TA [#4 - Table Mounted Hoist Hook]
This product number includes one
6226-RH Elevator Hook

Folds to approx: 21" x 5" x 5"
(53,4 cm x 12,7 cm x 12,7 cm)

6226-RH [#5 - Proximal Femoral Hook]
Blade Depth from T-Handle: 7.5" (19,1 cm)
Overall Length: 9.25" (23,5 cm)


6227 [#6 - Femoral Calcar Retractor]
Blade Width: 25 mm
Blade Depth: 2" (5,1 cm)
Overall Length: 14.5" (36,9 cm)


6225 [#7 - Greater Trochanteric Retractor]
Blade Width: 25 mm
Blade Depth: 1.5" (3,8 cm)
Overall Length: 14.875" (37,8 cm)


Optional items:

6226-EH [Flat Elevator Hook]
Blade Depth from T-Handle: 7.5" (19,1 cm)
Overall Length: 9.25" (23,5 cm)
Download Product Brochure (PDF)
Download Surgical Technique (PDF)

TOP

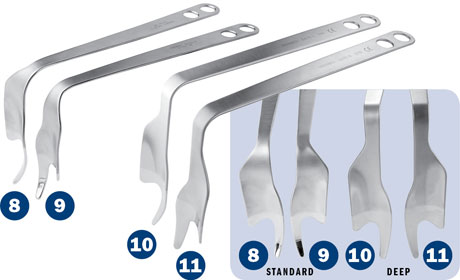

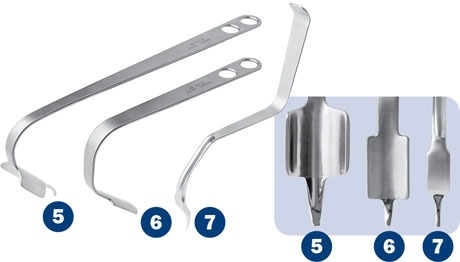

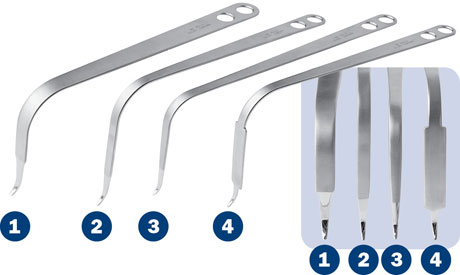

Dorr Hip Instruments


Designed by Lawrence D. Dorr, MD




Dorr Acetabular Retractor

Dorr Hip Instruments


Dorr Curved Hohmann Acetabular Retractor

Placed over the top of the piriformis, helps retract the gluteus medius.

Product No:
D6105 [Dorr Curved Hohmann Acetabular Retractor]
Overall Length: 14" (35,6 cm)
Depth from Handle: 4.5" (11,4 cm)
Blade Width: 18.5 mm

Dorr Narrow Bent Acetabular Retractors
Retracts the gluteus maximus off the trochanter and exposes the back of the greater trochanter. The long version is used with larger patients.

Product No's:
D6108 [Dorr Narrow Bent Acetabular Long]
Overall Length: 14.75" (37,5 cm)
Depth from Handle: 6" (15,2 cm)
Blade Width: 12.6 mm
D6110 [Dorr Narrow Bent Acetabular]
Overall Length: 15" (38,1 cm)
Depth from Handle: 4.75" (12,1 cm)
Blade Width at Widest: 12 mm

Dorr Bent Hohmann Acetabular Retractor
Placed between the capsule and outer external oblique muscle to protect medial circumflex vessels. The tip engages the condyloid notch bone (teardrop). Helps retract soft tissues during acetabular exposure.

Product No:
D6112 [Dorr Bent Hohmann Acetabular Retractor]
Overall Length: 14.5" (36,9 cm)
Depth from Handle: 6" (15,2 cm)
Blade Width: 21 mm




Dorr Bent Hohmann Retractors


Dorr Curved Blade Bent Hohmann Retractors

Used for both femoral exposure—placed around the femoral neck or beneath the top of the femoral head — and acetubular exposure — posterior superior of the acetabulum.

Product No's:
D6106 [Dorr Curved Blade Bent Hohmann]
Overall  Length: 13.5" (34,3 cm)
Depth from Handle: 4.5" (11,4 cm)
Blade Width: 40 mm
D6107 [Dorr Curved Blade Double Bent Hohmann]
Overall Length: 8.5" (21,6 cm)
Depth from Handle: 5" (12,7 cm)
Blade Width: 25 mm

Upward Double Bent Hohmann Retractor
Tapped into the illum to help retract the femur for acetabular exposure.

Product No:
D6114 [Upward Double Bent Hohmann]
Overall Length: 14" (35,6 cm)
Depth from Flat Part of Handle: 5.5" (14 cm)
Blade Width: 20.5 mm



Dorr Posterior Capsule and Sciatic Nerve Protection Retractors




Dorr Posterior Capsule and Sciatic Nerve Protection Retractors

Sits on the outer rim of the posterior inferior ishium to retract the posterior capsule for acetabular exposure and help to protect the sciatic nerve.

Product No's:
D6109-L [Dorr Posterior Capsule and Sciatic Nerve Protection Retractor—Left]
Overall Length: 14" (35,6 cm)
Depth from Handle: 6" (15,2 cm)
Blade Width at Widest: 44 mm
D6109-R [Dorr Posterior Capsule and Sciatic Nerve Protection Retractor—Right]
Overall Length: 14" (35,6 cm)
Depth from Handle: 6" (15,2 cm)
Blade Width at Widest: 44 mm
D6115-L [Dorr DEEP Posterior Capsule and Sciatic Nerve Protection Retractor—Left]
Overall Length: 14.75" (37,5 cm)
Depth from Handle: 7.25" (18,4 cm)
Blade Width at Widest: 48 mm
D6115-R [Dorr DEEP Posterior Capsule and Sciatic Nerve Protection Retractor—Right]
Overall Length: 14.75" (37,5 cm)
Depth from Handle: 7.25" (18,4 cm)
Blade Width at Widest: 48 mm



Dorr Femoral Neck Elevators


Dorr Femoral Neck Elevators
Placed under the proximal femur to help expose the femoral head. The wide version is useful with large patients, while the narrow is useful when broaching or when the implant is in place.

Product No's:
D6111 [Dorr Wide Femoral Neck Elevator]
Overall Length: 15" (38,1 cm)
Depth from Handle: 2" (5,1 cm)
Blade Width at Widest: 45 mm
D6113 [Dorr Narrow Femoral Neck Elevator]
Overall Length: 13.75" (34,9 cm)
Depth from Handle: 2.25" (5,7 cm)
Blade Width: 25 mm
Download Product Brochure (PDF)

TOP





Hip Surgery Retractor System

Helps to free assisting personnel while providing excellent exposure during hip arthroplasty and hip fracture surgery


Designed by S. David Stulberg, MD


Hip Surgery Retractor System Hip Surgery Retractor System

Hip Surgery Retractor System

Hip Surgery Retractor System Hip Surgery Retractor System
Hip Surgery Retractor System Hip Surgery Retractor System

The Self-Retaining Hip Surgery Retractor System is used for hip arthroplasty and hip fracture surgery. The frame is available in two configurations, square and standard, both of which have multi-retractor holding posts and a fixed retractor end which utilizes standard blades. The blades can be used with other self-retaining type frames.

The Bunta Extra Large Blades (three sizes) are designed to retract soft tissue in large patients. The deep blade curve helps them stay attached to the frame.

The optional wedges help stabilize blades, particularly with larger patients.

The Standard Blades with T-bar Handles help prevent the hand from slipping.

The Radiolucent blades are completely radiolucent with annodized aluminum handles and delrin blades.


Product No's:

Standard Frames

7450-01A [Standard Frame]
12.75" x 9.5" (32,4 cm x 24,1 cm)

7450-01B [Medium Frame]
9.75" x 9.5" (32,4 cm x 24,1 cm)

Double Locking Standard Frame

7430 [Standard Frame]
12.75" x 9.5" (32,4 cm x 24,1 cm)

Square Frame

7450-01D
12.75" x 11.25" (32,4 cm x 28,6 cm)

Charnley-Type Frames – Individually

7445-01 [Standard without Blades] 12' x 9.5"
7445-01B-01 [Narrow without Blades] 10" x 9.5"

Charnley-Type Frames – Sets

7445 [Standard] 12" x 9.5" (30,5 cm x 24,1 cm)
7445-01B [Narrow] 10" x 9.5" (25,4 cm x 24,1 cm)
Each Charnley-type Frame Set comes with 1 each of:
7445-02 [Rounded Charnley-Type 2" (5,1 cm) Blade]
7450-02 [Standard 2" (5,1 cm) Blade]
7455-02 [Standard Charnley-Type 2" (5,1 cm) Blade]

Standard Blades

7450-02 [2" (5,1 cm) blade depth]
7450-03 [3" (7,6 cm) blade depth]
7450-04 [4" (10,2 cm) blade depth]
7450-05 [5" (12,7 cm) blade depth]
7450-06 [6" (15,2 cm) blade depth]

Standard Blades with T-bar Handle

7450-02T [2" (5,1 cm) blade depth]
7450-03T [3" (7,6 cm) blade depth]
7450-04T [4" (10,2 cm) blade depth]
7450-05T [5" (12,7 cm) blade depth]
7450-06T [6" (15,2 cm) blade depth]

Radiolucent Standard Blades

7449-02R [2" (5,1 cm) blade depth]
7449-03R [3" (7,6 cm) blade depth]
7449-04R [4" (10,2 cm) blade depth]

Wide Standard Blades

7450-W-02 [2" (5,1 cm) blade depth]
7450-W-03 [3" (7,6 cm) blade depth]
7450-W-04 [4" (10,2 cm) blade depth]
7450-W-05 [5" (12,7 cm) blade depth]

Long Standard Blades (8" (20,3 cm) Handle)

7451-02 [2" (5,1 cm) blade depth]
7451-03 [3" (7,6 cm) blade depth]
7451-04 [4" (10,2 cm) blade depth]
7451-05 [5" (12,7 cm) blade depth]
7451-06 [6" (15,2 cm) blade depth]

Bennett Style Blade

7450-07A [4" (10,2 cm) blade depth]

Hohmann Style Blades

7450-08A [Standard • 4" (10,2 cm) blade depth]
7450-08B [Deep • 6" (15,2 cm) blade depth]

Soft Tissue Blades

7450-09A [Standard • 2" (5,1 cm) blade depth]
7450-09B [Deep • 2.5" (6,4 cm) blade depth]

5-Prong Rake Blade

7450-10B [1" (2,54 cm) blade depth]

Toy Anterior Modified Hibbs Blade

7453 [Standard 3.875" (9,8 cm) blade depth]
7454 [Shallow 2.75" (7 cm) blade depth]
Designed by Patrick Toy, MD

Designed to separate/protect the medial (rectus femoris) and lateral (tensor fascia lata) soft tissues without an assistant holding an additional instrument when used in conjunction with a self-retaining frame system. The modifications of the blade help maintain its position while helping to minimizing risk to neurovascular structures.

Retractor Blades for Charnley-type Frame

7445-02 [Rounded 2" (5,1 cm) blade depth]
7445-03 [Rounded 2.5" (6,4 cm) blade depth]
7445-04 [Rounded 3.5" (8,9 cm) blade depth]
7455-02 [2" (5,1 cm) blade depth]
7455-03 [3" (7,6 cm) blade depth]
7455-04 [4" (10,2 cm) blade depth]
7455-06 [6" (15,2 cm) blade depth]

Extra Large Standard Blades

Handle Length: 6.5" (16,5 cm)
Blade Width: 24 mm

7470-02 [2" (5,1 cm) blade depth]
7470-03 [3" (7,6 cm) blade depth]
7470-04 [4" (10,2 cm) blade depth]
Designed by Andrew D. Bunta, MD

Extra Wide Standard Blades

Product No's:
Blade Width: 2.75" (7 cm)
7460-01 [Short • 2.5" (6,4 cm) Blade Depth]
7460-02 [Medium • 3.25" (8,3 cm) Blade Depth]
Designed by Andrew D. Bunta, MD

Blades with Teeth

C1013 [2.5" (6,4 cm) blade depth]
C1013-01 [4" (10,2 cm) blade depth]

Wedges for Frames

7450-89 [Thin Wedge]
Overall Length: 1.75" (4,4 cm)
Wedge Thickness: 4 mm


7450-99 [Thick Wedge]
Overall Length: 1.75" (4,4 cm)
Wedge Thickness: 48mm

Mobile Body Assembly

7447

VIEW SURGICAL VIDEO


Download Product Brochure (PDF)

TOP





Minimal Incision Total Hip Retractors

Instruments designed for Minimal Incision Total Hip Surgery using the standard posterior lateral approach


Designed by Wayne M. Goldstein, MD


Minimal Incision Total Hip Retractors

Minimal Incision Total Hip RetractorsMinimal Incision Total Hip Retractors

Minimal Incision Total Hip Retractors

Product No's:

Bent Hohmann Retractor for Gluteus Medius

7110 [Standard]
Overall Length: 9.75" (24,8 cm)
Blade Width: 19 mm
Depth from Bend: 4.25" (10,8 cm
)

Blunt Right Angle Posterior Capsular Retractor

7120
Overall Length: 8" (20,3 cm)
Blade Width: 32 mm
Blade Depth: 3.25" (8,3 cm)


Cobra Retractor with Hand Rest

7130
Overall Length: 10.25" (26 cm)
Blade Width at Widest: 32 mm

Superior Capsular Retractor

7140
Overall Length: 7140
Overall Length: 9.375" (23,8 cm)
Blade Width at Widest: 19 mm

90° Soft Tissue Retractor

7150
Overall Length: 8" (20,3 cm)
Blade Width: 25 mm
Blade Depth: 3.25" (8,3 cm)

Posterior-Inferior Retractors

7625-01 [Small Right]
Overall Length: 10.75" (27,3 cm)
Handle-to-Bend Length: 5.5" (14 cm
)

7625-02 [Small Left]
Overall Length: 10.75" (27,3 cm)
Handle-to-Bend Length: 5.5" (14 cm
)

Right Angle Posterior Capsular Retractors

7180 [With Teeth]
Overall Length: 8" (20,3 cm)
Blade Width: 32 mm
Blade Depth: 3.5" (8,9 cm)


7180-01 [No Teeth]
Overall Length: 8" (20,3 cm)
Blade Width: 32 mm
Blade Depth: 3.5" (8,9 cm)

Download Surgical Technique (PDF)
Download Product Brochure (PDF)

TOP





Minimally Invasive Hip Retractors

Designed to be used in various minimally invasive hip exposures




Minimally Invasive Hip Retractors
Product No’s:

S3023 [MIH Hip Retractor]
Overall Length: 13" (33 cm)
Blade Width: 25 mm

S3024 [MIH Hip Retractor–blunt tip]
Overall Length: 14.5" (36,9 cm)
Blade Width: 25 mm

S3025 [MIH Offset Retractor]
Overall Length: 14" (35,6 cm)
Blade Width: 32 mm

S3026 [MIH Long Hohmann Retractor]
Overall Length: 14.75" (37,5 cm)
Blade Width: 40 mm

S3027 [MIH Long Hohmann Retractor–curved, short blade]
Overall Length: 12.25" (31,1 cm)
Blade Width: 34 mm

S3028 [MIH Long Hohmann Retractor–curved, long blade]
Overall Length: 14" (35,6 cm)
Blade Width: 39 mm

S3029 [MIH Long Hohmann Retractor–narrow]
Overall Length: 14.75" (37,5 cm)
Blade Width: 22 mm

S3029-01 [MIH Long Hohm Ret–narrow with short tip]
Overall Length: 14.5" (36,9 cm)
Blade Width: 22 mm


S3030 [MIH Small Hohmann Retractor]
Overall Length: 11.5" (29,2 cm)
Blade Width: 19 mm

S3031 [MIH Femoral Elevator]
Overall Length: 14" (35,6 cm)
Blade Width: 40 mm
Download Product Brochure (PDF)

TOP





Minimally Invasive Total Hip Surgery Retractors

Designed to be used in various minimally invasive hip exposures


Designed by S. David Stulberg, MD


Minimally Invasive Total Hip Surgery Retractors

Minimally Invasive Total Hip Surgery RetractorsMinimally Invasive Total Hip Surgery Retractors

Minimally Invasive Total Hip Surgery Retractors

Narrow Proximal Femoral Elevators

3420-05 [Standard Prongs]
Overall Length: 11.5" (29,2 cm)
Handle Length: 6.5" (16,5 cm)
Blade Width at Widest: 45 mm

Narrow Cobra Retractors

6120 [Standard]
Overall Length: 11.75" (29,8 cm)
Handle Length: 6.5" (16,5 cm)
Blade Width: 19 mm

6120-04 [Extra Long]
Overall Length: 15.5" (39,4 cm)
Handle Length: 11" (27,9 cm)
Blade Width: 19 mm

Narrow Double Prong Acetabular Retractor

6175
Overall Length: 32 mm
Overall Length: 12.5" (31,8 cm)
Handle Length: 8.5" (21,6 cm)


Single Prong Double Bent
Hohmann Acetabular Retractor

6212 [Longer Blade]
Overall Length:11.25" (28,6 cm)
Blade + Tip Length: 3.5" (89 mm)
Blade Width: 15 mm

6210 [Standard Blade]
Overall Length: 10.5" (26,7 cm)
Blade + Tip Length: 2.5" (64 mm)
Blade Width: 15 mm

Single & Double Prong Double
Bent Hohmann Acetabular Retractor – Long

6213 [Single Prong – Longer Blade]
Overall Length: 15" (38,1 cm)
Blade + Tip Length: 5" (127 mm)
Blade Width: 15 mm

6210-02 [Single Prong – Standard Blade]
Overall Length: 12.5" (31,8 cm)
Blade + Tip Length: 3" (76 mm)
Blade Width: 15 mm

6210-02L [Lighted Single Prong – Standard Blade]
Overall Length: 12.5" (31,8 cm)
Blade + Tip Length: 3" (76 mm)
Blade Width: 15 mm


6220 [Double Prong – Standard Blade]
Overall Length: 12.5" (31,8 cm)
Blade + Tip Length: 3" (76 mm)
Blade Width: 15 mm


Single Prong Double Bent
Hohmann Acetabular Retractor – Extra Long

6214 [Longer Blade]
Overall Length: 18" (45,7 cm)
Blade + Tip Length: 5" (127 mm)
Blade Width: 15 mm

6210-04 [Standard Blade]
Overall Length: 16.25" (41,3 cm)
Blade + Tip Length: 3" (76 mm)
Blade Width: 15 mm


MIS Hip Retractor

6265
Overall Length: 15" (38,1 cm)
Handle Length: 11" (27,9 cm)
Depth from Bend: 8" (20,3 cm)
Blade Width: 20 mm
Download Surgical Technique (PDF)
Download Product Brochure (PDF)



TOP





Unger Anterior Total Hip Instruments

Universal instrument system specifically designed for Direct Anterior approach THR


Designed by Anthony Unger, MD


Unger Anterior Total Hip Instruments

Unger Anterior Total Hip Instruments Unger Anterior Total Hip Instruments

Acetabular Exposure

Unger Wide Hohmann
Placed around the femoral neck to expose the anterior hip capsule.
Unger Narrow Hohmann
A curved sharp hohmann retractor placed under the posterior acetabulum to depress the femur and expose the acetabulum.
Unger Blunt Narrow Cobra
A ventral cobra retractor placed over the anterior acetabulum wall to pull the Rectus Femoris anteriorly.

Femoral Exposure

Unger Wide Hohmann
Placed medial to the femoral neck to push the femur laterally, helping to expose the femur for implant broaching and insertion.
Unger Femoral Neck Elevator
A femur elevator designed to interact with the Unger Soft Tissue Protector to expose the femur. Placed behind the Greater Trochanter.
Unger Soft Tissue Protector
A unique device that protects the Tensor Fascia Lata and allows the femoral elevator to lever/push up the femur for femoral component broaching and placement.
Unger Anterior Total Hip Instruments

Product No's:

3001 [Unger Wide Hohmann – Single Prong]
Blade Width: 45 mm
Blade Depth: 5.45" (13,8 cm)
Overall Length: 13.5" (34,3 cm)

3008 [Unger Wide Hohmann – Double Prong]
Blade Width: 45 mm
Blade Depth: 5.45" (13,8 cm)
Overall Length: 13.5" (34,3 cm)

3002 [Unger Narrow Hohmann]
Blade Width: 34 mm
Blade Depth: 4" (10,2 cm)
Overall Length: 13" (33 cm)

3003 [Unger Blunt Narrow Cobra]
Blade Width: 34 mm
Blade Width at Tip: 12 mm
Blade Depth: 5.25" (13,3 cm)
Overall Length: 14.5" (36,9 cm)

3004 [Unger Canal Finder Rasp – Straight]
Overall Length: 11" (27,9 cm)
Handle Length: 5" (12,7 cm)

3004-01 [Unger Canal Finder Rasp – Curved]
Overall Length: 11" (27,9 cm)
Handle Length: 5" (12,7 cm)

3004-02 [Unger Canal Finder Rasp – Curved with 2.5" Smooth Proximal]
Overall Length: 11" (27,9 cm)
Handle Length: 5" (12,7 cm)

3005-R [Unger Box Osteotome–Right]
Overall Length: 12" (30,5 cm)

3005-L [Unger Box Osteotome–Left]
Overall Length: 12" (30,5 cm)

3006 [Unger Femoral Neck Elevator]
Blade Width at Widest: 25 mm
Overall Length: 13" (33 cm)
Handle Length: 9" (22,9 cm)

3007 [Unger Soft Tissue Retractor]
Blade Width: 50 mm
Blade Depth: 1.75" (4,4 cm)
Overall Length: 10.125" (25,7 cm)


3009-R [Unger Offset Narrow Hohmann–Right]
Blade Width: 34 mm
Blade Depth: 4" (10,2 cm)
Overall Length: 13" (33 cm)

3009-L [Unger Offset Narrow Hohmann–Left]
Blade Width: 34 mm
Blade Depth: 4" (10,2 cm)
Overall Length: 13" (33 cm)

Optional instruments:
3006-01 [Femoral Neck Elevator–Long Prong]
Blade Width at Widest: 25 mm
Overall Length: 13.4" (34 cm)
Handle Length: 9" (22,9 cm)
Download Product Brochure (PDF)
Download Surgical Technique (PDF)

TOP



© 2023 Innomed, Inc. All rights reserved.
