HIP INSTRUMENTS • extraction & revision – extractors

Click thumbnail image for details

Atlatl Super Slap Hammer
Basic Screw Removal System
Broach Extraction OrthoVise™
CupX – Acetabular Cup Extraction System
Atlatl Super Slap Hammer
NEW! Basic Screw Removal System
Broach Extraction OrthoVise™
CupX – Acetabular Cup Extraction System
CupX Blade Contour Checking Templates
Easy Grip Slap Hammer
Femoral Extraction Instruments
Gorski Hip Cup Extraction Hook

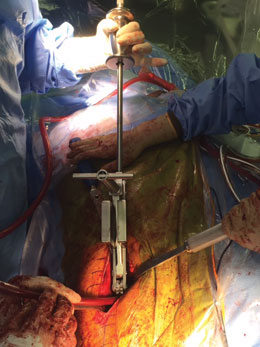

Heck Anterior Modular Hip Component Extractor
with Strikeplate
CupX Blade Contour Checking Templates
Easy Grip Slap Hammer
Femoral Extraction Instruments
Gorski Hip Cup Extraction Hook

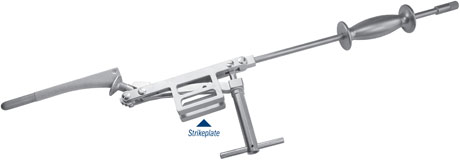

Heck Anterior Modular Hip Component Extractor
with Strikeplate
Intramedullary Nail Removal System

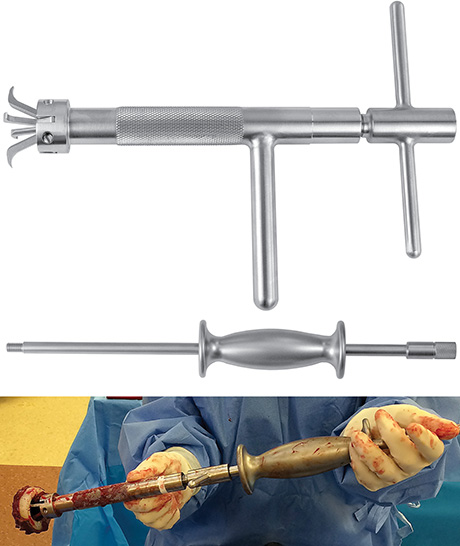

Lombardi Hip Cup Liner/Shell Extractor
Offset Punches
OrthoVise – Large
OrthoVise – Small
NEW! Intramedullary Nail Removal System
Lombardi Hip Cup Liner/Shell Extractor
Offset Punches
OrthoVise – Large
OrthoVise – Small

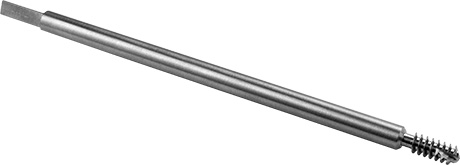

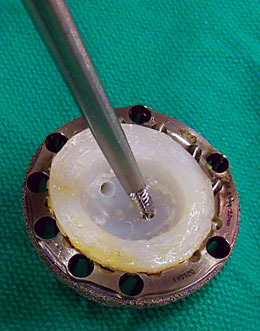

Poly Cup Liner Removal Drill
Screw Removal Locking Pliers
Screw Removal Pliers
Screw/Pin Removal Locking Pliers
Star Bit Driver Set

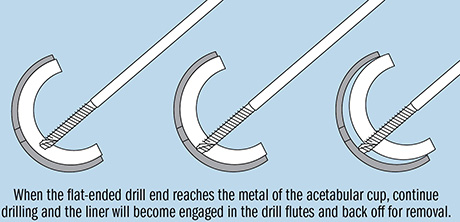

Poly Cup Liner Removal Drill
NEW! Screw Removal Locking Pliers
Screw Removal Pliers
Screw/Pin Removal Locking Pliers
Star Bit Driver Set

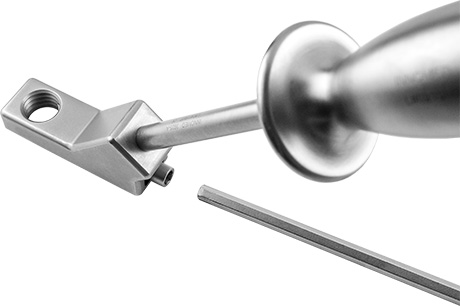

Unger Universal Femoral Component Extractor with Precision Osteotomy Guide
Universal Modular Femoral Hip Component Extractor
Universal Screw Removal Instrument System

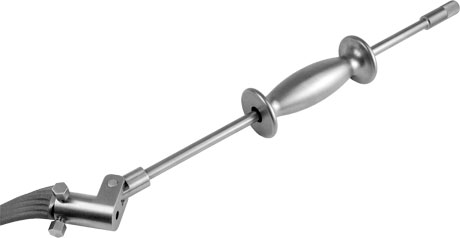

Whelan Hip Stem Extractor
Whelan Extractor Strike Plate Attachment

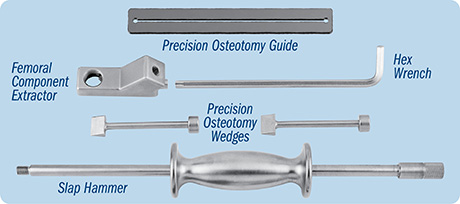

Unger Universal Femoral Component Extractor with Precision Osteotomy Guide
Universal Modular Femoral Hip Component Extractor
Universal Screw Removal Instrument System

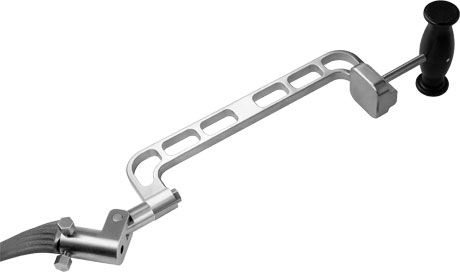

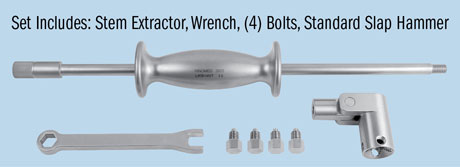

Whelan Hip Stem Extractor
Whelan Extractor Strike Plate Attachment

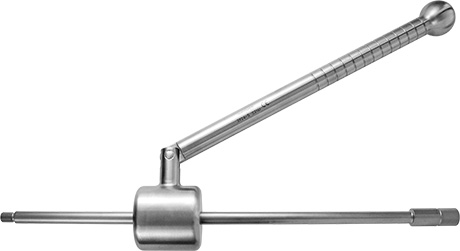

Atlatl Super Slap Hammer

Designed for when extra powerful slap hammer force is needed





Atlatl Super Slap Hammer

Repositionable silicone grip handles are available for use with the long version of the Atlatl, and are removable for sterilization.

The Atlatl Super Slap Hammer is designed for use with a 3/8" diameter slap hammer rod, including the Innomed #3925 & #3935 slap hammers on the following extraction instruments:

Hip – Femoral Component
3610 Universal Modular Hip Component Extractor
3611 Heck Anterior Modular Hip Component Extractor
4175-00 Whelan Hip Stem Extractor

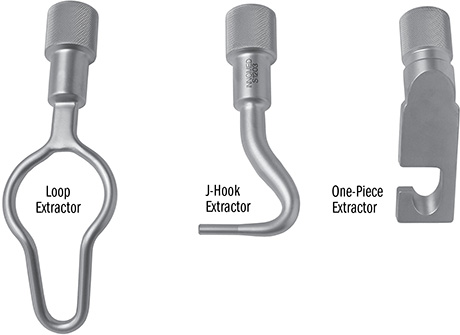

S1202 Femoral Extraction Instrument – Loop
S1203 Femoral Extraction Instrument – J-Hook
S1203 Femoral Extraction Instrument – One-Piece
Hip – Acetabular Cup/Shell/Liner
3638-00 Lombardi Hip Cup Liner/Shell Extractor
3665 Gorski Hip Cup Extraction Hook – 5.0 mm
Knee
3630 Tibial Knee Component Extractor
3920 Femoral Knee Component Extractor
3650 4 mm Tibia Tray Removal Hook
3655 8 mm Tibia Tray Removal Hook
Shoulder
3670 Nicholson Universal Humeral Prosthesis Extractor
General
3966 Large Bent Jaw OrthoVise

Product No's:

3924-L-00 [Long with Silicone Handles]
Overall Length: 22" (55,8 cm)
Includes (2) 3924-RH Silicone Grip Handles.

Slap hammer rod not included.

3924-L [Long without Handles]
Overall Length: 22" (55,8 cm)
Slap hammer rod not included.

3924-S [Short]
Overall Length: 16" (40,7 cm)
Slap hammer rod not included.

3924-RH [Silicone Grip Handle Only]
Overall Length: 4" (10,2 cm)
(One handle only with this product number)

3925-A [16" Slap Hammer Rod Only]
(Rod only with this product number)
Download Product Brochure (PDF)

TOP





Basic Screw Removal System

System designed to help remove damaged and broken screws from 1.5 to 7.0 mm




Basic Screw Removal System




Product No’s:

2022-00 [Complete Set]

Set Includes:

2022-01 [Screw Removal Pliers]
Overall Length: 8" (20,3 cm)

2022-02 [Mini Lexer Gouge – 4 mm]
Overall Length: 7" (17,8 cm)
Gouge Width: 4 mm


2022-03 [Mini Lexer Gouge – 6 mm]
Overall Length: 7" (17,8 cm)
Gouge Width: 6 mm


2022-04 [Mini Lexer Gouge – 10 mm]
Overall Length: 7" (17,8 cm)
Gouge Width: 10 mm


2022-05 [Extraction Screw for 1.5/2.0 mm]
Overall Length: 1.6" (4 cm)

2022-06 [Extraction Screw for 2.7/3.5/4.0 mm]
Overall Length: 1.6" (4 cm)

2022-07 [Extraction Screw for 4.5/5.0/6.5/7.0 mm]
Overall Length: 1.6" (4 cm)

2022-CASE [Case for Basic Screw Removal System]

2022-IP [Instruction Plate]
Dimensions: 7.875" x 3.65" (20 x 9,3 cm)

2022-SH [Sharp Hook]
Overall Length: 6.1" (15,5 cm)

2022-T [T-Handle with A0-End]
Overall Length: 5.9" (15 cm)
Handle Width: 3.15" (8 cm)


2023-01 [Extraction Bolt for 1.5 mm Screw]
Overall Length: 2.35" (6 cm)

2023-02 [Extraction Bolt for 2.0 mm Screw]
Overall Length: 2.35" (6 cm)

2023-03 [Extraction Bolt for 2.7 mm Screw]
Overall Length: 2.35" (6 cm)

2023-04 [Extraction Bolt for 3.5/4.0 mm Screw]
Overall Length: 2.35" (6 cm)

2023-05 [Extraction Bolt for 4.5 mm Screw]
Overall Length: 3.15" (8 cm)

2023-06 [Extraction Bolt for 5.0/6.5/7.0 mm Screw]
Overall Length: 3.94" (10 cm)

2023-07 [Trephine for 1.5 mm Screw]
Overall Length: 4.125" (10,5 cm)

2023-08 [Trephine for 2.0 mm Screw]
Overall Length: 4.125" (10,5 cm)

2023-09 [Trephine for 2.7 mm Screw]
Overall Length: 4.125" (10,5 cm)

2023-10 [Trephine for 3.5-4.0 mm Screw]
Overall Length: 4.125" (10,5 cm)

2023-11 [Trephine for 4.5 mm Screw]
Overall Length: 5.4" (13,7 cm)

2023-12 [Trephine for 5.0-7.0 mm Screw]
Overall Length: 5.4" (13,7 cm)

2024-01 [Spare Trephine Cutting End for 1.5 mm Screw]
Overall Length: 1.6" (4 cm)

2024-02 [Spare Trephine Cutting End for 2.0 mm Screw]
Overall Length: 1.6" (4 cm)

2024-03 [Spare Trephine Cutting End for 2.7 mm Screw]
Overall Length: 1.6" (4 cm)

2024-04 [Spare Trephine Cutting End for 3.5/4.0 mm Screw]
Overall Length: 1.6" (4 cm)

2024-05 [Spare Trephine Cutting End for 4.5 mm Screw]
Overall Length: 2.75" (7 cm)

2024-06 [Spare Trephine Cutting End for 5.0/6.5/7.0 mm Screw]
Overall Length: 2.75" (7 cm)
Download Product Brochure with Instructions (PDF)

TOP

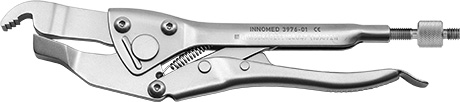

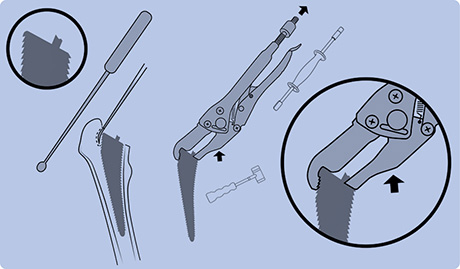

Broach Extraction OrthoVise™

Designed for hip broach extraction when the broach post is broken or there is a failure of the broach handle


Designed by Joel Matta, MD


Broach Extraction OrthoVise



Broach Extraction OrthoVise

Broach Extraction OrthoVise




Product No’s:

3976-00 [Broach Extraction OrthoVise Set
with Small Slaphammer]

Set included / Available Individually:

3976-01 [Broach Extraction OrthoVise Only]
Overall Length: 9" (22,9 cm)

3955 [Slap Hammer for Small OrthoVise]
Overall Length: 8.75" (22,2 cm)

3985-03 [Threaded Adapting Screw–Small]
Download Product Brochure (PDF)

TOP





CupX — Acetabular Cup Extraction System

Helps to quickly and precisely remove an acetabular cup
with minimal loss of bone


System designed by
James Kudrna, MD &
Stephen Incavo, MD
Wrench Drive Handle designed by
Guido Grappiolo, MD
Large Delrin Heads designed by
Adolph Lombardi, MD


CupX — Acetabular Cup Extraction System



Product No's:

Complete Instrument Set

5200 [Complete Set — Fixed Handle]
5208 [Complete Set — Wrench Drive Handle]
20 Starter and 20 Finish Instruments, 3 each of 5 Head sizes (22-36 mm), and 5 cases
Includes complete set of 5200-T CupX Blade Contour Checking Templates, plus Ring


CupX — Acetabular Cup Extraction System

Custom and Ranged Instrument Sets

5200-01 [Choice of Sizes — Fixed Handle]
5208-01 [Choice of Sizes — Wrench Drive Handle]
5 Starter and 5 Finish Instruments (choice of sizes) w/case,
2 each of 5 Head sizes (22 mm–36 mm) w/case
Includes CupX Blade Contour Checking Templates for corresponding Blade Sizes Chosen, plus Ring


5200-02 [42 mm–50 mm — Fixed Handle]
5208-02 [42 mm–50 mm — Wrench Drive Handle]
5 Starter and 5 Finish Instruments (42 mm–50 mm) w/case,
2 each of 5 Head sizes (22 mm–36 mm) w/case
Includes CupX Blade Contour Checking Templates for 42 mm – 50 mm Blades, plus Ring


5200-03 [52 mm–60 mm — Fixed Handle]
5208-03 [52 mm–60 mm — Wrench Drive Handle]
5 Starter and 5 Finish Instruments (52 mm–60 mm) w/case,
2 each of 5 Head sizes (22 mm–36 mm) w/case
Includes CupX Blade Contour Checking Templates for 52 mm – 60 mm Blades, plus Ring


5200-04 [62 mm–70 mm — Fixed Handle]
5208-04 [62 mm–70 mm — Wrench Drive Handle]
5 Starter and 5 Finish Instruments (62 mm–70 mm) w/case,
2 each of 5 Head sizes (22 mm–36 mm) w/case
Includes CupX Blade Contour Checking Templates for 62 mm – 70 mm Blades, plus Ring


5200-05 [72 mm–80 mm — Fixed Handle]
5208-05 [72 mm–80 mm — Wrench Drive Handle]
5 Starter and 5 Finish Instruments (72 mm–80 mm) w/case,
2 each of 5 Head sizes (22 mm–36 mm) w/case
Includes CupX Blade Contour Checking Templates for 72 mm – 80 mm Blades, plus Ring

CupX — Acetabular Cup Extraction System


Individual FIXED HANDLE
Cup Removal Instruments

STARTER BLADE

5200-42 [42 mm]
5200-44 [44 mm]
5200-46 [46 mm]
5200-48 [48 mm]
5200-50 [50 mm]
5200-52 [52 mm]
5200-54 [54 mm]
5200-56 [56 mm]
5200-58 [58 mm]
5200-60 [60 mm]
5200-62 [62 mm]
5200-64 [64 mm]
5200-66 [66 mm]
5200-68 [68 mm]
5200-70 [70 mm]
5200-72 [72 mm]
5200-74 [74 mm]
5200-76 [76 mm]
5200-78 [78 mm]
5200-80 [80 mm]

FINISH BLADE

5201-42 [42 mm]
5201-44 [44 mm]
5201-46 [46 mm]
5201-48 [48 mm]
5201-50 [50 mm]
5201-52 [52 mm]
5201-54 [54 mm]
5201-56 [56 mm]
5201-58 [58 mm]
5201-60 [60 mm]
5201-62 [62 mm]
5201-64 [64 mm]
5201-66 [66 mm]
5201-68 [68 mm]
5201-70 [70 mm]
5201-72 [72 mm]
5201-74 [74 mm]
5201-76 [76 mm]
5201-78 [78 mm]
5201-80 [80 mm]


Steel Interchangeable Heads

5202-22 [22 mm]
5202-26 [26 mm]
5202-28 [28 mm]
5202-32 [32 mm]
5202-36 [36 mm]

Optional:

5202-38 [38 mm]

Storage Case for Starter and Finish Blades and 5 Steel Heads

9015

Storage Case for 10 Steel Heads

9016

Individual WRENCH DRIVE HANDLE
Cup Removal Instruments

STARTER BLADE

5208-42 [42 mm]
5208-44 [44 mm]
5208-46 [46 mm]
5208-48 [48 mm]
5208-50 [50 mm]
5208-52 [52 mm]
5208-54 [54 mm]
5208-56 [56 mm]
5208-58 [58 mm]
5208-60 [60 mm]
5208-62 [62 mm]
5208-64 [64 mm]
5208-66 [66 mm]
5208-68 [68 mm]
5208-70 [70 mm]
5208-72 [72 mm]
5208-74 [74 mm]
5208-76 [76 mm]
5208-78 [78 mm]
5208-80 [80 mm]

FINISH BLADE

5209-42 [42 mm]
5209-44 [44 mm]
5209-46 [46 mm]
5209-48 [48 mm]
5209-50 [50 mm]
5209-52 [52 mm]
5209-54 [54 mm]
5209-56 [56 mm]
5209-58 [58 mm]
5209-60 [60 mm]
5209-62 [62 mm]
5209-64 [64 mm]
5209-66 [66 mm]
5209-68 [68 mm]
5209-70 [70 mm]
5209-72 [72 mm]
5209-74 [74 mm]
5209-76 [76 mm]
5209-78 [78 mm]
5209-80 [80 mm]


Optional:
Large Delrin Interchangeable Heads

US Patent #7,998,146 B2
5202-00 [Complete Set with Case]
5202-39 [39 mm]
5202-40 [40 mm]
5202-41 [41 mm]
5202-42 [42 mm]
5202-43 [43 mm]
5202-44 [44 mm]
5202-45 [45 mm]
5202-46 [46 mm]
5202-47 [47 mm]
5202-48 [48 mm]
5202-49 [49 mm]
5202-50 [50 mm]
5202-51 [51 mm]
5202-52 [52 mm]
5202-53 [53 mm]
5202-54 [54 mm]
5202-55 [55 mm]
5202-56 [56 mm]
5202-57 [57 mm]
5202-58 [58 mm]
5202-59 [59 mm]
5202-60 [60 mm]
9014 [Case Only]
Any component may be purchased individually.



CupX Customer Blade Discount Program

Click the link below to download (in PDF format) an explanation of our
Blade Discount Program for the CupX System.

CupX Blade Discount Program


CupX Customer Blade Discount Form

Click the link below to download (in PDF format) our Blade Exchange Form for the CupX System.

CupX Blade Discount Form

CupX — Acetabular Cup Extraction System

All blades now come standard with an ultra hard titanium nitride coating which offers these benefits:

Extends Blade Life…
by increasing surface hardness

Prolongs Sharpness…
with an ultra hard, heat resistant coating

More Wear Resistant…
due to high lubricity of titanium nitride coating

Prevents Galling…
won’t chip, peel, or flake

Reduces Friction…
eliminates seizing in metal-on-metal contact

Chemical and Corrosion Resistant

Non-toxic…
medically approved and proven

Extended blade life leads to
long term savings!



The CupX Complete Instrument Set consists of 20 (twenty) pairs of extractors with fixed, sharp curved blades — one short starter blade and one long finishing blade — in diameters ranging from 42 to 80 mm in 2mm increments, plus 15 interchangeable spherical steel heads (3 each of five sizes) with diameters of 22, 26, 28, 32 and 36 mm.


System Options Include:

Choice of Handle Styles: Fixed or Wrench Drive
Wrench Drive handles work like a socket wrench, allowing improved torque without changing positions.

CupX — Acetabular Cup Extraction System

Large 38 mm Steel Head Size
A larger, non-standard size.

CupX — Acetabular Cup Extraction System

Large Delrin Interchangeable Heads*
Designed to provide tight, secure surface contact when removing larger size acetabular cups, and can also be used if the cup liner of a standard size cup is worn and must be removed. Available in diameters from 39 to 60 mm in 1 mm increments.
* Patent #7,998,146 B2


CupX — Acetabular Cup Extraction System


Other System Features & Information:

Fully Customizable Sets
Rent or purchase — configure with as few or as many options required. See below for rental details.

Non-modular Blade System
Helps to decrease costs while increasing surgical efficiency as blades don’t need to be changed interoperatively.

Starter Blades
The shorter, stiffer Starter Blades are used around the top rim of the cup for more dense bone.

Finish Blades
The longer, thinner Finish Blades are used for deeper cutting around the dome of the cup.

In-line Shaft Alignment
The shaft is aligned directly over the head, which helps prevent the head from riding out of the cup while keeping the instrument properly centered. With proper centering, the curvature of the blades will more closely match the hemispherically-shaped outer surface of the acetabular cup when rotating, thus minimizing bone loss and creating a relatively intact acetabular recess for fitting of a new cup.

Head Diameters from 22 mm-60 mm
A properly sized head is installed onto the end of the shaft, and is then seated into the acetabular cup liner. The handle may then be pivoted and/or rotated to make an orbital cut around the acetabular cup. Note: If the cup liner is damaged or offset, proper centering of the shaft may not be possible. Remove the liner and install a temporary insert, or utilize one of our larger Delrin Heads if available.

Blade Diameters from 42 mm–80 mm
The curvature of the blades closely matches the outer surface of the acetabular cup, and will remain a fixed distance from the center of the acetabulum when rotating, thus creating a relatively intact acetabular recess for fitting of a new cup.

Shaft-End Handle Placement
Handle placement near the end of the shaft allows for better leverage and easier rotation.

Shaft-End Impaction Platform
A mallet may be used to strike the impaction platform on the end of the shaft to drive in the blade.

System Rental Information:
Available on a single procedure basis

Details – several rental configurations available:
• 4 cases with all sizes, including 2 sets of heads
• 3 cases, including 2 sets of heads
• 2 cases, including 2 sets of heads
• 1 case, including 2 sets of heads
• 1 size (starter & finish), including 2 sets of heads
Each case includes 5 Starter and 5 Finish Instruments


Charges
In addition to a rental fee, there is a charge for each instrument used (not including heads). Also, an additional charge applies if the used instruments are kept instead of returned. Rental is for one surgical procedure only, and must be returned within 5 days following the procedure.

TOP





CupX Blade Contour Checking Templates

Designed for checking the contour of a CupX blade after use to evaluate arc accuracy






CupX Blade Contour Checking Templates

Individual Contour Template
Product No’s:
5200-T [Complete Set]

Also available Individually:
5200-42G [42 mm]
5200-44G [44 mm]
5200-46G [46 mm]
5200-48G [48 mm]
5200-50G [50 mm]
5200-52G [52 mm]
5200-54G [54 mm]
5200-56G [56 mm]
5200-58G [58 mm]
5200-60G [60 mm]
5200-62G [62 mm]
5200-64G [64 mm]
5200-66G [66 mm]
5200-68G [68 mm]
5200-70G [70 mm]
5200-72G [72 mm]
5200-74G [74 mm]
5200-76G [76 mm]
5200-78G [78 mm]
5200-80G [80 mm]
5200-GR [Ring ]
Download Product Brochure (PDF)

TOP





Easy Grip Slap Hammer

Textured silicone hammer designed to help cushion the surgeon’s hand and maintain a solid grip





Easy Grip Slap HammerEasy Grip Slap Hammer

The textured silicone hammer helps to reduce the shock forces on the surgeon's hand during extraction procedures, and helps the surgeon to maintain a solid grip and prevent the hand from slipping.

For use with a 3/8" diameter slap hammer rod, including the Innomed #3925 & #3935 slap hammers on the following extraction instruments:

Hip – Femoral Component
3610 Universal Modular Hip Component Extractor
3611 Heck Anterior Modular Hip Component Extractor
4175-00 Whelan Hip Stem Extractor
S1202 Femoral Extraction Instrument – Loop
S1203 Femoral Extraction Instrument – J-Hook
S1203 Femoral Extraction Instrument – One-Piece
Hip – Acetabular Cup/Shell/Liner
3638-00 Lombardi Hip Cup Liner/Shell Extractor
3665 Gorski Hip Cup Extraction Hook – 5.0 mm
Knee
3630 Tibial Knee Component Extractor
3920 Femoral Knee Component Extractor
3650 4 mm Tibia Tray Removal Hook
3655 8 mm Tibia Tray Removal Hook
Shoulder
3670 Nicholson Universal Humeral Prosthesis Extractor
General
3966 Large Bent Jaw OrthoVise

Product No's:

3926 [Easy Grip Slap Hammer with 16" Rod]

Individual/Replacement Parts:

3925-HS [Easy Grip Slap Hammer only]

3925-A [16" Rod only]
Download Product Brochure (PDF)

TOP





Femoral Extraction Instruments




Femoral Extraction Instruments
Product No’s:

S1202 [Loop Extractor]
Includes Standard Slap Hammer #3925

S1203 [J-Hook Femoral Stem Extractor]
Includes Standard Slap Hammer #3925

S1204 [One-Piece Stem Extractor]
Includes Standard Slap Hammer #3925

Optional/Replacement/Individual Items:

S1202-01 [Loop Extractor Only]
Overall Length: 6.5" (16,5 cm)"

S1203-01 [J-Hook Femoral Stem Extractor Only]
Overall Length: 4.75" (12,1 cm)

S1204-01 [One-Piece Stem Extractor Only]
Overall Length: 4.125" (10,5 cm)

3935 [Extra Large Slap Hammer]
Thread Gauge: 3/8"-16

3925-HS [Easy Grip Slap Hammer (No Rod)]
Textured silicone hammer designed to help cushion the surgeon’s hand and maintain a solid grip.More Info Here
Download Product Brochure (PDF)

TOP





Gorski Hip Cup Extraction Hook

Helps in the removal of a hip cup


Designed by Jerrold Gorski, MD


Gorski Hip Cup Extraction Hook


Gorski Hip Cup Extraction Hook

Designed to quickly fit into a screw hole of a hip cup after the screws have been removed and the cup loosened. The slap hammer helps to remove the cup in the angle it was inserted.

Gorski Hip Cup Extraction Hook

Product No’s:

Hook for 5.0 mm Screw Holes

3665 [With Standard (#3925) Slap Hammer]
3665-01 [Without Slap Hammer]

Optional Items:
3935 [Extra Large Slap Hammer]
Thread Gauge: 3/8"-16
Download Product Brochure (PDF)

TOP





Heck Anterior Modular Hip Component Extractor
with Strikeplate

Strikeplate provides additional help to remove a femoral hip stem


Designed by David Heck, MD




Heck Anterior Modular Hip Component Extractor with Strikeplate

Includes standard slap hammer, #3925.

In this process of placing the extractor over the neck and tightening the locking screw, the upper flange surface of the strikeplate can be hit to help engagement. The inferior flange surface of the strikeplate can be hit in a vertical fashion when the femoral component is particularly well engaged. The extractor is equipped with a swivel block for attachment of a slap hammer. The swivel block helps keep the slap hammer in line with the angle of the femoral stem.

Heck Anterior Modular Hip Component Extractor with Strikeplate

Product No's:

3611 [Extractor w/Std. Slap Hammer #3925]

Optional/Individual Parts:

3611-01 [Extractor Only]

3925 [Standard Slap Hammer] 3/8"-16 Thread Gauge

3935 [Extra LargeSlap Hammer] 3/8"-16 Thread Gauge

3925-HS [Easy Grip Slap Hammer (No Rod)]
Textured silicone hammer designed to help cushion the surgeon’s hand and maintain a solid grip.More Info Here
Download Product Brochure (PDF)

TOP





Intramedullary Nail Removal Set

System designed to help remove an intramedullary nail




Intramedullary Nail Removal Set

Product No’s:

2027-20 [Intramedullary Nail Removal Set]

Set Includes:

2027-06 [Stabilizing Bar]
Overall Length: 5.9" (15 cm)

2027-07 [Open End Wrench]
Overall Length: 3.94" (10 cm)

2027-11A [Extraction Spreader Size 1]
Overall Length: 2.75" (7 cm)
Two included in set; product number is for one only


2027-11B [Extraction Spreader Size 1.5]
Overall Length: 2.75" (7 cm)
Two included in set; product number is for one only


2027-11C [Extraction Spreader Size 2]
Overall Length: 2.75" (7 cm)
Two included in set; product number is for one only


2027-11D [Extraction Spreader Size 2.5]
Overall Length: 2.75" (7 cm)
Two included in set; product number is for one only


2027-11E [Extraction Spreader Size 3]
Overall Length: 2.75" (7 cm)
Two included in set; product number is for one only


2027-12A [Extraction Assembly Rod & Slaphammer]
Overall Length: 18.5" (47 cm)

2027-12B [Extraction Push Rod]
Overall Length: 19" (48,3 cm)

2027-12C [Extraction Tightening Assembly]
Overall Length: 3" (7,6 cm)
Handle Width: 2.125" (5,4 cm)


2027-CASE [Case] Not Shown
Download Product Brochure with Instructions (PDF)

TOP





Lombardi Hip Cup Liner/Shell Extractor

Used for removal of a total hip cup or liner


Designed by Adolph V. Lombardi, MD


Lombardi Hip Cup Liner/Shell Extractor

Lombardi Hip Cup Liner/Shell Extractor


Expandable flanges are designed to bite into the polyethylene of a total hip cup. When the flanges have been expanded, a slap hammer is screwed into the extractor for removal. The extractor can also be used for removal of a metal hip cup shell if the shell has a groove around the rim for the flanges to lock into. Also very helpful for cemented cup extraction. Set includes standard slap hammer #3925.


Product No's:

3638-00 [Set]

Optional/Individual/Replacement Parts:

3638-01 [Remover Only]
Overall Length: 9.5" (24,1 cm)

3925 [Standard Slap Hammer] 3/8"-16 Thread Gauge

3925-HS [Easy Grip Slap Hammer (No Rod)]
Textured silicone hammer designed to help cushion the surgeon’s hand and maintain a solid grip.More Info Here
Download Product Brochure (PDF)

TOP





Offset Punches for Total Hip Stem Removal

Helps in the removal of a total hip stem




Offset Punches for Total Hip Stem Removal

Offset Punches for Total Hip Stem Removal

Used to help remove a hip prosthesis stem via a window in the shaft of the femur. Two sizes of offsets allow the punches to be used to tap on a distal portion of the hip stem, after a window has been made in the femur below the tip of the stem.

Product No's:

5125-01 [Small Offset]
Overall Length: 11" (27,9 cm)
Punch End Offset: .5" (1,3 cm)
Punch End Diameter: 7 mm

5125-02 [Large Offset]
Overall Length: 11" (27,9 cm)
Punch End Offset: 1.25" (3,2 cm)
Punch End Diameter: 7 mm
Download Product Brochure (PDF)

TOP





OrthoVise – Large


U.S. Patent #D398,208


OrthoVise
OrthoVise

OrthoVise – Large

OrthoVise Side Attachment Bolts

Side Attachment Bolts

Allow a Large OrthoVise™ Slap Hammer (#3950) to be attached to the side of the device.

Available on Standard Large and Long Nose Large OrthoVise™ with Attachment Bolts only.

(Cannot be added on later.)


OrthoVise OrthoVise
OrthoVise OrthoVise

Made of stainless steel

Models equipped with attachment bolts allow a slap hammer to be attached to the end, as well as to either side of the large OrthoVise™ (except Bent Jaw models), for greater adaptability

Bent Jaw models are not available with side attachment bolts, but have an end attachment nut to accept a Standard Slap Hammer (#3925 or #3926)

Slap Hammers are designed with a hammer plate for the additional use of a mallet if desired

Product No’s:

STANDARD LARGE

3980 [Large]
Overall Length: 10" (25,4 cm)
with Attachment Bolts (two sides and end)
with Large OrthoVise™ Slap Hammer (#3950)

3980-01 [Large]
Overall Length: 10" (25,4 cm)
with Attachment Bolts (wtwo sides and end)
without Slap Hammer

3981 [Large]
Overall Length: 10" (25,4 cm)
without Attachment Bolts
without Slap Hammer
with End Attachment Nut that accepts a
Standard Slap Hammer (#3925 or 3926)

LONG NOSE LARGE

3965 [Large]
OrthoVise™ Length: 12" (30,5 cm)
with Attachment Bolts
with Large OrthoVise™ Slap Hammer (#3950)
3965-01 [Large]
OrthoVise™ Length: 12" (30,5 cm)
with Attachment Bolts
without Slap Hammer

LONG NOSE LARGE BENT JAW

3966 [Large Bent Jaw]
OrthoVise™ Length: 11.5" (29,2 cm)
with Attachment Nut {end)
with Standard Slap Hammer (#3925)
3966-01 [Large Bent Jaw]
OrthoVise™ Length: 11.5" (29,2 cm)
without Slap Hammer
with Attachment Nut (end) that accepts a
Standard Slap Hammer (#3925 or 3926)

SLAP HAMMERS FOR LARGE ORTHOVISE

3950 [Slap Hammer for Large OrthoVise]
For use with 3965's, 3980's, 3981
Overall Length: 16.5" (41,9 cm)
3925 [Standard Slap Hammer with 16" Rod]
For use with: 3966's
Overall Length: 16" (40,7 cm)
3926 [Easy Grip Standard Slap Hammer with 16" Rod]
For use with: 3966's
Overall Length: 16" (40,7 cm)

THREADED ADAPTERS FOR LARGE ORTHOVISE

3980-02 [Small Adapter]
Changes Male End of a Slap Hammer to Female.
Allows a Standard Slap Hammer (#3925 or #3926) to be used with any Large OrthoVise™ with Attachment Bolts.
3980-03 [Threaded Adapting Screw – Large]
For use with 3965's, 3966's, 3980's, 3981.
Can be used to append the Large OrthoVise™ with an Attachment Bolt for use with a Large OrthoVise™ Slap Hammer (#3950)

VIEW SURGICAL VIDEO

Download Product Brochure (PDF)

TOP





OrthoVise – Small


U.S. Patent #D398,208


OrthoVise – Small

Made of stainless steel

Models equipped with attachment bolts allow a slap hammer to be attached to the end of the OrthoVise™ for greater adaptability

Slap Hammer is designed with a hammer plate for the additional use of a mallet if desired

Product No’s:

STANDARD SMALL

3985 [Small]
OrthoVise™ Length: 8" (20,3 cm)
without Attachment Bolt
without Slap Hammer
3985-01 [Small]
OrthoVise™ Length: 8" (20,3 cm)
with Attachment Bolt (end)
with Small OrthoVise™ Slap Hammer (#3955)
3985-T [Small]
OrthoVise™ Length: 8" (20,3 cm)
with Attachment Bolt (endf)
without Slap Hammer

LONG NOSE SMALL

3975 [Small]
OrthoVise™ Length: 9.5" (24,1 cm)
without Attachment Bolt
without Slap Hammer
3975-01 [Small]
OrthoVise™ Length: 9.5" (24,1 cm)
with Attachment Bolt (end)
with Small OrthoVise™ Slap Hammer (#3955)
3975-T [Small]
Overall Length: 9.5" (24,1 cm)
with Attachment Bolt (end)
without Slap Hammer

SLAP HAMMER FOR SMALL ORTHOVISE

3955 [Slap Hammer for Small OrthoVise]
For use with: 3975's, 3985's

THREADED ADAPTER FOR SMALL ORTHOVISE

3985-03 [Threaded Adapting Screw – Small]
For use with: 3975's, 3985's
Can be used to append a Small OrthoVise™ with an Attachment Bolt for use with a Small OrthoVise™ Slap Hammer (#3955)

VIEW SURGICAL VIDEO

Download Product Brochure (PDF)

TOP





Poly Cup Liner Removal Drill

Threaded, aggressive, drill tipped tool designed to facilitate removal of an acetabular liner


Designed by Keith R. Berend, MD



Poly Cup Liner Removal Drill


Poly Cup Liner Removal Drill

Product No: 4052
Overall Length: 6" (15,2 cm)
Download Product Brochure (PDF)

TOP





Screw Removal Locking Pliers

Designed to solidly grip and clamp onto a screw head, broken screw, or pin for removal





Screw Removal Locking Pliers

Screw Removal Locking Pliers
Product No: 2022-01
Overall Length: 8" (20,3 cm)

Download Product Brochure (PDF)

TOP





Screw Removal Pliers

Jaw designed to grasp onto a screw or screw head to help in removal




Screw Removal Pliers

Screw Removal Pliers

Product No: 2020
Overall Length: 8" (20,3 cm)
Download Product Brochure (PDF)

TOP





Screw/Pin Removal Locking Pliers

Unique jaw designed to solidly grip and clamp onto a screw head, broken screw, or pin for removal




Screw/Pin Removal Locking Pliers


Screw/Pin Removal Locking Pliers

Screw/Pin Removal Locking Pliers

Small
Jaw End & Bite

Designed to securely grab pins as small as 1.4 mm (.055") up to 2.4 mm (.095")

Standard
Jaw End & Bite

Designed to securely grab larger pins, screw heads, or broken screws

Small version features a smaller size jaw for smaller screws, pins and incisions.

Product No’s:

S0142 [Standard]
Overall Length: 7.875" (20 cm)
Jaw Width: 4 mm


S0142-01 [Small]
Overall Length: 7.875" (20 cm)
Jaw Width: 4 mm
Download Product Brochure (PDF)

TOP





Star Bit Driver Set





Star Bit Driver Set

Star Bit Driver Set

Set consists of four star bits — T10, T15, T20, & T25, a handle which accommodates any of the above bits, and a sterilization case. The drive end (A/O) is designed for easy and quick engagement with the universal instrument handle.





The ergonomic, modular handle has two connection points, allowing for both straight and T-handle orientations.



Product No's:

5194-00 [4 Star Bits w/Handle & Case]

5194-01 [4 Star Bits w/Case only]

Also Available individually:

S0113 [Universal 4" (10,1 cm) Handle]

5194-10 [T10 with A/O End]

5194-15 [T15 with A/O End]

5194-20 [T20 with A/O End]

5194-25 [T25 with A/O End]

9003 [Case]
Download Product Brochure (PDF)

TOP





Unger Universal Femoral Component Extractor with Precision Osteotomy Guide

Designed to help extract a femoral component — includes a guide used to make an osteotomy cut and wedges to separate bone away from the component


Designed by Anthony Unger, MD


Unger Universal Femoral Component Extractor with Precision Osteotomy Guide



Product No's:

3615-00 [Complete Assembly with Case]

Individual/Replacement Parts:

3615-01 [Femoral Component Extractor]
Overall Length: 3.25" (8,3 cm)
Width: 1" (2,54 cm)
Height: 1.5" (3,8 cm)


3615-02 [Precision Osteotomy Guide]
Overall Length: 6" (15,2 cm)
Width: .75" (1,9 cm)


3615-03 [Precision Osteotomy Wedge]
Two included in set, one with this product number
Overall Length: 3.9" (9,9 cm)


3615-05 [Hex Wrench]
Overall Length: 6.65" (16,9 cm)

3615-CASE [Case]

3925 [Standard Slap Hammer with 16" Rod]
Overall Length: 16" (40,7 cm)
Download Product Brochure (PDF)

TOP

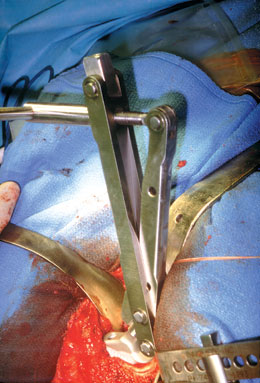

Universal Modular Femoral Hip Component Extractor

Universal extraction instruments for modular hip femoral components




Universal Modular Femoral Hip Component Extractor

Universal Modular Femoral Hip Component Extractor
Universal Modular Femoral Hip Component Extractor

Product No's:

3610
Includes Standard Slap Hammer #3925


Optional/Individual Parts:

3610-01 [Extractor Only]

3925 [Standard Slap Hammer]

3935 [Extra Large Slap Hammer]

3925-HS [Easy Grip Slap Hammer (No Rod)]
Textured silicone hammer designed to help cushion the surgeon’s hand and maintain a solid grip.More Info Here
Download Product Brochure (PDF)

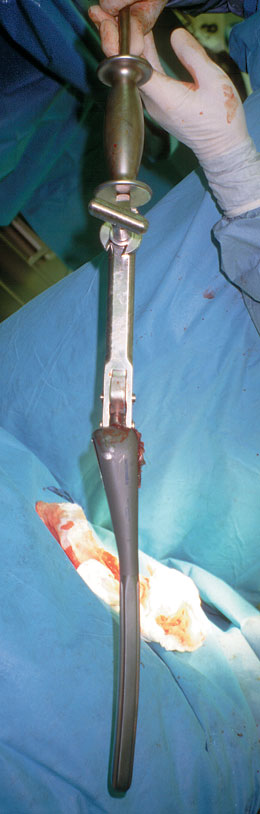

Designed to clamp onto the taper of a femoral hip stem after the modular head has been removed. The extractor is equipped with a swivel block for attachment of a slap hammer. The swivel block helps keep the slap hammer in line with the angle of the femoral stem. Includes standard slap hammer #3925.

Universal Modular Femoral Hip Component Extractor

TOP





Universal Screw Removal Instrument System

Designed to remove solid and cannulated screws, including partial, broken, stripped, and submerged screws




Universal Screw Removal Instrument System
Universal Screw Removal Instrument System
Product No’s:
S0010-00 [Complete System with Case]
S0113 [Universal Instrument Handle]
S0128 [1.5 mm Screw Extractor]
S0116 [2.5 mm Screw Extractor]
S0130 [3.5 mm Screw Extractor]
S0117 [1.5 mm Hex Driver]
S0114 [2.5 mm Hex Driver]
S0115 [3.5 mm Hex Driver]
S0132 [4.0 mm Hex Driver]
S0133 [5.0 mm Hex Driver]
S0136 [2.5 mm Cannulated Hex Driver]
S0137 [3.5 mm Cannulated Hex Driver]
S0138 [4.0 mm Cannulated Hex Driver]
S0139 [5.0 mm Cannulated Hex Driver]
S0118 [Large Cruciform Screwdriver]
S0119 [Small Cruciform Screwdriver]
S0141 [Mini Cruciform Screwdriver]
S0120 [Single Slot Screwdriver]
S0121 [2.2 mm Trephine]
S0122 [3.2 mm Trephine]
S0123 [4.2 mm Trephine]
S0124 [4.7 mm Trephine]
S0125 [7.2 mm Trephine]
S0127 [Universal Extractor - Shaft Only]
S0127-01 [Large Extraction Bolt Body]
S0127-03 [Small Extraction Bolt Body]
S0127-04 [Extractor Wrench]
S0129 [Pick]
S0140 [Cannulated Drive Extension]
9017 [Screw Removal Case Only]
Case Dimensions:
21" x 9.5" x 2.25 (53,4 x 24,1 x 5,7 cm)

Used for removal of stripped hex screws, buried screws, and partial screws with broken screw heads. The drive end (A/O) is designed for easy and quick engagement with the universal instrument handle.


Screw Extractors

Unique thread design accommodates removal of stripped screws. The instrument “locks” into the screw head and allows removal once engaged. Designed to be used in a counter-clockwise direction.

Trephines

Designed to fit over submerged screws for extraction with minimal bone loss. Extraction is enhanced by the unique tooth design. Designed to be used in a counter-clockwise direction.

Universal Extractor

Designed to remove screws with heads partially or completely missing. The cone shaped head fully engages the remaining screw and optimizes the force needed for removal. The bolt is disposable and locks into place using a unique thread design. Designed to be used in a counter-clockwise direction.

Hex Drivers

Available in all standard hex sizes. Also offered in a cannulated shaft version for easier removal of buried screws.

Screwdrivers

Standard cruciform screwdrivers in large, small, and mini, and single slot.

Cannulated Drive Extension

Used when a longer instrument shaft is desired.

Pick

Used to remove fragments and bone or tissue from screw head.

Universal Instrument Handle

The single handle allows the surgeon to decide which direction is most efficient and comfortable. The quick-connect release mechanism allows for quick interoperative exchange.
Download Product Brochure (PDF)

TOP





Whelan Hip Stem Extractor

Designed to lock onto and remove a femoral hip stem after the modular head has been removed


Designed by Edward J. Whelan, III, MD


Extraction normally requires two bolts to be used to clamp onto,
tighten, and extract the component. Four bolt holes, distributed
evenly around the stem extractor, allow the surgeon to choose which
holes will offer optimal access for placing and tightening the bolts.
Whelan Hip Stem Extractor

Whelan Hip Stem Extractor

Optional Whelan Extractor Strike Plate Attachment

A slap hammer alternate for extraction help

After attaching the unit to the extractor using the replaceable screw,
the strike plate can be struck with the full force of a mallet to assist
with component extraction.

Whelan Hip Stem Extractor

VIEW SURGICAL VIDEO

Product No's:

4175-00 [Complete Set]
Set Includes: Stem Extractor, Wrench,
(4) Bolts, Standard Slap Hammer

Optional/Individual/Replacement Parts:

4175-01 [Stem Extractor]

4175-W [Stem Extractor Wrench]

4175-03 [Replacement Bolts] Pair

3925 [Standard Slap Hammer] 3/8"-16 Thread Gauge

3925-HS [Easy Grip Slap Hammer (No Rod)]
Textured silicone hammer designed to help cushion the surgeon’s hand and maintain a solid grip.More Info Here

OPTIONAL:

Whelan Extractor
Strike Plate Attachment

3605-00 [Attachment Set]
Includes: Strike plate unit and two (2) screws



Individual/Replacement Parts for Strike Plate:

3605-01 [Strike Plate Unit Only]
Overall Length: 16" (40,6 cm)
Platform Size: 2" x 2" (5,1 cm x 5,1 cm)


3605-02 [Screws] Pair
Download Product Brochure (PDF)

TOP



© 2023 Innomed, Inc. All rights reserved.
