NEW! Universal Table Adapter with Traction Device Assembly
NEW! Universal Traction Assembly
Adjustable Knee and Tibial Positioner
Adjustable design allows for use in procedures around the knee such as tibial nailing, tibial condyle plating, patella fracture fixation, supracondylar fracture plating, supracondylar fracture nailing, and total knee replacement
Designed by Ashutosh Chaudhari, MD
Radiolucent. Steam sterilizable.
Product No’s:
2770-00 [Set] Set includes: Positioner, Pad, and Two Short Straps
Designed for the pinning of pediatric supra-condylar and adult distal humerus fractures
Designed by Burk Young, MD
Board, crossbar, and optional adult adapter are radiolucent
.
Unit is not sterilizable.
Allows the surgeon to pin these fractures without having to manually hold the fracture reduced, allowing the surgeon to focus on accurate pin placement and reduction. The height of the crossbar is fully adustable to accommodate different size patients.
Reduction is acheved by an assistant gently applying axial traction through the forearm, with the crossbar applying the counter traction.
Pinning is done with the C-arm in the lateral position.
An optional separate attachment to support the arm for distal humerus fractures in adults is available.
Product No's:
2445 [Fracture Board – Pediatric] Main Board Dimensions: 22" x 12" (55,8 x 30,5 cm)
Crossbar Height Adjusts From: 4.5" to 7.5" (11,4 x 19,1 cm)
Used for femur and tibia positioning during nailing, repairs and fractures
Designed by Stuart E. Fromm, MD
Extra Small Triangle designed by
S.E. Fromm, MD & Kenneth Merriman, MD
Designed to position and hold the femur and tibia during intramedullary nailing of the tibia, ligament repairs and extremity fractures. Allows knee to be flexed greater than 90° to allow reaming and nail insertion without displacing fracture.
The triangles are available in four heights:
8.5", 11", 14", and 16". The three smaller triangles are designed to fit inside the larger triangle for storage. They are supplied with an autoclavable silicone cushioning pad and velcro* straps. The triangles are also radiolucent and gas or steam sterilizable.
*Velcro® is a registered trademark of the Velcro Companies.
Product No's:
2760-00 [Set of Three]
Included in Set / Available Individually:
2760-01 [11"] Base: 6" (15,2 cm)
Height: 11" (27,9 cm)
Angles: Top 30°, Two Bottom 75°
2760-02 [14"] Base: 7" (17,8 cm)
Height: 14" (35,6 cm)
Angles: Top 30°, Two Bottom 75°
2760-03 [16"] Base: 9" (22,9 cm)
Height: 16" (40,7 cm)
Angles: Top 30°, Two Bottom 75°
Sold Separately – Not In Set:
2760-XS [8.5"] Base 5" (12,7 cm)
Height: 8.5" (21,6 cm)
Angles: Top 30°, Two Bottom 75°
Replacement Parts:
2760-P [SiliconePad]
2760-S [Straps] Package of 18 – 6 Blue / 12 Green
8100-P [Green Straps for Femur, Long] Package of 10
8120-P [Blue Straps for Tibia, Short] Package of 10

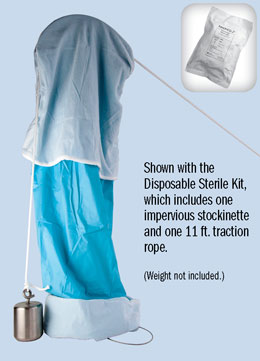

A table-top traction device designed for fracture fixation in the acetabulum, pelvis, and femur
Can be used in a variety of applications, including open and percutaneous pelvic and acetabular fracture surgery, hip fracture fixation and femur fracture fixation including antegrade or retrograde nailing.
The light-weight portable device attaches directly to a standard radiolucent flat top table.
Recommended for use with the disposable sterile kit, which is sold separately.
Product No's:
0007 [Jackson Traction Device]
This product number includes
(1) #0008 Disposable Sterile Kit
Available Separately:
0008 [Disposable Sterile Kit]
Kit Includes: (1) Impervious Stockinette
and (1) 11 ft. (3,35 M) Traction rope
0008-CASE [Case of Disposable Sterile Kits] Pkg of 10
Designed to support the knee and ankle during lower extremity surgery
Designed by Richard A. Sanders, MD
The large 6" tube lifts the knee off the operating table and allows for approximately 30° of knee flexion. Very useful for closure of total knee incisions, supporting fractures of the distal femur, and tibia plateau fractures.
The smaller 4" tube elevates the foot and ankle for ankle fracture surgery.
The tubes are made of aluminum, allowing them to be autoclaved. They help eliminate the need for rolled sheet bolsters.
Universal Table Adapter with Traction Device Assembly
A universal traction assembly with Jackson Traction Device for standard operating room tables used to assist with fracture fixation in the acetabulum, pelvis, and femur, and designed to attach to standard operating table side rails
Product No’s:
0005-00 [Complete Assembly]
Set Includes / Available Individually:
0005-01 [Universal Table Adapter]
0005-02 [Vertical Rod] Two included in set; One with this product number.
0005-03 [Horizontal Rod]
0007 [Jackson Traction Device]
This product number includes
(1) #0008 Disposable Sterile Kit
Optional Items:
0008-CASE [Case of Sterile Kits] Pkg of 10
2595 [Table Clamp]
Replacement Item:
4150-PS [Post Screw]
ALTERNATE OPTION:
0005-10 [Assembly w/o #0007 Jackson Traction Device]
Set Includes / Available Individually:
0005-01 [Universal Table Adapter]
0005-02 [Vertical Rod] Two included in set; One with this product number.
0005-03 [Horizontal Rod]
0007 [Jackson Traction Device]
This product number includes
(1) #0008 Disposable Sterile Kit
A universal traction assembly with Traction Device for standard operating room tables used to assist with fracture fixation in the acetabulum, pelvis, and femur, and designed to attach to standard operating table side rails
Product No’s:
0006-00 [Universal Traction Assembly]
Set Includes / Available Individually:
0006-01 [Universal Traction Device
0005-02 [Vertical Rod] One with this product number, two included in set.
0005-03 [Horizontal Rod]
0008 [Disposable Sterile Kit] Kit Includes: (1) Impervious Stockinette and (1) 11 ft. Traction rope
