Acromioplasty Retractor
|
Agrawal Talon Retractor
|
Angled Glenoid Retractor
|
Angled Glenoid Retractor – Forked
|
|
|
|
|
|
|
Anterior Glenoid Neck Retractor |
Bacastow Arthroscopic Deltoid Lift Retractor
|
Bacastow Axillary Nerve Retractor with Suction
|
Bacastow Glenoid Retractor
|
Bell-Hawkins Shoulder Frame and Blade Set
|
|
|
|
|
|
|
|
Blount Retractor
with Small Handle
|
Bolanos Modified
Chandler Retractor
|
Browne-Deltoid Retractors
|
Burkhead Glenoid Retractor
|
Burkhead Reversible
TSA/RSA Retractor
|
|
|
|
|
|
|
Capsule Retractors |
Chandler Retractor
|
Chandran Distal Biceps Tissue Protector
|
Deltoid Retractor
|
NEW THIS MONTH
Dingo Modified Humeral Head Retractor |
|
|
|
|
|
|
Evans Modified Fukuda-type Retractors |
Evans Reverse Hohmann Retractor
|
Flatow & Bigliani
Shoulder Instruments
|
George Semi-Circumferential Glenoid Retractor
|
Glenoid Access Retractor
|
|
|
|
|
|
|
|
|
Glenosphere Component Retractor
|
Goldstein Glenoid Neck Retractor
|
Gunther Glenoid Retractor
|
Hawkins Shoulder Instruments
|

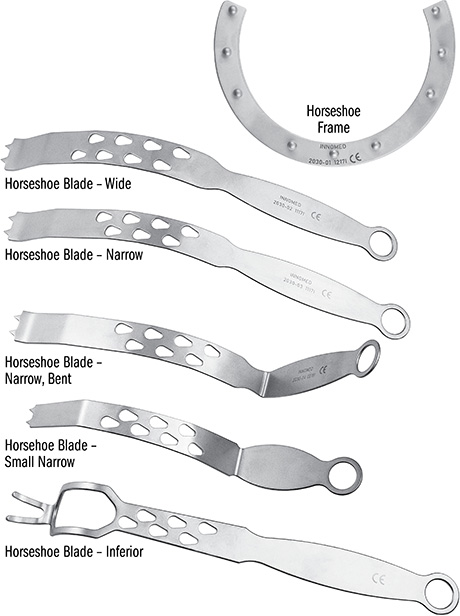

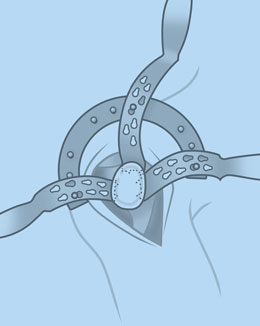

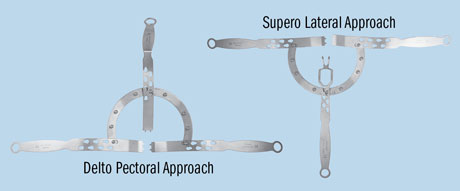

Horseshoe Shoulder Frame
and Blade Assembly
|
|
|
|
|
|
|
Humeral Head Retractor
|

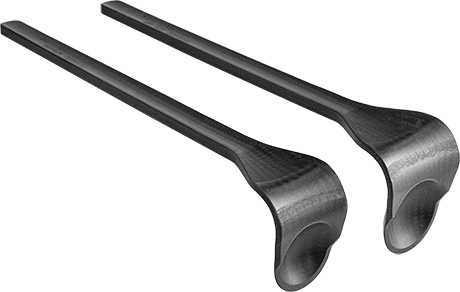

Kaminsky OrthoLucent™ Browne-type Deltoid Retractors
|
Kirschenbaum Acromioplasty Retractor
|
Levy Anterior Glenoid Retractor
|

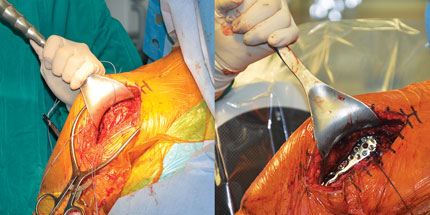

Levy Wide Deltoid Retractor
|
|
|
|
|
|
|

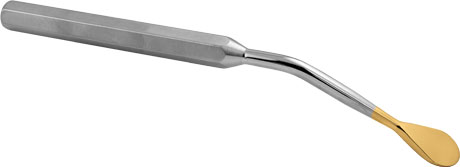

McFarland Bent Cobb Elevator
|

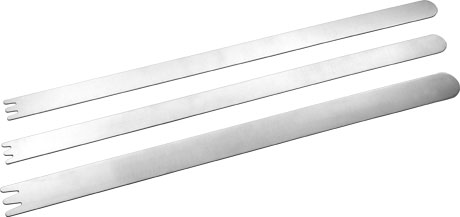

McFarland Malleable
Shoulder Retractors
|

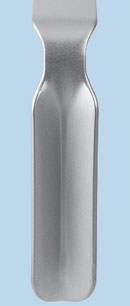

McFarland Shoulder V Retractor
|
Mehalik Posterior Glenoid Retractor with Long Handle
|

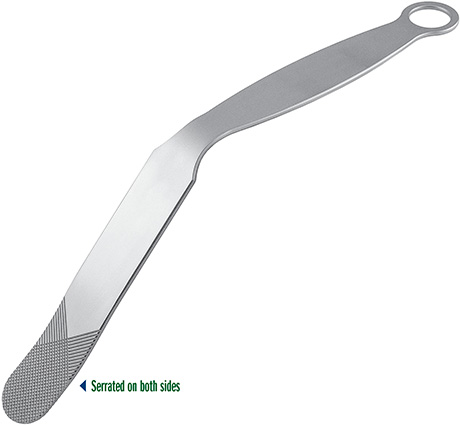

Modified Darrach-type
Bent Elevator
|
|
|
|
|
|
|

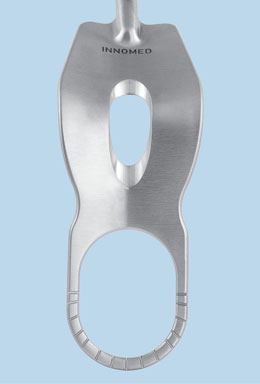

Modified Fukuda-type Retractor with Reamer Slot
|
NEW! Modified Humeral Head Retractors
|
Modified Winged
Fukuda Retractor
|

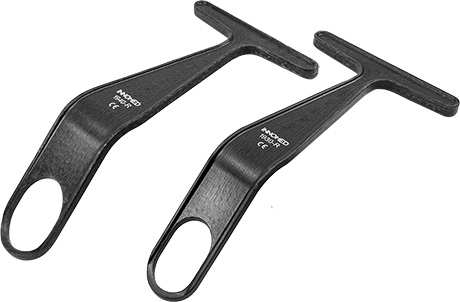

OrthoLucent™ Modified Fukuda-type Retractors
|
Posterior Glenoid Neck Retractor
|
|
|
|
|
|
|
NEW! Rogozinski Glenoid Reaming Retractor
|
NEW! Rogozinski Glenoid Retractor
|

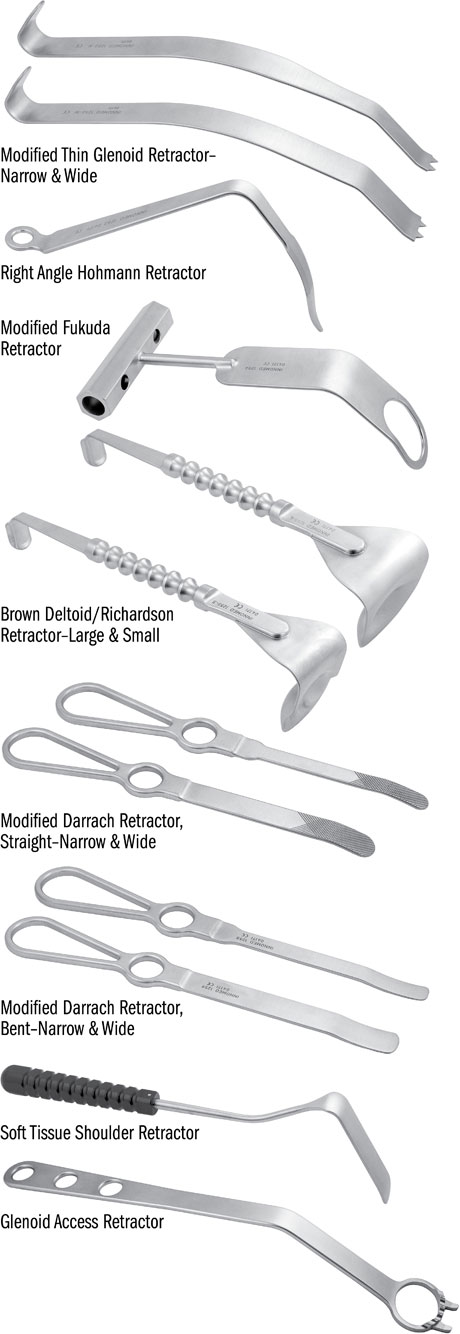

Shoulder Surgery
Retractor System
|
NEW! Superior Coracoid Retractor
|
Vaughan Distal Bicep Tendon Repair Retractor
|
|
|
|
|
|
|

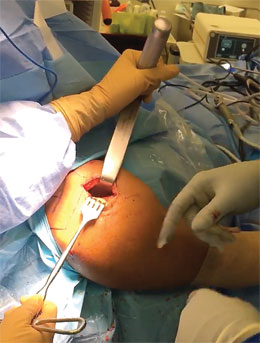

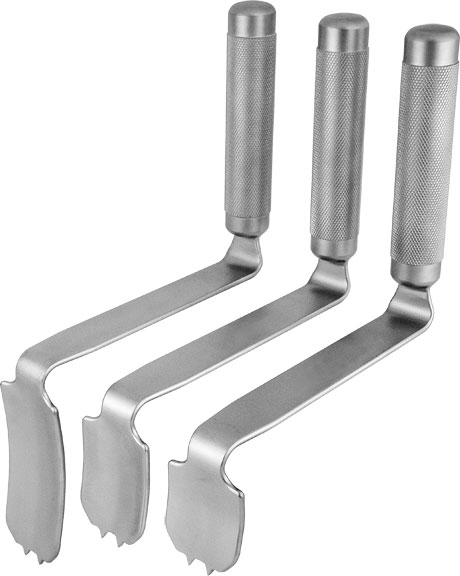

Weatherly Mini-Deltoid Retractors
|

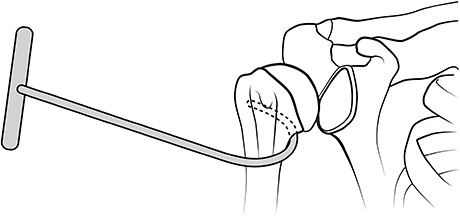

Wiater Shoulder
Bone Hook
|
NEW! Woods Retractor
|
|
|
|
|

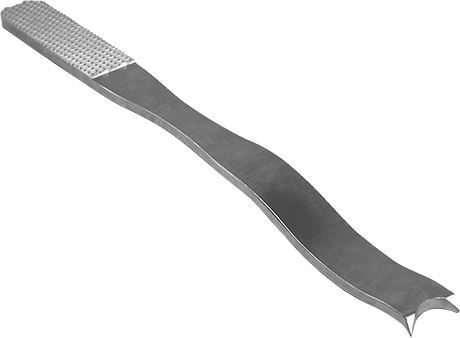

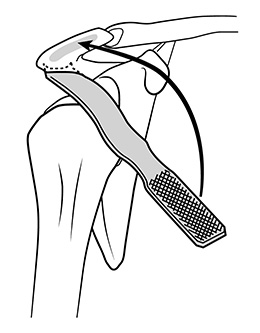

Acromioplasty Retractor
Designed to retract and protect the humeral head during resection of the inferior acromial surface
|
|
|
|
|
|
|
 |
The two prongs hook the posterior aspect of the acromion for retraction while the file is used to smooth rough edges of the acromion post-resection.
Product No: S3008
Overall Length: 9" (22,9 cm)
Blade Width: 18 mm
|
|
|

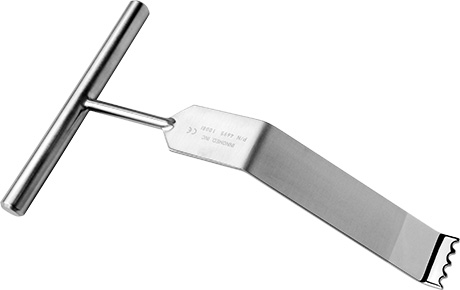

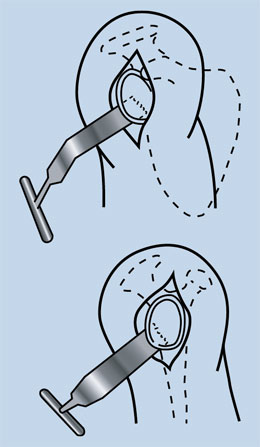

Agrawal Talon Retractor
Designed to help facilitate glenoid exposure in total shoulder arthroplasty
|
|
|
|
Designed by Vivek Agrawal, MD
|
|
|
 |
Product No: 4695
Overall Length: 7.875" (20 cm)
Blade Width: 40.7 mm
|
|
|
Angled Glenoid Retractor
Flared design allows for atraumatic placement circumferentially about the glenoid — superior, anterior and inferior — during open shoulder procedures for retraction of the subscapularis and capsule and to facilitate labral work |
|
|
|
Designed by R.L. Stowell, MD |
|
|
|
Product No's:
1901-N [Narrow]
Overall Length: 10" (25,4 cm)
Blade Width at End Tapers from:
1" to .4" (2,5 to 1 cm)
1901-W [Wide]
Overall Length: 10" (25,4 cm)
Blade Width at End Tapers from:
1" to .625" (2,5 to 1,6 cm)
|
|
|

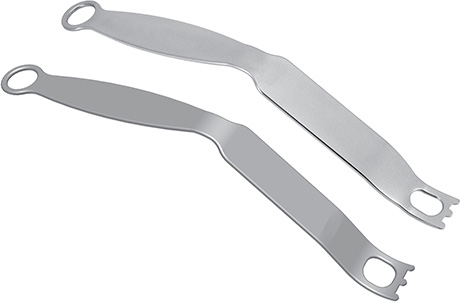

Angled Glenoid Retractor – Forked
Designed to help with exposure of the difficult glenoid and facilitation of glenosphere placement for reverse arthroplasty, with wide and narrow versions to accommodate most glenoid variations |
|
|
|
Designed by R.L. Stowell, MD |
|
|
|
Specifically designed bend allows the retractor to sit along the posterior aspect and deliver the glenoid vault into the surgical field while retracting the humeral head posterior and lateral without excessive force on the glenoid neck, while the working end of the design allows reaming and peripheral bone removal without binding on the reamer.
Product No's:
1902-N [Narrow]
Overall Length: 10" (25,4 cm)
Blade Width: 1" (25 mm)
Blade Width at End: .825" (21 mm)
1902-W [Wide]
Overall Length: 10" (25,4 cm)
Blade Width: 1" (25 mm)
|
|
|

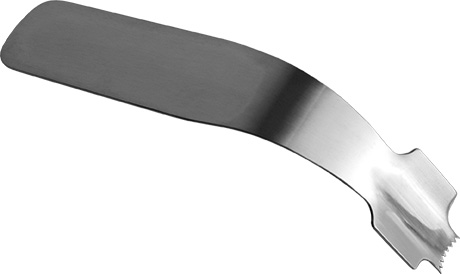

Anterior Glenoid Neck Retractor
Teeth are specifically designed to retract the subscapularis and capsule medially during a Bankart procedure
|
|
|
|
|
|
|
 |
The wide midsection retracts the soft tissue duringanterior glenoid work. The curved handle allows the assistant to use minimal pressure to achieve exposure.
Product No: T1003
Overall Length 11" (27,9 cm
Blade Width: 25 mm
|
|
|

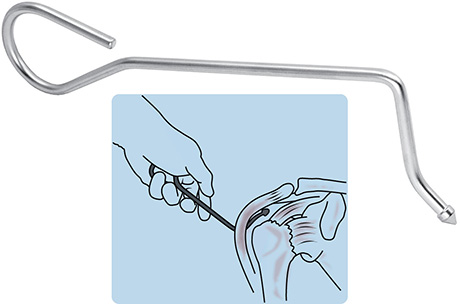

Bacastow Arthroscopic Deltoid Lift Retractor
Designed to help improve visualization of the subacromial space during rotator cuff repair or balloon spacer placement |
|
|
|
Designed by David Bacastow, MD |
|
|
|
Product No: 5081
Overall Length: 7.5" (19,1 cm)
Depth from Bend: 2.25" (5,7 cm)
Shaft Diameter: 4,7 mm
Diameter at End: 6 mm
|
|
|
Bacastow Axillary Nerve Retractor with Suction
Designed with a curved tip to slip all the way under the capsule during shoulder surgery, helping to protect the axillary nerve, while also providing suction of smoke away from the surgical site |
|
|
|
Designed by David Bacastow, MD |
|
|
|
Made of autoclavable Radel material, the unit is non-conductive of current and resists the high temperatures associated with the use of electrocautery.
Product No: 8739
Overall Length: 11" (27,9 cm)
Width: .5" (12,7 mm)
Tongue Length: 1.2" (30 mm)
|
|
|

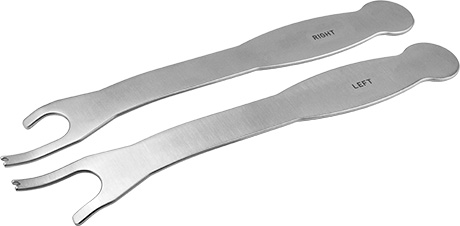

Bacastow Glenoid Retractor
Designed for glenoid exposure, particularly for reverse shoulder replacement applications, where it is important to get inferiorly |
|
|
|
Designed by David Bocastow, MD |
|
|
|
Allows visualization and direct access to the glenesphere base plate through a deltopectoral incision with intact pectoralis major insertion.
Product No's:
1897-L [Left]
Overall Length: 11.75" (29,8 cm)
1897-R [Right]
Overall Length: 11.75" (29,8 cm)
|
|
|

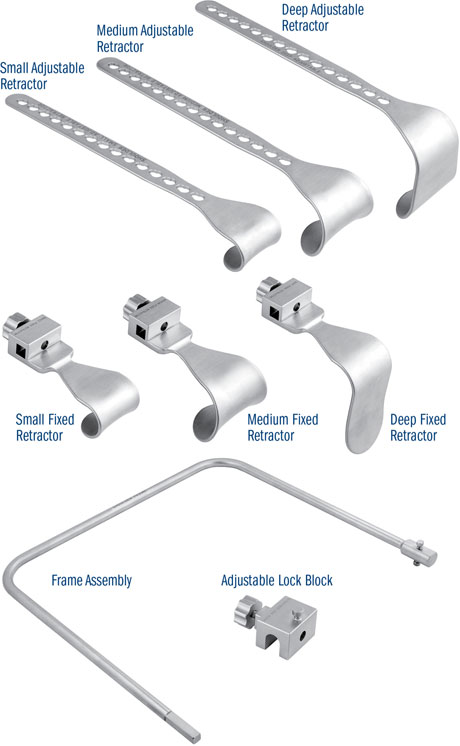

Bell-Hawkins Shoulder Frame and Blade Set
Retractor and Frame System for Total Shoulder Arthroplasty |
|
|
|
Designed by Robert H. Bell, MD and Richard Hawkins, MD |
|
|
|
Product No's:
4696-00 [Bell-Hawkins – Complete Set]
Included in Set/Available individually:
4696-01 [Small Adjustable Retractor]
Overall Length: 7.375" (18,7 cm)
Handle Length: 6" (15,2 cm)
Blade Width: 1.25" (32 mm)
Blade Depth: .8" (20 mm)
4696-02 [Medium Adjustable Retractor]
Overall Length: 7.375" (18,7 cm)
Handle Length: 6" (15,2 cm)
Blade Width: 1.7" (43 mm)
Blade Depth: 1.25" (32 mm)
4696-03 [Deep Adjustable Retractor]]
Overall Length: 7.375" (18,7 cm)
Handle Length: 6" (15,2 cm)
Blade Width: 1.6" (41 mm)
Blade Depth: 2" (51 mm)
4696-04 [Small Fixed Retractor]
Overall Length: 3" (7,6 cm)
Handle Length: 1.5" (3,8 cm)
Blade Width: 1.25" (32 mm)
Blade Depth: .8" (20 mm)
4696-05 [Medium Fixed Retractor]
Overall Length: 3" (7,6 cm)
Handle Length: 1.5" (3,8 cm)
Blade Width: 1.7" (43 mm)
Blade Depth: 1.25" (32 mm)
4696-06 [Deep Fixed Retractor]
Overall Length: 3" (7,6 cm)
Handle Length: 1.5" (3,8 cm)
Blade Width: 1.25" (32 mm)
Blade Depth: 2.375" (60 mm)
4696-07 [Adjustable Lock Block]
Dimensions: 1.375" x 1" x .85"
(35 mm x 25 mm x 20 mm)
4696-Frame [Frame Assembly]
Dimensions: 10" x 9" (25,4 cm x 22,9 cm)
|
|
|
Blount Retractor with Small Handle
A blount retractor with a lightweight ergonomic handle designed for tissue retraction and closure assistance in knee, shoulder, and hip arthroplasty |
|
|
|
Designed by Ronald Romanelli, MD |
|
|
|
|
|
|

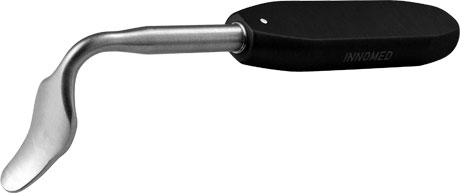

Bolanos Shoulder Retractor
Designed for mini-open rotator cuff repairs and shoulder arthroplasty, the contour matches the humeral head and the rounded edge helps avoid trauma to surrounding musculature. |
|
|
|
Designed by Alberto Bolanos, MD |
|
|
|
Depth matches girth of most patients, while the comfortable handle makes it easier for assistants to hold.
Product No: 3222
Overall Length: 7.5" (19,1 cm)
Blade Width at Widest: 1" (2,54 cm)
|
|
|

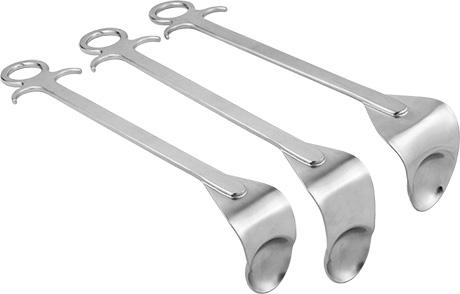

Browne-Deltoid Retractor
Used for the Delto-Pectoral approach
|
|
|
|
|
|
|
 |
Contours the humeral head with effortless deltoid retraction allowing extensive exposure.
The small deep version is designed for use in large patients.
Product No’s.:
1670-01 [Small]
Blade Width: 45 mm
Overall Length: 11.5" (29,2 cm)
1670-01D [Small Deep]
Blade Width: 45 mm
Overall Length: 12.25" (31,1 cm)
1670-02 [Large]
Blade Width: 57 mm
Overall Length: 11.5" (29,2 cm)
|
|
|

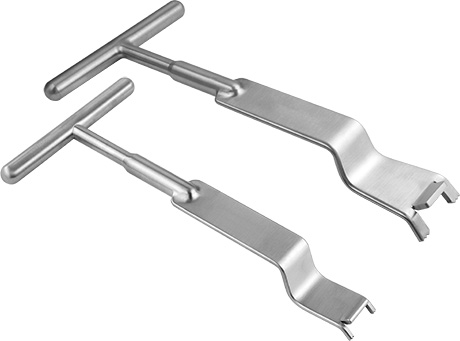

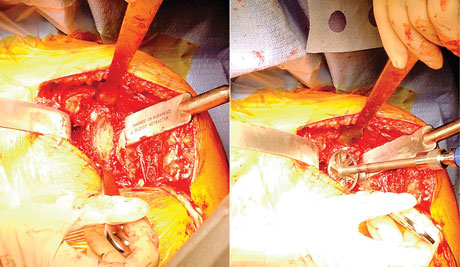

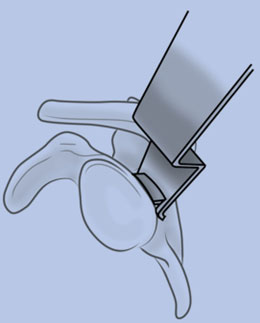

Burkhead Glenoid Retractor
The retractor bar presses against the glenoid while the end of the retractor puts pressure on the posterior capsule |
|
|
|
Designed by Wayne Burkhead, Jr, MD |
|
|
|
Product No's:
5839 [Large]
Overall Length: 9.125" (23,2 cm)
Blade Width at End: 1.5" (3,8 cm)
5839-SM [Small]
Overall Length: 8.75" (22,2 cm)
Blade Width at End: 1" (2,54 cm)
|
|
|

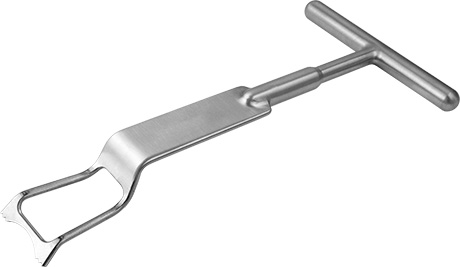

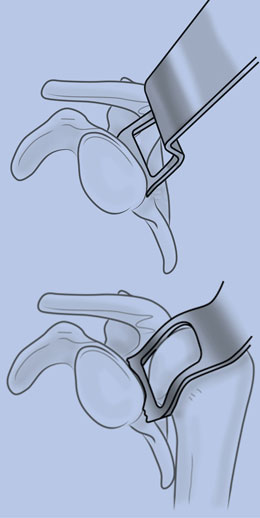

Burkhead Reversible TSA/RSA Retractor
Unique shape, angles and double pronged end serves to push the posterior capsule, and the humerus, away from the glenoid to allow preparation of the glenoid and implantation of component(s) without having to remove the retractor |
|
|
|
Designed by Wayne Burkhead, Jr, MD |
|
|
|
Product No: 5839-01
Overall Length: 9.125" (23,2 cm)
Blade Width at End: 1.5" (3,8 cm
|
|
|
Capsule Retractors
Retractors for use in Bankart surgery
|
|
|
|
|
|
|
 |
The single prong retractor is commonly used when retracting on the inferior rim of the glenoid. The two and three-prong retractors are designed to be placed medially along the scapular neck to retract the anterior capsule and labrium.
Product No’s:

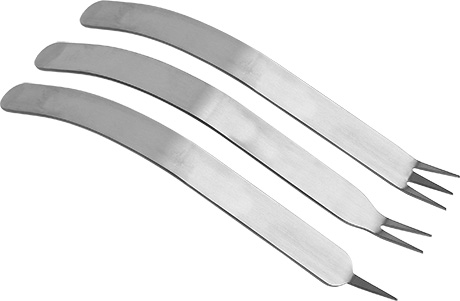

T1008-01 [3 Prongs]
10" (25,4 cm)
Prong Length: 30 mm
T1008 [2 Prongs]
10" (25,4 cm)
Prong Length: 30 mm
T1009 [1 Prong]
10" (25,4 cm)
Prong Length: 30 mm
|
|
|
Chandran Distal Biceps Tissue Protector
Designed to help protect tissue and expose the radial tuberosity during distal biceps tendon repair |
|
|
|
Designed by Rama E. Chandran, MD |
|
|
|
Using downward pressure, the teeth help to engage bone to keep the protector in place.
Product No: 3224
Overall Length: 8" (20,3 cm)
Handle Length: 5.5" (14 cm)
Blade Depth: 1.7" (4,3 cm)
Blade Width: .65" (1,7 cm)
|
|
|

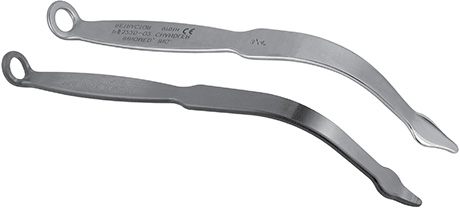

Chandler Retractor
Used for retracting tissue away from the bone
|
|
|
|
|
|
|
 |
Allows the surgeon to retract soft tissue away from the bone, and can be used for hip and knee surgery. The specially designed handle is contoured away from the surgeon's field of view and working area. Available in 5/8", 3/4", and 1" blade sizes.
The OrthoLucent™ version is made of a strong, lightweight carbon fiber PEEK composite material, which is completely radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized.
Product No's:
3220-01 [5/8"]
Overall Length: 9.875" (25,1 cm)
Blade Width: 16 mm
3220-02 [3/4"]
Overall Length: 9.875" (25,1 cm)
Blade Width: 19 mm
3220-02R [OrthoLucent™ 3/4"]
Overall Length: 9.875" (25,1 cm)
Blade Width: 19 mm
3220-04 [1"]
Overall Length:9.875" (25,1 cm)
Blade Width: 25.4 mm
|
|
|
Deltoid Retractor
Fits easily under the acromion, deltoid and over the humeral head
|
|
|
|
|
|
|
 |
Used in most open procedures.
Product No: T1001
Overall Length: 8" (20,3 cm)
Blade Width: 30 mm
|
|
|
Dingo Modified Humeral Head Retractor
Designed to help lever and displace the proximal humerus posteriorly |
|
|
|
|
|
|
|
Product No: 2438
Overall Length: 10.1" (25,7 cm)
Blade Width: 1" (2,54 cm)
Blade Curl Up at End: .56" (1,4 cm)
|
|
|

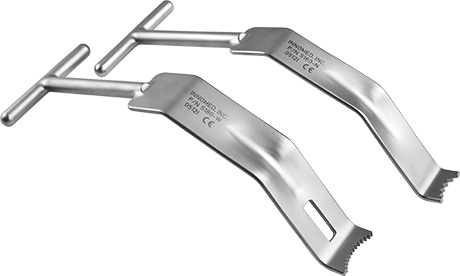

Evans Modified Fukuda-type Retractors
Designed to retract the humeral shaft posteriorly, helping to expose the glenoid surface |
|
|
|
Designed by Peter J. Evans, MD |
|
|
|
Center groove allows the shaft of a reamer to fit more posteriorly.
Product No's:
5180-N [Narrow]
Overall Length: 8.625" (21,9 cm)
Blade Width: 1" (2,54 cm)
Blade Depth: 3.75" (9,5 cm)
5180-W [Wide]
Overall Length: 8.625" (21,9 cm)
Blade Width: 1.25" (31,7 mm)
Blade Depth: 3.75" (9,5 cm)
|
|
|

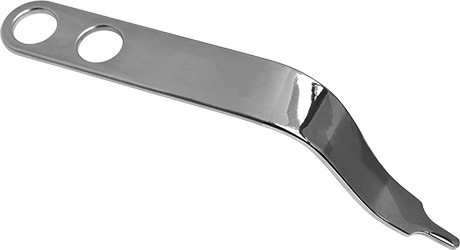

Evans Reverse Hohmann Retractor
Designed for total shoulder arthroplasty and open rotator cuff procedures |
|
|
|
Designed by Peter J. Evans, MD |
|
|
|
The small size is useful for retracting the deltoid superiorly or laterally, and also protecting the axillary nerve inferiorly while simultaneously exposing the glenoid.
Product No: 4547
Overall Length: 8.5" (21,6 cm)
Blade Width: Tapers from 30 mm to 18 mm
Blade Depth: 3” (7,6 cm)
Prong Width: 6 mm
|
|
|

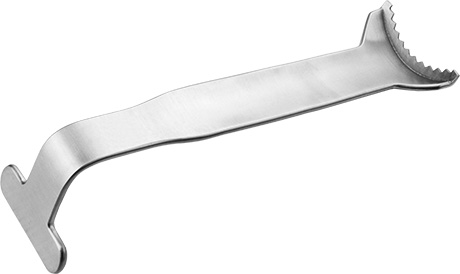

George Semi-Circumferential Glenoid Retractor
Designed to depress the humeral head and retract tissue away from the posterior half of the glenoid, helping to improve exposure for the preparation and placement of the glenoid component in total shoulder arthroplasty
|
|
|
|
Designed by Michael S. George, MD |
|
|
|
Product No: 2435
Overall Length: 8" (20,3cm)
Blade Width: 2.125" (5,4cm)
|
|
|

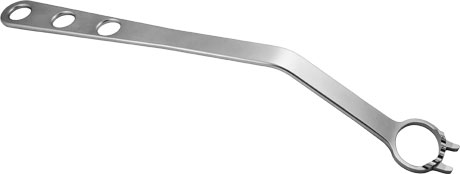

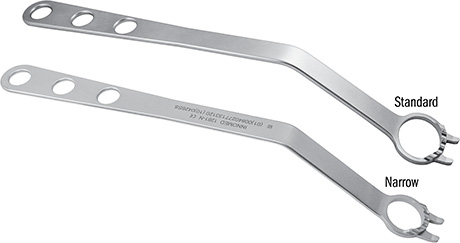

Glenoid Access Retractor |
|
|
|
Developed in collaboration with Mayo Clinic. |
|
|
|
Also included in the #1251-00
Shoulder Surgery Retractor System.
Product No: 1261
Overall Length: 13.5" (34,3 cm)
Access Hole Internal Diameter: 36 mm X 30 mm
Depth of Prongs: 8.5 mm
|
|
|
Glenosphere Component Retractor
Designed for use in total and reverse shoulder arthroplasty |
|
|
|
Designed by Tim Seachris |
|
|
|
Coated version helps to protect component surfaces.
Product No's:
5841 [Coated End]
Overall Length: 10.25" (26,7 cm)
Blade Width: .9375" (2,4 cm)
5841-01 [Uncoated End]
Overall Length: 10.25" (26,7 cm)
Blade Width: .9375" (2,4 cm)
|
|
|
Goldstein Glenoid Neck Retractor
Placed along the glenoid rim during open Bankart procedure to allow excellent exposure
|
|
|
|
|
|
|
 |
The convex teeth sit easily into the glenoid rim while the strong end of the shaft allows the instrument to stay out of the surgeons view.
Product No: T1004
Overall Length: 8.5" (21,6 cm)
Blade Width at Teeth: 18 mm
Blade Width at Widest: 36 mm
|
|
|

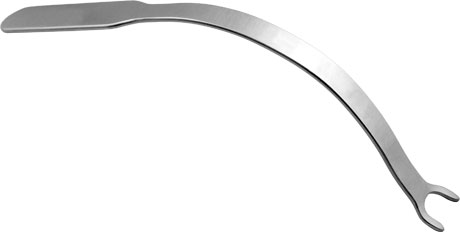

Gunther Glenoid Retractor
Ergonomic design helps to retract the humeral head posteriorly during glenoid exposure while avoiding reamer contact during shoulder replacement surgery |
|
|
|
Designed by Stephen B. Gunther, MD |
|
|
|
Product No: 1999
Overall Length: 11" (27,9 cm)
Neck Width: .625" (15,9 mm)
Prong Outside Width: 1" (25,4 mm)
Prong Inside Width: .625" (15,9 mm)
|
|
|

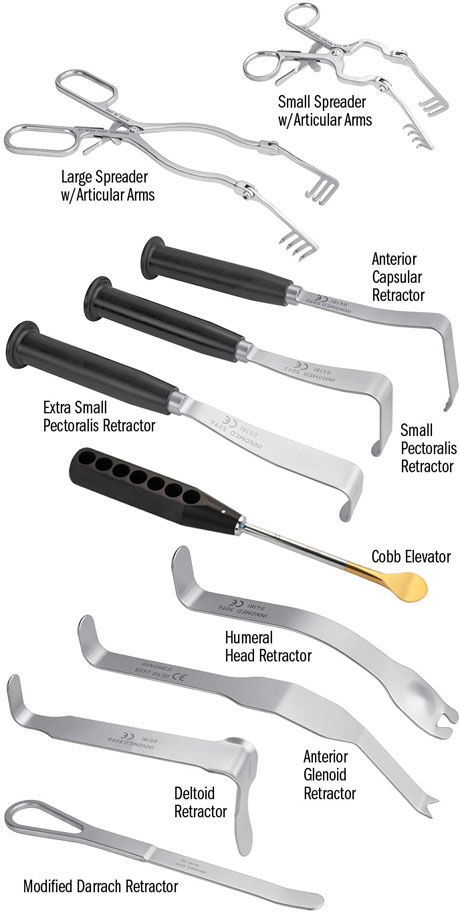

Hawkins Shoulder Instruments
Designed to enhance exposure during shoulder arthroplasty procedures |
|
|
|
Designed by Richard J. Hawkins, MD |
|
|
 |
Product No's:
5090 [Small Spreader w/Articular Arms]
Overall Length: 6.25" (15,9 cm
Arm Depth: 2.25" (5,7 cm)
Prong Width: 21 mm
Prong Length: 16 mm
5091 [Large Spreader w/Articular Arms]
Overall Length: 10.5" (26,7 cm)
Arm Depth: 2.375" (6 cm)
Prong Width: 23 mm
Prong Length: 23 mm
5092 [Anterior Capsular Retractor]
Overall Length: 11.25" (28,6 cm)
Handle Length: 5.25" (13,3 cm)
Blade Depth: 3.25" (8,3 cm)
Blade Width: 19 mm
5093 [Small Pectoralis Retractor]
Overall Length: 10.25" (26 cm)
Handle Length: 5.25" (13,3 cm)
Blade Depth: 2.5" (6,4 cm)
Blade Width: 25 mm
5094 [Extra Small Pectoralis Retractor]
Overall Length: 11" (27,9 cm)
Handle Length: 5.25" (13,3 cm)
Blade Depth: 1.5" (3,8 cm)
Blade Width: 25 mm
5095 [Cobb Elevator]
Overall Length: 11" (27,9 cm)
Handle Length: 5.5" (14 cm)
Blade Width: 19 mm
5096 [Humeral Head Retractor]
Overall Length: 9" (22,9 cm)
Blade Depth: 2.75" (7 cm)
Blade Width: 37 mm
5097 [Anterior Glenoid Retractor]
Overall Length: 11" (27,9 cm)
Blade Depth: 2.75" (7 cm)
Blade Width @ Fat Pad: 34 mm
Blade Width @ Neck: 18 mm
5098 [Deltoid Retractor]
Overall Length: 9.5" (24,1 cm)
Blade Depth: 3.75" (9,5 cm)
Blade Width @ Fat Pad: 45 mm
Blade Width @ Neck: 32 mm
5099 [Modified Darrach Retractor]
Overall Length: 10.75" (27,3 cm)
Blade Width: 19 mm
|
|
|
Horseshoe Shoulder Frame and Blade Assembly
Designed to enhance exposure during shoulder arthroplasty procedures — once in place the frame and blades provide self-retaining exposure, helping to free up surgical assistants |
|
|
|
|
|
|
|
Product No's:
2030-00 [Set]
Set includes (1) Frame, (1) of Each Blade Style
Also Available Individually:
2030-01 [Horseshoe Frame]
Overall Dimensions: 7" x 5" (17,8 cm x 12,7 cm)
Frame Width: .7" (15 mm)
2030-02 [Horseshoe Blade – Wide]
Blade Width: 22 mm
Overall Length: 11" (27,9 cm)
2030-03 [Horseshoe Blade – Narrow]
Blade Width: 14 mm
Overall Length: 11" (27,9 cm)
2030-04 [Horseshoe Blade – Narrow, Bent]
Blade Width: 14 mm
Overall Length: 10" (25,4 cm)
Handle Length: 4.5" (11,4 cm)
2030-05 [Horseshoe Blade – Small Narrow]
Blade Width: 16 mm
Blade Depth: 2" (5,1 cm)
Overall Length: 8.5" (21,6 cm)
2030-06 [Horseshoe Blade – Inferior]
Blade Width: Outside 34 mm, Inside 24 mm
Overall Length: 11.5" (29,2 cm)
Prong Length: 28 mm
|
|
|
Humeral Head Retractor
Placed between the glenoid and the humeral head to obtain excellent exposure
|
|
|
|
|
|
|
 |
Product No: T1007
Overall Length: 7" (17,8 cm)
Blade Width: 33 mm
Prong Width: 6 mm | 21 mm Gap | 6 mm
|
|
|
Kaminsky OrthoLucent™ Browne-type Deltoid Retractors
Used for the Delto-Pectoral approach, and can also remain in place for fracture reduction, plate positioning, and screw/wire/drill location confirmation |
|
|
|
Designed by Sean B. Kaminsky, MD |
|
|
|
Made of lightweight carbon fiber PEI composite material—completely radiolucent and can be steam sterilized
Used for acromioplasty, rotator cuff repair, and fracture fixation.
The OrthoLucent™ carbon fiber PEI material is radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized.
Product No's:
1670-01R [Small]
Blade Width: 4,5 cm
Overall Length: 10.5" (26,7 cm)
1670-02R [Large]
Blade Width: 5,4 cm
Overall Length: 10.5" (26,7 cm)
|
|
|
Kirschenbaum Acromioplasty Retractor
Designed to fit under the posterior edge of the acromion and lever the humeral head down out of the way
|
|
|
|
Designed by Ira Kirchenbaum, MD
|
|
|
Helps to protect both the posterior aspect of the shoulder and the articular surface of the humeral head during open acromioplasty and rotator cuff surgery.
|
Product No: 5840
Overall Length: 9.25" (23,5 cm)
Blade Width at Tip: 21 mm
|
|
|
Levy Anterior Glenoid Retractors
Designed to help alleviate tension on anterior glenoid structures and the handle is designed to optionally be clamped to the drape |
|
|
|
Designed by Jonathan Levy, MD |
|
|
|
Product No's:
4536 [Small]
Overall Length: 10.5" (26,7 cm)
Depth from Bend: 5.875" (14,9 cm)
Blade Width: .75" (1,9 cm)
Tooth Gap: .325" (8,2 mm)
4536-01 [Medium] NEW!
Overall Length: 10.5" (26,7 cm)
Depth from Bend: 5.875" (14,9 cm)
Blade Width: 1" (2,54 cm)
Tooth Gap: .42" (10,6 mm)
4536-02 [Large] NEW!
Overall Length: 10.5" (26,7 cm)
Depth from Bend: 5.875" (14,9 cm)
Blade Width: 1.25" (3,2 cm)
Tooth Gap: .55" (14 mm)
|
|
|
Levy Wide Deltoid Retractor
Designed for management of proximal humerus fractures—facilitates appropriate deltoid retraction without interference during active fluoroscopy |
|
|
|
Designed by Jonathan Levy, MD |
|
|
|
Contoured to match the curve of the deltoid, the retractor helps to retract the entire deltoid laterally during the deltopectoral approach. The width approximates 2/3 the length of the deltoid, while the blade is deep enough to help control the entire deltoid without displacement of the tuberosity reduction. Sized to fit deltoids in small and large patients.
Product No: 1672
Overall Length: 11.75" (29,8 cm)
Blade at Widest: 2.5" (6,4 cm)
Blade Depth: 1.375" (3,5 cm)
|
|
|
McFarland Bent Cobb Elevator
Designed for retraction while helping to protect the axillary nerve in shoulder surgery |
|
|
|
Designed by Edward McFarland, MD |
|
|
|
Ultra hard titanium nitride coating helps to prolong sharpness.
Product No: 3431
Overall Length: 9.5" (24,1 cm)
Length from Bend: 3.5" (8,9 cm)
Cobb End Width: .8" (20 mm)
Angle of Bend: 30°
|
|
|
McFarland Malleable Shoulder Retractors
Designed to enhance exposure in shoulder procedures |
|
|
|
Designed by Edward McFarland, MD |
|
|
|
Product No's:
4537-00 [Set of Three Sizes]
Set Includes:
4537-01 [Narrow Deep]
Overall Length: 15.5" (39,4 cm)
Prong Depth: 10 mm
4537-02 [Narrow Shallow]
Overall Length: 15.5" (39,4 cm)
Prong Depth: 6.8 mm
4537-03 [Wide]
Overall Length: 15.5" (39,4 cm)
Prong Depth: 13.5 mm
|
|
|
McFarland Shoulder V Retractor
Designed to provide deep access to the glenoid rim when performing a subscapularis splitting approach to the shoulder |
|
|
|
Designed by Edward McFarland, MD |
|
|
|
Fluted to enhace visualization and room when placing sutures in the capsular flaps prior to placing three prong retractors.
Product No: 4851
Overall Length: 9" (22,9 cm)
Length To Bend: 8.5" (21,6 cm)
Handle Length: 4" (10,2 cm)
Blade Depth: 2.75" (7 cm)
Blade Width: .625" (1 cm)
|
|
|
Mehalik Posterior Glenoid Retractor with Long Handle
Designed to help expose the posterior aspect of the glenoid |
|
|
|
Designed in collaboration with Mayo Clinic, modified by John Mehalik, MD. |
|
|
|
Product No: 1909
Overall Length: 13.2" (33,5 cm)
Access Hole Internal Diameter: 36 X 30 mm
|
|
|
Modified Darrach-type Bent Elevator
Designed for difficult glenoid exposure, the elevator is placed around the posterior glenoid rim, retracting the cut humeral surface |
|
|
|
Design modification by R.L. Stowell, MD
of original design by Evan Flatow, MD |
|
|
|
The retractor is serrated on both sides to help prevent slippage.
Product No: 1966
Overall Length: 10" (25,4 cm)
Blade Depth: 5" (12,7 cm)
Blade Width: 1" (2,54 cm)
|
|
|
Modified Humeral Head Retractors
Designed to help lever and displace the proximal humerus posteriorly |
|
|
|
|
|
|
|
Product No's:
2436 [Deep]
Overall Length: 10" (25,4 cm)
Blade Width: 26 mm
2437 [Shallow]
Overall Length: 11" (30 cm)
Blade Width: 26 mm
|
|
|
Modified Winged Fukuda Retractor
Designed with flared edges for less pressure on soft tissues |
|
|
|
Designed by Scot Rheinecker, PA |
|
|
|
Product No: 1896
Overall Length: 7.5 (19,1 cm)
Blade Width: 36 mm
Opening: 29 x 40 mm
|
|
|
Modified Fukuda-type Retractor with Reamer Slot
Center cutout slot allows the shaft of a reamer to fit more posteriorly |
|
|
|
Designed by Richard J. Miller, MD |
|
|
|
Available in small and large sizes. Used to retract the humeral shaft posteriorly and helping to expose the entire glenoid surface.
Product No's:
1898 [Small]
Overall Length: 7.25" (18,4 cm)
Blade Width: 32 mm
Opening: 25 x 40 mm
1899 [Large]
Overall Length: 7.25" (18,4 cm)
Blade Width: 38 mm
Opening: 32 x 40 mm
|
|
|
OrthoLucent™ Modified Fukuda-type Retractor
Used to retract the humeral shaft posteriorly, helping to expose the entire glenoid surface |
|
|
|
|
|
|
|
The completely radiolucent retractor is made of a strong, lightweight carbon fiber PEEK composite material, which helps to prevent from marring component surfaces, and can be steam sterilized.
Product No's:
1930-R [Small]
Overall Length: 7.5" (19,1 cm)
Blade Width: 32 mm
Opening: 25 x 40 mm
1940-R [Large]
Overall Length: 7.5" (19,1 cm)
Blade Width: 38 mm
Opening: 32 x 40 mm
|
|
|
Posterior Glenoid Neck Retractor
Used during osteotomy of the humeral head and approaches to the glenoid
|
|
|
|
|
|
|
 |
Designed to allow one finger retraction. Contours to allow teeth to fit behind the glenoid, retracting tissue for easy access to the glenoid
Product No: T1002
Overall Length: 10" (25,4 cm)
Blade Width: 30 mm
|
|
|
Rogozinski Glenoid Reaming Retractor
Designed to help expose the glenoid for reaming during total shoulder arthroplasty, and can also be used to help expose the femoral head during total hip arthroplasty |
|
|
|
Designed by Chaim Rogozinski, MD |
|
|
|
Product No: 4277-01 [Retractor Only]
Overall Length: 11.25" (28,6 cm)
Handle Width: 4.5" (11,4 cm)
ALSO AVAILBLE IN A SET WITH #4271
ROGOZINSKI GLENOID RETRACTOR
Product No: 4277-00 [SET]
|
|
|
Rogozinski Glenoid Retractor
Designed with an ergonomic profile to help reduce retraction fatigue and place the assistant's hand out of surgical view, while the undersurface helps stabilize the humeral head to allow excellent visualization of the glenoid |
|
|
|
Designed by Chaim Rogozinski, MD |
|
|
|
Product No: 4271
Overall Length: 11.25" (28,6 cm)
Blade Width: .7" (18 mm)
Prongs Width: 3,4 mm
Handle Width: 4.5" (11,4 cm)
ALSO AVAILBLE IN A SET WITH #4277-01
ROGOZINSKI GLENOID REAMING RETRACTOR
Product No: 4277-00 [SET]
|
|
|
Shoulder Retraction Instruments
Designed to retract and protect the humeral head during resection of the inferior acromial surface |
|
|
|
Designed by Evan Flatow, MD & Louis Bigliani, MD |
|
|
 |
Product No: 1900 [Complete Set]
Also available Individually:
Thin Glenoid Retractors
Available in narrow and wide sizes. Used for retraction of the anterior and posterior aspects of the anterior and posterior glenoid rim.
Product No's:
1910 [Thin Glenoid Retractor Narrow]
Overall Length: 11" (27,9 cm)
Blade Width: 14 mm
1920 [Thin Glenoid Retractor Wide]
Overall Length: 11" (27,9 cm)
Blade Width: 22 mm
Modified Fukuda-type Retractors
Available in small and large sizes. Used to retract the humeral shaft posteriorly and helping to expose the entire glenoid surface.
Product No's:
1930 [Modified Fukuda-type Retractor Small]
Overall Length: 7.25" (18,4 cm)
Blade Width: 32 mm
Opening: 25 x 40 mm
1940 [Modified Fukuda-type Retractor Large]
Overall Length: 7.25" (18,4 cm)
Blade Width: 38 mm
Opening: 32 x 40 mm
Modified Darrach-type Elevators
Available in four widths. Used for soft tissue retraction and exposure. May also be used to lever the humeral head inferiorly or superiorly and medially to expose the humeral head from the glenoid while dislocating the humeral head after subcapularis removal. May also be used to retract the humeral shaft posteriorly to help expose the glenoid.
Product No's:
1950 [Modified Darrach-type Elevator 3/8"]
Overall Length: 10.75" (27,3 cm)
Blade Width: 10 mm
1955 [Modified Darrach-type Elevator 1/2"]
Overall Length: 10.75" (27,3 cm)
Blade Width: 12 mm
1960 [Modified Darrach-type Elevator 3/4"]
Overall Length: 10.75" (27,3 cm)
Blade Width: 19 mm
1965 [Modified Darrach-type Elevator 1"]
Overall Length: 10.75" (27,3 cm)
Blade Width: 25 mm
Posterior Glenoid Elevators
Available in three widths. Used to help expose the posterior aspect of the glenoid. The curved tip allows the elevator to fit on the posterior rim of the glenoid. The curve in the elevator contours to the humeral shaft for posterior retraction.
Product No's:
1980 [Posterior Glenoid Elevator 3/8"]
Overall Length: 11" (27,9 cm)
Blade Width: 10 mm
1985 [Posterior Glenoid Elevator 1/2"]
Overall Length: 11" (27,9 cm)
Blade Width: 12 mm
1990 [Posterior Glenoid Elevator 3/4"]
Overall Length: 11" (27,9 cm)
Blade Width: 19 mm
Spiked Darrach-type Elevator
The spiked elevator is used slightly below the anterior rim of the glenoid to help retract the labrum and anterior capsule.
Product No: 1970 [Spiked Darrach-type Elevator]
Overall Length: 10.75" (27,3 cm)
Blade Width: 19 mm
Bicep Elevator
Used to help retract the biceps tendon superiorly. The two extensions allow the long head of the biceps to fit between them. The edges fit on the superior portion of the glenoid rim.
Product No: 1975 [Bicep Elevator]
Overall Length: 10.75" (27,3 cm)
Blade Width: 25 mm
|
|
|
Shoulder Surgery Retractor System |
|
|
|
Developed in collaboration with Mayo Clinic. |
|
|
|
System includes two of each size of the Modified Thin Glenoid Retractors, and one of each of the other retractors.
Product No: 1251-00 [Complete System]
Set Includes / Available Individually:
1252-N [Modified Thin Glenoid Retractor–Narrow]
Two included in set; one with this product number
Overall Length: 11.875" (30,2 cm)
Blade Width: 15 mm
1252-W [Modified Thin Glenoid Retractor–Wide]
Two included in set; one with this product number
Overall Length: 11.875" (30,2 cm)
Blade Width: 23 mm
1253 [Right Angle Hohmann Retractor]
Overall Length: 8.125" (20,6 cm)
Depth from Bend: 4.25" (10,8 cm)
Blade Width: 16 mm
1254 [Modified Fukuda Retractor]
Overall Length: 8.625" (21,9 cm)
Depth: 2.75" (7 cm)
Blade Width: 39 mm
1255-L [Brown Deltoid/Richardson Retractor–Large]
Overall Length: 0.5" (26,7 cm)
Depth: 2.5" (6,4 cm)
Blade Width: 60 mm
1255-S [Brown Deltoid/Richardson Retractor–Small
Overall Length: 10.5" (26,7 cm)
Depth: 2.5" (6,4 cm)
Blade Width: 44 mm
1256 [Modified Darrach Retractor, Straight–Narrow]
Overall Length: 10.25" (26 cm)
Blade Width: 12,7 mm
1257 [Modified Darrach Retractor, Straight–Wide]
Overall Length: 10.25" (26 cm)
Blade Width: 19 mm
1258 [Modified Darrach Retractor, Bent–Narrow]
Overall Length: 10.75" (27,3 cm)
Blade Width: 12,7 mm
1259 [Modified Darrach Retractor, Bent–Wide]
Overall Length: 10.75" (27,3 cm)
Blade Width: 19 mm
1260 [Soft Tissue Shoulder Retractor]
Overall Length: 10" (25,4 cm)
Depth from Bend: 3" (7,6 cm)
Blade Width: 19 mm
1261 [Glenoid Access Retractor]
Overall Length: 13.5" (34,3 cm)
Access Hole Internal Diameter: 36 mm X 30 mm
Depth of Prongs: 8.5 mm
|
|
|
Superior Coracoid Retractor
Used for small bone and superior coracoid retraction/exposure |
|
|
|
|
|
|
|
Can also be used as a modified mini hohmann retractor in small bone surgery.
Product No: 1666-02
Overall Length: 6.25" (15,9 cm)
|
|
|
Vaughan Distal Bicep Tendon Repair Retractor
Designed to retract in a continuous way in three directions, helping to prevent the surrounding vital structures from entering the field while drilling or performing the repair work |
|
|
|
Designed by Roderick A. Vaughan, MD |
|
|
 |
Product No: 3223
Overall Length: 8.375" (21,3 cm)
Handle Length: 5.25" (13,3 cm)
Depth: 2" (5,1 cm)
|
|
|
Weatherly Mini-Deltoid Retractors
Designed for the retraction of the deltoid in a mini-open mid-deltoid splitting approach to rotator cuff surgery, the offset handle helps allow clear visualization of the surgical field, and the ergonomic non-slip handle surface helps prevent fatigue in the operative team |
|
|
|
Designed by Wallace Weatherly, MD |
|
|
|
Product No's:
5110-L [Large]
Overall Length: 12.75" (32,4 cm)
Depth from Bend: 4.5" (11,4 cm)
Blade Dimensions: 40 mm x 90 mm
5110-M [Medium]
Overall Length: 11" (27,9 cm)
Depth from Bend: 3" (7,6 cm)
Blade Dimensions: 40 mm x 55 mm
5110-S [Small]
Overall Length: 10.5" (26,7 cm)
Depth from Bend: 2.5" (6,4 cm)
Blade Dimensions: 40 mm x 40 mm
|
|
|
Wiater Shoulder Bone Hook
Large bone hook designed to retract the proximal humerus posteriorly to help provide exposure for glenoid reaming during open shoulder procedures |
|
|
|
Designed by J. Michael Wiater, MD, FAAOS, FAOA |
|
|
|
Product No: 5079
Overall Length: 11.25" (28,6 cm)
Curve Diameter: 2.68" (68 mm)
Handle Width: 4" (10,2 cm)
|
|
|
Woods Retractor
A retractor for use in the foot, ankle, wrist and elbow |
|
|
|
Designed by Richard Ferkel, MD |
|
|
|
Product No: 1147
Overall Length: 5.75" (14,6 cm)
Rake Blade Width: .675" (1,7 cm)
Rake Blade Depth: .675" (1,7 cm)
Flat Blade Width: .39" (1 cm)
Flat Blade Depth: 1" (2,54 cm)
|
|
|
© 2025 Innomed, Inc. All rights reserved.
|
