SHOULDER INSTRUMENTS • spreading retractors

Click thumbnail image for details

Bacastow Shoulder Capsular Retractor
Beard Distal Bicep Retractor
Calibrated Ortho Spreader with Slotted Tips
Chung Weitlaner Retractor
Bacastow Shoulder Capsular Retractor
Beard Distal Bicep Retractor
Calibrated Ortho Spreader with Slotted Tips
Chung Weitlaner Retractor
Deep Meyerding Retractor with Ergonomic Handle
Durham Offset Kolbel Shoulder Retractor Set
Durham Offset Zelpi Retractor
Flat Gelpi Retractors
Gelpi Retractors
Deep Meyerding Retractor with Ergonomic Handle
Durham Offset Kolbel Shoulder Retractor Set
Durham Offset Zelpi Retractor
Flat Gelpi Retractors
Gelpi Retractors
Gerber Sub-Acromion Retractors
Glenoid Spreader
Havens Modified Kolbel Soft Tissue Retractor
Hendren Self-Retaining Retractor
Incision Aligner

Gerber Sub-Acromion Retractors
Glenoid Spreader
Havens Modified Kolbel Soft Tissue Retractor
Hendren Self-Retaining Retractor
Incision Aligner
Kolbel Self-Retaining Glenoid Retractor
Kolbel Self-Retaining Glenoid Retractor with Center Blade
Kolbel Self-Retaining Glenoid Retractor with Hinge and Double Ergonomic Handle
Kolbel Self-Retaining Retractor
Kolbel Self-Retaining Retractor Blades
Kolbel Self-Retaining Glenoid Retractor
Kolbel Self-Retaining Glenoid Retractor with Center Blade
Kolbel Self-Retaining Glenoid Retractor with Hinge and Double Ergonomic Handle
Kolbel Self-Retaining Retractor
Kolbel Self-Retaining Retractor Blades

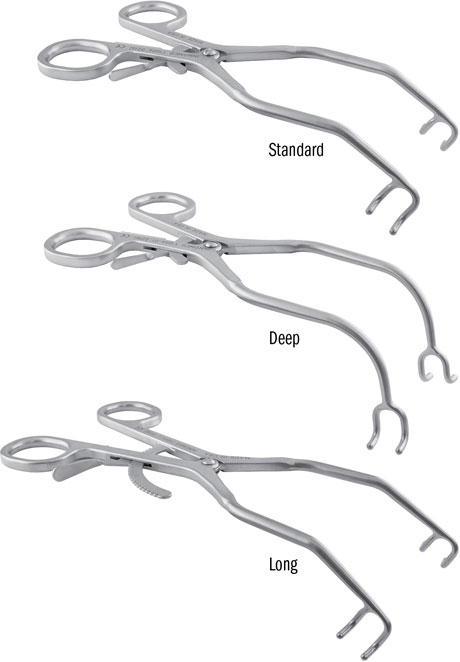

Kolbel Soft Tissue Retractors
Modified Kolbel Self-Retaining Glenoid Retractor with Hinge

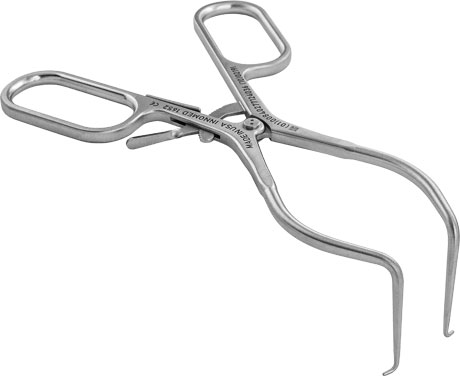

Right Angled Subscapular Spreader – Blunt Tips
Stulberg Incision Close Gelpi

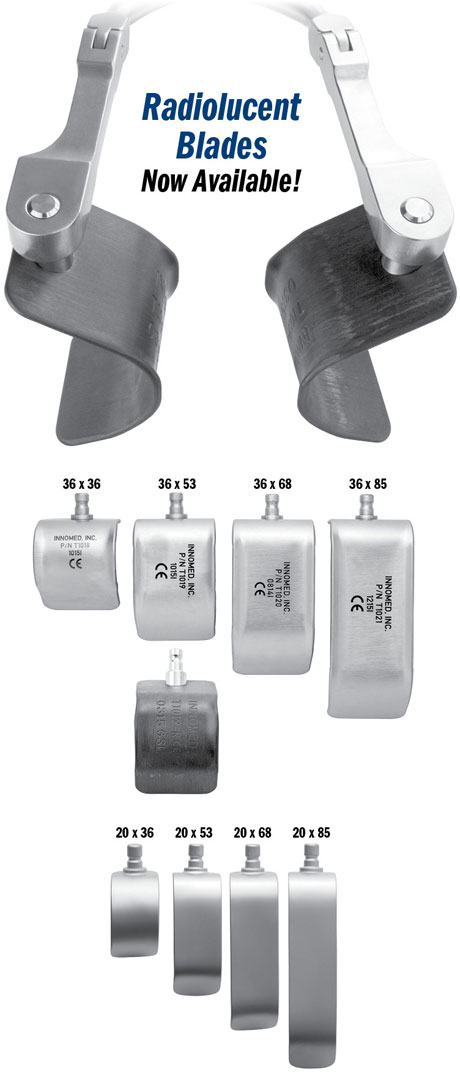

NEW! Knurled Blades for Kolbel Self-Retaining Retractors
Kolbel Soft Tissue Retractors
Modified Kolbel Self-Retaining Glenoid Retractor with Hinge
Right Angled Subscapular Spreader – Blunt Tips
Stulberg Incision Close Gelpi & Blade Set
Subscapularis Spreader
Subscapularis Spreader

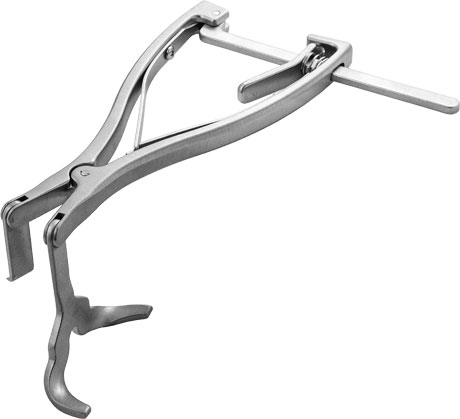

Bacastow Shoulder Capsular Retractor

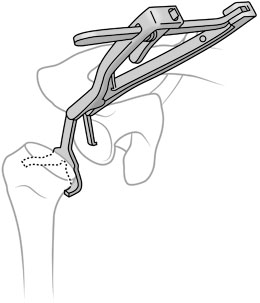

Designed to help place tension on the inferior capsule for improved visualization and dissection when performing anatomic or reverse shoulder replacement


Designed by David Bacastow, MD




Bacastow Shoulder Capsular Retractor

Bacastow Shoulder Capsular Retractor

Rotating arms allow left or right use.

Bacastow Shoulder Capsular Retractor

Product No:5185
Overall Length: 8" (20,3 cm)
Length to Pivot: 5.75" (14,6 cm)
Small Blade Depth: 1" (2,54 cm)
Small Blade Width: 10 mm
 Wide Blade Depth: 2" (5,1 cm)
Wide Blade Width: 2.25" (5,7 cm) Maximum
Wide Blade Offset: .75" (1,9 cm)
Download Product Brochure (PDF)


TOP





Beard Distal Bicep Retractor

Designed to help optimize surgical exposure during anterior single incision distal biceps tendon reinsertion


Designed by David Beard, MD


Beard Distal Bicep Retractor


The blade design features an anatomically contoured distal end to hug the radius cortex. The smooth distal end helps to avoid deep penetration, and the width matches the width of the distal biceps tendon insertion site. The narrow curved handle design helps to optimize workspace and visualization. Sold as a set, or available individually for replacement.



Beard Distal Bicep Retractor

Product No's:

5834-00 [Set – Retractor & Two Blades]

Individual/Replacement Parts:

5834-01 [Blade] 1 blade with this product number
Overall Length: 6.375" (16,2 cm)
Width: .625" (16 mm)

5834-02 [Self-retaining Retractor]
Overall Length: 7.5" (19,1 cm)
Download Product Brochure (PDF)

TOP





Calibrated Ortho Spreader with Slotted Tips

A lamina spreader with a very thin closed profile, designed to enable distraction in tight joint spaces like the subtalar and talonavicular joints


Designed by Jason Bariteau, MD


Calibrated Ortho Spreader with Slotted Tips



Calibrated Ortho Spreader with Slotted Tips

Product No: 1841
Overall Length: 6.75" (17,1 cm)
Prong Length: .5" (12,7 mm)
Calibrations: 10 mm to 35 mm
Download Product Brochure (PDF)

TOP





Chung Weitlaner Retractor

Features long prongs allowing use of a small retractor in a small, but deep wound


Designed by Raymond Chung, MD


Chung Weitlaner Retractor

Prong lengths of 25mm and 30mm now available
with either sharp or blunt tips, in both 3x2 or 3x4 prong versions.

Chung Weitlaner Retractor

Particularly useful for volar approach to the distal radius in large patients and for mini-open rotator cuff surgery.

Product No’s:


BLUNT TIPS

5065 [2x3 Prongs]
Blade Depth: 25 mm
 Overall Length: 4.5" (11,4 cm)


5065-01 [3x4 Prongs]
 Blade Depth: 25 mm
 Overall Length: 4.5" (11,4 cm)


5067 [2x3 Prongs]
 Blade Depth: 30 mm
 Overall Length: 4.5" (11,4 cm)


5067-01 [3x4 Prongs]
 Blade Depth: 30 mm
 Overall Length: 4.5" (11,4 cm)



SHARPS TIPS

5066 [2x3 Prongs]
 Blade Depth: 25 mm
 Overall Length: 4.5" (11,4 cm)


5066-01 [3x4 Prongs]
 Blade Depth: 25 mm
 Overall Length: 4.5" (11,4 cm)


5068 [2x3 Prongs]
 Blade Depth: 30 mm
 Overall Length: 4.5" (11,4 cm)


5068-01 [3x4 Prongs]
 Blade Depth: 30 mm
 Overall Length: 4.5" (11,4 cm)

Download Product Brochure (PDF)

TOP





Deep Meyerding Retractor with Ergonomic Handle

A self-retaining soft tissue retractor for use in hip, knee, and shoulder surgery





Deep Meyerding Retractor with Ergonomic Handle



Product No: 6244
Overall Length: 8.5" (21,6 cm)
Blade Depth: 3.5" (8,9 cm)
Blade Width: 1" (2,54 cm)
Download Product Brochure (PDF)

TOP

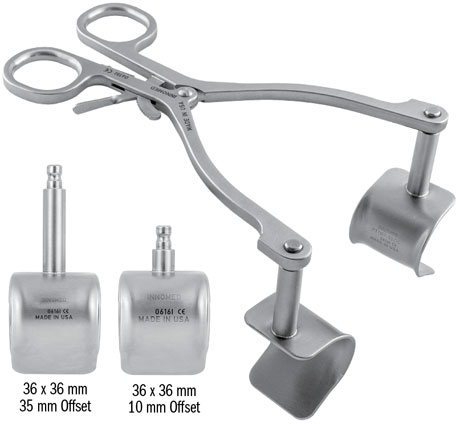

Durham Offset Kolbel Shoulder Retractor Set

Designed for retraction of the deltoid and under the short head of the biceps muscle to expose the shoulder, the longer offset blades are useful in patients with large muscles, and the shorter offset blades are useful in smaller elderly patients


Designed by Alfred A. Durham, MD


Modified Anterolateral Retractor Set

Snap-in, freely pivoting smooth curved blades help to concentrate the forces on the center of the muscle bellies, allowing the retractor to remain centered and not get in the way of exposure.

Product No's:

T1030 [Set]
Set includes:
(1) T1030-01, (2) T1030-L, (2) T1030-S


Also Available Individually:

T1030-01 [Retractor Handle]
Overall Length: 7" (17,8 cm)

T1030-L [Long Offset Blade]
(2) included in set, (1) only with this product number
Offset Length: 35 mm
Blade Dimensions: 36 x 36 mm


T1030-S [Short Offset Blade]
(2) included in set, (1) only with this product number
Offset Length: 10 mm
Blade Dimensions: 36 x 36 mm
Download Product Brochure (PDF)

TOP





Durham Offset Zelpi Retractor

Staggered depth retractor designed for exposure during total hip and total shoulder surgery


Designed by Alfred Durham, MD


Durham Offset Zelpi Retractor



In hip surgery, with the handle towards the surgeon, the longer leg is on the inside.

In shoulder surgery, with the handle downward, the longer leg is on the ouside.

The longer leg extends 1.1" (2,8 cm) deeper.

Product No’s:

1573-L [Left]
Overall Length: 8.5" (21,6 cm)
Leg Depths: 3.1" & 4.2" (7,9 cm & 10,7 cm)

1573-R [Right]
Overall Length: 8.5" (21,6 cm)
Leg Depths: 3.1" & 4.2" (7,9 cm & 10,7 cm)
Download Product Brochure (PDF)

TOP





Flat Gelpi Retractors

Designed to help retract a broader area of soft tissue or muscle





Flat Gelpi Retractors

The two largest sizes feature double ergonomic handles for increased comfort and control.


Product No’s:

4191 [Small]
Overall Length: 6.5" (16,5 cm)
Prong Depth: 1.25" (3,2 cm)


4192 [Medium]
Overall Length: 7.25" (18,4 cm)
Prong Depth: 1.75" (4,4 cm)


4193 [Large]
Overall Length: 9" (22,9 cm)
Prong Depth: 3" (7,6 cm)


4194 [Deep]
Overall Length: 10" (24,4 cm)
Prong Depth: 5" (12,7 cm)
Download Product Brochure (PDF)



TOP





Gelpi Retractors





Gelpi Retractors



Product No’s:

4180 [Standard]
Overall Length: 7.75" (19,7 cm)

4181 [With Ergonomic Handle]
Overall Length: 8.75" (22,2 cm)
Download Product Brochure (PDF)

TOP

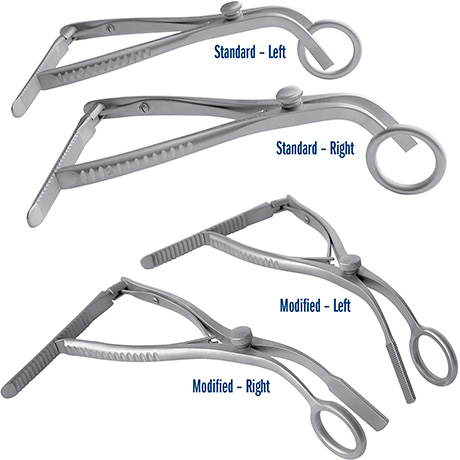

Gerber Sub-Acromion Spreaders

Used for massive tears and repair of a supraspinatus tear




Gerber Sub-Acromion Retractors

Gerber Sub-Acromion Retractors

Designed to gain optimal access to the subacromion space by distracting inferiorly the humeral head from the acromion.

Product No’s:

1640-02 [Standard Left]
Blade Length: 19 mm
Inside Ring Dia.: 32 mm
Overall Length: 7" (17,8 cm)


1640-01 [Standard Right]
Blade Length: 19 mm
Inside Ring Dia.: 32 mm
Overall Length: 7" (17,8 cm)


1641-02 [Modified Left]
Blade Length: 34 mm
Inside Ring Dia.: 25 mm
Overall Length: 7" (17,8 cm)

1641-01 [Modified Right]
Blade Length: 34 mm
Inside Ring Dia.: 25 mm
Overall Length: 7" (17,8 cm)
Download Product Brochure (PDF)

TOP





Glenoid Spreader

Designed to aid glenoid exposure




Glenoid Spreader

Glenoid Spreader

Product No's:

1861-R [Right]
Overall Length: 10.5" (26,7 cm)

1861-L [Left]
Overall Length: 10.5" (26,7 cm
Download Product Brochure (PDF)

TOP

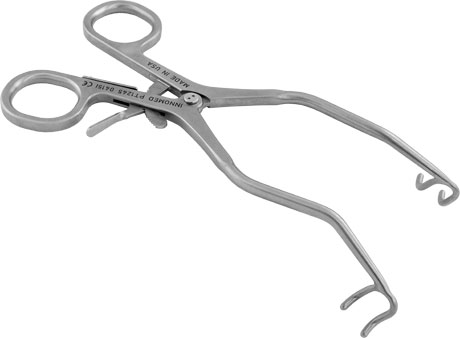

Havens Modified Kolbel Soft Tissue Retractor

Designed for retraction on deltoid split incisions on mini-open rotator cuff repairs


Designed by Philip Havens, MD


Havens Modified Kolbel Soft Tissue Retractor

Jaws and arms are parallel with no gap when closed to allow easier insertion in tight spaces.


Product No: T1006-02
Overall Length: 7.5" (19,1 cm)
Opens To: 4.5" (11,4 cm)
Prong Depth: 18 mm
Download Product Brochure (PDF)

TOP





Hendren Self-Retaining Retractor

Gentle on tissue, effectively holds back subcutaneous fat, and can be useful for retracting the deltoid muscle firmly


Designed by D.H. Hendren, MD


Hendren Self-Retaining Retractor

Hendren Retractor in Surgery

Product No: 1750
Overall Length: 6.5" (16,5 cm)
Blade Size: 22 x 14 mm
Download Product Brochure (PDF)

TOP





Incision Aligner

Designed to align an incision during closing


Designed by DMP


Incision Aligner

The bent ends of the aligner are placed at each end of an incision, which is aligned by pulling outward on each end. The sliding end will lock in place when it is tensioned. Pressing inward slightly on the sliding end will allow the aligner to be collapsed and removed.

Incision Aligner in Surgery

Product No: 1330
Overall Length: 14" (35,6 cm)
Blade Offset: 45 mm
Download Product Brochure (PDF)

TOP

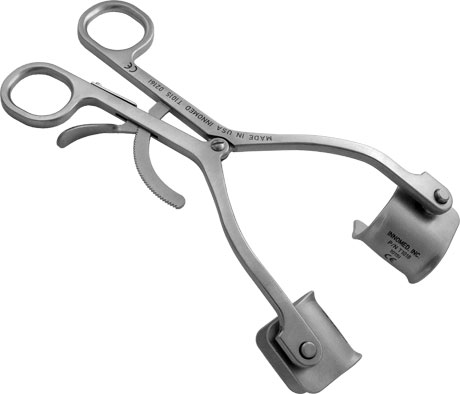

Kolbel Self-Retaining Glenoid Retractor




Kolbel Self-Retaining Glenoid Retractor

Two pairs of snap-in, freely pivoting blades included in set.Kolbel Self-Retaining Glenoid Retractor Blades

Product No: T1014 [Complete Set]

Set Includes:

T1015 [Kolbel Glenoid Retractor]

T1018-P [36 mm X 36 mm Blades – Pair]

T1019-P [36 mm X 53 mm Blades – Pair]
Download Product Brochure (PDF)

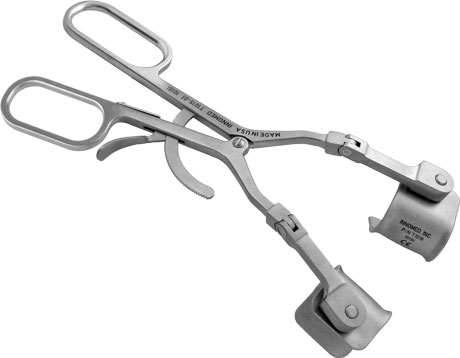

Kolbel Self-Retaining Glenoid Retractor with Ergonomic Handle

Ergonomic handle for added control and comfort




Kolbel Self-Retaining Glenoid Retractor with Ergonomic Handle

Two pairs of snap-in, freely pivoting blades included in set.Kolbel Self-Retaining Glenoid Retractor Blades

Product No: T1014-2F [Complete Set]

Set Includes:

T1015-2F [Kolbel Glenoid Retractor]

T1018-P [36 mm X 36 mm Blades – Pair]

T1019-P [36 mm X 53 mm Blades – Pair]
Download Product Brochure (PDF)

TOP

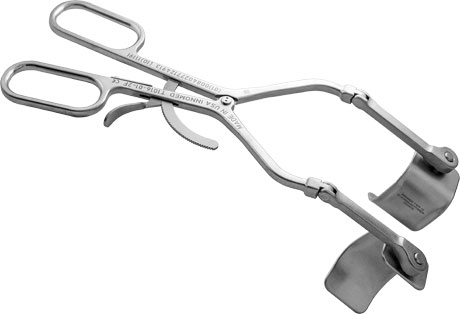

Kolbel Self-Retaining Glenoid Retractor with Hinge and Double Ergonomic Handle

Designed with longer articulating arms—helpful for use with larger patients




Kolbel Self-Retaining Glenoid Retractor with Hinge and Double Ergonomic Handle

Two pairs of snap-in, freely pivoting blades included.
Kolbel Self-Retaining Glenoid Retractor Blades

Product No’s:

T1016-01 [Complete Set]

Set Includes:

T1016-01-2F [Kolbel Glenoid Retractor ]
Overall Length: 10.75" (27,3 cm)
Length-to-hinge: 7.75" (19,7 cm)
Arm Length: 3 (7,6 cm)


T1018-P [36 mm X 36 mm Blades – Pair]

T1019-P [36 mm X 53 mm Blades – Pair]
Download Product Brochure (PDF)

TOP

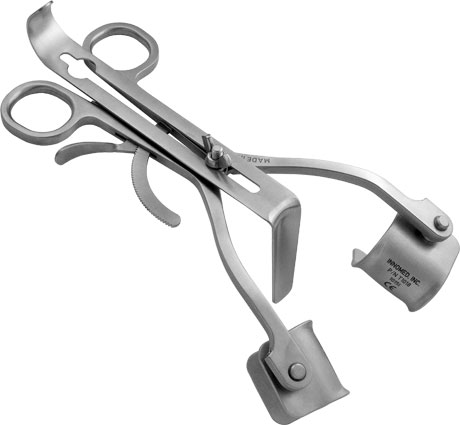

Kolbel Self-Retaining Glenoid Retractor with Center Blade




Kolbel Self-Retaining Glenoid Retractor with Center Blade

Center blade can be reversed for shallow or deep retraction.

Two pairs of snap-in, freely pivoting blades included in set.Kolbel Self-Retaining Glenoid Retractor Blades

Product No: T1050 [Complete Set]

Set Includes:

T1050-01 [Retractor Only]

T1050-02 [Center Blade]

T1018-P [36 mm X 36 mm Blades – Pair]

T1019-P [36 mm X 53 mm Blades – Pair]
Download Product Brochure (PDF)



Kolbel Self-Retaining Glenoid Retractor with Center Blade and Ergonomic Handle

Ergonomic handle for added control and comfort




Kolbel Self-Retaining Glenoid Retractor with Center Blade and Ergonomic Handle

Center blade can be reversed for shallow or deep retraction.

Two pairs of snap-in, freely pivoting blades included in set.Kolbel Self-Retaining Glenoid Retractor Blades

Product No: T1050-2F [Complete Set]

Set Includes:

T1050-01-2F [Retractor Only]

T1050-02 [Center Blade]

T1018-P [36 mm X 36 mm Blades – Pair]

T1019-P [36 mm X 53 mm Blades – Pair]
Download Product Brochure (PDF)

TOP





Kolbel Self-Retaining Retractor




Kolbel Self-Retaining Retractor

Two pairs of snap-in, freely pivoting blades included.Kolbel Self-Retaining Glenoid Retractor Blades

Product No: T1016 [Complete Set]

Set Includes:

T1017 [Kolbel Retractor Frame]

T1018-P [36 mm X 36 mm Blades – Pair]

T1019-P [36 mm X 53 mm Blades – Pair]
Download Product Brochure (PDF)

TOP





Kolbel Self-Retaining Retractor Blades




Kolbel Self-Retaining Glenoid Retractor Blades




Can be used interchangeably with any Innomed Kolbel Self-retaining retractor.


WIDE BLADES

Product No’s:
T1018 [36 mm X 36 mm Blade]
T1019 [36 mm X 53 mm Blade]
T1019-R [36 mm X 53 mm Blade] OrthoLucent™
T1020 [36 mm X 68 mm Blade]
T1021 [36 mm X 85 mm Blade]

The OrthoLucent™ carbon fiber PEEK blade is strong, radiolucent, lightweight, can be steam sterilized, and also helps to prevent from marring component surfaces.



NARROW BLADES

Product No’s:
T1022 [20 mm X 36 mm Blade]
T1023 [20 mm X 53 mm Blade]
T1024 [20 mm X 68 mm Blade]
T1025 [20 mm X 85 mm Blade]


Download Product Brochure (PDF)




TOP





Knurled Blades for Kolbel Self-Retaining Retractors

Knurled underside helps to prevent the blades from slipping




Knurled Blades for Kolbel Self-Retaining Retractors

WIDE BLADES New!

Product No’s:
T1018-K [36 mm X 36 mm Blade]
T1019-K [36 mm X 53 mm Blade]
T1020-K [36 mm X 68 mm Blade]
T1021-K [36 mm X 85 mm Blade]
NARROW BLADES New!

Product No’s:
T1022-K [20 mm X 36 mm Blade]
T1023-K [20 mm X 53 mm Blade]
T1024-K [20 mm X 68 mm Blade]
T1025-K [20 mm X 85 mm Blade]
Download Product Brochure (PDF)




TOP





Kolbel Soft Tissue Retractors

Helps in the early phase to retract soft tissue comprising of the gleno-humeral joint




Use facilitates the introduction of deeper retractors which arerequired for sufficient visibility of the glenoid, acromion and rotator cuff.

Product No's:

T1006 [Standard]
Overall Length: 8" (20,3 cm)

T1006-01 [Deep]
Overall Length: 7.5" (19,1 cm)

T1006-L [Long]
Overall Length: 8.5" (21,6 cm)
Download Product Brochure (PDF)

TOP





Modified Kolbel Self-Retaining Glenoid Retractor with Hinge




Modified Kolbel Self-Retaining Glenoid Retractor with Hinge

Two pairs of snap-in, freely pivoting blades included in set.Kolbel Self-Retaining Glenoid Retractor Blades

Product No: T1014-01 [Complete Set]

Set Includes:

T1015-01 [Modified Kolbel Glenoid Retractor]

T1018-P [36 mm X 36 mm Blades – Pair]

T1019-P [36 mm X 53 mm Blades – Pair]
Download Product Brochure (PDF)



Modified Kolbel Self-Retaining Glenoid Retractor with Hinge and Ergonomic Handle

Ergonomic handle for added control and comfort




Modified Kolbel Self-Retaining Glenoid Retractor with Hinge and Ergonomic Handle

Two pairs of snap-in, freely pivoting blades included in set.Kolbel Self-Retaining Glenoid Retractor Blades

Product No: T1014-01-2F [Complete Set]

Set Includes:

T1015-01-2F [Modified Kolbel Glenoid Retractor]

T1018-P [36 mm X 36 mm Blades – Pair]

T1019-P [36 mm X 53 mm Blades – Pair]
Download Product Brochure (PDF)

TOP





Right Angled Subscapular Spreader – Blunt Tips

Designed to hold the subscapularis muscle open when performing a subscapularis split approach to the glenoid


Designed by Edward McFarland, MD


Right Angled Subscapular Spreader – Blunt Tips



Product No: 1652
Overall Length: 7.5" (19,1 cm)
Blade Depth: 2" (5,1 cm)
Download Product Brochure (PDF)

TOP





Stulberg Incision Close Gelpi & Blade Set

Designed to help expose difficult to visualize areas at the end of incisions


Designed by S. David Stulberg, MD


Stulberg Incision Close Gelpi & Blade Set

Stulberg Incision Close Gelpi & Blade Set

Product No's:

4269-00 [Set – 1 Gelpi & 1 Blade]

Set includes / Available Individually:

4269-01 [Gelpi]
Overall Length: 7.5" (19,1 cm)
Maximum Spread Width: 3.625" (9,2 cm)

4269-02 [Blade]
Overall Length: 5.5" (14 cm)
Blade Width: 1" (2,54 cm)
Blade Depth from Bend: 1.5" (3,8 cm)
Blade Bend-Back Angle: 130°

Download Product Brochure (PDF)

TOP





Subscapularis Spreaders

Reaches deep to help split the subscapularis in a Jobe approach




Subscapularis Spreaders

Subscapularis Spreader

Also used for retracting a split deltoid in mini rotator cuff repairs.

Product No’s:

T1005 [Standard]
Overall Length: 8.375" (21,3 cm)

T1005-L [Long]
Overall Length: 9.25" (23,5 cm)
Download Product Brochure (PDF)

TOP



© 2023 Innomed, Inc. All rights reserved.
