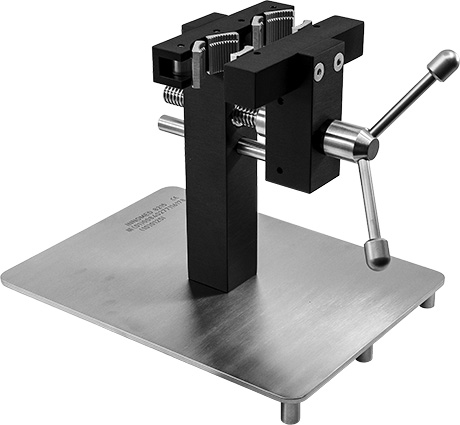

Allograft Bone Vise

Holds allograft bone for reaming, shaping or cutting




Allograft Bone Vise

Designed with two sets of vise jaws for reaming of two femoral heads and also for holding a long bone horizontally and vertically. The base plate is designed with a table flange for stabilization during use. The vise is completely autoclavable.

Allograft Bone Vise

Product No: 8215
Base Dimensions: 8.5" x 11" (21,6 x 27,9 cm)
Download Product Brochure (PDF)

TOP

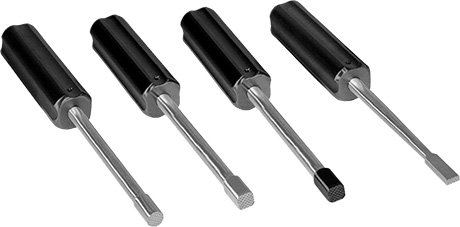

Bone Graft Impactors

Tap bone graft or bone parts into place with minimal bone trauma




Bone Graft Impactors

Designed with stainless steel serrated tips and available in four shapes: square, round, rectangular and crescent.

Product No’s:

5310 [Round]
Head Diameter: 12.5 mm
Overall Length: 9.5" (24,1 cm)
Handle Length: 4.25" (10,5 cm)


5320 [Square]
Head Dimensions: 10 mm x 10 mm
Overall Length: 9.5" (24,1 cm)
Handle Length: 4.25" (10,5 cm)


5325 [Square with Delrin Tip]
Head Dimensions: 10 mm x 10 mm
Overall Length: 9.5" (24,1 cm)
Handle Length: 4.25" (10,5 cm)


5330 [Rectangular]
Head Dimensions: 10 mm x 3 mm
Overall Length: 9.5" (24,1 cm)
Handle Length: 4.25" (10,5 cm)
Download Product Brochure (PDF)

TOP





Desai Surgical Funnel

Helps with control and placement of bone graft or antibiotic beads


Designed by Sarang Desai, DO


Desai Surgical Funnel


Made from surgical grade stainless steel (for sterilization purposes).


Desai Surgical Funnel


Product No: 8989
Overall Length: 6.25" (15,9 cm)
Handle Length: 3.25" (8,3 cm)
Funnel Diameter at Top: 3" (7,6 cm)
Funnel Flow-thru Diameter: 11 mm


VIEW SURGICAL VIDEO

Download Product Brochure (PDF)

TOP





Modular Impactor Set

Makes multiple impactor heads easily visible and available




Modular Impactor Set

Designed to have available to the operating surgeon multiple types of impactors utilizing one handle. The rack uses less space and allows the surgeon to quickly see the designs available. The impactors are supplied with stainless steel tips for bone and delrin tips which can be used against an implant for slight placement adjustments.

Modular Impactor Set

Product No's:

5370 [Complete Set]

Included In Set / Also Available Individually:

5370-01 [Rectangular Impactor Steel Tip 11 mm x 4 mm]

5370-02 [Oval Impactor Steel Tip 13 mm x 8 mm]

5370-03 [Crescent Impactor Steel Tip 12 mm x 5 mm]

5370-04 [Square Impactor Steel Tip 9 mm x 9 mm]

5370-05 [Round Impactor Steel Tip 15 mm]

5370-06 [Round Impactor Steel Tip 12 mm]

5370-07 [Round Impactor Steel Tip 9 mm]

5370-19 [Impactor Set Base]
Base Diameter: 3.5" (8,9 cm)

5370-D1 [Rectangular Impactor Delrin Tip 11 mm 4 mm]

5370-D2 [Oval Impactor Delrin Tip 13 mm x 8 mm]

5370-D3 [Crescent Impactor Delrin Tip 12 mm x 5 mm]

5370-H [Modular Impactor Handle]
Overall Handle Length: 8" (20,3 cm)
Grip Length: 4.5" (11,4 cm)
Download Product Brochure (PDF)

TOP





Ortho Impactors





Ortho Impactors


Product No's:

5331 [11 x 4 mm Rectangle]
Overall Length: 9" (22,9 cm)
Shaft Diameter: 9 mm


5332 [12 x 7 mm Rectangle]
Overall Length: 9" (22,9 cm)
Shaft Diameter: 9 mm


5333 [12 mm Tapered]
Overall Length: 9" (22,9 cm)
Shaft Diameter: 9 mm


5334 [9 mm Square]
Overall Length: 9" (22,9 cm)
Shaft Diameter: 9 mm


5335 [15 mm Round]
Overall Length: 9" (22,9 cm)
Shaft Diameter: 9 mm


5336 [12 mm Round]
Overall Length: 9" (22,9 cm)
Shaft Diameter: 9 mm


5337 [9 mm Round]
Overall Length: 9" (22,9 cm)
Shaft Diameter: 9 mm
Download Product Brochure (PDF)

TOP





Surgical Spoon

Very useful for the application of methylmethacrylate bone graft


Designed by David Scott, MD


Surgical Spoon

Made from surgical grade stainless steel (for sterilization purposes).

Product No: 8209
Overall Length: 5.875" (14,9 cm)
Download Product Brochure (PDF)

TOP





Universal Bone Grafting/Impacting Forceps

Bone graft can be grasped, placed and impacted without changing hands or instruments


Designed by J.A. Amis, MD


The forceps are designed with grasping ends for delivery of bone graft. When the graft is in place, the forceps are closed, which forms the ends into an impacting punch. A striking platform is attached to the end of the forceps for tapping and tamping the graft. Four end diameters are available in two lengths.


Universal Bone Grafting/Impacting Forceps

Universal Bone Grafting/Impacting Forceps Universal Bone Grafting/Impacting Forceps
Universal Bone Grafting/Impacting Forceps
Universal Bone Grafting/Impacting ForcepsProduct No’s:

6" (15,2 cm) Length

5010-01 [1/8" (3,2 mm) Diameter End]
5010-02 [3/16" (4,8 mm Diameter End]
5010-03 [1/4" (6,3 mm) Diameter End]
5010-04 [5/16" (8 mm) Diameter End]

10" (25,4 cm) Length

5050-01 [1/8" (3,2 mm) Diameter End]
5050-02 [3/16" (4,8 mm Diameter End]
5050-03 [1/4" (6,3 mm) Diameter End]
5050-04 [5/16" (8 mm) Diameter End]
Download Product Brochure (PDF)

TOP
