Blount Retractor with Small Handle
Bone Hooks
Bone Hook with Cable Wire Hole
Chung Weitlaner Retractor
NEW! Blount Retractor with Small Handle
Bone Hooks
Bone Hook with Cable Wire Hole
Chung Weitlaner Retractor
Cobb Elevators
Desai Clearview Open Blade Self-Retaining Retractor
Dodson Modular Retractor
Double Bent Extended Deep Tissue Retractor
Dozier Radiolucent Bennett Hip Fracture Retractor
Cobb Elevators
Desai Clearview Open Blade Self-Retaining Retractor
Dodson Modular Retractor
Double Bent Extended Deep Tissue Retractor
Dozier Radiolucent Bennett Hip Fracture Retractor
Extra Small Joint, Calcaneal and Small Bone Compressor and Distractor
Faillace Ambidextrous Self-Retaining Retractors
Femur/Tibia Fracture Distractor
Flat Gelpi Retractors
Gelpi Retractors
Extra Small Joint, Calcaneal and Small Bone Distractor
Faillace Ambidextrous Self-Retaining Retractors
Femur/Tibia Fracture Distractor
Flat Gelpi Retractors
Gelpi Retractors
Gurbani Joint Distractor/Compressor
Hendren Retractor
HFD Compressor/Distractors
Joint, Calcaneal and Small Bone Compressors
Gurbani Joint Distractor/Compressor
Hendren Retractor
HFD Compressor/Distractors
Incision Aligner
Joint, Calcaneal and Small Bone Compressors
Joint, Calcaneal, Small Bone Compressor/Distractor
Joint, Calcaneal and Small Bone Compressor/Distractors with Speed Lock
Joint, Calcaneal and Small Bone Distractors
Large Exposure Self-Retaining Retractor
Large Pin Distractor and Compressor
Joint, Calcaneal, Small Bone Compressor/Distractor
Joint, Calcaneal and Small Bone Compressor/Distractors with Speed Lock
Joint, Calcaneal and Small Bone Distractors
Large Exposure Self-Retaining Retractor
Large Pin Distractor and Compressor
Lombardi Bone Hooks
Meyerding Type Retractors with Ergonomic Handle
Modified Hohmann Retractors
Radiolucent Hohmann Retractors
OrthoLucent™ Mini Hohmann Retractors
Lombardi Bone Hooks
Meyerding Type Retractors with Ergonomic Handle
Modified Hohmann Retractors
OrthoLucent™ Hohmann Retractors
OrthoLucent™ Mini Hohmann Retractors
Radiolucent Richardson-type Soft Tissue Retractor
Rake Retractors with Ergonomic Handle
Sarraf Coated Hip Dislocation Hook
Self-Retaining Tension Retractor
Spine/Trauma Deep Tissue Retractor
OrthoLucent™ Richardson-type Soft Tissue Retractors
Rake Retractors with Ergonomic Handle
Sarraf Coated Hip Dislocation Hook
Self-Retaining Tension Retractor
Spine/Trauma Deep Tissue Retractor
Stainless Steel Ratchet Frame with Arms and Blades Sets
Stoll Retractor/Wire Guide
Wide Rake Retractors with Ergonomic Handle
Wurapa Small JointCompressor and Pin Distractor
NEW! Stainless Steel Hip Surgery Ratchet Frame with Arms and Blades Sets
NEW! Stoll Retractor/Wire Guide
Wide Rake Retractors with Ergonomic Handle
Wurapa Small JointCompressor and Pin Distractor



Blount Retractor with Small Handle

A blount retractor with a lightweight ergonomic handle designed for tissue retraction and closure assistance in knee, shoulder, and hip arthroplasty


Designed by Ronald Romanelli, MD



Blount Retractor with Small Handle

Blount Retractor with Small Handle

Product No:4852
Overall Length: 9.375" (25,1 cm)
Handle Length: 4.625" (11,7 cm)
Blade Depth: 1.5" (3,8 cm)
Blade Width at Widest: .325" (8,3 mm)
Download Product Brochure (PDF)

TOP





Bone Hooks


Designed by R.L. Wixson, MD


Bone Hooks



Bone Hook Ends

Bone Hook Ends

Designed for proximal femoral elevation in total hip replacement or in other surgery with a similar need for bone manipulation. The instrument has a blunt tip and a large handle to accommodate the use of two hands if desired.

Bone Hooks

Product No’s.
5910 [Small] • 25mm Curve Diameter
5915 [Medium] • 35mm Curve Diameter
5920 [Large] • 50mm Curve Diameter
Overall Length: 12.75"
Handle Length: 4.75"
Download Product Brochure (PDF)

TOP





Bone Hook with Cable/Wire Hole


Designed by R.L. Wixson, MD & J. McCarthy, MD


Bone Hook with Cable/Wire Hole

The instrument has a blunt tip with a 2mm cable/wire hole, and a large handle to accommodate the use of two hands if desired.

Bone Hook with Cable/Wire Hole

Product No: 5920-01
50mm Curve Diameter
Overall Length: 12.75"
Handle Length: 4.75"

TOP





Chung Weitlaner Retractor

Features long prongs allowing use of a small retractor in a small, but deep wound


Designed by Raymond Chung, MD


Chung Weitlaner Retractor

Prong lengths of 25mm and 30mm now available
with either sharp or blunt tips, in both 3x2 or 3x4 prong versions.

Chung Weitlaner Retractor

Particularly useful for volar approach to the distal radius in large patients and for mini-open rotator cuff surgery.

Product No’s:


BLUNT TIPS

5065 [2x3 Prongs]
Blade Depth: 25 mm
 Overall Length: 4.5" (11,4 cm)


5065-01 [3x4 Prongs]
 Blade Depth: 25 mm
 Overall Length: 4.5" (11,4 cm)


5067 [2x3 Prongs]
 Blade Depth: 30 mm
 Overall Length: 4.5" (11,4 cm)


5067-01 [3x4 Prongs]
 Blade Depth: 30 mm
 Overall Length: 4.5" (11,4 cm)



SHARPS TIPS

5066 [2x3 Prongs]
 Blade Depth: 25 mm
 Overall Length: 4.5" (11,4 cm)


5066-01 [3x4 Prongs]
 Blade Depth: 25 mm
 Overall Length: 4.5" (11,4 cm)


5068 [2x3 Prongs]
 Blade Depth: 30 mm
 Overall Length: 4.5" (11,4 cm)


5068-01 [3x4 Prongs]
 Blade Depth: 30 mm
 Overall Length: 4.5" (11,4 cm)

Download Product Brochure (PDF)

TOP





Cobb Elevators






Cobb Elevators



Ultra hard titanium nitride coating helps to extend blade life by increasing surface hardness, prolonging sharpness, and resisting chemicals and corrosion.

Cobb Elevators


Product No's:

With Teeth:

3432 [1/2" with Teeth]
Overall Length: 11" (27,9 cm)
Blade Width: 1/2" (13 mm)


3434 [1" with Teeth]
Overall Length: 11" (27,9 cm)
Blade Width: 1" (25,4 mm)

Without Teeth:

3436 [1/2" without Teeth]
Overall Length: 11" (27,9 cm)
Blade Width: 1/2" (13 mm)


3438 [1" without Teeth]
Overall Length: 11" (27,9 cm)
Blade Width: 1" (25,4 mm)
Download Product Brochure (PDF)

TOP

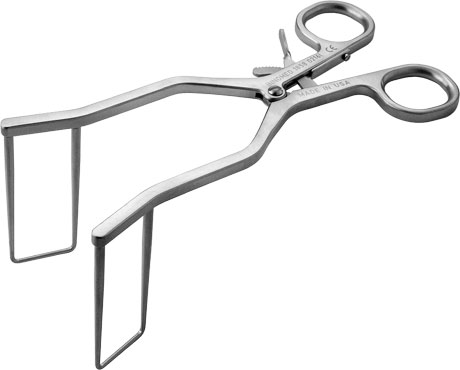

Desai Clearview Open Blade Self-Retaining Retractor

Open blade design allows clear visualization of soft tissue and neurovascular structures being retracted


Designed by Sarang Desai, DO


Desai Clearview Open Blade Self-Retaining Retractor

Tapered blades allows 90° deep soft tissue retraction and easy insertion into the wound.
Open blades also allow surgeon to work in open blade area, such as for gastroc recession surgery.

Desai Clearview Open Blade Self-Retaining Retractor


Product No: 1858
Overall Length: 7.25" (18,4 cm)
Blade Depth: 3" (7,6 cm)
Blade Width: 1.25" (3,2 cm)
Download Product Brochure (PDF)

TOP





Dodson Modular Retractor

Designed to help expose a small to medium size bone for internal fixation—can be used for distal radius, ulna, humerus, and fibula fractures


Designed by Mark A. Dodson, MD
U.S. Patent #9,161,745 B2


Dodson Modular Retractor

DodsonX-RayImageDodson Modular Retractor

Dodson Modular Retractor

Allows the limb to be rotated (pronated or supinated) without loss of exposure. The hohmann retractors have three hole sizes which allow for a variety of positioning angle options using the teeth of the self-retaining retractor, or can also be positioned in-between the teeth. The hohmann is placed around the bone, and thus reduces the force on the soft tissues while increasing exposure. Can be used in the forearm to treat radius and ulna shaft fractures, humerus fractures, as well as in the leg for fibula fractures.

The Optional OrthoLucent™ blade is made of a strong, lightweight carbon fiber PEEK composite material, which is completely radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized.

Dodson Modular Retractor

Dodson Modular Retractor

Product No's:

1838-00 [Set]

Set consists of one self-retaining retractor, two stainless steel mini-hohmann retractor blades, and a stertilization case.

U.S. Patent # 9,161,745 B2


Replacement Parts:

1838-01 [Retractor Only]
Overall Length: 5.5" (14cm)

1838-02 [Stainless Steel Blade Only – One]
(Two included in set – one with this product number)
Overall Length: 5.25" (13,3cm)
Blade Width: 3/8" (9mm)


1025 [Sterilization Case Only]

Optional Parts:

1838-02R [OrthoLucent™ Blade Only – One]
Overall Length: 5.25" (13,3cm)
Blade Width: 3/8" (9mm)
Download Product Brochure (PDF)

TOP





Double Bent Extended Deep Tissue Retractor

Designed to help maximize exposure with 90° arms and deep tissue blades





Bone Depth Gauge


Product No: 1859
Overall Length: 8" (20,3 cm)
Handle-to-Bend Length: 6" (15,2 cm)
Drop Depth: 3" (7,6 cm)
Prongs: 1.375" Deep x 1.375" Wide (3,5 cm x 3,5 cm)
Download Product Brochure (PDF)

TOP





Dozier Radiolucent Bennett Hip Fracture Retractor

Can be kept in place while using image intensification or taking an x-ray


Designed by John K. Dozier, MD


Dozier Radiolucent Bennett Hip Fracture Retractor

Handle can be rotated to right or left.

Dozier Radiolucent Bennett Hip Fracture Retractor

Designed to be used in hip fractures with the advantage that the retractor can be kept in place while using image intensification or taking an x-ray. The handle can be rotated to the right or left for surgeon preference.May be steam or gas sterilized.

Product No: 6870
Handle Length: 6.75"
Blade Length: 8.5"
Blade Width at Widest: 67mm
Download Product Brochure (PDF)

TOP

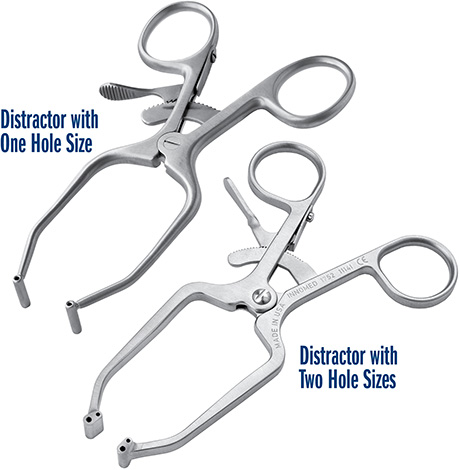

Extra Small Joint, Calcaneal and Small Bone Distractor

Two hole sizes allow for easier pin size selection and helps with distraction in fracture and osteotomy procedures





Extra Small Joint, Calcaneal and Small Bone Compressor

1/16" (1.6 mm) & 3/32" (2.4 mm)
Pin Hole Diameters


Product No: 4210-XSD [Extra Small Distractor]
Overall Length: 4.25" (10,8 cm)
Download Product Brochure (PDF)

TOP

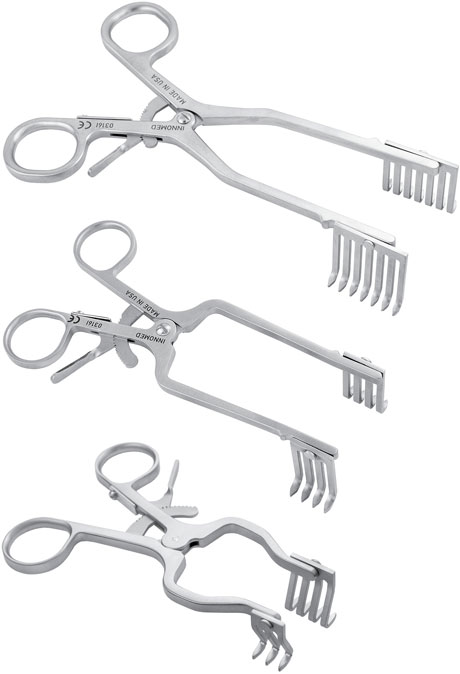

Faillace Ambidextrous Self-Retaining Retractors

Handle is designed to be rotated away from the surgeon after placement if desired


Designed by John J. Faillace, MD


Faillace Ambidextrous Self-Retaining Retractors


Faillace Ambidextrous Self-Retaining Retractors
Faillace Ambidextrous Self-Retaining Retractors


Product No's:

1579 [4 Teeth]
Overall Length: 6" (15,2 cm)
Prong Depth: 38 mm
Prong Width: 18 mm

1580 [7 Teeth]
Overall Length: 7.5" (19,1 cm)
Prong Depth: 38 mm
Prong Width: 34 mm


1579-01 [Small – 4 x3 Teeth]
Overall Length: 5.25" (13,3 cm)
Prong Depth: 20 mm
Prong Width: 18 mm / 13 mm



VIEW SURGICAL VIDEO

Download Product Brochure (PDF)

TOP





Femur/Tibia Fracture Distractor

Use with most bone clamps for overlapped diaphyseal fractures (fig. 1 below) or 6 mm Schanz pins to distract intra-articular fractures (fig. 2 below) for reduction and fixation





Femur/Tibia Fracture Distractor

Femur/Tibia Fracture Distractor


Product No's:

1809
Overall Length: 10.5" (26,7 cm)
Overall Width: 7.25" (18,4 cm)
For Pins Up To: .25" (6,4 mm)

Bone clamps and Schanz pins not included.
Individual/Replacement Parts:

1809-02 [Pivot Block]

1809-03 [Frame (no pivot blocks or moveable arm)]

1809-04 [Moveable Arm (no pivot block or handle)]

1809-05 [Handle]


A portion of all proceeds goes to
SIGN Fracture Care International
a 501(c)(3) non-profit, to promote
equality of fracture care in
developing countries.
signfracturecare.org

Download Product Brochure & Technique (PDF)

TOP





Flat Gelpi Retractors

Designed to help retract a broader area of soft tissue or muscle





Flat Gelpi Retractors

The two largest sizes feature double ergonomic handles for increased comfort and control.


Product No’s:

4191 [Small]
Overall Length: 6.5" (16,5 cm)
Prong Depth: 1.25" (3,2 cm)


4192 [Medium]
Overall Length: 7.25" (18,4 cm)
Prong Depth: 1.75" (4,4 cm)


4193 [Large]
Overall Length: 9" (22,9 cm)
Prong Depth: 3" (7,6 cm)


4194 [Deep]
Overall Length: 10" (24,4 cm)
Prong Depth: 5" (12,7 cm)
Download Product Brochure (PDF)



TOP





Gelpi Retractors





Gelpi Retractors



Product No’s:

4180 [Standard]
Overall Length: 7.75" (19,7 cm)

4181 [With Ergonomic Handle]
Overall Length: 8.75" (22,2 cm)
Download Product Brochure (PDF)

TOP





Gurbani Joint Distractor/Compressor

Versatile joint distractor/compressor provides 360° freedom for arthroscopic or open procedures of foot, ankle, hand, and wrist joints


Designed by Naren G. Gurbani, MD


Gurbani Joint Distractor/Compressor

Gurbani Joint Distractor/Compressor

The surgeon puts the pins in the bone, then slides the holes of the device over the pins and distracts or compresses—the device can be locked in either direction. Especially useful for arthroscopy of subtalar, talo-navicular, calcaneo-cuboid, and wrist joints. The T-wrench helps provide precise, controlled manipulation.

Pin Hole Sizes:
.15" (3,5 mm) and .182" (4,5 mm)

Product No’s:

4208-00 [Set with Case]
Includes: Distractor/Compressor, T-Wrench, and Case

4208-01 [Distractor/Compressor Only]
Dimensions: 6" w x 5" h (15,2 cm x 12,7 cm)
Distracts up to: 3" (7,6 cm)
Compresses down to: .5" (1,3 cm)

4208-TW [T-Wrench]
Dimensions: 3" w x 3" h (7,6 cm x 7,6 cm)

1025 [Sterilization Case]
Download Product Brochure (PDF)

TOP





Hendren Self-Retaining Retractor

Gentle on tissue, effectively holds back subcutaneous fat, and can be useful for retracting the deltoid muscle firmly


Designed by D.H. Hendren, MD


Hendren Self-Retaining Retractor

Designed to be gentle on tissue and very effective in holding back subcutaneous fat. Also useful for retracting the deltoid muscle firmly. Available in three sizes.

Hendren Retractor in Surgery

Product No’s.
1730 3.5" Length, 10 x 12mm Blade Size
1745 5.5" Length, 18 x 13mm Blade Size
1750 6.5" Length, 22 x 14mm Blade Size
Download Product Brochure (PDF)

TOP





HFD Compressor/Distractors

Dial mechanism helps allow precise control of inserted wires in small bone surgery, for maintaining a position, compressing or distracting






HFD Compressor/Distractors


HFD Small Bone Compressor/Distractor

On the small units, a .125" (3,2 mm) pin can be used in the holes of the thumbwheel for leverage.

There are two versions of the small and large size: one all stainless steel, one with radiolucent arms.



Radiolucent arms are a PEEK/Carbon Fiber composite.



All models are steam sterilizable.


Product No's:

1834 [Small — All Stainless Steel]
Dimensions: 51 mm x 57 mm
Maximum Arm Opening: 1.35" (3,4 cm)
Holes: For pins up to .045" (1,1 mm) & .062" (1,6 mm)

1834-R [Small with Radiolucent Arms]
Dimensions: 51 mm x 57 mm
Maximum Arm Opening: 1.35" (3,4 cm)
Holes: For pins up to .045" (1,1 mm) & .062" (1,6 mm)


1836 [Large]
Overall Length: 4" (10,2 cm)
Maximum Arm Opening: 2.25" (5,7 cm)

Holes: For pins up to .082" (2,0 mm) &
.125" (3,2 mm)

1836-R [Large with Radiolucent Arms]
Overall Length: 4" (10,2 cm)
Maximum Arm Opening: 2.25" (5,7 cm)

Holes: For pins up to .082" (2,0 mm) & .125" (3,2 mm)
Download Product Brochure (PDF)

TOP





Incision Aligner

Designed to align an incision during closing


Designed by DMP


Incision Aligner

The bent ends of the aligner are placed at each end of an incision, which is aligned by pulling outward on each end. The sliding end will lock in place when it is tensioned. Pressing inward slightly on the sliding end will allow the aligner to be collapsed and removed.

Incision Aligner in Surgery

Product No: 1330
Overall Length: 14"
Blade Offset: 45mm
Download Product Brochure (PDF)

TOP





Joint, Calcaneal and Small Bone Compressors

Designed for compression in fracture and osteotomy procedures






Joint, Calcaneal and Small Bone Compressors

Two hole sizes allow for
ease of pin size selection:
1/16" (.062") (1.6 mm) &
3/32" (.094") (2.4 mm)


Product No’s:

4210-SC [ Small Compressor]
Overall Length: 6" (15,2 cm)

4210-XSC [Extra Small Compressor]
Overall Length: 4.25" (10,8 cm)
Download Product Brochure (PDF)

TOP





Joint, Calcaneal, Small Bone Compressor/Distractor

Selection lever switches the mechanism from compression to distraction





Joint, Calcaneal, Small Bone Compressor/Distractor

Simply squeeze the handle one time after direction selection to engage the mechanism. Two hole sizes for pin size selection. Calibrated ratchet handle.

Product No's:

4865-LS [Standard]
Overall Length: 8.5"
Holes For: .062" & .094" (1.6 & 2.4 mm) K-wire Pins

VIDEO:
Engaging the Switching Mechanism

Download Product Brochure (PDF)

TOP





Joint, Calcaneal and Small Bone Compressor/Distractors with Speed Lock

Speed lock helps allow precise control and prevents unintended release





Joint, Calcaneal and Small Bone Distractors with Speed Lock

Helpful in a variety of indications.

Thumbscrews help prevent the unit
from sliding on the pins.


Product No's:

Closed Arms with Speed Lock

4216-LS [Large]
Hole Diameters: For .062" & .094" (1.6 & 2.4 mm)
Overall Length: 8" (20,3 cm)


4216-SS [Small]
Hole Diameters: For .062" & .094"(1.6 & 2.4 mm)
Overall Length: 6" (15,2 cm)


4216-XS [Extra Small]
Hole Diameters: For .062" & .094"(1.6 & 2.4 mm)
Overall Length: 4.5" (11,4 cm)

Outspread Arms with Speed Lock & Thumbscrews

4217-LB [Large]
Hole Diameters: For .062" & .094"(1.6 & 2.4 mm)
Overall Length: 8" (20,3 cm)

Closed Arms with Speed Lock & Thumbscrews

4217-SS [Small]
Hole Diameters: For .062" & .094"(1.6 & 2.4 mm)
Overall Length: 6" (15,2 cm)
Download Product Brochure (PDF)

TOP





Joint, Calcaneal and Small Bone Distractors

Two hole sizes and two arm designs allow for easier pin size selection and helps with distraction in a variety of indications


Thumbscrew Modification
Designed by Kelly McCormick, MD


Joint, Calcaneal and Small Bone DistractorsJoint, Calcaneal and Small Bone Distractors

Product No’s:

SMALL
Overall Length: 6" (15,2 cm)
Holes Diameters: For 1.6 mm & 2.4 mm K-wire Pins
4210-SS [Closed Arms]
4210-SB [Outspread Arms]

LARGE
Overall Length: 8" (20,3 cm)
Holes Diameters: For 1.6 mm & 2.4 mm K-wire Pins
4210-LS [Closed Arms]
4210-LB [Outspread Arms]

Thumbscrews help prevent the unit from sliding on the pins

SMALL WITH THUMBSCREWS
Overall Length: 6" (15,2 cm)
Holes Diameters: For 1.6 mm & 2.4 mm K-wire Pins
4215-SS [Closed Arms]
4215-SB [Outspread Arms]

LARGE WITH THUMBSCREWS
Overall Length: 8" (20,3 cm)
Holes Diameters: For 1.6 mm & 2.4 mm K-wire Pins
4215-LS [Closed Arms]
4215-LB [Outspread Arms]

Joint, Calcaneal and Small Bone Distractors

Download Product Brochure (PDF)

TOP





Large Exposure Self-Retaining Retractor

Designed for effective exposure of large wounds


Designed by Vincent Ng, MD


Large Exposure Self-Retaining Retractor
Product No: 1581-01
Overall Length (flat): 15.75" (40 cm)
Leg Depth from Bend: 5.25" (13,3 cm)
Download Product Brochure (PDF)

TOP





Large Pin Distractor and Compressor

Larger 1/8" (3,2 mm) pin hole size for extra sturdy distraction or compression





Large Pin Distractor and Compressor
Product No's:
4233 [Large Pin Distractor]
Hole Diameters: For .125" (3,2 mm) K-wire Pins
Overall Length: 8" (20,3 cm)


4234 [Large Pin Compressor]
Hole Diameters: For .125" (3,2 mm) K-wire Pins
Overall Length: 8" (20,3 cm)
Download Product Brochure (PDF)

TOP





Lombardi Bone Hooks


Designed by Adolph V. Lombardi, Jr., MD


Lombardi Bone Hooks

3 Sizes Available

Product No’s:
5925 [Small] • 25mm Curve Diameter
5930 [Medium] • 35mm Curve Diameter
5935 [Large] • 50mm Curve Diameter
Download Product Brochure (PDF)

TOP





Meyerding Type Retractors with Ergonomic Handle

Designed for general use soft tissue retraction, the ergonomic handle allows for a better grip and less fatigue







Meyerding Type Retractors with Ergonomic Handle


Meyerding Type Retractors with Ergonomic Handle


Non-glare finish featured on the metal retractor parts.


Product No’s:

6241 [50 x 16 mm]
Overall Length: 8.875" (22,5 cm)
Blade Width: 16 mm
Blade Depth: 50 mm


6242 [75 x 15 mm]
Overall Length: 9" (22,9 cm)
Blade Width: 15 mm
Blade Depth: 75 mm


6243 [75 x 25 mm]
Overall Length: 9" (22,9 cm)
Blade Width: 25 mm
Blade Depth: 75 mm

Download Product Brochure (PDF)

TOP





Modified Hohmann Retractors — Narrow

Handle is contoured to allow better leverage and visualization


Short-tipped Designed by Carl DiRaimondo, MD


Modified Hohmann Retractors — Narrow

Useful for retracting tissues around the bone. Can be held in place with weights or by hand.

The OrthoLucent™ version is made of a lightweight carbon fiber PEEK composite material, which is completely radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized.

Product No's:

4535 [Narrow]
Overall Length: 10"
Blade Width: 14mm


4535-R [OrthoLucent™ Narrow]
Overall Length: 10"
Blade Width: 18mm


4535-01 [Extra Deep Narrow]
Overall Length: 11.625” (29,5cm)
Blade Width: 16.4mm

4545 [Short-tipped Narrow]
Overall Length: 9.5"
Blade Width: 14mm
Download Product Brochure (PDF)

TOP





Modified Hohmann Retractors — Wide

Handle is contoured to allow better leverage and visualization




Modified Hohmann Retractors — Wide

Useful for retracting tissues around the bone. Can be held in place with weights or by hand.

Product No's:

6595 [Wide]
Overall Length: 10" (25,4cm)
Blade Width: 42,5mm


6595-01 [Extra Deep Wide]
Overall Length: 11.5" (29,2cm)
Blade Width: 42,5mm
Download Product Brochure (PDF)

TOP





OrthoLucent™ Hohmann Retractors

The OrthoLucent™ carbon fiber PEEK composite material is strong, lightweight, completely radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized





Radiolucent Hohmann Retractors



Product No’s:

4535-R [Modified Narrow]
Blade Width: 18mm
Overall Length: 10" (25,4cm)

4550-R [Modified Blunt]
Blade Width at End: 11mm
Overall Length: 10.75" (27,3cm)

4558-R [Standard]
Blade Width: 16mm
Overall Length: 9.46" (24 cm)

7110-R [Narrow Bent]
Blade Width: 19mm
Overall Length: 9.75" (23,8cm)
Handle Length: 7" (17,8cm)
Depth from Bend: 4.75" (12,1cm)

Download Product Brochure (PDF)


TOP





OrthoLucent™ Mini Hohmann Retractors

Radiolucent, lightweight retractors


Designed by Jeffrey Lawton, MD


OrthoLucent™ Mini Hohmann Retractors


The carbon fiber PEEK material is strong, lightweight, completely radiolucent, can be steam sterilized, and helps to prevent from marring component surfaces.




Product No's:

1594-R [8mm Blade]
Overall Length: 6.875"
Blade Width: 8 mm
1597-R [16mm Blade]
Overall Length: 6.875"
Blade Width: 16 mm
Download Product Brochure (PDF)

TOP





OrthoLucent™ Richardson-type Soft Tissue Retractors

Radiolucent, lightweight retractor helps to retract soft tissues for enhanced exposure


Designed by Sean B. Kaminsky, MD


OrthoLucent™ Richardson-type Soft Tissue Retractor

OrthoLucent™ Richardson-type Soft Tissue Retractor

The OrthoLucent™ carbon fiber material is strong, lightweight, completely radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized.

Four sizes available.

Product No's:
3231-23R [23mm]
Overall Length: 13"
Large Blade: 23mm x 36mm

3231-30R [30mm]
Overall Length: 13"
Large Blade: 30mm x 42mm

3231-37R [37mm]
Overall Length: 13"
Large Blade: 37mm x 52mm

3231-44R [44mm]
Overall Length: 13"
Large Blade: 44mm x 78mm
Download Product Brochure (PDF)

TOP





Rake Retractors with Ergonomic Handle

Designed for general use soft tissue retraction, the ergonomic handle allows for a better grip and less fatigue




Rake Retractors with Ergonomic Handle

Non-glare finish featured on the metal retractor parts.

Product No's:

4839 [3-Prong]
Overall Length: 9.5" (24,1 cm)
Rake Width: 13 mm
Rake Depth: 14 mm
4840 [4-Prong]
Overall Length: 9.5" (24,1 cm)
Rake Width: 19 mm
Rake Depth: 14 mm

Download Product Brochure (PDF)

TOP





Sarraf Coated Hip Dislocation Hook

Designed to aid in dislocating a femoral stem while helping to prevent damage to the trunnion


Designed by Khaled M. Sarraf, MD


Rosenstein Tibial Fragment Grasper for UKA

Coated hook end helps to prevent from marring component surfaces.

Can also be used as a bone hook, and for femoral elevation.


Product No: 5905
Curve Diameter: 50 mm
Overall Length: 12.5" (31,8 cm)
Handle Length: 4.75" (12,1 cm)
Download Product Brochure (PDF)

TOP





Self-Retaining Tension Retractor

The expandable design allows for a wide variety of blades to be used for exposure in total joint and trauma procedures







Self-Retaining Tension Retractor

Handle only — blades not included.

Self-Retaining Tension Retractor
Self-Retaining Tension Retractor

Product No: 1586
Overall Length: 8.875" (22,5 cm)
Maximum Width at Pegs: 8" (20,3 cm)
Download Product Brochure (PDF)

TOP





Spine/Trauma Deep Tissue Retractor

Designed to help maximize exposure with 90° arms and deep tissue blades


Designed by Patti Albrecht



Spine/Trauma Deep Tissue Retractor

Available in configurations of 7 or 4 teeth to help maximize exposure.

Product No's:
:
1862 [4 Teeth]
Overall Length: 7.5" (19,1 cm)
Handle-to-Bend Length: 6" (15,2 cm)
Drop Depth: 3.25" (8,3 cm)
Prongs: 1.5" Long x .75" Wide (38 mm x 19 mm)

1863 [7 Teeth]
Overall Length: 7.5" (19,1 cm)
Handle-to-Bend Length: 6" (15,2 cm)
Drop Depth: 3.25" (8,3 cm)
Prongs: 1.5" Long x 1.375" Wide (38 mm x 35 mm)
Download Product Brochure (PDF)

TOP





Stainless Steel Hip Surgery Ratchet Frame with Arms and Blades Sets

Designed for self-retaining wound exposure, the arms and blades of the OrthoLucent™ version are radiolucent and can be kept in place while using image intensification or taking an x-ray








Stainless Steel Ratchet Frame with Arms and Blades Sets

Arms rotate 180° and mobile arm units can be detached from the ratchet body for cleaning.



Set with OrthoLucent™ Arms and Blades

The OrthoLucent arms and blades are made of a strong, lightweight carbon fiber PEEK composite material, which is radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized.

Product No's:

7428-00 [Set with OrthoLucent Arms & Blades]

Set Includes:


7427-02 [50 mm OrthoLucent Blade]
Dimensions: 50 mm Deep X 25 mm Wide


7427-03 [75 mm OrthoLucent Blade]
Dimensions: 75 mm Deep X 25 mm Wide



Optional Blade – Not Included In Set:

7427-04 [100 mm OrthoLucent Blade]
Dimensions: 100 mm Deep X 25 mm Wide

Other Options Available Are:

7428-01 [Stainless Steel Ratchet Frame
with OrthoLucent Arms Assembly]
Dimensions (Flat): 10" x 5.625" (25,4 cm x 14,3 cm)
Arms Extend: 4.25" (10,8 cm)






Set with Stainless Steel Arms and Blades

Product No's:

7429-00 [Set with Stainless Steel Arms & Blades]

Set Includes:


7429-02 [50 mm Stainless Steel Blade]
Dimensions: 50 mm Deep X 25 mm Wide


7429-03 [75 mm Stainless Steel Blade]
Dimensions: 75 mm Deep X 25 mm Wide

Optional Blade – Not Included In Set:

7429-04 [100 mm Stainless Steel Blade]
Dimensions: 100 mm Deep X 25 mm Wide

Other Options Available Are:

7429-01 [Stainless Steel Ratchet Frame
with Stainless Steel Arms Assembly]
Dimensions (Flat): 10" x 5.625" (25,4 cm x 14,3 cm)
Arms Extend: 4.25" (10,8 cm)
Download Product Brochure (PDF)

TOP





Stoll Retractor/Wire Guide

Retractor/guide designed for aiming guide wire when performing femoral nailing (TFN for an intertrochanteric fracture), or
tibial nailing using the parapatellar approach


Designed by Jordan Stoll, MD




Stoll Retractor Wire Guide


Product No: 8012
Overall Length: 12" 30,5 cm)
Blade Width: .71" (1,8 cm)
Prong Length: 6 mm
Guide Hole Diameter: 4,5 mm



Download Product Brochure (PDF)

TOP





Wide Rake Retractors with Ergonomic Handle

Designed for general use soft tissue retraction, the ergonomic handle allows for a better grip and less fatigue




Wide Rake Retractors with Ergonomic Handle



Sharp and dull teeth available in two depths.

Non-glare finish featured on the metal retractor parts.

Product No's:

6051 [Deep, Sharp]
Overall Length: 11.175 (28,3 cm)
Blade Width: 2.375" (6 cm)
Blade Depth: 2.75" (7 cm)
6052 [Deep, Blunt]
Overall Length: 11.175 (28,3 cm)
Blade Width: 2.375" (6 cm)
Blade Depth: 2.75" (7 cm)

6053 [Shallow, Sharp]
Overall Length: 11.175 (28,3 cm)
Blade Width: 2.375" (6 cm)
Blade Depth: 1.875" (4,8 cm)
6054 [Shallow, Blunt]
Overall Length: 11.175 (28,3 cm)
Blade Width: 2.375" (6 cm)
Blade Depth: 1.875" (4,8 cm)

Download Product Brochure (PDF)

TOP





Wurapa Small JointCompressor and Pin Distractor

Designed to allow one-handed manipulation and deployment once fixation pins are placed


Designed by Raymond K. Wurapa, MD


Wurapa Pin Compressor and Pin Distractor

Wurapa Small JointCompressor and Pin Distractor
Wurapa Small JointCompressor and Pin Distractor
Wurapa Small JointCompressor and Pin Distractor

Designed to simplify several small joint procedures:

  • Useful for intercarpal stabilization while performing ligament reconstructions (e.g. scapholunate ligament repair/reconstruction)
  • Preparation of small bone non-unions before bone grafting and fixation
  • Preparation of small joints for arthrodesis (e.g. partial wrist fusion)
  • Distract and better evaluate small joints before determining final management.

Pins should be cut short above the pin guides to allow full access to the operative site.

Wurapa Tips

Product No’s:
1751 [Double 1.1 & 1.6 mm Hole Compressor]
Compresses From: 28 mm
Overall Length: 4.625"

1752 [Double 1.1 & 1.6 mm Hole Distractor]
Distracts to: 46 mm
Overall Length: 4.625"

1753 [Single 1.1 mm Hole Compressor]
Compresses From: 28 mm
Overall Length: 4.5"

1754 [Single 1.1 mm Hole Distractor]
Distracts to: 46 mm
Overall Length: 4.5"
Download Product Brochure (PDF)



TOP



2020 Innomed, Inc. All rights reserved.
