TRAUMA INSTRUMENTS • clamps & graspers

Click thumbnail image for details

≡ retraction & exposure clamps & graspers patient positioners useful trauma tools extraction & osteotomes
	Bargo Bone Holding Clamp	Bone Clamp with Speed Lock	Browner MIS Bone Clamp	Cannestra Trochanteric Fracture Reduction Clamp


Chen Diaphyseal Fracture Reduction Clamp	NEW DESIGN Chen Low Profile Plate/Bone Clamp	Delrin Insert Pliers	Desai Jones Fracture Reduction Clamp	Durham Bone Reduction Clamps


Durkan Ratchet Bone Clamps	Extended Double Action Pliers	Faillace Extra Small Bone Clamp	NEW! Fracture Reduction Clamp Double Curve with Speedlock	Fracture Reduction Punch Clamp


Intraarticular Tissue Grasper/Rongeurs	Large Bone Clamp with Plate Protection	Lateral Condyle Fracture Set	Long Jaw Needle Nose Pliers	OrthoLucent™ O’Brien Bone Clamp


O'Brien Bone Clamp	O'Brien Bone Clamps	OrthoLucent™ Small Bone Clamp	Periarticular Reduction Forceps	Pointed Fracture Reduction Clamps


Ratcheting Reduction Clamp Assembly	Shark Tooth Graspers	Small Bone Holding Forceps with Long Ratchet	Stanton Articulating Small Bone Clamps	Stoll Bone Plate Clamp


Subtrochanteric Femur Fracture Reduction Clamp	Sure Grip Soft Tissue Graspers	Vosburg Cannulated Periarticular Clamp	Weinert Bone Holding Elbow Fracture Reduction Clamp	Weinert Bone Holding Reduction Double Curved Clamp

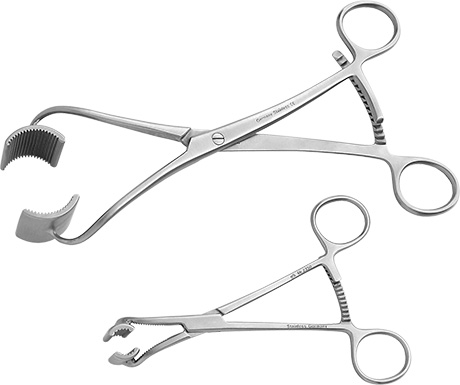

Bargo Bone Holding Clamp Designed to aid in the reduction of various fractures, and can help secure a plate in place during installation				Designed by Lonnie Bargo, CST/CFA

				Designed to aid in the reduction of various fractures such as: spiral, transverse, compound, oblique, or butterfly. The clamp can also be used to secure a plate in place while the screw holes are being drilled and screws inserted. The fracture site can also be manipulated with the clamp being used as a lever. Available in two sizes, large and small, it has teeth in the jaws for a better grip and a ratchet locking handle for use on various bone diameters. Product No’s: 1895-01 [Small] Overall Length: 5" (12,7 cm) Pads: .75" x .45" (19 x 12 mm) 1895-02 [Large] Overall Length: 8.5" (21,6 cm) Pads: 1.25" x 1" (32 mm x 25 mm) Download Product Brochure (PDF)
				TOP

Bone Clamp with Speed Lock Designed to help hold a bone in position for reduction

				Product No: 3659 Overall Length: 9.125 (23,2 cm) Download Product Brochure (PDF)
				TOP

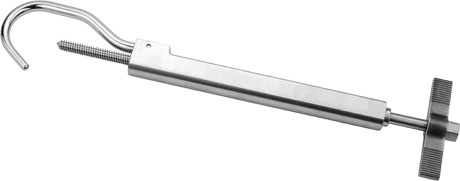

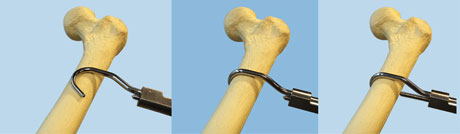

Browner MIS Bone Clamp Designed to help hold a bone or bone plate for fixation, the clamp is inserted anterior to the bone, rotated to wrap around the bone, then screwed into the desired position				Designed by Bruce D. Browner, MD

				Sized to allow use on a femur, tibia or humerus. Product No: 1379 Overall Length: 9.25” to 11.5”" (23,5 to 29,2 cm) Maximum Bone Diameter: ~ 35 mm Download Product Brochure (PDF)
				TOP

Cannestra Trochanteric Fracture Reduction Clamp Designed to help reduce comminuted intertrochanteric and subtrochanteric hip fractures, this clamp is offset at its ends to avoid placement into the fracture bed				Designed by Vince Cannestra, MD

				Clamping ends are curved and rotated to allow maximum bony contact upon fracture reduction. Ideal for fractures with a flexed anterior cortical spike. Made for right and left hip fracture configurations. Product No’s: 3860-L [Left] Overall Length: 11.25" (28,6 cm) 3860-R [Right] Overall Length: 11.25" (28,6 cm) Download Product Brochure (PDF)
				TOP

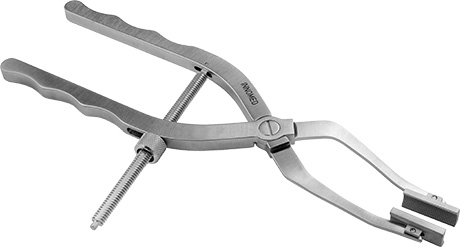

Chen Diaphyseal Fracture Reduction Clamp Designed to facilitate and maintain reduction of the internal fixation of diaphyseal and meta-diaphyseal fractures of long bones				Designed by Franklin Chen, MD

				Works especially well with short oblique bones while providing room to implement the plate with this bone clamp still in place. • Pivoting pads accommodate metaphyseal fractures • The quick release enables adjustment without losing reduction • Helps provide provisional reduction of diaphyseal fractures – humeral shaft fractures, tibial fractures Product No: 1808 Overall Length: 9.25" (23,5 cm) Arm Downward Offset: 15 mm Pad Dimensions: 1" x .375" (25,4 cm x 1 cm) Download Product Brochure (PDF)
				TOP

Chen Low Profile Plate/Bone Clamp Designed for plate to bone clamping in diaphyseal forearm and humerus fractures				Designed by Franklin Chen, MD

				Also useful for distal radius fractures, as well as a variety of lower extremity fractures. Product No: 1639 Overall Length: 2.75" (7 cm) Prong Depth: .675" (17 mm) Prong Width: 5 mm Download Product Brochure (PDF)
				TOP

Delrin Insert Pliers Designed to grasp an implant for adjustment without marring the implant surface

				Product No: 2025 Overall Length: 8" (20,3 cm) Replacement Part: 2025-03 [Replacement Insert] Includes top and bottom delrin jaws, two screws and a hex wrench Download Product Brochure (PDF)
				TOP

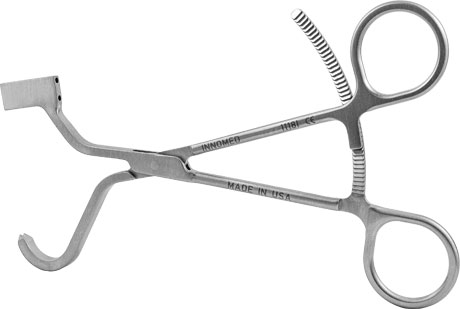

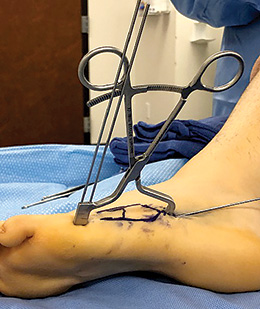

Desai Jones Fracture Reduction Clamp

Designed to reduce and maintain reduction of Jones fractures, helping to prevent distraction and/or rotation during wire, tap, and subsequent screw placement

Designed by Sarang Desai, DO

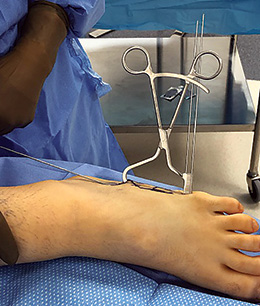

Desai Jones Fracture Reduction Clamp

Desai Jones Fracture Reduction Clamp

Desai Jones Fracture Reduction Clamp

Distally there are two k-wire holes for placement in the distal 5th metatarsal and the 2-pronged clamp proximally is placed on the tuberosity, allowing a "high and inside" screw placement without interference.

Product No:1802
Overall Length: 6" (15,2 cm)
Wire Block Length: 20 mm
Hole Separation: 5 mm on Center

Download Product Brochure (PDF)

TOP

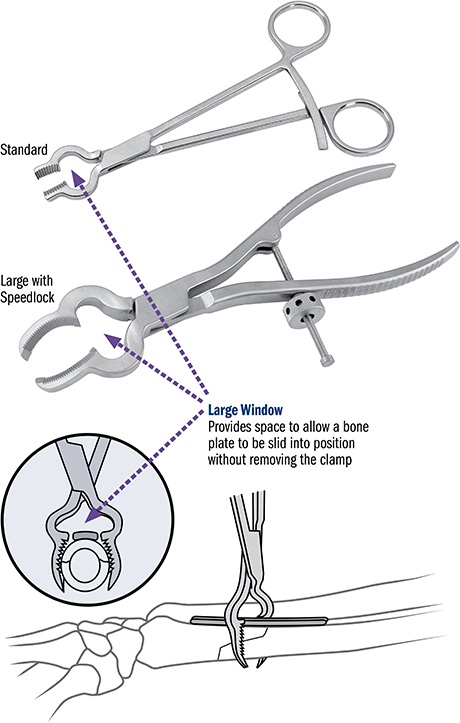

Durham Bone Reduction Clamps Allows application of a bone plate without removing the reduction clamp				Designed by Alfred A. Durham, MD

				The standard clamp is designed for medium size bones such as the fibula, ulna, and radius. The large clamp with speedlock is designed for large bones such as the femur and tibia. Product No's: 3652 [Standard] Overall Length: 7.375" (18,7 cm) 3652-01 [Large with Speedlock] Overall Length: 9.25" (32,5 cm) Download Product Brochure (PDF)
				TOP

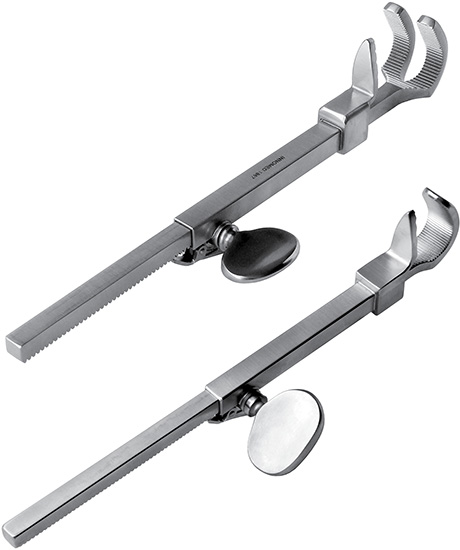

Durkan Ratchet Bone Clamps Design of ratcheting mechanism allows for quick tightening and release around the bone				Designed by John Durkan, MD

				Product No’s: 1867 [Large] Overall Length: 8.625" (21,9 cm) Jaw opens to: 3.5" (8,9 cm) 1868 [Small] Overall Length: 8.5" (21,6 cm) Jaw opens to: 3.75" (9,5 cm) Download Product Brochure (PDF)
				TOP

Extended Double Action Pliers

				Product No’s: 3962 [Needle Nose] Overall Length: 13" (33 cm) Jaw Length: 2.625" (6,7 cm) Jaw Width: 2.5 mm 3961 [Blunt Nose] Overall Length: 11.75" (29,9 cm) Jaw Length: 1.25" (3,2 cm) Jaw Width: 10 mm Download Product Brochure (PDF)
				TOP

Faillace Extra Small Bone Clamp Delicate enough to use on metacarpals but strong enough for distal radius and larger bones with its extra long ratchet				Designed by John J. Faillace, MD, FAAOS

				Product No: 1171 Overall Length: 5" (12,7 cm) Jaw Length: 1" (2,5 cm) Download Product Brochure (PDF)
				TOP

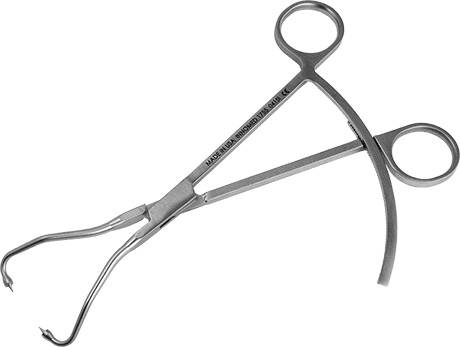

Fracture Reduction Clamp Double Curve with Speedlock Designed with a speedlock clamp and shouldered tips to reduce bone fractures

				Product No: 1755-01 Overall Length: 7.9" (20 cm) Download Product Brochure (PDF)
				TOP

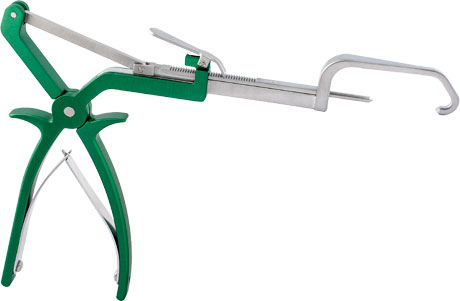

Fracture Reduction Punch Clamp Designed for use in select cases when vertical (or sagittal) plane clamping is necessary during forearm reduction, humeral fracture reduction, or diaphyseal reduction of the tibial shaft				Designed by Jong-Keon Oh, MD

				Product No: 5072 Overall Length: 10.5" (26,7 cm) Point to Point Opening: –Minimum .375" (10 mm) –Maximum 1.375" (35 mm) Pin Diameter: .125" (3,2 mm) Download Product Brochure (PDF)
				TOP

Intraarticular Tissue Grasper/Rongeurs

Used to securely grasp tissue or can be used to rongeur tissue

Intraarticular Tissue Grasper/Rongeur

Intraarticular Tissue Grasper/Rongeur

Product No’s:

STANDARD HANDLE

1790-01 [5" Standard]
Overall Length: 8" (20,3 cm)
Shaft Length: 5" (12,7 cm)

1790-03 [7" Standard]
Overall Length: 10" (25,4 cm)
Shaft Length: 7" (17,8 cm)

1790-02 [9" Standard]
Overall Length: 12" (30,5 cm)
Shaft Length: 9" (22,9 cm)

1791-02 [9" Standard with Locking Ratchet Handle]
Overall Length: 12" (30,5 cm)
Shaft Length: 9" (22,9 cm)

SMALL GRIP HANDLE
Small Grip Handle version is designed with the grip closer together for easier gripping and to help reduce hand fatigue.

1790-01-SG [5" Small Grip]
Overall Length: 8" (20,3 cm)
Shaft Length: 5" (12,7 cm)

1790-03-SG [7" Small Grip]
Overall Length: 10" (25,4 cm)
Shaft Length: 7" (17,8 cm)

1790-02-SG [9" Small Grip]
Overall Length: 12" (30,5 cm)
Shaft Length: 9" (22,9 cm)

Download Product Brochure (PDF)

TOP

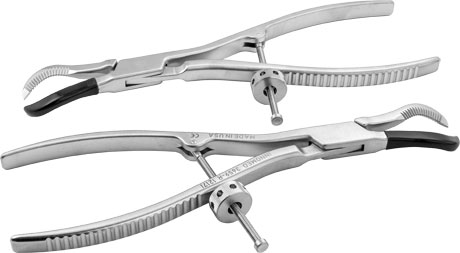

Large Bone Clamp with Plate Protection Designed to help hold a bone/bone plate in position for reduction—the one-side coated jaw helps to protect from marring the bone plate

				Left Coated and Right Coated Available Product No's: 3659-L [Left] Overall Length: 9.125 (23,2 cm0 3659-R [Right] Overall Length: 9.125 (23,2 cm) Download Product Brochure (PDF)
				TOP

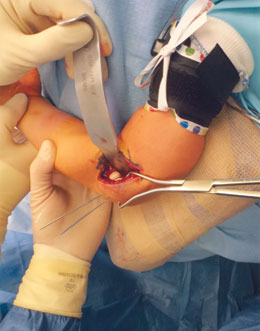

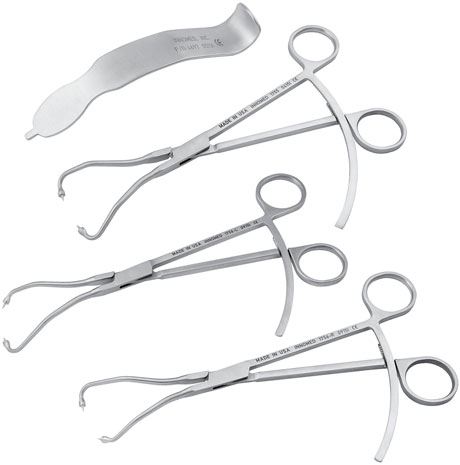

Lateral Condyle Fracture Set Designed for adult and pediatric lateral conyler fractures				Designed by Carl R. Weinert, MD

				The asymmetric clamps (1756-L & 1756-R) are shaped to secure the lateral condyle fragment. The straight tip is placed in the coronoid fossa and the curved tip is used to grasp and compress the lateral condyle fragment. The symmetric reduction clamp (1755) is useful to compress T-condylar fractures, and in many other fracture reduction applications. Product No's: 4697-00 [Set with Case] Set Includes: 1755 [Clamp – Symmetric] More Information Overall Length: 8.5" (21,6 cm) Jaw opens to: 3" (7,6 cm) 1756-L [Clamp – Assymetric Left] Overall Length: 8.75" (22,2 cm) 1756-R [Clamp – Assymetric Right] Overall Length: 8.75" (22,2 cm) 4697 [Elbow Retractor] More Information Overall Length: 6.5" (16,5 cm) Blade Width: 1" (2,54 cm) 1015 [Sterilization Case] Dimensions: 11.25" x 7.125" x 3.125" (28,6 cm x 18,1 cm x 7,9 cm) Download Product Brochure (PDF)
				TOP

Long Jaw Needle Nose Pliers

				Product No: 1833 Overall Length: 7" (17,8 cm) Jaw Length: 2.25" (5,7 cm) Jaw Width Tapered from: 8 mm to 1.5 mm Jaw Height Tapered from: 12 mm to 2.5 mm Download Product Brochure (PDF)
				TOP

OrthoLucent™ O’Brien Bone Clamp Designed for use in stabilization of a fracture				Designed by Todd O’Brien, DPM

				The carbon fiber PEEK material is strong, lightweight, completely radiolucent, can be steam sterilized, and helps to prevent from marring component surfaces. Product No: 1815-R Overall Length: 5.25" (13,3 cm) Download Product Brochure (PDF)
				TOP

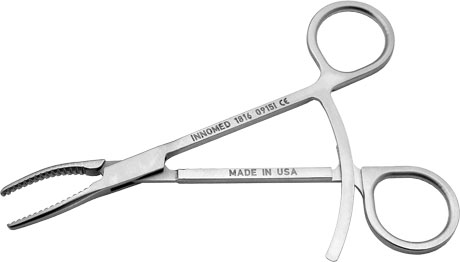

O’Brien Bone Clamp Designed for use in stabilization of a fracture or osteotomy				Designed by Todd O’Brien, DPM

				Product No: 1816 Overall Length: 5.25" (13,3 cm) Download Product Brochure (PDF)
				TOP

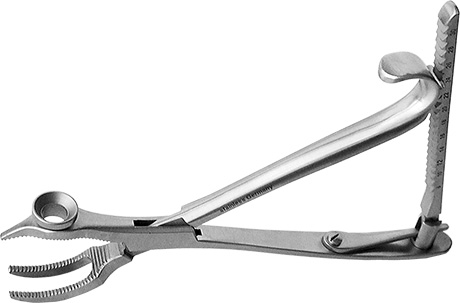

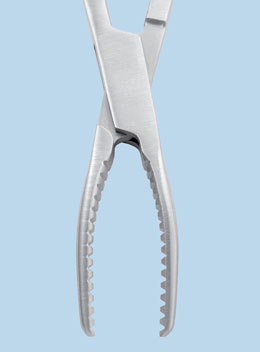

O'Brien Bone Clamps Designed for use in stabilization of a fracture or osteotomy in small bone surgery				Designed by Todd O’Brien, DPM

Integrated drill guide and bone diameter gauge				Allows for placement of the bone clamp where it can best stabilize bone fragments. The drill guide allows for screw placement through the top of the clamp. Calibrations on the handle help eliminate the use of a depth gauge. Product No’s: 1890-01 [Small] Drill Guide Diameter: 8 mm (accommodates up to 4 mm screw) Calibrated from 8 mm to 30 mm Overall Length: 6" (15,2 cm) 1890-02 [Large] Drill Guide Diameter: 10 mm (accommodates up to 6.5 mm screw) Calibrated from 12 mm to 40 mm Overall Length: 9.25" (23,5 cm) 1890-XSM [Extra Small] Drill Guide Diameter: 6 mm Overall Length: 4” (10,2 cm) Download Product Brochure (PDF)
				TOP

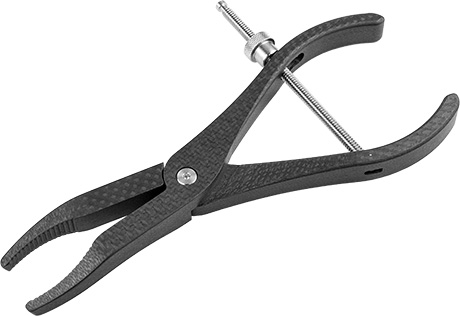

OrthoLucent™ Small Bone Clamp

				The OrthoLucent™ carbon fiber material is strong, lightweight, completely radiolucent, helps to prevent from marring component surfaces, and can be steam sterilized. Product No: 1828 Overall Length: 7" (17,8 cm) Download Product Brochure (PDF)
				TOP

Periarticular Reduction Forceps Designed for reduction of intraarticular and periarticular fractures

				Pointed ball tips help provide a secure hold in the bone despite minimal contact. Three sizes available. Product No's: 1856-01 [Small] Jaw Height @ Tips Parallel: 3.375" (8,6 cm) Jaw Width @ Tips Parallel: 7.25" (18,4 cm) Maximum Jaw Opening @ Tips: 3.1" (7,9 cm) Overall Length: 11" (27,95 cm) 1856 [Medium] Jaw Height @ Tips Parallel: 4.75" (12,1 cm) Jaw Width @ Tips Parallel: 10.5" (26,7 cm) Maximum Jaw Opening @ Tips: 5.2" (13,2 cm) Overall Length: 14.75" (37,5 cm) 1857 [Large] Jaw Height @ Tips Parallel: 6.25" (15,9 cm) Jaw Width @ Tips Parallel: 12" (30,5 cm) Maximum Jaw Opening @ Tips: 8" (20,3 cm) Overall Length: 16" (40,7 cm) Download Product Brochure (PDF)
				TOP

Pointed Fracture Reduction Clamps

Versatile set of fracture reduction clamps, each with a specific tine design that allows for appropriate vector placement so that anatomic reduction can be obtained in a number of different types of fractures

Designed by Reza Firoozabadi, MD, MA

Chung Weitlaner Retractor

1.9 mm tines allow for a snug fit in 2 mm drill holes.

Tines angled to prevent clamp “slippage” with compression.

Straight tines can be placed deep within bone which allows for far cortex compression.

Example applications: any transverse fracture (straight-straight clamp), both bone forearm fractures, olecranon fractures, medial malleolus fractures, and many more.

Speed Lock Style: Extra-long spin down allows for increased range of clamp use, and open-topped joint rotates to allow for increased range of opening, and also allows for quick release

Two styles — Speed Lock and Ratchet — each available in four tine configurations.

Product No’s:

SMALL WITH SPEED LOCK MECHANISM:

3666 [Straight Left & Right]
Overall Length: 5.5" (14 cm)

3667 [Curved Left & Right]
Overall Length: 5.5" (14 cm)

3666-L [Curved Left, Straight Right]
Overall Length: 5.5" (14 cm)

3666-R [Straight Left, Curved Right]
Overall Length: 5.5" (14 cm)

SMALL WITH RATCHET MECHANISM:

3668 [Straight Left & Right]
Overall Length: 5.5" (14 cm)

3669 [Curved Left & Right]
Overall Length: 5.5" (14 cm)

3668-L [Curved Left, Straight Right]
Overall Length: 5.5" (14 cm)

3668-R [Straight Left, Curved Right]
Overall Length: 5.5" (14 cm)

MEDIUM WITH SPEED LOCK MECHANISM:

3666-01 [Straight Left & Right]
Overall Length: 7" (17,8 cm)

3667-01 [Curved Left & Right]
Overall Length: 7" (17,8 cm)

3666-L-01 [Curved Left, Straight Right]
Overall Length: 7" (17,8 cm)

3666-R-01 [Straight Left, Curved Right]
Overall Length: 7" (17,8 cm)

Download Product Brochure (PDF)

TOP

Ratcheting Reduction Clamp Assembly

Designed as a soft tissue sparing fracture reduction clamp

Designed by Michael Craig, OPA-C

Ratcheting Reduction Clamp Assembly

Ratcheting Reduction Clamp Assembly

High torque can help provide bone and joint reduction without squeezing surrounding tissues

Swivel points are placed on the bone, plate, or screw and the ratcheting dial is turned to the desired torque, allowing hands free operation

Swivel point design allows the clamp to be easily moved from x-ray view without losing reduction

Screw Point fits into a screw head

Plate Point fits into a 3.5 mm plate hole

Product No's:

3840-00 [Ratcheting Reduction Clamp Assembly]
Assembly includes: (1) Clamp, (1) Plate Point,
(1) Screw Point, and (2) Percutaneous Points

Also available Individually:

3840-01 [Clamp]
Overall Length: 10.5" (26,7 cm)
Width: 9" (22,9 cm)
Height: 6.5" (16,5 cm)

3840-02 [Plate Point]
Overall Length: 1" (2,54 cm)

3840-03 [Screw Point]
Overall Length: .875" (2,2 cm)

3840-04 [Percutaneous Point]
Overall Length: 1" (2,54 cm)
(2) included in set, one with this product number

Download Product Brochure (PDF)

TOP

Shark Tooth Graspers Graspers sharp teeth help grasp onto tissue and bone				Designed by Luis Ulloa

				Helpful in removing the labrum, and osteophytes around the acetabulum and around the glenoid. Also helps to remove meniscus, osteophytes and loose bodies. Helps facilitate working through a small incision without disrupting vision. Product No’s: STANDARD HANDLE 1797 [5" Shaft with Standard Handle] Jaw Size: 6 mm x 10 mm Overall Length: 8" (20,3 cm) Shaft Length: 5" (12,7 cm) 1798 [7" Shaft with Standard Handle] Jaw Size: 6 mm x 10 mm Overall Length: 10" (25,4 cm) Shaft Length: 7" (17,8 cm) 1799 [9" Shaft with Standard Handle] Jaw Size: 6 mm x 10 mm Overall Length: 12" (30,5 cm) Shaft Length: 9" (22,9 cm) 1796 [12" Shaft with Standard Handle] Jaw Size: 6 mm x 10 mm Overall Length: 15" (38,1 cm) Shaft Length: 12" (30,5 cm) SMALL GRIP HANDLE Small Grip Handle designed with the grip closer together for easier gripping and to help reduce hand fatigue. 1798-SG [7" Shaft with Small Grip Handle] Jaw Size: 6 mm x 10 mm Overall Length: 10" (25,4 cm) Shaft Length: 7" (17,8 cm) 1799-SG [9" Shaft with Small Grip Handle] Jaw Size: 6 mm x 10 mm Overall Length: 12" (30,5 cm) Shaft Length: 9" (22,9 cm) Download Product Brochure (PDF)
				TOP

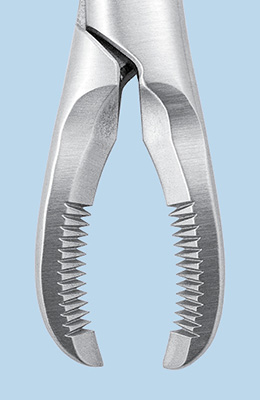

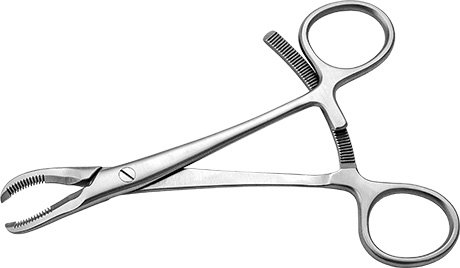

Small Bone Holding Forceps with Long Ratchet Designed for use in stabilization of a fracture or osteotomy

				Product No: 1170 Overall Length: 5.75" (14,6 cm) Download Product Brochure (PDF)
				TOP

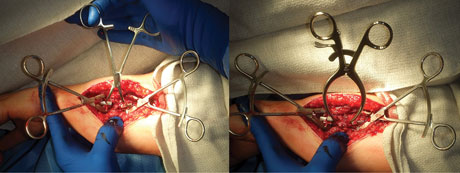

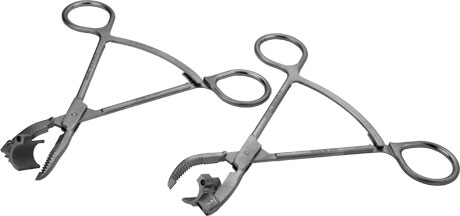

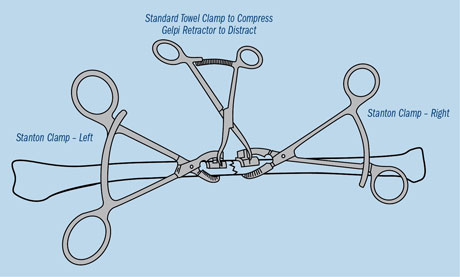

Stanton Articulating Small Bone Clamps Opposing clamps facilitate manipulation of fracture ends				Designed by John L. Stanton, MD

				The small tube allows use of a towel clamp to compress non-union and shortening osteotomies during fixation, as well as to allow the use of Gelpi retractors to distract malunions during revision surgery. Product No: 1811-00 [Set] Set of Left & Right Set includes / Available Individually: 1811-L [Left] Overall Length: 5.125" (13 cm) Curved Plate Radius: 5 mm Pin Hole for Pins Up To: 2,4 mm 1811-R [Right] Overall Length: 5.125" (13 cm) Curved Plate Radius: 5 mm Pin Hole for Pins Up To: 2,4 mm Download Product Brochure (PDF)
				TOP

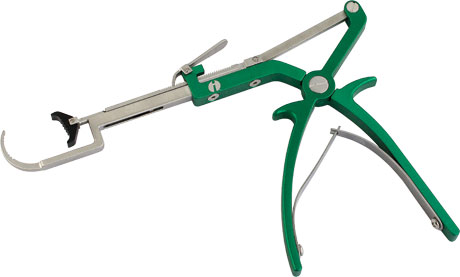

Stoll Bone Plate Clamp Designed to help hold a bone or bone plate in position for reduction and fixation—helpful with clavicle and fibula fractures				Designed by Jordan Stoll, MD

				Product No: 1774 Overall Length: 10" (25,4 cm) Download Product Brochure (PDF)
				TOP

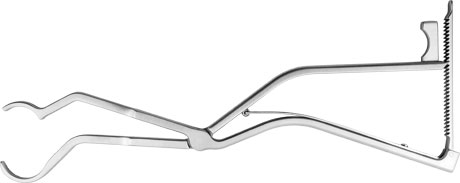

Subtrochanteric Femur Fracture Reduction Clamp Contour design helps clamp a subtrochanteric or femoral shaft fracture treated with current generation femoral IM rodding systems using external aiming arms/targeting devices				Designed by David Beard, MD

				Product No: 3850 Overall Length: 12.875" (32,7 cm) Handle Length: 7.5" (19,1 cm) Jaw Length: 5.25" (13,3 cm) Jaw Width: .25 (6,3 mm) Download Product Brochure (PDF)
				TOP

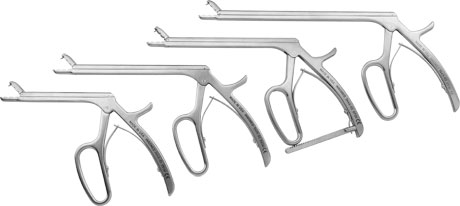

Sure Grip Soft Tissue Graspers Enables the surgeon to securely grasp soft tissue structures within the knee				Designed by Andrew Glassman, MD

				Incorporates a spike into its upper jaw with a matching recess in the lower jaw, enabling the surgeon to securely grasp soft tissue structures within the knee. Particularly useful for grasping the posterior horn of either the medial or lateral meniscus. Also useful when excising the cruciate ligaments, capturing loose bodies, holding the retinaculum during patellar preparation, and grasping the capsule during wound culture. Product No’s: 3645-01 [5"] Overall Length: 8" (20,3 cm) Shaft Length: 5" (12,7 cm) Spike Depth: 3 mm 3645-02 [7"] Overall Length: 10" (25,4 cm) Shaft Length: 7" (17,8 cm) Spike Depth: 3 mm 3646-02 [7" with locking ratchet handle] Overall Length: 10" (25,4 cm) Shaft Length: 7" (17,8 cm) Spike Depth: 3 mm 3645-03 [9"] Overall Length: 12" (30,5 cm) Shaft Length: 9" (22,9 cm) Spike Depth: 3 mm Download Product Brochure (PDF)
				TOP

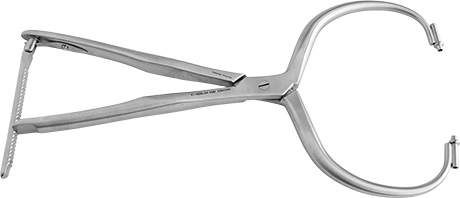

Vosburg Cannulated Periarticular Clamp Cannulated clamp tips allow passage of pins up to 7/64" (2.8 mm)				Designed by Caleb Vosburg, MD

				By compressing the fracture with the clamp and then passing two pins, the clamp can then be removed to allow more working room and versatility when applying a plate. Product No: 1864 Overall Length: 13" (33 cm) Handle Length: 8" (20,3 cm) Ratcheted Opening from 2" to 3.5" (5,4 to 7,6 cm) Accepts Pins up to: 7/64" (2.8 mm) Download Product Brochure (PDF)
				TOP

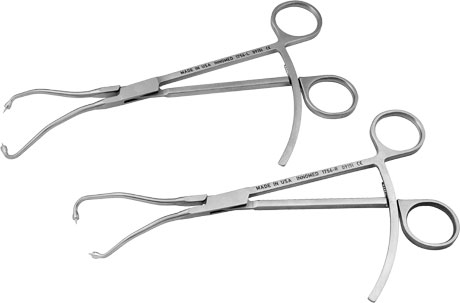

Weinert Bone Holding Elbow Fracture Reduction Clamp Designed to securely hold an elbow fracture reduction				Designed by Carl R. Weinert, MD

				The stops on each end help prevent excessive penetration of metaphyseal and soft bone. Product No's: 1756-L [Left] Overall Length: 8.75" (22,2 cm) 1756-R [Right] Overall Length: 8.75" (22,2 cm) Download Product Brochure (PDF)
				TOP

Weinert Bone Holding Reduction Clamp Designed to securely hold fracture reductions				Designed by Carl R. Weinert, MD

				The stops on each end help prevent excessive penetration of metaphyseal and soft bone. Product No: 1755 Overall Length: 8.5" (21,6 cm) Jaw opens to: 3" (7,6 cm) Download Product Brochure (PDF)
				TOP
