Auerbach Arm Holder Rake Retractor Set
Distal Humerus Fracture Board
Freeman Arm Holder
Nicholson Headrest
NEW! Auerbach Arm Holder Rake Retractor Set
Distal Humerus Fracture Board
Freeman Arm Holder
Nicholson Headrest

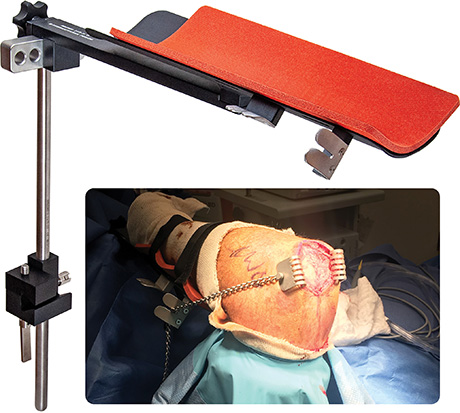

Auerbach Arm Holder Rake Retractor Set

Allows intraoperative positioning for procedures of the posterior arm, elbow, and forearm


Designed by David M. Auerbach, MD



Auerbach Arm Holder Rake Retractor Set

  • Simple design for fast and easy positioning

  • Connects over the drape in the sterile field using the supplied rail clamp and post

  • Can be repositioned during surgery
  • Sterilizable rubber pad protects the arm
  • Retractors for the skin and soft tissues connect to the holder
  • Compact for easy storage


  • Auerbach Arm Holder Rake Retractor Set

    Product No's:

    2415-00 [Auerbach Arm Holder Rake Retractor Set]
    Set includes:
    (1) Arm Holder Assembly,
    (1) Arm Holder Upright Rod,
    (2) 4-Prong Chain Retractors,
    (2) 6-Prong Chain Retractors,
    (2) Black Straps,
    (1) Silicone Pad, and
    (1) Table Clamp.


    Individual/Replacement Parts:

    2415-01 [Auerbach Arm Holder Assembly]
    Overall Length: 20" (50,4 cm)
    Arm Holder Dimensions: 14.5" x 4" (36,9 x 10,2 cm)
    Overall Width inclusing Cleats: 7.5" (19,1 cm)


    2415-02 [Auerbach Arm Holder Upright Rod]
    Overall Length: 19.25" (49,9 cm)

    2415-04 [Auerbach Rake Chain Retractor 4-Prong]
    Two included in set, one with this product number
    Overall Length including Chain: 10" (25,4 cm)
    Retractor Width: .75" (1,9 cm)


    2415-06 [Auerbach Rake Chain Retractor 6-Prong]
    Two included in set, one with this product number
    Overall Length including Chain: 10" (25,4 cm)
    Retractor Width: 1.25" (3,2 cm)


    2590-S01 [Black Strap]
    Two included in set, one with this product number
    Dimensions: 1" x 24" (2,5 x 61 cm)


    2595 [Table Clamp]

    2770-P [Silicone Pad]
    12" x 5.5" (30,5 x 14 cm)

    Replacement Parts:

    2590-S [Black Straps] Pkg of 10
    Download Product Brochure (PDF)


    TOP

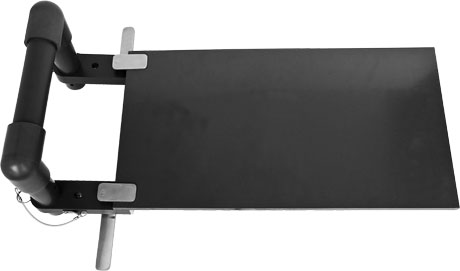

    Distal Humerus Fracture Board

    Designed for the pinning of pediatric supra-condylar and adult distal humerus fractures










    Designed by Burk Young, MD




    Distal Humerus Fracture Board


    Board, crossbar, and optional adult adapter are radiolucent

    .

    Distal Humerus Fracture Board Distal Humerus Fracture Board

    Unit is not sterilizable.

    Allows the surgeon to pin these fractures without having to manually hold the fracture reduced, allowing the surgeon to focus on accurate pin placement and reduction. The height of the crossbar is fully adustable to accommodate different size patients.

    Reduction is acheved by an assistant gently applying axial traction through the forearm, with the crossbar applying the counter traction.

    Pinning is done with the C-arm in the lateral position.

    An optional separate attachment to support the arm for distal humerus fractures in adults is available.


    Product No's:

    2445 [Fracture Board – Pediatric]
    Main Board Dimensions: 22" x 12" (55,8 x 30,5 cm)
    Crossbar Height Adjusts From:
    4.5" to 7.5" (11,4 x 19,1 cm)

    2445-01 [Fracture Board – With Adult Adapter]

    Optional/Replacement Part: 2445-06 [Adult Adapter]

    Distal Humerus Fracture Board Adult Adapter

    Download Product Brochure (PDF)

    TOP

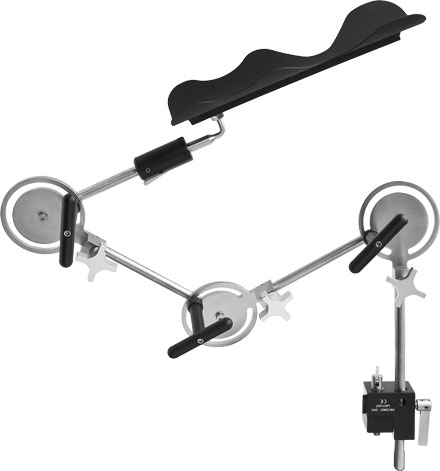

    Freeman Arm Holder

    Allows intraoperative positioning for use in all open, arthroscopic, and replacement shoulder procedures


    Designed by Carl R. Freeman, MD



    Freeman Arm Holder
    • Simple design for fast and easy positioning

    • Multiple elbows allow a wide range of positioning

    • Arm connector is mobile and can be easily released for repositioning

    • Connects over the drape in the sterile field using the supplied rail clamp

    • Compact for easy storage

    • Complete unit is autoclavable

    Product No’s:
    2420
    Includes:
    2595 [Table Clamp]
    Download Product Brochure (PDF)

    TOP

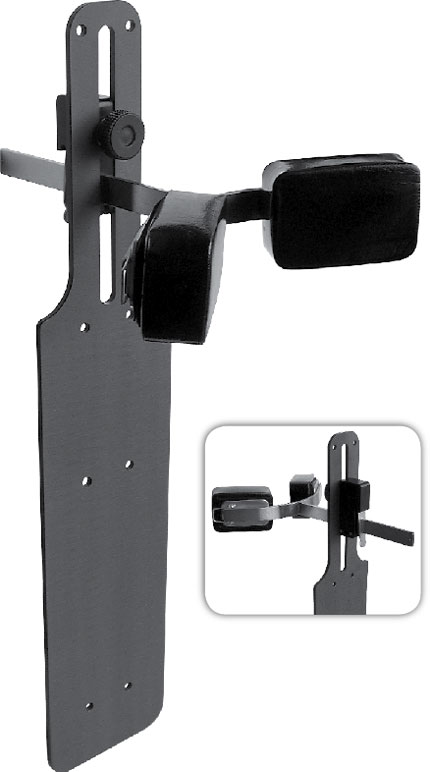

    Nicholson Headrest

    Helps position the patient for all types of shoulder surgery in the beachchair position


    Designed by Gregory Nicholson, MD



    Nicholson Headrest

    Designed to provide excellent exposure to the shoulder, the headrest can be used with standard OR tables (with no modifications to the table). The headrest provides patient support and helps position the patient for all types of shoulder surgery—arthroscopic and open—in the beachchair position. It can be quickly placed and adjusted.

    Nicholson Headrest in Surgery

    Nicholson Headrest

    Nicholson Headrest Forehead Strap
    Velcro head strap is included for optional use.
    Product No’s.
    2450 [Headrest]
    Replacement Parts:
    2450-S [Strap with gel pad]
    4150-PD2 [Set of 2 Small Pads]
    Download Product Brochure (PDF)

    TOP
