Craig-Type Pin Extractor Set
Mueller-Type Cement
Removal Instruments
Nicholson Footed Impactor
Nicholson Small Bone and Shoulder Cement Removal Instruments
Craig-Type Pin Extractor Set
Mueller-Type Cement
Removal Instruments
Nicholson Footed Impactor
Nicholson Small Bone and Shoulder Cement Removal Instruments
Nicholson Universal Humeral Prosthesis Extractor
Screw Extractor Set
Sheffield Universal Prosthetic Elbow Extraction System
Star Bit Driver Set
Universal Screw Removal Instrument System
Nicholson Universal Humeral Prosthesis Extractor
Screw Extractor Set
Sheffield Universal Prosthetic Elbow Extraction System
Star Bit Driver Set
Universal Screw Removal Instrument System




Craig-Type Extractor Set

Designed to firmly tighten circumferentially around a wire, pin, broken screw, etc. for removal — especially helpful for the removal of threaded pins



Craig-Type Pin Extractor Set


Craig-Type Pin Extractor Set

  • Removes pins & screws up to 5mm (.2") diameter and wires as small as .8mm (1/32") diameter
  • Five interchangeable collets for various grasping capacities
  • Two cross-handle insert rods give strong leverage for locking the collet securely onto the pin
  • Slap hammer included
Product No: 1215-00
Set includes:
(1) handle draw bar,
(1) closing sleeve with hand wheel,
(5) collets (1mm to 5mm),
(2) cross-handle insert rods,
(1) slap hammer,
(1) sterilization case
Download Product Brochure (PDF)

TOP





Mueller-Type Cement Removal Instruments



Mueller-Type Cement Removal Instruments

Mueller-Type Cement Removal Instruments

Product No's (Top to Bottom):
1) Narrow Cement Removal Gouge, Short
Product No: S7505
Shaft Length: 150mm
Gouge: 9mm, negative




2) Narrow Cement Removal Gouge, Long
Product No: S7507
Shaft Length: 240mm
Gouge: 9mm, negative

3) Narrow Offset Cement Removal Gouge
Product No: S7510
Shaft Length: 240mm
Gouge: 9mm, negative

4) Acetabular Chisel
Product No: S7515
Shaft Length: 240mm
Chisel: 7.5mm

5) Offset Chisel
Product No: S7520
Shaft Length: 150mm
Chisel: 9mm

6) Flared Angle Gouge
Product No: S7525
Shaft Length: 240mm
Gouge: 9mm, positive, angle 15° downward

7) Wide Gouge
Product No: S7530
Shaft Length: 240mm
Gouge: 11.5mm, negative

8) “V” Splitter
Product No: S7535
V-Shaped Chisel: 7mm

9) Cement Splitting Osteotome
Product No: S7590
Shaft Length: 240mm

10) Saddle Punch
Product No: S7587
Shaft Length: 240mm
Punch: 16.5mm x 6.5mm

11) Cement Removal Osteotome, Short
Product No: S7595
Shaft Length: 150mm
Osteotome: 8mm

12) Cement Removal Osteotome, Long
Product No: S7597
Shaft Length: 240mm
Osteotome: 8mm

13) 4.4mm Drill
Product No: S7540

14) 4.4mm Drill Guide
Product No: S7545

15) 6.4mm Drill
Product No: S7550

16) 6.4mm Drill Guide
Product No: S7555

17) Straight Cement Removal Hook
Product No: S7560
Hook Curette: 10mm

18) Curved Cement Removal Hook
Product No: S7565
Hook Curette: 10mm

19) Cross Bar
Product No: S7570

20) 7mm T-Handle Conical Tap
Product No: S7575

21) 9mm T-Handle Conical Tap
Product No: S7580

22) Slotted Mallet
Product No: S7585

S7500-00 [Complete Set with Case]
9075 [Case]
Download Product Brochure (PDF)

TOP

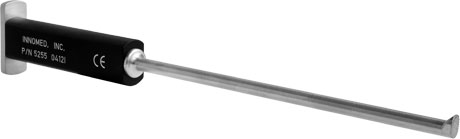

Nicholson Footed Impactor

Designed to help remove a humeral prosthesis by impacting the medial collar from underneath, after a gap has been exposed between the rim/bone interface

Designed by Gregory Nicholson, MD


Nicholson Footed Impactor

Nicholson Universal Humeral Prosthesis Extractor

The distal, footed end of the impactor is positioned under the neck rim of the prosthesis, and a mallet is used to strike the large proximal platform of the impactor to help loosen and remove the prosthesis in line with the stem.

Product No: 5255
Foot Pad Size: 8.5 mm x 11.5 mm
Shaft Diameter: 8.5 mm (21,6 cm)
Overall Length: 12.75" (32,4 cm)
Handle Length: 4.5" (11,4 cm)



Download Product Brochure (PDF)


TOP





Nicholson Small Bone and Shoulder Cement Removal Instruments

Designed to facilitate cement removal in smaller diameter bone of the humerus, ulna, and smaller implant geometries

Designed by Gregory Nicholson, MD


Nicholson Small Bone and Shoulder Cement Removal Instruments

Nicholson Small Bone and Shoulder Cement Removal Instruments

Nicholson Small Bone and Shoulder Cement Removal Instruments

  • Reverse bevel tip helps the gouge to slide between the bone and cement.

  • T-shaped Gouge-Splitter allows the gouge to slide between the cement and bone and vertically split the cement mantle to facilitate removal.

  • Small diameter widths and curvatures more closely match shoulder and elbow implants and smaller bone diameters.

  • Shorter length allows for better control and access.

  • The Footed Imapctor is used to help remove a humeral implant by impacting the medial collar of the prosthesis. Helps provide a very direct parallel force to the implant for removal.

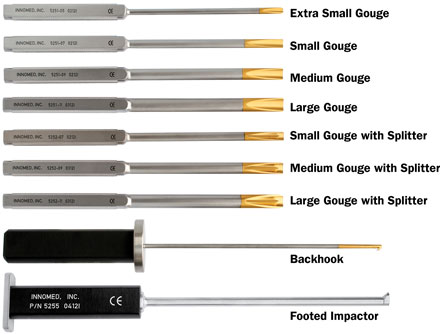

Product No's:

5251-00 [Complete Set with Case]


5251-05 [Extra Small Gouge]
Chisel Width: 5mm
Chisel Depth: .675"
Overall Length: 9.25"
Handle Length: 4.25"

5251-07 [Small Gouge]
Chisel Width: 7mm
Chisel Depth: 1"
Overall Length: 9.25"
Handle Length: 4.25"

5251-09 [Medium Gouge]
Chisel Width: 9mm
Chisel Depth: 1"
Overall Length: 9.25"
Handle Length: 4.25"

5251-11 [Large Gouge]
Chisel Width: 11mm
Chisel Depth: 1"
Overall Length: 9.25"
Handle Length: 4.25"

5252-07 [Small Gouge w/Splitter]
Chisel Width: 7mm
Splitter Height: 3.5mm
Chisel Depth: 1"
Overall Length: 9.25"
Handle Length: 4.25"

5252-09 [Medium Gouge w/Splitter]
Chisel Width: 9mm
Splitter Height: 4mm
Chisel Depth: 1"
Overall Length: 9.25"
Handle Length: 4.25"

5252-11 [Large Gouge w/Splitter]
Chisel Width: 11mm
Splitter Height: 5mm
Chisel Depth: 1"

Overall Length: 9.25"
Handle Length: 4.25"

5254 [Backhook]
Overall Length: 12.5"  
Handle Length: 4.5"  
Shaft Diameter: 4mm

5255 [Footed Impactor]
Foot Pad Size: 8.5mm x 11.5mm
Shaft Diameter: 8.5mm
Overall Length: 12.75"
Handle Length: 4.5"
Footed Impactor

5253 [Case Only for Complete Set]


Download Product Brochure (PDF)



TOP

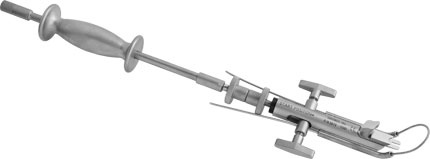

Nicholson Universal Humeral Prosthesis Extractor

Designed to fit most humeral prostheses

Designed by Gregory Nicholson, MD


Nicholson Universal Humeral Prosthesis Extractor

Nicholson Universal Humeral Prosthesis Extractor

Nicholson Universal Humeral Prosthesis Extractor

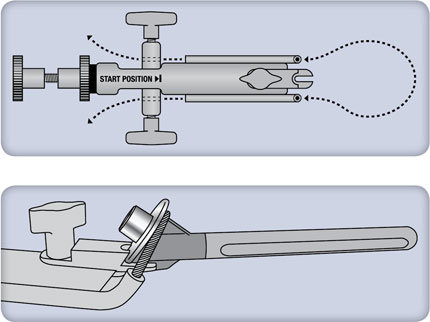

Includes a slaphammer, two non-sterile 2.5mm cables, and a sterilization case.

Nicholson Universal Humeral Prosthesis Extractor

Product No’s:
3670 [Extractor Set with Case]
Individual/Replacement Parts:

3670-01 [Extractor Set without Case]

3670-10 [Foot Adapter]

3670-CABLE [2.5mm Cable] Package of 2

9006 [Case Only]

3925-A12 [Standard Slaphammer with 12" Rod]

3925-H [Slaphammer Only (No Rod)]
Optional Parts:

3925-HS [Easy Grip Slap Hammer (No Rod)] NEW!
Textured silicone hammer designed to help cushion the surgeon’s hand and maintain a solid grip.More Info Here
Download Product Brochure (PDF)

TOP





Sheffield Universal Prosthetic Elbow Extraction System

Designed to aid in the extraction of the four commonly used elbow prostheses

Designed by Mr. Amjid A. Ali and Mr. David Stanley


Sheffield Universal Prosthetic Elbow Extraction System

Sheffield Universal Prosthetic Elbow Extraction System
Sheffield Universal Prosthetic Elbow Extraction System

Sheffield Universal Prosthetic Elbow Extraction System

Design based on the principle that the device should have good hold and that the force used to extract the prosthesis should be applied in line with the long axis of the implant.

Designed to help extract the humeral and ulnar components during total elbow revision surgery. The system includes two modular extraction heads for both humeral and ulnar components, a hook with a narrow tip for help in removing the bearing inserts and extracting the humeral and ulnar components, a locking mechanism release and pin remover, a T-wrench for tightening the extractors onto the components, and a slap hammer.

Product No’s:
3620 [Complete System]

3620-01 [Kudo and iBP Ulnar Component Extraction Clamp]
3620-02 [Kudo, Souter-Strathclyde and iBP Humeral Component Extraction Clamp]
3620-03 [Coonrad-Morrey Ulnar and Humeral Component Extraction Hook]
3620-04 [T-Wrench]
3620-05 [Coonrad-Morrey Pin Remover]
3620-06 [Slap Hammer]
Download Product Brochure (PDF)

TOP





Screw Extractor Set

Designed to help remove screws with stripped or damaged heads



Screw Extractor Set

Screw Extractor Set

  • Extractors must be used with drill in reverse.
  • Screw head is reamed with burnishing end, and is then removed with the left turn thread end.
  • Care must be taken to burnish no more than 1/16" (1.5 mm) deep, as burnishing too deep can weaken the screw head.

Product No’s:
7250-00 [Set with Case]

7250-01 [2.5 mm Screw Extractor]
Overall Length: 6"

7250-02 [3.5 mm Screw Extractor]
Overall Length: 6"

7250-03 [6.5 mm Screw Extractor]
Overall Length: 6"
Download Product Brochure (PDF)

TOP





Star Bit Driver Set






Star Bit Driver Set

Star Bit Driver Set

Set consists of four star bits — T10, T15, T20, & T25, a handle which accommodates any of the above bits, and a sterilization case. The drive end (A/O) is designed for easy and quick engagement with the universal instrument handle. The ergonomic, modular handle has two connection points, allowing for both straight and T-handle orientations.



Product No's:

5194-00 [4 Star Bits w/Handle & Case]

5194-01 [4 Star Bits w/Case only]

Also sold individually:

S0113 [Universal 4" Handle]

5194-10 [T10 with A/O End]

5194-15 [T15 with A/O End]

5194-20 [T20 with A/O End]

5194-25 [T25 with A/O End]

9003 [Case]
Download Product Brochure (PDF)

TOP





Universal Screw Removal Instrument System

Designed to remove solid and cannulated screws, including partial, broken, stripped, and submerged screws



Universal Screw Removal Instrument System
Universal Screw Removal Instrument System Handle
Product No’s:
S0010-00 [Complete System with Case]
S0113 [Universal Instrument Handle]
S0128 [1.5mm Screw Extractor]
S0116 [2.5mm Screw Extractor]
S0130 [3.5mm Screw Extractor]
S0117 [1.5mm Hex Driver]
S0114 [2.5mm Hex Driver]
S0115 [3.5mm Hex Driver]
S0132 [4.0mm Hex Driver]
S0133 [5.0mm Hex Driver]
S0136 [2.5mm Cannulated Hex Driver]
S0137 [3.5mm Cannulated Hex Driver]
S0138 [4.0mm Cannulated Hex Driver]
S0139 [5.0mm Cannulated Hex Driver]
S0118 [Large Cruciform Screwdriver]
S0119 [Small Cruciform Screwdriver]
S0141 [Mini Cruciform Screwdriver]
S0120 [Single Slot Screwdrive]r
S0121 [2.2mm Trephine]
S0122 [3.2mm Trephine]
S0123 [4.2mm Trephine]
S0124 [4.7mm Trephine]
S0125 [7.2mm Trephine]
S0127 [Universal Extractor - Shaft Only]
S0127-01 [Large Extraction Bolt Body]
S0127-03 [Small Extraction Bolt Body]
S0127-04 Extractor Wrench
S0129 [Pick]
S0140 [Cannulated Drive Extension]
9017 [Screw Removal Case Only]

Used for removal of stripped hex screws, buried screws, and partial screws with broken screw heads. The drive end (A/O) is designed for easy and quick engagement with the universal instrument handle.


Screw Extractors

Unique thread design accommodates removal of stripped screws. The instrument “locks” into the screw head and allows removal once engaged. Designed to be used in a counter-clockwise direction.


Trephines

Designed to fit over submerged screws for extraction with minimal bone loss. Extraction is enhanced by the unique tooth design. Designed to be used in a counter-clockwise direction.


Universal Extractor

Designed to remove screws with heads partially or completely missing. The cone shaped head fully engages the remaining screw and optimizes the force needed for removal. The bolt is disposable and locks into place using a unique thread design. Designed to be used in a counter-clockwise direction.


Hex Drivers

Available in all standard hex sizes. Also offered in a cannulated shaft version for easier removal of buried screws.


Screwdrivers

Standard cruciform screwdrivers in large, small, and mini, and single slot.


Cannulated Drive Extension

Used when a longer instrument shaft is desired.


Pick

Used to remove fragments and bone or tissue from screw head.


Universal Instrument Handle

The single handle allows the surgeon to decide which direction is most efficient and comfortable. The quick-connect release mechanism allows for quick interoperative exchange.
Download Product Brochure (PDF)
